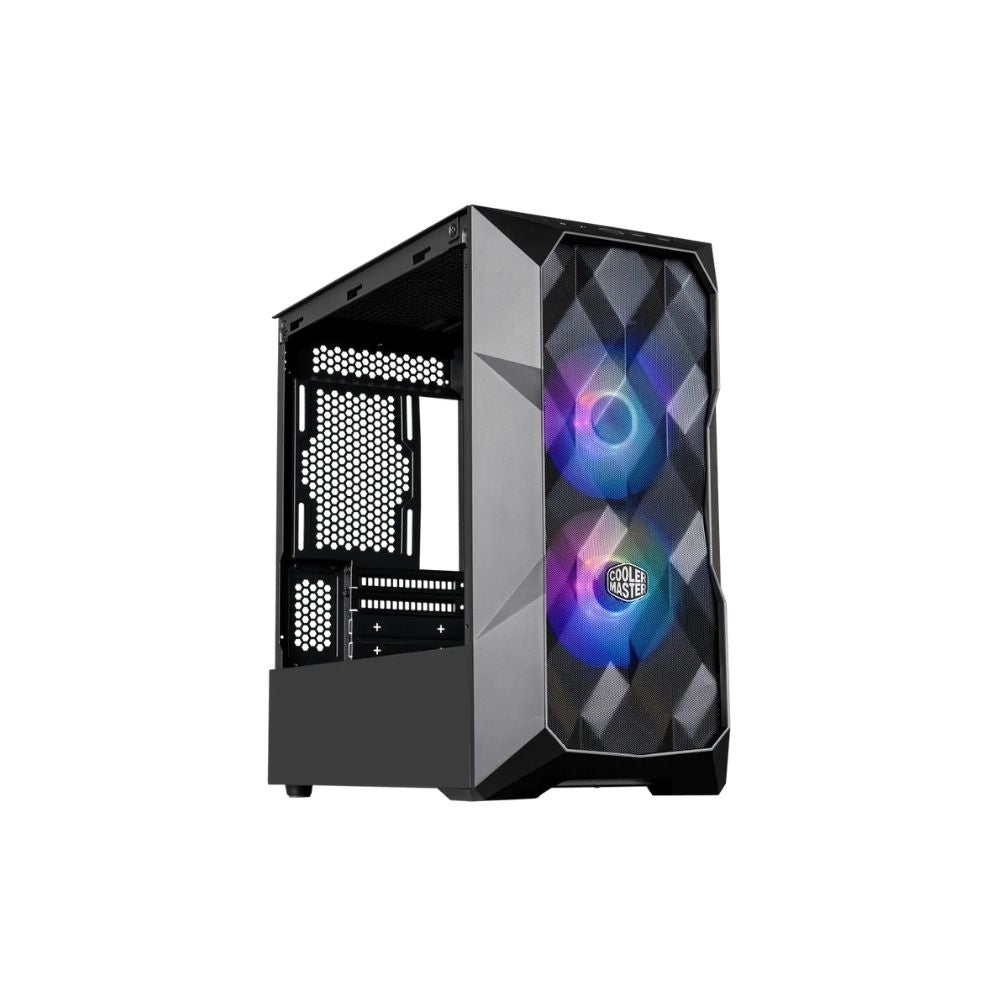

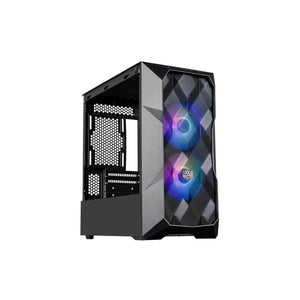

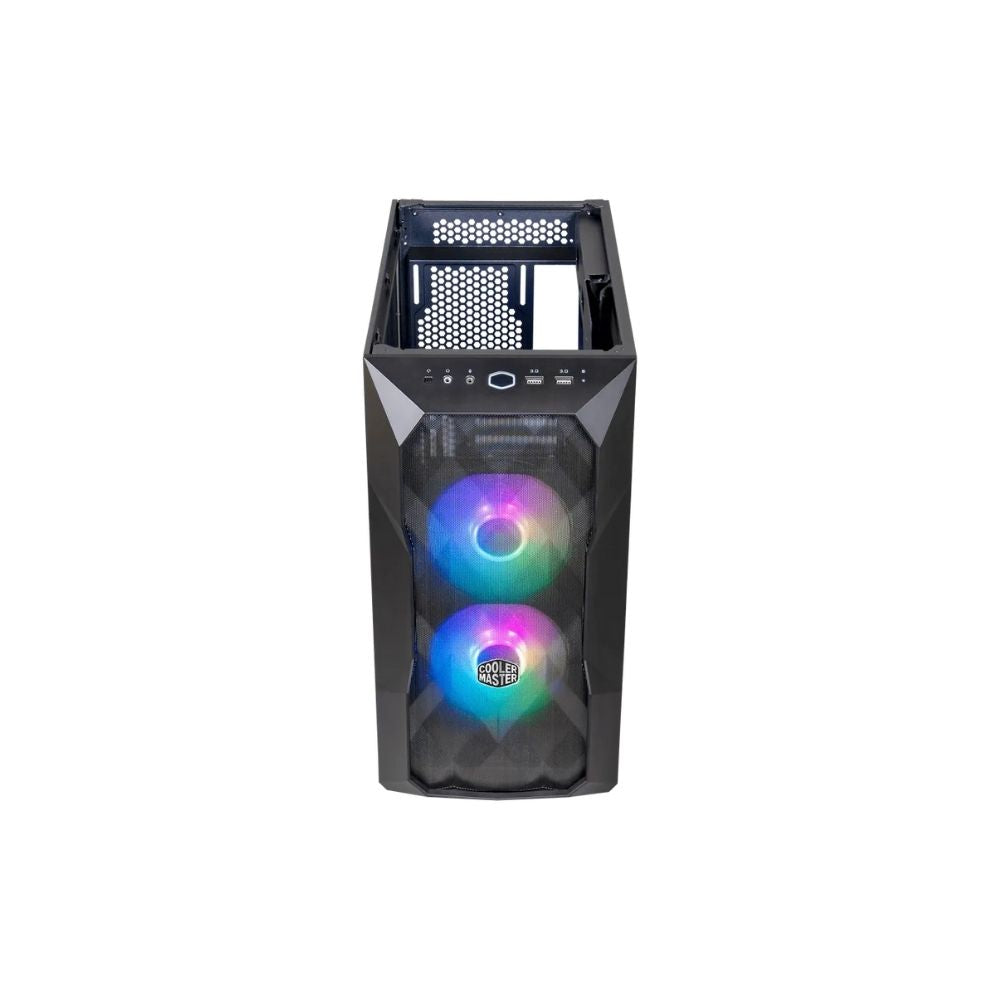

Cooler Master MasterBox TD300 – Mesh Airflow Micro-ATX Case

About the Cooler Master MasterBox TD300 Mesh

The Cooler Master MasterBox TD300 combines mesh front panel cooling with tempered glass aesthetics in a Micro-ATX form factor. This case is designed for builders who want proper airflow and RGB lighting without spending on features they don't need. Whether you're assembling your first gaming rig or upgrading to a more compact setup, the TD300 handles modern components with room to grow.

What This Case Does for You

The mesh front panel ensures unrestricted airflow to your components, preventing thermal throttling during intense gaming sessions or rendering workloads. Two pre-installed CF120 ARGB fans immediately provide intake cooling, eliminating the need to buy separate fans before your build is operational. The integrated ARGB hub simplifies cable management and RGB synchronization across your components. With support for Micro-ATX and Mini-ITX motherboards, you get four expansion slots for modern GPUs and additional cards. The 344mm GPU clearance accommodates current RTX 50 series graphics cards and previous-generation RTX 40 series models without fitment issues.

Cooling Versatility in Compact Form

Despite its Micro-ATX footprint, the TD300 supports up to 280mm radiators on both the top and front mounting positions. This means you can install serious AIO liquid coolers for high-performance CPUs without upgrading to a larger case. The 166mm CPU cooler clearance accommodates most air coolers, giving you flexibility in your cooling approach. Comprehensive dust filters on the front, top, and bottom panels protect your components while maintaining airflow, reducing maintenance frequency compared to cases with limited filtration.

Perfect For

• First-time builders wanting a complete case with fans and RGB already included for custom PC builds without hidden costs
• Compact gaming setups that need to fit modern GPUs and liquid cooling without taking up excessive desk space
• System upgraders moving from older ATX cases to a cleaner, more efficient Micro-ATX layout with better cable management
• Users prioritizing airflow performance over solid panel aesthetics, especially in warm Singapore climate conditions

Why Buy from Mansa Computers

• 2-year Singapore warranty with Cooler Master and Ban Leong Technologies service support
• Fast WhatsApp inquiry response for compatibility questions before purchase
• Open 7 days a week for support and advice
• Home delivery available – cases are bulky and inconvenient to transport yourself

Technical Specifications Summary

Form Factor
Micro-ATX, Mini-ITX

Pre-Installed Fans
2x 120mm CF120 ARGB (Front)

Radiator Support
Up to 280mm (Top/Front)

GPU Clearance
344mm

CPU Cooler Clearance
166mm

Side Panel
Tempered Glass

Drive Bays
2x 2.5"/3.5" Combo + 2x 2.5"

Dust Filters
Front, Top, Bottom

The Cooler Master MasterBox TD300 delivers the cooling performance and aesthetics you need for a reliable build. With pre-installed ARGB fans, mesh airflow design, and comprehensive Singapore warranty support, your components stay cool and protected for years of gaming and productivity.

Model Number
TD300 Mesh: TD300-KGNN-S00

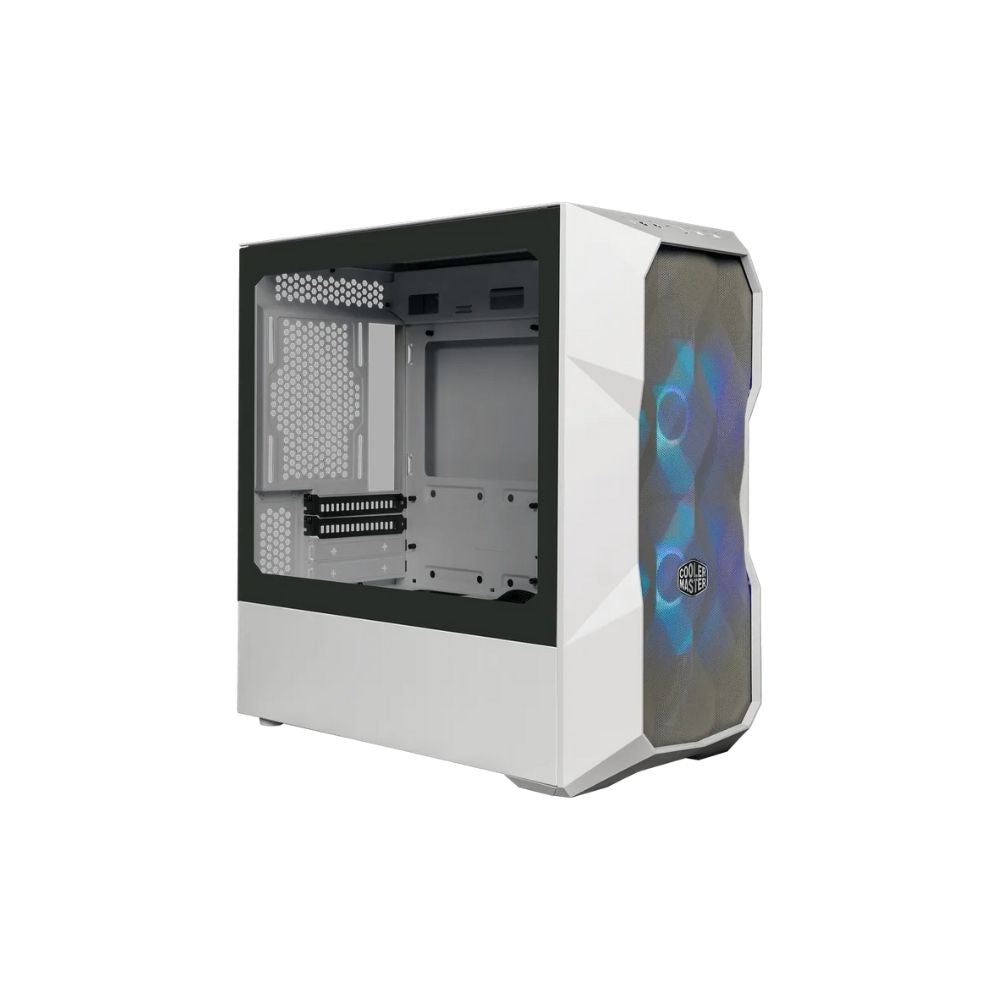

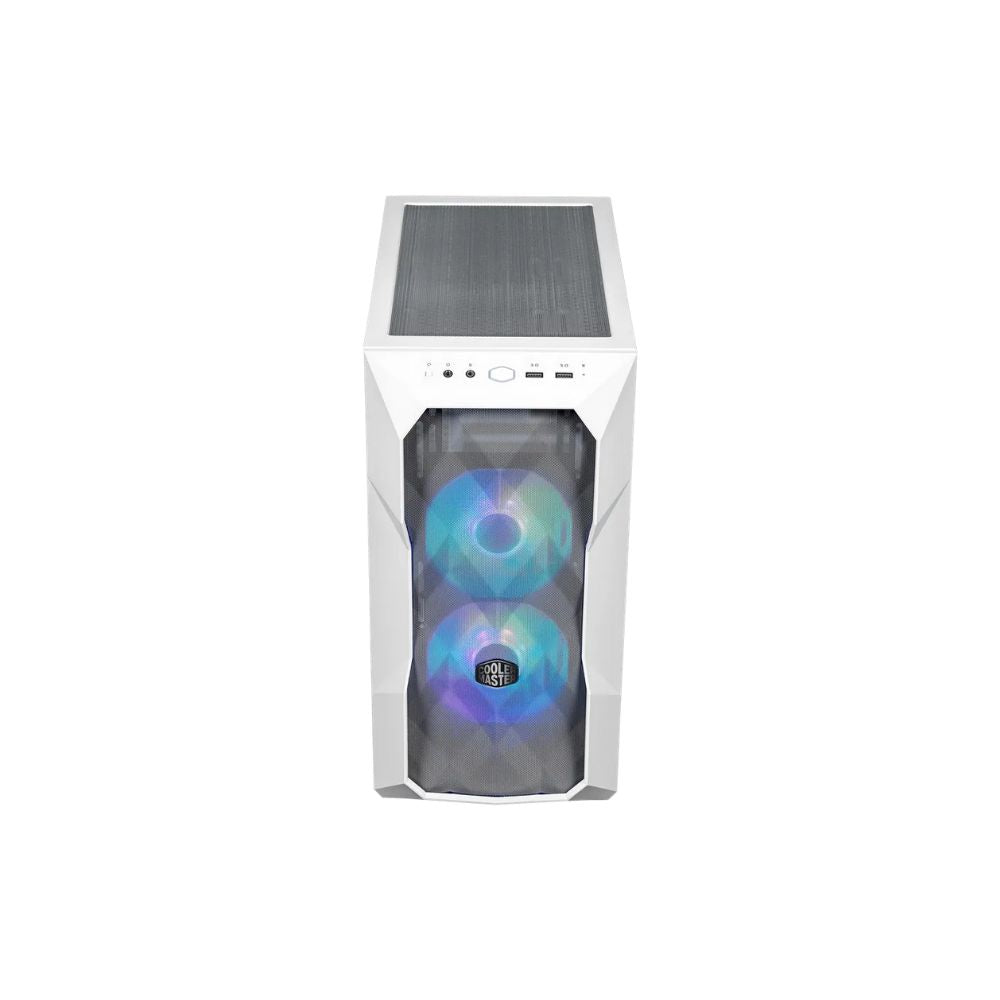

TD300 Mesh White: TD300-WGNN-S00

Materials - Body
Steel, Mesh, Plastic

Materials - Side Panel
Tempered Glass

Dimensions (L x W x H)
366.5 x 210 x 410mm (Body Size)
433 x 210 x 420.5mm (incl. Protrusions)

Volume
38.24L (incl. Protrusions)

Motherboard Support
Mini-ITX, Micro-ATX

Expansion Slots
4

Drive Bays (Combo)
2 x 2.5" / 3.5"
2 x 2.5"

I/O Panel
2x USB 3.2 Gen 1 (formerly USB 3.0)
1x 3.5mm Audio Jack
1x 3.5mm Mic Jack
1x ARGB Hub

Pre-installed Fans
Top: N/A
Front: 2x 120mm CF120 ARGB Fan
Rear: N/A
Bottom: N/A

Fan Support
Top: 2x 120mm / 2x 140mm
Front: 3 x 120mm* / 2 x 140mm (*can only mount behind the front plate)
Rear: 1x 120mm

Radiator Support
Top: 120 / 140 / 240 / 280mm
Front: 120 / 140 / 240 / 280mm

Clearance - CPU Cooler
166mm

Clearance - PSU
325mm (w/o front radiator & drive cage), 140mm (drive cage in backmost position)

Clearance - GFX
344mm

Cable Routing - Behind Motherboard Tray
18-22mm

Dust Filters
Front, Top, Bottom

Power Supply Support
Bottom Mount, ATX

Size
Mini Tower

Series
MasterBox Series

2 YEARS DISTRIBUTOR WARRANTY

Ban Leong Technologies Ltd
150, #04-01 Ubi Ave 4, Ubi Biz-Hub,
Singapore 408825
Contact: 6512 9250

Frequently Asked Questions About Cooler Master MasterBox TD300

Does the Cooler Master MasterBox TD300 come with fans included?

Yes, the TD300 includes two 120mm CF120 ARGB fans pre-installed at the front. The case also has an integrated ARGB hub for easy RGB synchronization. You can add more fans to the top and rear positions for enhanced cooling.

Can this case fit RTX 50 series graphics cards?

Absolutely. With 344mm GPU clearance, the TD300 accommodates all current RTX 50 series cards and previous-generation RTX 40 series GPUs. Most modern graphics cards fit comfortably without removing drive cages.

What size liquid cooler can I install in this Micro-ATX case?

The TD300 supports up to 280mm radiators on both the top and front mounting positions. This means you can install most 240mm or 280mm AIO coolers. Air coolers up to 166mm height also fit perfectly.

What warranty coverage does this case have in Singapore?

The Cooler Master MasterBox TD300 comes with 2-year warranty backed by Ban Leong Technologies Ltd in Singapore. Mansa Computers provides direct WhatsApp support for any warranty or compatibility questions.

How does the TD300 compare to other Micro-ATX cases at this price?

The TD300 stands out by including pre-installed ARGB fans and tempered glass at SGD 169. Most competing cases require separate fan purchases or lack RGB functionality. The mesh front panel provides better airflow than solid-panel alternatives.
