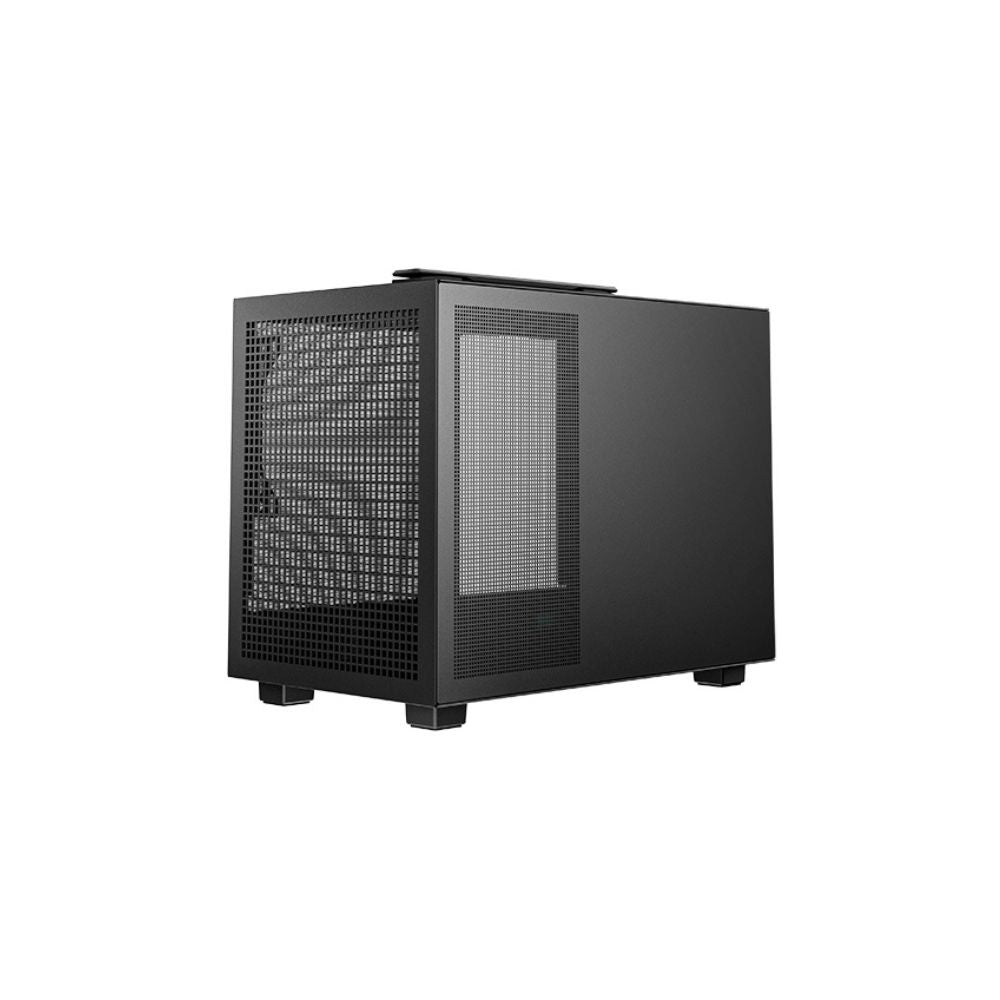

DeepCool CH160 ITX Case – Tempered Glass Mini-ITX Chassis

About the DeepCool CH160 ITX Case

The DeepCool CH160 ITX case brings pc case with handle as well as tempered glass aesthetics to compact builds without complicated requirements. This Mini-ITX chassis gives you showcase-quality looks while keeping your total build straightforward. It's designed for builders who want their components visible in a space-efficient form factor that fits any desk setup.

What This DeepCool CH160 Does for You

This case solves the biggest challenge in Mini-ITX builds: the expensive SFX power supply requirement. Most compact cases force you to buy SFX units costing SGD 150-300, but the CH160 accepts standard ATX power supplies up to 140mm long. You can use your existing ATX PSU or buy an affordable new one, cutting hundreds from your build cost. GPU clearance reaches 305mm with SFX PSUs or 230mm with ATX units, fitting cards like the RTX 4060 Ti comfortably. The flexible front bay lets you choose between a 120mm fan for better airflow, a 2.5" SSD, or a 3.5" HDD based on your priorities.

Build Quality and Design

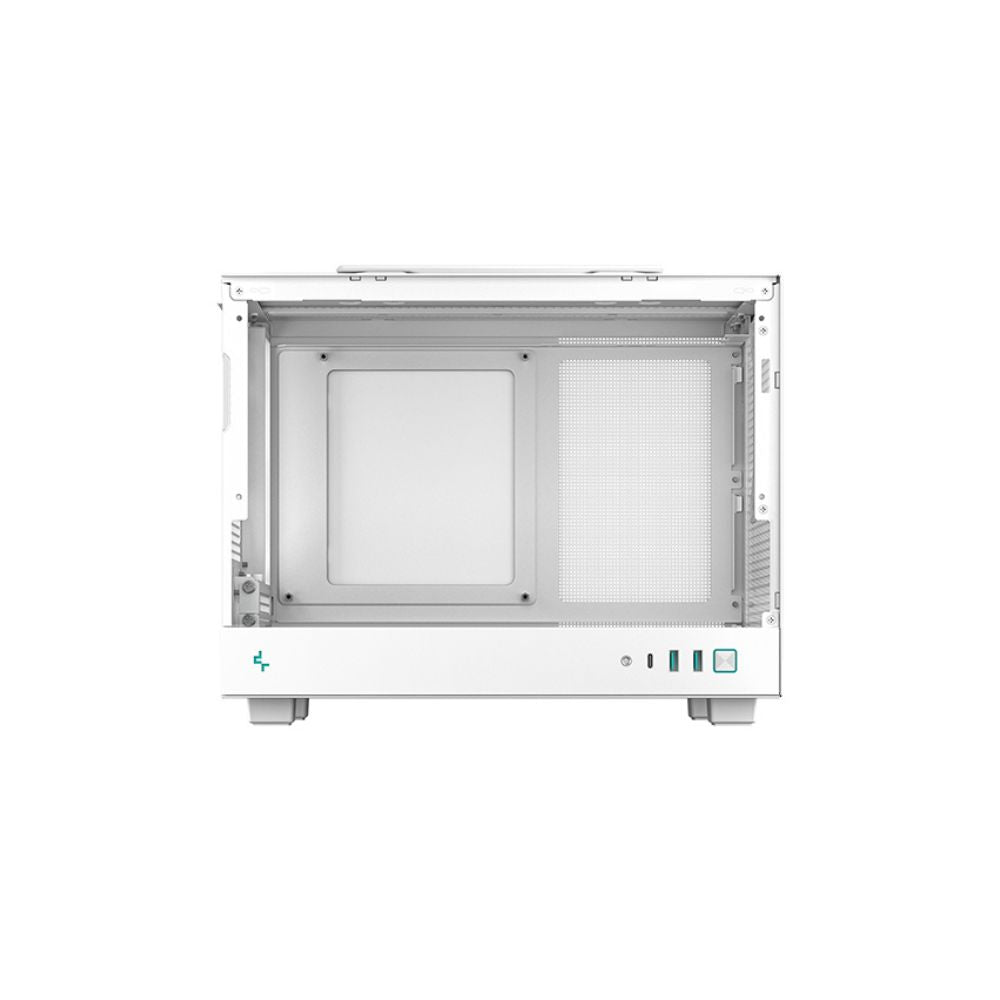

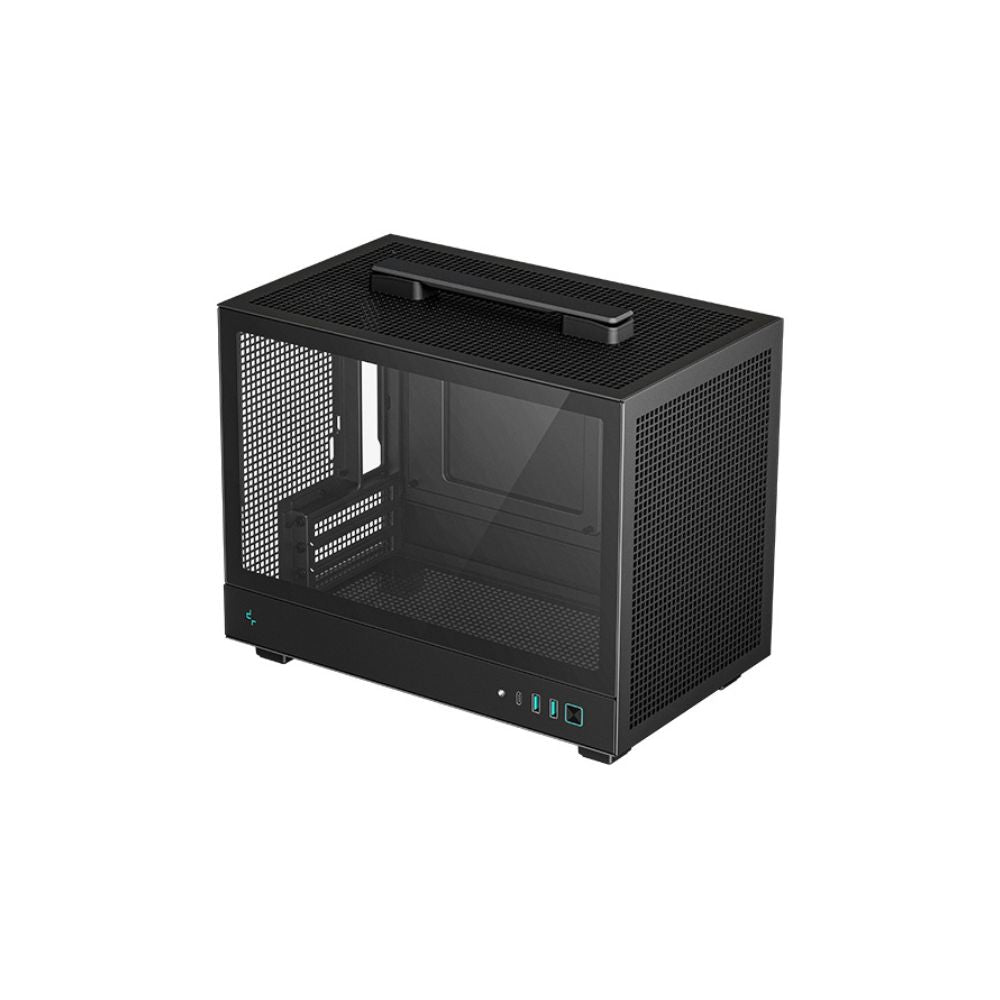

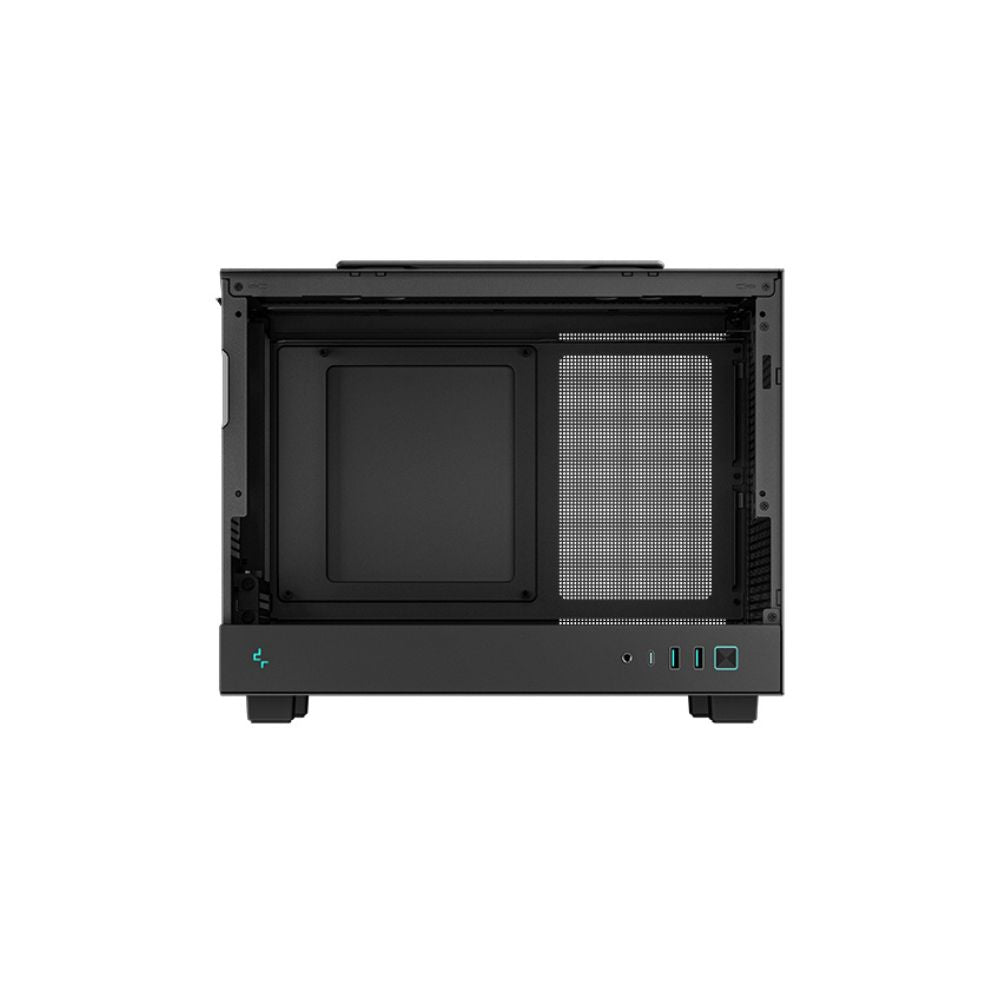

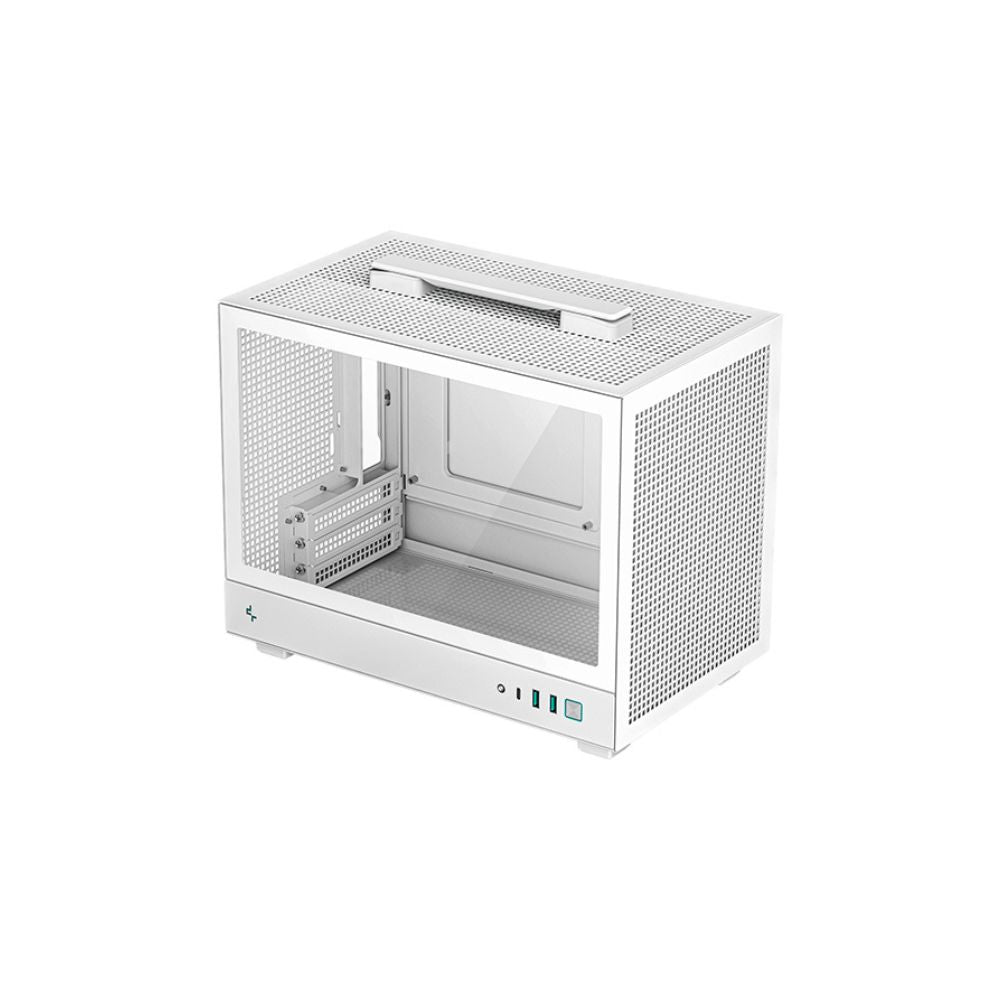

The tempered glass side panel turns your components into a display piece while SPCC steel construction keeps everything protected. Front I/O includes two USB 3.0 ports and one USB Type-C Gen2 port for modern device connectivity. Despite the compact 336 × 200 × 283.5mm footprint, the case supports CPU coolers up to 172mm tall and three-slot GPUs up to 65mm wide. This means you're not limited to low-profile components just because you're building small.

Perfect For

• First-time Singapore PC builder or Mini-ITX builders wanting tempered glass in a straightforward, accessible chassis within a fully customised PC build.
• Builders reusing their existing ATX power supply in a compact form factor without additional hardware investments.
• LAN party attendees needing portable systems that still look sharp with visible components through glass.
• Small apartment or dorm room setups where desk space is limited but component visibility still matters.

Why Buy from Mansa Computers

• 1-year Singapore warranty with DeepCool service support
• Fast WhatsApp inquiry response for PSU and GPU compatibility questions
• Open 7 days a week for support
• Home delivery available

Technical Specifications Summary

Motherboard Support
Mini-ITX

Dimensions
336 × 200 × 283.5mm

Materials
ABS + SPCC + Tempered Glass

PSU Support
ATX (up to 140mm) / SFX / SFX-L

GPU Clearance
305mm (SFX PSU) / 230mm (ATX PSU)

CPU Cooler Height
172mm

Front I/O
2× USB 3.0, 1× USB Type-C Gen2, Audio

Fan Support
Top: 2× 120mm, Rear: 1× 120mm

The DeepCool CH160 ITX case makes compact building accessible with tempered glass and ATX PSU support. Order yours today for fast home delivery and 1-year Singapore warranty coverage.

Model
CH160

Brand
DeepCool

Product Dimensions (L × W × H)
336 × 200 × 283.5mm

Net Weight
3.3Kg

Materials
ABS + SPCC + Tempered Glass

Motherboard Support
Mini-ITX

Front I/O Ports
2 x USB3.0, 1 x Audio, 1 x Gen2 Type-C

3.5" Drive Bays
1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three）

2.5" Drive Bays
1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three）

Expansion Slots
3 Slots

Pre-Installed Fans
None

Fan Support
Front: 1 × 120 mm（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three）
Top: 2 × 120mm
Rear: 1 × 120mm

Radiator Support
None

CPU Cooler Height Limit
172mm

GPU Size Limit
Length: SFX/SFX-L: 305mm / ATX: 230mm
Height: 138mm
Width: 65mm (3 Slots)

Power Supply Type
ATX PS2（maximum length: 140mm）/ SFX / SFX-L

1 Years Warranty

Tech Dynamic Pte Ltd
514 Chai Chee Ln #05-09, Singapore 469029
Contact: 6717 3000

Frequently Asked Questions About DeepCool CH160 ITX Case

Does the DeepCool CH160 support standard ATX power supplies?

Yes, it supports ATX PSUs up to 140mm long, plus SFX and SFX-L units. GPU clearance is 230mm with ATX PSUs or 305mm with SFX PSUs.

What size graphics card fits in this Mini-ITX case?

The CH160 fits GPUs up to 305mm long with SFX PSUs or 230mm with ATX PSUs. Three-slot cards up to 65mm wide work perfectly, covering most modern gaming GPUs.

Can I install both a front fan and storage drives?

The front bay is flexible: choose one 120mm fan, one 2.5" SSD, or one 3.5" HDD. You can't use all three simultaneously, so pick based on your cooling or storage priority.

What warranty comes with the DeepCool CH160 from Mansa Computers?

You get a 1-year DeepCool Singapore warranty with local service support. We're open 7 days a week and respond fast via WhatsApp for any questions.

How does the CH160 compare to other Mini-ITX cases?

The CH160 offers tempered glass and ATX PSU support in a compact chassis. Similar cases typically require expensive SFX power supplies, making this more accessible for standard builds.
