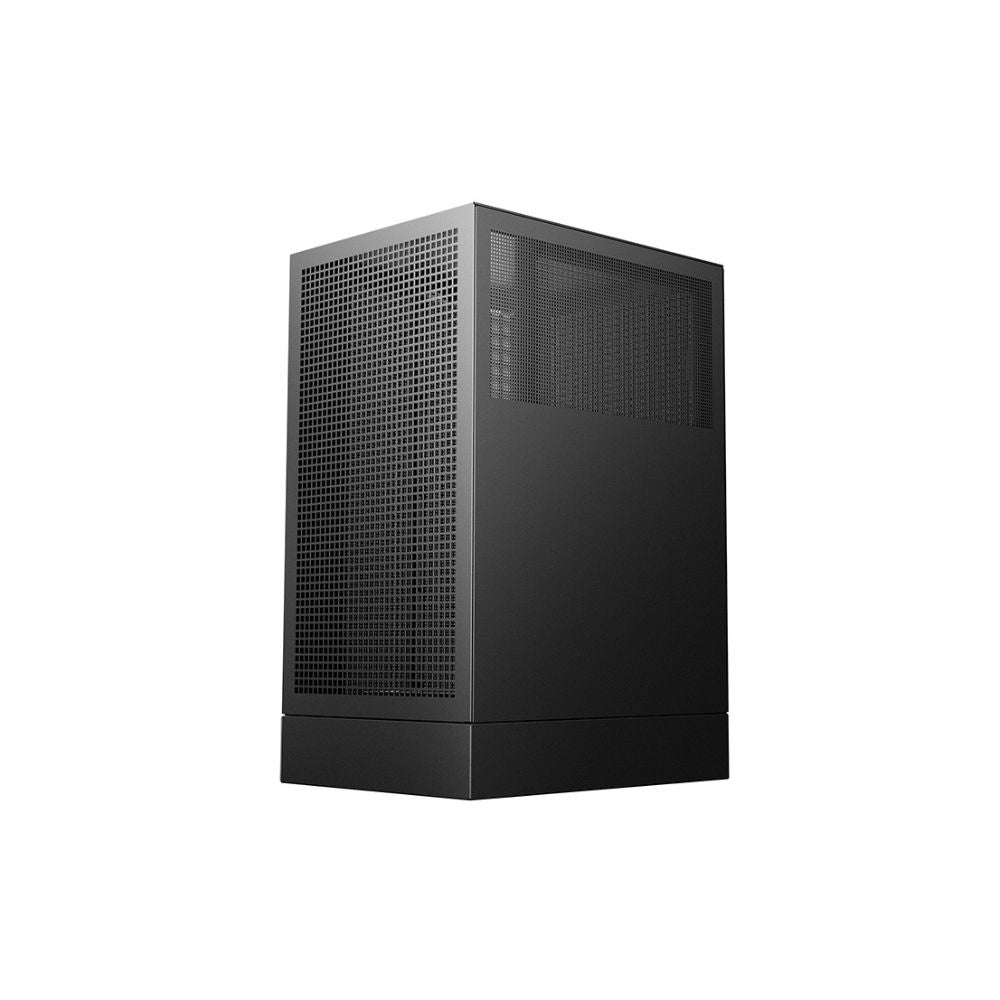

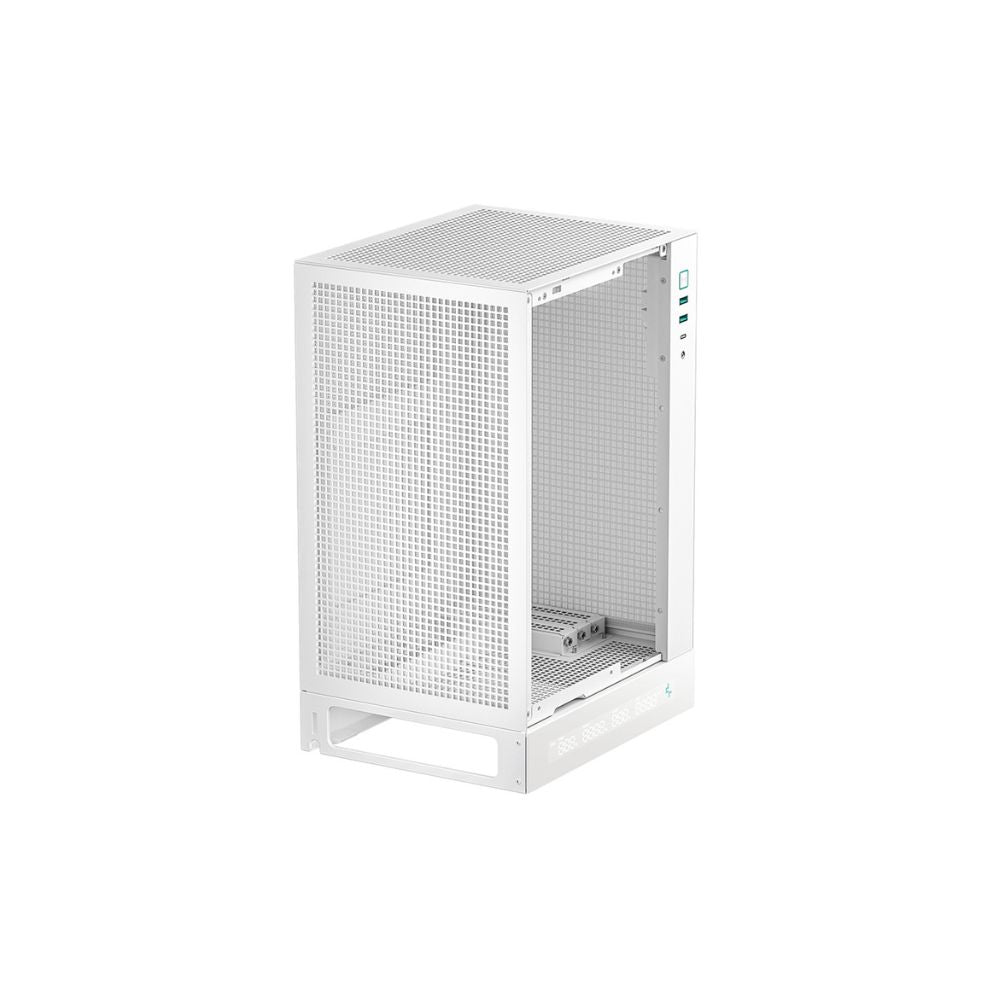

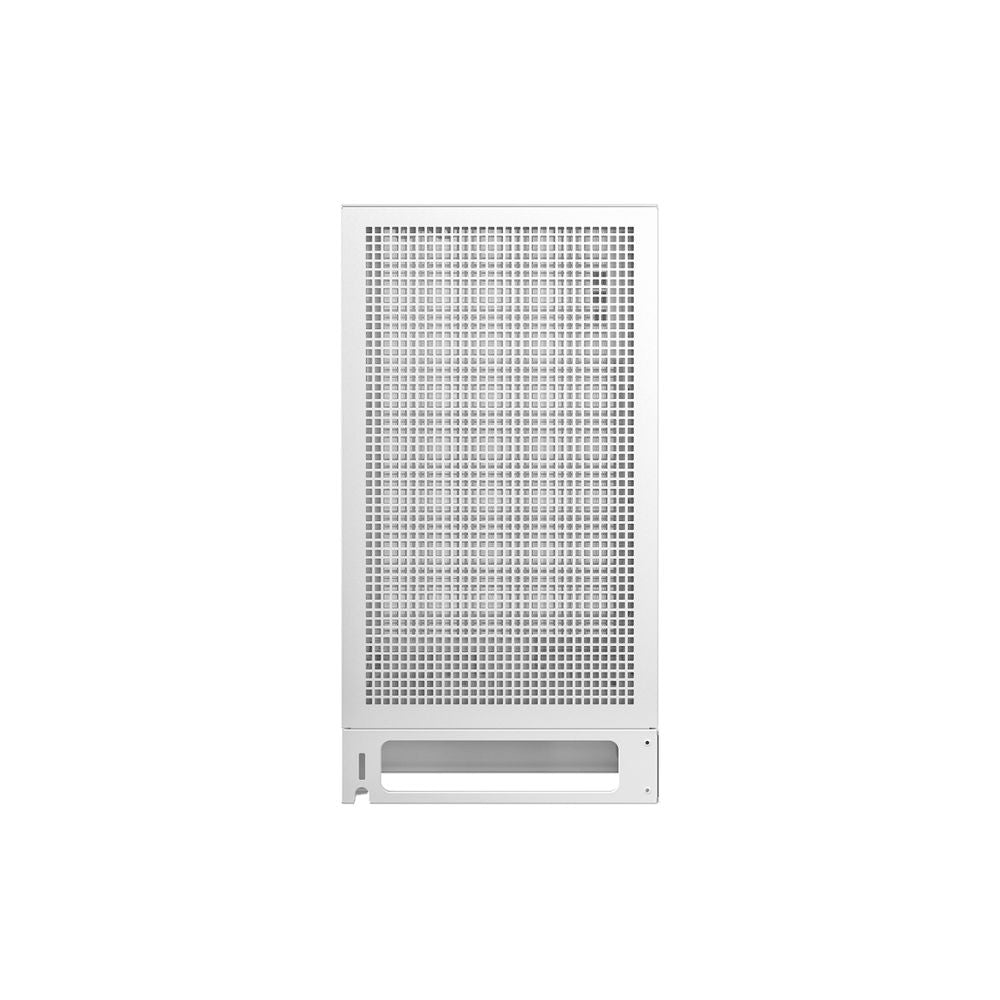

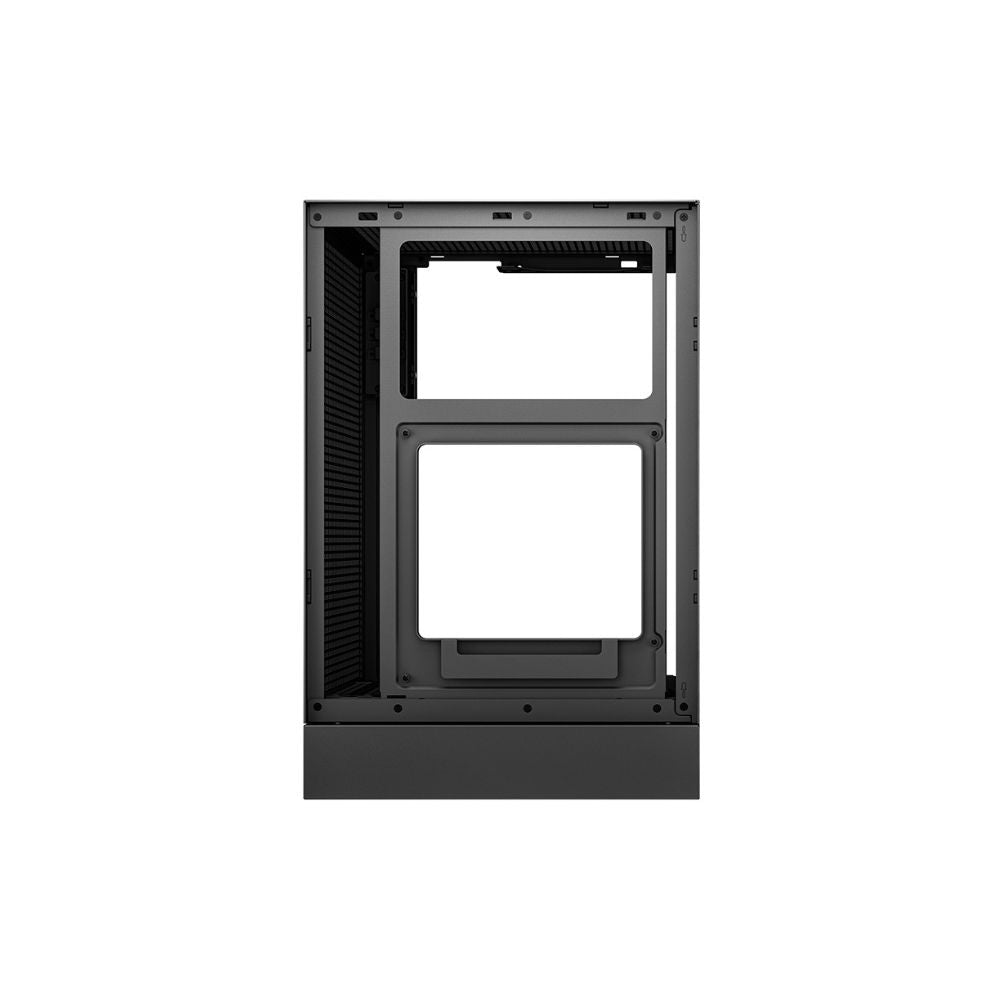

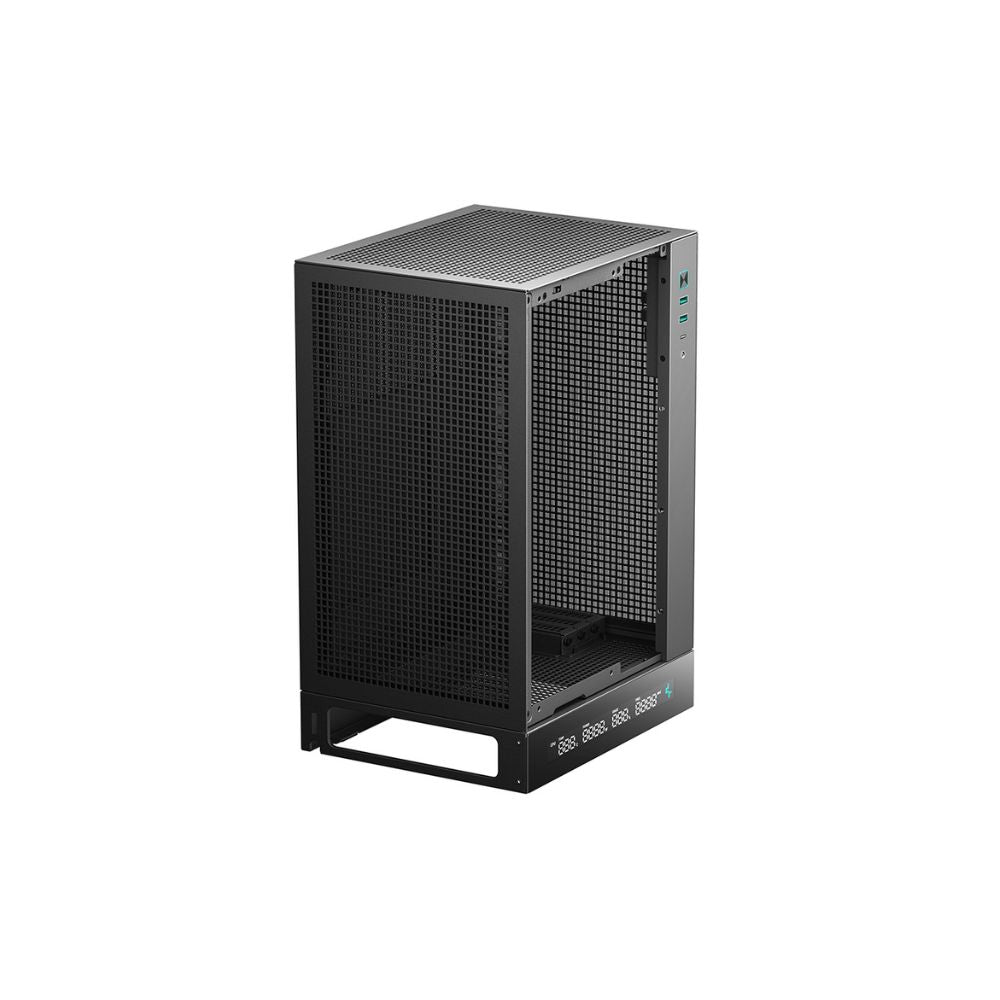

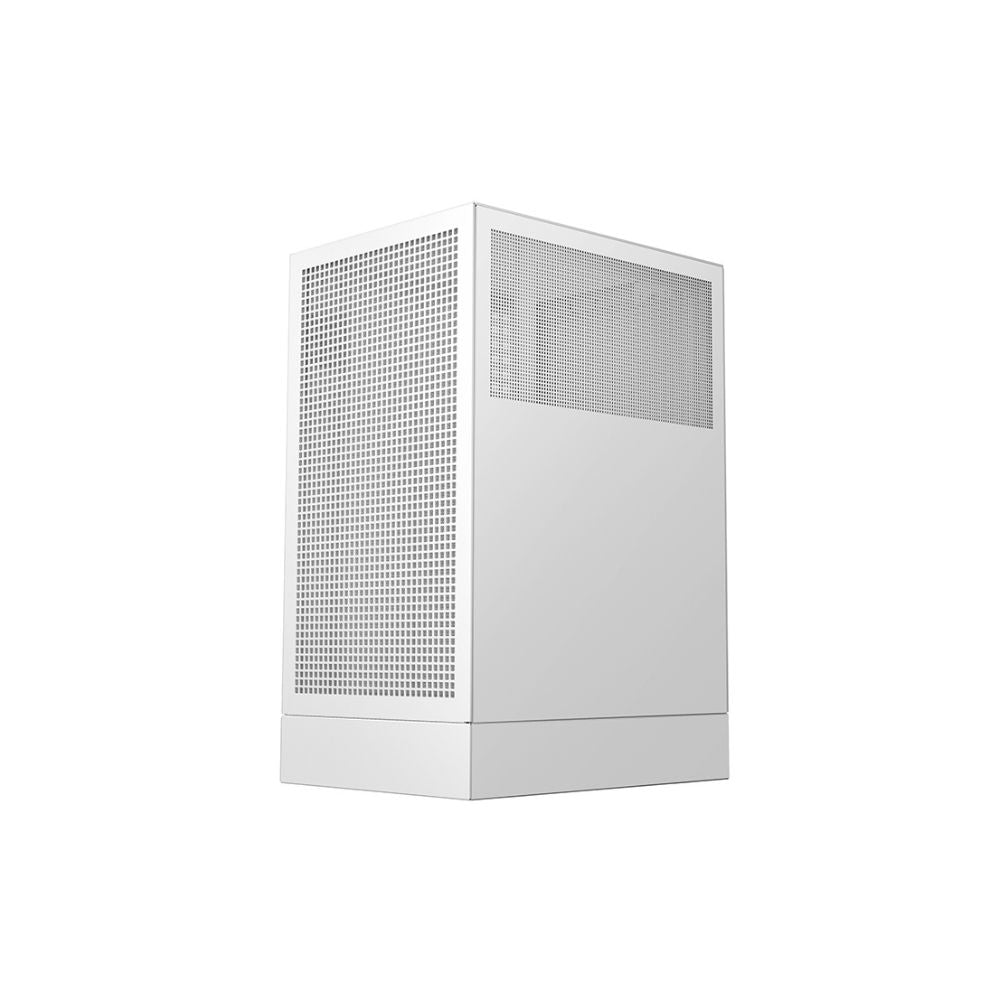

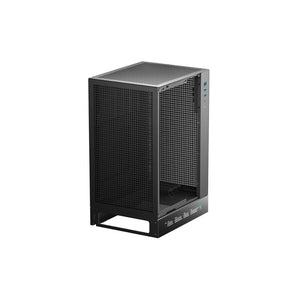

DeepCool CH170 Digital – Mini-ITX Case with Digital Display

About the DeepCool CH170 Digital

The DeepCool CH170 is a Mini-ITX case built for compact builds without compromising on features. At $99, you get a built-in digital display, mesh airflow design, and enough space for serious gaming hardware. This PC case with screen stands out in the budget Mini-ITX category, where most options skip the display entirely or charge $150+. It's designed for first-time small form factor builders and anyone wanting a unique setup on their desk.

What This DeepCool CH170 Digital Does for You

Building a compact gaming desktop in Singapore? This case solves the common Mini-ITX headaches. The mesh panels bring in fresh air, and six fan mounting positions let you tune your airflow setup. You can fit a 240mm AIO on the side, which is rare at this price. The digital display shows system temps, custom logos, or animations—your choice. It works with either ATX or SFX power supplies, so you can reuse your existing PSU or pick one that fits your GPU length needs. GPUs up to 305mm fit with an SFX PSU, or 230mm with ATX—plenty of room for modern cards.

Digital Display and Build Quality

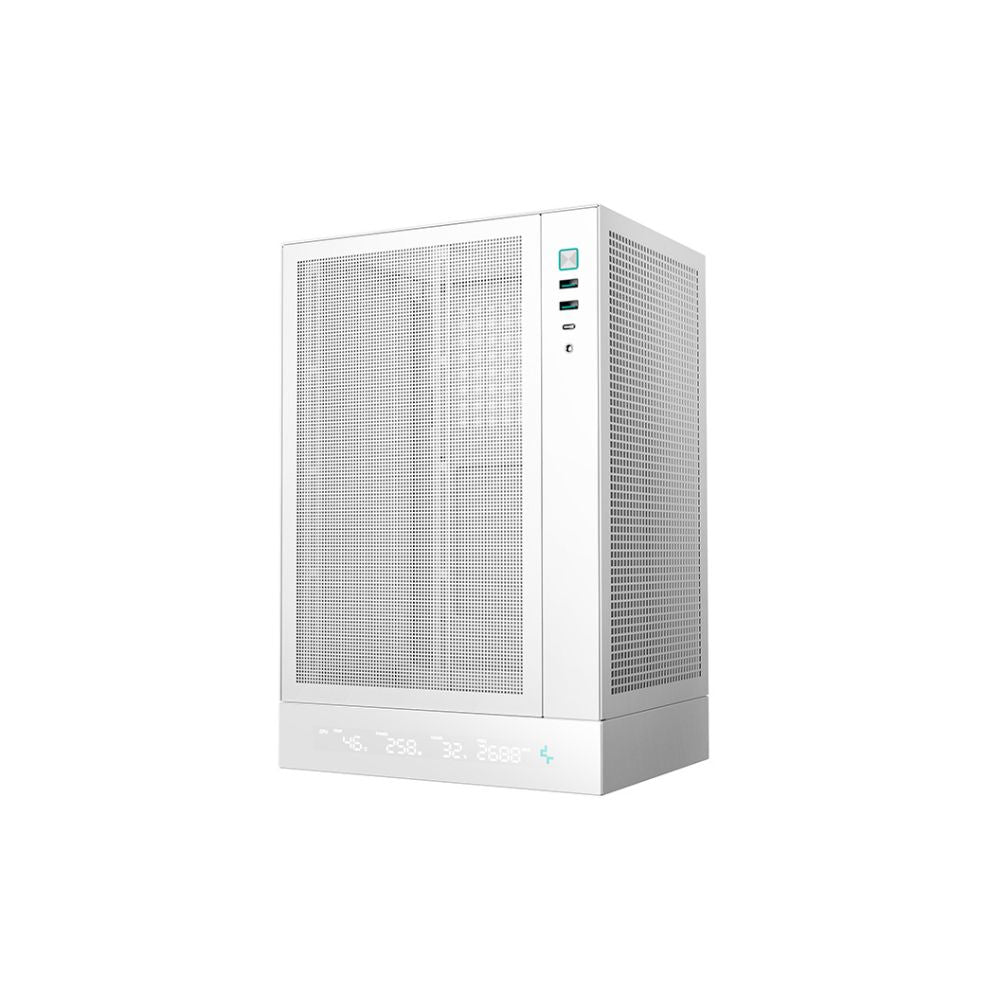

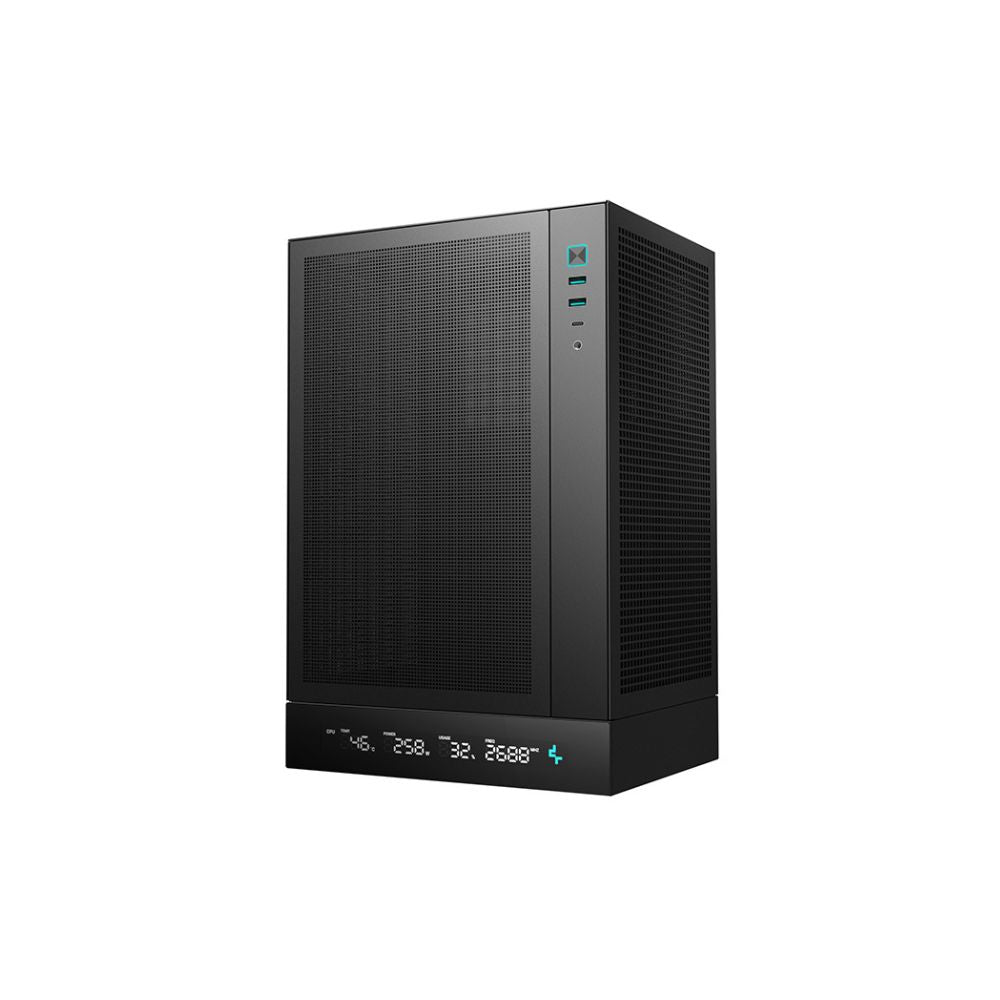

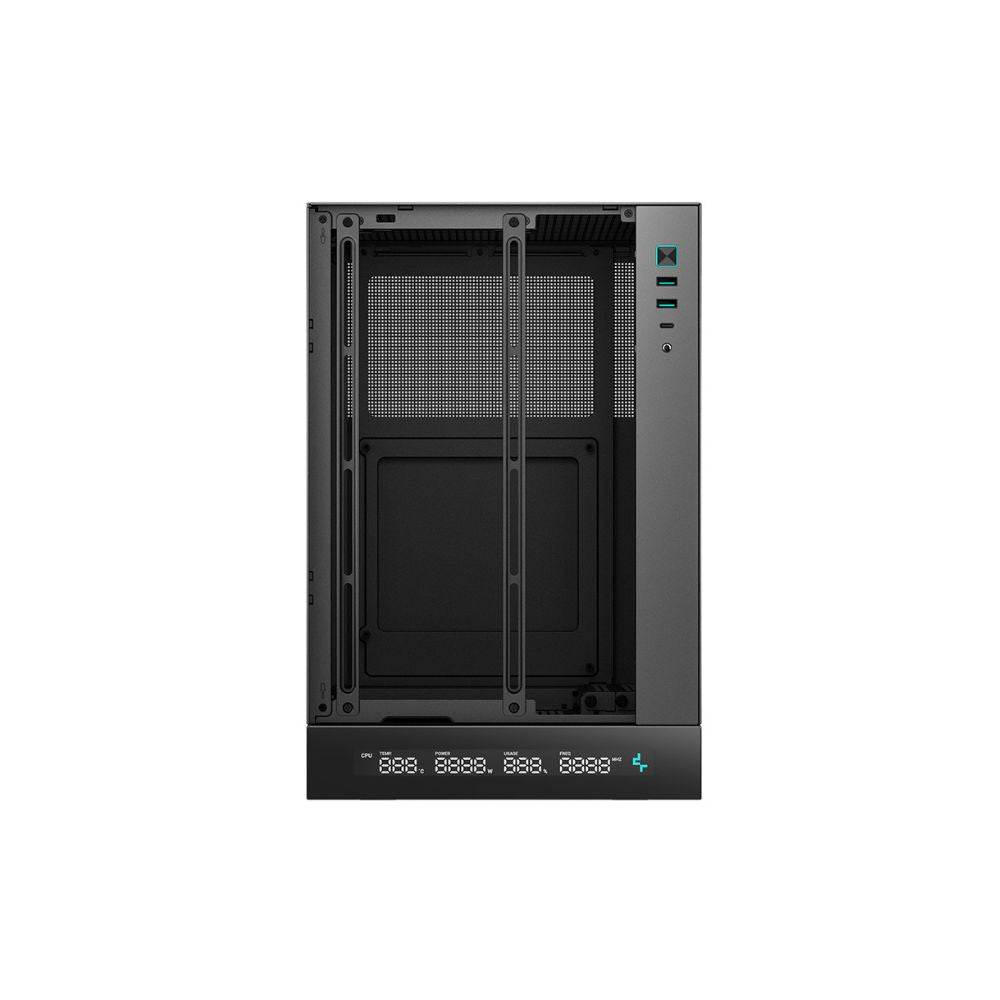

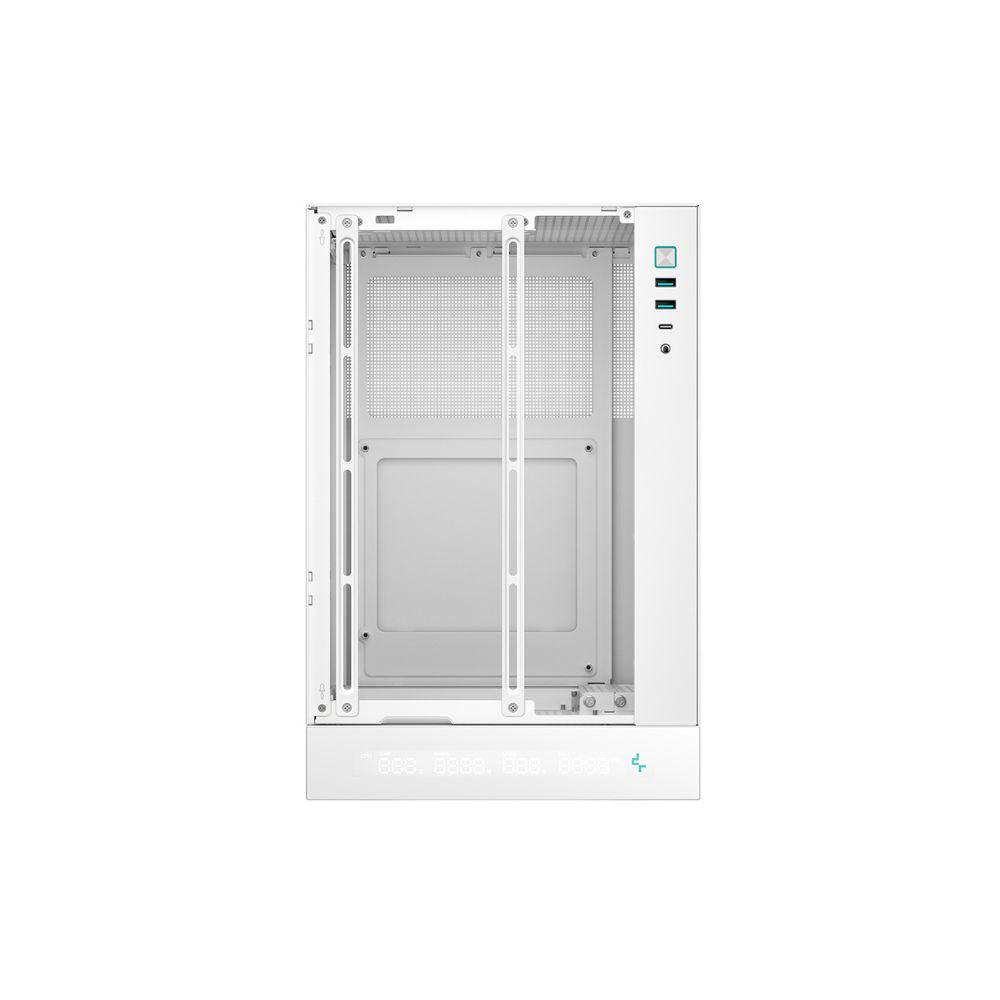

The front-mounted screen connects via USB and works with most monitoring software. Show CPU temps, GPU load, or custom images. The mesh panels are sturdy SPCC steel with ABS accents, not flimsy plastic. Cable management space is tight (this is Mini-ITX), but DeepCool includes tie-down points. The vertical GPU mount shows off your graphics card through the tempered glass side panel. At 250 x 200 x 380mm, it fits on most desks without eating up your mouse space.

Perfect For

• Compact gaming builds where desk space matters but you still want strong stable power delivery for your components
• First-time Mini-ITX builders who want unique features without premium pricing
• Home office setups needing a small PC that can handle work and after-hours gaming
• LAN party setups where portability and style both count

Why Buy from Mansa Computers

• 1-year Singapore warranty with DeepCool service support
• Fast WhatsApp inquiry response for compatibility questions
• Open 7 days a week for support during your build
• Home delivery available—no lugging bulky cases on public transport

Technical Specifications Summary

Motherboard Support
Mini-ITX

GPU Clearance
305mm (SFX PSU) / 230mm (ATX PSU)

CPU Cooler Height
172mm

Radiator Support
Side-mounted 240mm

Fan Mounting
6 positions (120mm)

PSU Type
ATX (140mm max) / SFX / SFX-L

Front I/O
2x USB 3.0, 1x USB Type-C Gen2, Audio

Dimensions
250 x 200 x 380mm

Ready to build compact? The CH170 Digital gives you the features you need at a price that makes sense. Questions about fit or compatibility? WhatsApp us anytime.

Model
CH170 Digital

Brand
DeepCool

Product Dimensions (L × W × H)
250 x 200 x 380mm

Net Weight
3.3Kg (Black)
3.4Kg (White)

Materials
ABS + SPCC

Motherboard Support
Mini-ITX

Front I/O Ports
2 x USB3.0, 1 x Audio, 1 x Gen2 Type-C

3.5" Drive Bays
1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three）

2.5" Drive Bays
1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three）

Expansion Slots
3 Slots

Pre-Installed Fans
None

Fan Support
Top:1 × 120 mm
Front: NA
Rear: 2 × 120 mm
Bottom:1 × 120 mm
Side : 2 × 120 mm

Radiator Support
Side: 240mm

CPU Cooler Height Limit
172mm

GPU Size Limit
Length: SFX/SFX-L: 305mm / ATX: 230mm
Height: 138mm
Width: 65mm (3 Slots)

Power Supply Type
ATX PS2（maximum length: 140mm）/ SFX / SFX-L

1 Years Warranty

Tech Dynamic Pte Ltd
514 Chai Chee Ln #05-09, Singapore 469029
Contact: 6717 3000

Frequently Asked Questions About DeepCool CH170 Digital

Does the DeepCool CH170 Digital digital display work with all motherboards?

Yes, the display connects via USB and works with any Mini-ITX motherboard. Use software like AIDA64 or HWiNFO to show temps and stats. You can also display custom images or GIFs.

Can I fit a full-size graphics card in this compact case?

With an SFX power supply, you can fit GPUs up to 305mm long. That covers most modern cards, including RTX 4070 and RTX 4060 models. With an ATX PSU, GPU clearance drops to 230mm.

What's the best cooling setup for the DeepCool CH170 Digital?

A 240mm AIO mounted on the side works great for most builds. Add 120mm fans at the rear and bottom for exhaust. The mesh front ensures good intake even without front fans.

Is the DeepCool warranty valid in Singapore?

Yes, Mansa provides 1-year DeepCool Singapore warranty with local service support. If anything goes wrong, we handle the claim process. We're open 7 days a week for support.

How does this compare to other budget Mini-ITX cases?

At $99, the DeepCool CH170 Digital includes a digital screen that most budget cases skip. It's cheaper than the Cooler Master NR200P while offering unique features. Good value if you want something different.
