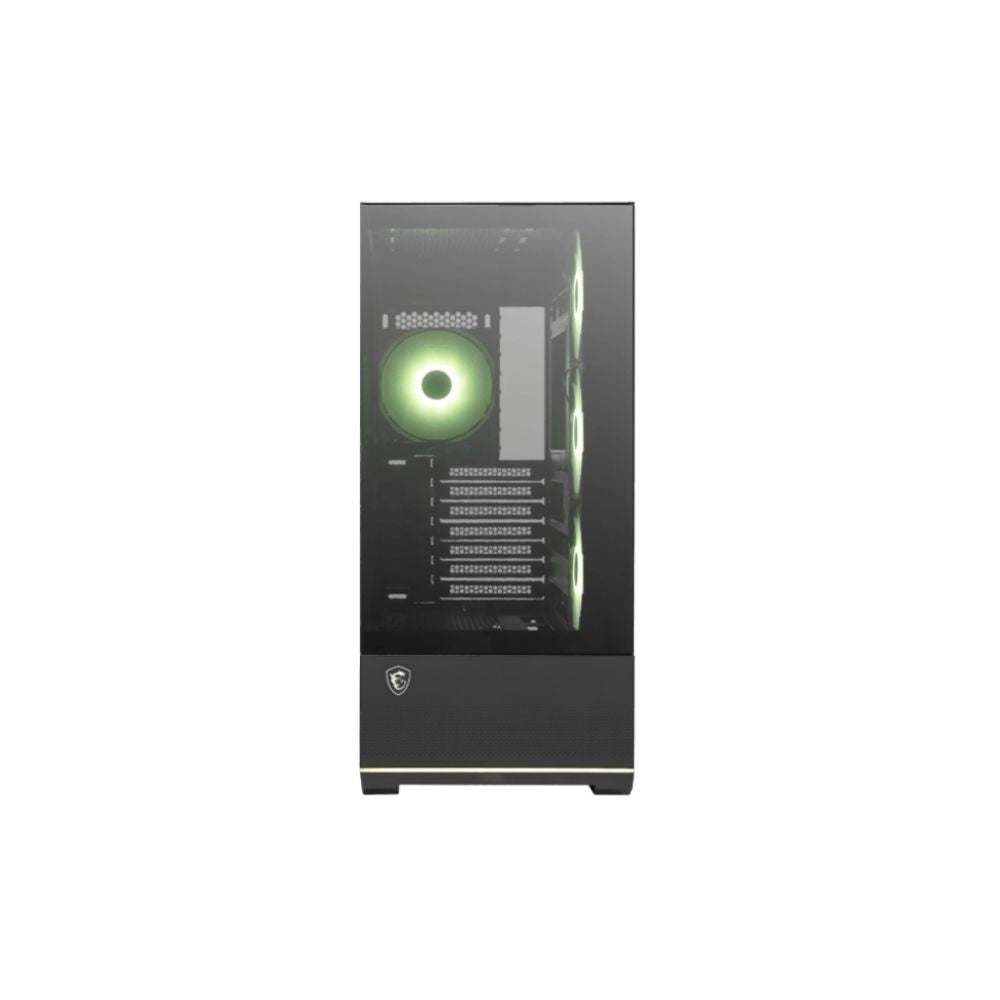

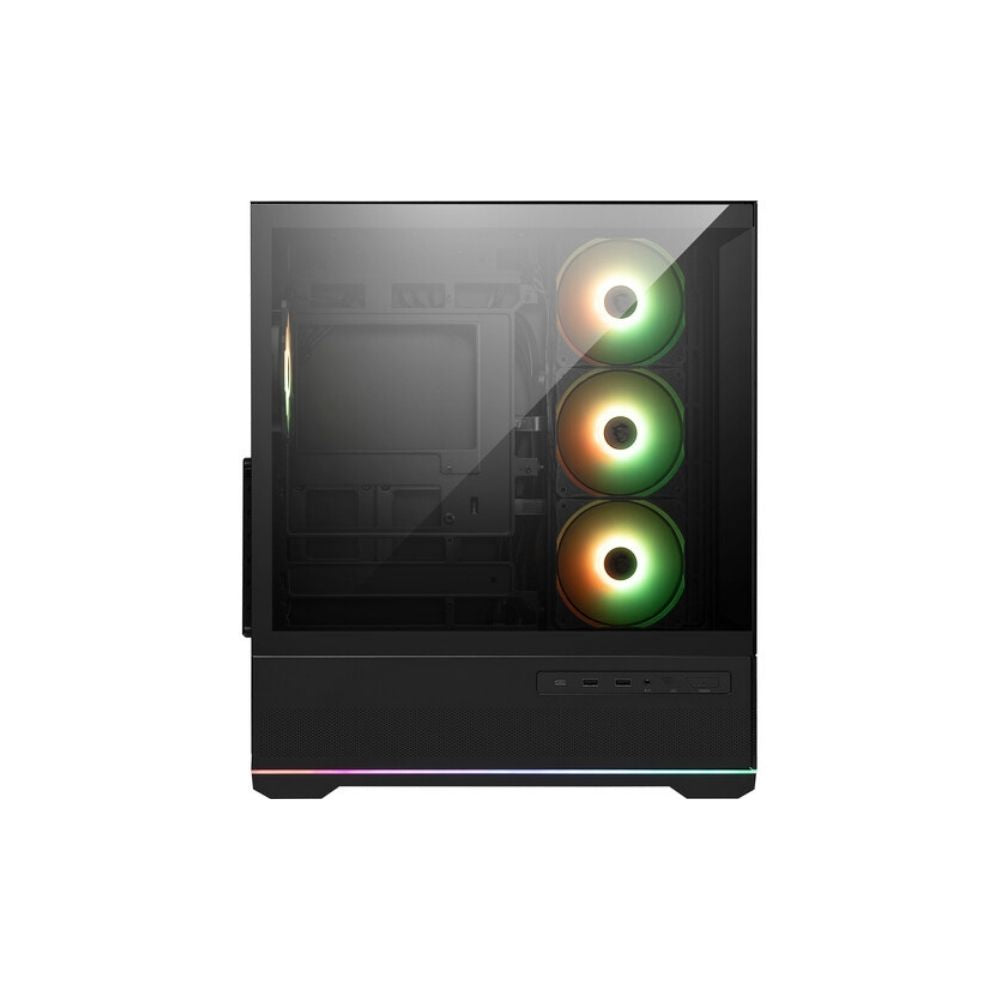

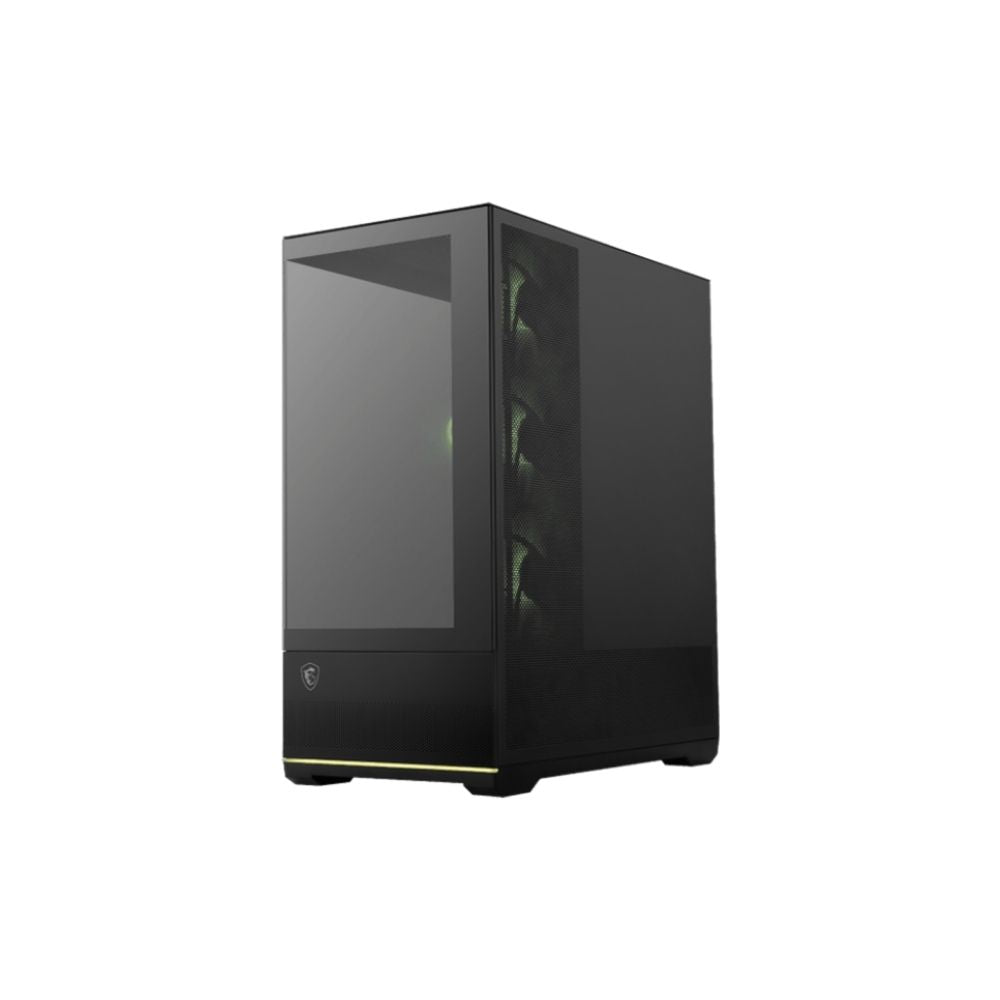

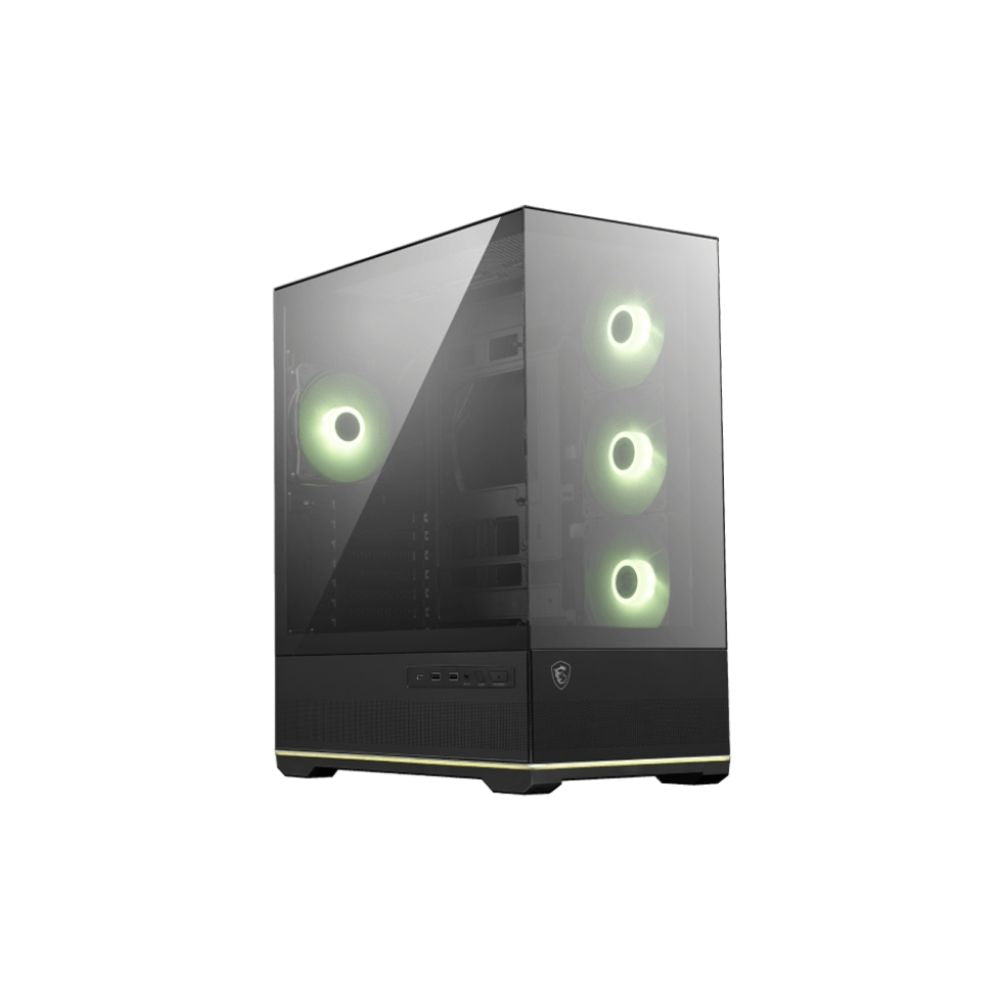

MSI MAG Pano 110R PZ – Panoramic Glass ATX Case

About the MSI MAG Pano 110R PZ

The MSI MAG Pano 110R PZ is built for first-time builders who want their PC to look as good as it performs. Panoramic glass panels let you showcase your components from multiple angles. Four pre-installed ARGB fans mean you skip the "which fans do I buy" research phase. Back-connect motherboard support makes cable management dramatically easier, even if you've never built a PC before.

What This MSI MAG Pano 110R PZ Does for You

You get a panoramic glass PC case that shows off your RGB setup without buying separate fans or light strips. The 4 included ARGB fans (3 side reverse blade + 1 rear) save you SGD 40-60 and hours of compatibility research. Back-connect support hides cables behind the motherboard tray, so your build looks clean from day one. USB 20Gbps Type-C on the front panel means fast file transfers with modern external SSDs. Supports GPUs up to 400mm, so RTX 5080, RTX 5070, and even RTX 5090 cards fit without sacrificing airflow.

Build Quality and Design

The panoramic glass design uses three tempered glass panels (front, side, top) to create a fish-tank effect for your components. Reverse blade ARGB fans on the side create visual depth when lit up. The case supports ATX, Micro-ATX, and Mini-ITX motherboards in standard configuration, plus ATX and Micro-ATX in back-connect mode. Seven expansion slots give you room for multi-GPU setups or capture cards. Supports CPU coolers up to 160mm tall and 360mm radiators on top for future AIO upgrades.

Perfect For

• First-time builders who want RGB aesthetics without buying separate fans or managing complex PC case with RGB fans wiring
• Upgraders from old cases who want modern features like USB 20Gbps Type-C and back-connect cable management
• Custom PC builders in Singapore looking for panoramic glass cases that fit RTX 5080 and RTX 5070 GPUs comfortably
• Gamers building mid-tower ATX systems who prioritize visual appeal alongside good airflow

Why Buy from Mansa Computers

• 1-year Singapore warranty with Corbell Technology Pte Ltd service support
• Fast WhatsApp inquiry response for compatibility questions ("Will my GPU fit?")
• Open 7 days a week for support during weekend builds
• Home delivery available (cases are bulky to transport)

Technical Specifications Summary

Form Factor
Mid-Tower ATX

Motherboard Support
ATX, Micro-ATX, Mini-ITX (standard) / ATX, Micro-ATX (back-connect)

Pre-installed Fans
4x ARGB (3x 120mm side reverse blade + 1x 120mm rear)

Maximum GPU Length
400mm (fits RTX 5090, RTX 5080, RTX 5070)

Front I/O
1x USB 20Gbps Type-C, 2x USB 5Gbps Type-A, Audio combo jack

Radiator Support
Top: up to 360mm / Rear: 120mm

CPU Cooler Height
160mm maximum

Dimensions
420 x 225 x 485mm (D x W x H)

Ready to build your panoramic glass PC case in Singapore? The MSI MAG Pano 110R PZ gives you modern features like back-connect support and USB 20Gbps Type-C at SGD 119. WhatsApp us with your component list and we'll confirm compatibility before you order.

Product Name
MAG PANO 110R PZ

Case Form Factor
Mid-Tower

Motherboard Form Factor Support
Regular:
ATX / Micro-ATX / Mini-ITX

Back-connect:
ATX / Micro-ATX

I/O Ports
1 x USB 20Gbs (Type-C)
2 x USB 5Gbs (Type-A)
1 x Audio-Out / Mic-in
1 x LED Button
1 x Power Button

Drive Mount Support
2 x 2.5“
2 x 3.5“
2 x 2.5"/3.5" combo

Expansion Slots
7

Maximum GPU Length
400 mm / 15.75 inches

Maximum CPU Cooler Height
160 mm / 6.30 inches

Power Supply Support
ATX

Maximum PSU Length
200 mm / 7.87 inches

Fan Size Support
Top: 3 x 120 mm / 2 x 140 mm
Front: NA
Rear: 1 x 120 mm
Side: 3 x 120 mm / 2 x 140 mm
Bottom: 3 x 120 mm (Above the power shroud)

Pre-installed Fan Size
Side: 3 x 120 mm
Rear: 1 x 120 mm

Pre-installed Fan Type
Side: 3 x ARGB Fan (Reverse Blades Fan)
Rear: 1 x ARGB Fan

Radiator Size Support
Top: 120 / 140 / 240 / 280 / 360 mm
Front: NA
Rear: 120 mm
Side: NA
Bottom: NA

Dimensions (D x W x H)
420 x 225 x 485 mm / 16.54 x 8.86 x 19.09 inches

1 YEARS DISTRIBUTOR WARRANTY

Corbell Technology Pte Ltd
4012 Ang Mo Kio Ave 10, #06-04 Techplace 1
Singapore 569628
Contact: 6452 4122

Frequently Asked Questions About MSI MAG Pano 110R PZ

Does the MSI MAG Pano 110R PZ support back-connect motherboards?

Yes, it supports ATX and Micro-ATX motherboards in back-connect mode. This hides cables behind the motherboard tray for cleaner builds. Standard mounting also works with ATX, Micro-ATX, and Mini-ITX boards.

Will RTX 5080 or RTX 5070 graphics cards fit in this case?

Yes, the case supports GPUs up to 400mm long. RTX 5080 (around 320mm) and RTX 5070 (around 300mm) fit comfortably with room for airflow. Even RTX 5090 cards (384mm) fit without removing drive cages.

How many fans come pre-installed with this panoramic glass PC case?

4 ARGB fans are included: 3x 120mm reverse blade fans on the side panel and 1x 120mm rear exhaust. These are already wired and ready to use. You can add more fans on top (3x 120mm) or bottom (3x 120mm) if needed.

What warranty coverage does Mansa Computers provide for this case?

You get a 1-year Singapore warranty through Corbell Technology Pte Ltd. We're open 7 days a week for support questions. WhatsApp us directly for fast responses on compatibility or installation issues.

Is this case good value compared to other panoramic glass cases in Singapore?

At SGD 119 with 4 ARGB fans included, you save SGD 40-60 versus buying a case and fans separately. Back-connect support is usually found in SGD 200+ cases. Good middle ground between basic cases and premium options.

How long will it take to receive my purchase?

Standard Shipping - 3 to 5 days
Express Shipping - 1 to 2 days

Can I opt for store pickup?

Yes, we are open daily for collection from 11 AM - 6.30 PM.

Address: 1 Ubi View #01-22, Focus One Building Singapore 408555 (Door located nearest to carpark exit gantry)

We will contact you once your order is ready for collection!
