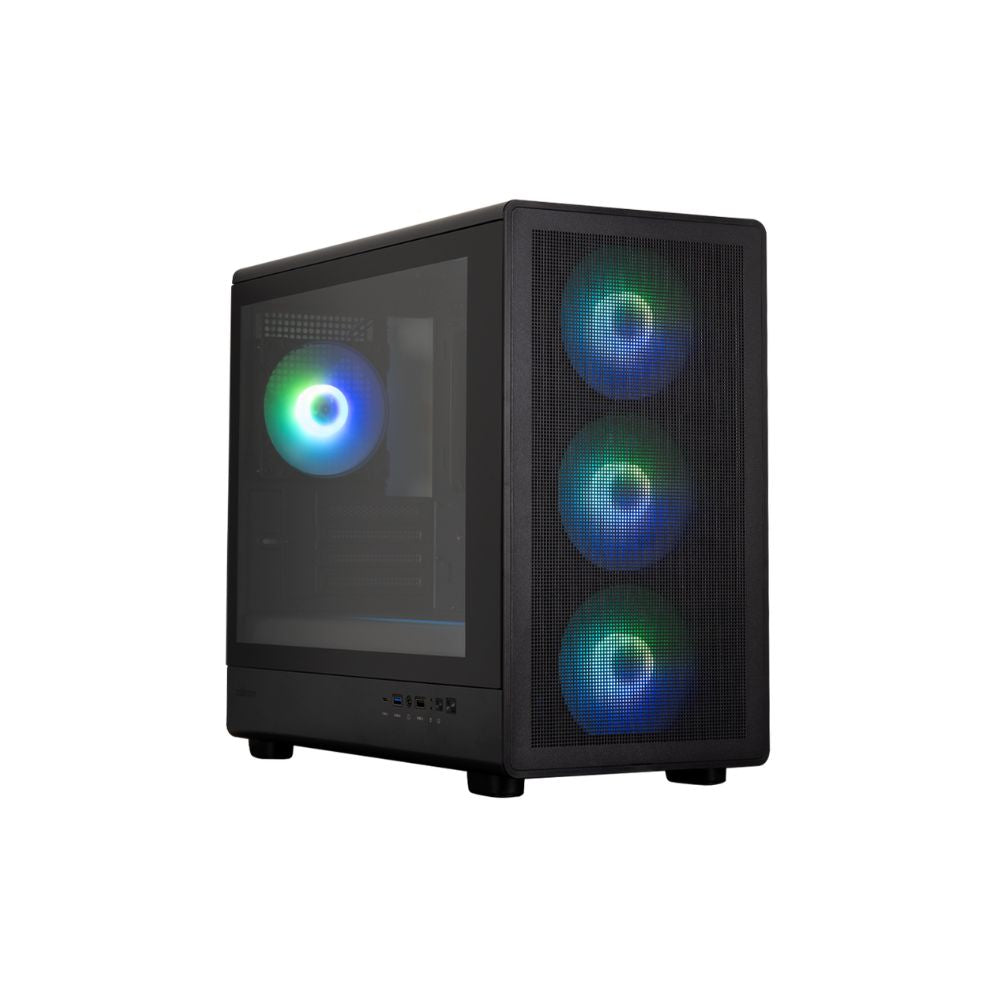

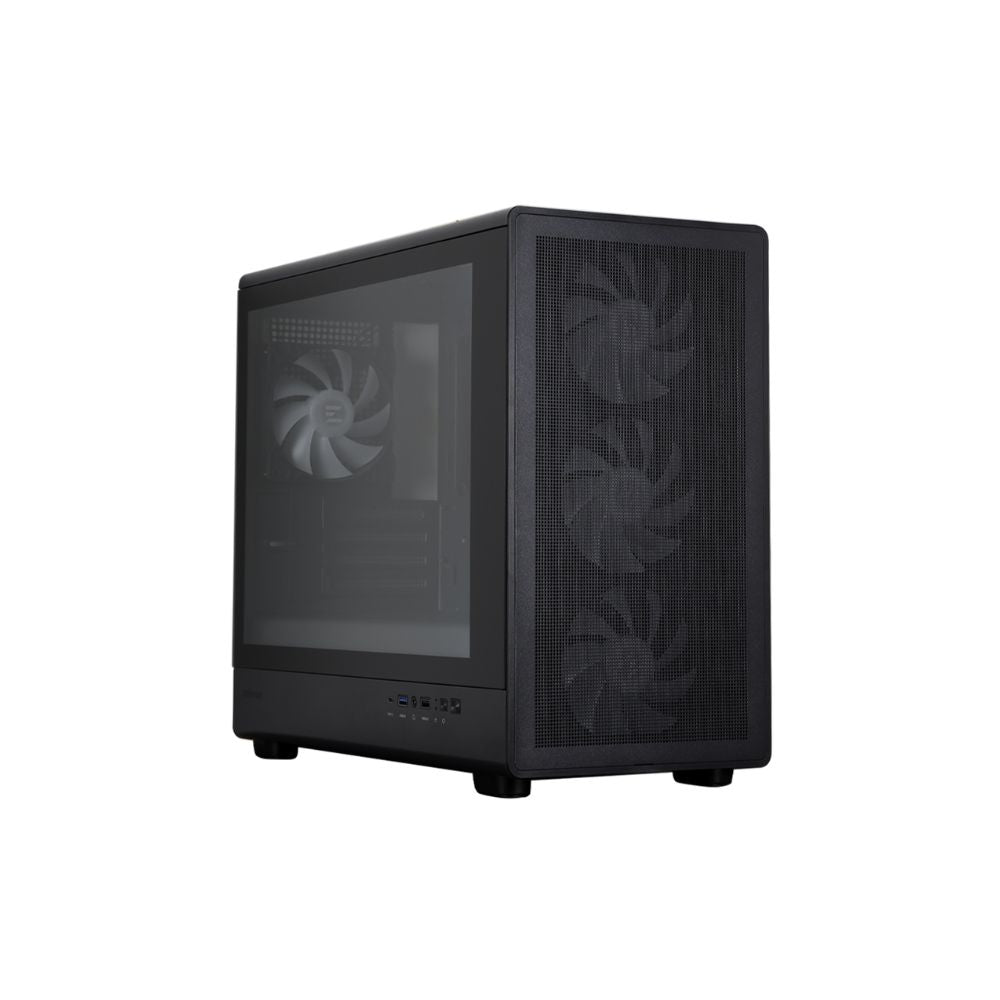

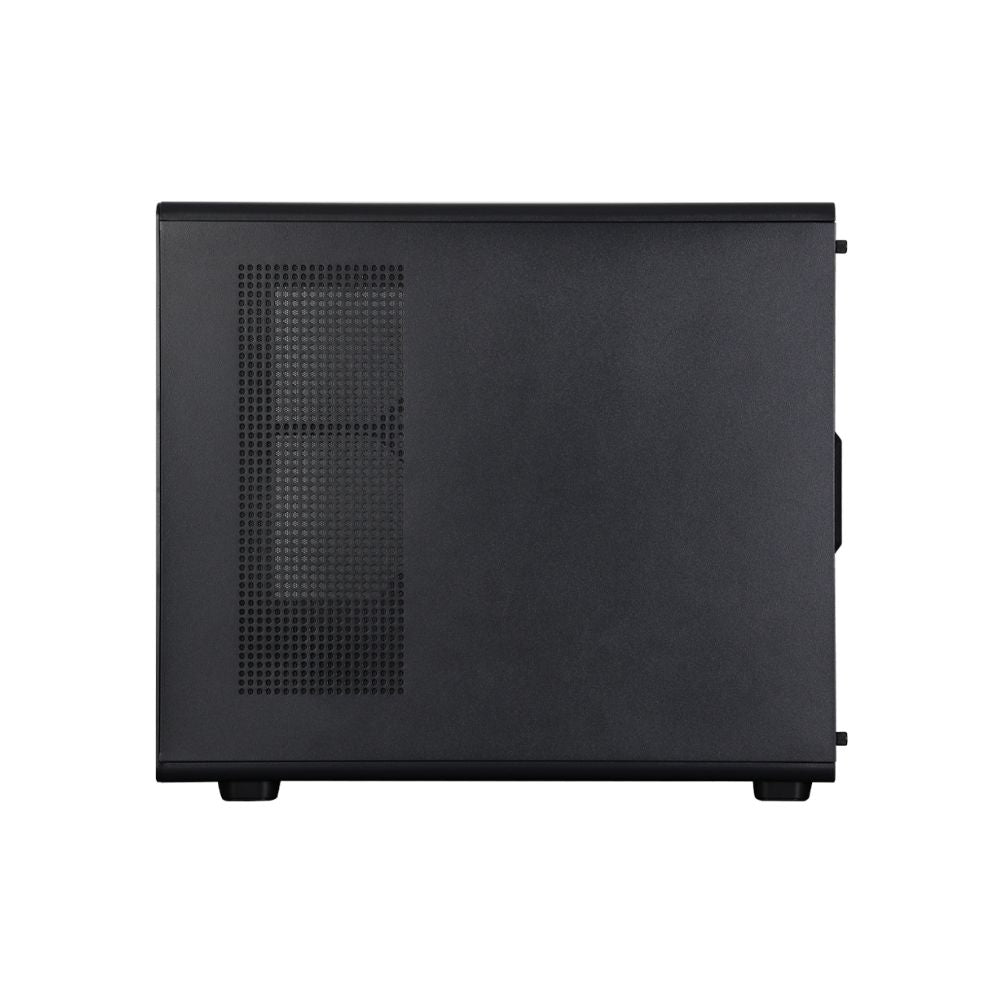

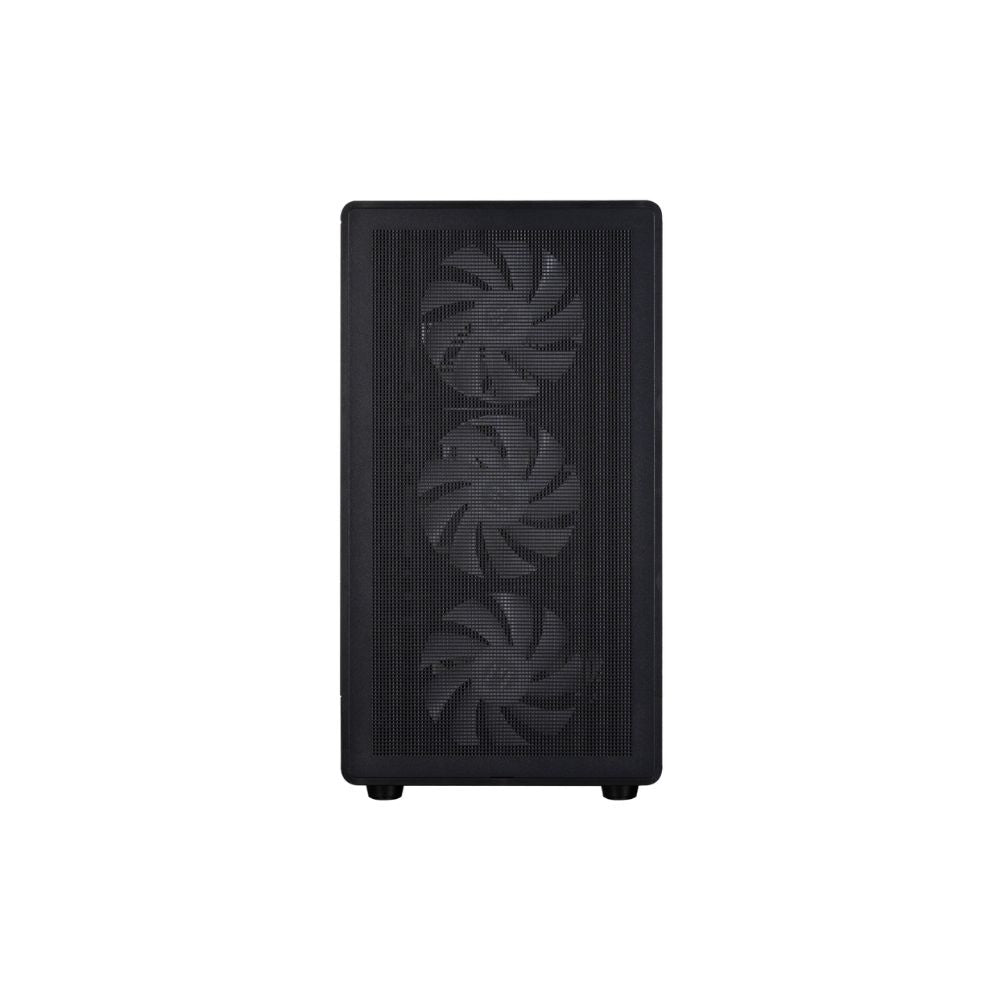

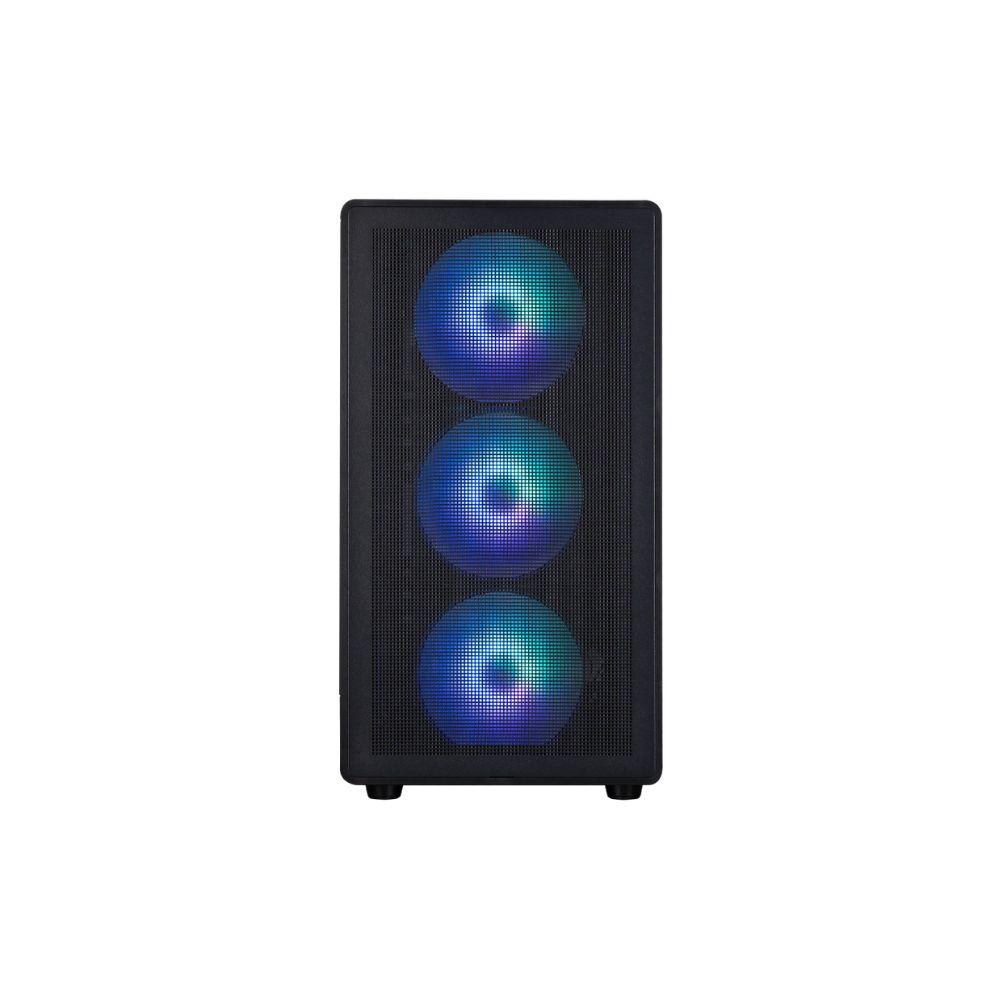

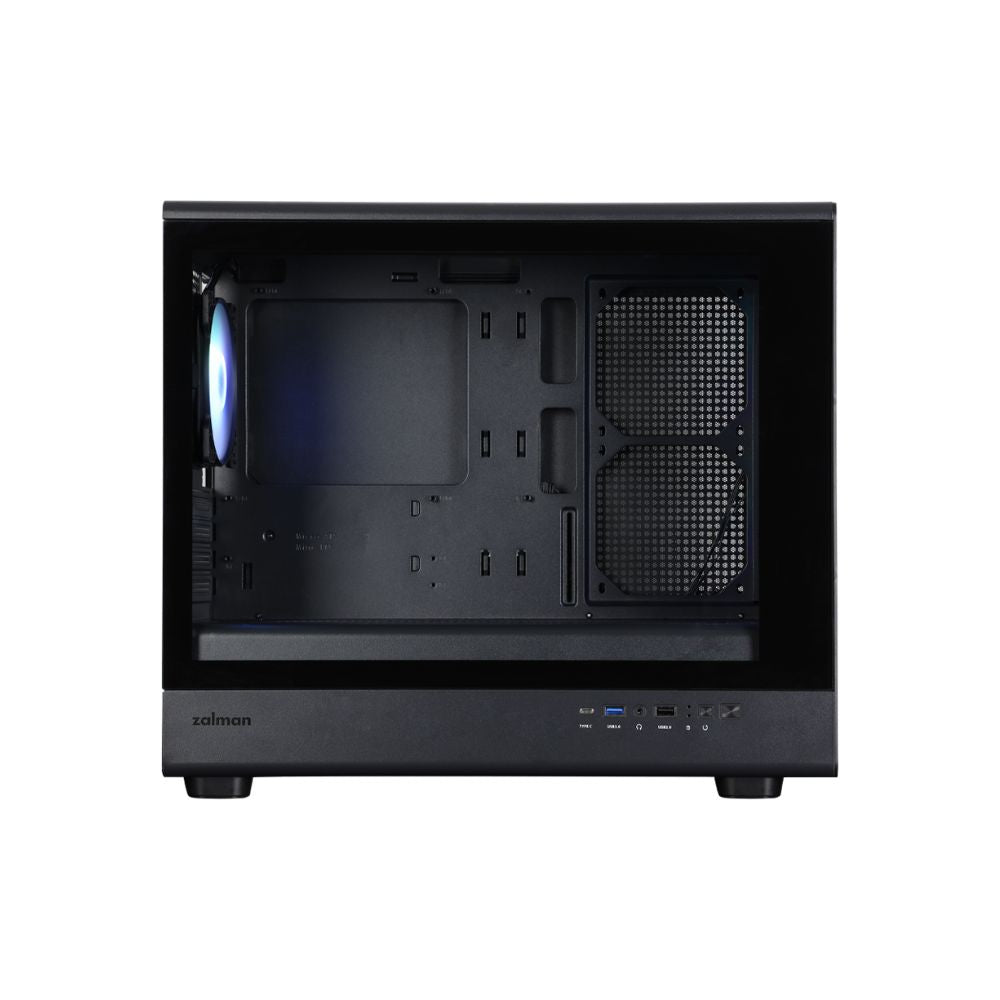

Zalman M5 Black mATX Case – Premium Airflow Design

About the Zalman M5 Black mATX Case

The Zalman M5 black mATX case is designed for builders who want premium features at an accessible price point. This micro-ATX tower combines aesthetic appeal with practical functionality, offering four pre-installed ARGB fans and tempered glass PC case construction. Whether you're assembling your first gaming PC or upgrading from an older chassis, the M5 provides the cooling capacity and expandability to support modern components without forcing compromises.

What This Zalman M5 Black mATX Case Does for You

This best budget PC case with good airflow eliminates the immediate need to purchase additional cooling fans. The three front 120mm ARGB fans and single rear 120mm ARGB fan create positive airflow pressure that keeps temperatures controlled under load. The tempered glass side panel lets you showcase your components and RGB lighting, while the compact micro-ATX footprint saves desk space. Support for radiators up to 360mm means you can add liquid cooling later without replacing the entire case. GPU clearance reaching 410mm accommodates current RTX 50 series and RX 9000 series cards, plus future flagship models.

Cooling and Expansion Capabilities

The M5 offers flexibility that many compact cases sacrifice. Top panel supports 120mm, 140mm, 240mm, 280mm, or 360mm radiators for all-in-one liquid coolers. Front and bottom panels accommodate additional 120mm fans if you need extra airflow. PSU clearance reaches 230mm, and CPU cooler height extends to 180mm, giving you options for both compact and tower-style coolers. The case includes multiple drive mounting options with combo 3.5"/2.5" bays plus dedicated SSD mounting.

Perfect For

• First-time builders wanting RGB aesthetics without buying separate fans. Pre-installed ARGB lighting delivers complete system synchronization immediately.
• Compact gaming PC builds that need full-size GPU support. Handles flagship cards without size restrictions.
• Upgraders moving from older cases who want modern cooling options. 360mm radiator support future-proofs your thermal solution.
• Space-conscious users preferring micro-ATX over full ATX towers. Smaller footprint with minimal performance compromise.

Why Buy from Mansa Computers

• 1-year Singapore warranty with CDL Trading Pte Ltd service support
• Fast WhatsApp inquiry response for compatibility questions
• Open 7 days a week for support and collection
• Home delivery available across Singapore

Technical Specifications Summary

Form Factor
Micro-ATX Mini-Tower

Materials
Steel, Plastic, Tempered Glass

Fans Included
4x 120mm ARGB (3 Front, 1 Rear)

GPU Clearance
Up to 410mm

CPU Cooler Height
Up to 180mm

Radiator Support
Top: Up to 360mm, Rear: 120mm

I/O Ports
USB 3.0, USB 2.0, USB Type-C, HD Audio

Dimensions
474 x 220 x 408mm

The Zalman M5 black mATX case gives you everything needed for a complete build without requiring immediate accessory purchases. Order yours today from Mansa Computers with Singapore warranty coverage and local support.

Model
M5

Brand
Zalman

Case Form Factor
mATX Mini-Tower

Materials
Steel, Plastic, Tempered Glass

Weight
5.5kg

Dimensions (L x W x H)
474 x 220 x 408 mm

Motherboard Support
mATX / Mini-ITX

Fan Support
Top: 3 x 120mm / 2 x 140mm
Front: 3 x 120mm
Side: 2 x 120mm
Rear: 1 x 120mm
Bottom: 3 x 120mm

Fan(s) Included
Front: 3 x 120mm (ARGB Fan)
Rear: 1 x 120mm (ARGB Fan)

Radiator Support
Top: 120mm / 140mm / 240mm / 280mm / 360mm
Rear: 120mm

Max. PSU Length
230mm

Max. VGA Length
410mm

Max. CPU Cooler Height
180mm

Drive Bays
1 x Combo(3.5" or 2.5")
1 x 3.5”
1 x 2.5”

PCI Expansion Slots
4pcs

I/O Ports
Power, Power LED, HDD LED, Reset & LED, HD Audio, 1 x USB 2.0, 1 x USB 3.0, 1 x USB Type-C

1 YEAR WARRANTY

CDL Trading Pte Ltd
115A Commonwealth Dr #03-10, Singapore 149596
Contact: 6473 4733

Frequently Asked Questions About Zalman M5 Black mATX Case

Does the Zalman M5 black mATX case support RTX 50 series graphics cards?

Yes, the M5 supports GPUs up to 410mm in length, which accommodates all current RTX 50 series cards including the RTX 5090. This clearance also fits previous generation cards like RTX 40 series models and AMD RX 9000 series GPUs without any modifications needed.

Can I install a 360mm AIO liquid cooler in this case?

Absolutely. The top panel supports radiators up to 360mm, making it compatible with popular 360mm AIO coolers from brands like Corsair, NZXT, and Cooler Master. The front panel also supports up to three 120mm fans if you prefer front-mounted radiator placement instead.

What motherboard sizes fit in the Zalman M5 case?

The case supports both micro-ATX and Mini-ITX motherboards. This gives you flexibility to choose between compact Mini-ITX builds or more expandable micro-ATX boards with additional PCIe slots. Standard ATX motherboards will not fit this chassis.

What warranty does the Zalman M5 come with in Singapore?

The Zalman M5 includes a 1-year warranty from CDL Trading Pte Ltd with local Singapore service support. Mansa Computers provides fast WhatsApp inquiry response for any warranty claims or technical questions, and we're open 7 days a week to assist you.

Is the Zalman M5 better value than cases without pre-installed fans?

Yes, the four included ARGB fans would cost SGD 40-60 if purchased separately. Most competing cases at similar prices include only 1-2 basic fans or none at all, making the M5 exceptional value for builders wanting RGB aesthetics and proper airflow immediately.
