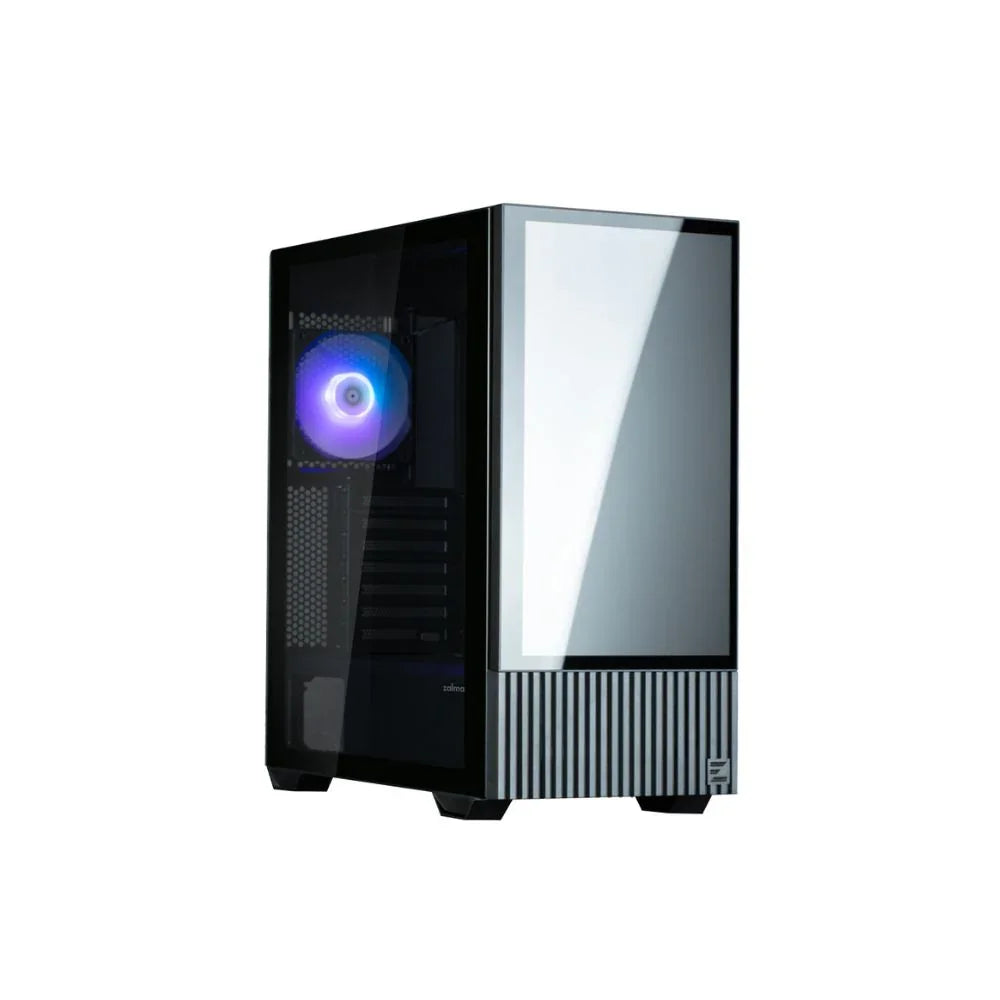

ZALMAN Z10 DS – ATX Mid Tower Case with Display Passthrough

SKU: Z10-DS-BLK

Form Factor: ATX Mid Tower

Motherboard Support: ATX / mATX / Mini-ITX

Clearance: GPU up to 395mm, CPU Cooler up to 173mm, PSU up to 200mm

Cooling Support: Front & Top up to 360mm radiator, Supports up to 11× 120mm fans

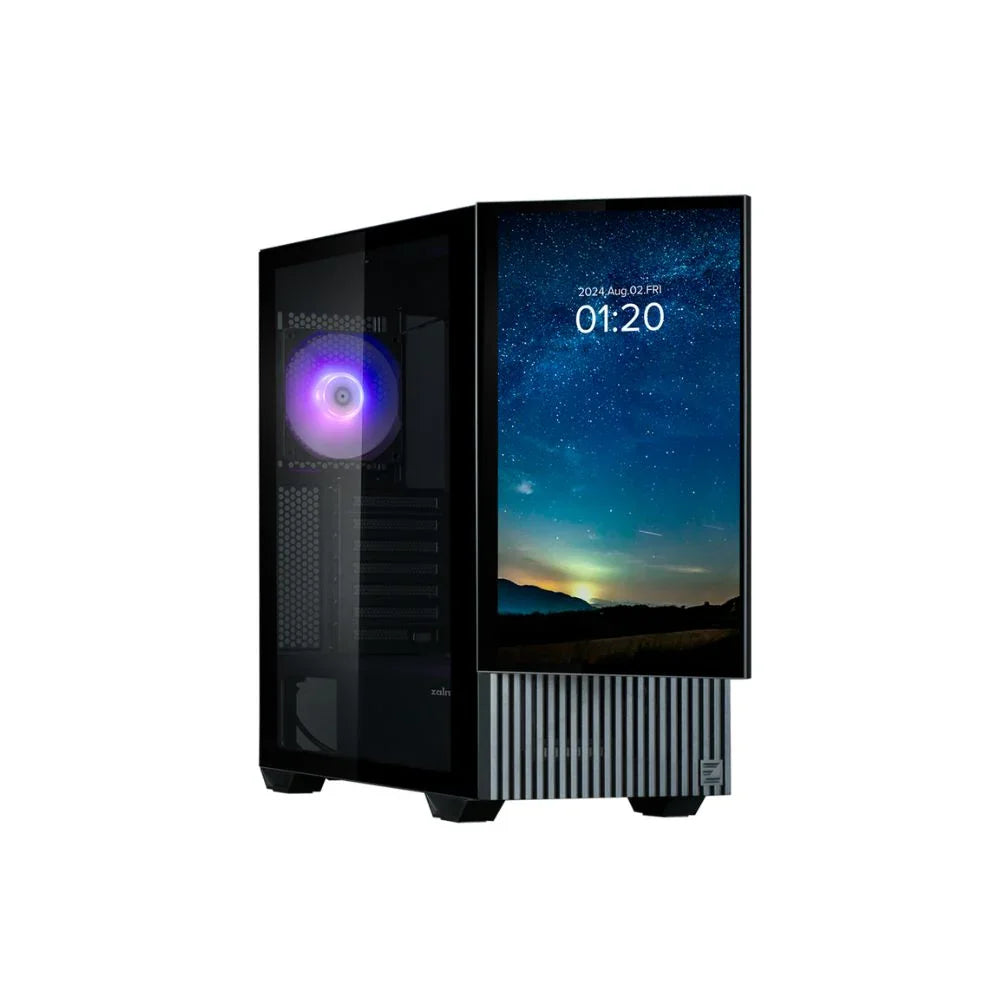

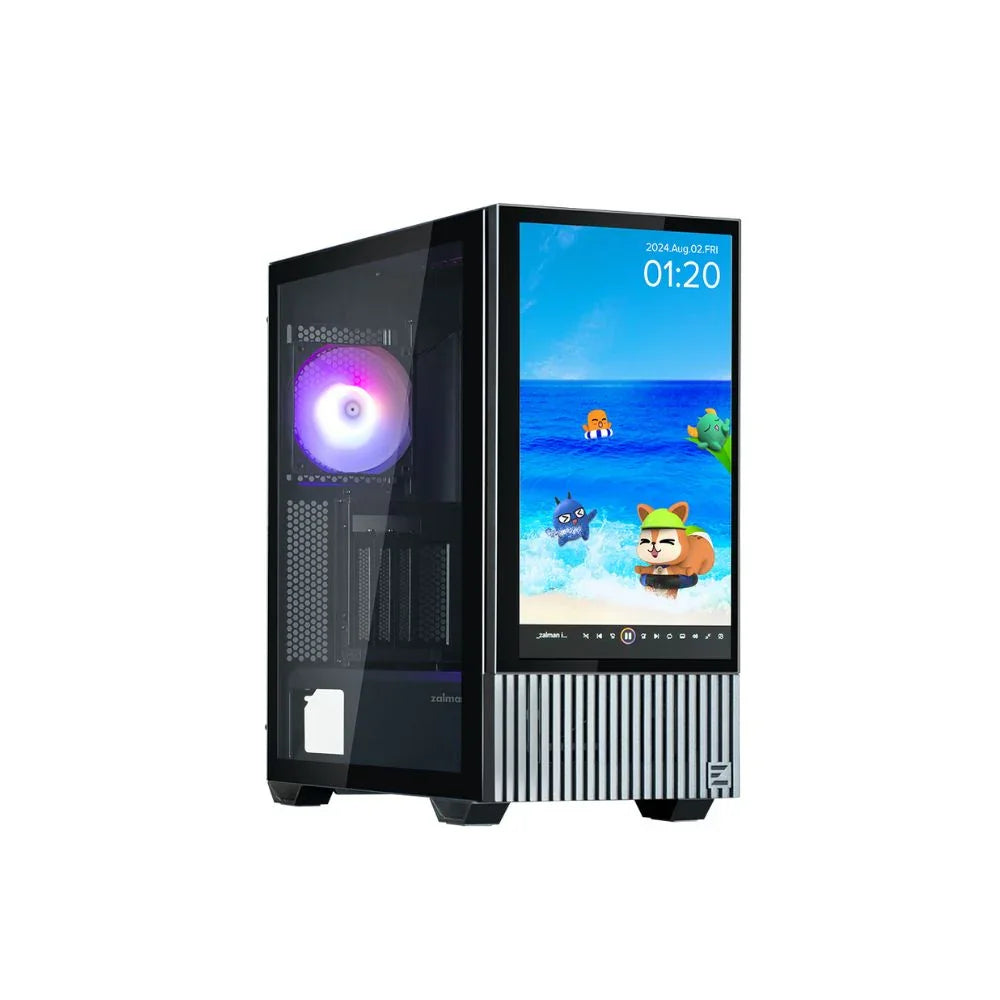

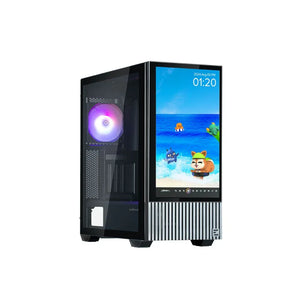

Front I/O: USB-C, 2× USB 3.0, Audio, Reset & LED buttons, Integrated Display (Mini-HDMI / USB-C)

The ZALMAN Z10 DS brings display passthrough ports directly to your front panel for VR headsets and secondary monitors.

This ATX mid tower supports up to 360mm radiators in both front and top positions simultaneously, giving you serious cooling flexibility. The vertical GPU mount lets you showcase your graphics card through the tempered glass side panel. Backed by 1-year CDL Trading warranty in Singapore with home delivery available.

Why Choose This ZALMAN Z10 DS

  • Mini-HDMI and USB Type-C display outputs on the front panel eliminate cable routing hassles for VR setups. Perfect for gaming PC builds with Quest or PSVR2 headsets.
  • Supports 360mm radiators in front AND top positions at the same time, plus bottom and side fan mounts. Total 11 fan positions for high-performance cooling solutions.

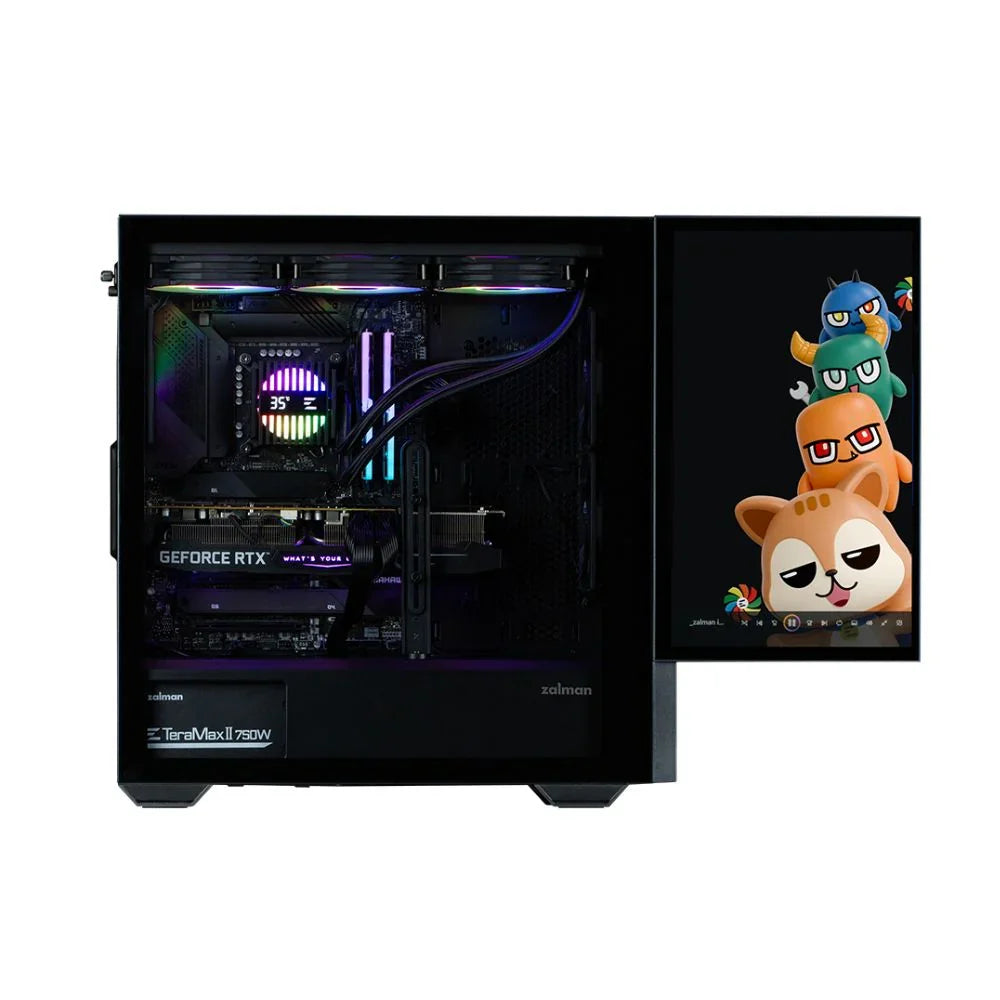

  • Vertical GPU mounting with 3 dedicated PCI slots lets you display your graphics card as a centerpiece through the tempered glass panel.
  • 1-year CDL Trading Pte Ltd warranty with Singapore support. Fast WhatsApp inquiry response from Mansa Computers. We're open 7 days a week for case compatibility questions.
✓ Why Buy This

1 Year Warranty

Steel Frame

Dual Chamber

Overview

About the Z10 DS Case

The Z10 DS is an ATX mid tower case designed for builders who need extensive cooling options and modern connectivity features. It measures 474 x 220 x 488mm and weighs 9.5kg with steel, plastic, and tempered glass construction. This case fits ATX, mATX, and Mini-ITX motherboards with room for graphics cards up to 395mm long and CPU coolers up to 173mm tall.

What This ZALMAN Z10 DS Does for You

The front panel includes Mini-HDMI and USB Type-C display outputs that let you connect VR headsets or portable monitors without routing cables through your case. You get two USB 3.0 ports plus USB Type-C for data transfer alongside the display connections. The case supports simultaneous 360mm radiators in both front and top positions, which means you can run dual AIO coolers or combine radiators with high-airflow fan setups. Vertical GPU mounting with 3 dedicated PCI slots turns your graphics card into a visual centerpiece behind the tempered glass side panel.

Cooling Flexibility and Build Quality

This case offers 11 total fan mounting positions across front, top, rear, bottom, and side panels. The front supports three 120mm or 140mm fans, while the top handles the same configuration. You can mount two 120mm fans on the bottom and side panels for additional intake or exhaust. The case includes two 120mm non-LED fans in front and one 120mm ARGB fan at the rear out of the box. Storage options include two combo bays that accept either 3.5-inch or 2.5-inch drives plus two dedicated 2.5-inch bays.

Perfect For

  • First-time builders creating a custom gaming PC who want extensive cooling options without premium pricing
  • VR gamers who need front-panel display connections for Quest 3, PSVR2, or other headsets with USB-C video
  • Enthusiasts planning dual radiator setups with 360mm AIOs in both front and top positions
  • Builders who want vertical GPU mounting to showcase high-end graphics cards through tempered glass

Why Buy from Mansa Computers

  • 1-year Singapore warranty with CDL Trading Pte Ltd service support
  • Fast WhatsApp inquiry response for compatibility questions
  • Open 7 days a week for support
  • Home delivery available (cases are bulky at 9.5kg)

Technical Specifications Summary

Form Factor
ATX Mid Tower

Motherboard Support
ATX / mATX / Mini-ITX

Maximum GPU Length
395mm

Maximum CPU Cooler Height
173mm

Front I/O Ports
Mini-HDMI, USB-C Display, 2x USB 3.0, USB-C Data

Radiator Support
Front/Top: Up to 360mm, Rear: 120mm

Included Fans
2x 120mm Front (Non-LED), 1x 120mm Rear (ARGB)

Dimensions
474 x 220 x 488mm

The ZALMAN Z10 DS gives you the cooling capacity and modern features needed for current gaming builds. Order yours from Mansa Computers with 1-year warranty coverage and WhatsApp support throughout your build process.

Full Specifications

Model
Z10 DS

Brand
Zalman

Case Form Factor
ATX Mid Tower

Dimensions (D x W x H)

474 x 220 x 488 mm

Weight
9.5kg

Materials
Plastic, Steel, Tempered Glass

Motherboard Support
ATX / mATX / Mini-ITX

Maximum VGA Length
395mm

Maximum CPU Cooler Height
173mm

Maximum PSU Length
200mm

PCI Expansion Slots
7 pcs / 3 pcs (Vertical)

Drive Bays
2 x Combo (3.5” or 2.5”)
2 x 2.5”

Fan Support
Front: 3 x 120mm / 3 x 140mm
Top: 3 x 120mm / 2 x 140mm
Rear: 1 x 120mm
Bottom: 2 x 120mm
Side: 2 x 120mm

Fan(s) Included
Front: 2 x 120mm (NON LED)
Rear: 1 x 120mm (ARGB)

Radiator Support
Front: 120mm / 140mm / 240mm / 280mm / 360mm
Top: 120mm / 140mm / 240mm / 280mm / 360mm
Rear: 120mm

I/O Ports
1xHeadphones, 1xMIC, 2xUSB3.0, 1xUSB Type-C, Reset button, LED Button, Power Button, Display (Mini-HDMI, USB Type-C)

Warranty

1 YEAR WARRANTY

CDL Trading Pte Ltd

115A Commonwealth Dr #03-10, Singapore 149596
Contact: 6473 4733

FAQs

Frequently Asked Questions About ZALMAN Z10 DS

Can I mount a 360mm radiator in the front and top at the same time?

Yes, the ZALMAN Z10 DS supports simultaneous 360mm radiators in both front and top positions. This makes it ideal for dual AIO cooling setups or custom water cooling loops with extensive radiator coverage.

What's the display passthrough feature on the front panel for?

The front panel includes Mini-HDMI and USB Type-C display outputs that connect to your GPU. This lets you plug VR headsets or portable monitors directly into the case without running cables through the back panel.

Will my RTX 4080 or RX 7900 XTX fit in this case?

Yes, the case supports graphics cards up to 395mm in length. Most modern high-end GPUs including RTX 4080, RTX 4090, and RX 7900 XTX models will fit comfortably with room for cable management.

What warranty coverage do I get in Singapore?

You get 1-year warranty coverage through CDL Trading Pte Ltd with Singapore service support. Mansa Computers provides fast WhatsApp inquiry response and we're open 7 days a week for any case compatibility or build questions.

How does the vertical GPU mount work?

The case includes 3 dedicated PCI slots for vertical GPU mounting using a riser cable (sold separately). This lets you showcase your graphics card sideways through the tempered glass panel instead of the traditional horizontal installation.
