Capacity
1,024GB, 2,048GB, 4,096GB

Form Factor

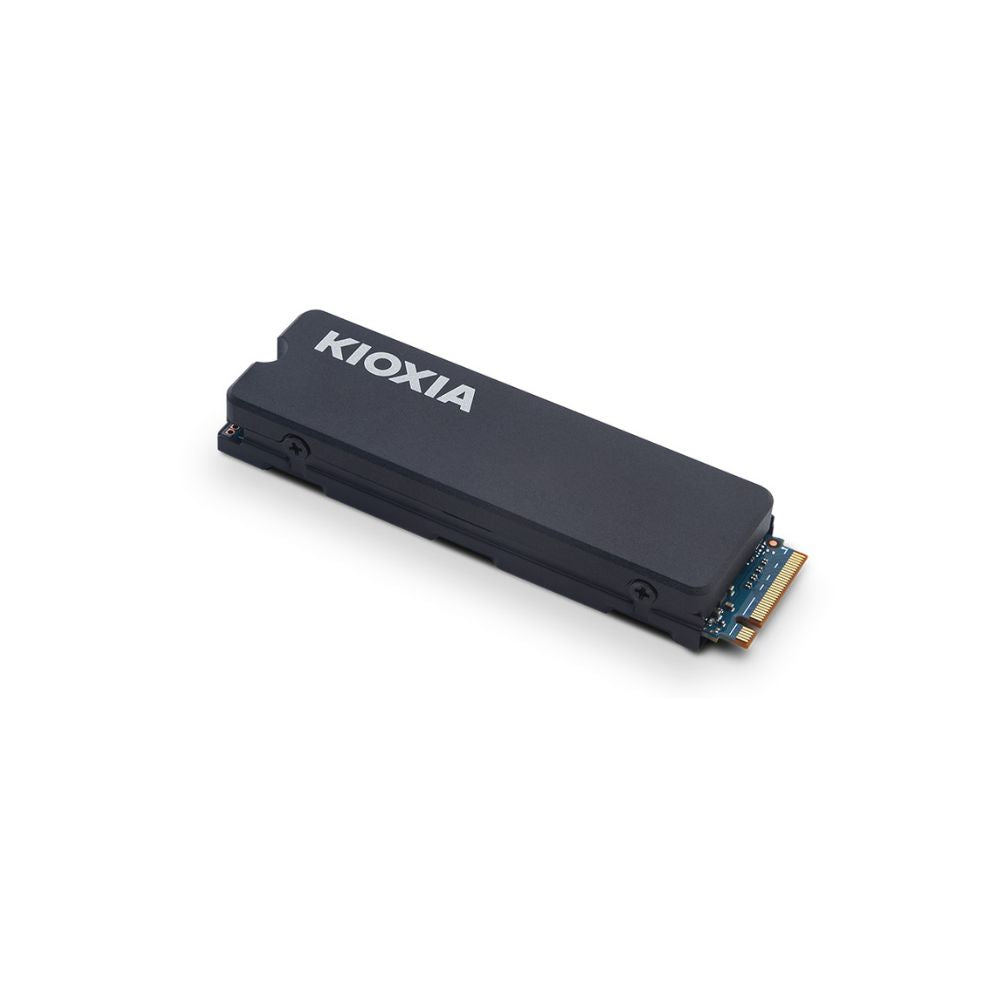

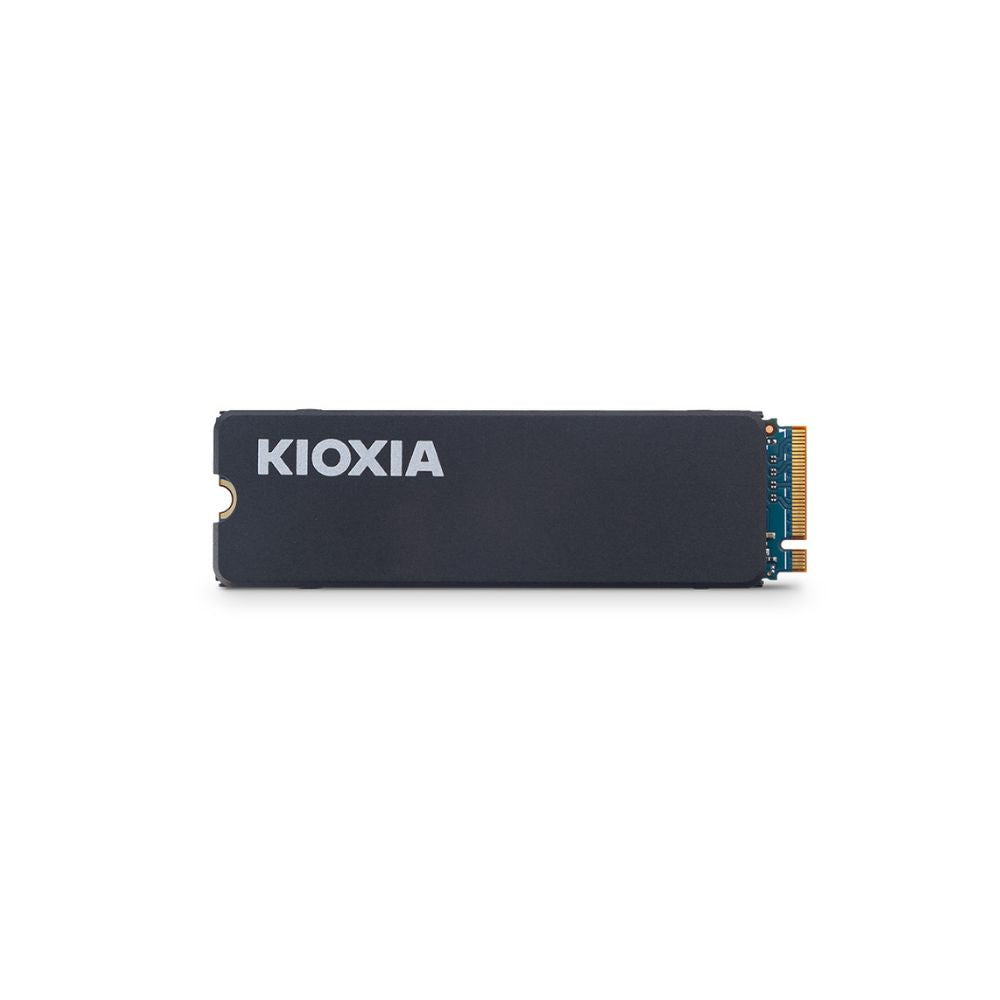

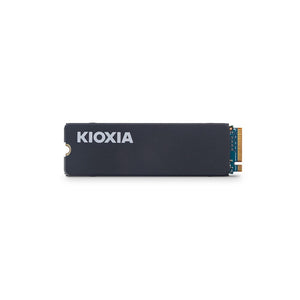

M.2 Type 2280(Key M) with Heatsink

Interface
PCI Express® Base Specification Revision 4.0 (PCIe®)

Flash Memory type
BiCS FLASH™ TLC

Interface Maximum Speed
64 GT/s (PCIe® Gen4x4)

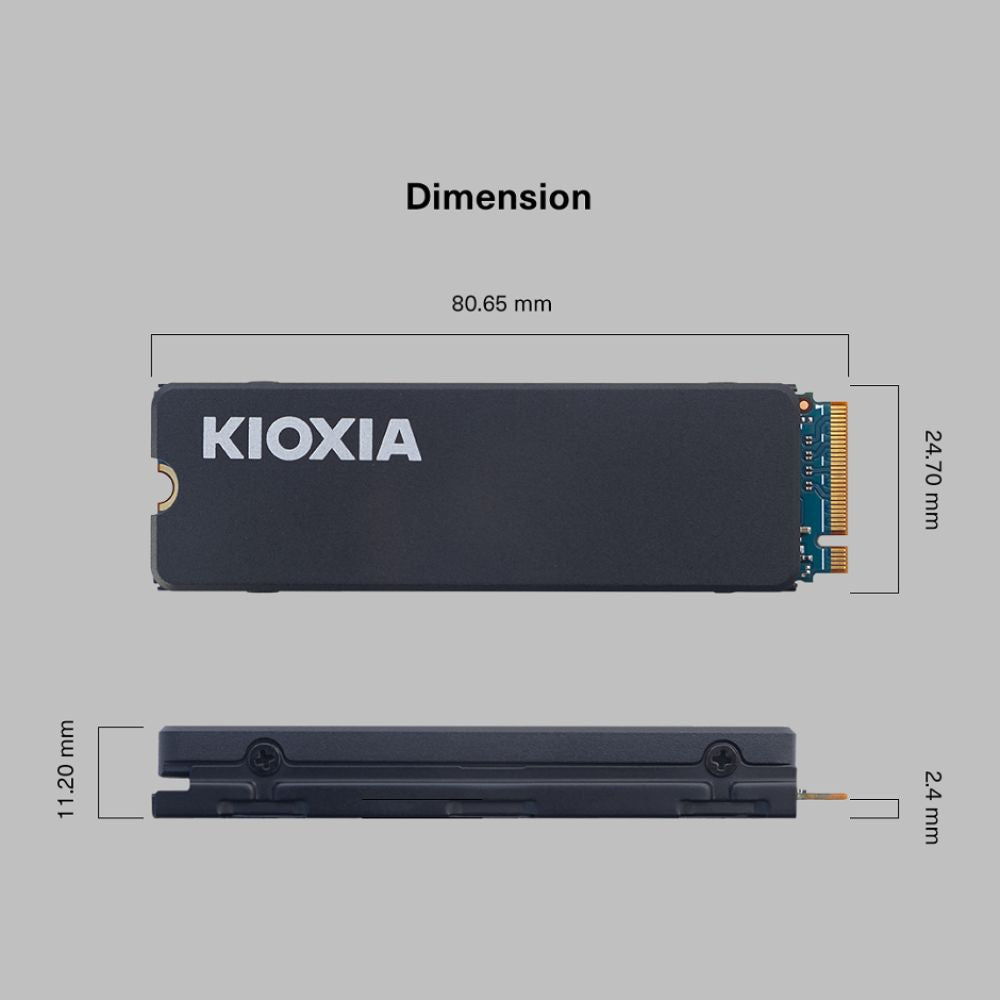

Dimension (Max: LxWxH)
80.65 x 24.70 x 11.20 mm

Interface Protocol
NVM Express™ Base Specification 1.4

Weight
1,024GB, 2,048GB: 45 g (typ.)
4,096GB: 46 g (typ.)

Max Sequential Read Speed
6,200 MB/s

Max Sequential Write Speed
1,024GB, 2,048GB: 4,900 MB/s
4,096GB: 4,800 MB/s

Max Random Read Speed
1,024GB: 850,000 IOPS
2,048GB: 830,000 IOPS
4,096GB: 810,000 IOPS

Max Random Write Speed
1,024GB: 440,000 IOPS
2,048GB, 4,096GB: 450,000 IOPS

Endurance: TBW (Total Bytes Written)
1,024GB: 600 TB
2,048GB: 1,200 TB
4,096GB: 2,400 TB

MTTF
1.5 million hours

Operating Temperature
0 ℃ (Ta) to 85 ℃ (TSMART)

Storage Temperature
-40 ℃ to 85 ℃

Certification
RoHS compliant

Shock Resistance
9.806 km/s2 {1,000 G} 0.5 ms half sine wave

Vibration
196 m/s2 {20 G} Peak, 10~2,000 Hz, (20 min / Axis) x 3 Axis

Supply Voltage
3.3 V ±5 %

Power Consumption
1,024GB:
PS3: 60 mW (typ.)
PS4: 5 mW (typ.)
2,048GB, 4,096GB:
PS3: 100 mW (typ.)
PS4: 10 mW (typ.)

Power Consumption (Active)
1,024GB: 7.7 W (typ.)
2,048GB, 4,096GB: 7.8 W (typ.)

Connector Type
M.2 M key Socket

Target Applications
Desktop PC and PlayStation5

5 Year Warranty
