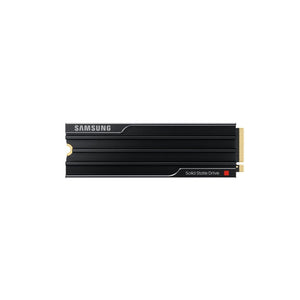

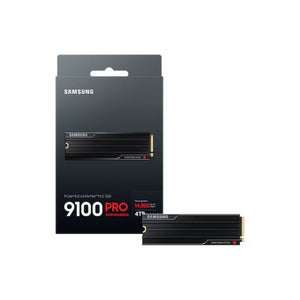

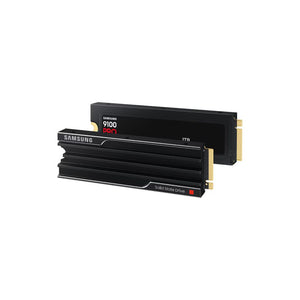

Samsung 9100 PRO with Heatsink – Gen.5 NVMe M.2 SSD

SKU: MZ-VAPT0CW

Interface: PCIe® 5.0 x4 NVMe™ 2.0 (M.2 2280, Heatsink Integrated)

Performance: Up to 14,800 MB/s Read, 13,400 MB/s Write, 2.6M IOPS

Thermal Design: Built-In Heatsink for Sustained Gen 5 Performance

Reliability & Security: 1.5M-Hour MTBF, AES 256-bit Hardware Encryption

Software Support: Samsung Magician SSD Management Suite

Built on PCIe 5.0, the Samsung 9100 PRO with Heatsink delivers 14,800 MB/s read speeds for your RTX 50-series build.

This internal SSD for gaming PC setups loads games faster and handles file transfers without bottlenecks. The heatsink keeps performance stable during long sessions. 5-year Samsung warranty with Ban Leong support in Singapore, plus fast WhatsApp inquiry from Mansa Computers.

Why Choose This 9100 PRO with Heatsink

  • PCIe 5.0 NVMe M.2 SSD speeds up to 14,800 MB/s mean faster game and smoother DirectStorage performance. Perfect for custom PC Singapore builds with RTX 5090 or RTX 5080 graphics.
  • Included heatsink prevents thermal throttling during sustained gaming sessions or video rendering. Most Gen.5 drives sell heatsinks separately or use basic cooling solutions.
  • Samsung Magician software lets you monitor drive health, update firmware, and optimize performance without tech headaches. 2.6 million IOPS random write keeps your system snappy.
  • 5-year Samsung warranty with Ban Leong service support in Singapore. Fast WhatsApp inquiry response from Mansa Computers. We're open 7 days a week for support.
Capacity
✓ Why Buy This

5 Year Warranty

Smart Cooling

PCIe 5.0 NVMe 2.0

Overview

About the Samsung 9100 PRO with Heatsink

The Samsung 9100 PRO with Heatsink is a PCIe 5.0 NVMe M.2 SSD built for enthusiast gaming PCs and creative workstations. This Gen.5 drive delivers 14,800 MB/s sequential read speeds, significantly faster than Gen.4 alternatives like the WD Black SN850X. It's designed for builders pairing their storage with RTX 50-series GPUs who want zero bottlenecks. The included heatsink handles sustained workloads without thermal throttling.

What This Samsung 9100 PRO Does for You

Game loading times drop noticeably compared to older SATA or Gen.3 drives. DirectStorage-enabled games like Forspoken and Ratchet & Clank load textures directly to your GPU, reducing stuttering. For content creators, transferring 4K video files or rendering projects happens faster. The 2.6 million IOPS random write performance keeps your system responsive during multitasking. Samsung's V-NAND TLC memory provides reliable endurance for years of heavy use. This internal SSD for gaming PC setups pairs well with high-end builds where every component matters.

PCIe 5.0 Performance That Actually Matters

Most Gen.4 drives max out around 7,300 MB/s, but this 9100 PRO with Heatsink doubles that. Real-world benefits show up in large file operations and next-gen gaming features. The included heatsink maintains performance during extended sessions, unlike bare drives that throttle when hot. Samsung Magician software monitors drive temperature, health percentage, and firmware updates. You get enterprise-grade reliability in a consumer drive. Available in 1TB, 2TB, and 4TB capacities to match your storage needs.

Perfect For

  • High-end gaming builds with RTX 5090 or RTX 5080 graphics cards that demand matching storage performance
  • Video editors working with 4K or 8K footage who need fast project loading and rendering
  • 3D artists and game developers handling large asset libraries and compilation times
  • Enthusiasts building future-proof systems who want Gen.5 speeds as games adopt DirectStorage

Why Buy from Mansa Computers

  • 5-year Singapore warranty with Samsung service support through Ban Leong Technologies
  • Fast WhatsApp inquiry response for compatibility questions
  • Open 7 days a week for support and technical assistance
  • Home delivery available across Singapore

Technical Specifications Summary

Interface
PCIe 5.0 x4, NVMe 2.0

Form Factor
M.2 (2280)

Sequential Read
Up to 14,800 MB/s

Sequential Write
Up to 13,400 MB/s

Random Write
Up to 2,600,000 IOPS

DRAM Cache
1GB - 4GB LPDDR4X

Warranty
5 Years

Heatsink
Included

Ready to upgrade your custom PC Singapore build? The Samsung 9100 PRO with Heatsink gives you Gen.5 performance with Samsung's proven reliability. Questions about compatibility? Reach out via WhatsApp.

Full Specifications

Application
Client PCs, Game Consoles

Rated Capacity

1TB (1GB=1 Billion byte by IDEMA, usable capacity may be less)
2TB (1GB=1 Billion byte by IDEMA, usable capacity may be less)
4TB (1GB=1 Billion byte by IDEMA, usable capacity may be less)

Form Factor
M.2 (2280)

Interface
PCIe® 5.0 x4, NVMe™ 2.0

Dimension (W x H x D)
80.15 x 25 x 8.88mm (with Heatsink)

Weight
Max 30.0g

Storage Memory
Samsung V-NAND TLC

Controller
Samsung in-house Controller

Cache Memory
Samsung 1GB Low Power DDR4X SDRAM
Samsung 2GB Low Power DDR4X SDRAM
Samsung 4GB Low Power DDR4X SDRAM

Special Feature
TRIM Support
S.M.A.R.T Support
Auto Garbage Collection Algorithm
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
Device Sleep Mode Support

Performance For 1TB
Sequential Read: Up to 14,700 MB/s
Sequential Write: Up to 13,300 MB/s
Random Read: Up to 1,850,000 IOPS
Random Write: Up to 2,600,000 IOPS

Performance For 2TB
Sequential Read: Up to 14,800 MB/s
Sequential Write: Up to 13,400 MB/s
Random Read: Up to 1,850,000 IOPS
Random Write: Up to 2,600,000 IOPS

Performance For 4TB
Sequential Read: Up to 14,800 MB/s
Sequential Write: Up to 13,400 MB/s
Random Read: Up to 2,200,000 IOPS
Random Write: Up to 2,600,000 IOPS

Power Consumption For 1TB
Average System Level: Read 7.6 W / Write 7.2 W
Idle: Typical 4 mW
Device Sleep: Typical 3.3 mW

Power Consumption For 2TB
Average System Level: Read 8.1 W / Write 7.9 W
Idle: Typical 4.8 mW
Device Sleep: Typical 4 mW

Power Consumption For 4TB
Average System Level: Read 9.0 W / Write 8.2 W
Idle: Typical 6.5 mW
Device Sleep: Typical 5.7 mW

Allowable Voltage
3.3 V ± 5 % Allowable voltage

Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)

Operating Temperature
0 - 70 ℃ Operating Temperature

Shock
1,500 G & 0.5 ms (Half sine)

Software
Management SW
Magician Software for SSD management

Warranty

5 Year Warranty

Ban Leong Technologies Ltd
150, #04-01 Ubi Ave 4, Ubi Biz-Hub,
Singapore 408825
Contact: 6512 9250

FAQs

Frequently Asked Questions About Samsung 9100 PRO with Heatsink

What makes the Samsung 9100 PRO faster than Gen.4 SSDs?

This PCIe 5.0 NVMe M.2 SSD hits 14,800 MB/s read speeds, roughly double Gen.4 drives like the WD Black SN850X. Real-world benefits show up in game loading, large file transfers, and DirectStorage-enabled titles.

Will this work with my RTX 5080 gaming build?

Absolutely. The 9100 PRO pairs perfectly with RTX 50-series builds. Your motherboard needs a PCIe 5.0 M.2 slot to hit maximum speeds, but it also works in PCIe 4.0 slots at reduced performance.

Does the included heatsink actually prevent thermal throttling?

Yes. Gen.5 drives run hotter than previous generations, and Samsung's heatsink maintains stable performance during long gaming sessions or sustained workloads. You won't need to buy a separate cooling solution.

What's covered under the 5-year Samsung warranty in Singapore?

The warranty covers manufacturing defects and drive failures through Ban Leong Technologies in Singapore. You get local service support instead of shipping overseas. Mansa Computers helps with warranty claims if needed.

Is Gen.5 worth it over a cheaper Gen.4 drive?

For high-end builds with RTX 5090/5080, yes. DirectStorage-enabled games and creative workflows benefit from the speed. If you're on a tighter setup, Gen.4 drives still perform well for most users.
