ASUS B850M AYW GAMING WIFI – PCIe 5.0 AM5 Ready

SKU: B850M-AYW

CPU Support: AMD Socket AM5 for Ryzen 9000 / 8000 / 7000 Series

Graphics & Expansion: PCIe 5.0 x16 slot (Ryzen 9000/7000), plus PCIe 4.0 expansion

Storage: 2 x M.2 + 4 x SATA 6Gb/s with RAIDXpert2; PCIe 5.0 x4 M.2 support available on Ryzen 9000 / 7000 Series

Connectivity: WiFi 6, Bluetooth 5.3, Realtek 2.5Gb Ethernet with ASUS LANGuard

EZ DIY & Cooling: M.2 Q-Latch, Q-Dashboard, BIOS FlashBack, pre-mounted I/O shield, VRM heatsink design + M.2 heatsink

ASUS B850M AYW GAMING WIFI is a clean, modern AM5 board that brings PCIe 5.0 where it matters.

Run Ryzen 9000, 8000, or 7000 Series with stable, practical features for daily gaming and work. Get a PCIe 5.0 x16 slot plus a PCIe 5.0 M.2 slot for faster GPU and SSD upgrades. Backed by 3-year ASUS Singapore warranty with Mansa support, open 7 days a week.

Why Choose This ASUS B850M AYW GAMING WIFI

  • AM5 support for Ryzen 9000 gives you a solid upgrade path on a micro-ATX build. Perfect for high-performance gaming builds.
  • PCIe 5.0 x16 and PCIe 5.0 M.2 help you run newer GPUs and faster SSDs. Great for next-gen SSD gaming setups.
  • ASUS 5X PROTECTION III, DIGI+ VRM, VRM heatsink design, and M.2 heatsink focus on stability, not just specs.
  • 3-year ASUS Singapore warranty with official support. Buy from Mansa Computers with fast WhatsApp replies, open 7 days a week.
✓ Why Buy This

3 Year Warranty

WiFi Connectivity

USB 10Gbps Ports

Full Specifications

Model
B850M AYW GAMING WIFI

CPU
AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

Chipset
AMD B850 Chipset

Memory
2 x DIMM slots, max. 128GB, DDR5
Supports up to 8200+ MT/s (OC) with Ryzen 9000 Series Processors
Supports up to 9600+ MT/s (OC) with Ryzen 8000 Series Processors
Supports up to 8000+ MT/s (OC) with Ryzen 7000 Series Processors
ECC and Non-ECC Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)

Graphics
1 x HDMI port
Supports 4K@60Hz as specified in HDMI 2.1

Expansion Slots
AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (support x4 mode)

Storage
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)
4 x SATA 6Gb/s ports
AMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10

Ethernet
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth
Wi-Fi 6
1x1 Wi-Fi 6 (802.11ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.3

USB
Rear USB (Total 8 ports)
2 x USB 10Gbps ports (2 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 5Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C power delivery output: max. 5V/3A

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Audio Shielding
Premium audio capacitors
Dedicated audio PCB layers
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output

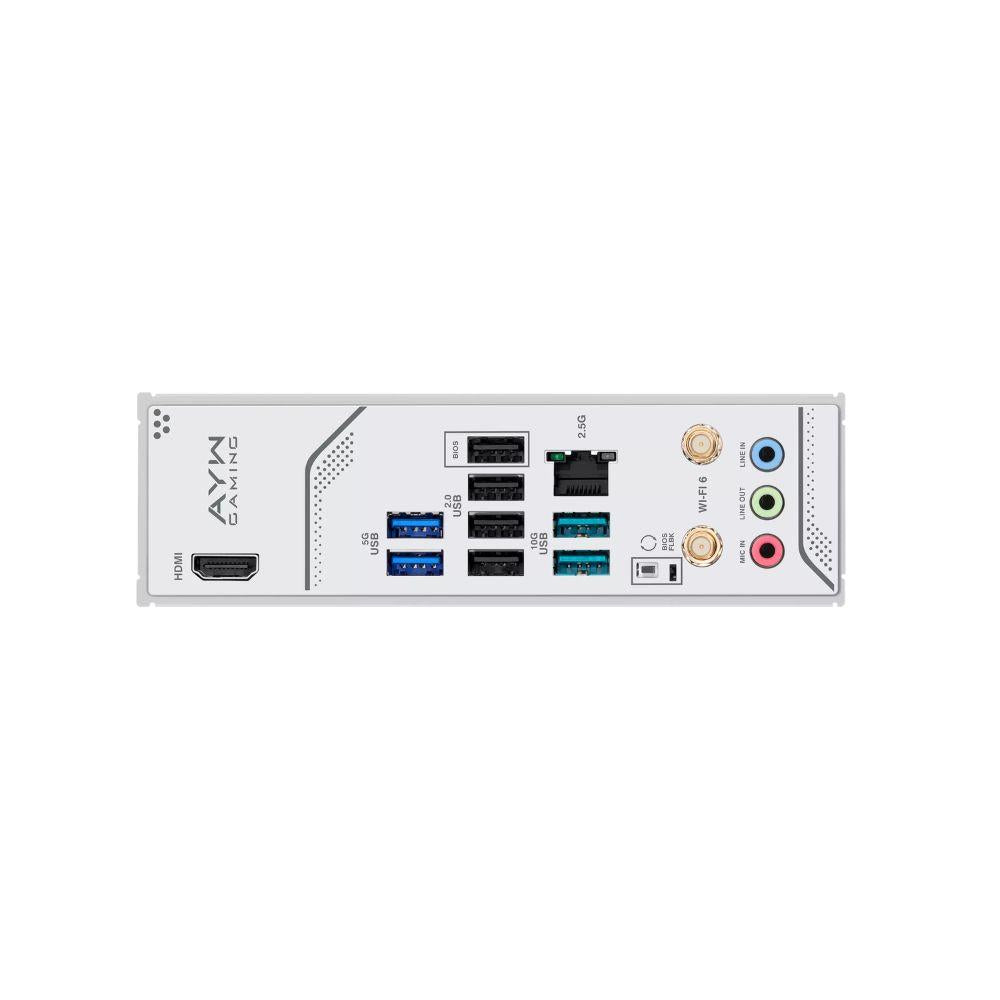

Back Panel I/O Ports
2 x USB 10Gbps ports (2 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button

Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
3 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header

Special Features
ASUS 5X PROTECTION III
DIGI+ VRM
LANGuard
Overvoltage protection
SafeSlot
Stainless-steel back I/O
ASUS Q-Design
M.2 Q-Latch
Q-Dashboard
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Q-Slot
ASUS Thermal Solution
M.2 heatsink
VRM heatsink design
ASUS EZ DIY
Pre-mounted I/O shield
BIOS FlashBack button
BIOS FlashBack LED
SafeSlot
Aura Sync
Addressable RGB Gen 2 headers

Software Features
ASUS Exclusive Software
Armoury Crate
Aura Creator
Aura Sync
Fan Xpert 2+
ASUS AI Advisor
ASUS DriverHub
TurboV Core
ASUS GlideX
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode
ASUS MyHotkey

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antenna
1 x M.2 rubber package
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide

Operating System
Windows 11, Windows 10 64-bit

Form Factor
micro-ATX Form Factor
9.6 inch x 8.7 inch (24.4 cm x 22.1 cm)

Warranty

3 YEARS WARRANTY
