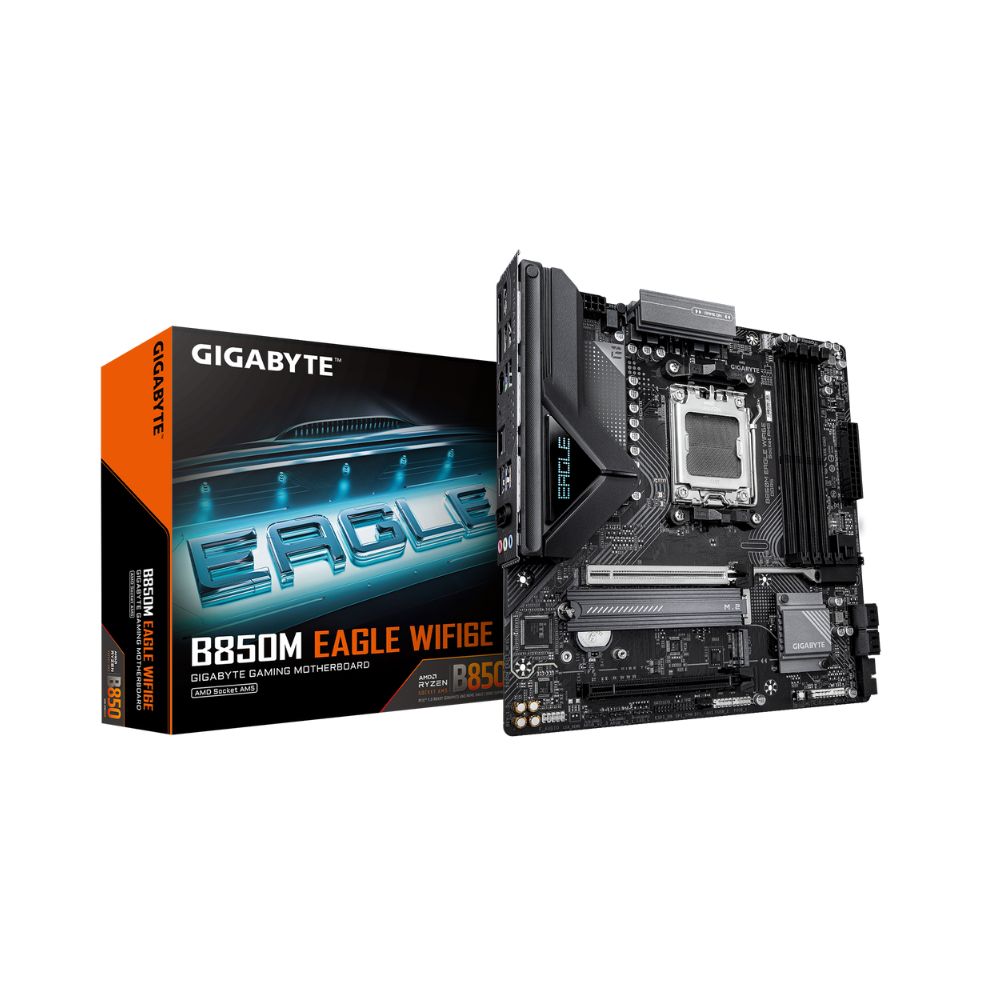

Gigabyte B850M EAGLE WIFI6E Motherboard – PCIe 5.0 Ready

About the Gigabyte B850M EAGLE WIFI6E

The B850M EAGLE WIFI6E motherboard is a Micro ATX motherboard built for AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 platform. This board targets mid-range builders and first-time PC enthusiasts who want modern features without overspending. The B850 chipset delivers solid connectivity and expansion options at a budget-friendly SGD 295 price point.

What This Gigabyte B850M EAGLE WIFI6E Does for You

This motherboard handles demanding gaming and productivity tasks with ease. PCIe 5.0 x16 support means your graphics card gets maximum bandwidth for smooth 1440p gaming and content creation. WiFi 6E wireless covers 2.4GHz, 5GHz, and 6GHz bands for lag-free online gaming and streaming. Dual M.2 slots let you run fast boot drives and game storage simultaneously. Four DDR5 DIMM slots support up to 256GB memory, so you can start small and upgrade later. The compact Micro ATX form factor fits smaller cases while maintaining full expansion capabilities for the best AM5 motherboards in this price range.

Connectivity That Grows With Your Build

The Gigabyte B850M EAGLE WIFI6E includes features typically found on higher-tier boards. WiFi 6E and Bluetooth 5.3 eliminate cable clutter for clean desk setups. The 2.5GbE LAN port delivers faster wired networking than standard gigabit connections. Rear I/O provides USB 3.2 Gen 2 Type-C and multiple USB 3.2 ports for peripherals and external storage. HDMI 2.1 and dual DisplayPort 1.4 outputs support multi-monitor configurations for productivity workflows. This connectivity makes it ideal for a Gaming PC Singapore build or compact workstation.

Perfect For

• Mid-range gaming builds with Ryzen 7000 or 9000 series processors paired with modern graphics cards
• First-time PC builders seeking a motherboard with 2 M.2 slots and straightforward installation
• Compact Micro ATX systems that need WiFi 6E and plenty of USB connectivity
• Budget-conscious upgraders moving from older AMD platforms to AM5 DDR5 technology

Why Buy from Mansa Computers

• 3-year Singapore warranty with Gigabyte service support
• Fast WhatsApp inquiry response for compatibility questions
• Open 7 days a week for weekend builder support
• Home delivery available across Singapore

Technical Specifications Summary

Chipset
AMD B850

CPU Support
AMD Ryzen 9000/8000/7000 Series (AM5)

Memory
4 x DDR5 DIMM, up to 256GB, DDR5-8200 OC

Graphics Output
1 x HDMI 2.1, 2 x DisplayPort 1.4

Storage
2 x M.2 (PCIe 5.0/4.0), 4 x SATA 6Gb/s

Networking
WiFi 6E, Bluetooth 5.3, 2.5GbE LAN

Expansion
1 x PCIe 5.0 x16, 1 x PCIe 3.0 x4

Form Factor
Micro ATX (24.4cm x 24.4cm)

The Gigabyte B850M EAGLE WIFI6E delivers essential features for modern AMD builds without unnecessary extras. Get yours from Mansa Computers with full Singapore warranty support and builder-friendly service.

Model
B850M EAGLE WF6E

CPU
AMD Socket AM5 supporting AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors
Refer to GIGABYTE’s official CPU support list for compatibility

Chipset
AMD B850 Chipset

Memory
4 x DDR5 DIMM slots, up to 256GB system memory (64GB per DIMM)
Supports DDR5 8200(O.C.) / 8000(O.C.) / 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5200 / 4800 / 4400 MT/s
Dual Channel Memory Architecture
Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Supports AMD EXPO™ and XMP memory profiles
Refer to GIGABYTE’s Memory Support List for more details

Graphics
Integrated AMD Radeon™ Graphics (CPU dependent)
1 x HDMI 2.1 port, max resolution 4096x2160@60Hz, HDCP 2.3, HDR support
2 x DisplayPort 1.4 ports, max resolution 3840x2160@144Hz
Supports up to 3 displays simultaneously (graphics specifications may vary by CPU)

Audio
Realtek® High Definition Audio CODEC, supports 2/4/5.1/7.1-channel configuration
Audio jack function can be customized via software
To enable 7.1-channel output, use HD audio module and configure via Realtek software

LAN
Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps) with auto-negotiation

Wireless
Realtek® Wi-Fi 6E RTL8852CE module
Supports 2.4GHz / 5GHz / 6GHz bands
Bluetooth® 5.3
Supports 11ax 160MHz standard (data rate depends on environment and equipment)

Expansion Slots
1 x PCIe x16 slot (from CPU):
Ryzen™ 9000/7000 – PCIe 5.0 x16 mode
Ryzen™ 8000 Phoenix 1 – PCIe 4.0 x8 mode
Ryzen™ 8000 Phoenix 2 – PCIe 4.0 x4 mode
1 x PCIe x16 slot (from chipset) PCIe 3.0 x4 mode
*Use PCIEX16 slot for GPU installation for optimal performance

Storage
2 x M.2 slots (Socket 3, M key) and 4 x SATA 6Gb/s ports
M2A_CPU: 25110/22110/2280, PCIe 5.0 x4/x2 (Ryzen™ 9000/7000), PCIe 4.0 x4/x2 (Ryzen™ 8000)
M2B_CPU: 22110/2280, PCIe 4.0 x4/x2 (Ryzen™ 9000/7000/8000)
Supports RAID 0/1/5/10 for NVMe SSDs (RAID 5 available on Ryzen™ 9000 only) and RAID 0/1/10 for SATA drives

USB
Rear: 1 x USB Type-C® (USB 3.2 Gen 2), 1 x USB 3.2 Gen 2 Type-A (red), 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1
Internal: 1 x USB 3.2 Gen 2 Type-C®, 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 (via headers)

Internal I/O Connectors
1 x 24-pin ATX main power, 1 x 8-pin 12V CPU power
1 x CPU Fan, 1 x CPU/Water Pump, 1 x System Fan, 1 x System Fan/Water Pump
3 x Addressable RGB Gen 2 headers, 1 x RGB header
4 x SATA 6Gb/s, 2 x M.2 slots
1 x USB Type-C® (USB 3.2 Gen 2), 1 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 headers
1 x TPM header, 1 x Clear CMOS jumper, 1 x Reset jumper/button, 1 x Front Panel header, 1 x Audio header

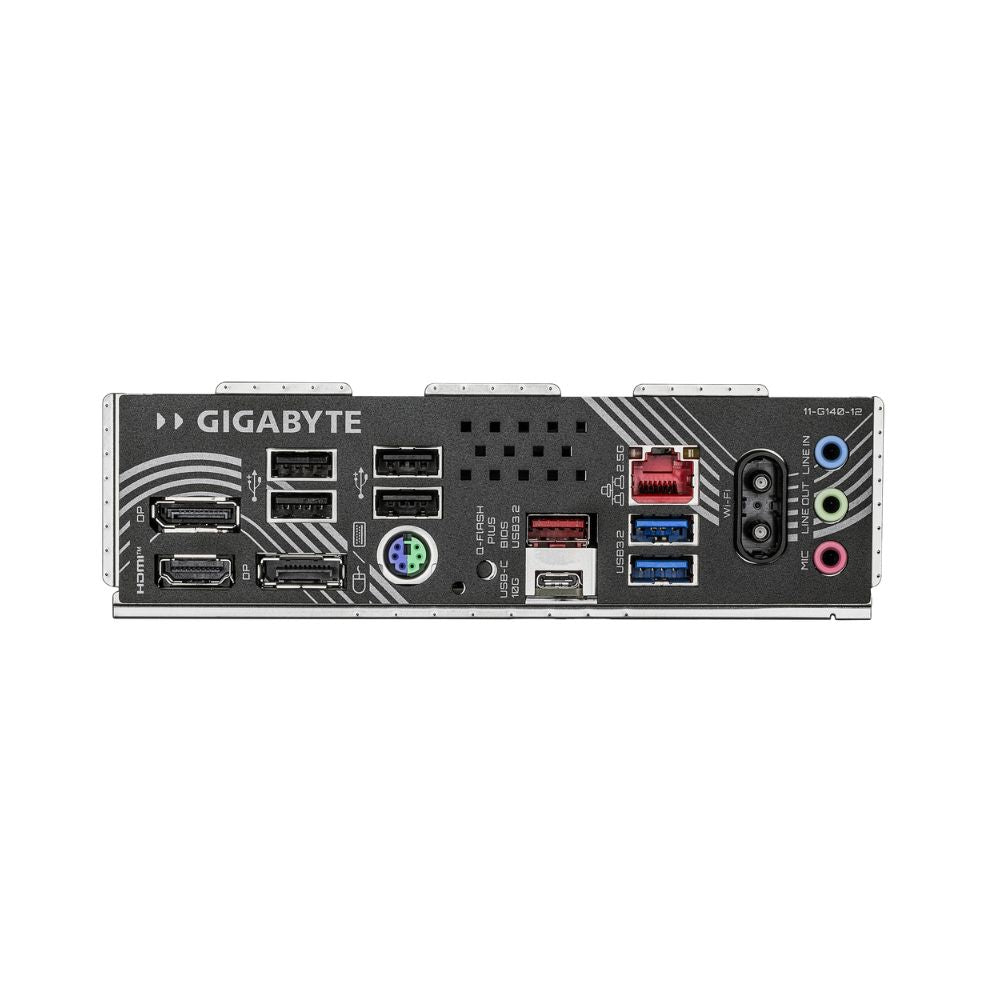

Back Panel I/O
1 x HDMI, 2 x DisplayPort, 1 x PS/2 combo port, 1 x RJ-45 LAN, 2 x antenna connectors (2T2R), 1 x USB Type-C® (USB 3.2 Gen 2), 1 x USB 3.2 Gen 2 Type-A (red), 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1, 3 x Audio jacks, 1 x Q-Flash Plus button

Controller
iTE® I/O Controller Chip

Hardware Monitoring
Voltage, temperature, fan speed, and water flow rate detection
Supports fan fail warning and fan/pump speed control
Functionality depends on installed fan/pump model

BIOS
256 Mbit flash, AMI UEFI BIOS with support for PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0

Unique Features
GIGABYTE Control Center (GCC)
Support for Q-Flash, Q-Flash Plus, and Smart Backup

Bundled Software
Norton® Internet Security (OEM) and LAN bandwidth management software

Operating System
Windows 11 64-bit, Windows 10 64-bit

Form Factor
Micro ATX, 24.4 cm x 24.4 cm

3 YEARS WARRANTY

CDL Trading Pte Ltd
115A Commonwealth Dr #03-10, Singapore 149596
Contact: 6473 4733

Frequently Asked Questions About Gigabyte B850M EAGLE WIFI6E

Does this motherboard support PCIe 5.0 SSDs and graphics cards?

Yes, the M2A_CPU slot supports PCIe 5.0 x4 SSDs with Ryzen 9000 and 7000 processors. The main PCIe x16 slot runs at PCIe 5.0 speeds for next-gen graphics cards. You get future-proof storage and GPU connectivity.

Can I use this for a compact gaming build with good WiFi?

Absolutely, this Micro ATX board fits smaller cases while including WiFi 6E for tri-band wireless gaming. The compact size doesn't sacrifice features—you still get dual M.2 slots and PCIe 5.0 graphics support.

Which AMD processors work with the B850M EAGLE WIFI6E?

This board supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors on the AM5 socket. Check Gigabyte's official CPU support list for specific model compatibility and BIOS requirements.

What warranty coverage does Mansa provide?

You get 3-year Gigabyte Singapore warranty with local service support. Mansa handles warranty claims quickly and we're open 7 days a week. Fast WhatsApp response for any questions.

How does this compare to B650 and X870 motherboards?

The B850 chipset offers better PCIe 5.0 implementation than B650 models while costing less than X870 boards. You get the key features of the best AM5 motherboards without paying for enthusiast-tier extras.
