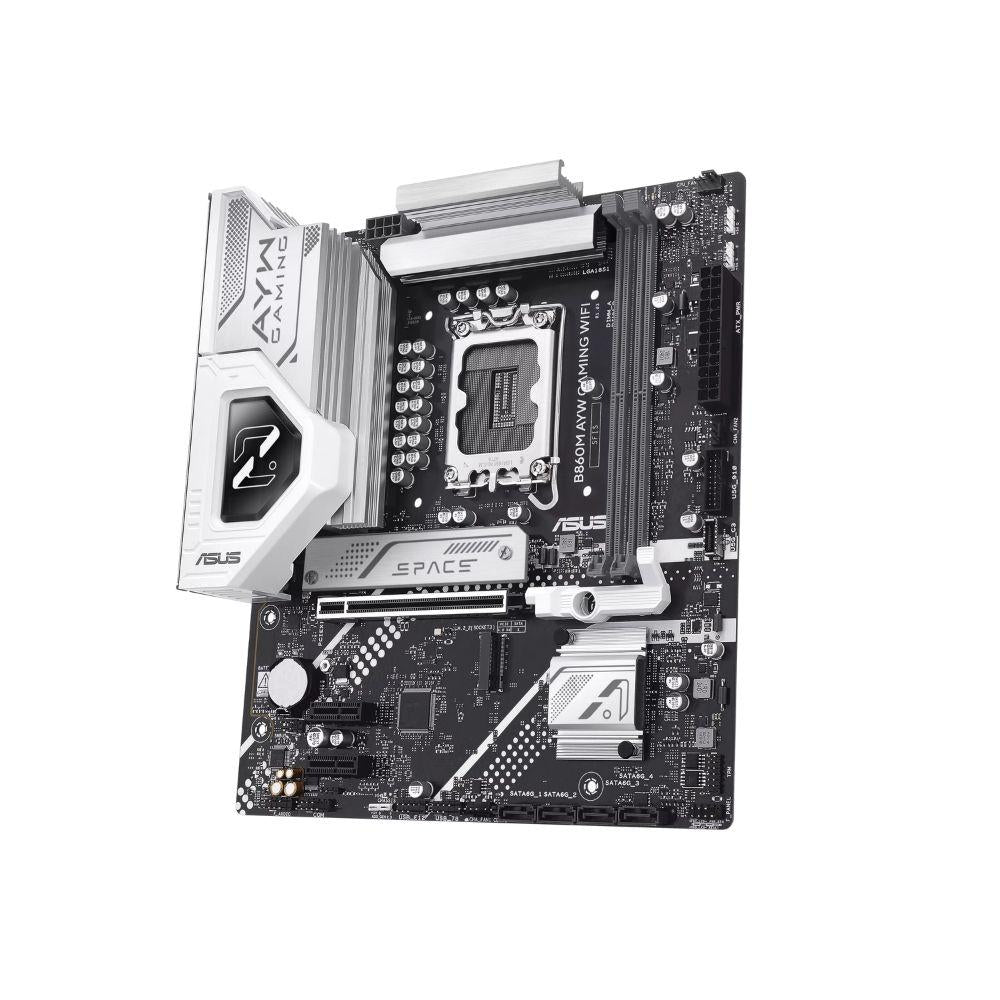

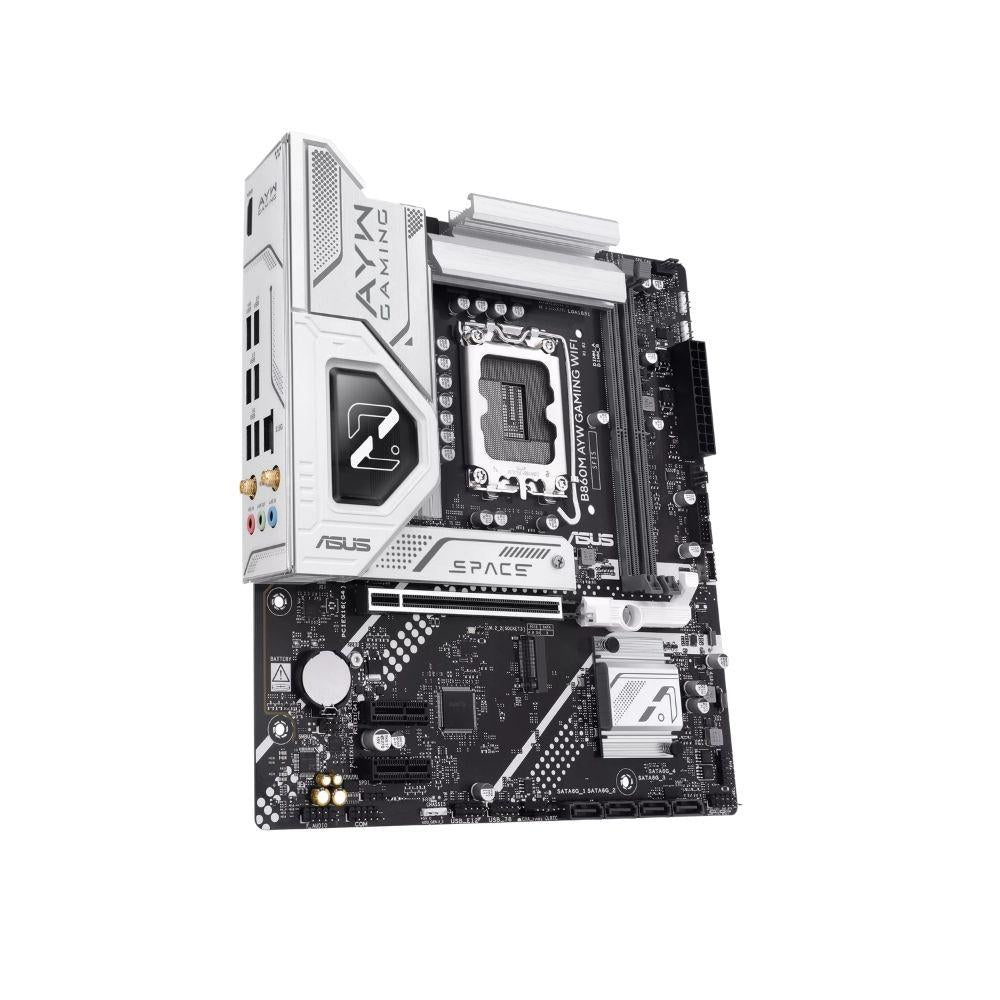

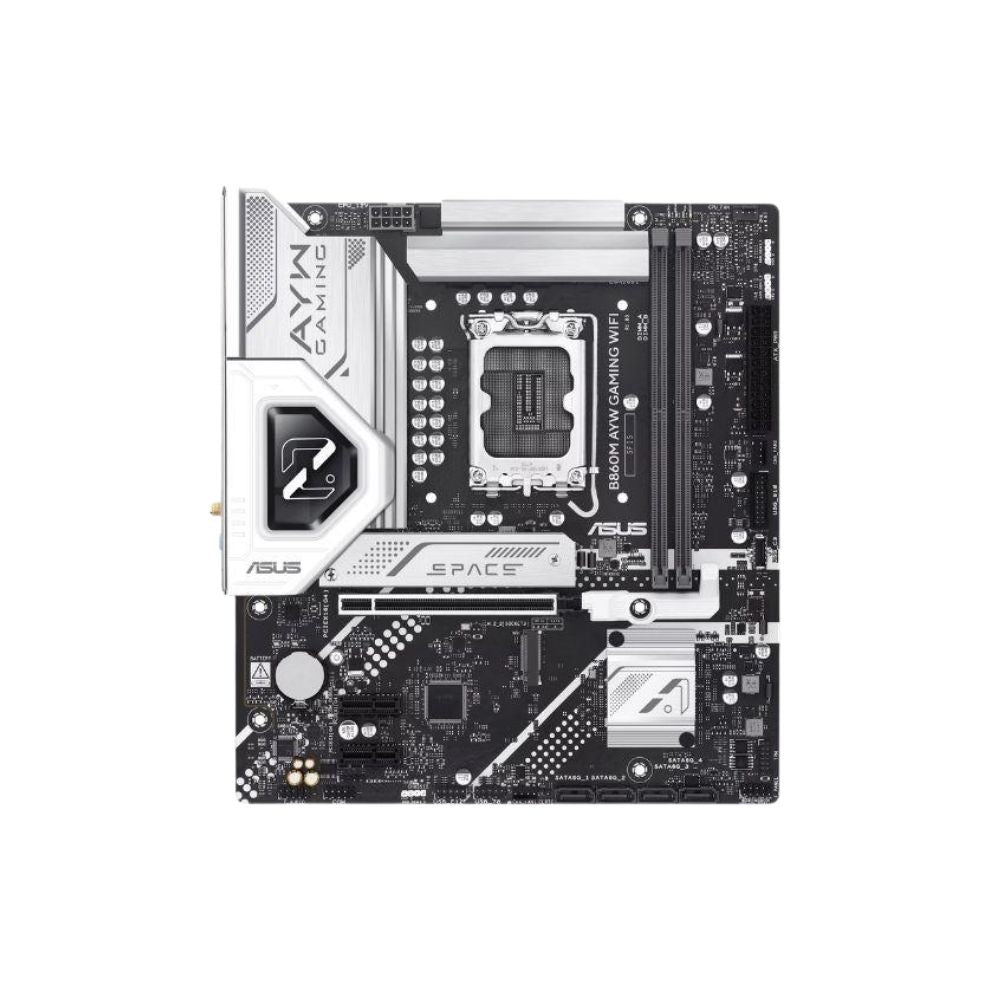

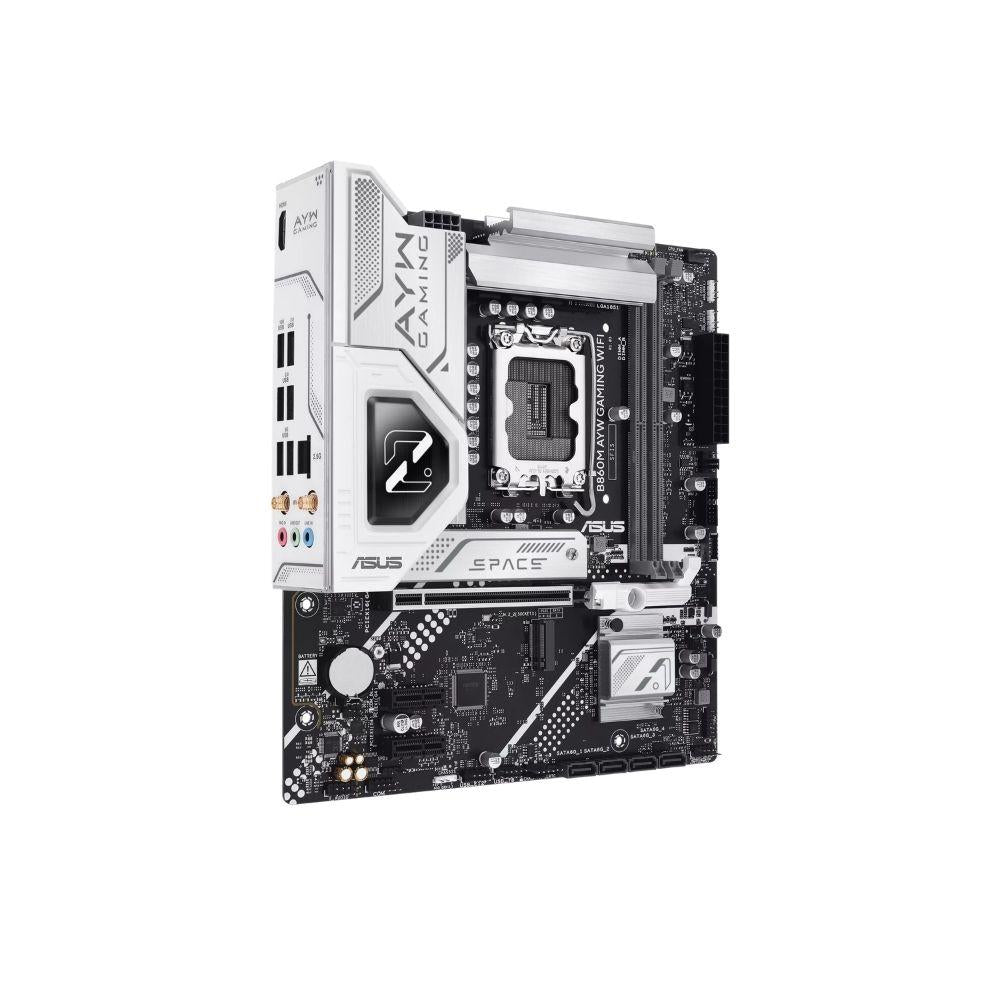

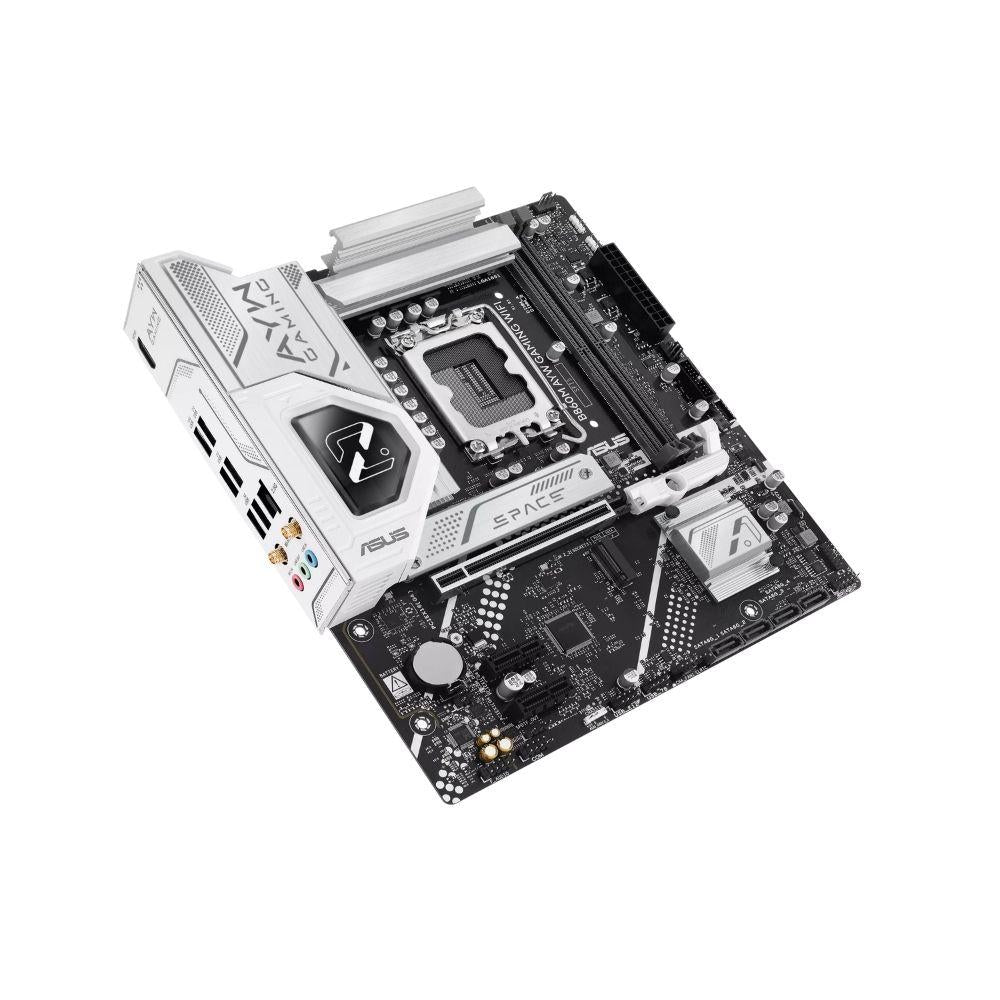

ASUS B860M AYW GAMING WIFI – DDR5 & PCIe 5.0 Ready

Model
B860M AYW GAMING WIFI

CPU
LGA1851: Supports Intel Core Ultra Processors (Series 2)
Supports Intel Turbo Boost Technology 2.0
Supports Intel Turbo Boost Max Technology 3.0 (CPU dependent)

Chipset
Intel B860 Chipset

Memory
2 x DDR5 DIMM, up to 128GB
Supports up to 8800+ MT/s (OC)
Non-ECC, un-buffered / CUDIMM support (CPU & RAM dependent)
Dual channel memory architecture
DIMM Fit
Supports Intel XMP
ASUS Enhanced Memory Profile III (AEMP III)

Graphics
1 x HDMI
Supports up to 4K@60Hz (HDMI 2.1)

Expansion Slots
(With Intel Core Ultra Series 2 CPU)
1 x PCIe 4.0 x16 slot
(Chipset)
2 x PCIe 4.0 x1 slots

Storage
2 x M.2 slots + 4 x SATA 6Gb/s
M.2_1 (PCIe 5.0 x4, Key M, 2280) (CPU)
M.2_2 (PCIe 4.0 x4, Key M, 2280) (Chipset)
4 x SATA 6Gb/s
Intel Rapid Storage Technology: SATA RAID 0/1/5/10

Ethernet
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth
Wi-Fi 6 (802.11ax) 1x1, 2.4/5GHz
Bluetooth 5.3

USB
Rear USB (Total 6)
1 x USB 10Gbps (Type-A)
2 x USB 5Gbps (Type-A)
3 x USB 2.0 (Type-A)
Front USB (Total 7)
1 x USB 5Gbps Type-C header (max 5V/3A)
1 x USB 5Gbps header (adds 2 x USB 5Gbps ports)
2 x USB 2.0 headers (adds 4 x USB 2.0 ports)

Audio
Realtek 7.1 Surround Sound HD Audio CODEC
Supports up to 24-Bit/192 kHz playback
Audio Shielding, premium capacitors, dedicated PCB layers

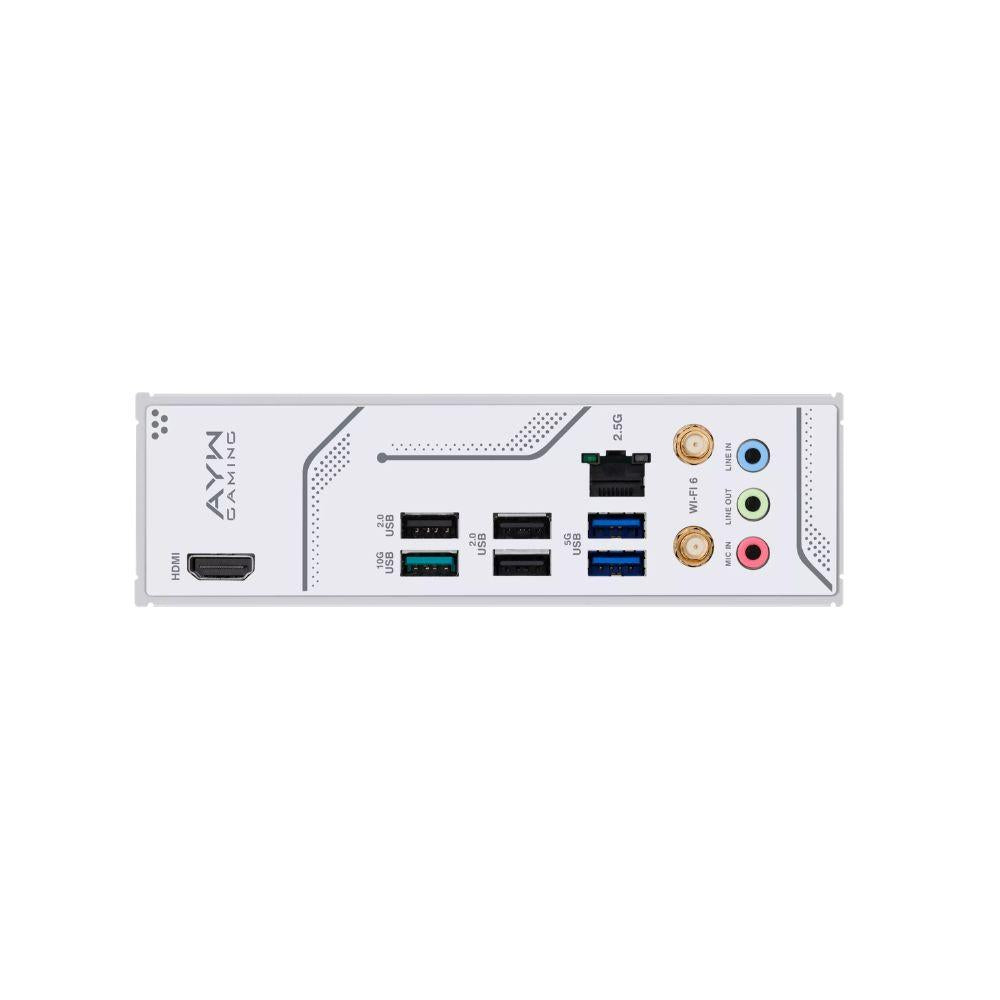

Back Panel I/O
1 x USB 10Gbps Type-A
2 x USB 5Gbps Type-A
3 x USB 2.0 Type-A1 x HDMI
Wi-Fi module
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks

Internal I/O Connectors
CPU fan: 1 x 4-pin
Chassis fan: 2 x 4-pin
Power: 24-pin + 8-pin CPU
Storage: 2 x M.2, 4 x SATA
USB: USB-C header (5Gbps), USB 5Gbps header, 2 x USB 2.0 headers
Other: 3 x Addressable Gen2, Clear CMOS, COM header, F_AUDIO, S/PDIF Out, SPI TPM, front panel header

Special Features
ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, protections, SafeSlot Core+, stainless back I/O)
ASUS Q-Design (M.2 Q-Latch, PCIe Q-Release, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot)
Thermals: M.2 heatsink, VRM heatsinks
EZ DIY: ProCool, pre-mounted I/O shield
Aura Sync (Addressable Gen2)

Software Features
Armoury Crate (Aura Sync, Fan Xpert 2+, Power Saving)
ASUS AI Advisor, DriverHub, GlideX, ASUS CPU-Z
Norton 360 Deluxe (60-day trial), WinRAR (40-day trial)
UEFI BIOS tools (CrashFree BIOS 3, EZ Flash, EZ Mode, MyHotkey)

BIOS
256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

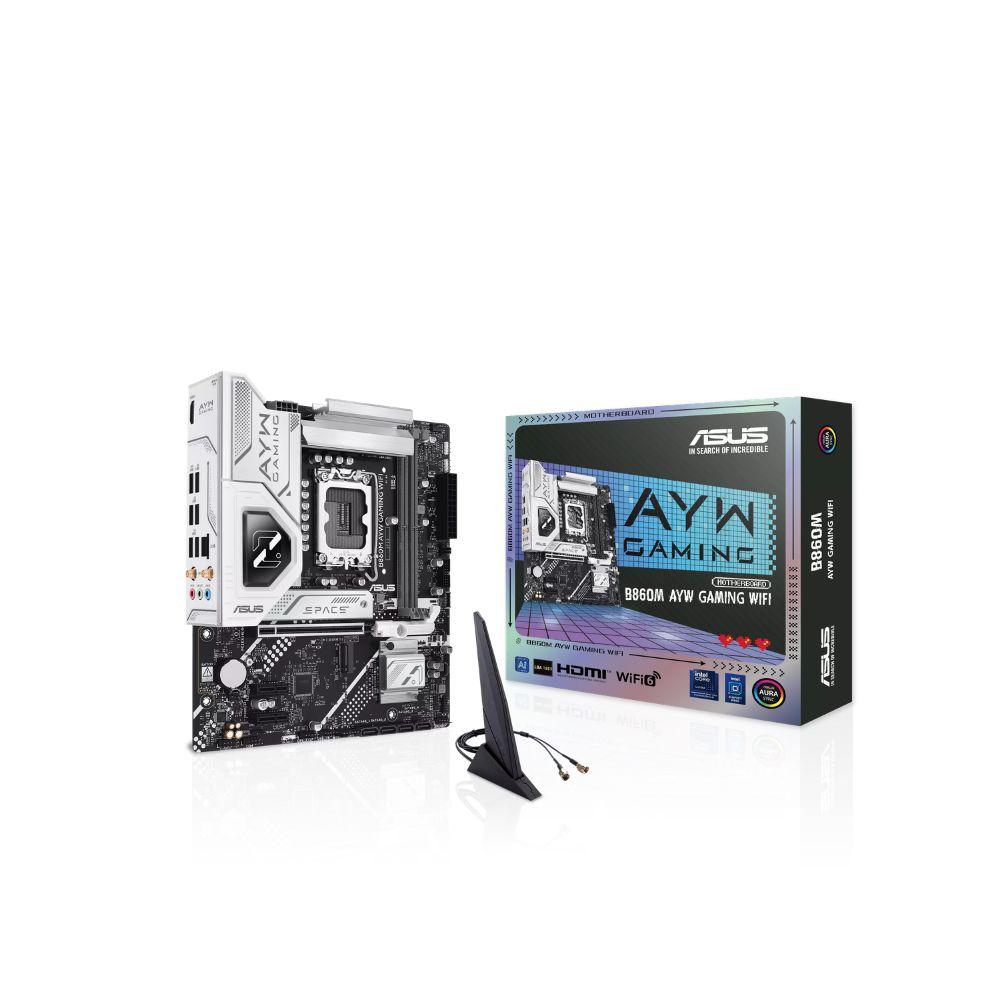

Accessories
2 x SATA cables

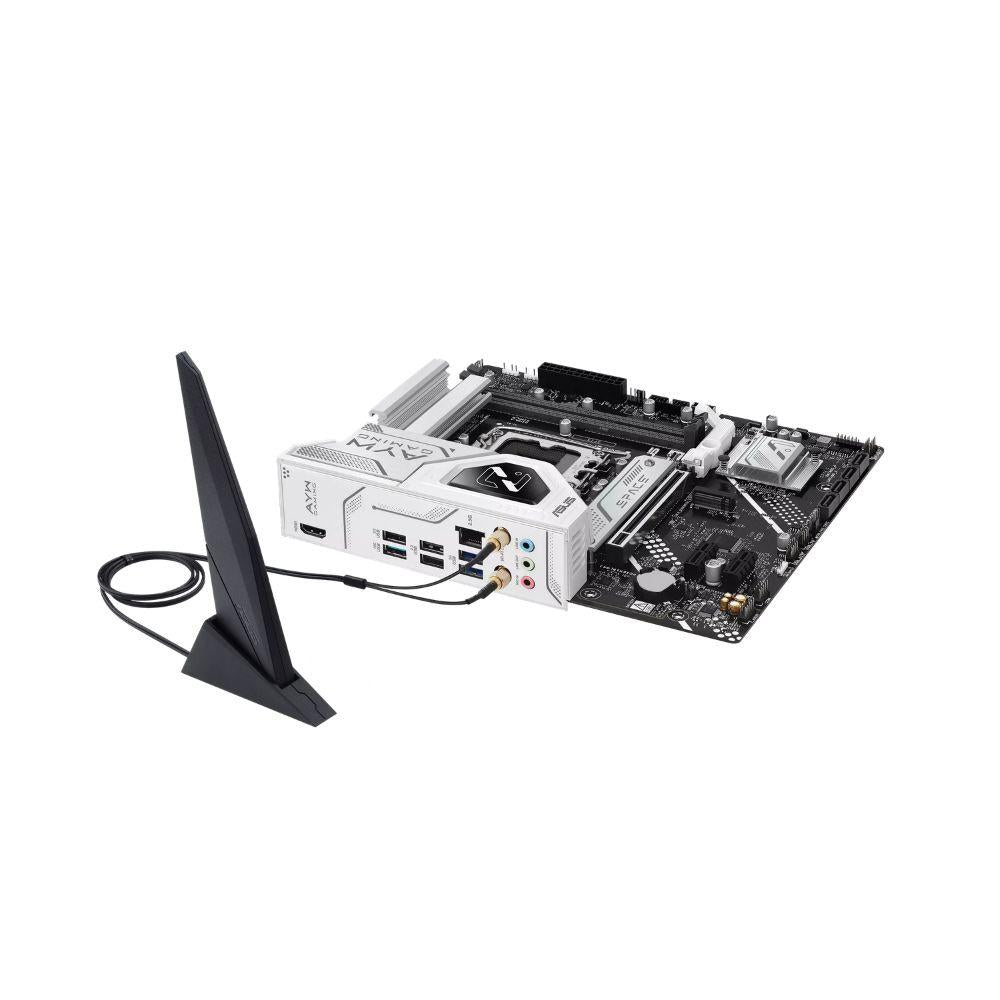

ASUS Wi-Fi moving antenna
M.2 rubber package + M.2 screw pack
Quick start guide

Operating System
Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)

Form Factor
Micro-ATX (24.4cm x 22.2cm)

3 YEARS WARRANTY
