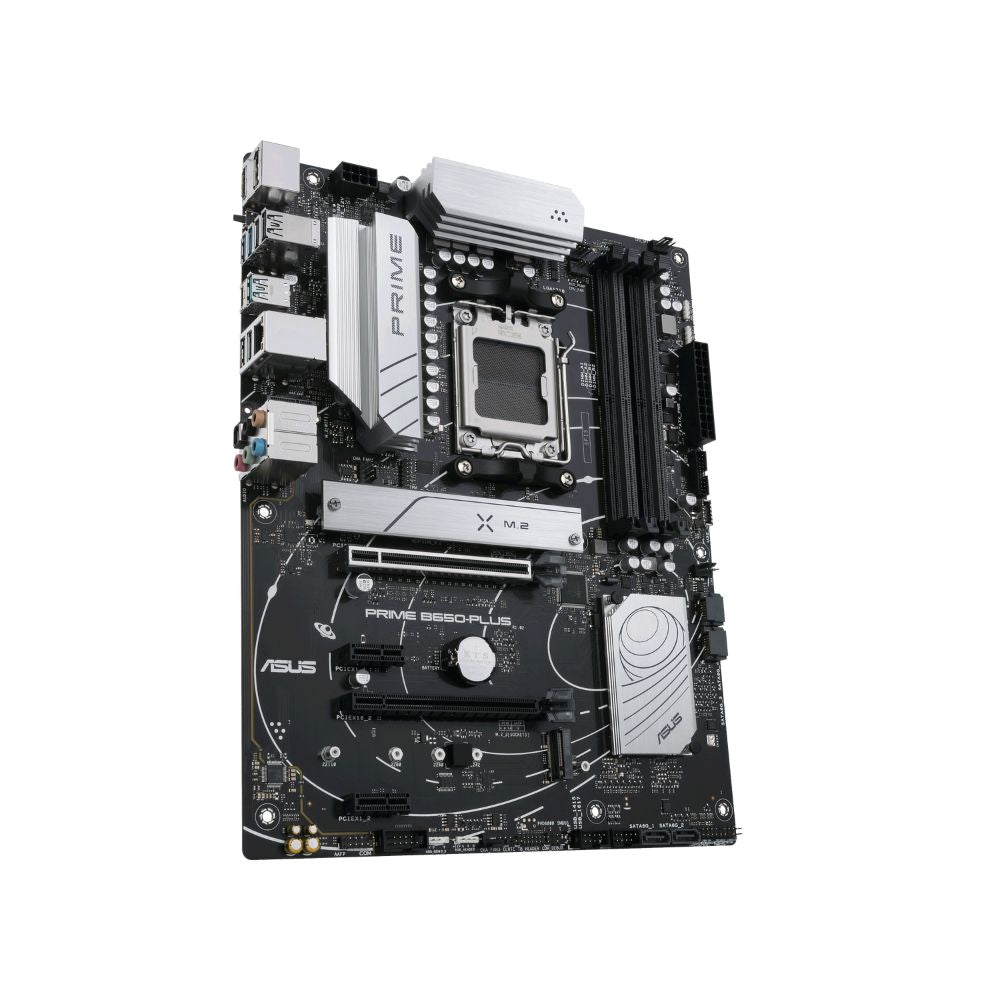

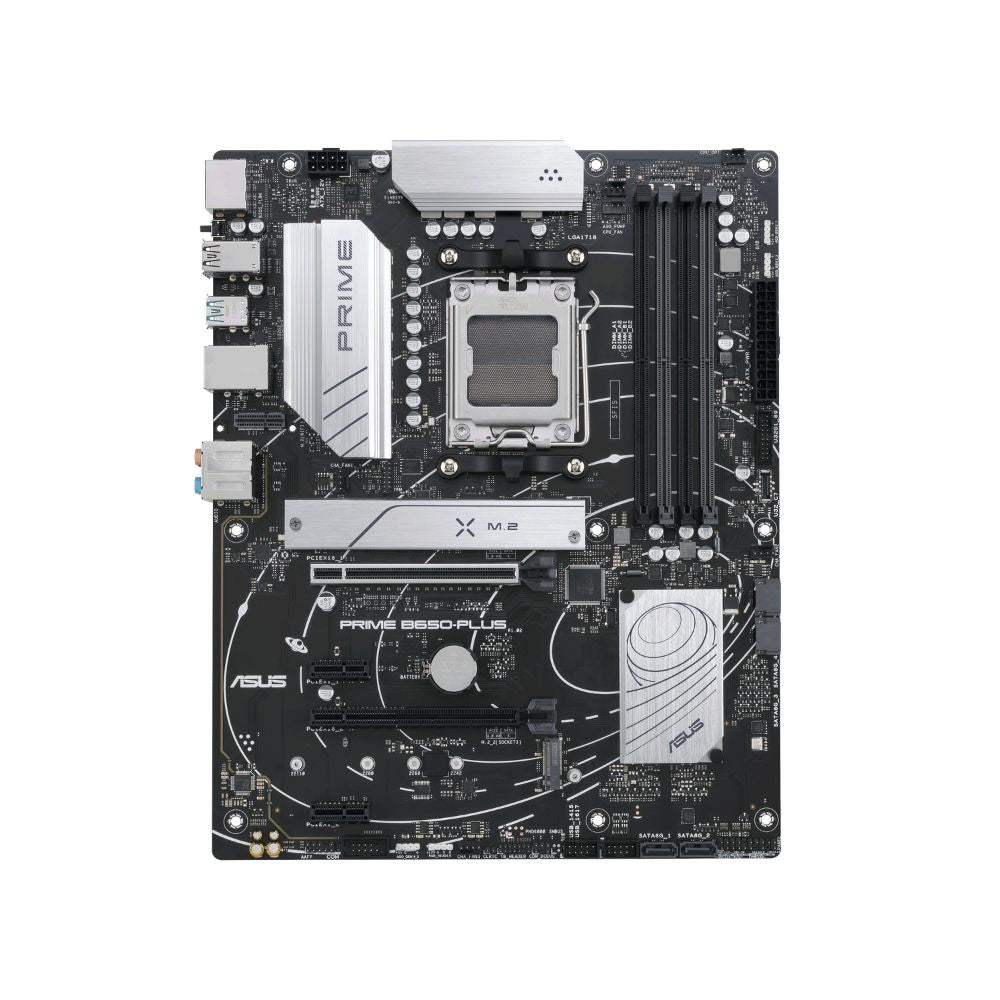

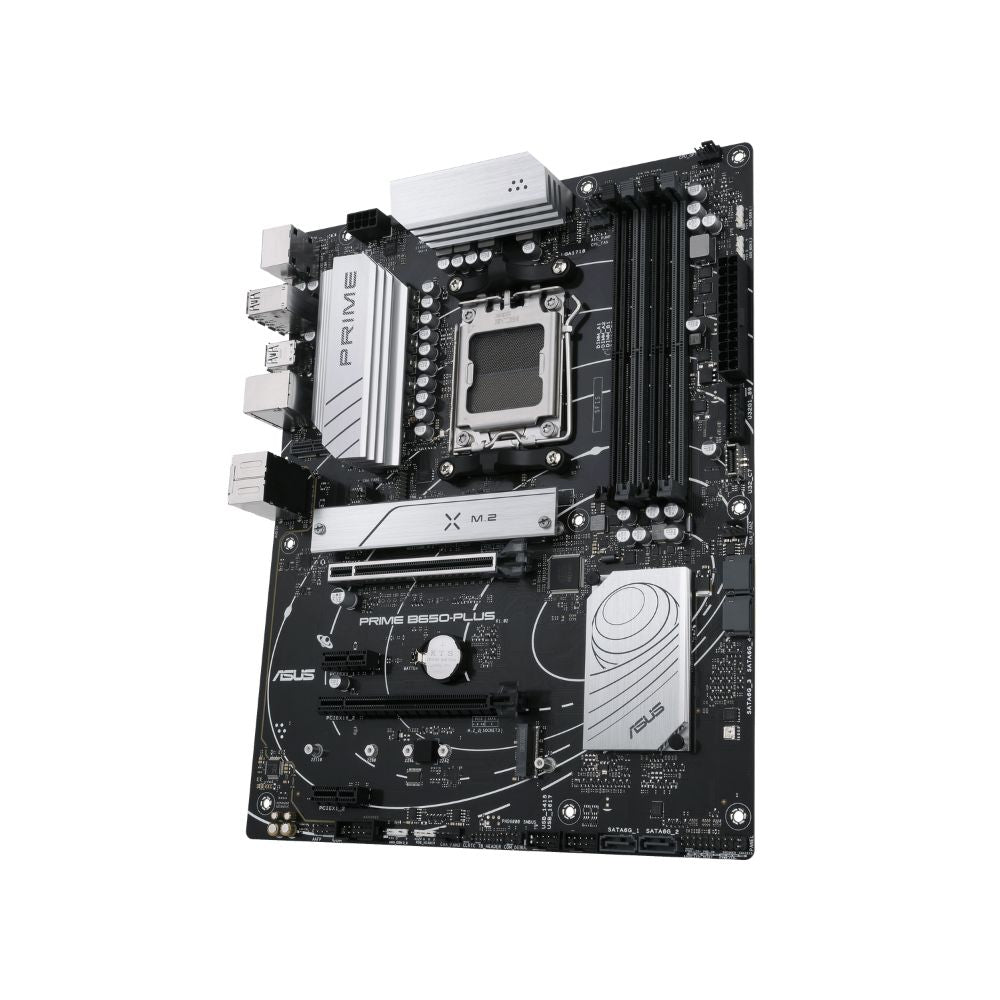

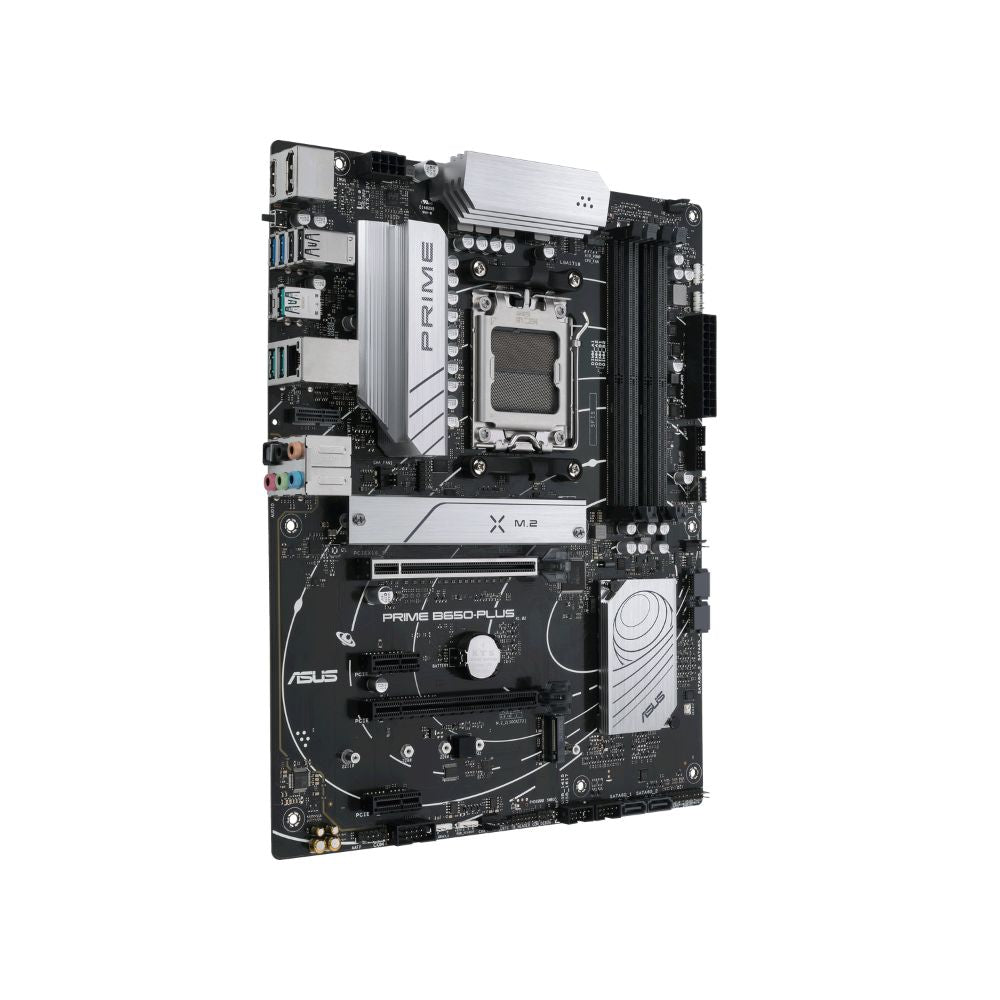

ASUS PRIME B650-PLUS – AM5 ATX Motherboard

About the ASUS PRIME B650-PLUS

The PRIME B650-PLUS Motherboard is an AM5 ATX motherboard built for Ryzen 7000, 8000, and 9000 series processors. It gives you essential features like PCIe 5.0 storage and DDR5-7600 support without extra costs for RGB lighting or built-in WiFi. This makes it ideal for builders who want a reliable foundation for gaming, productivity, or mixed-use systems. First-time builders appreciate the Q-Design features that simplify installation and troubleshooting.

What This ASUS PRIME B650-PLUS Does for You

This motherboard for PC gaming handles modern titles smoothly with fast memory and storage support. DDR5-7600 overclocking boosts Ryzen CPU performance in games like Cyberpunk 2077 and competitive shooters. The PCIe 5.0 M.2 slot supports next-generation SSDs for DirectStorage-ready game loading. 2.5Gb Ethernet reduces lag in online matches compared to standard 1Gb connections. Four USB 3.2 Gen 2 rear ports plus front USB-C connectivity handle gaming peripherals, external drives, and VR headsets without adapter juggling. The AM5 ATX motherboard layout provides room for expansion as your needs grow.

PCIe 5.0 Storage Ready

Most competing B650 boards save costs by skipping PCIe 5.0 storage entirely. The PRIME B650-PLUS Motherboard includes one PCIe 5.0 x4 M.2 slot for next-gen SSDs that hit 12GB/s speeds. You also get a second PCIe 4.0 M.2 slot plus four SATA ports for older drives. This flexibility lets you mix fast boot drives with large game libraries. ASUS SafeSlot Core+ reinforces the PCIe x16 slot to prevent GPU sag damage over time.

Perfect For

• Builders creating custom PC Singapore systems with Ryzen 7 7700X or Ryzen 9 9900X processors for 1080p and 1440p gaming
• Users upgrading from AM4 platforms who want DDR5 and PCIe 5.0 without overspending on X870 chipsets
• Home office setups needing stable performance for video editing, 3D rendering, or software development workloads
• First-time builders who value straightforward installation with Q-DIMM latches and clearly labeled Q-LED diagnostic lights

Why Buy from Mansa Computers

• 3-year ASUS Singapore warranty with local service support
• Fast WhatsApp inquiry response for compatibility questions before purchase
• Open 7 days a week for troubleshooting and technical support
• Home delivery available across Singapore

Technical Specifications Summary

Chipset
AMD B650

CPU Support
AM5 Socket (Ryzen 9000/8000/7000)

Memory
DDR5-7600 (OC), 4 DIMM slots, Max 192GB

Storage
2x M.2 (PCIe 5.0 + 4.0), 4x SATA 6Gb/s

Networking
Realtek 2.5Gb Ethernet

USB
4x USB 3.2 Gen 2 rear, Front USB-C header

Form Factor
ATX (30.5cm x 24.4cm)

Warranty
3 Years ASUS Singapore

Ready to build your Ryzen system? The ASUS PRIME B650-PLUS gives you AM5 platform benefits with PCIe 5.0 and DDR5 support at SGD 325. Order now from Mansa Computers with 3-year Singapore warranty and 7-day support.

Model
PRIME B650-PLUS

CPU
AMD Socket AM5 for AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors

Chipset
AMD B650 Chipset

Memory
4 x DIMM, Max 192GB DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD EXPO™ and OptiMem II

Graphics
1 x DisplayPort
1 x HDMI® port
Supports max 8K@60Hz (DisplayPort 1.4) and 4K@60Hz (HDMI® 2.1)

Expansion Slots
Ryzen™ 9000 & 7000 Series: 1 x PCIe 4.0 x16 slot (x16 mode)
Ryzen™ 8000 Series: 1 x PCIe 4.0 x16 slot (x8/x4 mode)
B650 Chipset: 1 x PCIe 4.0 x16 slot (x4 mode), 2 x PCIe 4.0 x1 slots

Storage
2 x M.2 slots and 4 x SATA 6Gb/s ports
Ryzen™ 9000 & 7000 Series: M.2_1 PCIe 5.0 x4, M.2_2 PCIe 4.0 x4
Ryzen™ 8000 Series: M.2_1 PCIe 4.0 x4, M.2_2 PCIe 4.0 x4/x2
Supports AMD RAIDXpert2 PCIe and SATA RAID 0/1/10

Ethernet
Realtek 2.5Gb Ethernet

Wireless & Bluetooth
Vertical M.2 slot (Key E, PCIe) supports Wi-Fi module (sold separately)

USB
Rear: 4 x USB 3.2 Gen 2 (3 x Type-A, 1 x Type-C®), 2 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A
Front: 1 x USB 3.2 Gen 1 Type-C®, 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports)

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports jack detection, multi-streaming, front panel retasking
Up to 24-bit/192kHz playback
Audio shielding, premium capacitors, dedicated audio PCB layers

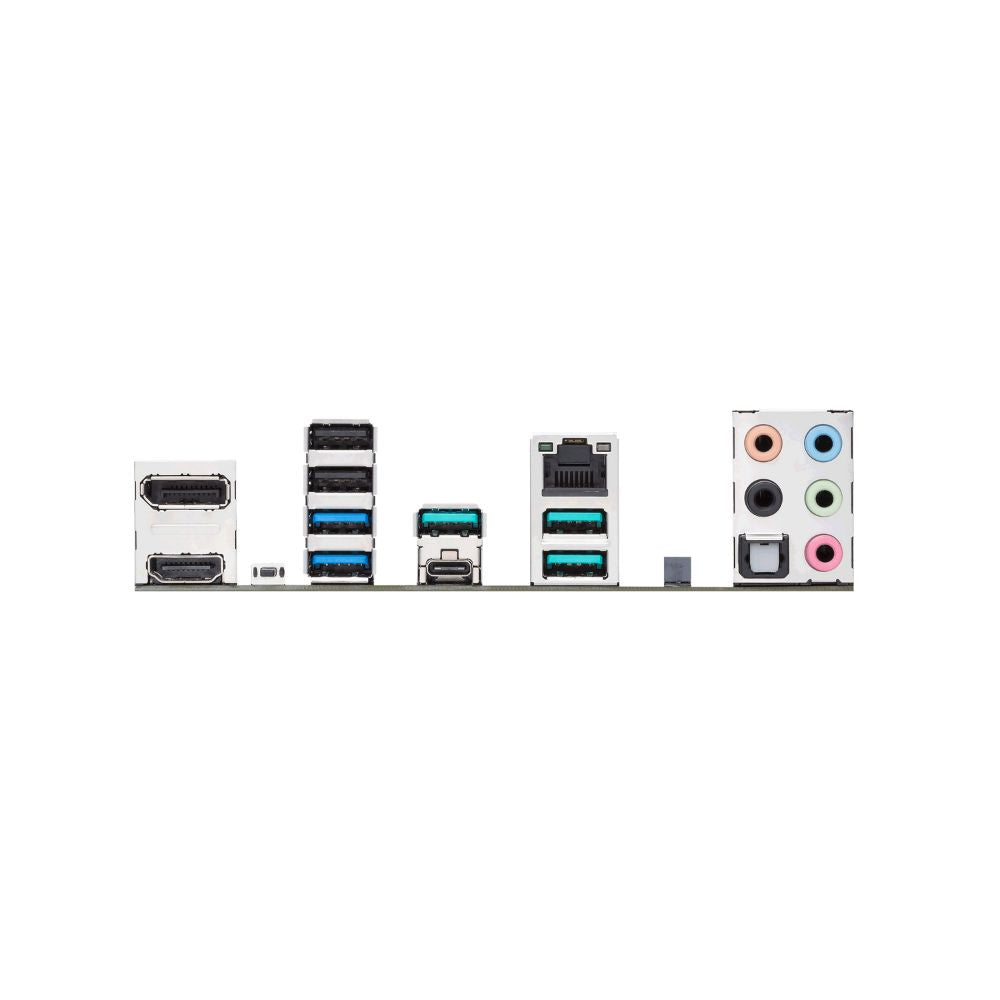

Back Panel I/O Ports
4 x USB 3.2 Gen 2 (3 x Type-A, 1 x Type-C®), 2 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A, 1 x DisplayPort, 1 x HDMI® port, 1 x Vertical M.2 slot (Key E), 1 x Realtek 2.5Gb Ethernet port, 5 x Audio jacks, 1 x Optical S/PDIF Out, 1 x BIOS FlashBack™ button

Internal I/O Connectors
Cooling: 1 x CPU Fan header, 1 x CPU OPT Fan header, 1 x AIO Pump header, 3 x Chassis Fan headers
Power: 1 x 24-pin Main Power, 1 x 8-pin +12V Power
Storage: 2 x M.2 slots, 4 x SATA 6Gb/s ports
USB: 1 x USB 3.2 Gen 1 Type-C®, 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports)
Misc: 3 x Addressable Gen 2 headers, 1 x Aura RGB header, Clear CMOS, COM, Front Audio (AAFP), SPI TPM, 20-3 pin System Panel header, Thunderbolt™ (USB4®) header

Special Features
ASUS 5X Protection III: DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O
Q-Design: Q-DIMM, Q-LED Core, Q-Slot
Thermal Solution: Flexible M.2 heatsink and VRM heatsink
EZ DIY: BIOS FlashBack™ button and LED, ProCool connectors
Aura Sync: RGB header and Addressable Gen 2 headers

Software
Armoury Crate: Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving
AI Suite 3: TurboV EVO, DIGI+ VRM, PC Cleaner
ASUS CPU-Z, Norton Anti-virus (Trial), WinRAR
UEFI BIOS: CrashFree BIOS 3, EZ Flash 3, EZ Mode

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
2 x SATA 6Gb/s cables, I/O shield, M.2 rubber package, M.2 screw package, User guide

Operating System
Windows® 11, Windows® 10 64-bit

Form Factor
ATX, 30.5 cm x 24.4 cm

3 YEARS WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave, #03-03,
Singapore 339416
Contact: 6341 7839

Ban Leong Technologies Ltd
150, #04-01 Ubi Ave 4, Ubi Biz-Hub,
Singapore 408825
Contact: 6512 9250

Frequently Asked Questions About ASUS PRIME B650-PLUS

Does the ASUS PRIME B650-PLUS support Ryzen 9000 series CPUs?

Yes, this board supports Ryzen 9000, 8000, and 7000 series processors through BIOS updates. The AM5 socket ensures compatibility with current and future Ryzen desktop CPUs. Check ASUS website for the latest BIOS version before installing newer CPUs.

Can I use this motherboard for 1440p gaming builds?

Absolutely. The PCIe 4.0 x16 slot handles modern GPUs like RTX 4070 or RX 7800 XT without bottlenecks. DDR5-7600 support and 2.5Gb Ethernet make it solid for competitive gaming at 1440p with high refresh rates.

What RAM speed should I use with this AM5 ATX motherboard?

DDR5-6000 offers the best performance-to-cost ratio for Ryzen CPUs. You can overclock to DDR5-7600 with AMD EXPO kits for extra performance. Make sure your RAM appears on ASUS's QVL list for guaranteed compatibility.

Does this come with WiFi or do I need to add it separately?

This board has a vertical M.2 Key E slot for WiFi modules sold separately. You get wired 2.5Gb Ethernet built-in. Adding WiFi later gives you flexibility to choose WiFi 6E or WiFi 7 based on your needs.

How does this compare to X670 motherboards for custom PC Singapore builds?

X670 boards offer more PCIe lanes and USB ports but cost significantly more. The PRIME B650-PLUS includes the key features most builders need—PCIe 5.0 M.2, DDR5-7600, and 2.5Gb LAN. It's the smarter choice if you don't need extreme connectivity.
