ASUS PRIME B860-PLUS WIFI CSM – Intel Core Ultra Series 2 Motherboard

About the ASUS PRIME B860-PLUS WIFI Motherboard

The ASUS PRIME B860-PLUS WIFI is built for Intel's Core Ultra Series 2 processors on the new LGA1851 socket. This B860 chipset board gives you modern platform features without the Z890 price tag. It's designed for mainstream PC builders who want WiFi 6E, DDR5 support, and PCIe 5.0 connectivity.

The ATX form factor fits standard cases. Four DIMM slots and solid VRM cooling make this board ready for serious builds.

What This ASUS PRIME B860-PLUS WIFI Does for You

Building a new Intel Core Ultra system means you need an LGA1851 motherboard. This board keeps things straightforward. WiFi 6E connectivity means you can skip buying a separate WiFi card and save that PCIe slot for something else.

Four M.2 slots (two M.2, four SATA) let you run multiple fast drives without cable clutter. The PCIe 5.0 x16 slot supports the latest graphics cards. DDR5 memory support up to 8666MT/s means your RAM won't bottleneck performance.

The Realtek 2.5Gb ethernet gives you wired speeds faster than standard gigabit. USB 20Gbps Type-C on the rear panel handles fast external drives.

Build Quality and Features

ASUS includes their 5X Protection III features—DIGI+ VRM with DrMOS, LANGuard, SafeSlot reinforcement, and overvoltage protection. The pre-mounted I/O shield saves you a step during installation. Q-LED diagnostic lights help troubleshoot if something goes wrong.

VRM heatsinks and M.2 heatsink keep components cool under load. The board supports ASUS Armoury Crate software for fan control and RGB lighting management.

Perfect For

• PC builders assembling new Intel Core Ultra Series 2 systems who need reliable ATX motherboards with modern connectivity
• Gamers upgrading to Intel's latest platform without overspending on Z890 chipset features they won't use
• System integrators building business workstations that need WiFi 6E and multiple storage options
• Enthusiasts who want DDR5-8666 memory support and PCIe 5.0 slots at a reasonable price point

Why Buy from Mansa Computers

• 3-year Singapore warranty with ASUS service support
• Fast WhatsApp inquiry response for compatibility questions
• Open 7 days a week for technical support
• Home delivery available

Technical Specifications Summary

Socket
Intel LGA1851

Chipset
Intel B860

Memory
4x DDR5 DIMM, up to 256GB, 8666MT/s (OC)

PCIe Slots
1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 mode), 3x PCIe 4.0 x1

Storage
2x M.2 (PCIe 5.0 + PCIe 4.0), 4x SATA 6Gb/s

Networking
WiFi 6E (802.11ax), Bluetooth 5.3, Realtek 2.5Gb Ethernet

USB Rear
1x USB 20Gbps Type-C, 2x USB 10Gbps, 1x USB 5Gbps, 4x USB 2.0

Form Factor
ATX (30.5cm x 24.4cm)

Ready to build with Intel Core Ultra Series 2? The ASUS PRIME B860-PLUS WIFI gives you everything you need without the extras you don't. Stock is available now with same-day shipping if ordered early.

Model
PRIME B860-PLUS WIFI-CSM

CPU
Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset
Intel® B860 Chipset

Memory
4 x DIMM slots, max. 256GB, DDR5
Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)

Graphics
1 x DisplayPort
1 x HDMI™ port
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output

Expansion Slots
Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot (PCIEX16(G5))
Intel® B860 Chipset
1 x PCIe 4.0 x16 slot (PCIEX16(G4)_3) (supports x4 mode)
3 x PCIe 4.0 x16 slots (PCIEX16(G4)_1/2/4) (support x1 mode)

Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Core™ Ultra Processors (Series 2)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

Ethernet
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band
Bluetooth® v5.3

USB
Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
2 x USB 10Gbps ports (2 x Type-A)
1 x USB 5Gbps port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports)
1 x USB 5Gbps connector (1 x USB Type-C®)
1 x USB 5Gbps header supports additional 2 USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers

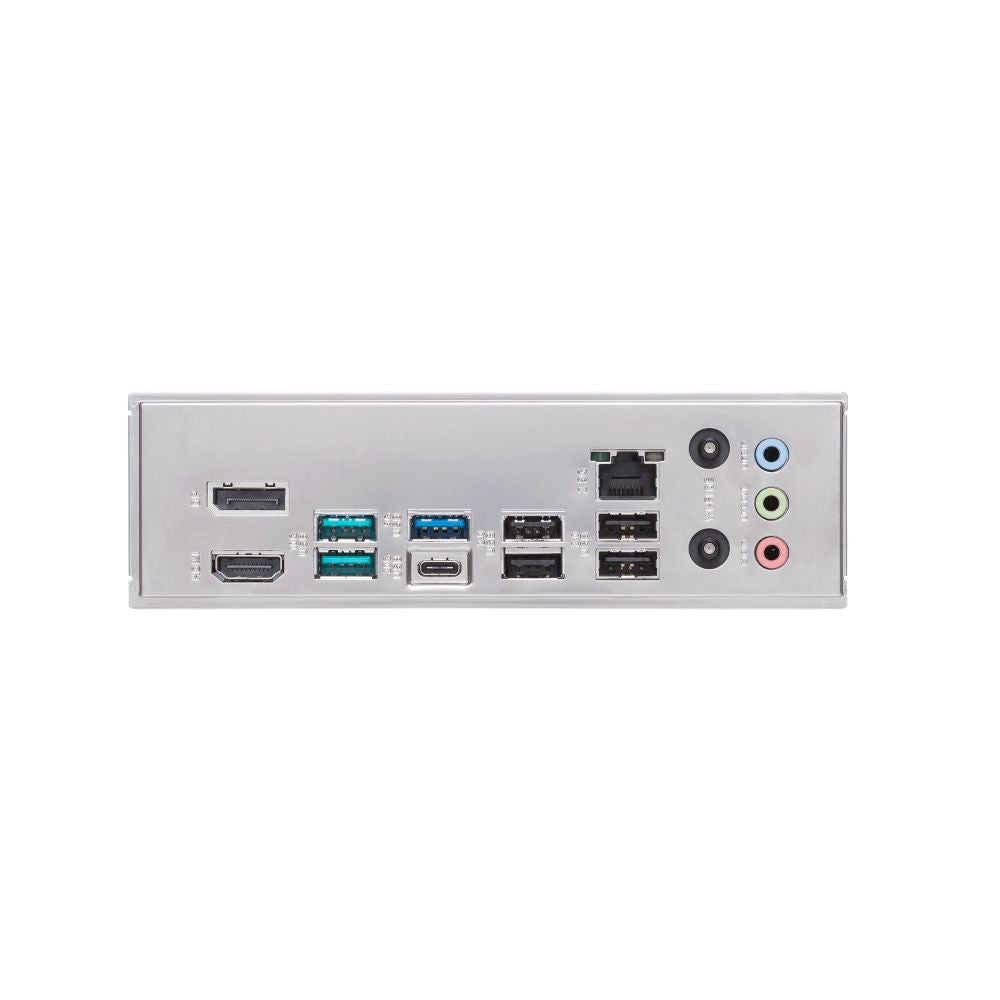

Back Panel I/O Ports
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
2 x USB 10Gbps ports (2 x Type-A)
1 x USB 5Gbps port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks

Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header

Special Features
ASUS 5X PROTECTION III
-DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
- Pre-mounted I/O shield
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
ASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey

BIOS
2 x 128 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber package
1 x Screw package for M.2 SSD
Documentation
1 x ACC Express Activation Key Card
1 x Quick start guide

Operating System
Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)

Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

3 YEARS WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave, #03-03,
Singapore 339416
Contact: 6341 7839

Ban Leong Technologies Ltd
150, #04-01 Ubi Ave 4, Ubi Biz-Hub,
Singapore 408825
Contact: 6512 9250

Frequently Asked Questions About ASUS PRIME B860-PLUS WIFI

Which Intel processors work with the ASUS PRIME B860-PLUS WIFI?

This motherboard supports Intel Core Ultra Series 2 processors (Arrow Lake-S) with LGA1851 socket. It does not support older LGA1700 CPUs like 12th, 13th, or 14th gen Intel chips.

Does this motherboard support DDR4 memory?

No, the ASUS PRIME B860-PLUS WIFI only supports DDR5 memory. You'll need DDR5 RAM modules—DDR4 is not compatible with this board or Intel Core Ultra Series 2 platform.

Can I use this motherboard for gaming builds?

Yes, this board works well for gaming. The PCIe 5.0 x16 slot supports modern graphics cards. WiFi 6E and 2.5Gb ethernet provide fast connectivity for online gaming.

What's the warranty coverage in Singapore?

You get a 3-year warranty with ASUS service center support in Singapore. Mansa Computers is open 7 days a week if you need help with claims or technical questions.

How does the B860 chipset compare to Z890?

B860 offers the essentials—PCIe 5.0, DDR5-8666, WiFi 6E—at lower cost. Z890 adds more PCIe lanes and overclocking features most users don't need. This board saves you money.
