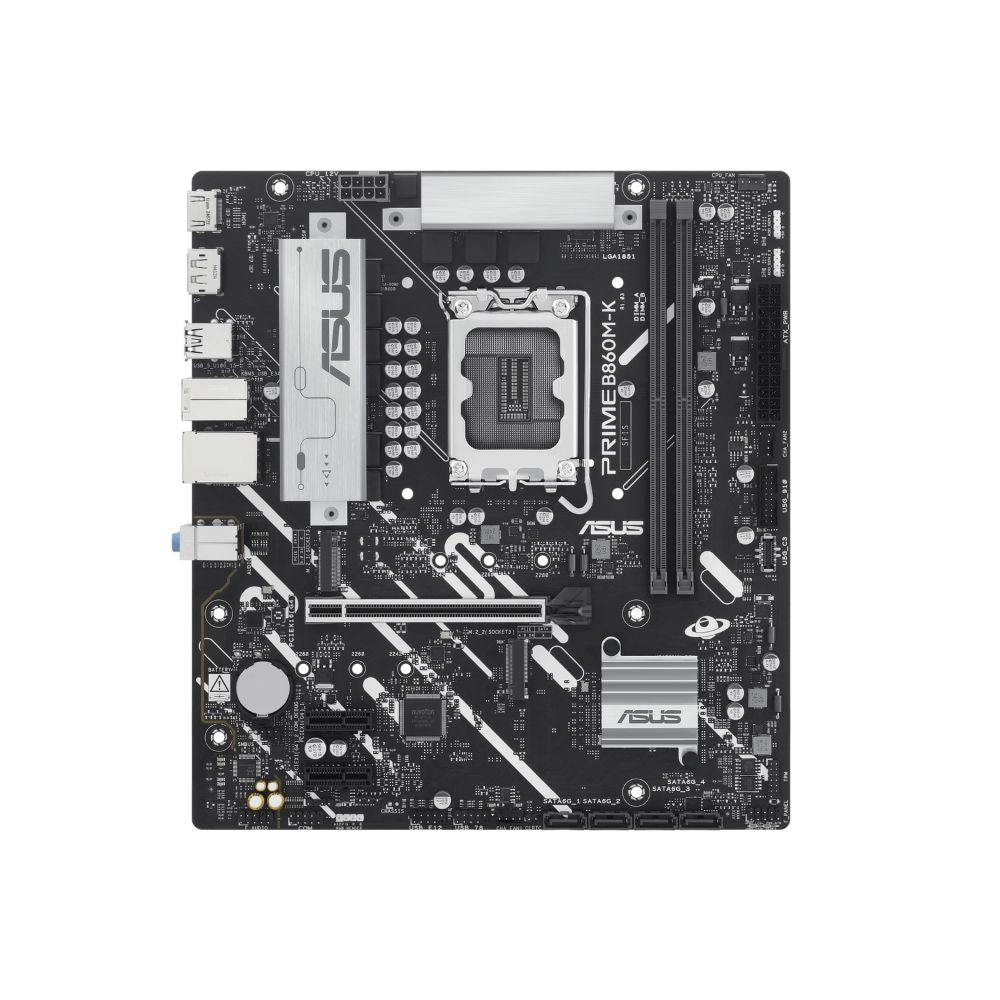

ASUS PRIME B860M-K – Intel Core Ultra Ready Motherboard

About the ASUS PRIME B860M-K

The B860M-K is your entry point to Intel's new LGA1851 platform with Core Ultra Series 2 processors. This micro-ATX motherboard focuses on the essentials—reliable DDR5 support, PCIe 5.0 storage, and solid I/O connectivity. It's built for first-time builders upgrading from older Intel platforms or anyone building a capable gaming desktop without overspending. The B860 chipset gives you what matters most: stable performance and room to grow.

What This ASUS PRIME B860M-K Does for You

This board handles everyday gaming, content creation, and productivity without breaking a sweat. The DDR5 RAM motherboard design supports up to 128GB of memory at 8800+MT/s when overclocked. Start with affordable DDR5-5600 now and upgrade to faster kits later as prices drop. The PCIe 5.0 M.2 slot gives you access to the fastest SSDs on the market, while four SATA ports let you add extra storage drives. 2.5Gb ethernet means faster file transfers and smoother online gaming compared to old 1Gb connections. USB 10Gbps rear port and USB-C front header keep your peripherals running at full speed.

Build Quality and Connectivity

ASUS includes their 5X Protection III features—DIGI+ VRM for stable power delivery, LANGuard for network surge protection, and SafeSlot Core+ for stronger PCIe slots. The VRM heatsink keeps your CPU running cool under load. DisplayPort and HDMI 2.1 outputs support 4K@60Hz if you're using integrated graphics. Realtek 7.1 surround audio handles your gaming headset or speakers without needing a separate sound card. The micro-ATX form factor fits in compact cases while leaving room for your graphics card and cooling setup.

Perfect For

• First-time builders stepping into Intel's Core Ultra platform with affordable Intel CPUs
• Gamers building a reliable 1080p or 1440p gaming rig
• Office and productivity builds that need stable DDR5 support
• System integrators looking for a best motherboard option

Why Buy from Mansa Computers

• 3-year Singapore warranty with ASUS service support
• Fast WhatsApp inquiry response
• Open 7 days a week for support
• Home delivery available

Technical Specifications Summary

Socket
LGA1851 (Intel Core Ultra Series 2)

Chipset
Intel B860

Memory
2 × DDR5 DIMM, up to 128GB, 8800+MT/s (OC)

Storage
2 × M.2 (PCIe 5.0 + PCIe 4.0), 4 × SATA 6Gb/s

Networking
Realtek 2.5Gb Ethernet

USB
USB 10Gbps Type-A, USB 5Gbps Type-C header

Form Factor
Micro-ATX (24.4cm × 22.2cm)

Warranty
3 years ASUS Singapore

Ready to build with Intel's Core Ultra platform? The ASUS PRIME B860M-K gives you solid fundamentals without unnecessary extras. Questions? We're here to help.

Model
ASUS PRIME B860M-K

CPU
Supports Intel® Core™ Ultra Processors (Series 2) with LGA1851 socket, Intel® Turbo Boost Technology 2.0 and 3.0 depending on CPU type, refer to ASUS support list for compatibility

Chipset
Intel® B860 Chipset for stable and efficient performance

Memory
2 x DDR5 DIMM slots up to 128GB, supports 8800+MT/s (OC), Dual Channel, Intel® XMP, and ASUS Enhanced Memory Profile III (AEMP III), Non-ECC un-buffered DDR5 with On-Die ECC, performance may vary by CPU and memory configuration

Graphics
1 x DisplayPort, 1 x HDMI 2.1 port, both support up to 4K@60Hz, DisplayPort 1.4 and HDMI 2.1 standards, VGA resolution support depends on processor or GPU used

Expansion Slots
1 x PCIe 4.0 x16 slot (CPU), 2 x PCIe 4.0 x1 slots (Chipset), compatible with a wide range of GPUs and devices, refer to ASUS support list for verified compatibility

Storage
2 x M.2 slots and 4 x SATA 6Gb/s ports, M.2_1 (CPU) PCIe 5.0 x4, M.2_2 (Chipset) PCIe 4.0 x4, supports Intel® Rapid Storage Technology and RAID 0/1/5/10

Ethernet
Realtek 2.5Gb Ethernet with ASUS LANGuard for surge protection and reliable high-speed networking

USB
Rear: 1 x USB 10Gbps Type-A, 2 x USB 5Gbps Type-A, 3 x USB 2.0 Type-A Front: 1 x USB 5Gbps Type-C®, 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports), USB Type-C® power delivery up to 5V/3A

Audio
Realtek 7.1 Surround HD Audio CODEC supporting jack detection, multi-streaming, and front panel jack retasking, playback up to 24-bit/192kHz, with audio shielding, premium capacitors, and dedicated audio PCB layers, requires HD audio chassis module for 7.1 output

Back Panel I/O Ports

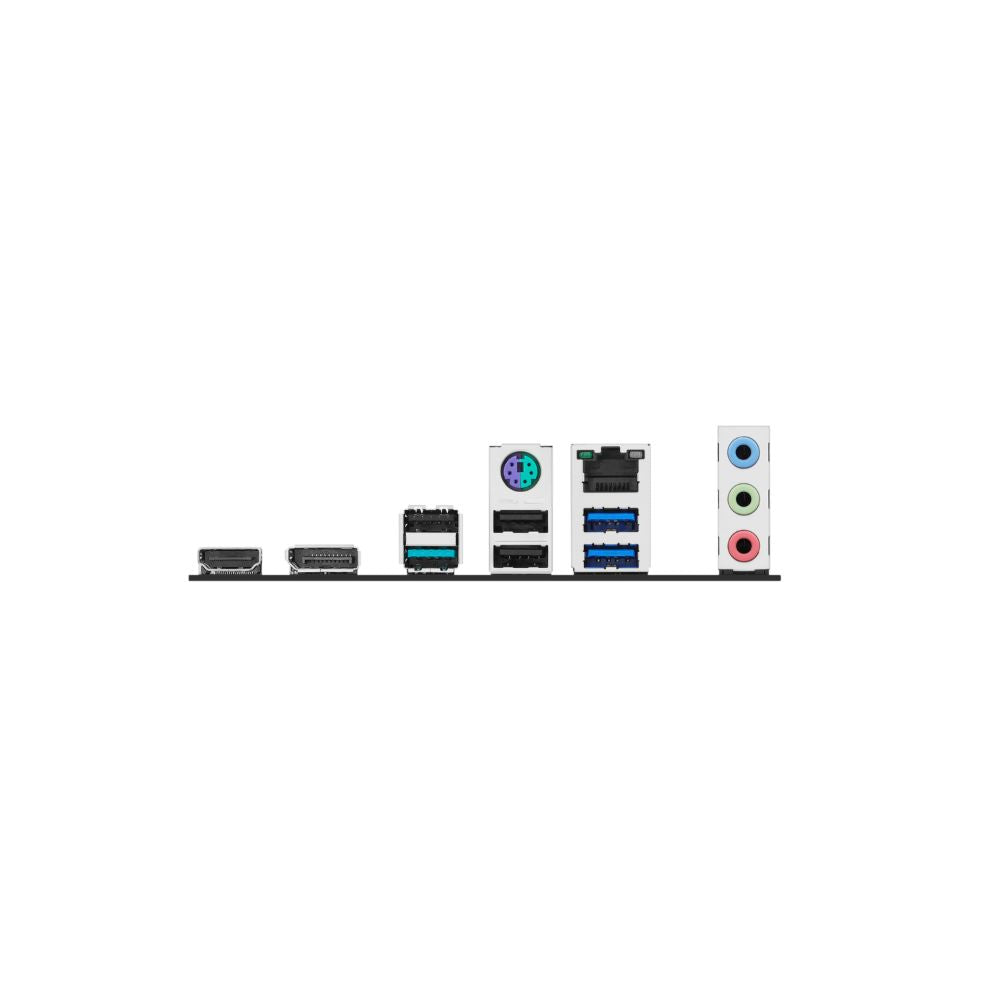

1 x USB 10Gbps Type-A, 2 x USB 5Gbps Type-A, 3 x USB 2.0 Type-A, 1 x DisplayPort, 1 x HDMI, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 combo port

Internal I/O Connectors
Cooling: CPU Fan, 2 x Chassis Fan headers Power: 24-pin Main, 8-pin +12V CPU Storage: 2 x M.2 slots, 4 x SATA 6Gb/s ports USB: 1 x USB 5Gbps Type-C®, 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports) Misc: 2 x Addressable Gen 2 headers, 1 x Aura RGB header, Clear CMOS, COM, Front Audio, S/PDIF Out, SPI TPM, Front Panel header

Special Features
ASUS 5X Protection III with DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-steel back I/O ASUS Q-Design with Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot ASUS Thermal Solution with VRM heatsink ASUS EZ DIY with ProCool connectors Aura Sync with RGB and Addressable Gen 2 headers

Software Features
Armoury Crate with Aura Sync, Fan Xpert 2+, Power Saving, ASUS AI Advisor, DriverHub, CPU-Z, Norton 360 Deluxe (60 Days), WinRAR (40 Days), UEFI BIOS with CrashFree BIOS 3, EZ Flash, EZ Mode, MyHotkey

BIOS
256 Mb Flash ROM (128+128), UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
2 x SATA 6Gb/s cables, I/O shield, M.2 anchor package, Quick Start Guide

Operating System
Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)

Form Factor
micro-ATX, 24.4 cm x 22.2 cm

3 YEARS WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave, #03-03,
Singapore 339416
Contact: 6341 7839

Ban Leong Technologies Ltd
150, #04-01 Ubi Ave 4, Ubi Biz-Hub,
Singapore 408825
Contact: 6512 9250

Frequently Asked Questions About ASUS PRIME B860M-K

Does the ASUS PRIME B860M-K support DDR4 memory?

No, this board only supports DDR5 memory. Intel's Core Ultra Series 2 processors require DDR5 RAM for proper performance and stability. You'll need compatible DDR5 modules to build with this motherboard.

Can I use this motherboard for 1440p gaming?

Yes, the B860M-K handles 1440p gaming well when paired with a capable graphics card. The PCIe 4.0 x16 slot supports modern GPUs without bottlenecks.

Which Intel CPUs work with the B860 chipset?

This board supports Intel Core Ultra Series 2 processors with the LGA1851 socket. Check ASUS's official support list for confirmed compatible CPU models before purchasing to ensure everything works smoothly.

What warranty does Mansa Computers provide?

You get a 3-year ASUS Singapore warranty with full local service support. We're open 7 days a week if you need help or have questions.

Is this the best affordable motherboard for Intel Core Ultra?

The B860M-K is a strong value choice for Core Ultra builds. It includes PCIe 5.0 storage and DDR5 support at SGD 249, undercutting pricier Z890 boards.
