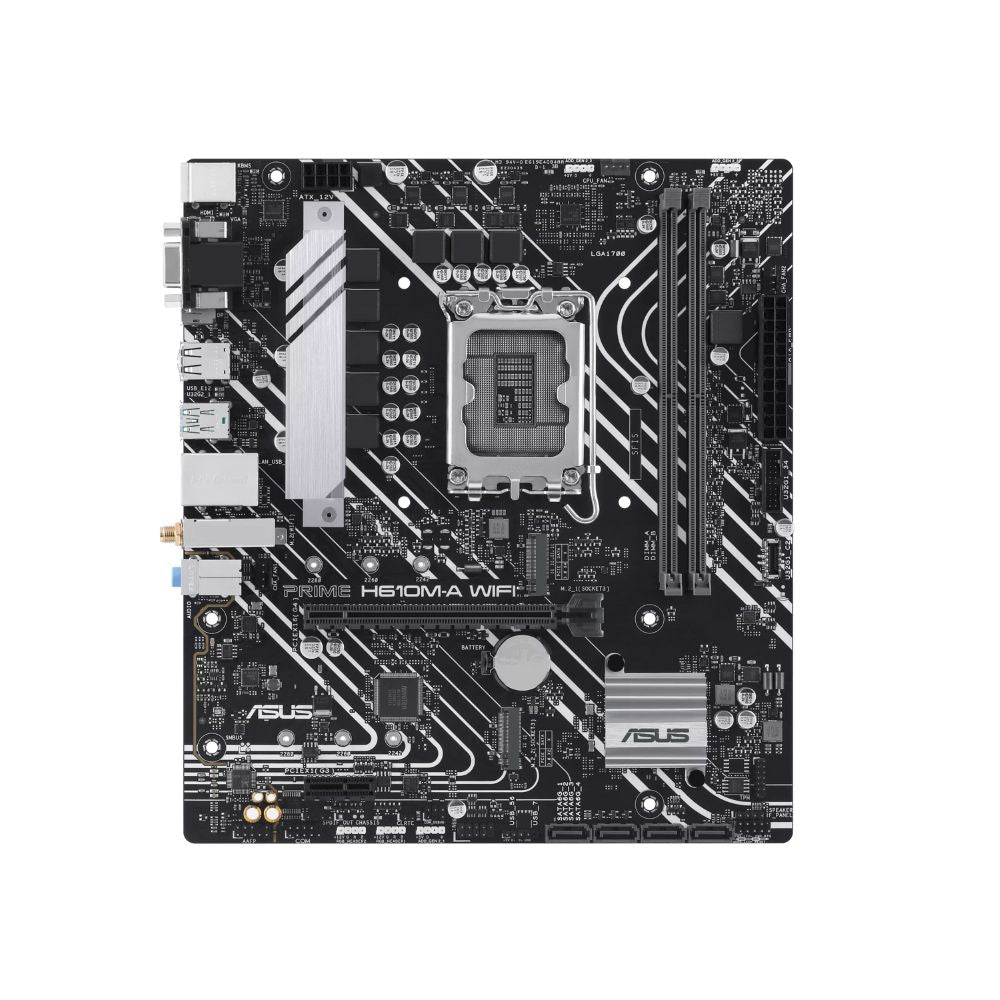

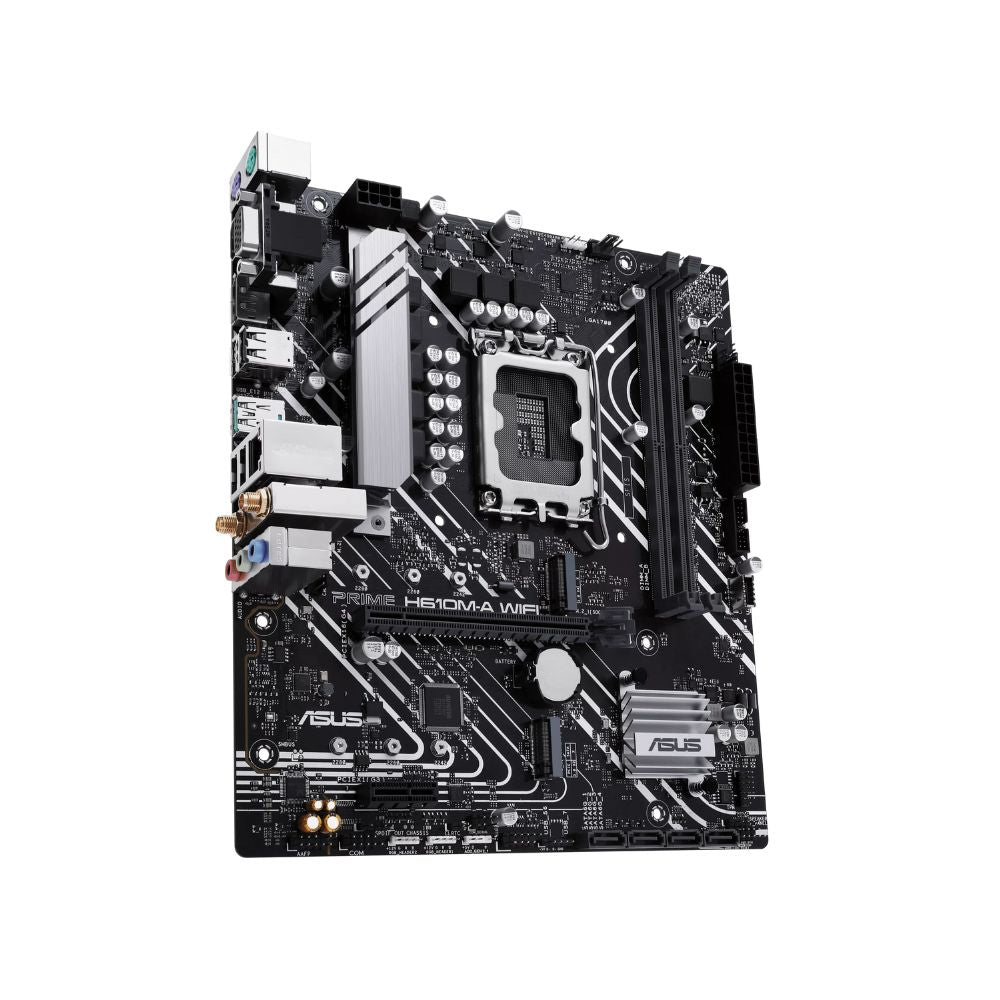

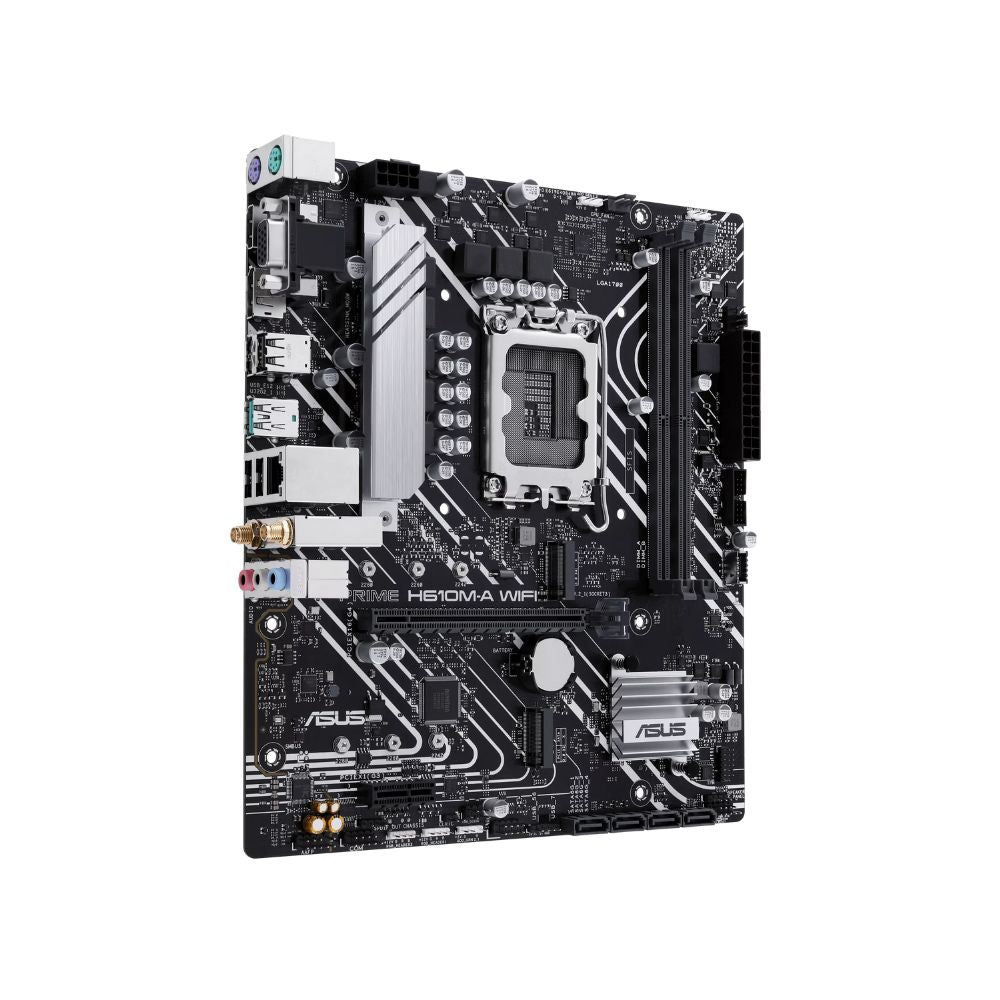

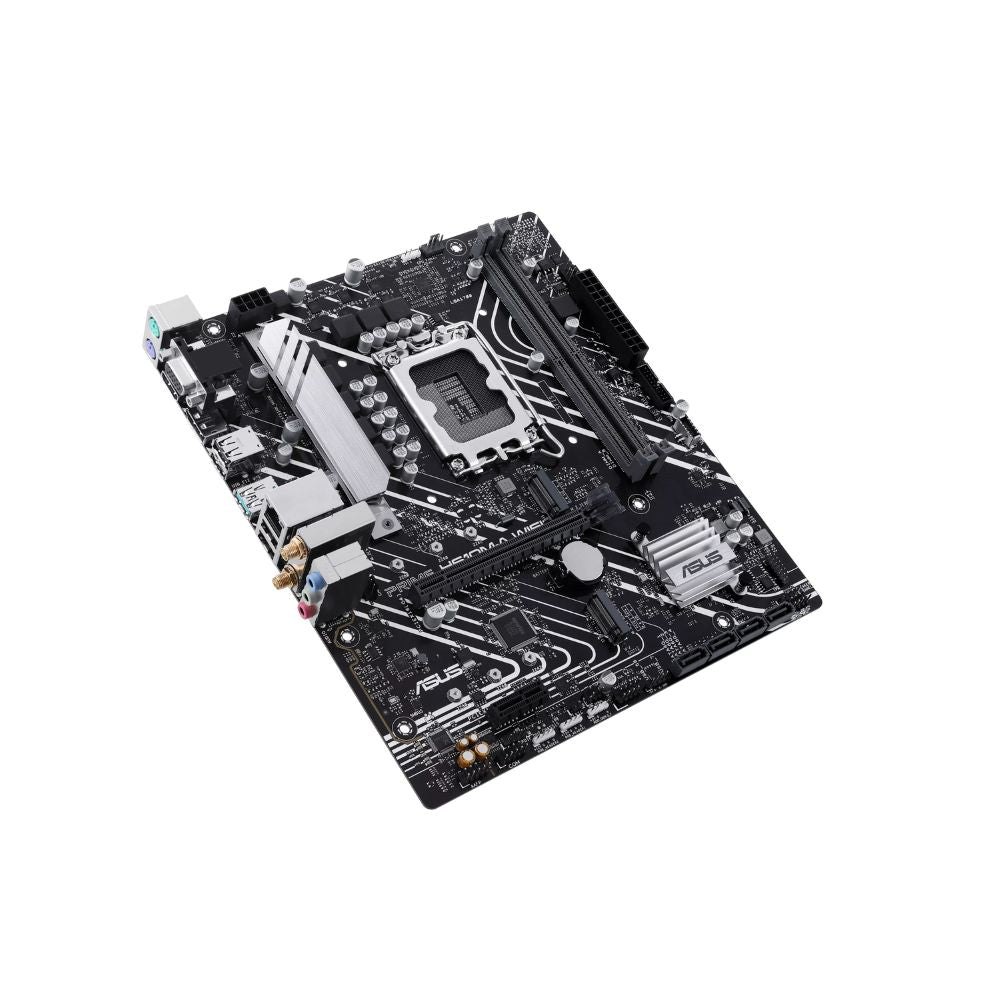

ASUS PRIME H610M-A WIFI – Intel Motherboard with Built-In WiFi

About the ASUS PRIME H610M-A WIFI

The ASUS PRIME H610M-A WIFI is an entry-level Intel micro ATX motherboard for budget-conscious builders. It supports Intel 12th, 13th, and 14th Gen processors on the LGA1700 socket. Built-in WiFi 5 eliminates the need for separate wireless adapters. DDR5 memory support provides a path to future upgrades. This board focuses on essential features without extras you won't use.

What This Motherboard Does for You

This intel micro atx motherboard handles everyday computing, office work, and light gaming with integrated graphics. The H610 chipset delivers stable performance for non-overclocking builds. Two M.2 slots let you run a fast boot drive plus a secondary storage drive. Four SATA ports provide additional expansion for older drives. WiFi 5 connectivity supports 2.4GHz and 5GHz bands for flexible placement. This works well as a best budget gaming pc motherboard when paired with CPUs that have strong integrated graphics like Intel's F-series alternatives.

Built for Practical Builders

The micro ATX form factor fits compact cases while maintaining good airflow. Basic VRM heatsinks keep power delivery cool during normal loads. ASUS 5X Protection III includes safeguards like overvoltage protection and reinforced PCIe slots. The layout provides sensible port placement for cable management. Realtek 7.1 audio delivers clear sound without dedicated sound cards. This represents solid value for singapore pc builder projects focused on reliability over extreme performance.

Perfect For

• First-time PC builders who need WiFi without installing separate PCIe wireless cards
• Office and home workstations running productivity software and web browsing
• Budget gaming builds using Intel CPUs with integrated graphics or entry-level GPUs
• System integrators building basic computers for clients who prioritize value

Why Buy from Mansa Computers

• 3-year Singapore warranty with ASUS service support
• Fast WhatsApp inquiry response for build questions
• Open 7 days a week for weekend builders
• Home delivery available across Singapore

Technical Specifications Summary

Chipset
Intel H610

CPU Support
Intel 12th/13th/14th Gen LGA1700

Memory
DDR5 up to 5600MHz, 2 DIMM slots, Max 96GB

Wireless
WiFi 5 (802.11ac), Bluetooth 5.0

Storage
2x M.2 PCIe 3.0, 4x SATA 6Gb/s

Expansion
1x PCIe 4.0 x16, 1x PCIe 3.0 x1

Form Factor
Micro ATX (24.4cm x 21.6cm)

Warranty
3 Years ASUS Singapore

The ASUS PRIME H610M-A WIFI delivers essential features for practical builds at SGD 219. Contact us via WhatsApp for build recommendations or stock availability.

Model
PRIME H610M-A WIFI

CPU
Intel® Socket LGA1700 for Intel® Core™ 14th, 13th, and 12th Gen Processors, Pentium® Gold, and Celeron® Processors. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset
Intel® H610 Chipset

Memory
2 x DIMM slots, Max. 96GB DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory. Dual Channel Memory Architecture. Supports Intel® Extreme Memory Profile (XMP).

Graphics
1 x DisplayPort, 1 x VGA port, 1 x HDMI™ port

Expansion Slots
Intel® Core™ Processors (14th, 13th, and 12th Gen): 1 x PCIe 4.0 x16 slot.
Intel® H610 Chipset: 1 x PCIe 3.0 x1 slot.

Storage
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports. Intel® H610 Chipset: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode). M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode). 4 x SATA 6Gb/s ports

Ethernet
1 x Intel® 1Gb Ethernet. ASUS LANGuard

Wireless & Bluetooth
Wi-Fi 5 (802.11 a/b/g/n/ac). Supports 2.4/5GHz frequency band. Bluetooth® v5.0.

USB
Rear USB (Total 5 ports): 1 x USB 3.2 Gen 2 (10G) port (Type-A), 4 x USB 2.0 ports (Type-A).
Front USB (Total 6 ports): 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports, 1 x USB 2.0 header supports 1 USB 2.0 port, 1 x USB 2.0 header supports 2 additional USB 2.0 ports.

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC. Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking. Supports up to 24-Bit/192 kHz playback. Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers.

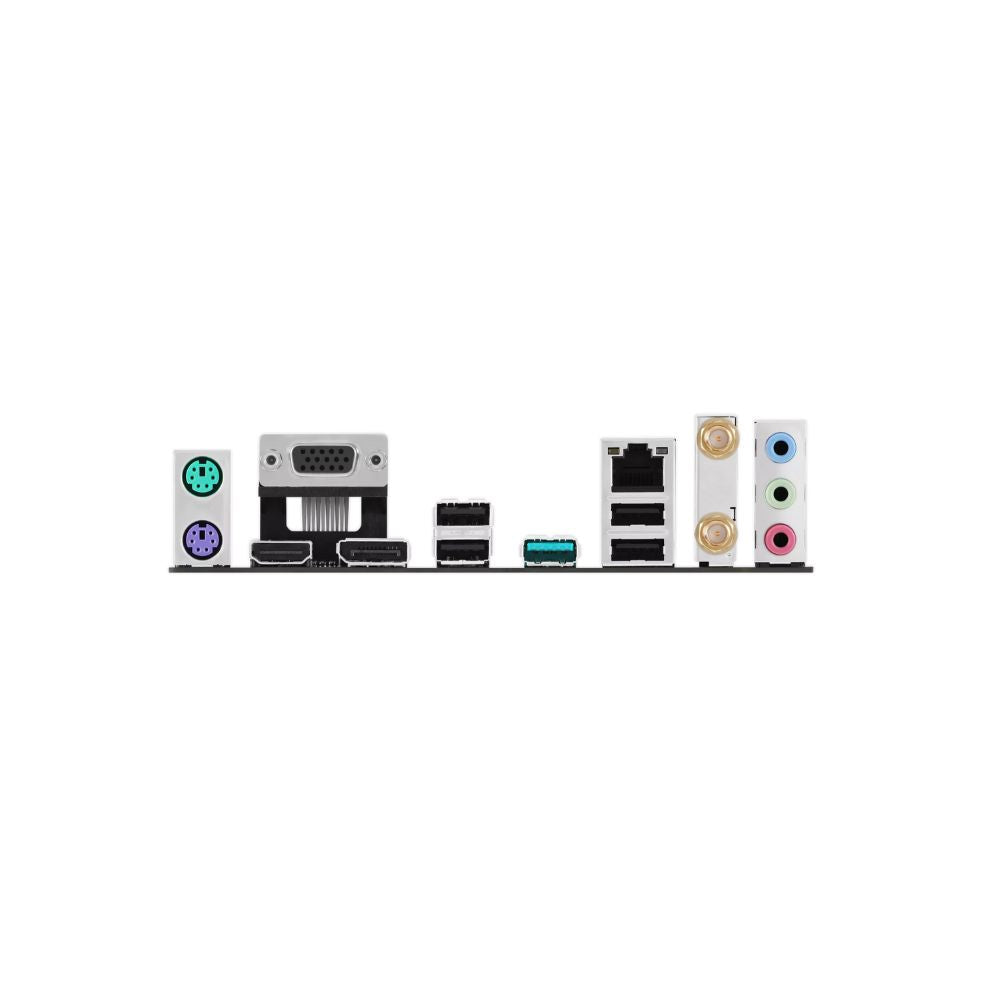

Back Panel I/O Ports
1 x USB 3.2 Gen 2 (10G) port (Type-A), 4 x USB 2.0 ports (Type-A), 1 x DisplayPort, 1 x VGA port, 1 x HDMI™ port, 1 x Wi-Fi Module, 1 x Intel® 1Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard (purple) port, 1 x PS/2 Mouse (green) port.

Internal I/O Connectors
Fan and Cooling related: 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers.
Power related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector.
Storage related: 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports. USB: 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports, 1 x USB 2.0 header supports 1 USB 2.0 port, 1 x USB 2.0 header supports 2 additional USB 2.0 ports. Miscellaneous: 3 x Addressable Gen 2 headers, 2 x AURA RGB headers, 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x COM Port header, 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header (14-1pin), 1 x 10-1 pin System Panel header.

Special Features
ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O. ASUS Q-Design: Q-DIMM, Q-LED Core, Q-Slot. ASUS Thermal Solution: VRM heatsink design. AURA Sync: AURA RGB headers, Addressable Gen 2 headers.

Software Features
ASUS Exclusive Software: Armoury Crate, Aura Creator, Aura Sync, Fan Xpert 2+, Two-Way AI Noise Cancellation, AI Suite 3, Performance And Power Saving Utility (TurboV EVO, EPU, DIGI+ VRM, PC Cleaner), ASUS CPU-Z, Norton 360 for Deluxe (60 Days Free Trial), WinRAR.
UEFI BIOS: ASUS EZ DIY, ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode.

BIOS
128 Mb Flash ROM, UEFI AMI BIOS.

Manageability
WOL by PME, PXE.

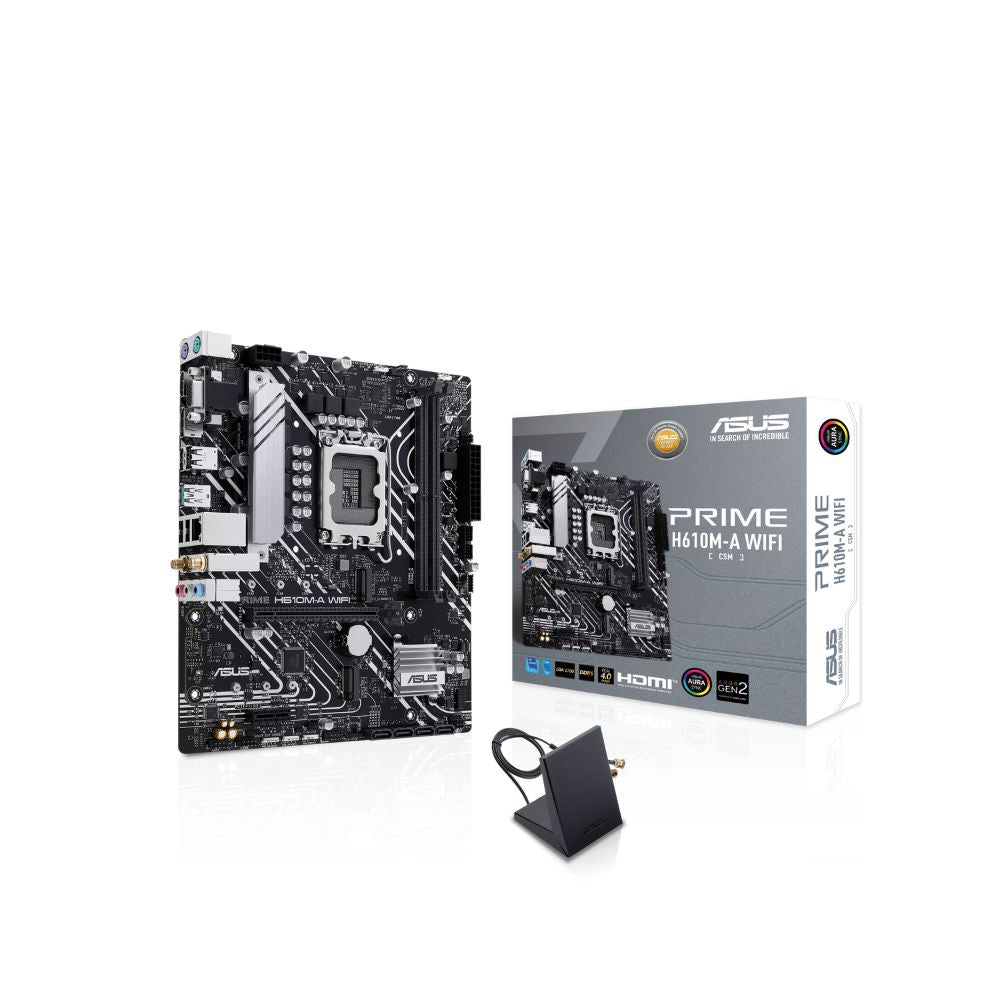

Accessories
Cables: 2 x SATA 6Gb/s cables. Miscellaneous: 1 x ASUS Wi-Fi moving antenna, 1 x I/O Shield, 1 x Screw package for M.2 SSD. Documentation: 1 x User guide.

Operating System
Windows® 11 64-bit, Windows® 10 64-bit.

Form Factor
mATX Form Factor (24.4 cm x 21.6 cm)

3 YEARS WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave, #03-03,
Singapore 339416
Contact: 6341 7839

Ban Leong Technologies Ltd
150, #04-01 Ubi Ave 4, Ubi Biz-Hub,
Singapore 408825
Contact: 6512 9250

Frequently Asked Questions About ASUS PRIME H610M-A WIFI

Does this ASUS PRIME H610M-A WIFI motherboard support DDR5 or DDR4 memory?

This board supports DDR5 only, not DDR4. You'll need DDR5 memory rated at 4800MHz or higher. The board supports speeds up to 5600MHz when enabled in BIOS.

Can I use this motherboard for gaming?

Yes, for entry-level gaming with integrated graphics or budget GPUs like GTX 1650. The H610 chipset lacks overclocking but handles 1080p gaming fine. Pair with Intel 12400 or similar for best results.

Which Intel CPUs are compatible with this board?

All Intel 12th Gen, 13th Gen, and 14th Gen processors with LGA1700 socket work. This includes Core i3, i5, i7, i9, plus Pentium and Celeron models. BIOS updates may be needed for newest CPUs.

What warranty coverage does Mansa provide?

3-year ASUS Singapore warranty included with purchase. Contact us via WhatsApp for support inquiries. We're open 7 days a week to help with installation or compatibility questions.

How does this compare to B660 motherboards?

B660 boards offer more PCIe lanes and better overclocking support but cost SGD 80-120 more. This H610 board suits non-overclocking builds where built-in WiFi matters. Choose based on your actual needs, not features you won't use.
