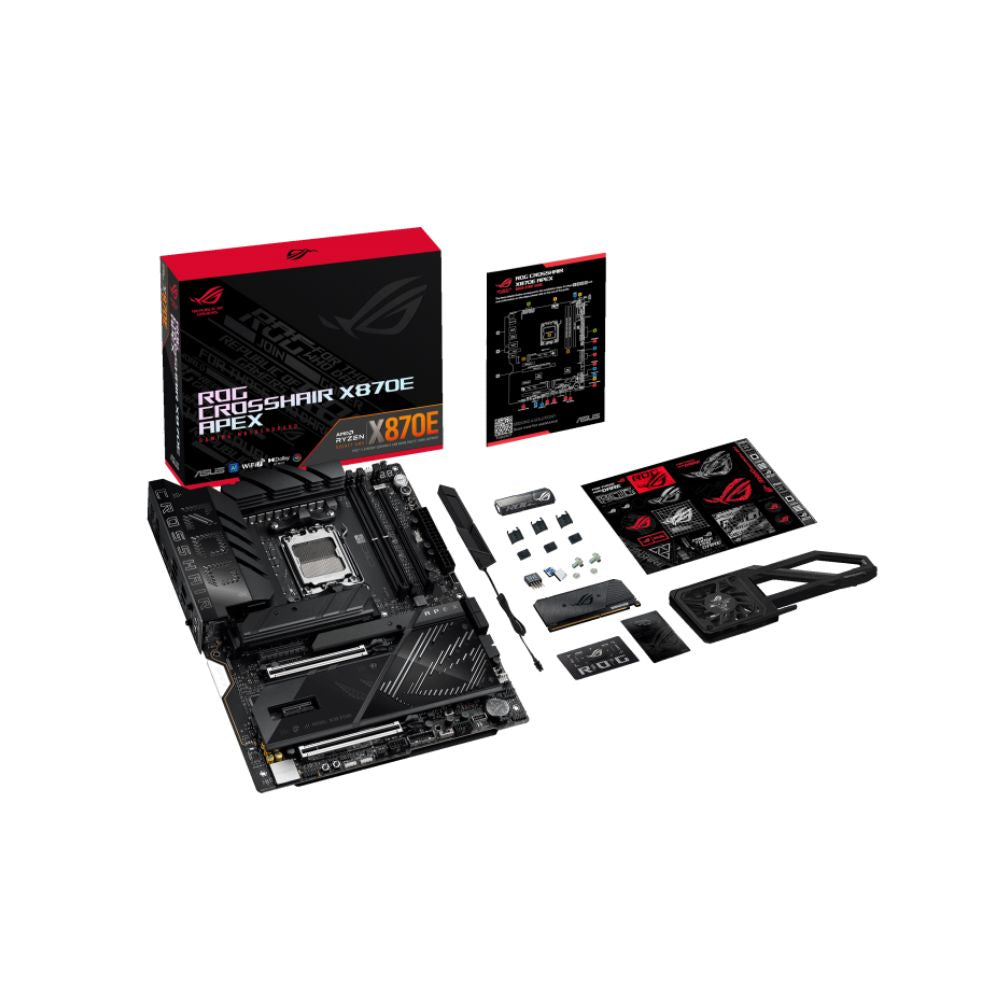

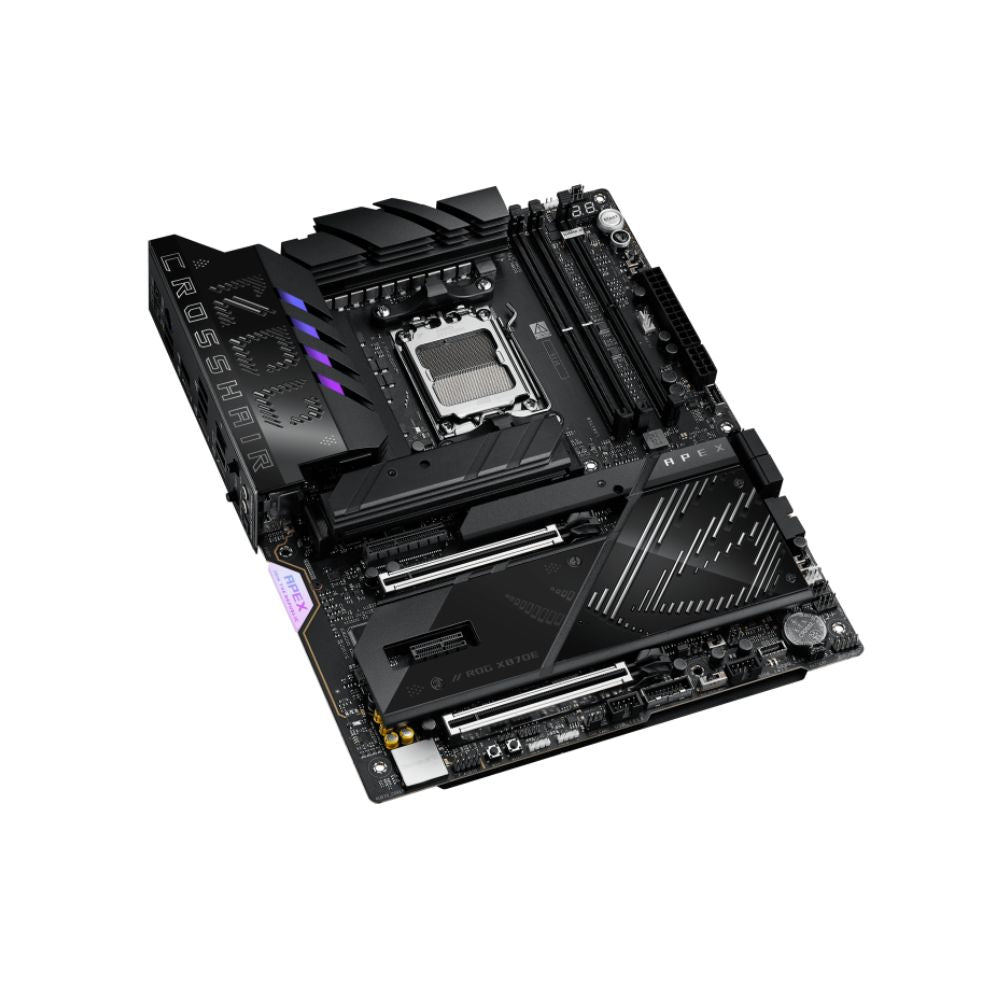

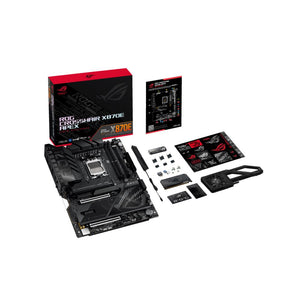

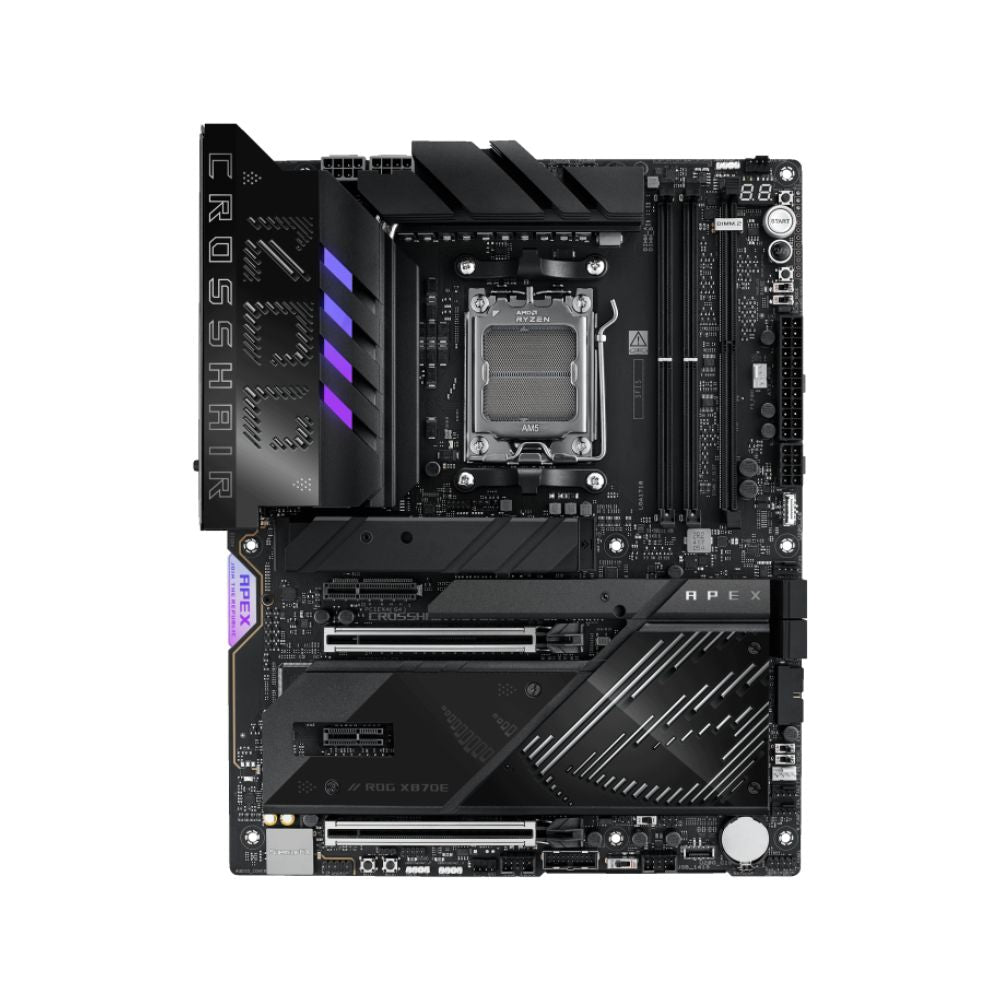

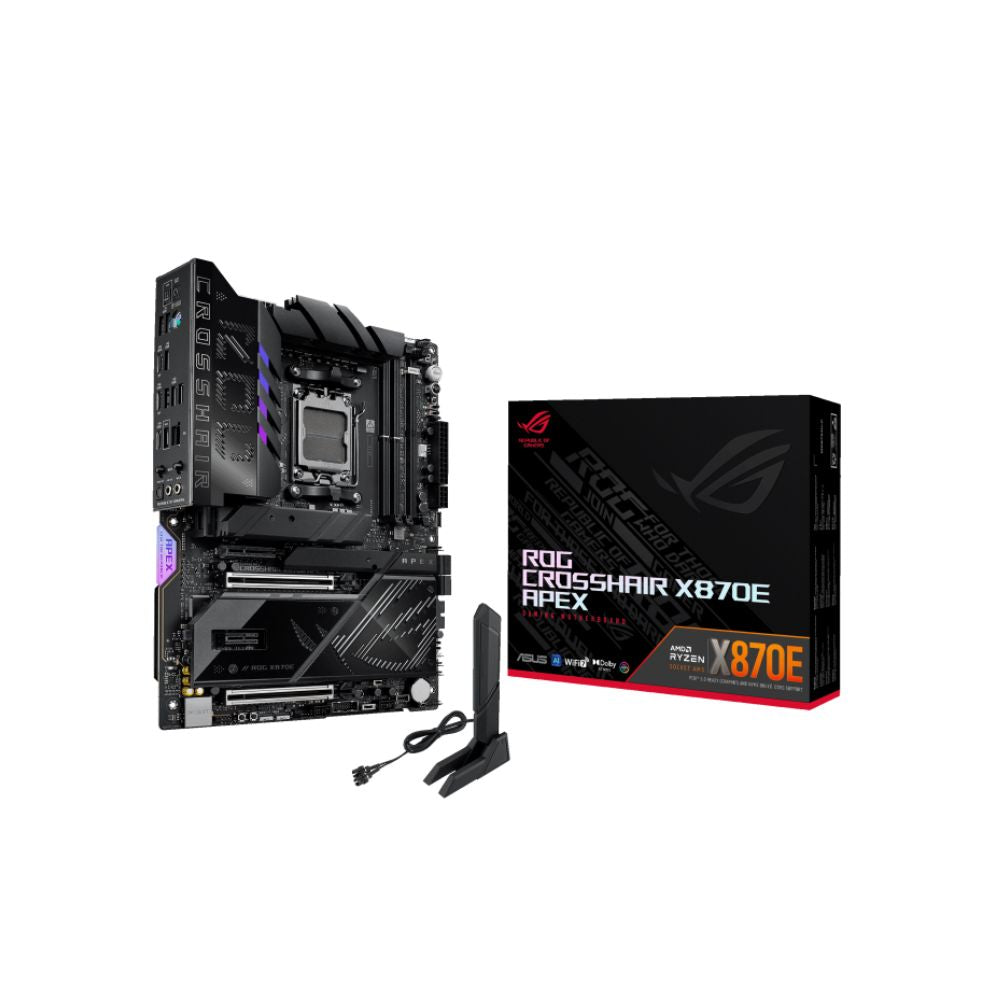

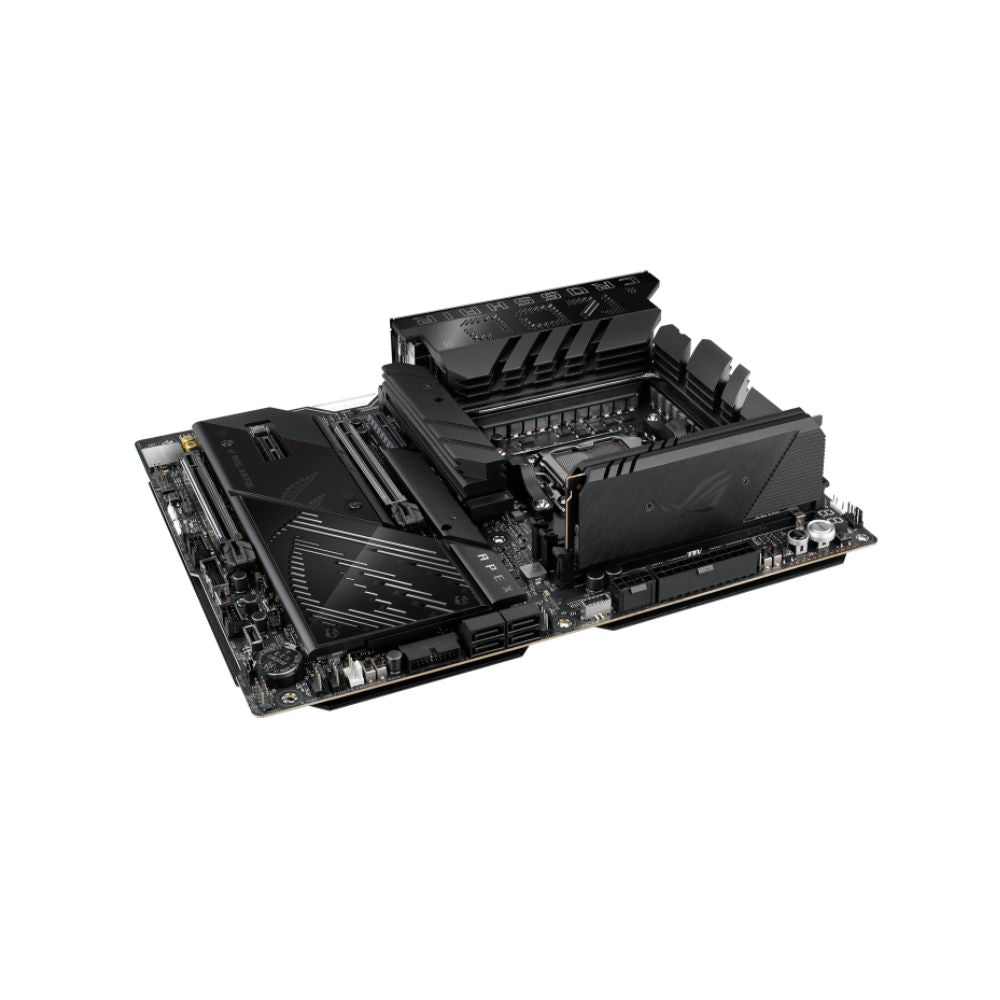

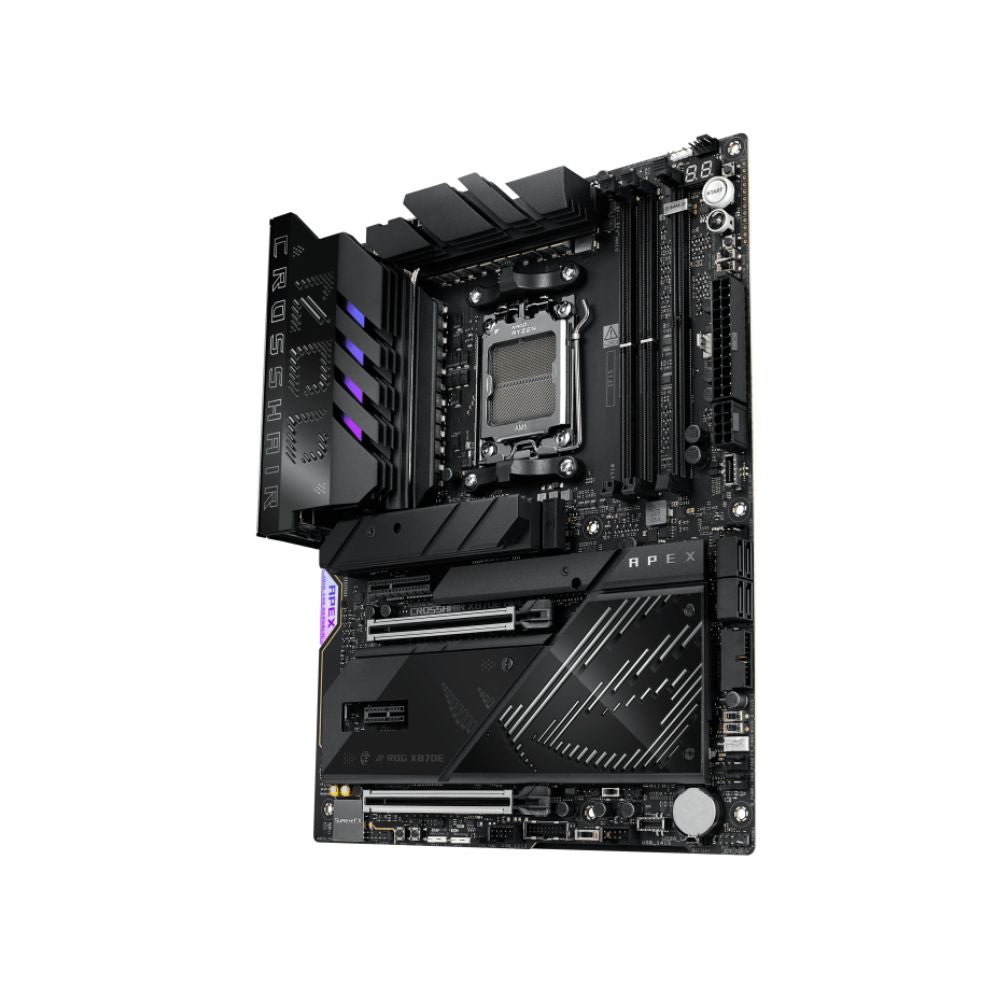

Model Name

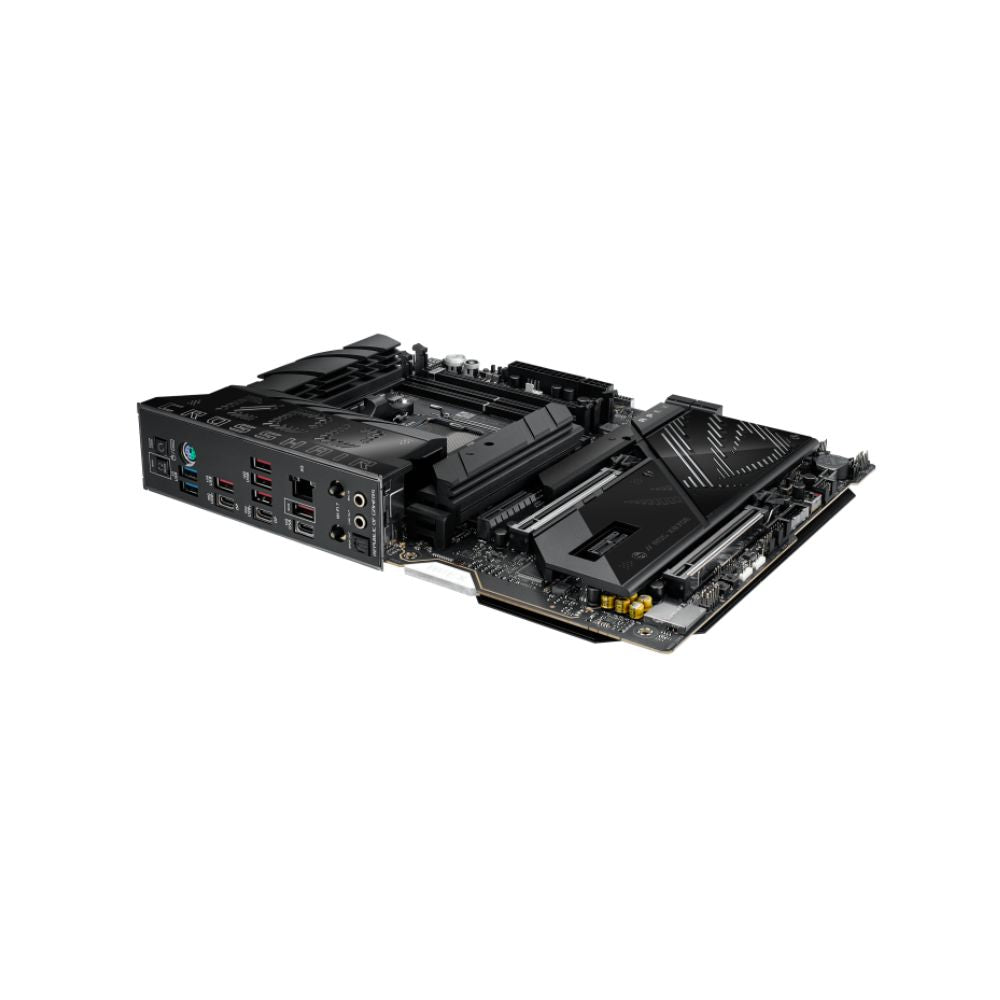

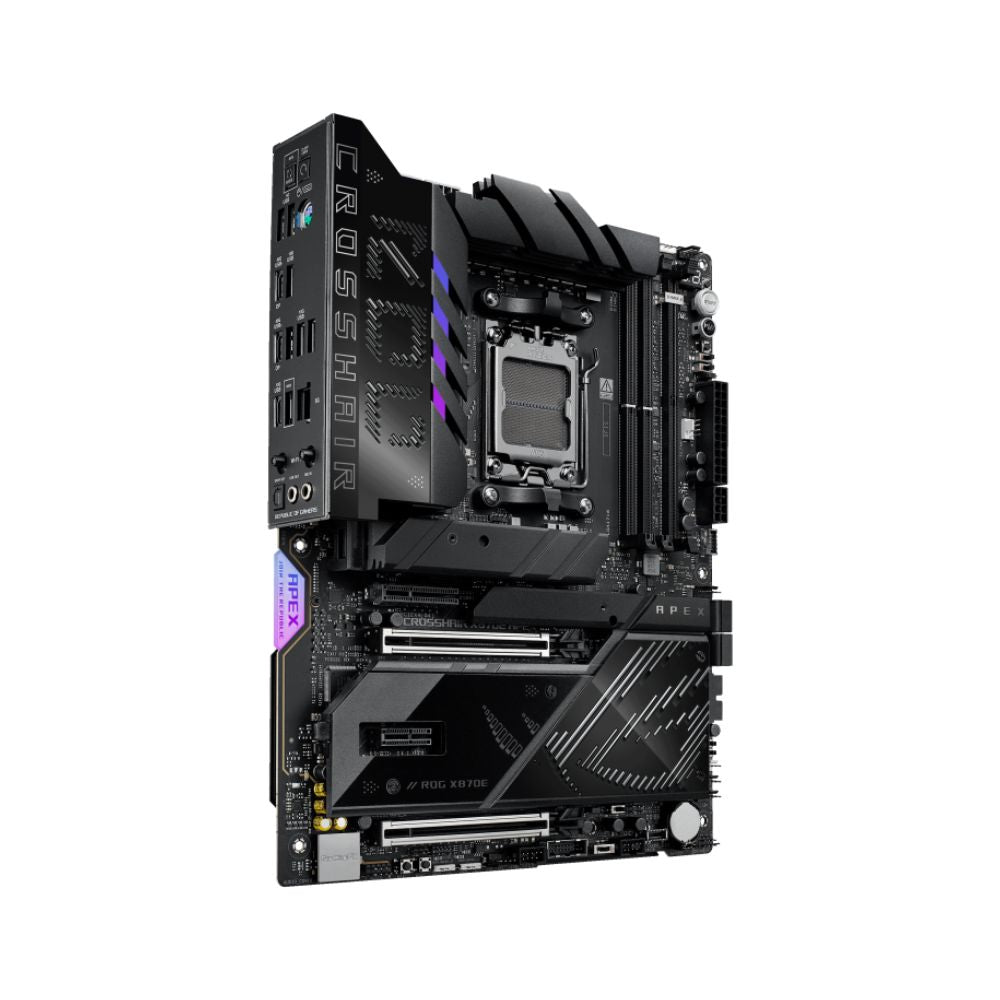

ROG CROSSHAIR X870E APEX

Brand
ASUS ROG

CPU Support
AMD Socket AM5 for Ryzen™ 9000 / 8000 / 7000 Series

Chipset
AMD X870E

Memory
2× DIMM DDR5, up to 128GB
Supports up to 9600+ MT/s (OC)
Dual Channel, ECC/Non-ECC, EXPO™, AEMP

Expansion Slots
2× PCIe 5.0 x16 (Q-Release Slim)
1× PCIe 4.0 x4
1× PCIe 3.0 x1

Storage
5× M.2 slots (PCIe 5.0 & 4.0)
4× SATA 6Gb/s ports
AMD RAIDXpert2 (RAID 0/1/5/10 depending on CPU)

Networking
1× Realtek 5Gb Ethernet
Wi-Fi 7 (802.11be, 2×2)
Bluetooth® v5.4

USB Ports
Rear (10 total):
2× USB4 (40Gbps, Type-C)
6× USB 10Gbps (5× Type-A, 1× Type-C)
2× USB 5Gbps (Type-A)

Front (10 total):
1× USB 20Gbps Type-C (60W PD/QC4+)
1× USB 20Gbps connector (Type-C)
2× USB 5Gbps headers (4 ports)
2× USB 2.0 headers (4 ports)

Audio
ROG SupremeFX 7.1 (ALC4080 + Savitech AMP)
Gold-plated audio jacks
Optical S/PDIF Out
120 dB SNR playback

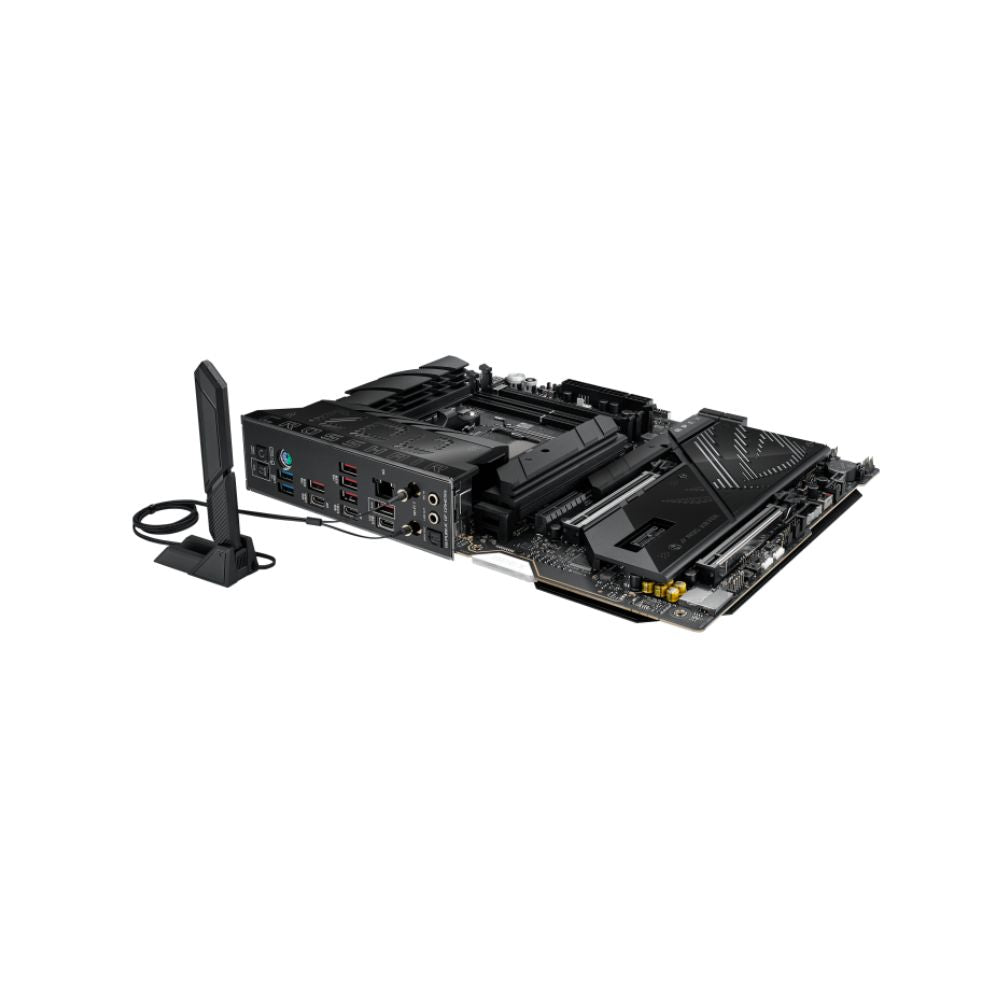

Back Panel I/O
2× USB4 Type-C
6× USB 10Gbps
2× USB 5Gbps
1× Realtek 5Gb LAN
1× Wi-Fi Module
1× PS/2 keyboard/mouse combo port
2× Gold-plated audio jacks
1× Optical S/PDIF Out
1× BIOS FlashBack™ button
1× Clear CMOS button

Internal I/O
Multiple fan/pump headers (CPU, AIO, chassis, VRM, extra flow)
24-pin ATX + dual 8-pin CPU power
Front panel USB 20Gbps Type-C (60W PD/QC4+)
Thermal sensor header
Q-Connector & Q-Design features

Special Features
Extreme OC Kit: LN2 Mode, ReTry, Safe Boot, Start Button, Slow Mode
ASUS Q-Design: Q-Release Slim, Q-Latch, Q-Code, Q-Dashboard, SafeDIMM
Aura Sync RGB with Addressable Gen2 headers
USB Wattage Watcher: Up to 60W fast charging
Pre-mounted I/O Shield & SafeSlot design
ROG DIMM.2 with heatsink for additional M.2 drives

Form Factor
ATX (30.5 × 24.4 cm)

3 YEARS WARRANTY
