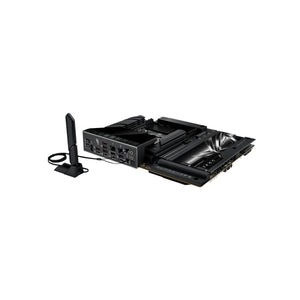

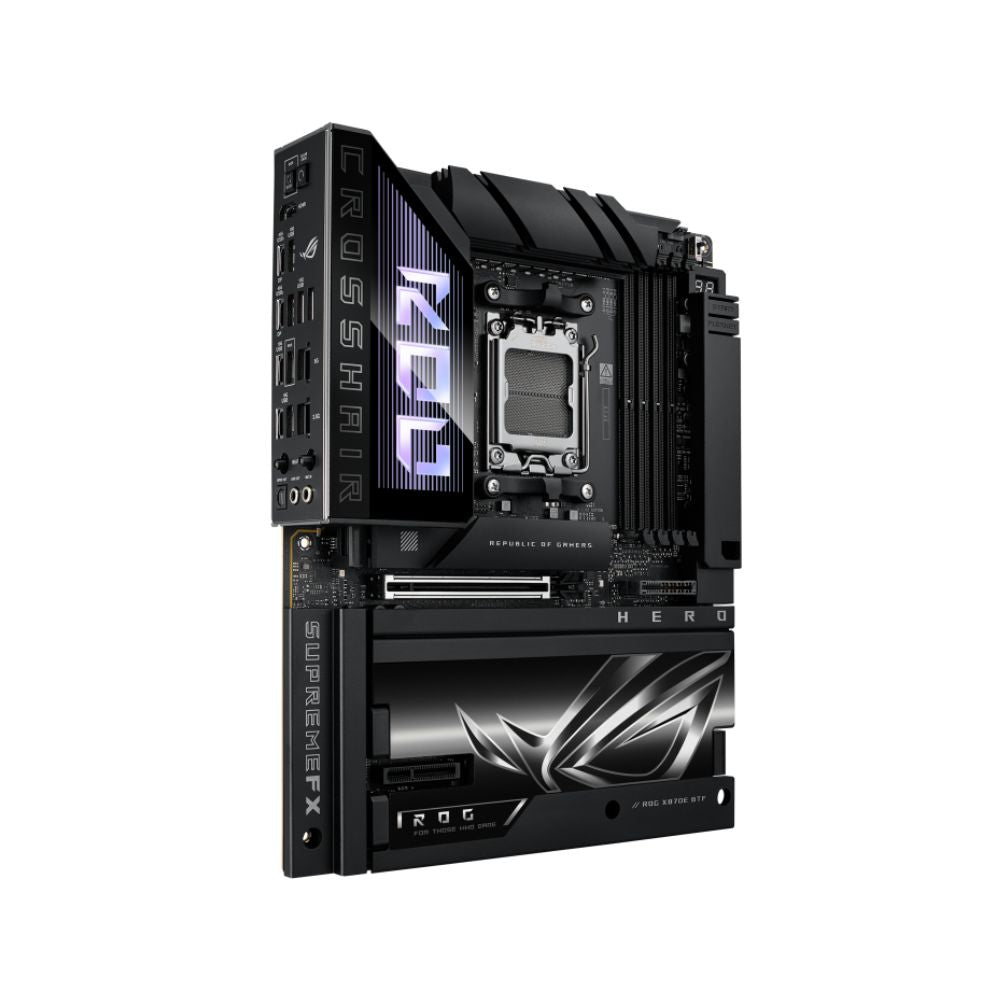

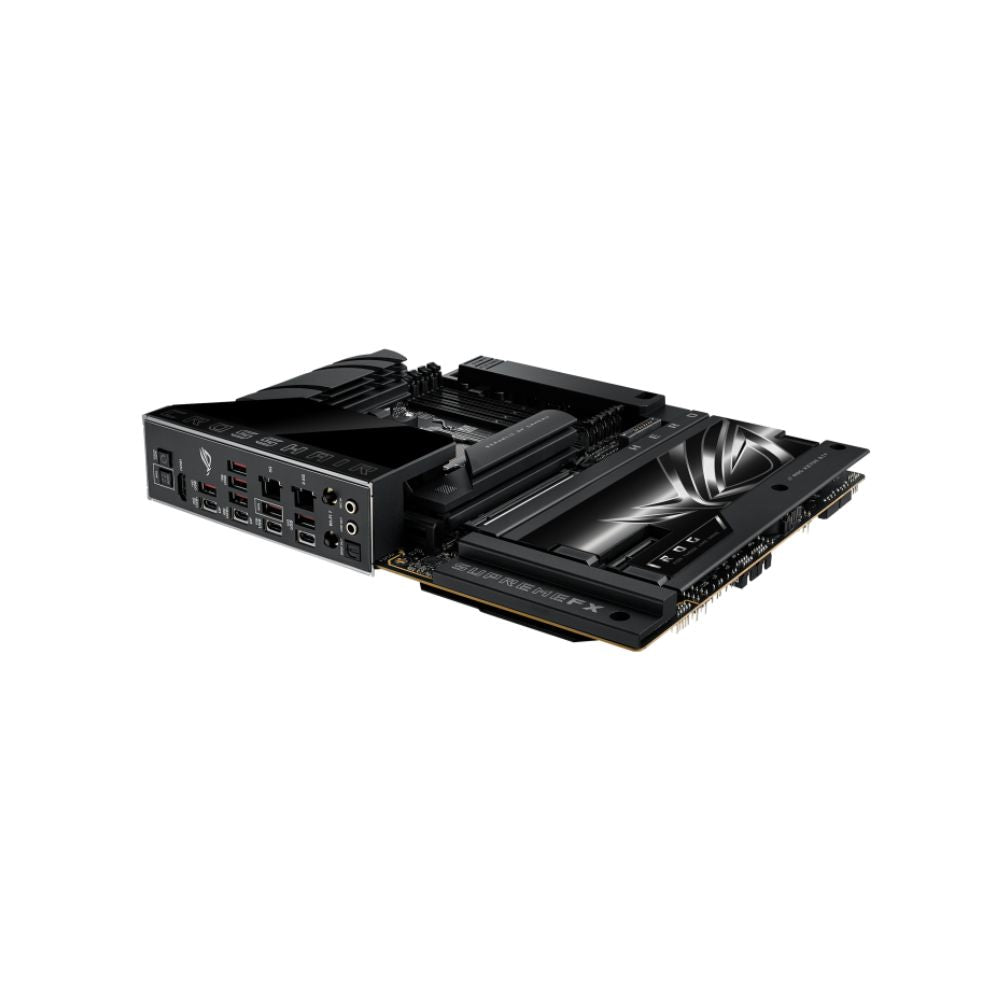

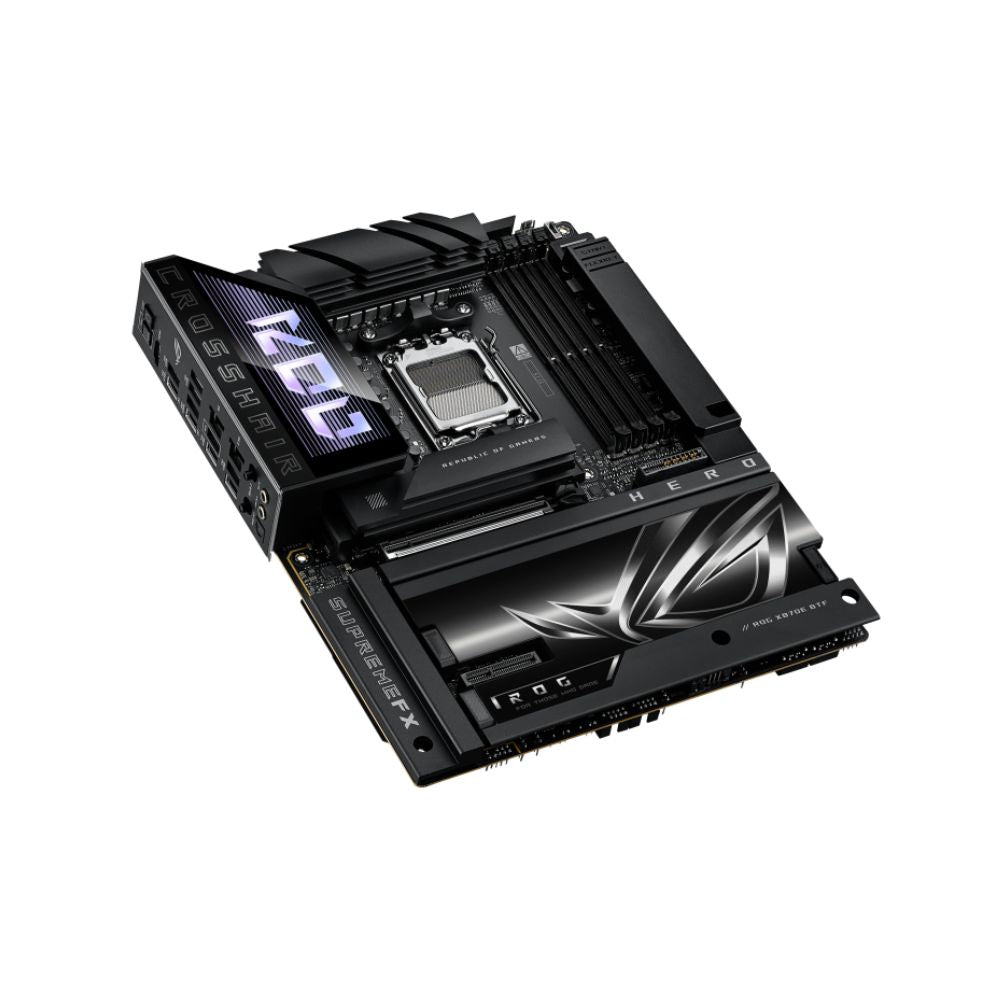

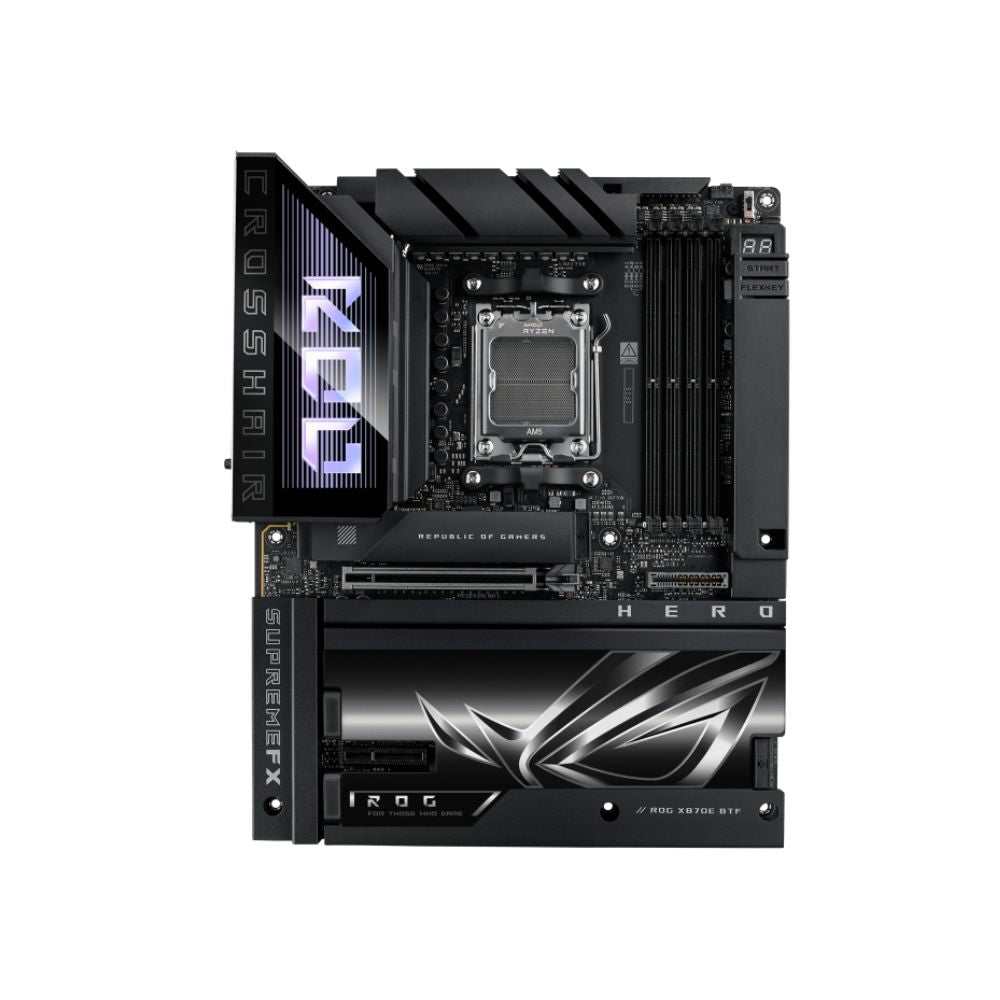

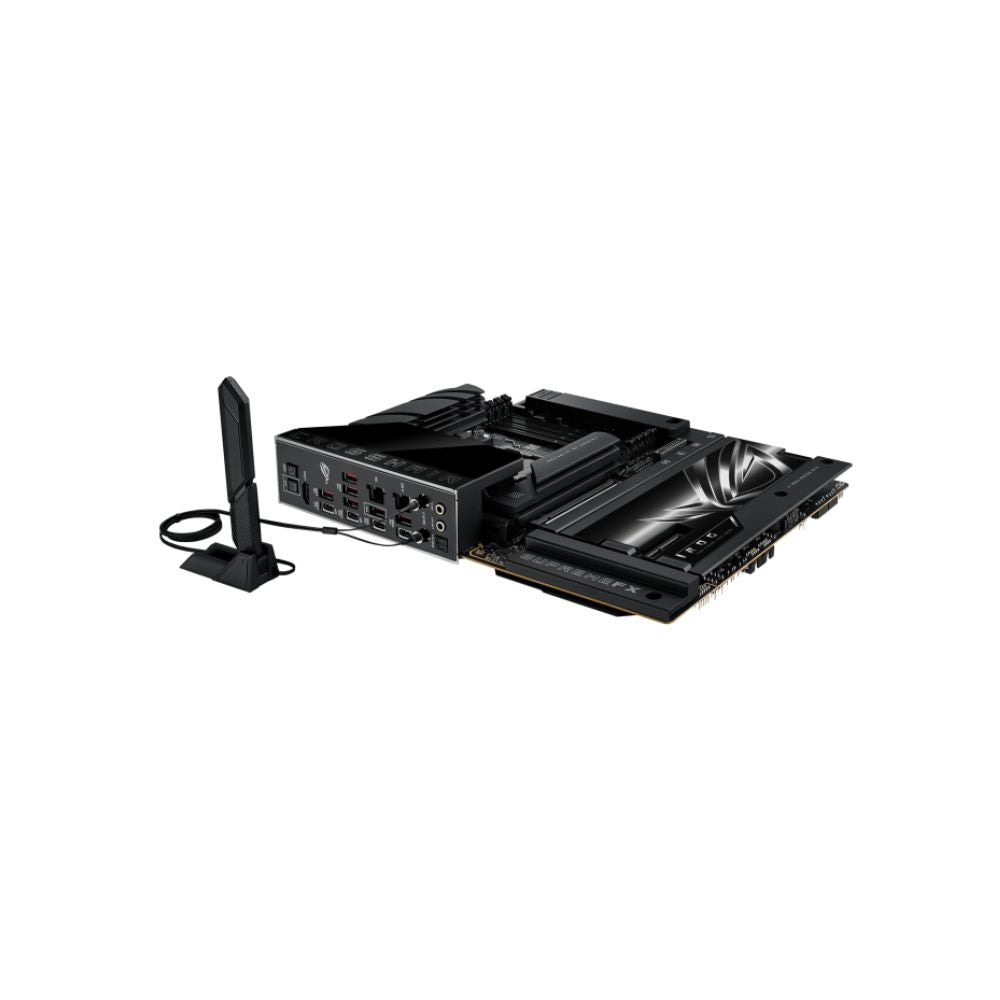

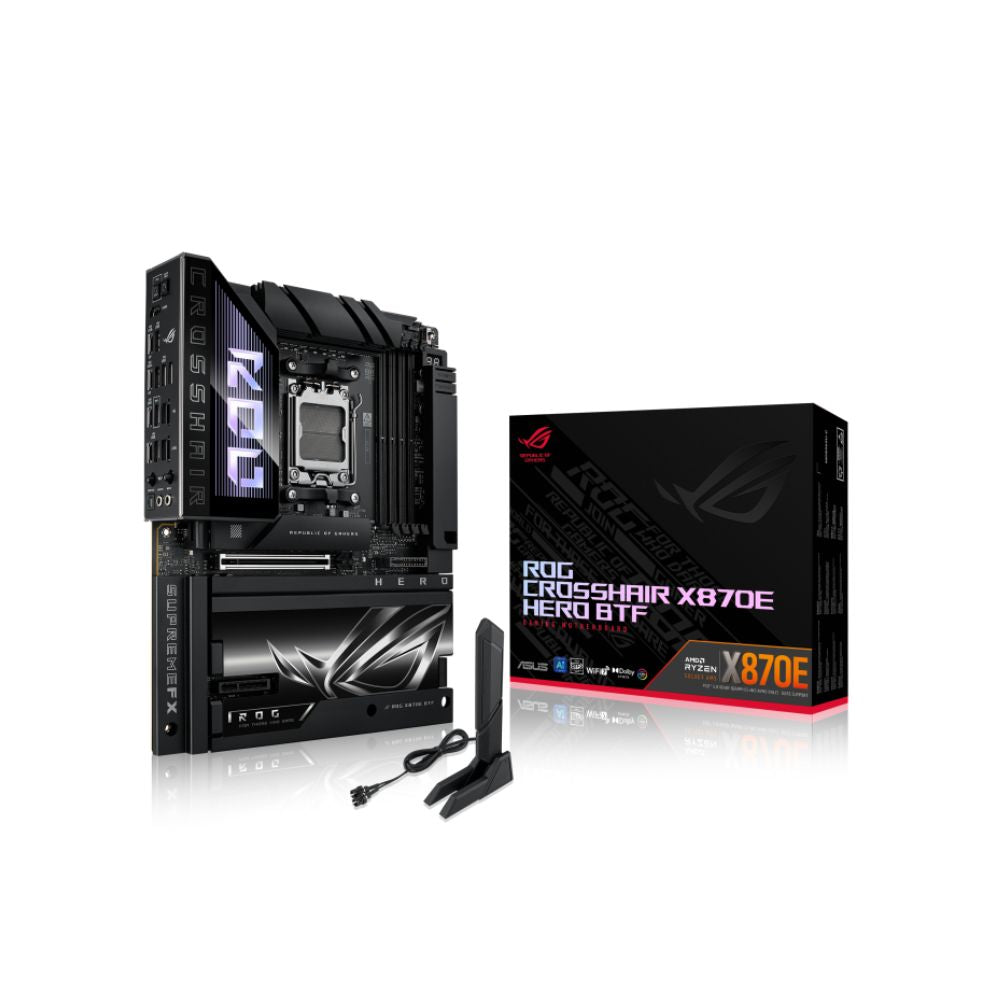

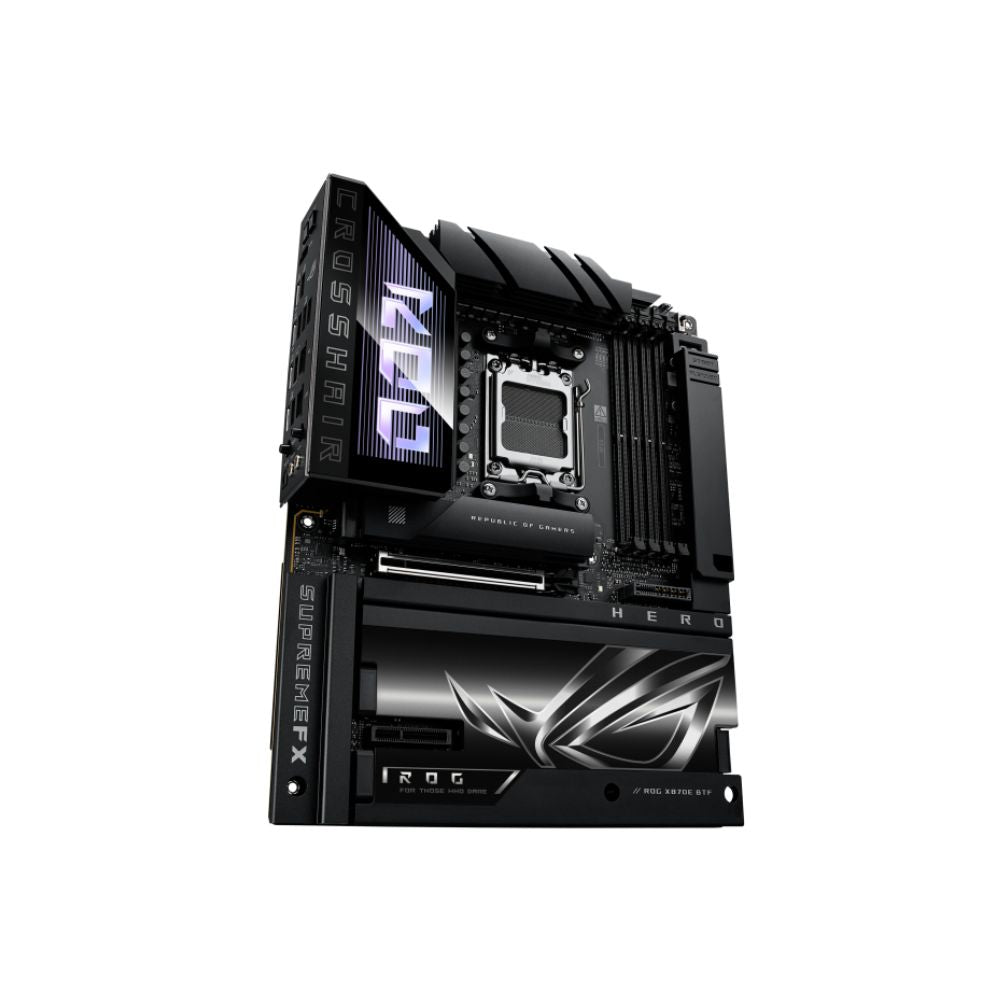

ASUS ROG CROSSHAIR X870E HERO BTF – Premium BTF Motherboard for AMD

SKU: X870E HERO BTF

CPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series (AM5)

Memory: 4 × DDR5 slots, up to 256GB, supports 8200+ MT/s (OC) with EXPO™

Storage: 5 × M.2 slots (up to PCIe 5.0) + 4 × SATA 6Gb/s

Connectivity: Wi-Fi 7, Intel® 2.5Gb LAN + Realtek 5Gb LAN, dual USB4® Type-C

The ASUS ROG CROSSHAIR X870E HERO BTF brings back-to-front cable management to your Ryzen 9000 build. Power connectors route behind the motherboard for ultra-clean aesthetics.

WiFi 7, dual USB4 ports, and three PCIe 5.0 M.2 slots give you flagship connectivity. Premium VRM components keep your overclocked CPU stable under heavy loads. Comes with 3-year ASUS Singapore warranty and our 7-day support.

Why Choose This ROG CROSSHAIR X870E HERO BTF

  • BTF cable design routes power behind the board for showroom-clean builds. Perfect for builders choosing PC motherboards where aesthetics matter.
  • Three M.2 slots run PCIe 5.0 speeds with Ryzen 9000/7000 CPUs. Add two more M.2 slots via chipset for fast storage expansion.
  • Premium 10K capacitors and extreme VRM design deliver stable overclocks without thermal throttling. ROG CROSSHAIR heritage means proven OC results.
  • 3-year Singapore warranty with ASUS service support. Fast WhatsApp inquiry response from Mansa Computers. We're open 7 days a week.
✓ Why Buy This

3 Year Warranty

WiFi 7 Connectivity

BTF Cable Design

Overview

About the ASUS ROG CROSSHAIR X870E HERO BTF

The ASUS ROG CROSSHAIR X870E HERO BTF is a flagship AM5 motherboard built for enthusiasts who demand extreme performance and clean aesthetics. The BTF (Back-To-Front) design moves power connectors to the motherboard's rear, eliminating visible cables in your build. This board pairs premium overclocking components with extensive connectivity for Ryzen 9000 and 7000 series processors.

What This Motherboard Does for You

This WiFi 7 motherboard gives you connectivity that won't feel outdated in three years. Dual USB4 ports deliver 40Gbps speeds for external SSDs and high-speed peripherals. With Ryzen 9000 or 7000 CPUs, you get three M.2 slots running PCIe 5.0 x4 speeds for the fastest SSDs. Two additional M.2 slots from the X870E chipset run PCIe 4.0 for extra storage. The dual ethernet setup (Intel 2.5Gb + Realtek 5Gb) is perfect for streamers who need stable uploads while gaming. Premium VRM components with 10K black metallic capacitors keep your overclocked Ryzen 9 stable under heavy loads.

BTF Design and Build Quality

The back-to-front cable routing is this board's standout feature for clean builds. Your 24-pin power, CPU power, and fan headers connect from behind, creating a cable-free front view. You'll need a BTF-compatible case, but the aesthetic payoff is significant. The extreme OC kit includes premium components like MicroFine alloy chokes for stable power delivery. Q-Design features like M.2 Q-Latch and tool-free installation make building easier.

Perfect For

  • Enthusiast builders creating show-quality custom gaming PCs with pristine cable management
  • Overclockers pushing Ryzen 9950X to extreme frequencies with premium VRM support
  • Content creators who need dual high-speed ethernet and multiple fast storage drives
  • Future-proof builds requiring WiFi 7, USB4, and maximum AM5 platform features

Why Buy from Mansa Computers

  • 3-year Singapore warranty with ASUS service support
  • Fast WhatsApp inquiry response for technical questions
  • Open 7 days a week for support
  • Home delivery available

Technical Specifications Summary

Chipset
AMD X870E

CPU Socket
AM5 (Ryzen 9000/8000/7000)

Memory
DDR5 up to 8600+MT/s (OC), 256GB max

M.2 Slots
3x PCIe 5.0 (Ryzen 9000/7000), 2x PCIe 4.0 (Chipset)

SATA
4x SATA 6Gb/s ports

Networking
WiFi 7, Intel 2.5Gb + Realtek 5Gb Ethernet

USB
2x USB4 (40Gbps), 8x USB 10Gbps rear

Form Factor
ATX (30.5cm x 24.4cm)

Ready to build your ultimate AM5 system? The ASUS ROG CROSSHAIR X870E HERO BTF delivers flagship features with clean BTF cable management. Order today with 3-year Singapore warranty included.

Full Specifications

Model
ROG CROSSHAIR X870E HERO BTF

CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset
AMD X870E

Memory
4 x DIMM slots, max 256GB, DDR5
Supports up to 8200+MT/s (OC) with Ryzen™ 9000 Series, 8600+MT/s (OC) with Ryzen™ 8000 Series, 8000+MT/s (OC) with Ryzen™ 7000 Series
ECC and Non-ECC, Un-buffered Memory
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
Supports DIMM Fit, DIMM Fit Pro, NitroPath DRAM Technology, and ASUS Enhanced Memory Profile (AEMP)

Graphics
1 x HDMI™ port
2 x USB4® (40Gbps) ports support USB Type-C® display outputs

Expansion Slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot with Q-Release Slim (supports x16 or x8/x4/x4 modes)
When M.2_2 is enabled, PCIEX16_1 runs x8 and M.2_3 runs x4.
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors
1 x PCIe 4.0 x16 slot with Q-Release Slim (total bandwidth x8)
AMD Ryzen™ 8500 & 8300 Series Desktop Processor
1 x PCIe 4.0 x16 slot with Q-Release Slim (total bandwidth x4)
AMD X870E Chipset
1 x PCIe 4.0 x4 slot

Storage
Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series
M.2_1: PCIe 5.0 x4
M.2_2: PCIe 5.0 x4
M.2_3: PCIe 5.0 x4
AMD Ryzen™ 8000 Series
M.2_1: PCIe 4.0 x4
AMD X870E Chipset
M.2_4: PCIe 4.0 x4
M.2_5: PCIe 4.0 x4
4 x SATA 6Gb/s ports

RAID Support
AMD RAIDXpert2 Technology
Ryzen™ 9000: RAID 0/1/5/10
Ryzen™ 8000: RAID 0/1
Ryzen™ 7000: RAID 0/1/10

Ethernet
1 x Intel® 2.5Gb Ethernet
1 x Realtek 5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth
Wi-Fi 7 (MediaTek MT7927)
2x2 Wi-Fi 7 (802.11be), supports 2.4/5/6GHz bands
Supports Wi-Fi 7 320MHz bandwidth
Bluetooth® v5.4
Wi-Fi 7 requires Windows 11 24H2 or later for full functionality.

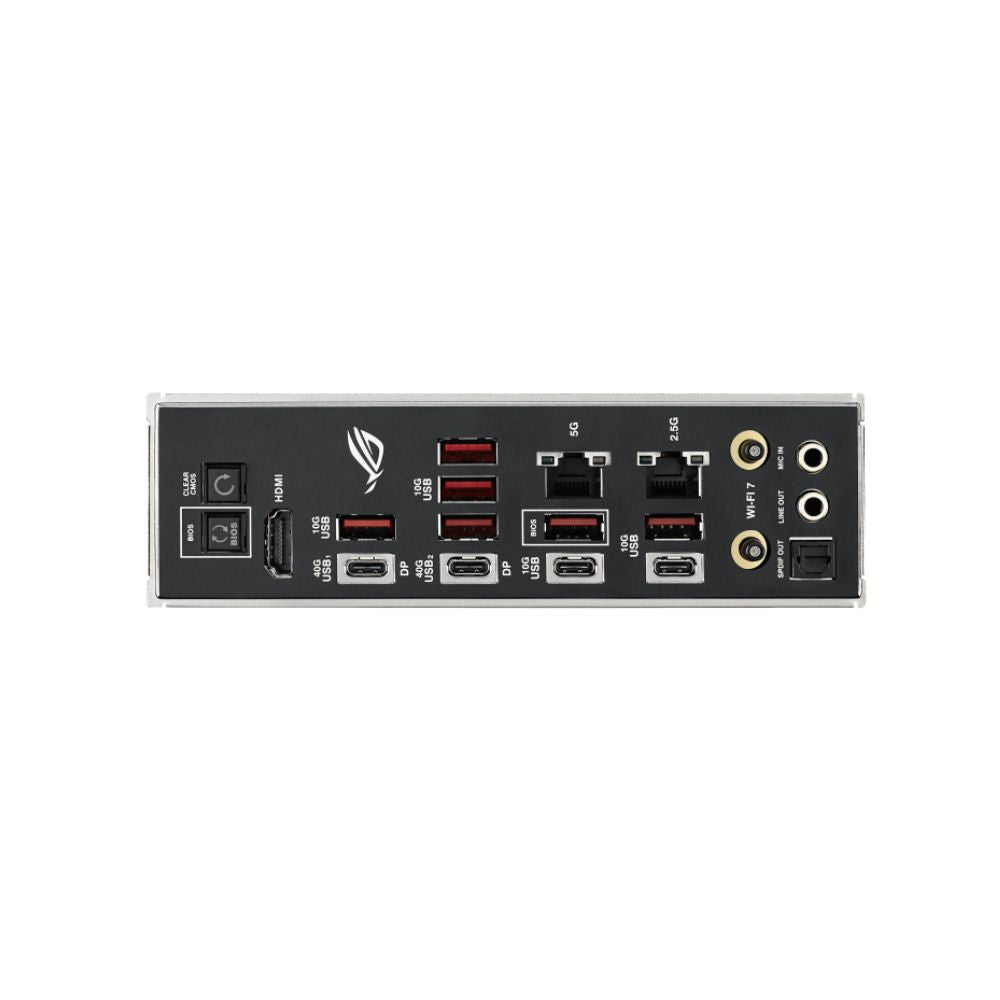

USB
Rear USB (10 ports)
2 x USB4® (40Gbps) Type-C®
8 x USB 10Gbps (6 x Type-A + 2 x Type-C®)
Front USB (10 ports)
2 x USB 20Gbps Type-C®
2 x USB 5Gbps headers (4 ports)
2 x USB 2.0 headers (4 ports)

Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
ESS® ES9219 QUAD DAC
120 dB SNR playback / 110 dB SNR recording
Gold-plated jacks, Optical S/PDIF out, Premium audio capacitors

Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x Graphics card high power slot
1 x 12V-2X6 Auxiliary power connector
Storage Related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
2 x USB 20Gbps connectors (support USB Type-C® )
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Alteration PCIe mode switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header

Special Features
Extreme OC Kit
FlexKey button
Start button
Extreme Engine Digi+
10K Black metallic capacitors
MicroFine alloy choke
ASUS Q-Design
M.2 Q-Latch, M.2 Q-Release, Q-LED, Q-Antenna
ASUS EZ DIY
BIOS FlashBack™, Clear CMOS, ProCool II, Pre-mounted I/O Shield
Aura Sync
Addressable Gen2 headers

Software Features
ROG Exclusive Software
ROG CPU-Z, Dolby Atmos, Internet Security (1-year), Polymo Lighting II
ASUS Exclusive Software
Armoury Crate, AIDA64 (1-year), Aura Creator, Aura Sync, Fan Xpert 4, GameFirst, AI Advisor, DriverHub, TurboV Core, WinRAR (Trial), Adobe Creative Cloud (Trial)

BIOS
256Mb Flash ROM, UEFI AMI BIOS

Form Factor
ATX Form Factor
30.5 cm x 24.4 cm

Operating System
Windows® 11

Warranty

3 YEARS WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave, #03-03,
Singapore 339416
Contact: 6341 7839

Ban Leong Technologies Ltd
150, #04-01 Ubi Ave 4, Ubi Biz-Hub,
Singapore 408825
Contact: 6512 9250

FAQs

Frequently Asked Questions About ASUS ROG CROSSHAIR X870E HERO BTF

What makes the BTF design different from regular motherboards?

BTF (Back-To-Front) moves power connectors to the motherboard's rear. Your 24-pin, CPU power, and fan cables route behind the board for ultra-clean front aesthetics. You'll need a BTF-compatible case to use this feature.

How many M.2 slots support PCIe 5.0 speeds?

Three M.2 slots run PCIe 5.0 x4 when using Ryzen 9000 or 7000 CPUs. Two additional M.2 slots from the X870E chipset run PCIe 4.0 x4. With Ryzen 8000 CPUs, only one M.2 slot runs PCIe 4.0.

Can I use this board for extreme overclocking?

Absolutely. The extreme OC kit includes 10K black metallic capacitors and MicroFine alloy chokes for stable power delivery. Premium VRM design keeps temperatures low even when pushing high-end Ryzen 9 chips. FlexKey and Start buttons make testing easier.

What warranty and support do I get in Singapore?

You get a 3-year warranty with ASUS Singapore service center support. Mansa offers fast WhatsApp inquiry responses for technical questions. We're open 7 days a week if you need help with compatibility or installation.

Is this worth the premium over standard X870E boards?

If you value clean aesthetics and extreme OC capability, yes. The BTF design is unique and creates showroom-quality builds. You also get more connectivity (dual USB4, WiFi 7, three PCIe 5.0 M.2 slots) than most X870E competitors.

How long will it take to receive my purchase?

Standard Shipping - 3 to 5 days
Express Shipping - 1 to 2 days

Can I opt for store pickup?

Yes, we are open daily for collection from 11 AM - 6.30 PM.

Address: 1 Ubi View #01-22, Focus One Building Singapore 408555 (Door located nearest to carpark exit gantry)We will contact you once your order is ready for collection!
