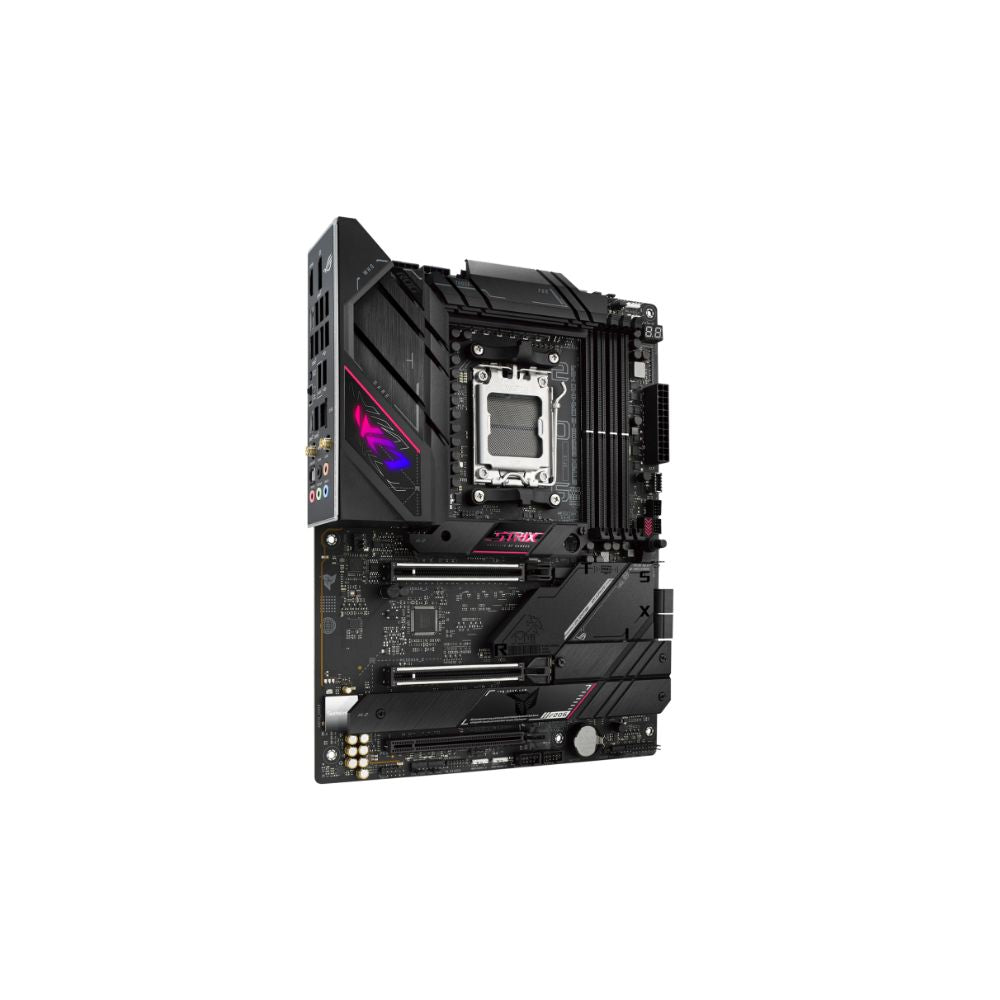

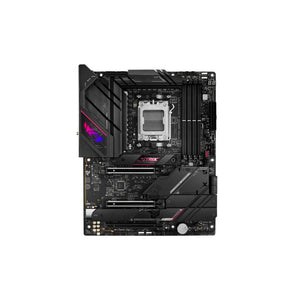

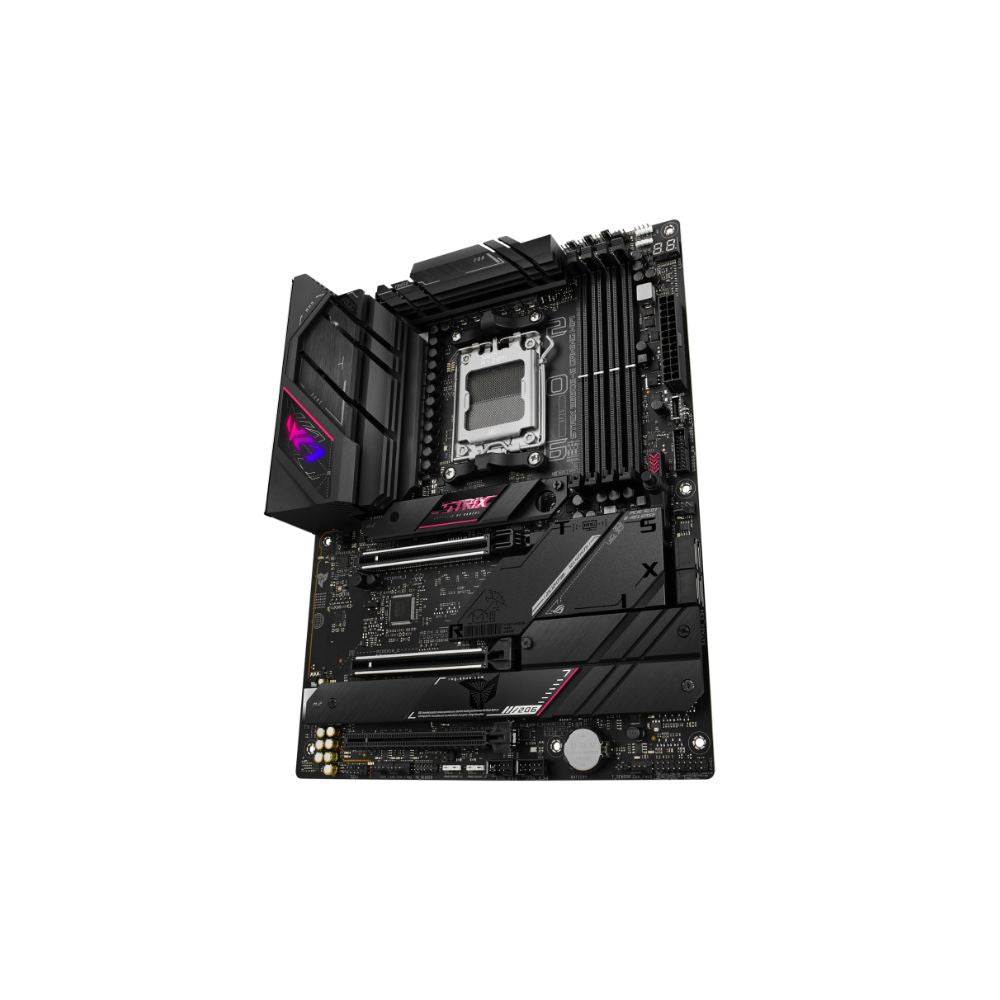

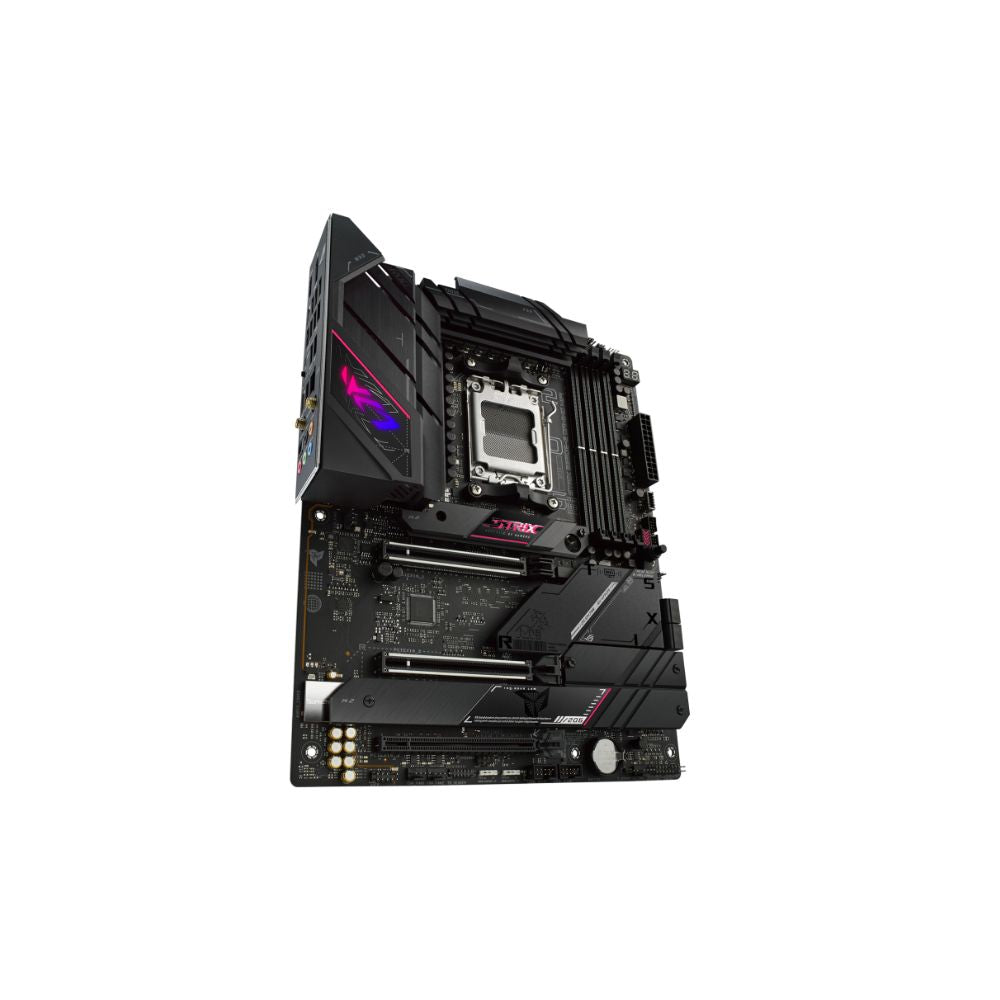

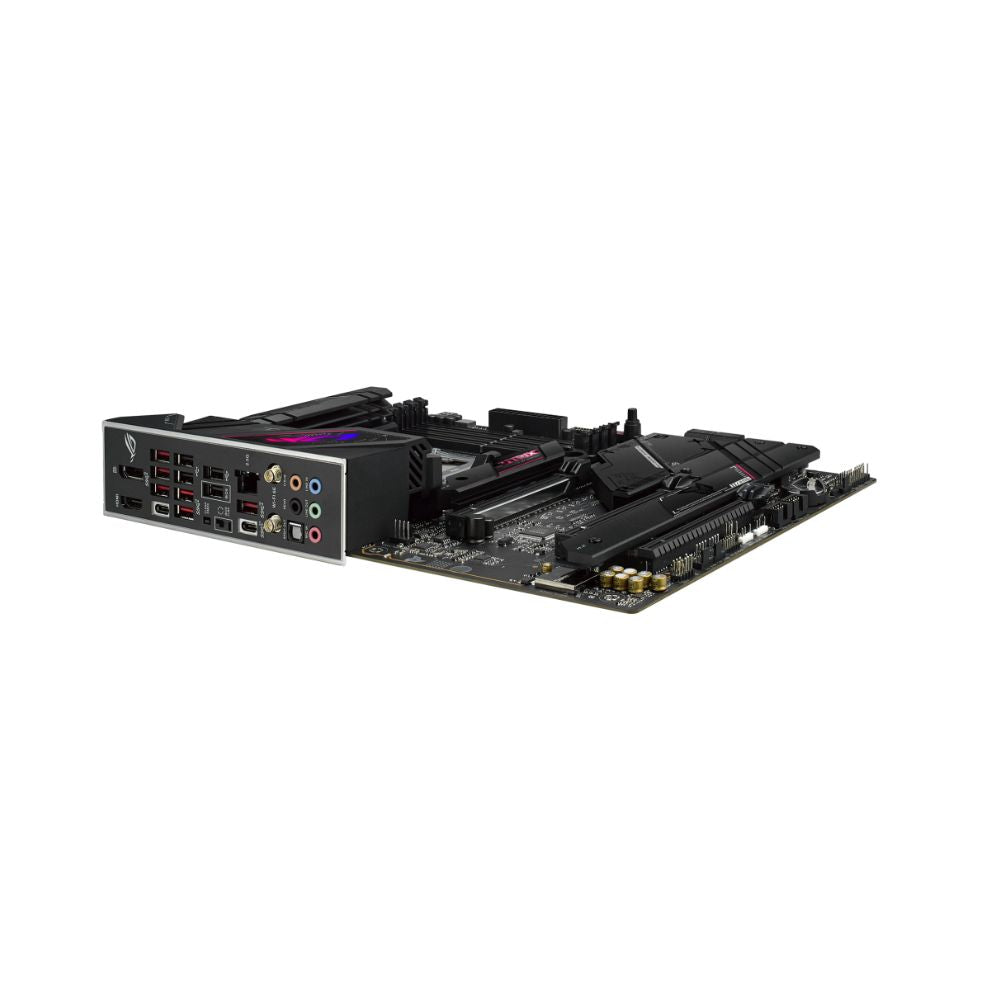

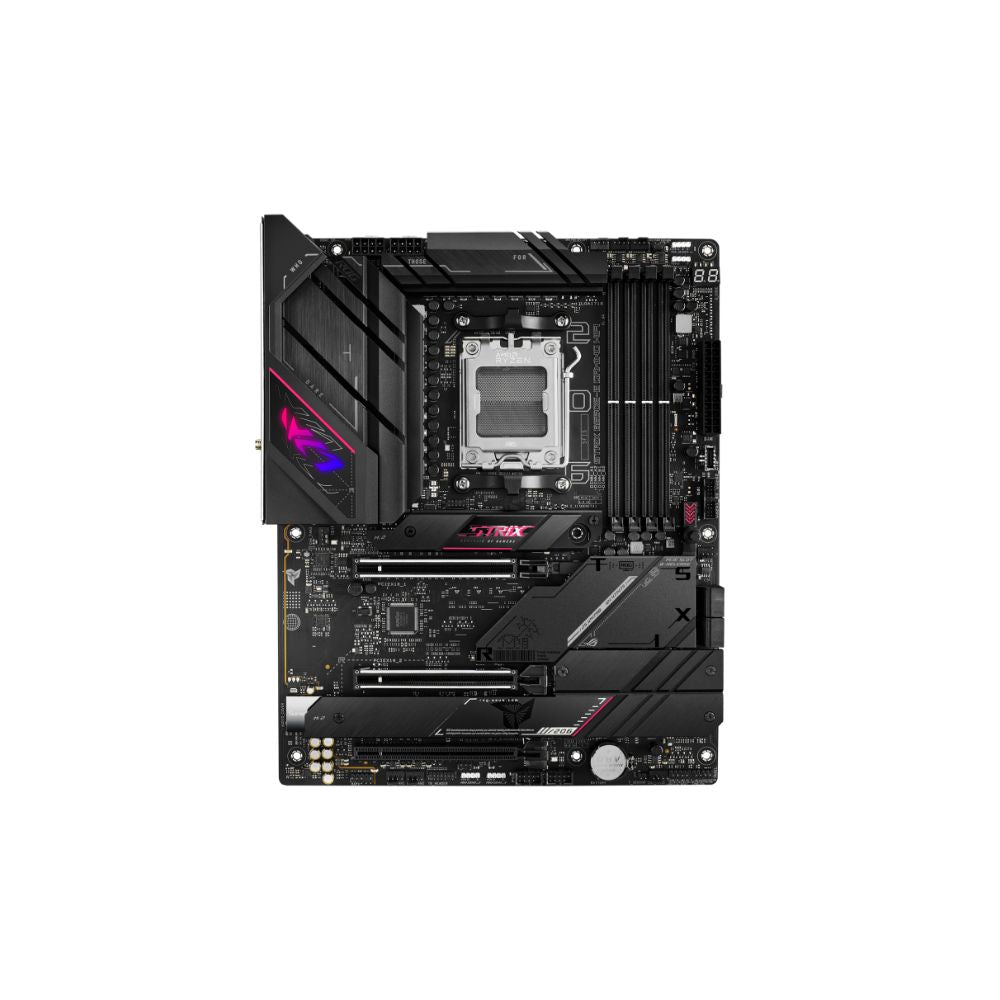

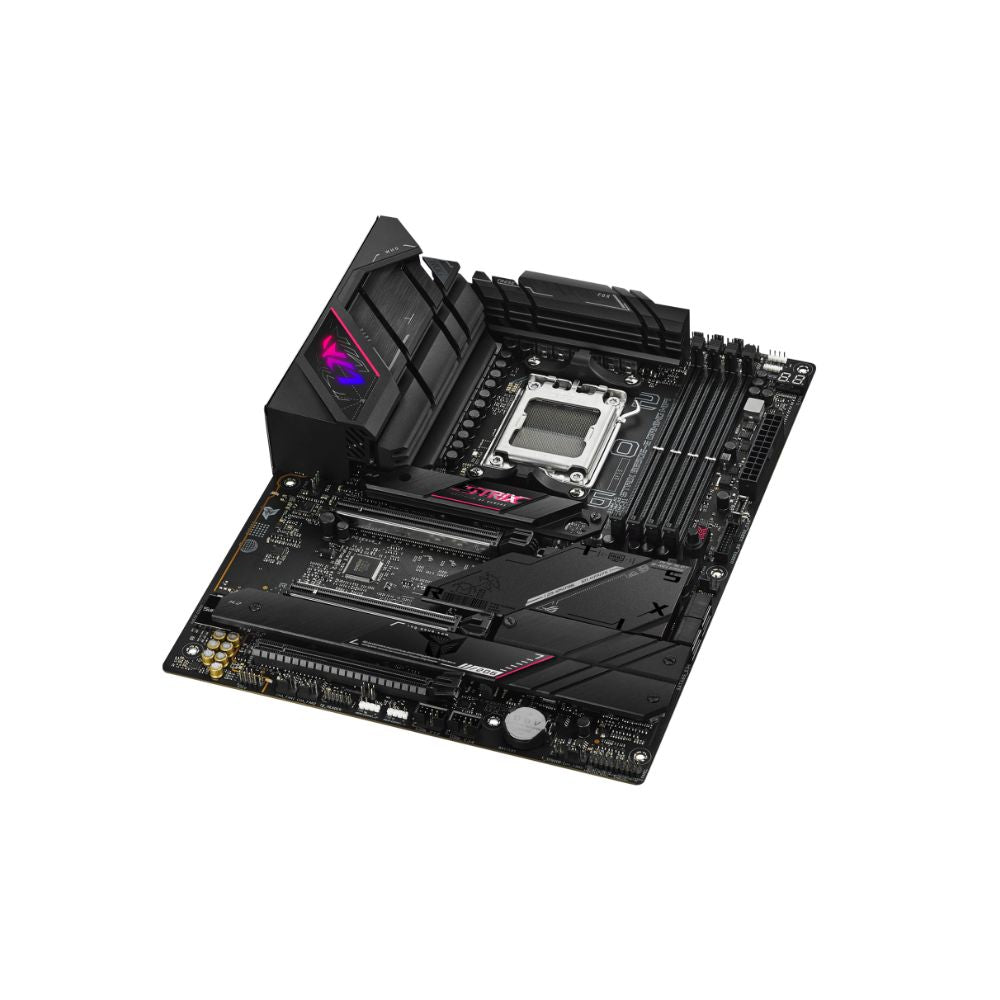

ASUS ROG STRIX B650E-E GAMING WIFI – Premium AM5 Motherboard

SKU: B650E-E

CPU Support: AMD Ryzen™ (AM5)

Memory: 4× DDR5 slots, up to 192GB, up to 8000+ MT/s (OC)

Storage: 4× M.2 (PCIe 5.0 / 4.0) + 4× SATA 6Gb/s

Networking: Wi-Fi 6E + Bluetooth 5.2 + Intel® 2.5Gb LAN

The ASUS ROG STRIX B650E-E GAMING WIFI brings you flagship features with the enhanced B650E chipset.

You get dual PCIe 5.0 M.2 slots for next-gen storage speeds and bifurcated PCIe lanes (x16 or x8/x4) for flexible expansion. ROG SupremeFX audio with 120dB SNR and Savitech AMP delivers studio-grade sound without external hardware. Backed by 3-year Singapore warranty with ASUS service support and fast WhatsApp response from Mansa Computers.

Why Choose This ROG STRIX B650E-E GAMING WIFI

  • Dual PCIe 5.0 M.2 slots (M.2_1 and M.2_3) future-proof your storage with 14GB/s+ speeds. Most B650 boards only give you one PCIe 5.0 slot for custom gaming PCs.
  • Four M.2 slots total plus four SATA ports mean endless storage expansion. Perfect for content creators running multiple NVMe drives and backup arrays.
  • ROG SupremeFX audio with ALC4080 codec and dedicated Savitech AMP delivers 120dB SNR. Audiophile-grade sound beats standard Realtek solutions on competing boards.
  • 3-year Singapore warranty with ASUS service center support. Fast WhatsApp inquiry response from Mansa Computers. We're open 7 days a week for technical questions.
✓ Why Buy This

3 Year Warranty

WiFi 6E Connectivity

PCIe 5.0 Support

Overview

About the ASUS ROG STRIX B650E-E GAMING WIFI


The ASUS ROG STRIX B650E-E GAMING WIFI is built for enthusiasts building high-end Ryzen 7000 systems. This board gives you enhanced PCIe 5.0 configuration with bifurcated x16 or x8/x4 lanes for flexible expansion. Perfect for gamers and content creators who want premium ROG quality with advanced connectivity options.

What This ASUS ROG STRIX B650E-E GAMING WIFI Does for You

This motherboard solves the "never enough connectivity" problem that PC builders face. You get 12 rear USB ports including USB 3.2 Gen 2x2 at 20Gbps for ultra-fast external drives. The dual PCIe 5.0 M.2 slots mean your boot drive and scratch disk both run at next-gen speeds. WiFi 6E support across 2.4/5/6GHz bands keeps your wireless connections stable during competitive gaming. ROG SupremeFX audio with 120dB SNR playback means you hear enemy footsteps clearly without buying external DACs. This is an AM5 motherboard that grows with your needs as you upgrade GPUs and storage over the next five years.

Enhanced Connectivity and Expansion

This board supports PCIe 5.0 bifurcation on the CPU lanes, allowing x16 or x8/x4 configurations across the two PCIe 5.0 x16 slots for flexible expansion. Four M.2 slots (two PCIe 5.0, two PCIe 4.0) plus four SATA ports mean you never sacrifice speed for capacity. Thunderbolt header support lets you add USB4 expansion cards. The Intel 2.5Gb Ethernet keeps network latency low for competitive gaming. Seven fan headers including dedicated AIO pump connector give you complete cooling control.

Perfect For

  • Performance PC builders who want Ryzen 7000 systems with dual PCIe 5.0 M.2 storage and extensive USB connectivity for gaming monitors in multi-monitor setups.
  • Content creators running Adobe Premiere or DaVinci Resolve who need fast scratch disk access and multiple NVMe drives for project files
  • PC builders who want stable DDR5 EXPO overclocking support for high-speed memory kits
  • Streamers who need ROG SupremeFX audio quality for clean microphone input and spatial audio output during live broadcasts

Why Buy from Mansa Computers

  • 3-year Singapore warranty with ASUS service center support
  • Fast WhatsApp inquiry response for technical questions during your build
  • Open 7 days a week for weekend builder support
  • Home delivery available across Singapore

Technical Specifications Summary

Socket
AMD AM5 (Ryzen 7000 Series)

Chipset
AMD B650

Memory
DDR5 8000+(OC), Max 192GB, 4 x DIMM

PCIe Slots
2 x PCIe 5.0 x16, 1 x PCIe 4.0 x16

Storage
4 x M.2 (2 x PCIe 5.0, 2 x PCIe 4.0), 4 x SATA

Networking
WiFi 6E (6GHz), Intel 2.5Gb Ethernet, Bluetooth 5.2

Audio
ROG SupremeFX ALC4080, 120dB SNR, Savitech AMP

Form Factor
ATX (30.5cm x 24.4cm)

Order your ASUS ROG STRIX B650E-E GAMING WIFI from Mansa Computers today. We deliver across Singapore with full ASUS warranty support and technical assistance when you need it.

Full Specifications

Model
ROG STRIX B650E-E GAMING WIFI

CPU
AMD Socket AM5 for AMD Ryzen™ Desktop Processors

Chipset
AMD B650

Memory
4 × DIMM, Max 192GB, DDR5 8000+(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800
ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II

Graphics
1 × DisplayPort
1 × HDMI® port

Expansion Slots
AMD Ryzen™ Desktop Processors
2 × PCIe 5.0 x16 slots (supports x16 and x8/x4 modes)
AMD B650 Chipset
1 × PCIe 4.0 x16 slot (supports x4 mode)

Storage
Total supports 4 × M.2 slots* and 4 × SATA 6Gb/s ports
AMD Ryzen™ Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
AMD B650 Chipset
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
ASMedia ASM1061 Controller
4 × SATA 6Gb/s ports

Ethernet
1 × Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth
Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth® v5.2

USB
Rear USB (total 12 ports)
1 × USB 3.2 Gen 2x2 port (1 × USB Type-C®)
7 × USB 3.2 Gen 2 ports (6 × Type-A + 1 × USB Type-C®)
4 × USB 2.0 ports
Front USB (total 7 ports)
1 × USB 3.2 Gen 2 connector (supports USB Type-C®)
1 × USB 3.2 Gen 1 header supporting 2 additional USB 3.2 Gen 1 ports
2 × USB 2.0 headers supporting 4 additional USB 2.0 ports

Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Impedance sense for front and rear headphone outputs
Supports jack-detection, multi-streaming, and front panel jack-retasking
High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
Supports up to 32-bit / 384 kHz playback
Audio shielding, Savitech SV3H712 AMP, rear optical S/PDIF out port, premium audio capacitors, audio cover

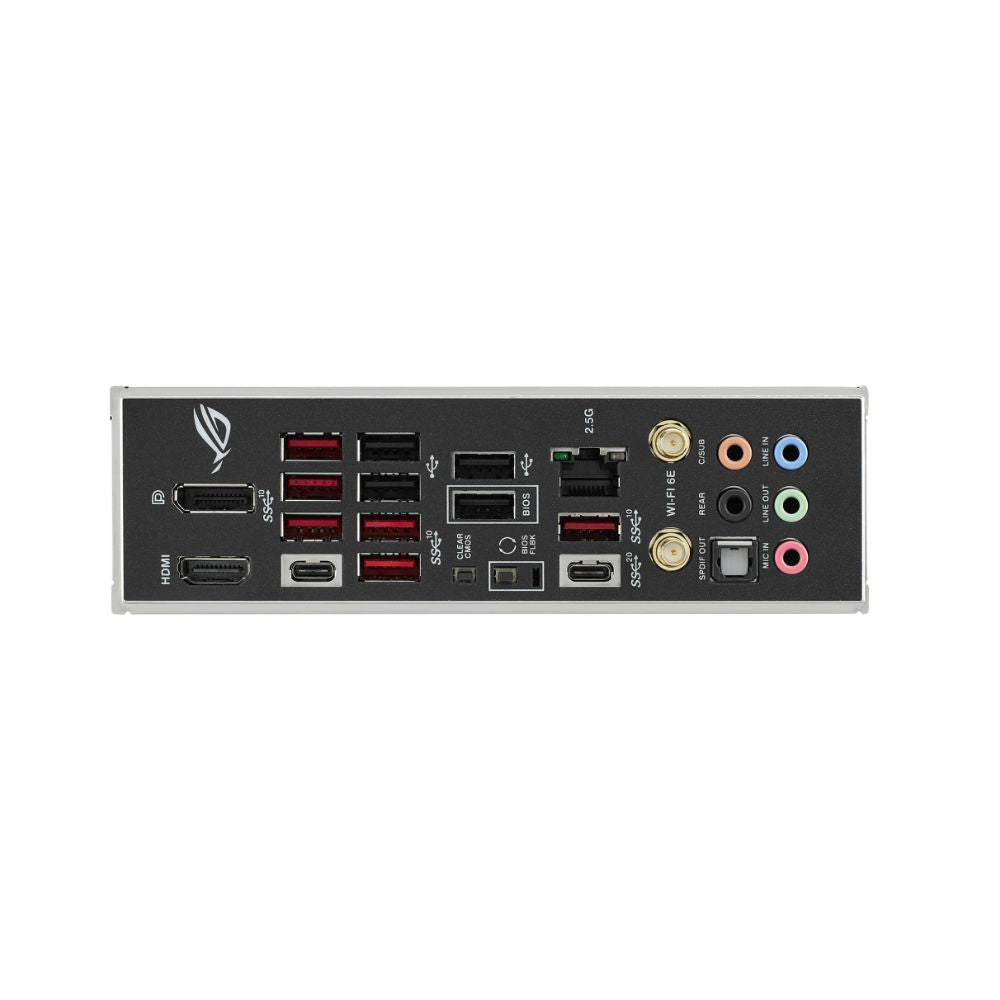

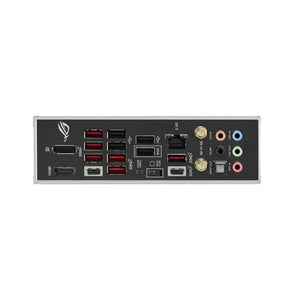

Back Panel I/O Ports
1 × USB 3.2 Gen 2x2 port (1 × Type-C®)
7 × USB 3.2 Gen 2 ports (6 × Type-A, 1 × USB Type-C®)
4 × USB 2.0 ports
1 × DisplayPort
1 × HDMI® port
1 × Wi-Fi Module
1 × Intel® 2.5Gb Ethernet port
5 × Audio jacks*
1 × Optical S/PDIF out port
1 × BIOS FlashBack™ button
1 × Clear CMOS button

Internal I/O Connectors
Fan and cooling related
1 × 4-pin CPU Fan header
1 × 4-pin CPU OPT Fan header
1 × 4-pin AIO Pump header
5 × 4-pin Chassis Fan headers
Power related
1 × 24-pin Main Power connector
2 × 8-pin +12V Power connectors
Storage related
4 × M.2 slots (Key M)
4 × SATA 6Gb/s ports
USB
1 × USB 3.2 Gen 2 connector (supports USB Type-C®)
1 × USB 3.2 Gen 1 header supporting 2 additional USB 3.2 Gen 1 ports
2 × USB 2.0 headers supporting 4 additional USB 2.0 ports
Miscellaneous
3 × Addressable Gen 2 headers
1 × Aura RGB header
1 × CPU Over Voltage jumper
1 × Front Panel Audio header (AAFP)
1 × 20-3 pin System Panel header with chassis intrude function
1 × Thermal Sensor header
1 × Thunderbolt™ (USB4®) header

Special Features
Extreme Engine Digi+ with 5K black metallic capacitors
ASUS Q-Design with M.2 Q-Latch, PCIe Slot Q-Release, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot
ASUS Thermal Solution with M.2 heatsinks, M.2 heatsink backplate, VRM heatsink design
ASUS EZ DIY with BIOS FlashBack™ button, BIOS FlashBack™ LED, Clear CMOS button, ProCool, pre-mounted I/O shield, SafeSlot, SafeDIMM
Aura Sync with Aura RGB header and Addressable Gen 2 headers

Software Features
ROG Exclusive Software
GameFirst VI
ROG CPU-Z
Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
Sonic Radar III
DTS® Sound Unbound
Anti-virus software
ASUS Exclusive Software
Armoury Crate with AIDA64 Extreme (60 days free trial), Aura Creator, Aura Sync, Fan Xpert 4, Power Saving, Two-Way AI Noise Cancellation
AI Suite 3 with TPU, DIGI+ VRM, Turbo App, PC Cleaner
MyAsus
WinRAR
UEFI BIOS with ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, Dynamic OC Switcher, FlexKey

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
Cables
2 × SATA 6Gb/s cables
Additional Cooling Kit
1 × Thermal pad for M.2
Miscellaneous

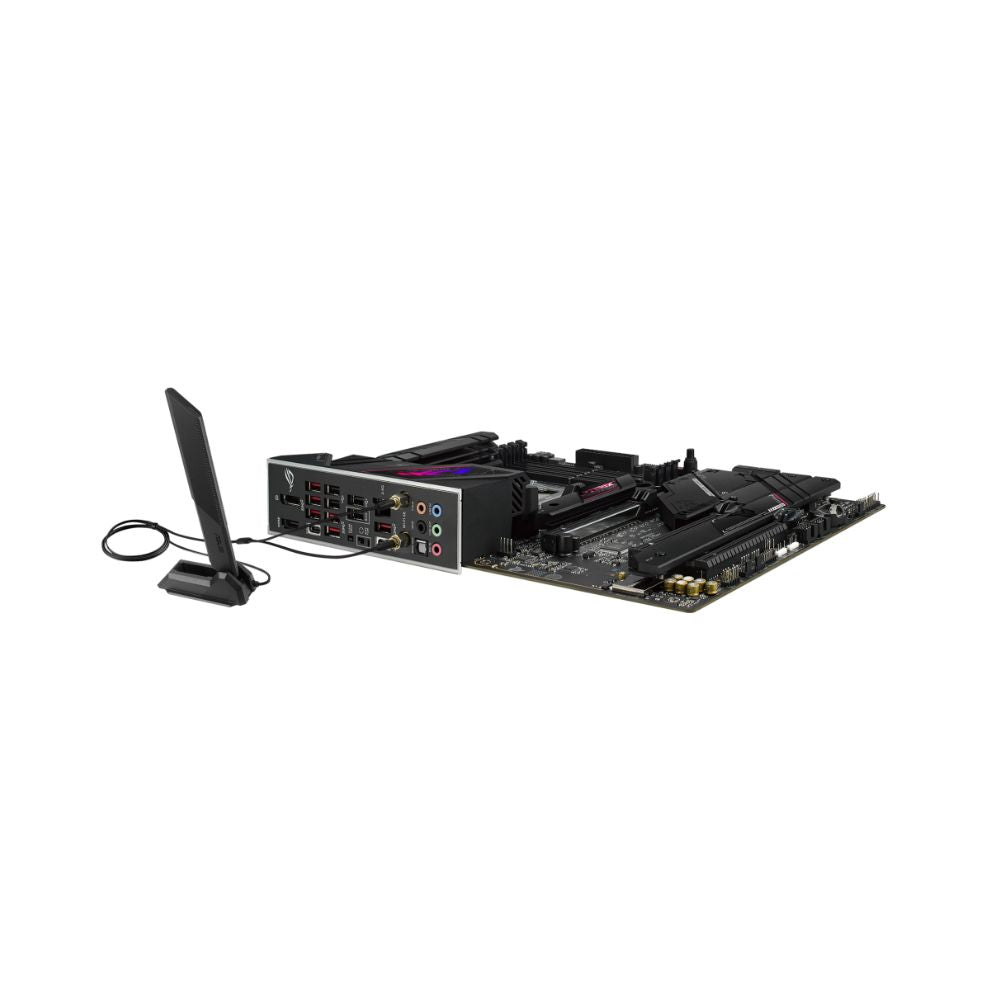

1 × ASUS Wi-Fi moving antennas
1 × Cable ties pack
1 × M.2 Q-Latch package
1 × ROG key chain
1 × ROG Strix stickers
1 × ROG Strix thank you card
2 × Rubber packages for M.2
Documentation
1 × User guide

Operating System
Windows® 10 64-bit, Windows® 11 64-bit

Form Factor
ATX Form Factor, 12 inch × 9.6 inch (30.5 cm × 24.4 cm)

Warranty

3 YEARS WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave, #03-03,
Singapore 339416
Contact: 6341 7839

Ban Leong Technologies Ltd
150, #04-01 Ubi Ave 4, Ubi Biz-Hub,
Singapore 408825
Contact: 6512 9250

FAQs

Frequently Asked Questions About ASUS ROG STRIX B650E-E GAMING WIFI

Does this motherboard support PCIe 5.0 for both GPU and storage?

Yes. The first two PCIe x16 slots support PCIe 5.0, and M.2_1 plus M.2_3 slots both run PCIe 5.0 x4 for next-gen SSDs. This gives you flagship-level expansion on B650 chipset.

Can I overclock DDR5 to 8000MHz with Ryzen 7000 CPUs?

Yes. This board supports DDR5 overclocking up to 8000MHz+ using AMD EXPO profiles. OptiMem II trace design improves signal integrity for stable high-frequency memory operation.

Which Ryzen processors work with this AM5 motherboard?

All AMD Ryzen 7000 series processors work out of box. This includes Ryzen 5 7600X, Ryzen 7 7700X, Ryzen 9 7900X, and Ryzen 9 7950X models.

What's the difference between B650E and regular B650 chipset?

B650E boards like this one are required to support PCIe 5.0 for the primary x16 slot and at least one M.2 slot. Many regular B650 boards only offer PCIe 5.0 on a single slot or on storage only, so you get less PCIe 5.0 bandwidth overall. Always check each board’s spec sheet to confirm.

Does this come with Singapore warranty and local support?

Yes. You get 3-year ASUS Singapore warranty with authorized service center support. Mansa Computers provides fast WhatsApp response and we're open 7 days weekly.
