ASUS ROG STRIX B650E-I GAMING WIFI – Premium Mini-ITX AM5 Motherboard

SKU: B650E-I

CPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series (AM5)

Memory: 2× DDR5 slots, up to 96GB, up to 8000+ MT/s (OC)

Storage: 2× M.2 (PCIe 5.0 + 4.0) + 2× SATA 6Gb/s

Networking: Wi-Fi 6E + Bluetooth 5.2 + Intel® 2.5Gb LAN

Rear USB: 1× USB-C 20Gbps, 5× USB 10Gbps, 2× USB 2.0

Display Output: HDMI + USB-C (DP Alt Mode)

The ASUS ROG STRIX B650E-I GAMING WIFI packs flagship features into a 6.7-inch Mini-ITX footprint for serious compact builds.

PCIe 5.0 graphics support and dual M.2 slots give you future-proof expansion despite the small size. WiFi 6E with 2.5Gb Ethernet means no cable clutter in your SFF case. Backed by 3-year ASUS Singapore warranty and our 7-day support.

Why Choose This ASUS ROG STRIX B650E-I GAMING WIFI

  • B650E-class design with PCIe 5.0 x16 slot—most Mini-ITX boards skip this. Ready for next-gen GPUs in compact gaming builds.
  • Dual M.2 SSD slots with PCIe 5.0 and PCIe 4.0 speeds, plus Q-Latch tool-free installation. No fumbling with tiny screws in small form factor cases.
  • WiFi 6E tri-band and 2.5Gb Ethernet handle both wireless and wired at premium speeds. OptiMem II pushes DDR5 to 8000MHz+, matching full-size boards.
  • 3-year Singapore warranty with ASUS service support. Fast WhatsApp inquiry response from Mansa Computers. We're open 7 days a week.
✓ Why Buy This

3 Year Warranty

AMD AM5 Socket

Wifi 6E

Overview

About the ASUS ROG STRIX B650E-I GAMING WIFI

The ASUS ROG STRIX B650E-I GAMING WIFI is built for enthusiasts who want premium features without sacrificing desk space. This Mini-ITX motherboard supports AMD's Ryzen 9000, 8000, and 7000 series processors on the AM5 socket. The B650E chipset delivers PCIe 5.0 support—uncommon in this compact form factor. ROG engineering means quality VRMs, premium audio, and tool-free installation features.

What This ASUS ROG STRIX B650E-I Does for You

Building a powerful Mini-ITX PC used to mean compromising on features. Not anymore. PCIe 5.0 x16 support future-proofs your GPU slot for upcoming graphics cards. Dual M.2 slots with Q-Latch let you install NVMe drives without screws—crucial when working in tight SFF cases. WiFi 6E handles tri-band wireless at 2.4/5/6GHz, while 2.5Gb Ethernet gives you wired speed without lag. DDR5 memory support up to 8000MHz+ with EXPO profiles means your RAM performs like it would on full-size boards. SupremeFX audio with ALC4080 codec delivers 120dB SNR—better than most budget boards.

Connectivity and Expansion

The rear I/O includes USB 3.2 Gen 2x2 Type-C, five USB 3.2 Gen 2 ports, and USB Type-C with DisplayPort Alt mode. Internal headers support additional USB 3.2 Gen 2 and USB 2.0 connections. Two SATA 6Gb/s ports complement the M.2 slots for extra storage. BIOS FlashBack button lets you update firmware without CPU or RAM installed. FlexKey provides customizable shortcut functionality.

Perfect For

  • Small form factor gaming PCs with Ryzen 7000/8000/9000 processors needing high-end Mini-ITX cases
  • Compact workstations where desk space is limited but performance cannot be compromised
  • Living room PCs that need flagship features in a console-sized build
  • Enthusiast builders who demand proper VRM cooling and premium audio in Mini-ITX format

Why Buy from Mansa Computers

  • 3-year Singapore warranty with ASUS service support
  • Fast WhatsApp inquiry response for compatibility questions
  • Open 7 days a week for support
  • Home delivery available across Singapore

Technical Specifications Summary

Chipset
AMD B650E

Socket
AM5 (Ryzen 9000/8000/7000)

Form Factor
Mini-ITX (17cm x 17cm)

Memory
DDR5-8000+ OC, 2 x DIMM, Max 96GB

Storage
2 x M.2 (PCIe 5.0 + 4.0), 2 x SATA

Networking
WiFi 6E, Intel 2.5Gb Ethernet

Audio
SupremeFX ALC4080 (120dB SNR)

PCIe Slots
1 x PCIe 5.0 x16

The ASUS ROG STRIX B650E-I GAMING WIFI proves compact builds don't require feature compromises. Order from Mansa Computers with confidence in our local warranty and support.

Full Specifications

Model
ROG STRIX B650E-I GAMING WIFI

CPU
AMD Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors

Chipset
AMD B650

Memory
2 x DIMM, Max. 96GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 MHz
ECC & Non-ECC, Un-buffered Memory
Dual Channel Architecture
Supports EXPO™, OptiMem II

Graphics
1 x HDMI® port
1 x USB 3.2 Gen 2 Type-C® display output

Expansion Slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 1 x PCIe 5.0 x16 slot

Storage
2 x M.2 slots + 2 x SATA 6Gb/s ports
Ryzen™ 9000 & 7000 Series:
M.2_1: PCIe 5.0 x4
M.2_2: PCIe 4.0 x4
AMD RAIDXpert2 Technology supports PCIe RAID 0/1 and SATA RAID 0/1.

Ethernet
1 x Intel® 2.5Gb Ethernet (ASUS LANGuard)

Wireless & Bluetooth
Wi-Fi 6E (2x2, 802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz bands
Bluetooth® v5.2

USB
Rear I/O: 1 x USB 3.2 Gen 2x2 (Type-C®), 5 x USB 3.2 Gen 2 (4 x Type-A + 1 x Type-C®), 2 x USB 2.0 (Type-A)
Front I/O: 1 x USB 3.2 Gen 2 connector, 1 x USB 3.2 Gen 1 header (2 ports), 1 x USB 2.0 header (2 ports)

Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Impedance sense for front and rear headphone outputs
Jack detection, Multi-streaming, Front Panel retasking
120 dB SNR playback / 113 dB SNR recording
Supports up to 32-bit/384 kHz playback
Savitech SV3H712 AMP, Premium capacitors, LED jacks, Optical S/PDIF out

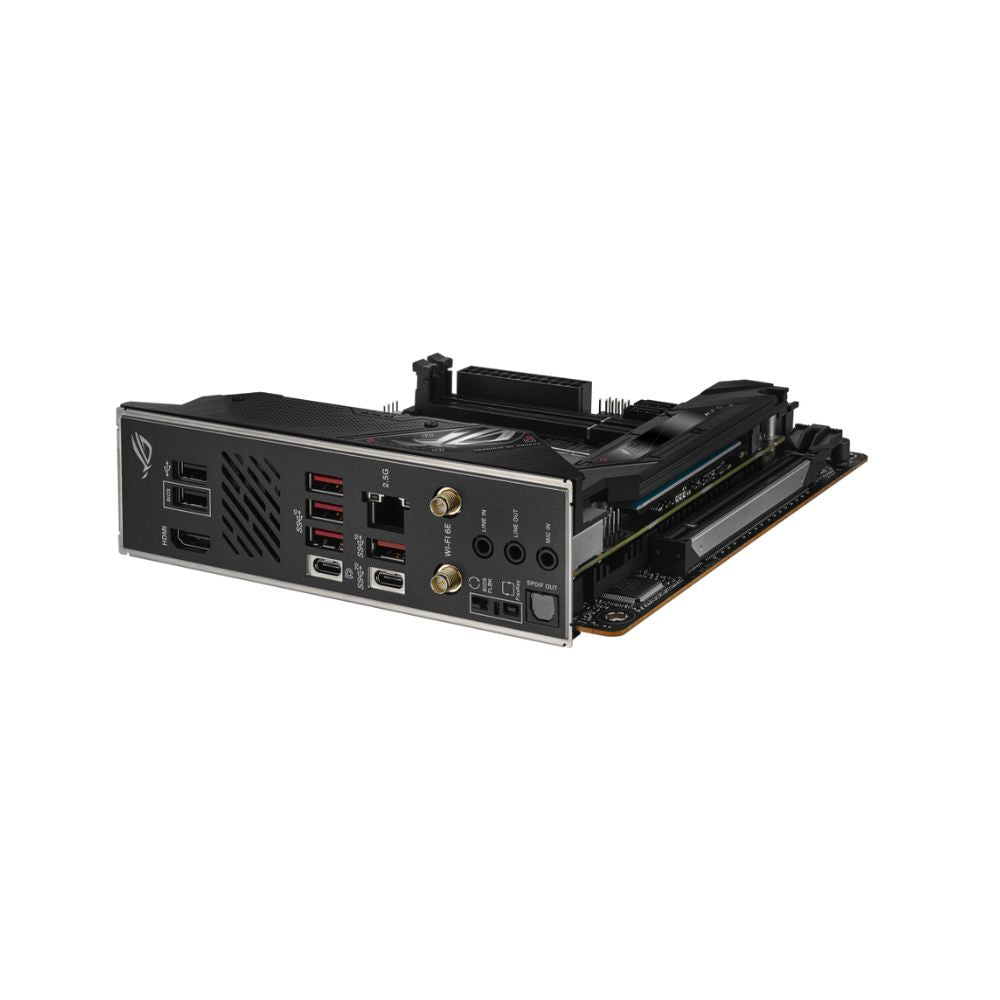

Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 (Type-C®)
5 x USB 3.2 Gen 2 (4 x Type-A + 1 x Type-C® with DP Alt mode)
2 x USB 2.0 (Type-A)
1 x HDMI® port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet
3 x LED-illuminated audio jacks
1 x Optical S/PDIF out
1 x BIOS FlashBack™ button
1 x FlexKey button

Internal I/O Connectors
Cooling: 1 x CPU Fan, 1 x AIO Pump, 1 x Chassis Fan
Power: 1 x 24-pin ATX, 1 x 8-pin +12V
Storage: 2 x M.2, 2 x SATA
USB: 1 x USB 3.2 Gen 2, 1 x USB 3.2 Gen 1 (2 ports), 1 x USB 2.0 (2 ports)
Misc: 1 x ARGB Gen 2, 1 x RGB header, 1 x Clear CMOS, 1 x CPU OV jumper, 1 x Front Audio (AAFP), 1 x Front Panel, 1 x Speaker, 1 x Thermal Sensor

Special Features
Extreme Engine Digi+: 5K Black Metallic Capacitors
ASUS Q-Design: M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot
ASUS Thermal Solution: M.2 and VRM heatsinks
ASUS EZ DIY: BIOS FlashBack™, Pre-mounted I/O, SafeSlot, SafeDIMM, ProCool
AURA Sync: AURA RGB + Addressable Gen 2 headers

Software Features
ROG Software: GameFirst VI, ROG CPU-Z, Sonic Studio III, Sonic Radar III, DTS® Sound Unbound
ASUS Software: Armoury Crate, AIDA64 (Trial), Aura Creator, Fan Xpert 4, AI Suite 3, MyASUS, WinRAR (Trial)
UEFI BIOS: EZ Flash 3, CrashFree BIOS 3, EZ Mode, Dynamic OC Switcher, FlexKey

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
Cables: 2 x SATA 6Gb/s, 1 x ROG USB 2.0 splitter, 1 x Panel cable
Cooling Kit: 1 x M.2 thermal pad
Misc: 1 x Wi-Fi antenna, 1 x Cable ties, 1 x M.2 Bracket, 1 x M.2 screw package, 1 x M.2 Q-Latch, 1 x ROG keychain, 1 x Sticker set, 1 x Thank you card, 1 x Rubber package
Documentation: 1 x User guide

Operating System
Windows® 11 64-bit, Windows® 10 64-bit

Form Factor
Mini-ITX (17 cm x 17 cm)

Warranty

3 YEARS WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave, #03-03,
Singapore 339416
Contact: 6341 7839

Ban Leong Technologies Ltd
150, #04-01 Ubi Ave 4, Ubi Biz-Hub,
Singapore 408825
Contact: 6512 9250

FAQs

Frequently Asked Questions About ASUS ROG STRIX B650E-I GAMING WIFI

Does this motherboard support Ryzen 9000 series processors out of the box?

Yes, the ASUS ROG STRIX B650E-I GAMING WIFI supports Ryzen 9000, 8000, and 7000 series on AM5 socket. BIOS updates may be needed for newest CPUs—use the BIOS FlashBack button if required.

What's the difference between B650 and B650E chipsets?

B650E adds PCIe 5.0 support for the graphics card slot. Standard B650 boards typically offer PCIe 4.0 x16 only. This board gives you future-proof GPU compatibility in Mini-ITX size.

Can I use this board with my existing ATX case?

Yes, Mini-ITX boards fit in ATX cases using standard mounting holes. However, this board shines in dedicated Mini-ITX or small form factor cases where space matters.

What CPU cooler clearance should I expect with this board?

Clearance depends on your case, not the motherboard. This Mini-ITX board works with low-profile air coolers, AIOs, or tower coolers if your case supports them. Check your case specifications.

Is the 3-year warranty valid in Singapore?

Yes, your ASUS ROG STRIX B650E-I comes with 3-year ASUS Singapore warranty. We handle support inquiries through WhatsApp and are open 7 days a week to help.

How long will it take to receive my purchase?

Standard Shipping - 3 to 5 days
Express Shipping - 1 to 2 days

Can I opt for store pickup?

Yes, we are open daily for collection from 11 AM - 6.30 PM.

Address: 1 Ubi View #01-22, Focus One Building Singapore 408555 (Door located nearest to carpark exit gantry)

We will contact you once your order is ready for collection!
