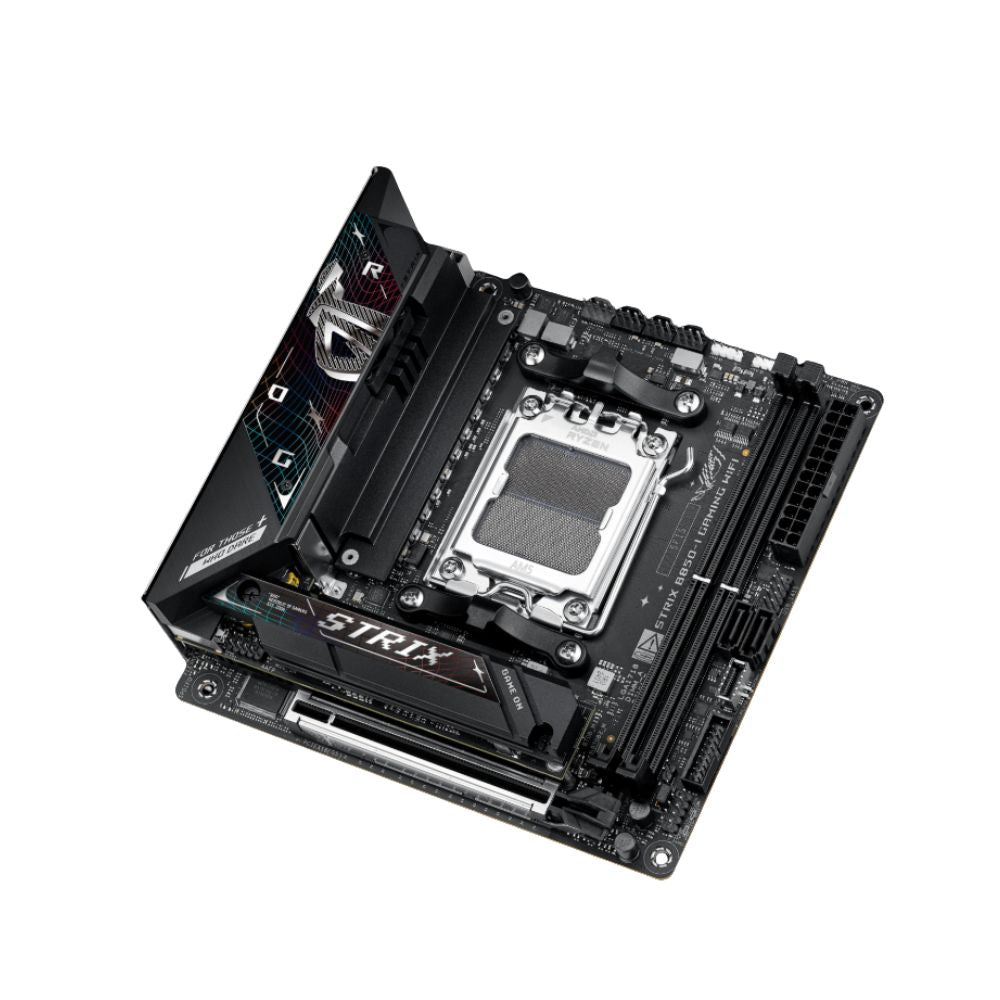

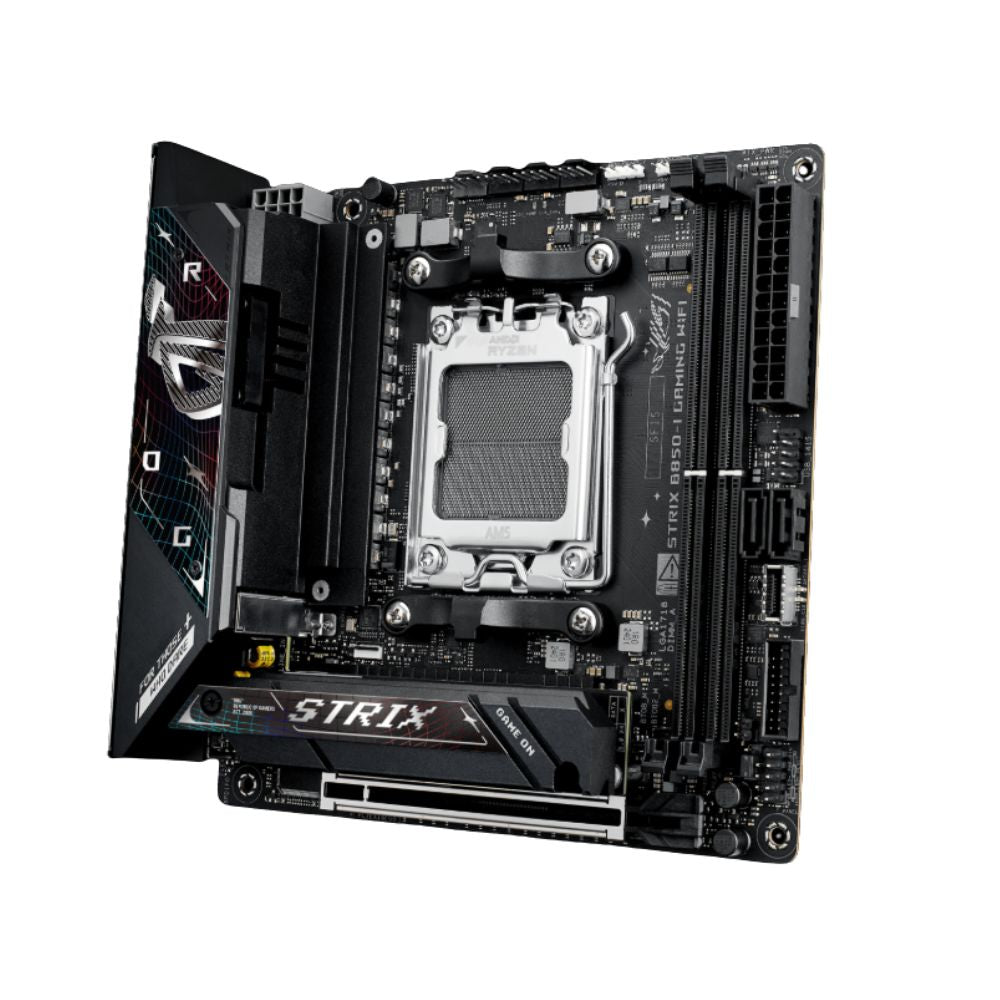

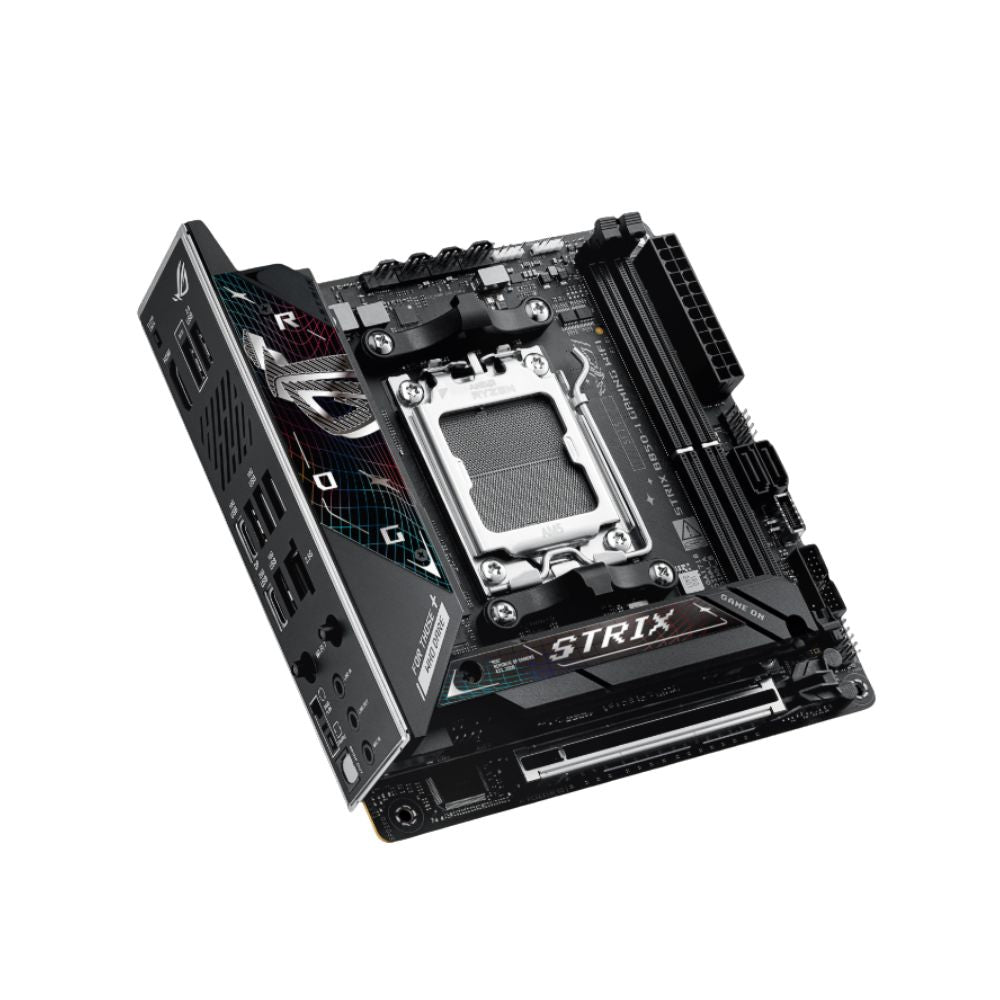

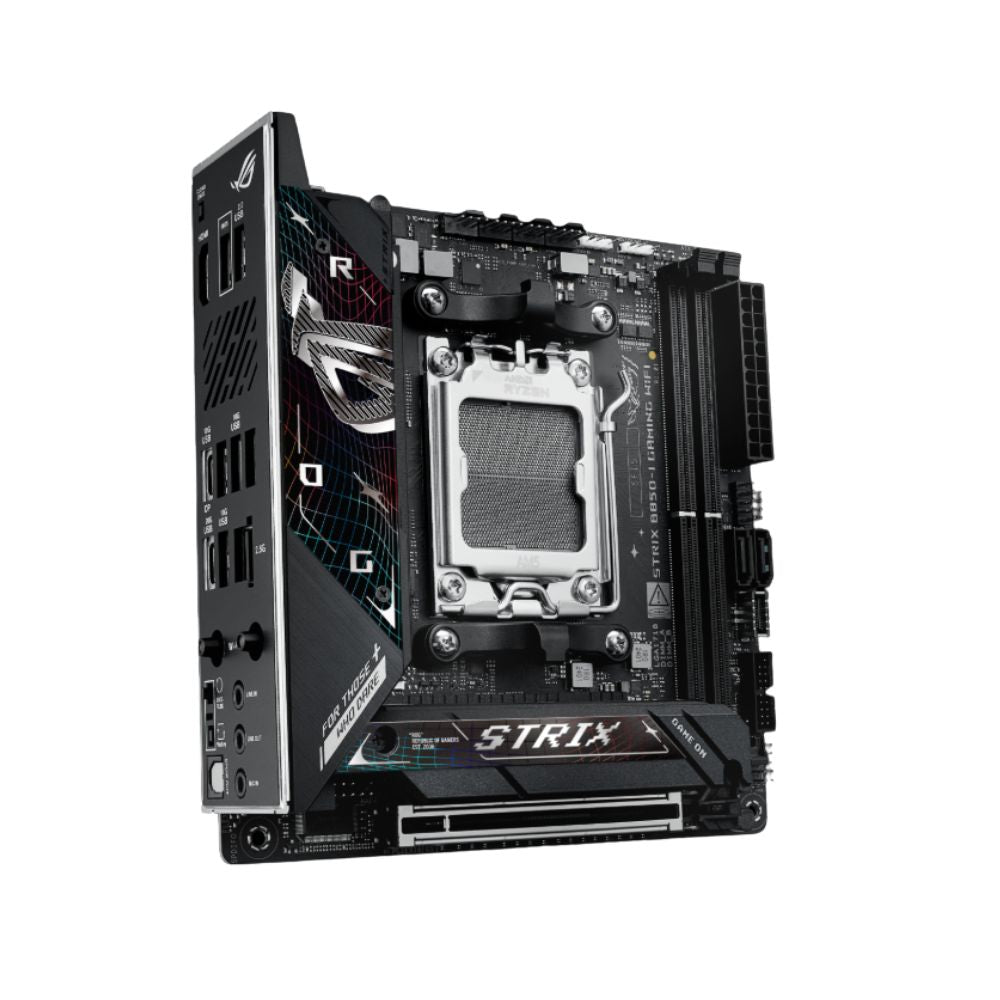

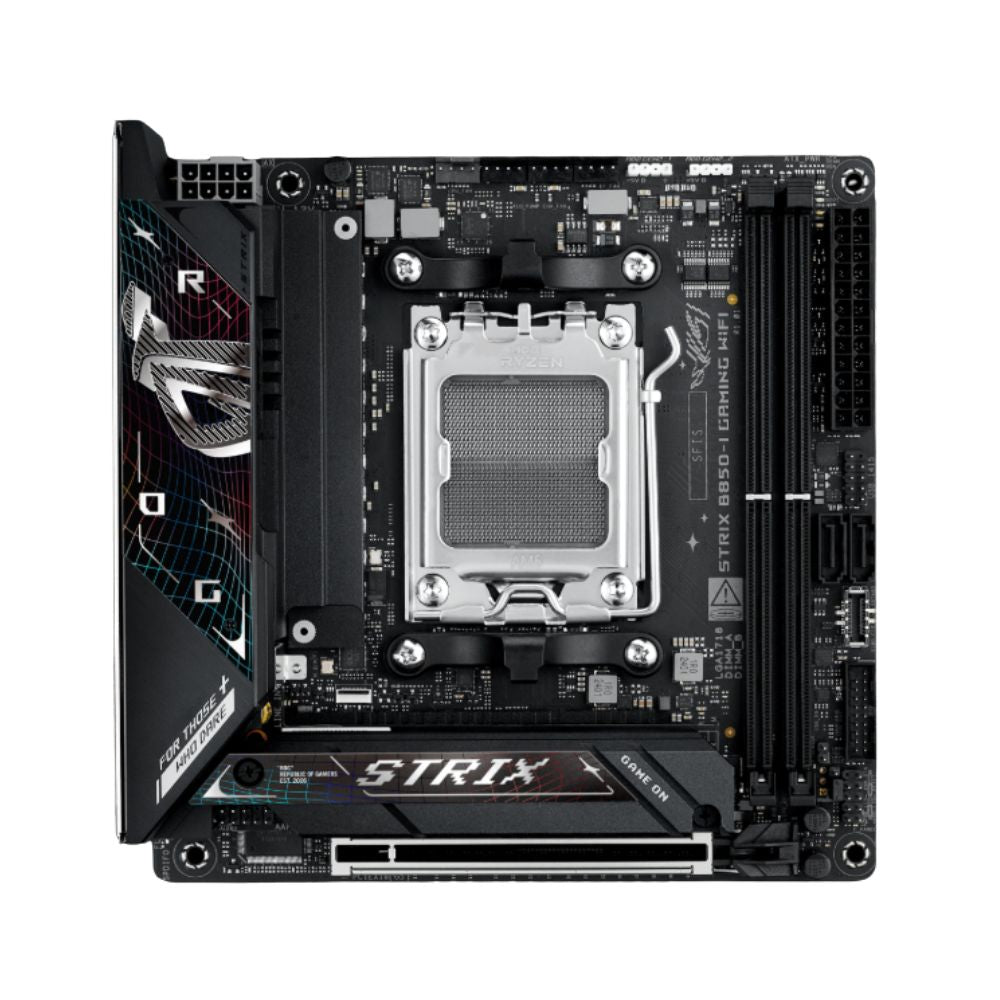

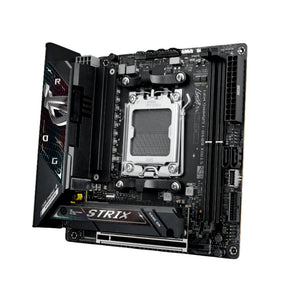

ASUS ROG STRIX B850-I GAMING WIFI - Compact AM5 Powerhouse

Model
ROG STRIX B850-I GAMING WIFI

CPU Socket
AM5

CPU Support
AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

Chipset
AMD B850 Chipset

Memory
2 x DIMM slots
Max 128GB DDR5
Up to 8200+MT/s (OC) with Ryzen™ 9000 Series
Up to 9600+MT/s (OC) with Ryzen™ 8000 Series
Up to 8000+MT/s (OC) with Ryzen™ 7000 Series
ECC and Non-ECC Un-buffered DIMM
Dual Channel Memory Architecture
Supports AMD EXPO™
Supports ASUS AEMP

Graphics Output
1 x HDMI™ port
1 x USB 10Gbps port supports USB Type-C® display output

Expansion Slots
1 x PCIe 5.0 x16 slot with Q-Release Slim for Ryzen™ 9000 / 7000 Series
1 x PCIe 4.0 x16 slot with Q-Release Slim for Ryzen™ 8000 Series

Storage
2 x M.2 slots
2 x SATA 6Gb/s ports

M.2 Support
Ryzen™ 9000 / 7000 Series: PCIe 5.0 x4
Ryzen™ 8000 Series: PCIe 4.0 x4

Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless
Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4GHz / 5GHz / 6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate

Bluetooth
Bluetooth® v5.4

Rear USB Ports
1 x USB 20Gbps Type-C®
5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)
2 x USB 2.0 ports (2 x Type-A)

Front USB Ports / Headers
1 x USB 10Gbps
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
USB Type-C® power delivery output: max. 5V/3A

Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Impedance sense for front and rear headphone outputs
Supports jack-detection, multi-streaming, front panel MIC jack-retasking
120 dB SNR stereo playback output
110 dB SNR recording input
Supports up to 32-Bit / 384 kHz playback on front panel

Audio Features
SupremeFX Shielding Technology
Savitech SV3H712 AMP
Rear Optical S/PDIF out port
Premium Audio Capacitors
Audio Cover

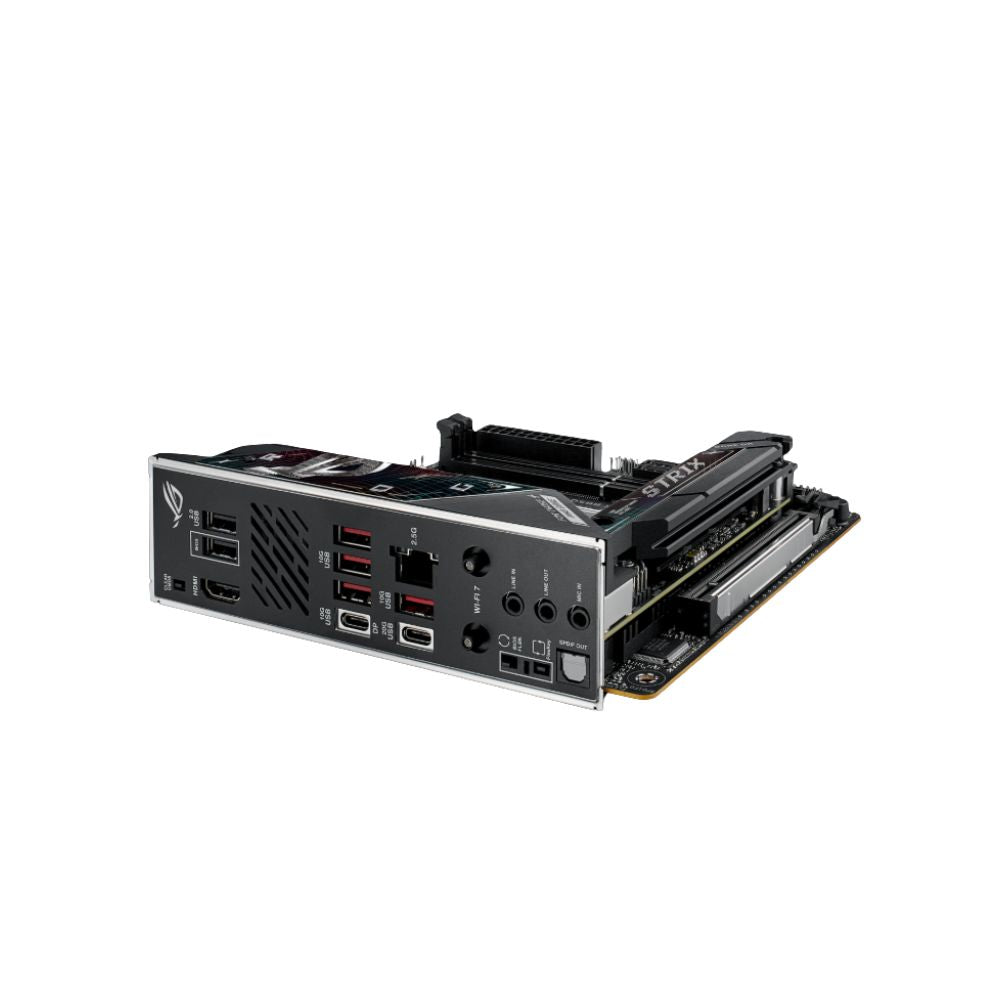

Back Panel I/O Ports
1 x USB 20Gbps port
5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C® with DP Alt Mode)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
3 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
1 x FlexKey button

Internal I/O Connectors
1 x 4-pin CPU Fan header
1 x 4-pin Extra Flow Fan header
1 x 4-pin AIO Pump header
1 x 4-pin Chassis Fan header
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
2 x M.2 slots (Key M)
2 x SATA 6Gb/s ports
1 x USB 10Gbps connector supports USB Type-C®
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 4 additional USB 2.0 ports
2 x Addressable Gen 2 headers
1 x CPU Over voltage jumper
1 x Front Panel Audio header
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header

Special Features
Extreme Engine Digi+
5K Black Metallic Capacitors
M.2 Q-Latch
M.2 Q-Slide
PCIe Slot Q-Release Slim
PCIe SafeSlot
Q-Antenna
Q-Dashboard
Q-DIMM
Q-LED
Q-Slot
M.2 Heatsink Backplate
M.2 Heatsink
BIOS FlashBack™ Button
BIOS FlashBack™ LED
Clear CMOS Button
ProCool
Pre-mounted I/O Shield
SafeSlot
SafeDIMM
Aura Sync
Addressable Gen 2 Headers

Software Features
ROG CPU-Z
Dolby Atmos
Armoury Crate
AIDA64 Extreme (60 Days Free Trial)
Aura Creator
Aura Sync
Fan Xpert 4
GameFirst
HWiNFO
Power Saving
ASUS DriverHub
ASUS GlideX
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)

UEFI BIOS Features
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode
ASUS MyHotkey

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME
PXE

Accessories
2 x SATA 6Gb/s cables
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 backplate Q-Latch package
1 x M.2 Q-Slide package
1 x ROG key chain
1 x ROG Strix stickers
1 x M.2 backplate rubber package
1 x Quick start guide

Operating System
Windows 11

Form Factor
Mini-ITX

Dimensions
6.7 inch x 6.7 inch (17 cm x 17 cm)

3 YEARS WARRANTY
