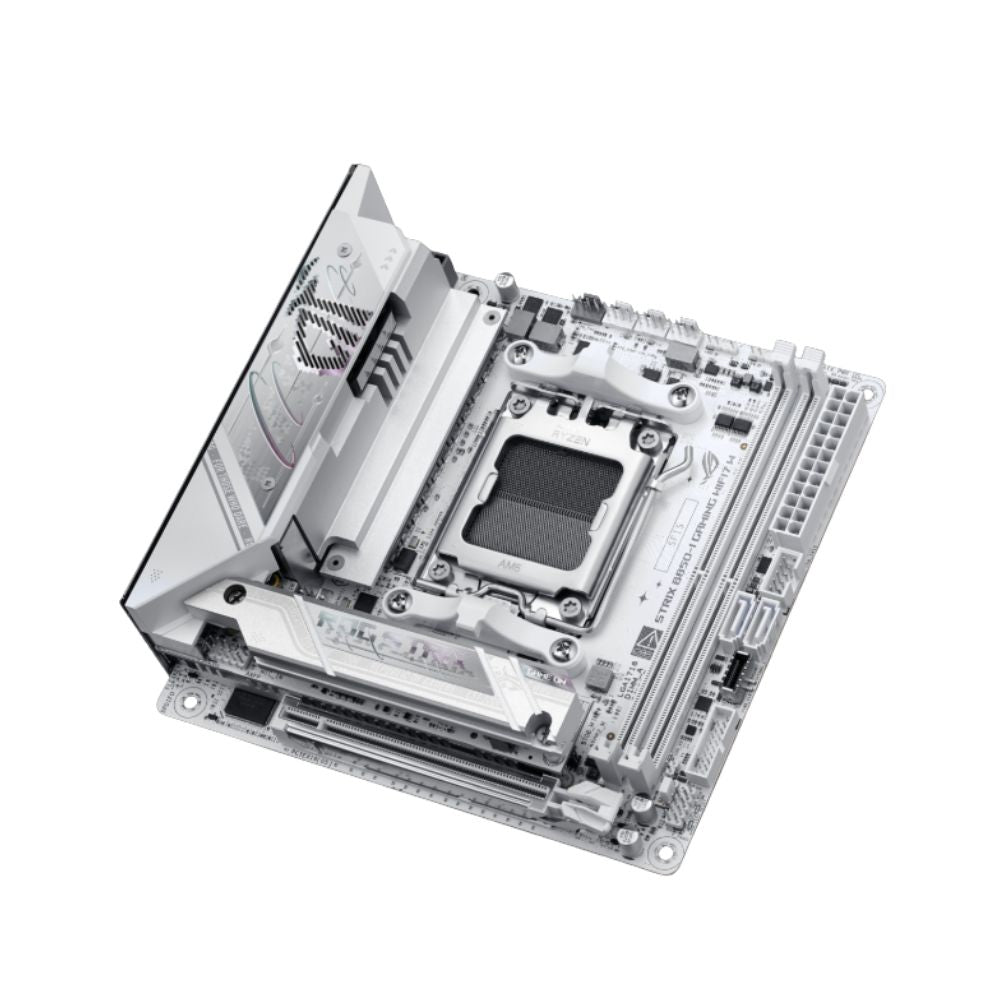

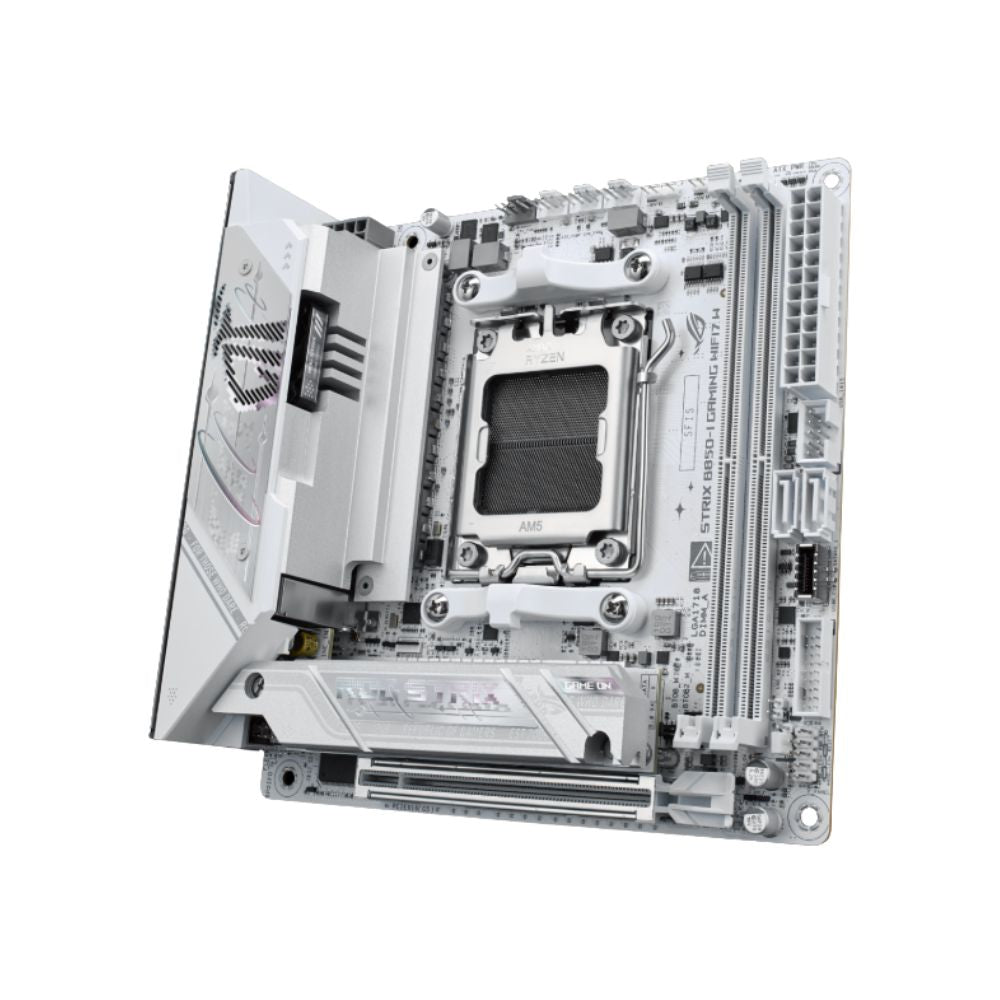

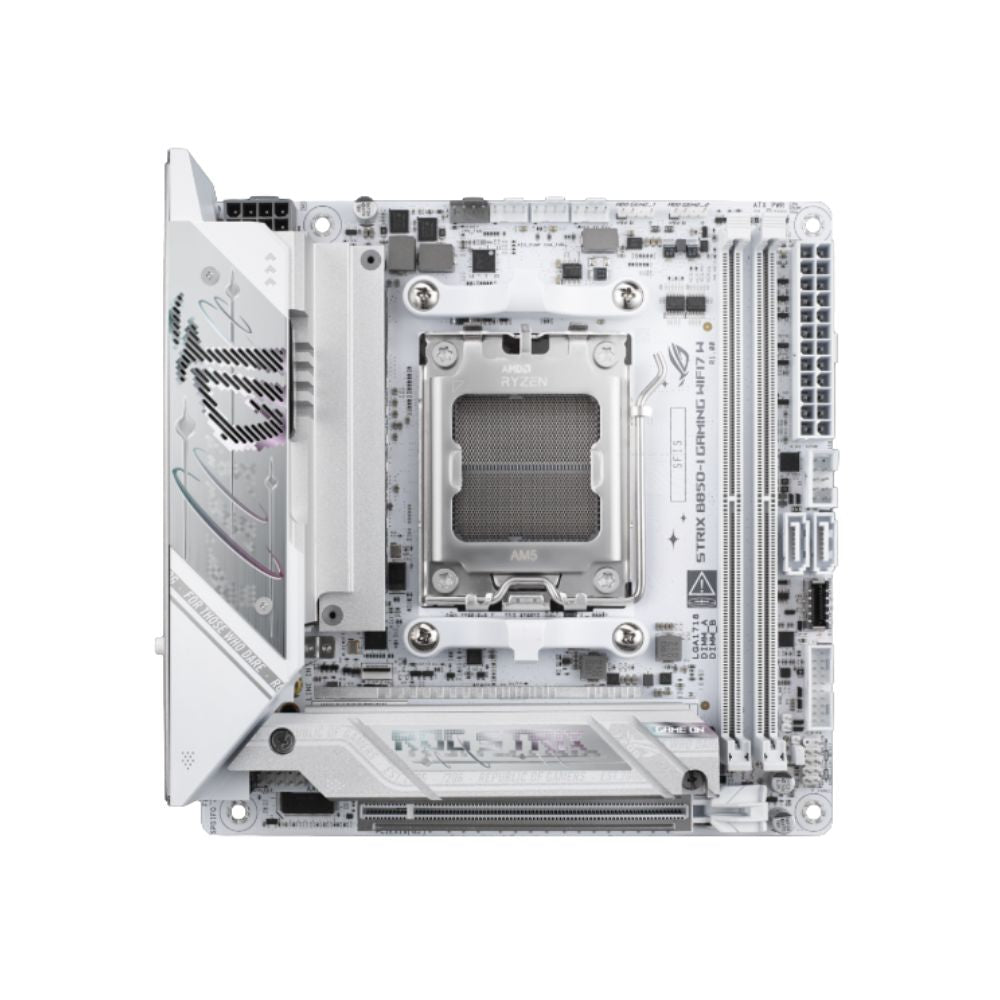

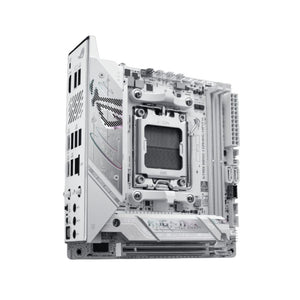

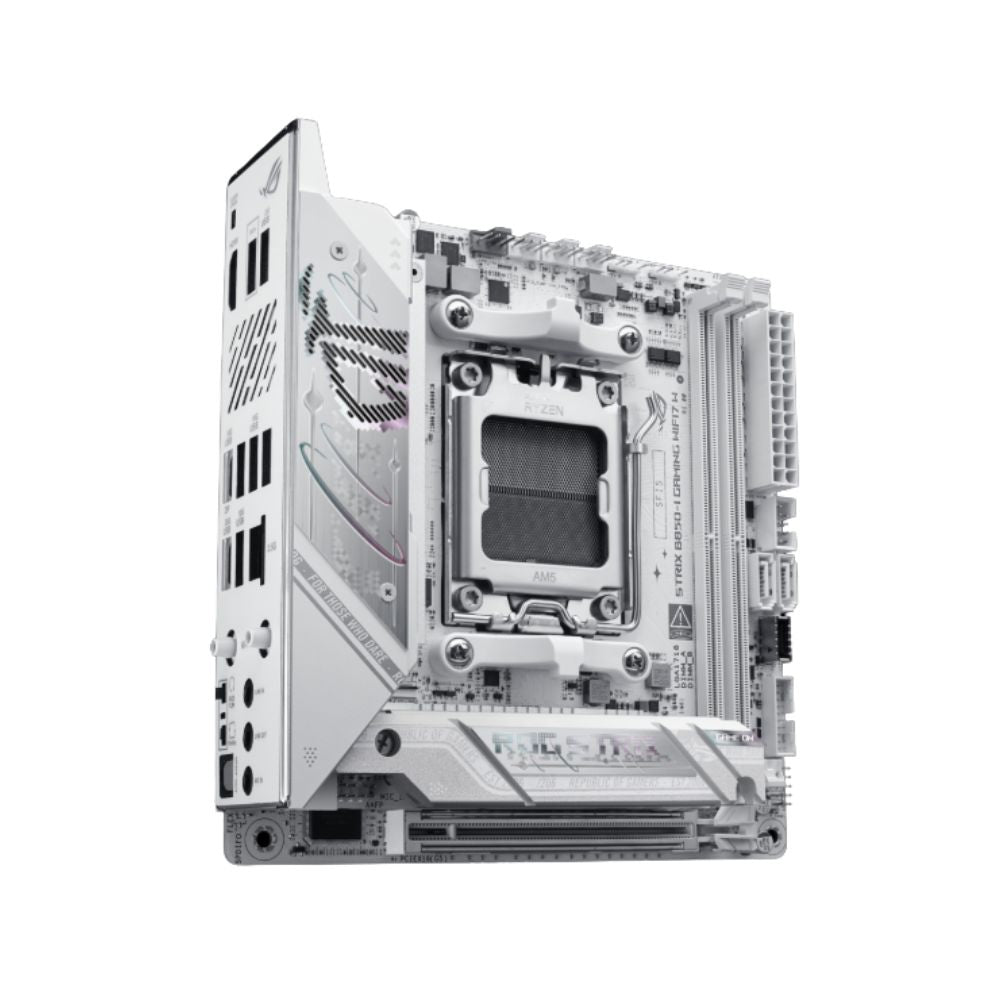

ASUS ROG Strix B850-I Gaming WiFi7 W - Compact AM5 Performance

Model
ROG Strix B850-I Gaming WiFi7 W

CPU Socket
AM5

CPU Support
AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

Chipset
AMD B850 Chipset

Memory
2 x DIMM slots
Max 128GB DDR5
Up to 8200+MT/s (OC) with Ryzen™ 9000 Series
Up to 9600+MT/s (OC) with Ryzen™ 8000 Series
Up to 8000+MT/s (OC) with Ryzen™ 7000 Series
ECC and Non-ECC Un-buffered DIMM
Dual Channel Memory Architecture
Supports AMD EXPO™
Supports ASUS AEMP

Graphics Output
1 x HDMI™ port
1 x USB 10Gbps port supports USB Type-C® display output

Expansion Slots
1 x PCIe 5.0 x16 slot with Q-Release Slim (Ryzen™ 9000 / 7000)
1 x PCIe 4.0 x16 slot with Q-Release Slim (Ryzen™ 8000)

Storage
2 x M.2 slots
2 x SATA 6Gb/s ports

M.2 Support
Ryzen™ 9000 / 7000: PCIe 5.0 x4
Ryzen™ 8000: PCIe 4.0 x4

Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless
Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4GHz / 5GHz / 6GHz
Supports 160MHz bandwidth, up to 2.9Gbps

Bluetooth
Bluetooth® v5.4

Rear USB Ports
1 x USB 20Gbps Type-C®
5 x USB 10Gbps (4 x Type-A + 1 x Type-C®)
2 x USB 2.0 (Type-A)

Front USB Headers
1 x USB 10Gbps
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
USB Type-C® power delivery output: max. 5V/3A

Audio
ROG SupremeFX ALC4080 7.1 Surround Sound
120 dB SNR playback
110 dB SNR recording
Supports 32-bit / 384 kHz playback

Audio Features
SupremeFX Shielding Technology
Savitech SV3H712 AMP
Optical S/PDIF output
Premium audio capacitors
Audio cover

Back Panel I/O
1 x USB 20Gbps
5 x USB 10Gbps (with 1 x Type-C® DP Alt Mode)
2 x USB 2.0
1 x HDMI™
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet
3 x Audio jacks
1 x Optical S/PDIF
1 x BIOS FlashBack™ button
1 x Clear CMOS button
1 x FlexKey button

Internal Connectors
1 x CPU Fan header
1 x Extra Flow Fan header
1 x AIO Pump header
1 x Chassis Fan header
1 x 24-pin Power
1 x 8-pin CPU Power
2 x M.2 slots
2 x SATA ports
1 x USB 10Gbps header (Type-C®)
1 x USB 5Gbps header supports 2 ports
1 x USB 2.0 header supports 4 ports
2 x Addressable Gen 2 RGB headers
1 x CPU Over voltage jumper
1 x Front Panel header
1 x Front Audio header
1 x Thermal Sensor header

Special Features
Extreme Engine Digi+
5K Black Metallic Capacitors
M.2 Q-Latch
M.2 Q-Slide
PCIe Slot Q-Release Slim
PCIe SafeSlot
Q-Antenna
Q-Dashboard
Q-DIMM
Q-LED
Q-Slot
M.2 Heatsink Backplate
M.2 Heatsink
BIOS FlashBack™
Clear CMOS
ProCool
Pre-mounted I/O Shield
SafeSlot
Aura Sync RGB

Software
ROG CPU-Z
Dolby Atmos
Armoury Crate
AIDA64 Extreme (Trial)
Aura Creator
Aura Sync
Fan Xpert 4
GameFirst
HWiNFO
Power Saving
ASUS DriverHub
ASUS GlideX
TurboV Core
Adobe Creative Cloud (Trial)
Norton 360 for Gamers (Trial)
WinRAR (Trial)

UEFI BIOS Features
AI Cache Boost
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode
ASUS MyHotkey

BIOS
512 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME
PXE

Accessories
2 x SATA 6Gb/s cables
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x M.2 Q-Slide package
1 x ROG key chain
1 x ROG Strix stickers
1 x M.2 backplate rubber package
1 x Quick start guide

Operating System
Windows 11

Form Factor
Mini-ITX

Dimensions
6.7 inch x 6.7 inch (17 cm x 17 cm)

3 YEARS WARRANTY
