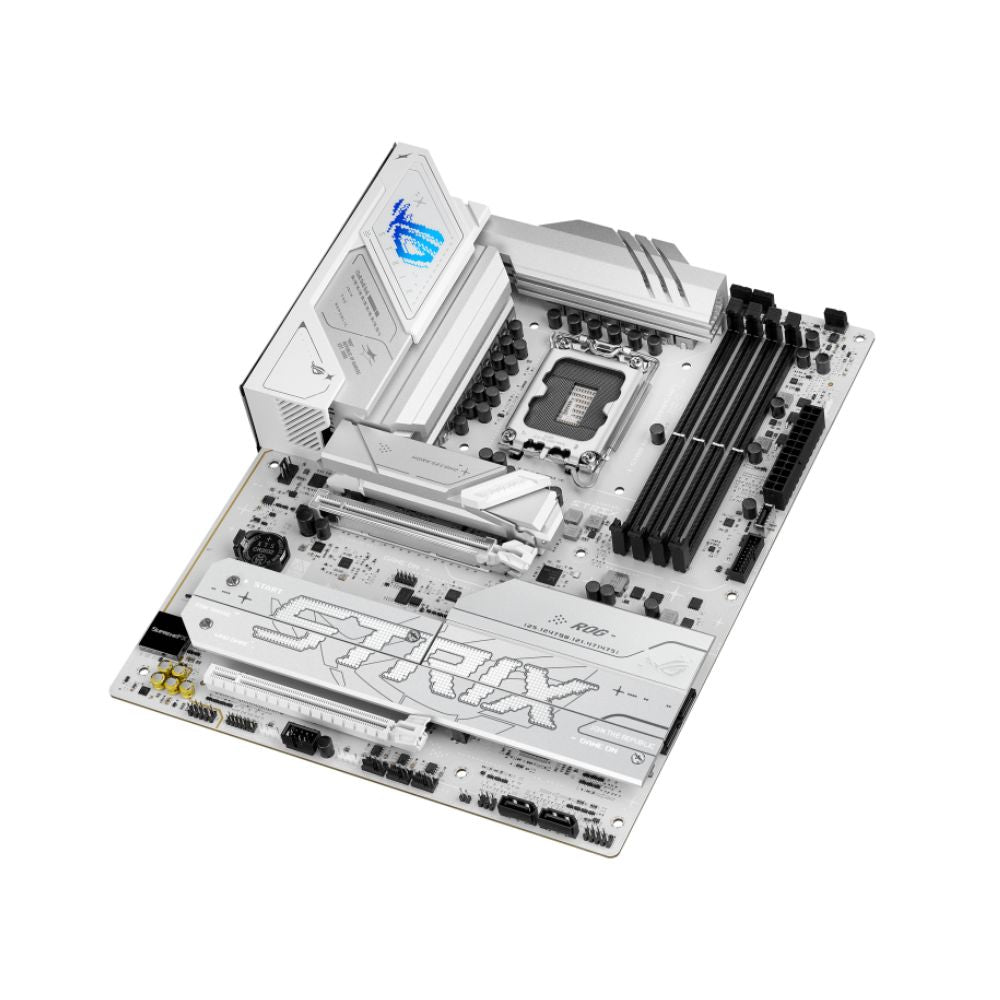

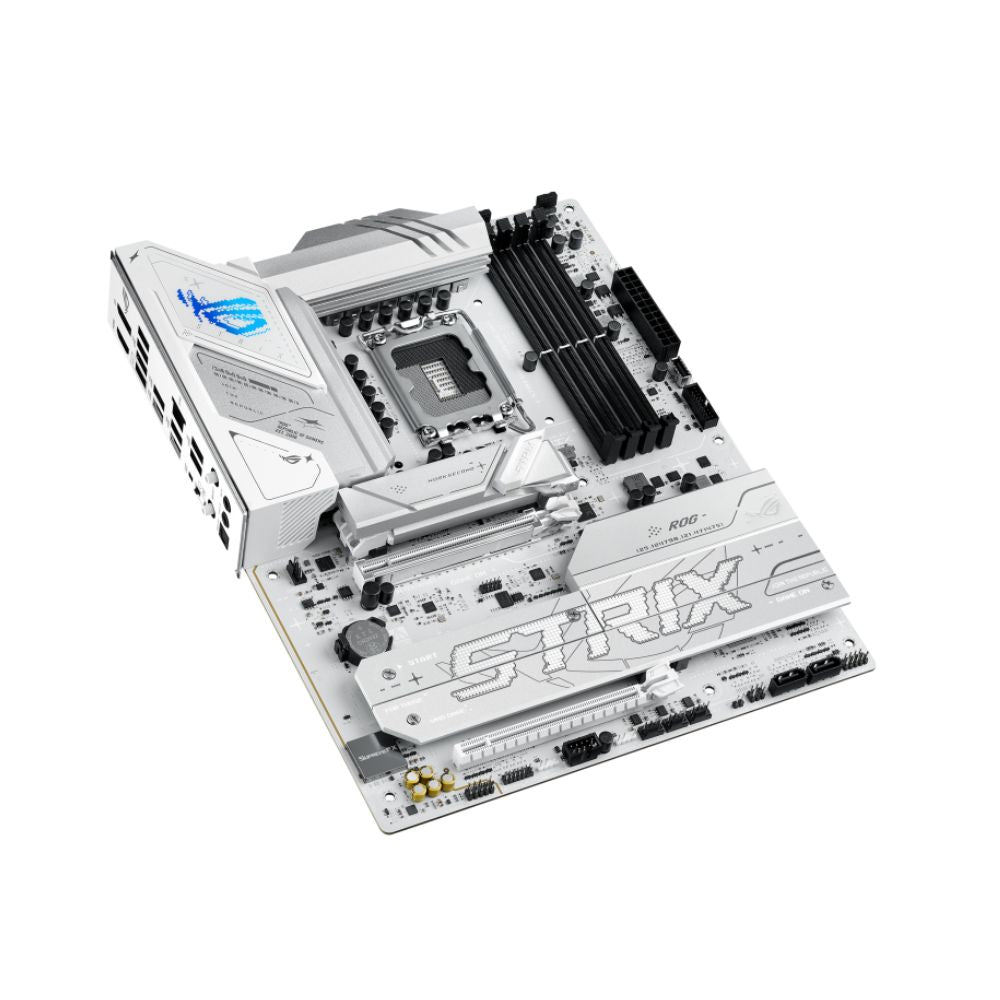

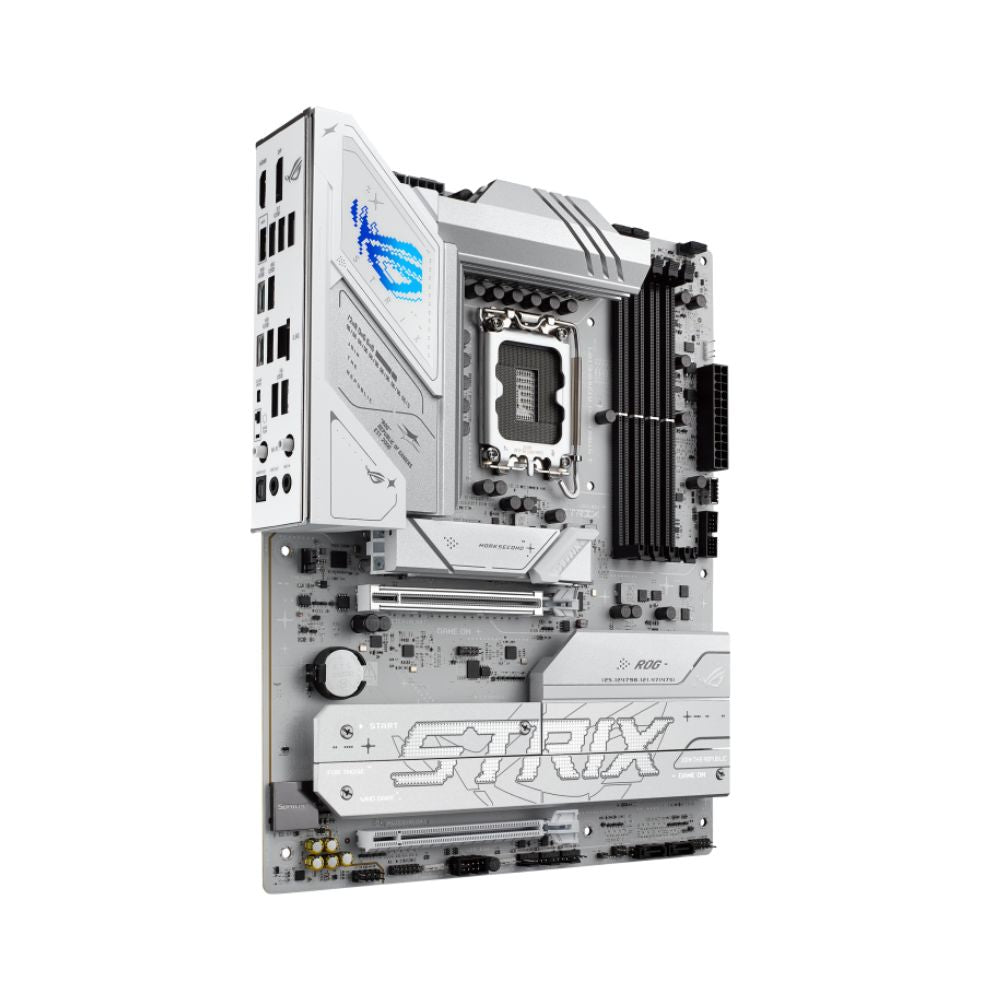

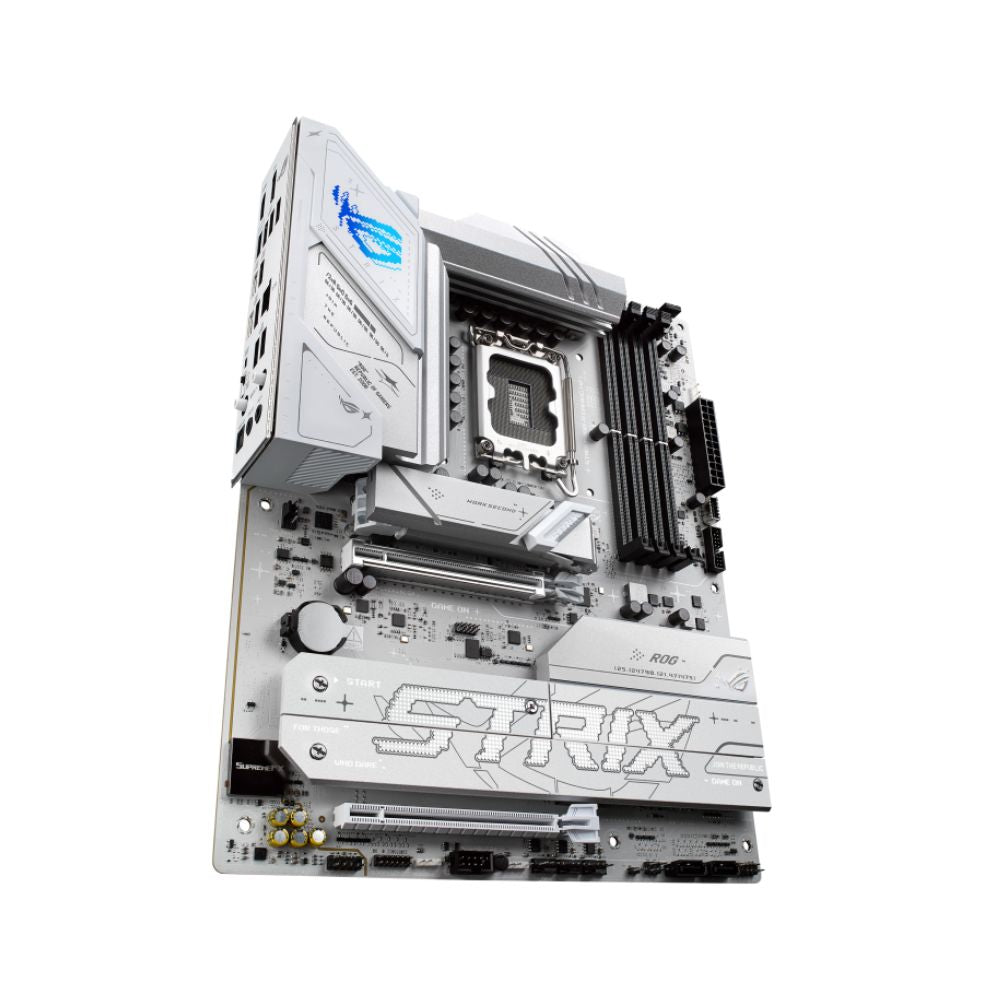

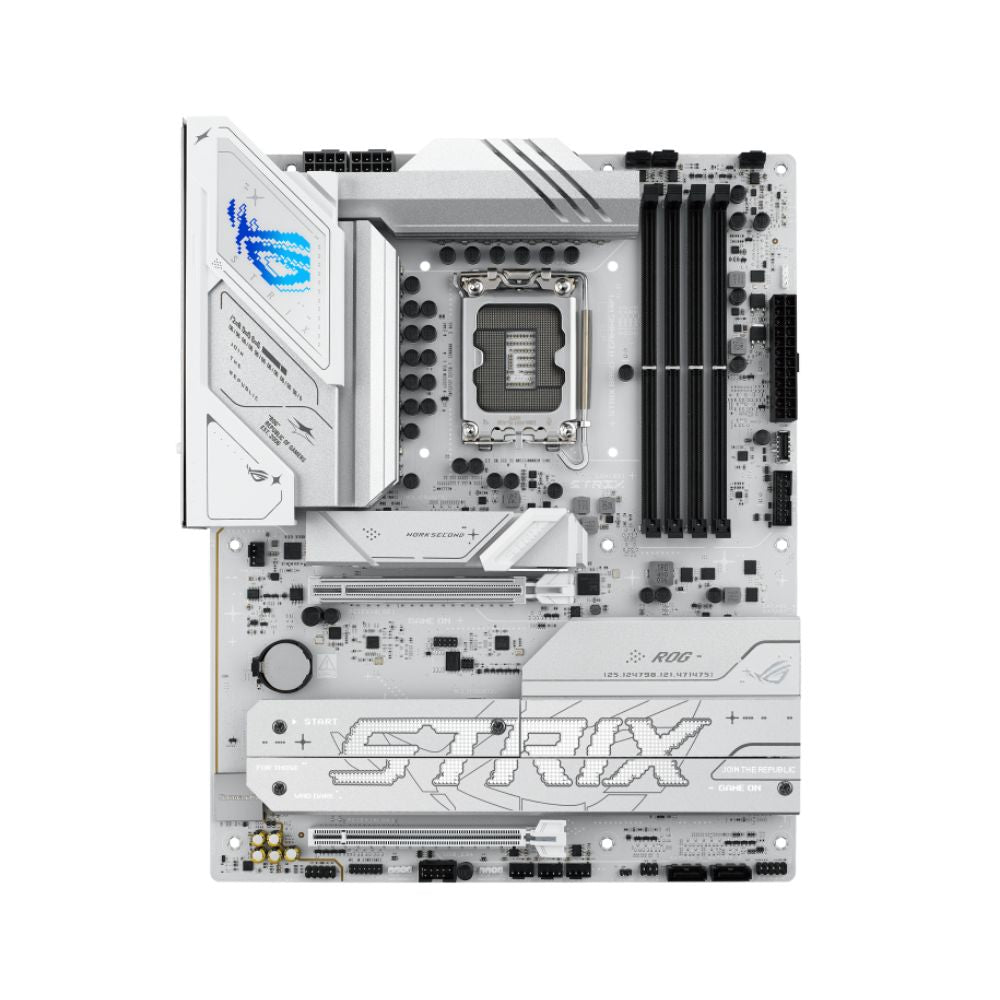

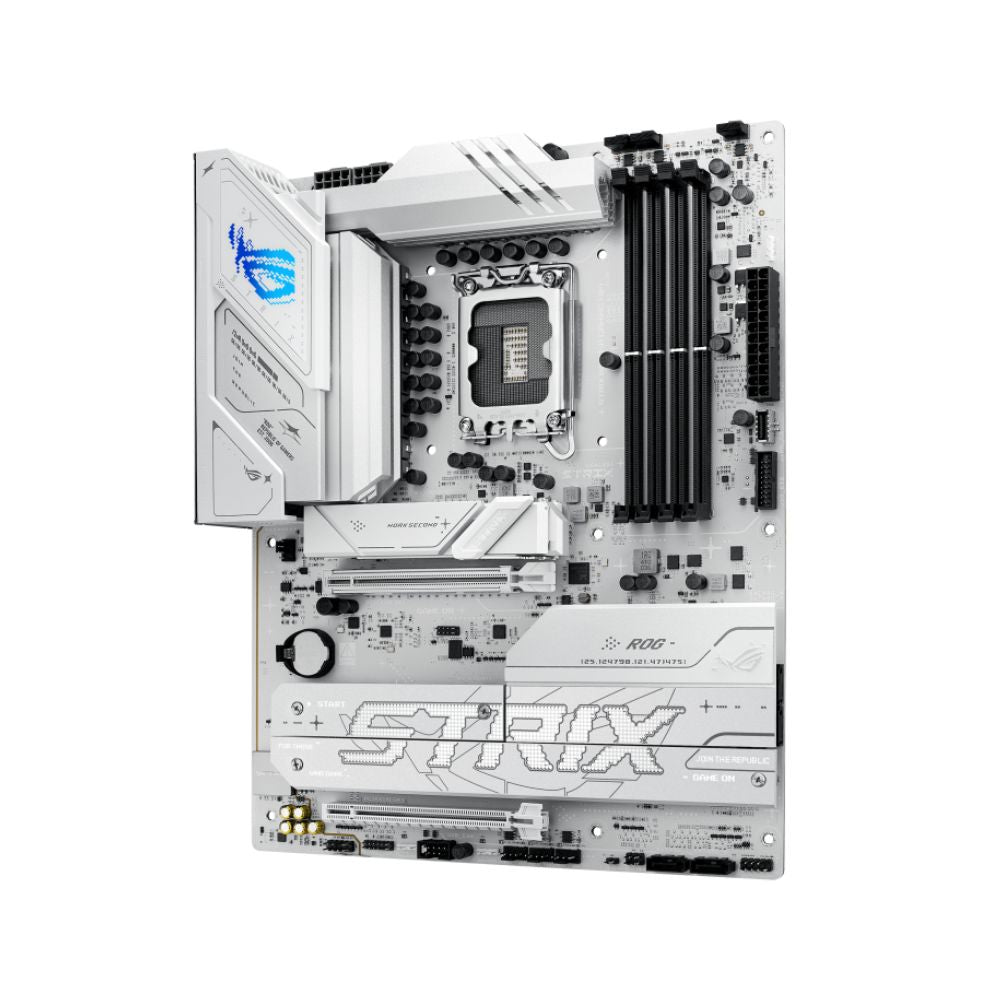

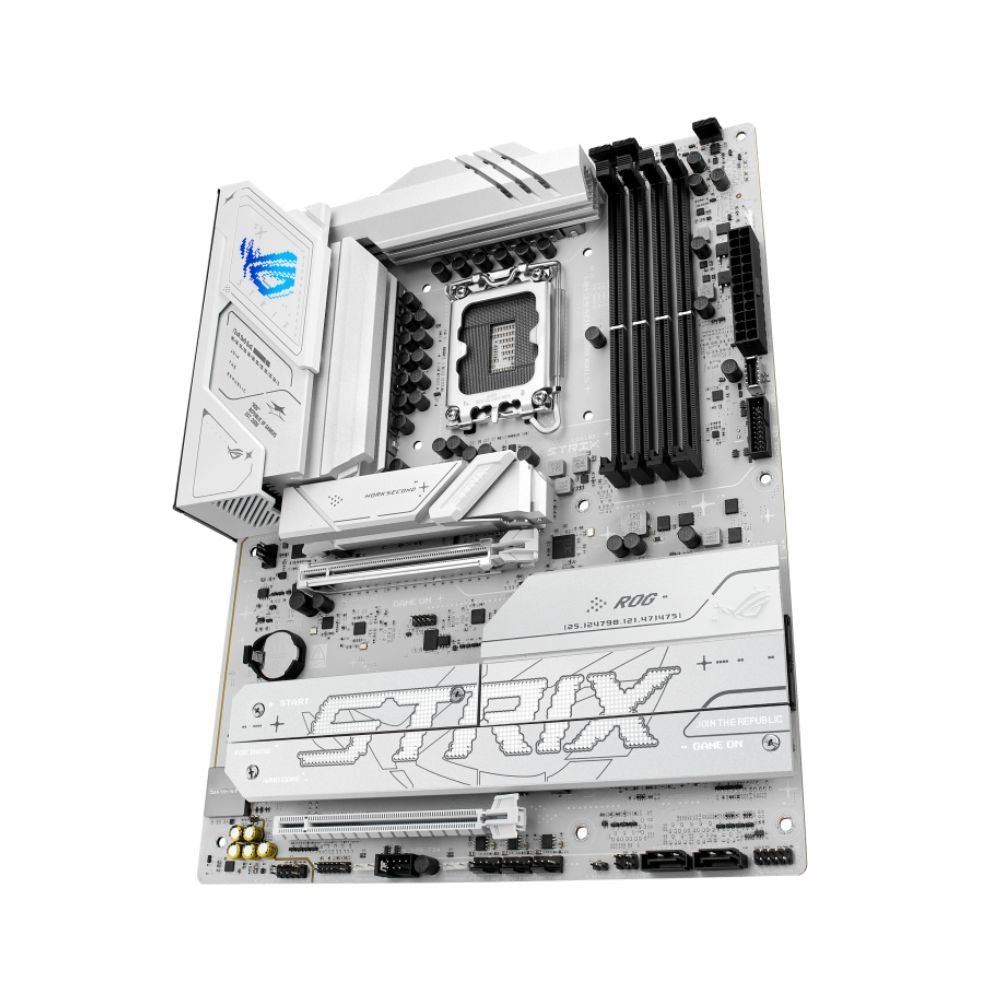

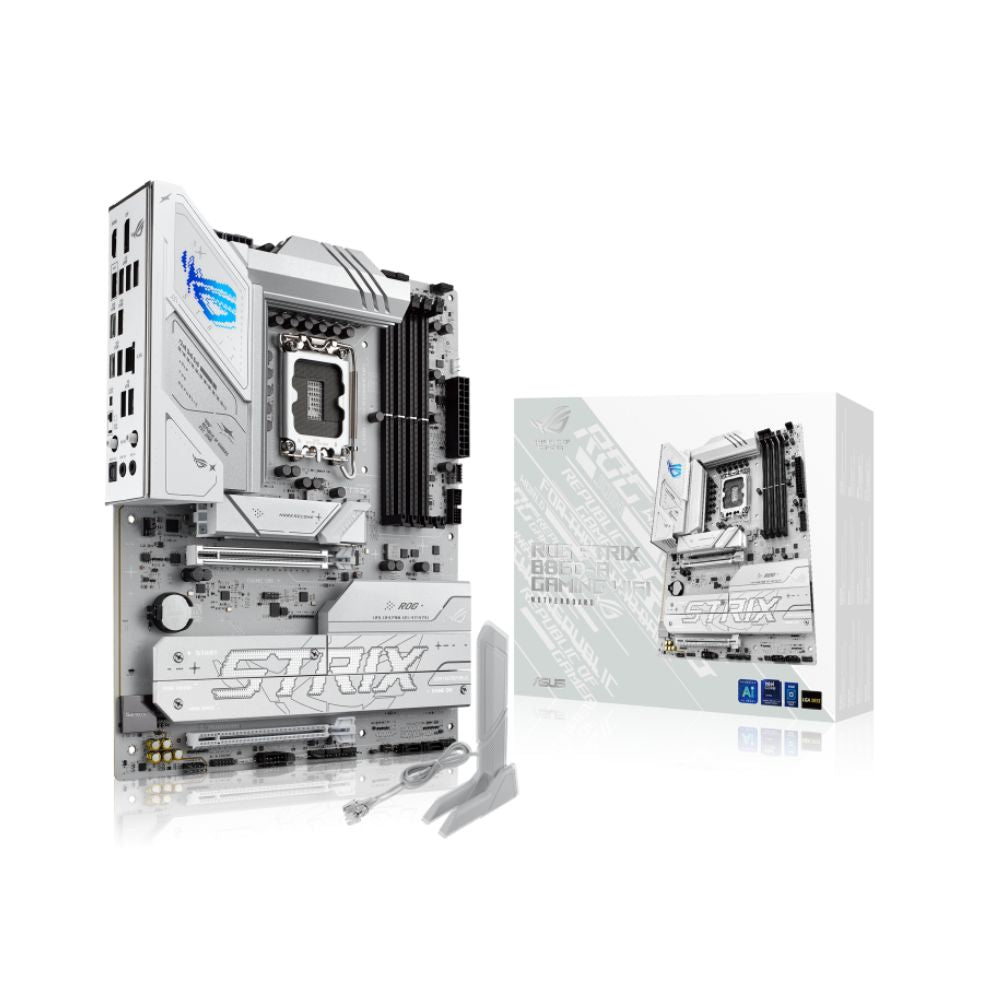

ASUS ROG STRIX B860-A GAMING WIFI – WiFi 7 DDR5 Gaming Board

About the ASUS ROG STRIX B860-A GAMING WIFI

The ROG STRIX B860-A GAMING WIFI motherboard brings Intel's latest B860 chipset to mid-tier gaming builds. This gaming motherboard for PC supports Core Ultra Series 2 processors with solid VRM cooling and modern connectivity features. ROG Strix branding means you get quality components without paying for flagship-tier extras you might not need. It's designed for gamers upgrading to Intel's new platform who want reliable performance and future-proof features.

What This ASUS ROG STRIX B860-A GAMING WIFI Does for You

This motherboard with Bluetooth handles daily gaming and content creation without thermal throttling or connectivity issues. WiFi 7 gives you wireless speeds up to 2.9Gbps, eliminating the need for ethernet cables in most setups. USB4 support at 20Gbps means fast external storage and display outputs through one cable. Four M.2 slots let you install multiple NVMe drives for games, projects, and media libraries. The 2.5Gb ethernet port ensures stable wired connections when you need them. ASUS Q-Design features like M.2 Q-Latch and PCIe Q-Release make building and upgrading your gaming desktop simpler than traditional motherboards.

WiFi 7 and Modern Connectivity

WiFi 7 technology represents a significant upgrade over WiFi 6E that most B860 boards still use. You get lower latency for competitive gaming and faster file transfers across your network. The motherboard includes Bluetooth 5.4 for wireless peripherals without dongle clutter. USB4 ports handle high-speed data transfer and display output simultaneously. Intel 2.5Gb ethernet provides reliable backup connectivity. These features position this board ahead of basic B860 options at similar pricing.

Perfect For

• Mid-tier gaming PC builders upgrading to Intel Core Ultra Series 2 processors who need modern ATX motherboards
• Content creators streaming gameplay or editing videos who benefit from USB4 and multiple M.2 slots
• Users building compact gaming systems who rely on WiFi 7 instead of ethernet cables
• PC enthusiasts who want ROG Strix quality without paying for extreme overclocking features

Why Buy from Mansa Computers

• 3-year Singapore warranty with ASUS service support
• Fast WhatsApp inquiry response for compatibility questions
• Open 7 days a week for support
• Home delivery available

Technical Specifications Summary

Chipset
Intel B860

CPU Support
Intel Core Ultra Series 2

Memory
DDR5 up to 8600+MT/s, 4 DIMM slots

Storage
4x M.2 slots (1x PCIe 5.0), 4x SATA

Wireless
WiFi 7 (2.9Gbps), Bluetooth 5.4

USB
USB4 (20Gbps), USB 10Gbps, USB 5Gbps

Ethernet
Intel 2.5Gb LAN

Form Factor
ATX (30.5cm x 24.4cm)

The ASUS ROG STRIX B860-A GAMING WIFI gives you next-generation platform features at SGD 469. Order from Mansa Computers for 3-year ASUS Singapore warranty coverage and local support.

Model
ROG STRIX B860-A GAMING WIFI

CPU
Support Intel® Core™ Ultra Processors (Series 2)
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset
Intel® B860 Chipset

Memory
4 x DIMM slots, max. 256GB DDR5
Supports up to 8600+MT/s (OC), Non-ECC Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)

Graphics
1 x DisplayPort
1 x HDMI™ port
1 x USB4® (20Gbps) port supports USB Type-C® display outputs

Expansion Slots
Intel® Core™ Ultra Processors (Series 2): 1 x PCIe 5.0 x16 slot
Intel® B860 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode)
M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled

Storage
Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Core™ Ultra Processors (Series 2): M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset: M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth
Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
Bluetooth® v5.4

USB
Rear USB (Total 10 ports): 1 x USB4® (20Gbps) port (1 x USB Type-C®), 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®), 2 x USB 5Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports): 1 x USB 10Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 1 x USB 2.0 header supports 2 additional USB 2.0 ports

Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
Impedance sense for front and rear headphone outputs
Internal audio amplifier enhances sound for headphones and speakers
Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
Supports up to 32-Bit/192 kHz playback
Audio Features: SupremeFX Shielding Technology, Savitech SV3H712 AMP, Rear optical S/PDIF out port, Premium audio capacitors, Dedicated audio PCB layers, Audio cover

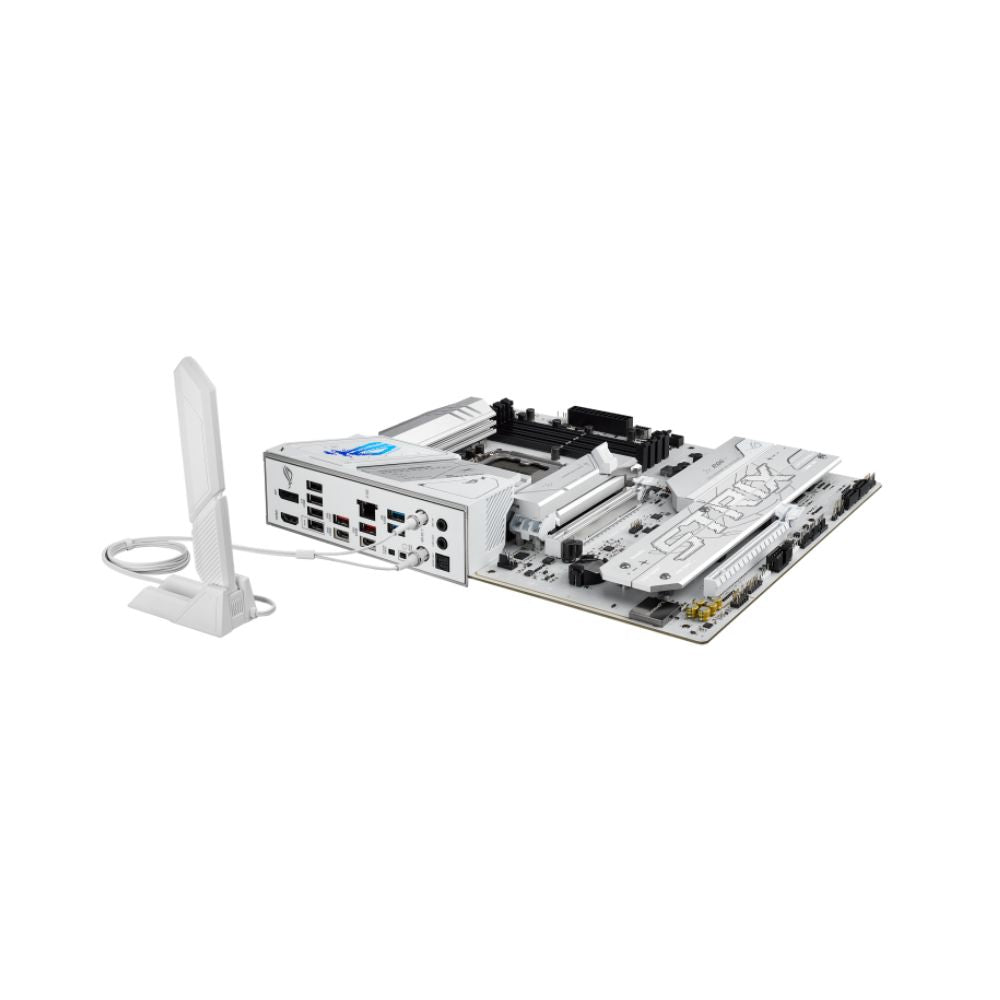

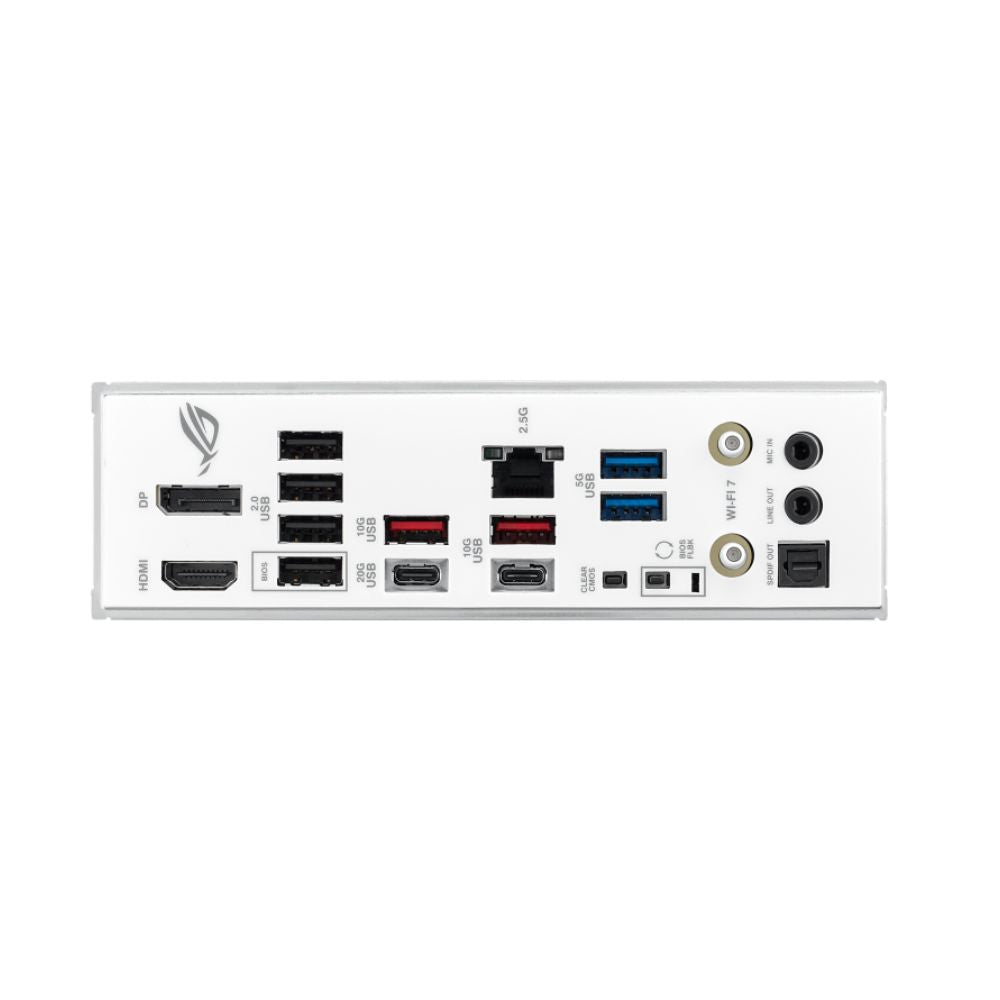

Back Panel I/O Ports
1 x USB4® (20Gbps) port (1 x USB Type-C®)
3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

Internal I/O Connectors
Fan and Cooling: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers
Power: 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connectors
Storage: 4 x M.2 slots (Key M), 4 x SATA 6Gb/s ports
USB: 1 x USB 10Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous: 3 x Addressable Gen2 headers, 1 x Front Panel Audio header (F_AUDIO), 1 x 10-1 pin Front System Panel header, 1 x Thermal Sensor header, 1 x Thunderbolt™ (USB4®) header

Special Features
Extreme Engine Digi+: 5K Black metallic capacitors
ASUS Q-Design: M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release Slim (with PCIe SafeSlot), Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED (CPU red, DRAM yellow, VGA white, Boot Device yellow green), Q-Slot
ASUS Thermal Solution: M.2 heatsink backplate, M.2 heatsink, VRM heatsink design
ASUS EZ DIY: BIOS FlashBack™ button, BIOS FlashBack™ LED, Clear CMOS button, CPU Socket lever protector, ProCool, Pre-mounted I/O shield, SafeSlot, SafeDIMM
Aura Sync: Addressable Gen2 headers

Software Features
ROG Exclusive Software: ROG CPU-Z, Dolby Atmos
ASUS Exclusive Software: Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4, GameFirst, Power Saving), AIDA64 Extreme (60 days free trial), HWiNFO, ASUS AI Advisor, ASUS DriverHub, ASUS GlideX, TurboV Core, Adobe Creative Cloud (30 Days Free Trial), Norton 360 for Gamers (60 Days Free Trial), WinRAR (40 Days Free Trial)
UEFI BIOS: AI Overclocking Guide, ASUS EZ DIY (ASUS CrashFree BIOS 3, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey), NPU Boost

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, UEFI PXE

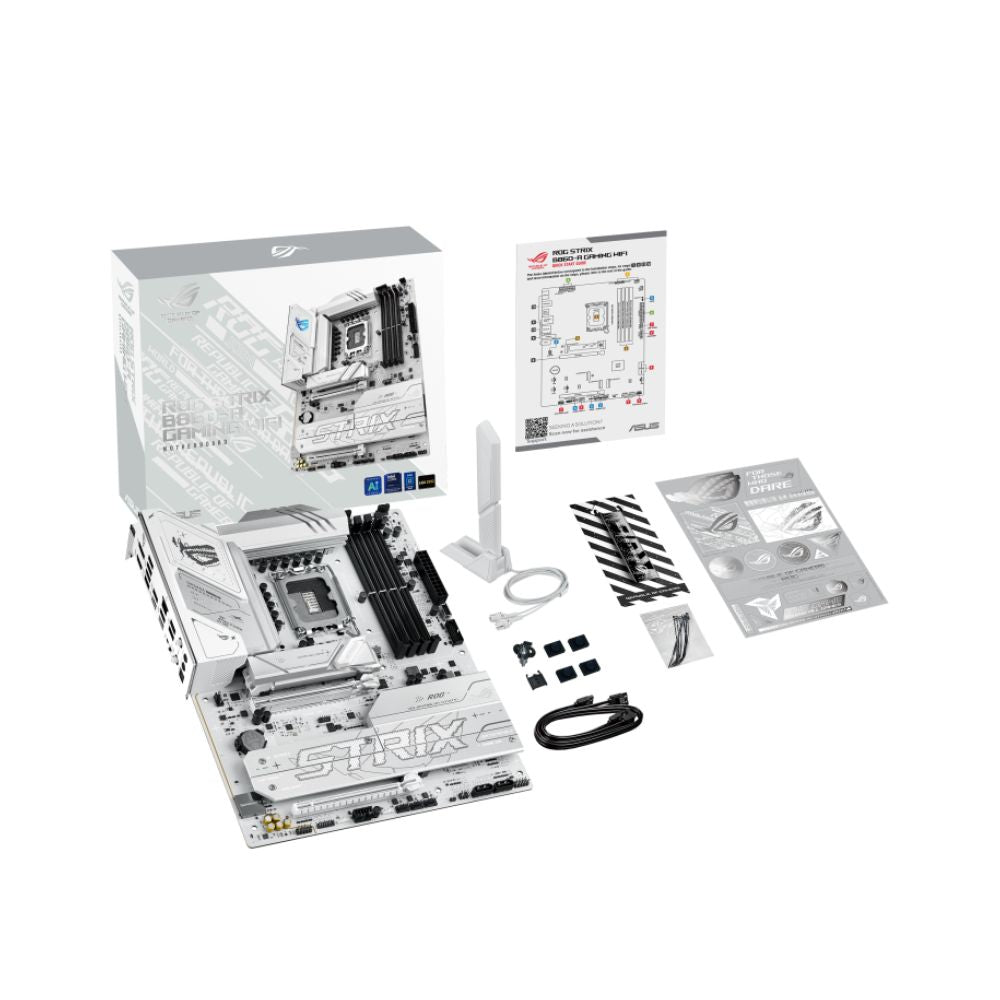

Accessories
Cables: 2 x SATA 6Gb/s cables
Miscellaneous: 1 x ASUS WiFi Q-Antenna, 1 x Cable ties package, 1 x M.2 Q-Latch, 1 x M.2 Q-Slide, 1 x ROG key chain, 1 x ROG Strix stickers, 4 x M.2 rubbers
Documentation: 1 x Quick start guide

Operating System
Windows 11 (22H2 & later)

Form Factor
ATX Form Factor, 12 inch x 9.6 inch (30.5 cm x 24.4 cm)

3 YEARS WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave, #03-03,
Singapore 339416
Contact: 6341 7839

Ban Leong Technologies Ltd
150, #04-01 Ubi Ave 4, Ubi Biz-Hub,
Singapore 408825
Contact: 6512 9250

Frequently Asked Questions About ASUS ROG STRIX B860-A GAMING WIFI

Does this motherboard support DDR5 memory?

Yes, the ROG STRIX B860-A GAMING WIFI supports DDR5 memory up to 8600+MT/s through overclocking. It has four DIMM slots with maximum capacity of 256GB. Use Intel XMP profiles for easy configuration.

Can I use this motherboard for competitive gaming?

Absolutely. WiFi 7 provides low-latency wireless connectivity ideal for online gaming. The B860 chipset handles Intel Core Ultra Series 2 processors without bottlenecks. PCIe 5.0 M.2 support ensures fast game loading times.

Which Intel processors work with this B860 motherboard?

This board supports Intel Core Ultra Series 2 processors only. It uses the latest LGA1851 socket. Check processor compatibility before purchasing if upgrading from older Intel platforms.

What warranty does Mansa Computers provide?

You get 3-year ASUS Singapore warranty with authorized local service support. Mansa Computers offers fast WhatsApp inquiry response and operates 7 days weekly. Home delivery is available for your convenience.

How does this compare to Z890 motherboards?

The B860 offers 90% of Z890 features at lower cost. You get WiFi 7, USB4, and PCIe 5.0 storage support. Z890 adds extreme overclocking features most gamers don't need.
