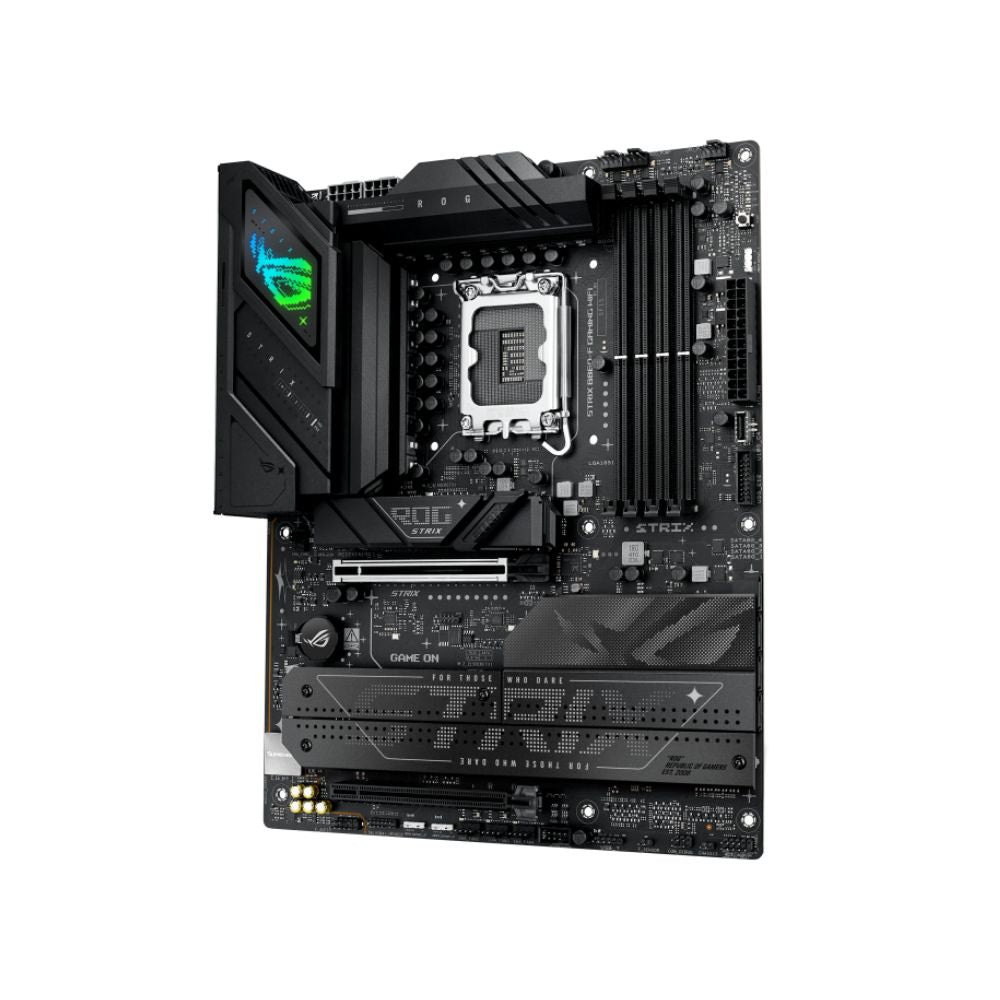

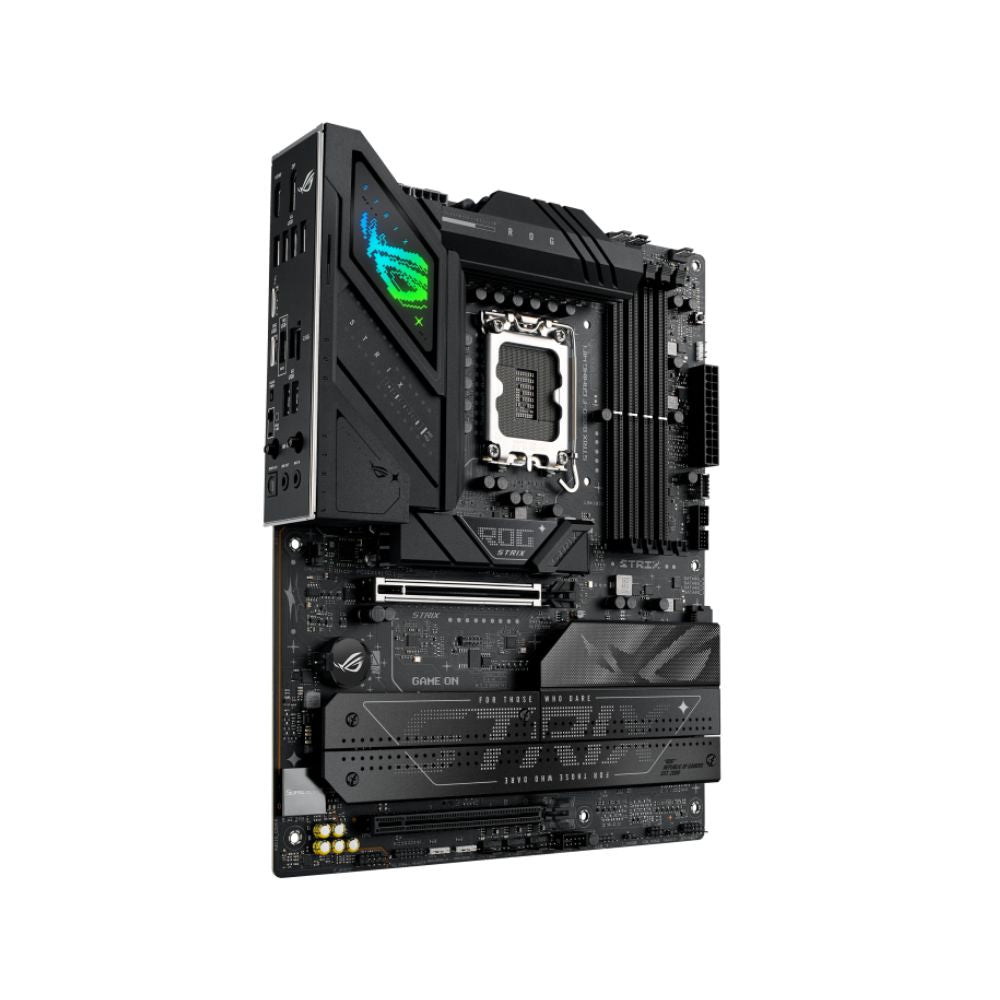

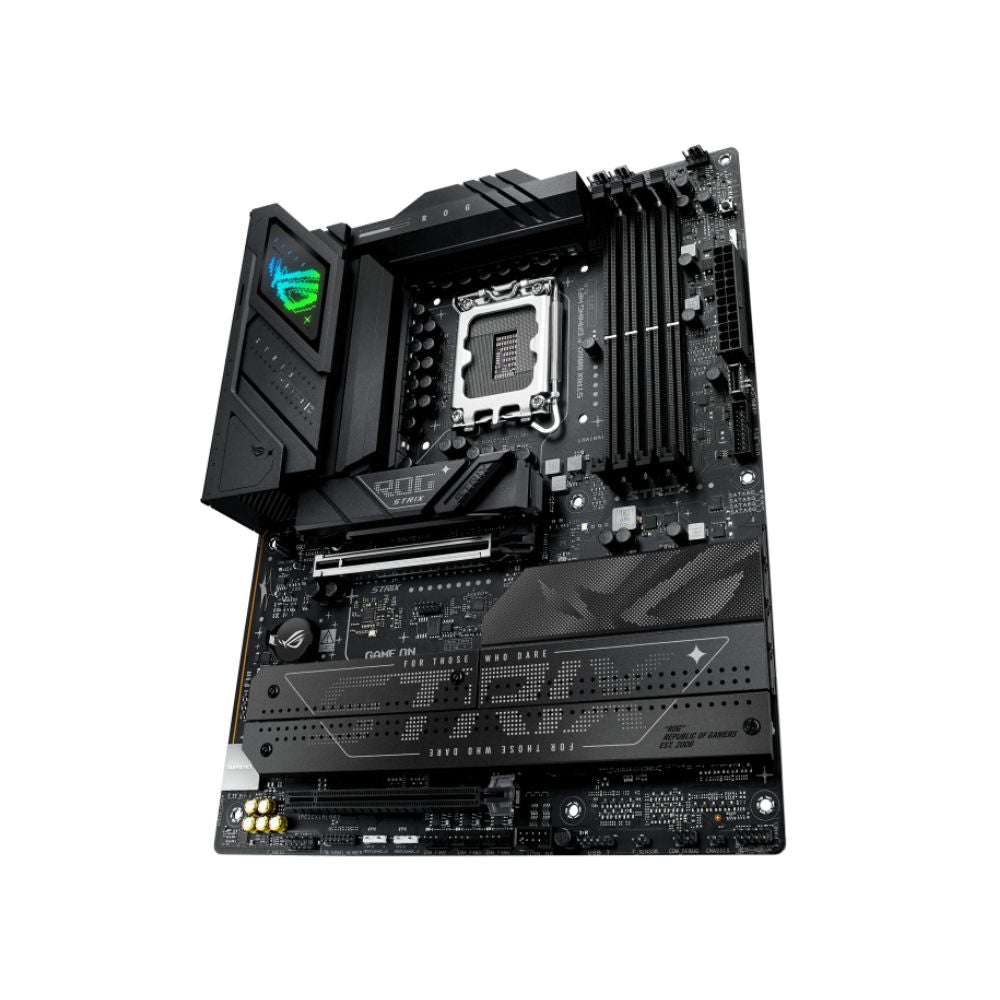

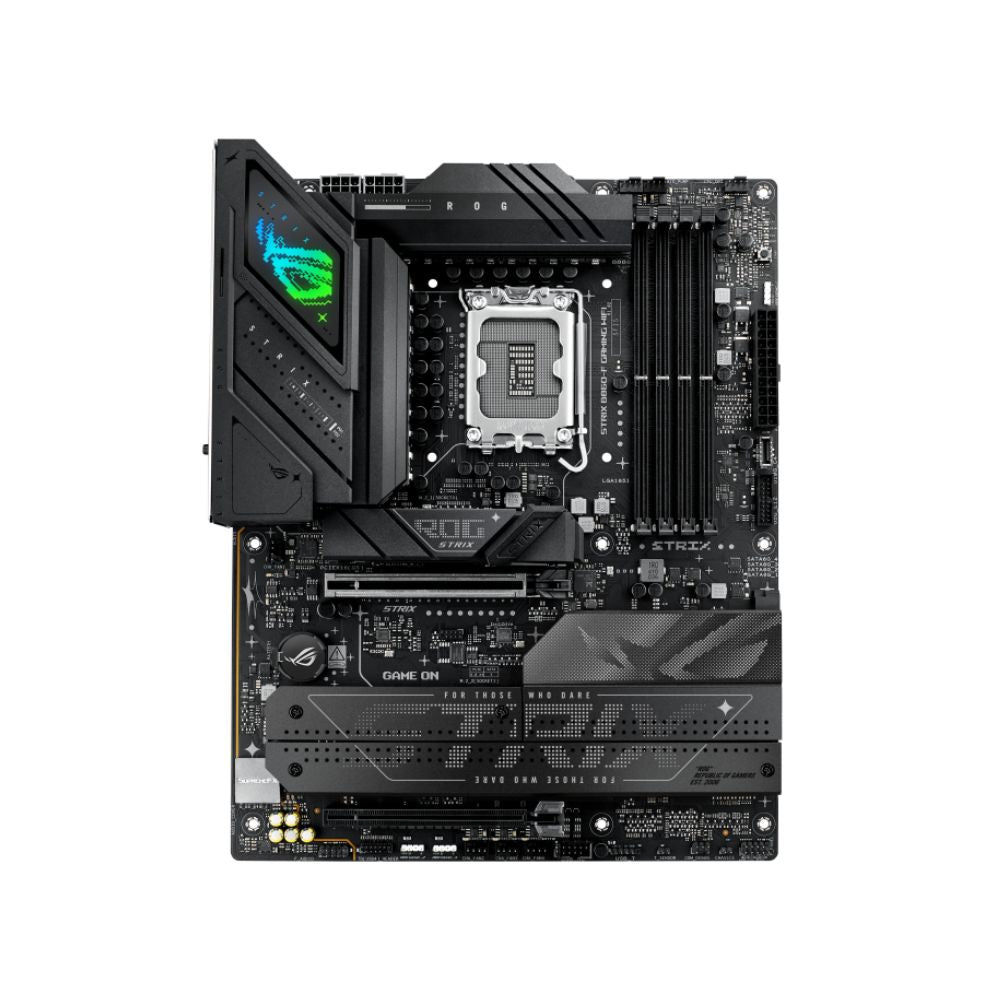

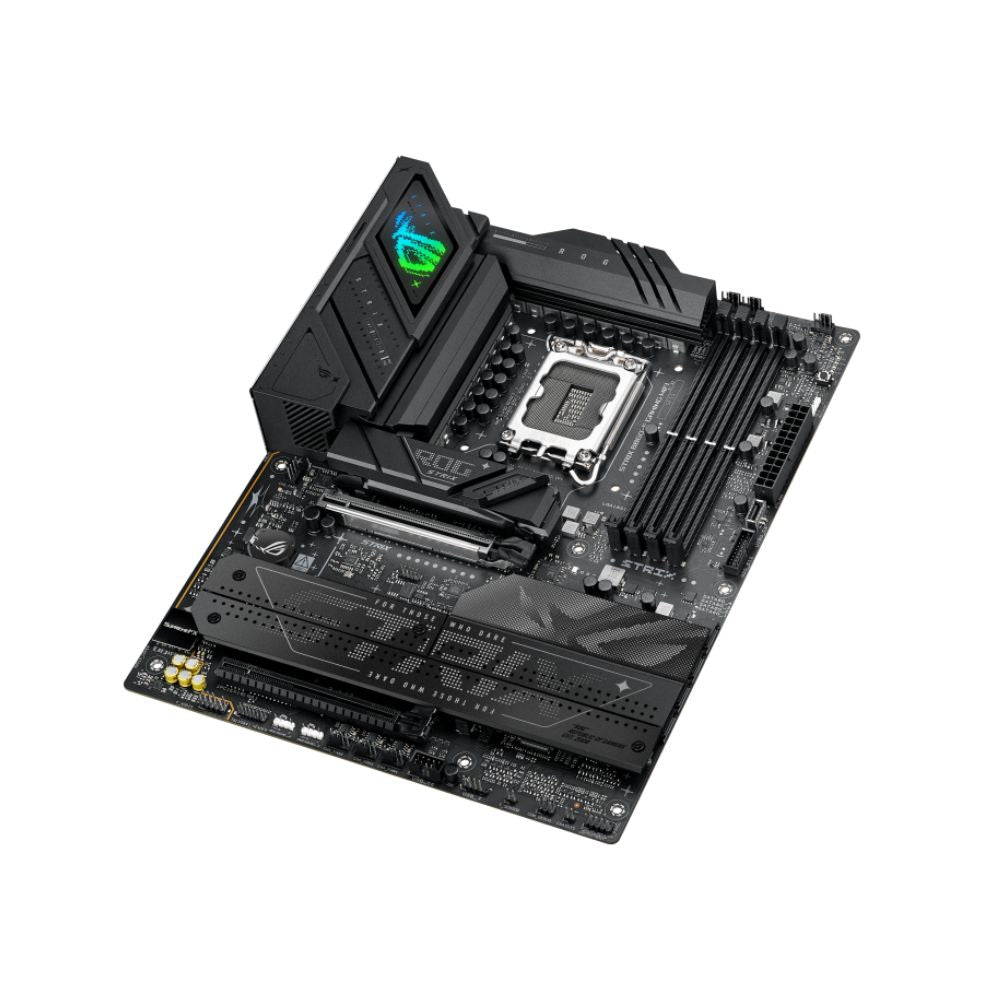

ASUS ROG STRIX B860-F GAMING WIFI – High-End Gaming Motherboard

SKU: B860-F

Certification: Intel LGA1851 Ready, PCIe 5.0 GPU Slot

Efficiency: Extreme Engine Digi+ VRM, 5K Black Metallic Capacitors

Cabling: Rear Thunderbolt™ 4 + USB 20Gbps, Front USB 10Gbps Type-C

Connectivity: WiFi 7, Bluetooth 5.4, Intel 2.5Gb Ethernet

Storage: Four M.2 Slots (1× Gen5 + 3× Gen4) + 4× SATA 6Gb/s

The ASUS ROG STRIX B860-F GAMING WIFI give your Intel Arrow Lake build fast WiFi 7, strong connectivity, and clean cable-free storage.

Four M.2 slots mean you can run multiple fast SSDs without SATA cable clutter. Thunderbolt 4 support opens up external storage and single-cable docking for creators. 3-year ASUS Singapore warranty covers you if anything goes wrong, and we're open 7 days for support.

Why Choose This ROG STRIX B860-F GAMING WIFI

  • WiFi 7 connectivity delivers 2.9Gbps speeds most B860 boards skip. Perfect for gamers who can't run ethernet cables to their gaming ATX motherboard setup.
  • Four M.2 slots with PCIe 5.0 support future-proof your storage. No more SATA cable mess in high-performance gaming builds.
  • ROG SupremeFX audio, Aura Sync RGB, and Q-Design tool-less installation at B860 pricing. You get premium features without paying Z890 prices.
  • 3-year ASUS Singapore warranty with local service support. Fast WhatsApp inquiry response from Mansa Computers. We're open 7 days a week.
✓ Why Buy This

3 Year Warranty

SupremeFX Audio

PCIe 5.0

Overview

About the ASUS ROG STRIX B860-F GAMING WIFI

The ROG STRIX B860-F GAMING WIFI is built for Intel's Arrow Lake platform (Core Ultra Series 2). This high-end gaming motherboard packs WiFi 7, Thunderbolt 4, and four M.2 slots into a B860 chipset. You get premium features without paying for extreme overclocking extras you won't use. Perfect for mid-range builders who want quality without waste.

What This ASUS ROG STRIX B860-F GAMING WIFI Does for You

WiFi 7 support means 2.9Gbps wireless speeds with your compatible router. That's fast enough for competitive gaming without ethernet cables across your room. Four M.2 slots let you run multiple fast SSDs without SATA drives cluttering your case. Thunderbolt 4 connectivity opens up external storage, docks, and displays through one cable. As a Singapore PC builder, we know these features matter for modern gaming setups and creator workflows.

Premium Features at B860 Pricing

This gaming ATX motherboard includes ROG SupremeFX audio with 120dB SNR output. That's cleaner sound than budget boards deliver. Aura Sync RGB and Armoury Crate software give you lighting control. Q-Design features like M.2 Q-Latch and PCIe Q-Release make installation tool-free. You're getting ROG ecosystem benefits without ROG Maximus pricing.

Perfect For

  • Mid-range Arrow Lake gaming builds with Intel Core Ultra processors needing reliable performance PC components
  • First-time builders who want premium features without complicated Z890 overclocking options
  • Content creators editing on external Thunderbolt drives who need single-cable docking solutions
  • Gamers upgrading from older Intel platforms who want WiFi 7 future-proofing under SGD 500

Why Buy from Mansa Computers

  • 3-year Singapore warranty with ASUS service support
  • Fast WhatsApp inquiry response for compatibility questions
  • Open 7 days a week for support
  • Home delivery available

Technical Specifications Summary

Chipset
Intel B860

CPU Support
Intel Core Ultra Series 2 (LGA1851)

Memory
4x DIMM DDR5, up to 256GB, 9066MT/s OC

Storage
4x M.2 (PCIe 5.0 + PCIe 4.0), 4x SATA 6Gb/s

Wireless
WiFi 7 (802.11be), Bluetooth 5.4

Connectivity
Thunderbolt 4, Intel 2.5Gb Ethernet

Form Factor
ATX (30.5cm x 24.4cm)

Audio
SupremeFX ALC4080 (120dB SNR)

Ready to build with Intel Arrow Lake? The ASUS ROG STRIX B860-F GAMING WIFI gives you everything needed for a high-performance gaming PC. Questions about compatibility? WhatsApp us directly.

Full Specifications

Model
ROG STRIX B860-F GAMING WIFI

CPU
Intel® Socket LGA1851 for Intel® Core™ Ultra Processors (Series 2)
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset
Intel® B860 Chipset

Memory
4 x DIMM slots, max. 256GB DDR5
Supports up to 9066MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
DIMM Fit
ASUS Enhanced Memory Profile III (AEMP III)

Graphics
1 x DisplayPort
1 x HDMI™ port
1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs

Expansion Slots
Intel® Core™ Ultra Processors (Series 2): 1 x PCIe 5.0 x16 slot (supports x16 mode)
Intel® B860 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage
Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Core™ Ultra Processors (Series 2): M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset: M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth
Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
Bluetooth® v5.4

USB
Rear USB (Total 9 ports): 1 x Thunderbolt™ 4 port (1 x USB Type-C®), 1 x USB 20Gbps port (1 x USB Type-C®), 1 x USB 10Gbps port (1 x Type-A), 6 x USB 5Gbps ports (6 x Type-A)
Front USB (Total 6 ports): 1 x USB 10Gbps (1 x USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 3 additional USB 2.0 ports

Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Impedance sense for front and rear headphone outputs
Supports Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
Supports up to 32-Bit/384 kHz playback on front panel
Audio Features: SupremeFX Shielding Technology, Savitech SV3H712 AMP, Rear optical S/PDIF out port, Premium audio capacitors, Audio cover

Back Panel I/O Ports
1 x Thunderbolt™ 4 (1 x USB Type-C®)
1 x USB 20Gbps port (1 x USB Type-C®)
1 x USB 10Gbps port (1 x Type-A)
6 x USB 5Gbps ports (6 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
2 x audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

Internal I/O Connectors
Fan and Cooling related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers
Power related: 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connectors
Storage related: 4 x M.2 slots (Key M), 4 x SATA 6Gb/s ports
USB: 1 x USB 10Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 3 additional USB 2.0 ports
Miscellaneous: 3 x Addressable Gen2 headers, 1 x Chassis Intrusion header, 1 x Front Panel Audio header (F_AUDIO), 1 x Start button, 1 x 10-1 pin Front System Panel header, 1 x Thermal Sensor header, 1 x Thunderbolt™ (USB4®) header

Special Features
Extreme Engine Digi+: 5K Black metallic capacitors
ASUS Q-Design: M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release Slim (with PCIe SafeSlot), Q-Antenna, Q-Dashboard, Q-LED (CPU red, DRAM yellow, VGA white, Boot Device yellow green), Q-Slot
ASUS Thermal Solution: M.2 heatsink backplate, M.2 heatsink, VRM heatsink design
ASUS EZ DIY: BIOS FlashBack™ button, BIOS FlashBack™ LED, Clear CMOS button, CPU Socket lever protector, ProCool, Pre-mounted I/O shield, SafeSlot, SafeDIMM
Aura Sync: Addressable Gen2 headers

Software Features
ROG Exclusive Software: ROG CPU-Z, Dolby Atmos
ASUS Exclusive Software: Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4, GameFirst, Power Saving), ASUS Driver Hub, AIDA64 Extreme (60 days free trial), HWiNFO, ASUS GlideX, TurboV Core, Adobe Creative Cloud (Days Free Trial), Norton 360 for Gamers (60 Days Free Trial), WinRAR (40 Days Free Trial)
UEFI BIOS: NPU Boost, ASUS EZ DIY (ASUS CrashFree BIOS 3, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey)

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
Cables: 2 x SATA 6Gb/s cables
Miscellaneous: 1 x ASUS WiFi Q-Antenna, 1 x Cable ties package, 1 x M.2 Q-Latch package, 1 x M.2 Q-Slide package, 1 x ROG key chain, 1 x ROG Strix stickers, 4 x M.2 rubbers
Documentation: 1 x Quick start guide

Operating System
Windows® 11 (22H2 & later)

Form Factor
ATX Form Factor, 12 inch x 9.6 inch (30.5 cm x 24.4 cm)

Warranty

3 YEARS WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave, #03-03,
Singapore 339416
Contact: 6341 7839

Ban Leong Technologies Ltd
150, #04-01 Ubi Ave 4, Ubi Biz-Hub,
Singapore 408825
Contact: 6512 9250

FAQs

Frequently Asked Questions About ASUS ROG STRIX B860-F GAMING WIFI

Does this motherboard support WiFi 7 devices?

Yes, the ROG STRIX B860-F GAMING WIFI supports WiFi 7 (802.11be) with speeds up to 2.9Gbps. You'll need a WiFi 7 router to get maximum speeds. It's backwards compatible with older WiFi standards.

Can I use this for a high-refresh-rate gaming setup?

Absolutely. This gaming ATX motherboard handles Intel Core Ultra processors that drive 240Hz+ displays smoothly. PCIe 5.0 support means your GPU gets full bandwidth. WiFi 7 keeps online gaming lag-free.

Which Intel processors work with the B860 chipset?

The B860 chipset supports Intel Core Ultra Series 2 (Arrow Lake) processors using LGA1851 socket. This includes Core Ultra 9, Ultra 7, and Ultra 5 models. Older Intel CPUs won't fit.

What warranty coverage does Mansa provide?

Every ASUS motherboard comes with 3-year ASUS Singapore warranty. We handle warranty claims locally, no overseas shipping needed. Open 7 days a week for support.

Is this better value than entry-level Z890 motherboards?

For most gamers, yes. You get WiFi 7, Thunderbolt 4, and four M.2 slots at under SGD 500. Z890 adds extreme overclocking features most people never use. This high-end gaming motherboard delivers what matters.

How long will it take to receive my purchase?

Standard Shipping - 3 to 5 days
Express Shipping - 1 to 2 days

Can I opt for store pickup?

Yes, we are open daily for collection from 11 AM - 6.30 PM.

Address: 1 Ubi View #01-22, Focus One Building Singapore 408555 (Door located nearest to carpark exit gantry)

We will contact you once your order is ready for collection!
