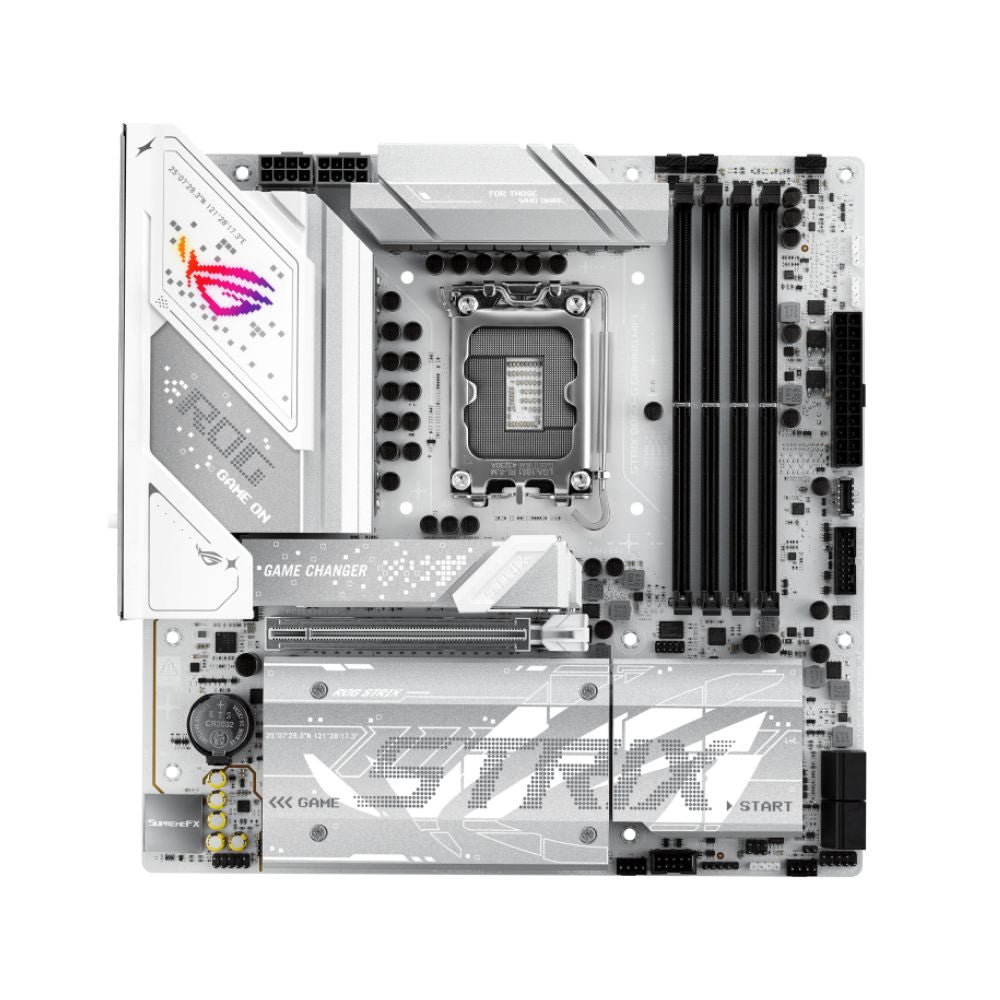

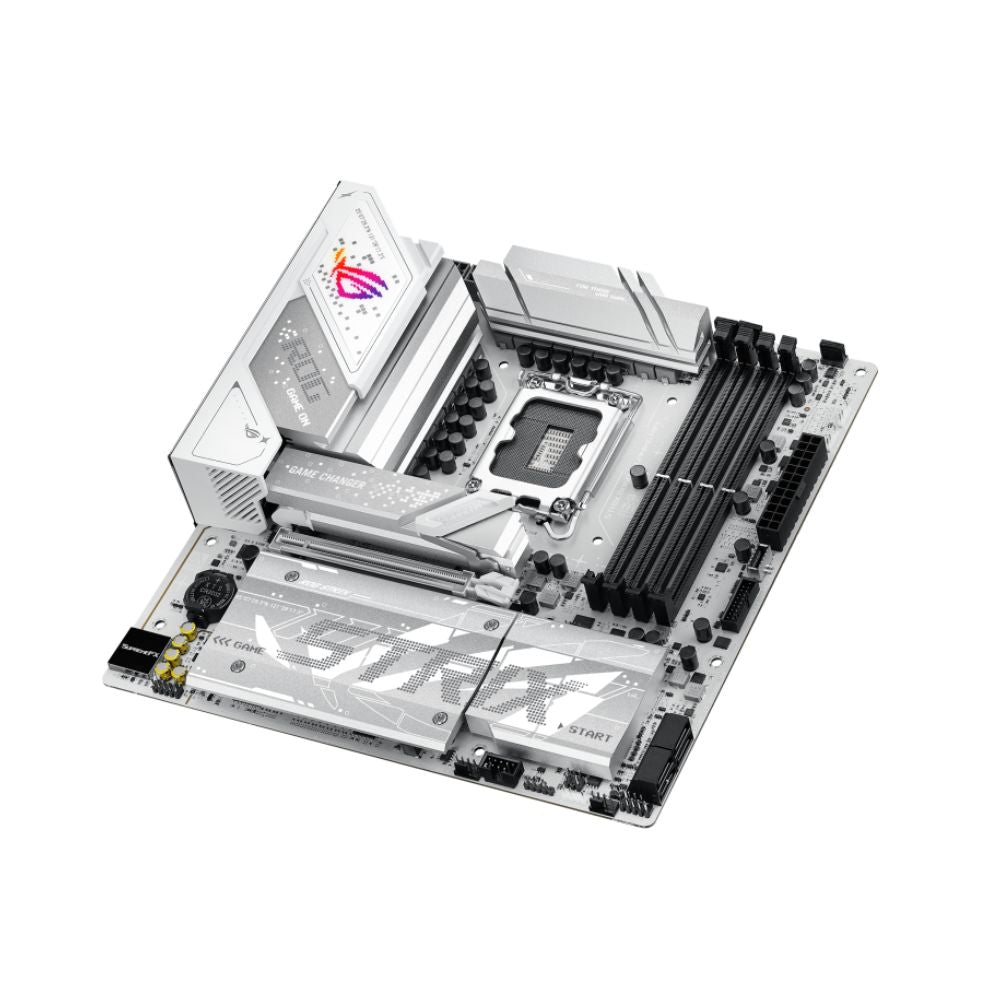

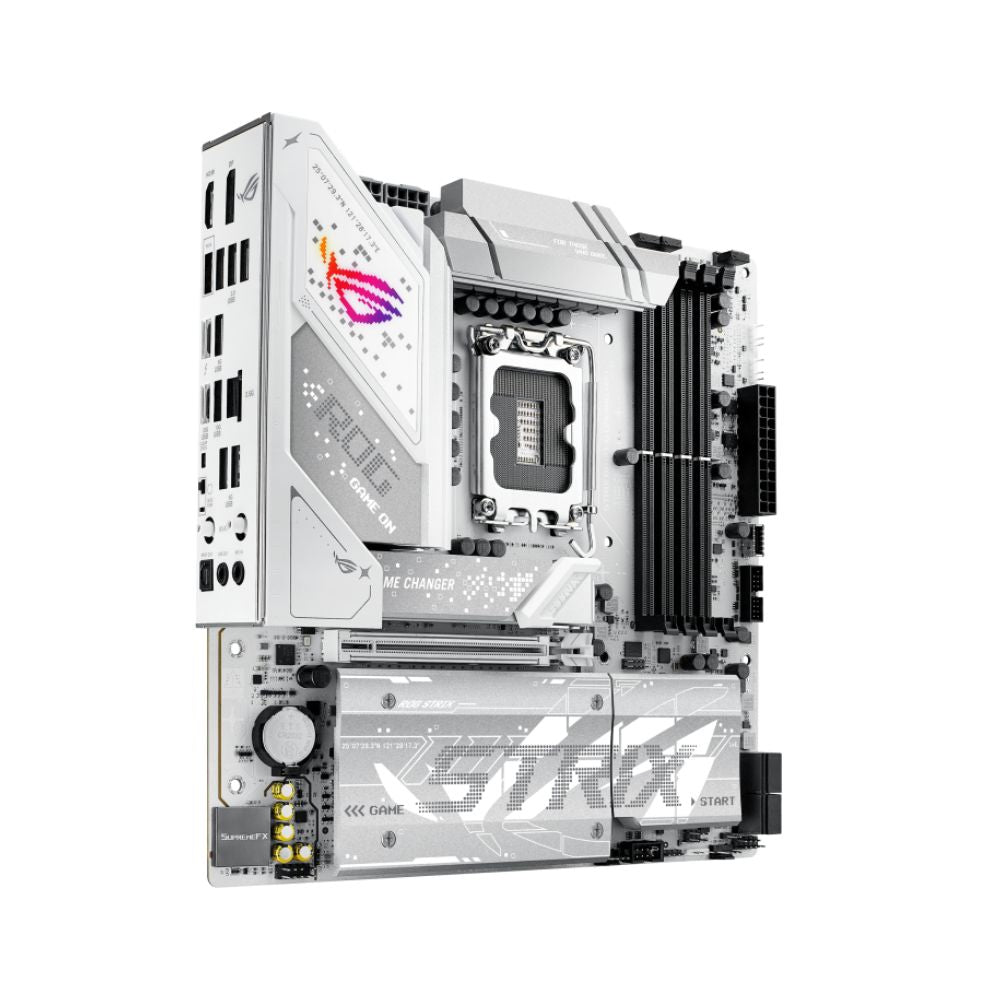

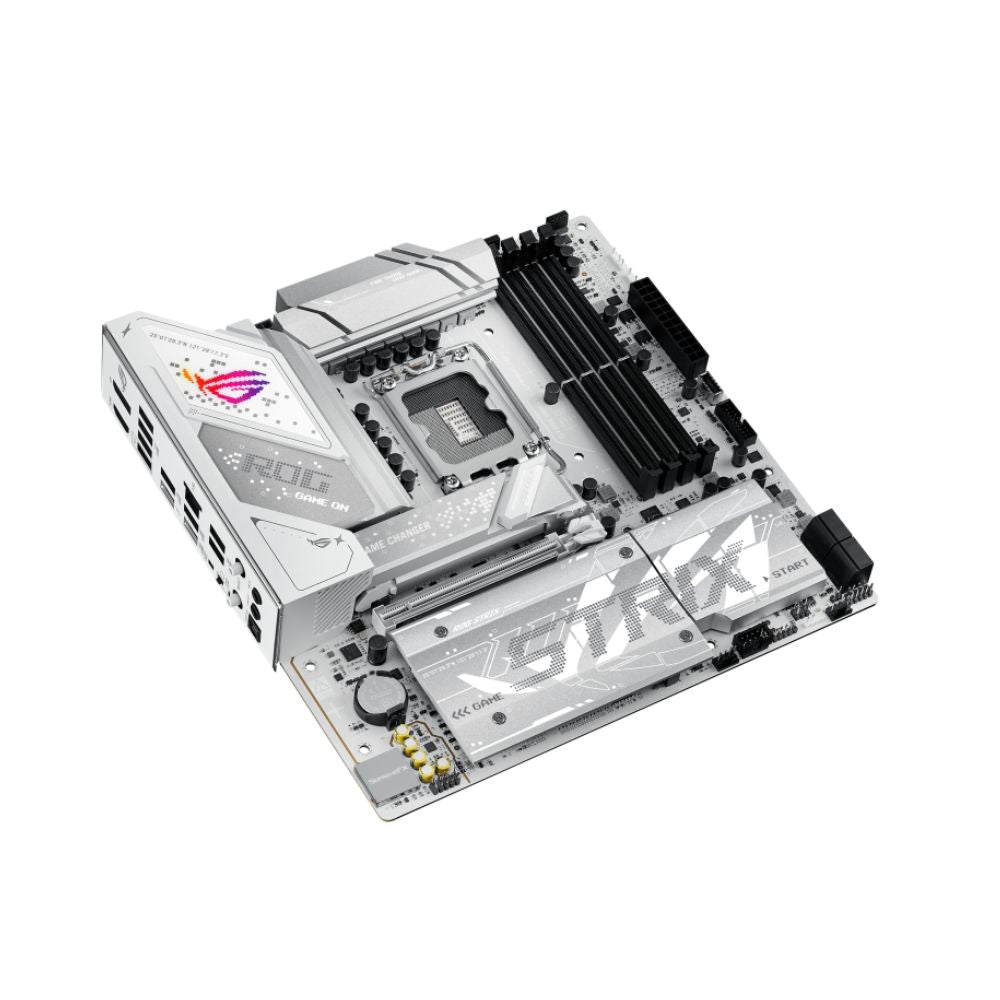

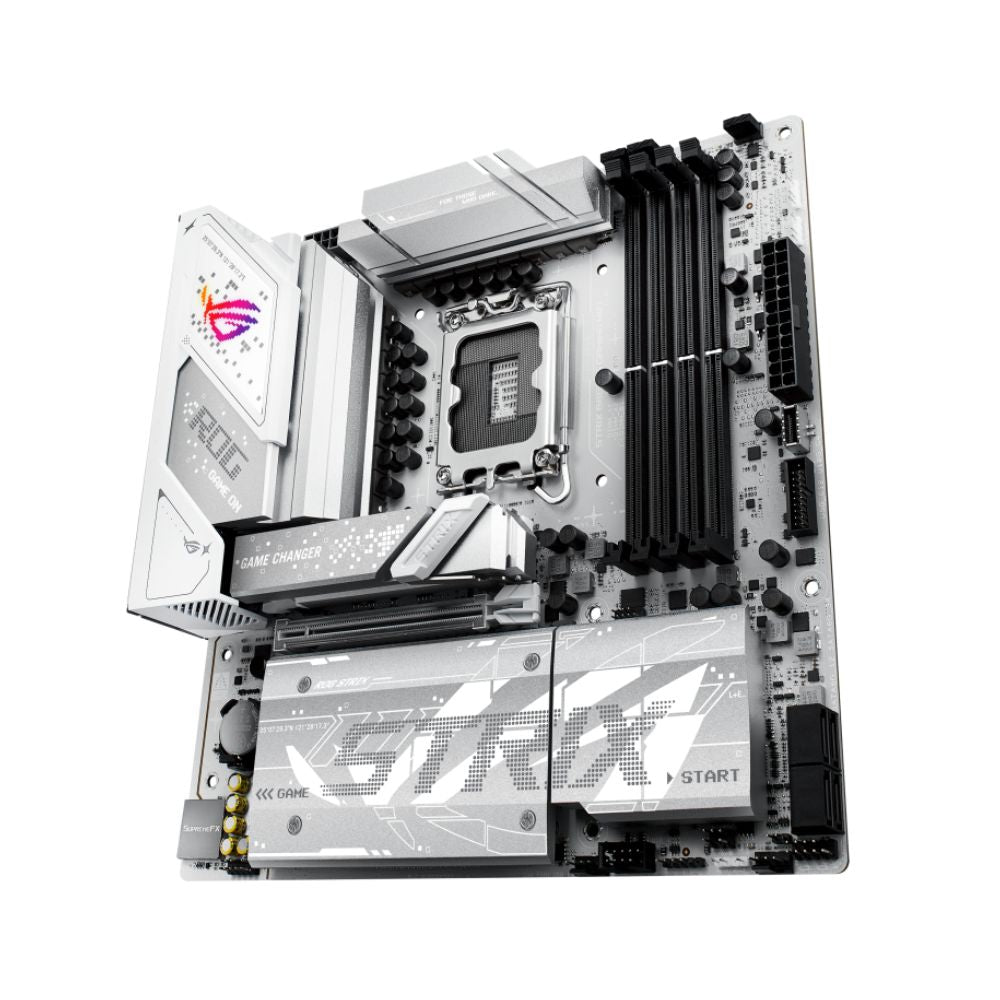

ASUS ROG STRIX B860-G GAMING WIFI – WiFi 7 micro ATX Gaming

About the ASUS ROG STRIX B860-G GAMING WIFI

The ASUS ROG STRIX B860-G GAMING WIFI is designed for gamers and content creators building compact Intel Core Ultra Series 2 systems. This micro ATX Intel motherboard packs flagship-class features into a space-efficient form factor. You get WiFi 7, Thunderbolt 4, premium audio, and robust storage options at SGD 449. It's the best high-end gaming motherboard if you want modern connectivity without paying for extreme overclocking features you might not use.

What This ASUS ROG STRIX B860-G GAMING WIFI Does for You

Build your custom PC with confidence knowing this board handles demanding workloads effortlessly. The B860 chipset supports Intel Core Ultra Series 2 processors with DDR5 memory up to 9066MT/s for smooth multitasking. Four M.2 slots let you configure fast storage exactly how you need it—separate drives for OS, games, and projects. WiFi 7 connectivity means low-latency online gaming and fast file transfers up to 2.9Gbps. The Realtek ALC1220P audio codec with SupremeFX shielding delivers clean sound whether you're gaming with headphones or streaming to an audience. This is a micro ATX Intel motherboard that doesn't compromise on features.

Connectivity That's Ready for the Future

Thunderbolt 4 support gives you 40Gbps bandwidth for ultra-fast external storage, displays, and docks from a single port. The USB 20Gbps Type-C port with DisplayPort Alt mode adds flexibility for modern peripherals. Intel 2.5Gb Ethernet ensures stable wired connections for competitive gaming where every millisecond counts. WiFi 7 with 160MHz bandwidth future-proofs your custom PC for years to come. ASUS Q-Design features like M.2 Q-Latch and PCIe Q-Release make installation tool-free and simple.

Perfect For

• Gamers building compact Intel Core Ultra Series 2 systems with micro ATX pc who want flagship features without the size
• Content creators who stream and edit video needing premium audio, fast storage, and reliable performance
• Enthusiasts upgrading to the latest Intel platform who value WiFi 7 and Thunderbolt 4 connectivity
• System builders looking for the best affordable motherboard for gaming under SGD 500 with 3-year warranty coverage

Why Buy from Mansa Computers

• 3-year Singapore warranty with ASUS service support
• Fast WhatsApp inquiry response for compatibility questions
• Open 7 days a week for support
• Home delivery available across Singapore

Technical Specifications Summary

Chipset
Intel B860

CPU Support
Intel Core Ultra Processors (Series 2)

Memory
4x DIMM, DDR5 up to 9066MT/s, Max 256GB

Storage
4x M.2 slots (PCIe 5.0/4.0), 4x SATA 6Gb/s

Wireless
WiFi 7 (802.11be), Bluetooth 5.4

Ethernet
Intel 2.5Gb LAN

Audio
Realtek ALC1220P 7.1 Surround

Form Factor
Micro-ATX (24.4cm x 24.4cm)

Ready to build your Intel Core Ultra Series 2 system? The ASUS ROG STRIX B860-G GAMING WIFI gives you cutting-edge features at a competitive price point. Order from Mansa Computers today with 3-year ASUS Singapore warranty coverage.

Model
ROG STRIX B860-G GAMING WIFI

CPU
Support Intel® Core™ Ultra Processors (Series 2)
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset
Intel® B860 Chipset

Memory
4 x DIMM slots, max 256GB DDR5
Supports up to 9066+MT/s (OC), Non-ECC Un-buffered Clocked Unbuffered DIMM (CUDIMM)
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)

Graphics
1 x DisplayPort
1 x HDMI™ port
1 x Intel® Thunderbolt™ 4 supports DisplayPort and Thunderbolt™ video outputs
Graphics specifications may vary between CPU types
Supports max 4K@60Hz as specified in DisplayPort 1.4
Supports 4K@60Hz as specified in HDMI 2.1
Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps
VGA resolution support depends on processors or graphic cards

Expansion Slots
Intel® Core™ Ultra Processors (Series 2): 1 x PCIe 5.0 x16 slot

Storage
Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Core™ Ultra Processors (Series 2): M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset: M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2230/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10

Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth
Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth up to 2.9Gbps transfer rate
Bluetooth® v5.4
Wi-Fi features vary by OS version
For Windows 11, Wi-Fi 7 requires version 24H2 or later
Windows 11 21H2/22H2/23H2 supports Wi-Fi 6E
Windows 10 has no available drivers
Wi-Fi 6GHz frequency band and bandwidth regulations may vary between countries
Bluetooth version may vary, refer to the Wi-Fi module manufacturer’s website for the latest specifications

USB
Rear USB (10 ports): 1 x Thunderbolt™ 4 port (USB Type-C®), 1 x USB 20Gbps port (USB Type-C®), 1 x USB 10Gbps port (Type-A), 3 x USB 5Gbps ports (Type-A), 4 x USB 2.0 ports (Type-A)
Front USB (6 ports): 1 x USB 10Gbps connector (USB Type-C®), 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (3 ports)
USB Type-C® power delivery output max 5V/3A

Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
Impedance sense for front and rear headphone outputs
Internal audio amplifier enhances sound quality for headphones and speakers
Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
Supports up to 32-Bit/192 kHz playback
Audio Features: SupremeFX Shielding Technology, Savitech SV3H712 AMP, Rear optical S/PDIF out port, Premium audio capacitors, Dedicated audio PCB layers, Audio cover
32-Bit/192 kHz not supported for 7.1 Surround Sound due to HDA bandwidth limitations
Chassis with HD audio module required for 7.1 Surround Sound output

Back Panel I/O Ports
1 x Thunderbolt™ 4 USB Type-C® port
1 x USB 20Gbps port (USB Type-C® with DP Alt mode)
1 x USB 10Gbps port (Type-A)
3 x USB 5Gbps ports (Type-A)
4 x USB 2.0 ports (Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

Internal I/O Connectors
Fan and Cooling: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 2 x 4-pin Chassis Fan headers
Power: 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connectors
Storage: 4 x M.2 slots (Key M), 4 x SATA 6Gb/s ports
USB: 1 x USB 10Gbps connector (USB Type-C®), 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (3 ports)
Miscellaneous: 3 x Addressable Gen2 headers, 1 x Front Panel Audio header (F_AUDIO), 1 x 10-1 pin Front System Panel header, 1 x Thermal Sensor header

Special Features
Extreme Engine Digi+: 5K Black metallic capacitors
ASUS Q-Design: M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release Slim (with PCIe SafeSlot), Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED (CPU red, DRAM yellow, VGA white, Boot Device yellow green), Q-Slot
ASUS Thermal Solution: M.2 heatsink backplate, M.2 heatsink, VRM heatsink design
ASUS EZ DIY: BIOS FlashBack™ button, BIOS FlashBack™ LED, Clear CMOS button, CPU Socket lever protector, ProCool, Pre-mounted I/O shield, SafeSlot, SafeDIMM
Aura Sync: Addressable Gen2 headers

Software Features
ROG Exclusive Software: ROG CPU-Z, Dolby Atmos
ASUS Exclusive Software: Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4, GameFirst, Power Saving), AIDA64 Extreme (60 days free trial), HWiNFO, ASUS AI Advisor, ASUS DriverHub, ASUS GlideX, TurboV Core, Adobe Creative Cloud (30 Days Free Trial), Norton 360 for Gamers (60 Days Free Trial), WinRAR (40 Days Free Trial)
UEFI BIOS: AI Overclocking Guide, ASUS EZ DIY (ASUS CrashFree BIOS 3, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey), NPU Boost

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, UEFI PXE

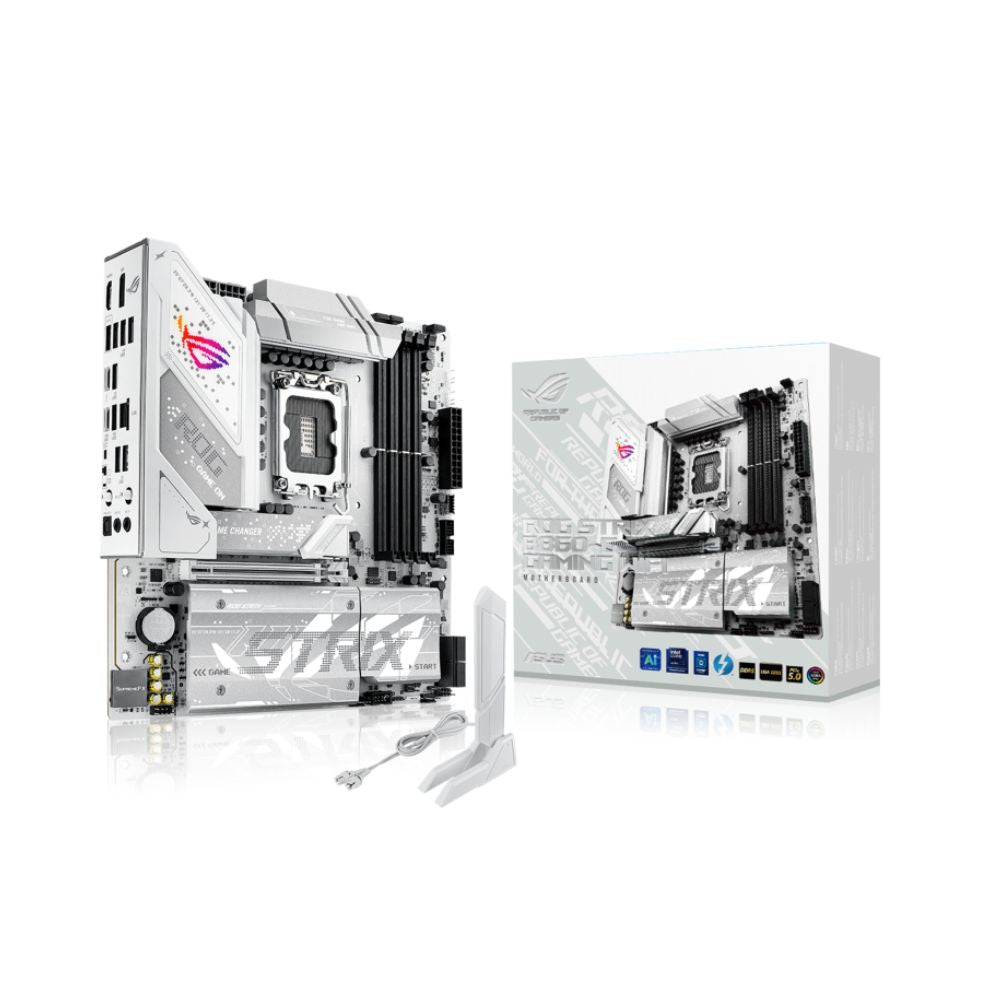

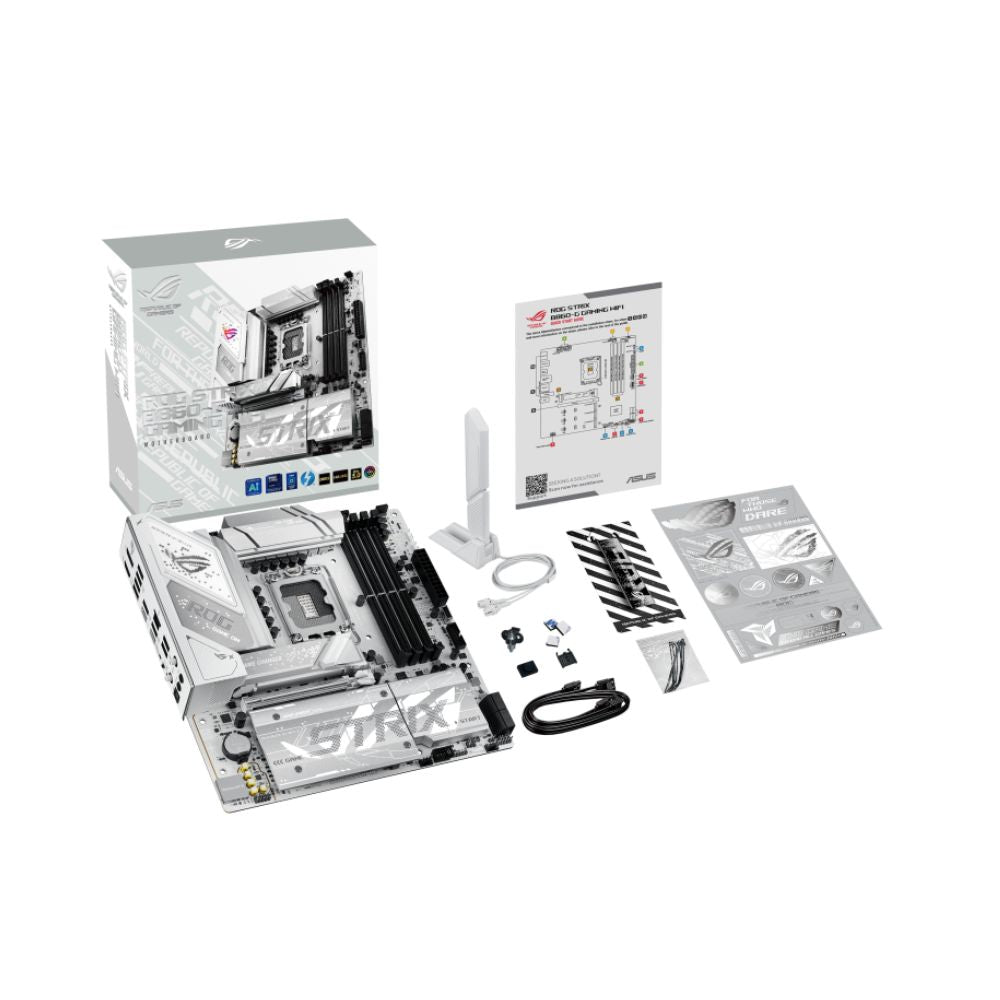

Accessories
Cables: 2 x SATA 6Gb/s cables
Miscellaneous: 1 x ASUS WiFi Q-Antenna, 1 x Cable ties package, 1 x M.2 Q-Latch, 1 x M.2 Q-Slide, 1 x ROG key chain, 1 x ROG Strix stickers, 3 x M.2 rubbers, 1 x M.2 backplate rubber package
Documentation: 1 x Quick start guide

Operating System
Windows 11 (22H2 & later)

Form Factor
micro-ATX Form Factor, 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

3 YEARS WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave, #03-03,
Singapore 339416
Contact: 6341 7839

Ban Leong Technologies Ltd
150, #04-01 Ubi Ave 4, Ubi Biz-Hub,
Singapore 408825
Contact: 6512 9250

Frequently Asked Questions About ASUS ROG STRIX B860-G GAMING WIFI

Does the ROG STRIX B860-G GAMING WIFI support WiFi 7?

Yes, it includes WiFi 7 (802.11be) with 160MHz bandwidth supporting up to 2.9Gbps transfer rates. The board also features Bluetooth 5.4 for wireless peripherals. WiFi 7 requires Windows 11 24H2 or later for full functionality.

Can I use this motherboard for 4K gaming and content creation?

Absolutely. This micro ATX Intel motherboard supports Intel Core Ultra Series 2 processors with integrated graphics capable of 4K@60Hz output. Four M.2 slots and premium audio make it excellent for gaming and content creation workflows.

Which Intel processors work with the B860 chipset?

The ROG STRIX B860-G GAMING WIFI supports Intel Core Ultra Processors (Series 2) including Core Ultra 5, Core Ultra 7, and Core Ultra 9 models. It's designed specifically for the latest Arrow Lake platform.

What warranty does this motherboard come with in Singapore?

This motherboard includes a 3-year ASUS Singapore warranty with local service support. Mansa Computers provides fast WhatsApp inquiry response and we're open 7 days a week for any technical support you need.

How does this compare to Z890 motherboards for custom PC builds?

The B860 chipset offers excellent value with WiFi 7, Thunderbolt 4, and PCIe 5.0 support at a lower price than Z890 boards. You get flagship features without paying extra for extreme overclocking capabilities most users don't utilize.
