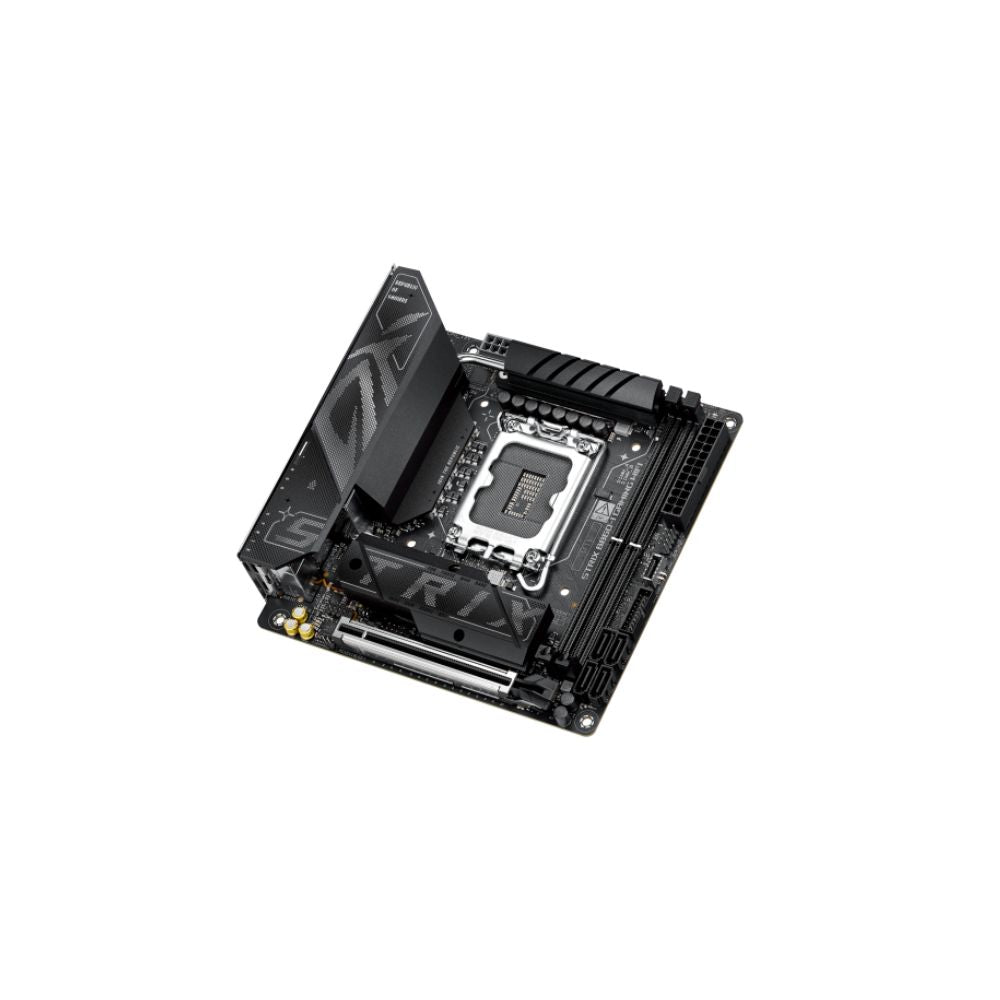

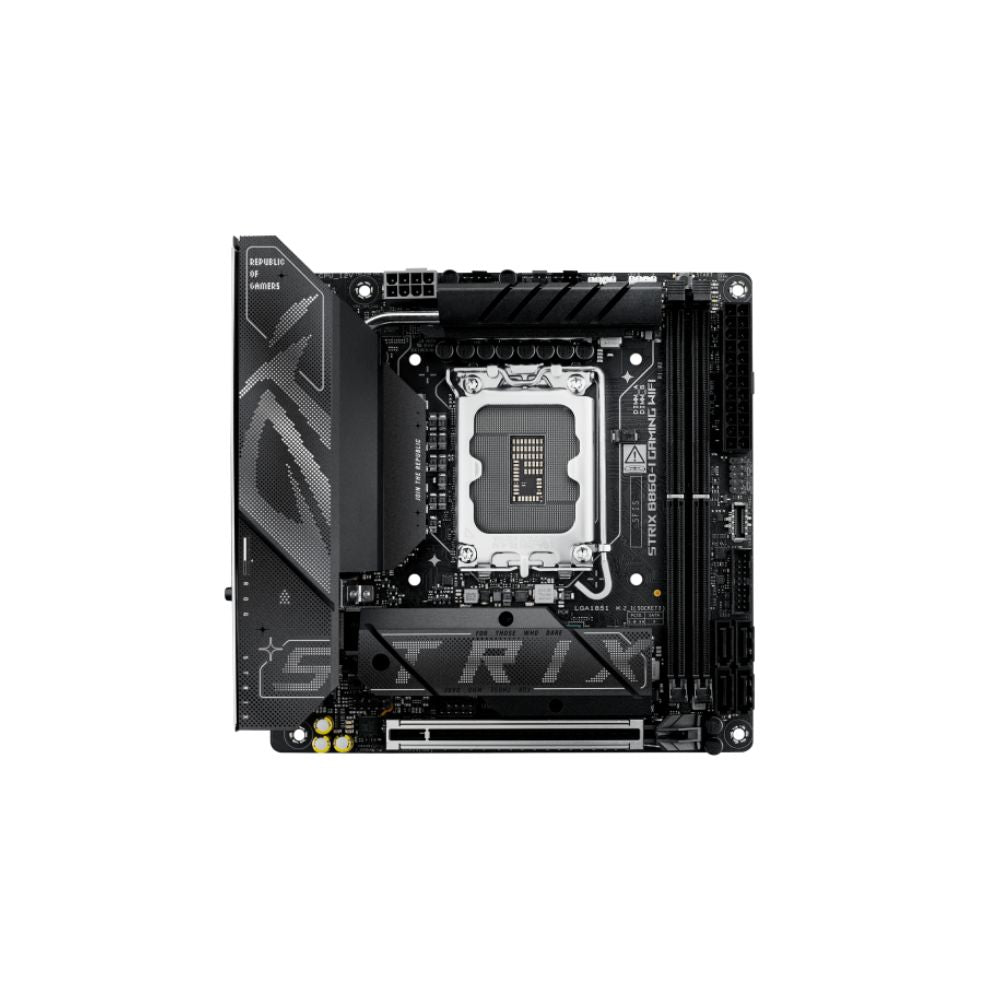

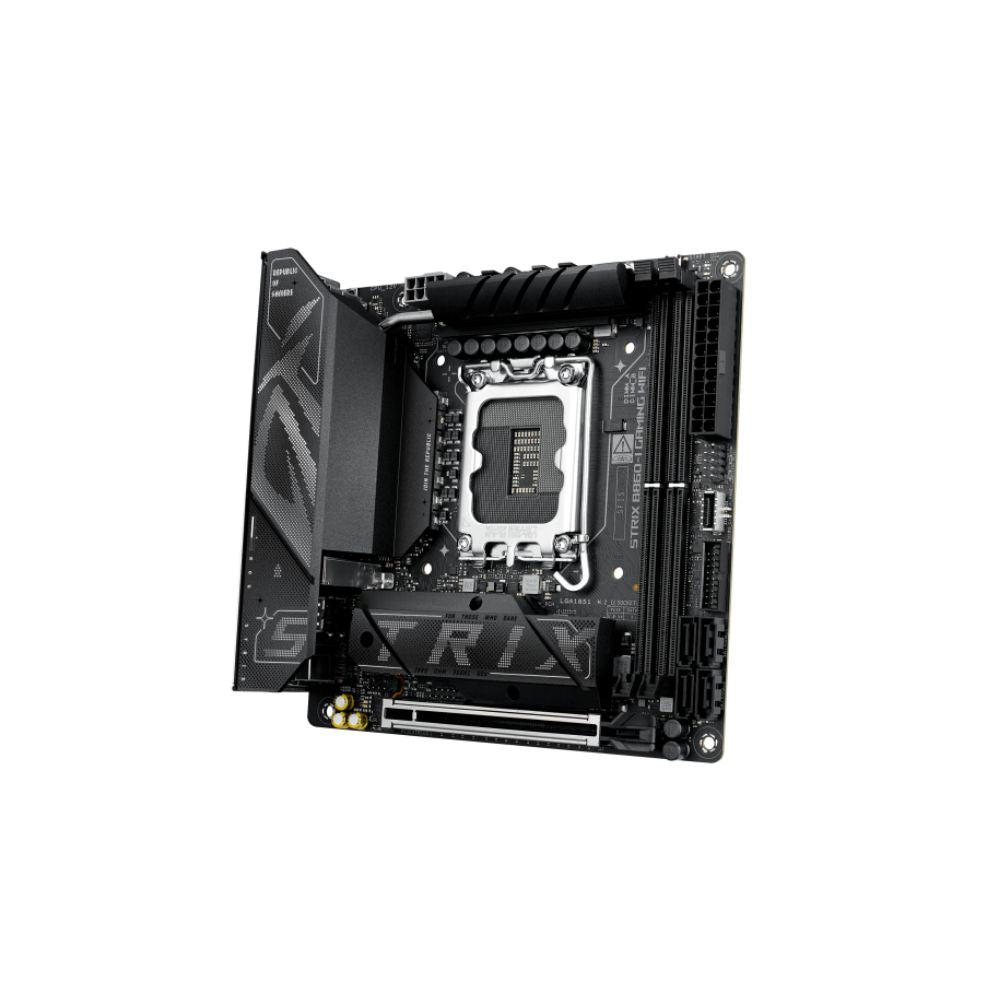

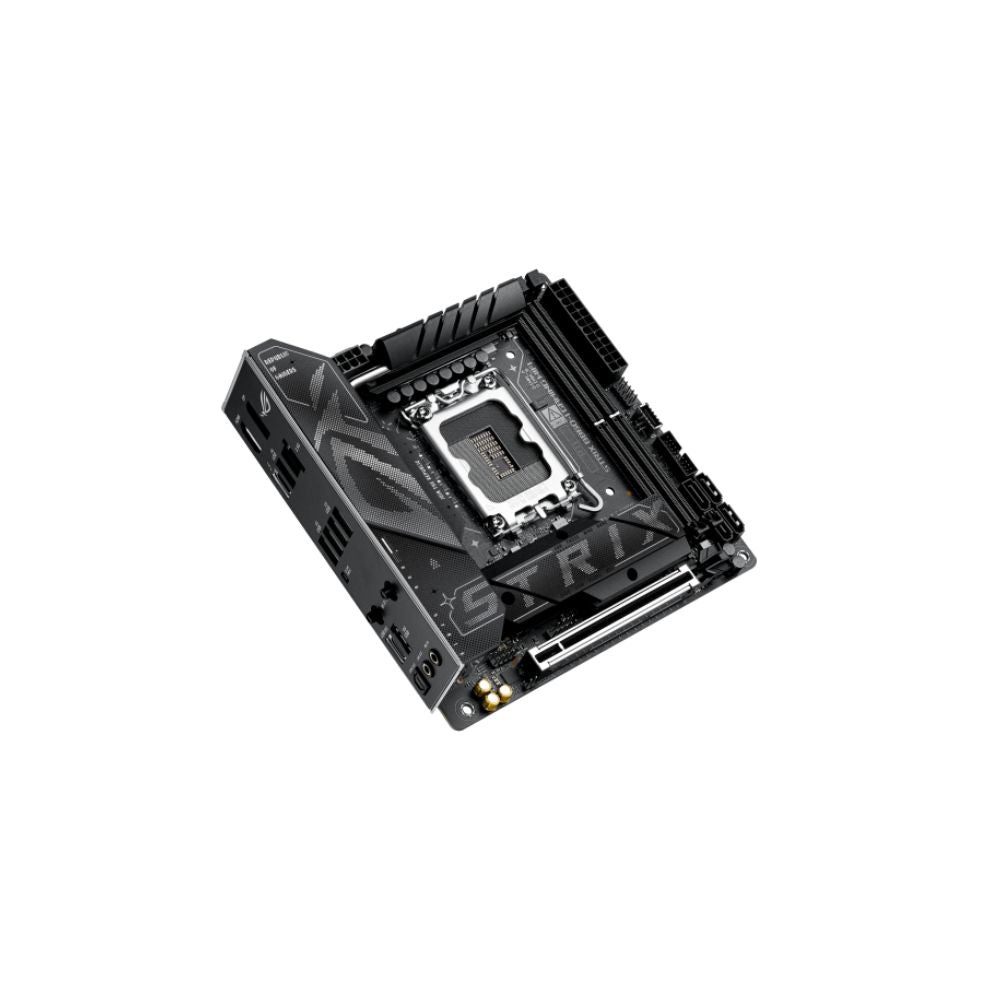

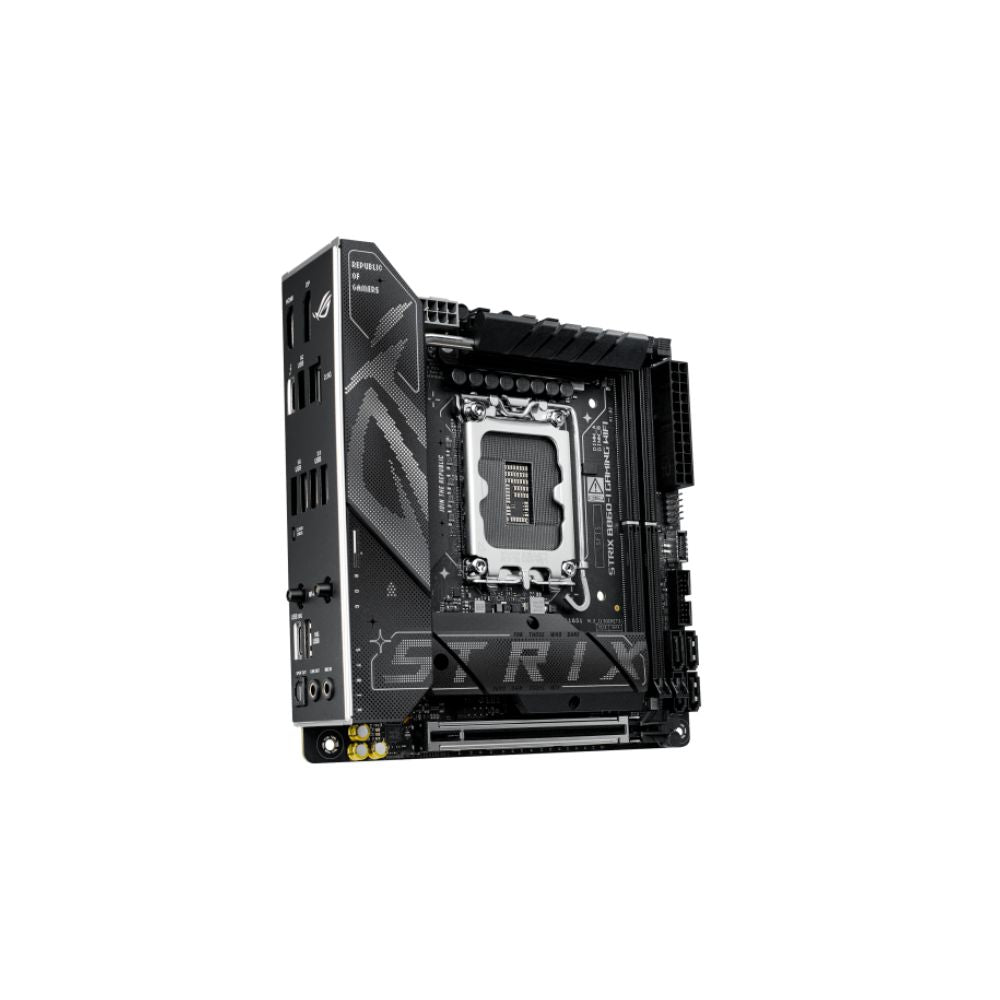

ASUS ROG STRIX B860-I GAMING WIFI – WiFi 7 Mini-ITX Motherboard

About the ASUS ROG STRIX B860-I GAMING WIFI

The ROG STRIX B860-I GAMING WIFI is built for enthusiasts who want maximum performance in minimal space. This Mini-ITX motherboard supports Intel Core Ultra Series 2 processors and packs flagship features into a 6.7-inch square footprint. Whether you're building a compact gaming rig or a powerful workstation, this board delivers connectivity and expansion most SFF PC motherboard options can't match. ROG STRIX quality meets intelligent design for builders who refuse to compromise.

What This ASUS ROG STRIX B860-I GAMING WIFI Does for You

WiFi 7 with 2.9Gbps transfer rates keeps your wireless connection faster than most wired setups. Thunderbolt 4 enables high-speed external storage, multiple 4K displays, and future-proof accessory support. PCIe 5.0 x16 slot handles next-generation graphics cards without bottlenecks. Your DDR5 RAM motherboard supports speeds up to 9066MT/s for lightning-fast system responsiveness. Two M.2 slots plus four SATA ports give you storage flexibility rare in Mini-ITX designs. Premium SupremeFX audio with dedicated AMP delivers immersive 7.1 surround sound without add-on cards. This custom PC foundation handles demanding workloads while staying whisper-quiet and stable.

Connectivity That Keeps Up With Your Workflow

Thunderbolt 4 and USB 20Gbps Type-C ports on the rear panel mean professional-grade peripheral support. DisplayPort and HDMI outputs enable multi-monitor setups without discrete graphics. Intel 2.5Gb Ethernet with LANGuard protection ensures reliable wired connections for competitive gaming. Optical S/PDIF out connects your audiophile speakers directly. Front USB 10Gbps Type-C header supports modern cases with fast front ports. Every connection point is positioned for easy cable management in tight SFF builds.

Perfect For

• Small form factor gaming PCs that need flagship features without the bulk of ATX boards. Fits cases like compact Mini-ITX chassis with room to spare.
• Content creators building portable workstations with Thunderbolt 4 for external SSDs and capture devices.
• Home theater PCs leveraging WiFi 7 for seamless 4K streaming and premium audio for immersive sound.
• LAN party rigs where compact size matters but you won't sacrifice PCIe 5.0 GPU support or fast storage.

Why Buy from Mansa Computers

• 3-year ASUS Singapore warranty with local service support
• Fast WhatsApp inquiry response for compatibility questions
• Open 7 days a week for support during your build
• Home delivery available across Singapore

Technical Specifications Summary

Chipset
Intel B860

CPU Support
Intel Core Ultra Series 2

Memory
2x DDR5 up to 9066MT/s (128GB max)

Storage
2x M.2 (PCIe 5.0 + 4.0), 4x SATA

Wireless
WiFi 7 (2.9Gbps), Bluetooth 5.4

Expansion
1x PCIe 5.0 x16

USB
Thunderbolt 4, USB 20Gbps Type-C

Form Factor
Mini-ITX (17cm x 17cm)

Build your dream SFF PC with the ASUS ROG STRIX B860-I GAMING WIFI from Mansa Computers. Order today with 3-year warranty and local support backing your investment.

Model
ROG STRIX B860-I GAMING WIFI

CPU
Support Intel® Core™ Ultra Processors (Series 2)
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset
Intel® B860 Chipset

Memory
2 x DIMM slots, max 128GB DDR5
Supports up to 9066+MT/s (OC), Non-ECC Un-buffered Clocked Unbuffered DIMM (CUDIMM)
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)

Graphics
1 x DisplayPort
1 x HDMI™ port
1 x Intel® Thunderbolt™ 4 supports DisplayPort and Thunderbolt™ video outputs

Expansion Slots
Intel® Core™ Ultra Processors (Series 2): 1 x PCIe 5.0 x16 slot

Storage
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Core™ Ultra Processors (Series 2): M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth
Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth up to 2.9Gbps transfer rate
Bluetooth® v5.4

USB
Rear USB (Total 8 ports): 1 x Thunderbolt™ 4 port (USB Type-C®), 1 x USB 20Gbps port (USB Type-C®), 1 x USB 10Gbps port (Type-A), 3 x USB 5Gbps ports (Type-A), 2 x USB 2.0 ports (Type-A)
Front USB (Total 5 ports): 1 x USB 10Gbps connector (USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 1 x USB 2.0 header supports 2 additional USB 2.0 ports
USB Type-C® power delivery output max 5V/3A

Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
Impedance sense for front and rear headphone outputs
Internal audio amplifier enhances sound quality for headphones and speakers
Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
Supports up to 32-Bit/192 kHz playback
Audio Features: SupremeFX Shielding Technology, Savitech SV3H712 AMP, Rear optical S/PDIF out port, Premium audio capacitors, Dedicated audio PCB layers
32-Bit/192 kHz not supported for 7.1 Surround Sound due to HDA bandwidth limitations

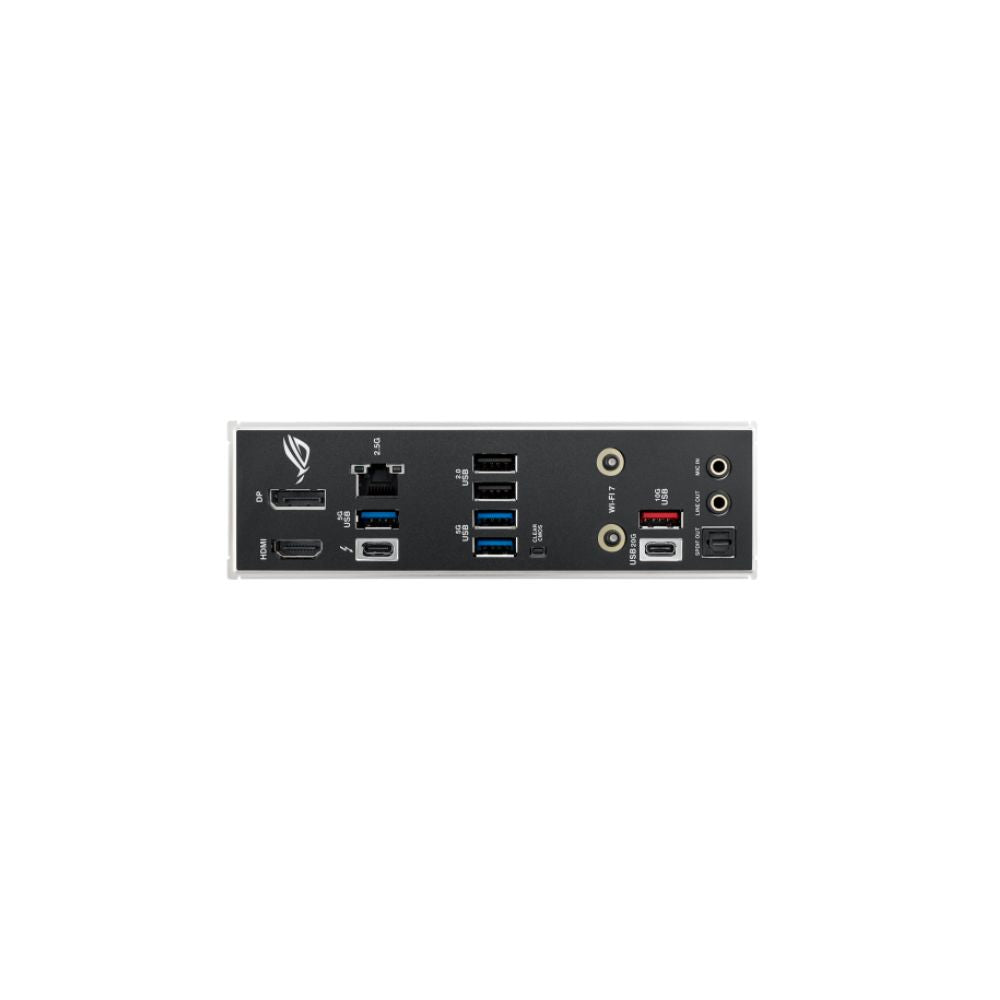

Back Panel I/O Ports
1 x Thunderbolt™ 4 port (USB Type-C®)
1 x USB 20Gbps port (USB Type-C®)
1 x USB 10Gbps port (Type-A)
3 x USB 5Gbps ports (Type-A)
2 x USB 2.0 ports (Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x Clear CMOS button

Internal I/O Connectors
Fan and Cooling related: 1 x 4-pin CPU Fan header, 1 x 4-pin AIO Pump header, 1 x 4-pin Chassis Fan header
Power related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V CPU Power connector
Storage related: 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports
USB: 1 x USB 10Gbps connector (USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous: 2 x Addressable Gen2 headers, 1 x Front Panel Audio header (F_AUDIO), 1 x 10-1 pin Front System Panel header, 1 x Thermal Sensor header

Special Features
Extreme Engine Digi+: 5K Black metallic capacitors
ASUS Q-Design: PCIe Slot Q-Release Slim (with PCIe SafeSlot), M.2 Q-Latch, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED (CPU red, DRAM yellow, VGA white, Boot Device yellow green), Q-Slot
ASUS Thermal Solution: M.2 heatsink backplate, M.2 heatsink, VRM heatsink design
ASUS EZ DIY: Clear CMOS button, CPU Socket lever protector, ProCool, Pre-mounted I/O shield, SafeSlot, SafeDIMM
Aura Sync: Addressable Gen2 headers

Software Features
ROG Exclusive Software: ROG CPU-Z, Dolby Atmos
ASUS Exclusive Software: Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4, GameFirst, Power Saving), AIDA64 Extreme (60 days free trial), HWiNFO, ASUS AI Advisor, ASUS DriverHub, ASUS GlideX, TurboV Core, Adobe Creative Cloud (Free Trial), Norton 360 for Gamers (60 Days Free Trial), WinRAR (40 Days Free Trial)
UEFI BIOS: ASUS EZ DIY (ASUS CrashFree BIOS 3, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey), NPU Boost

BIOS
256Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, UEFI PXE

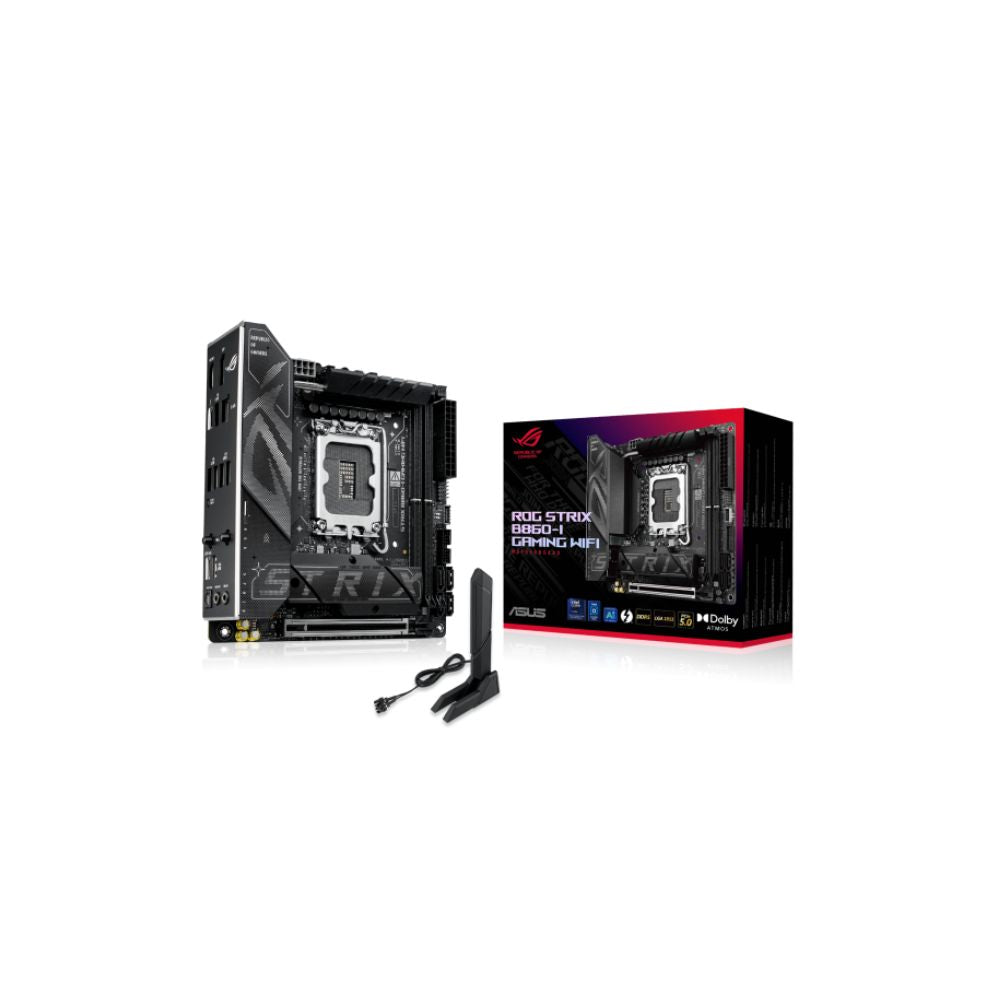

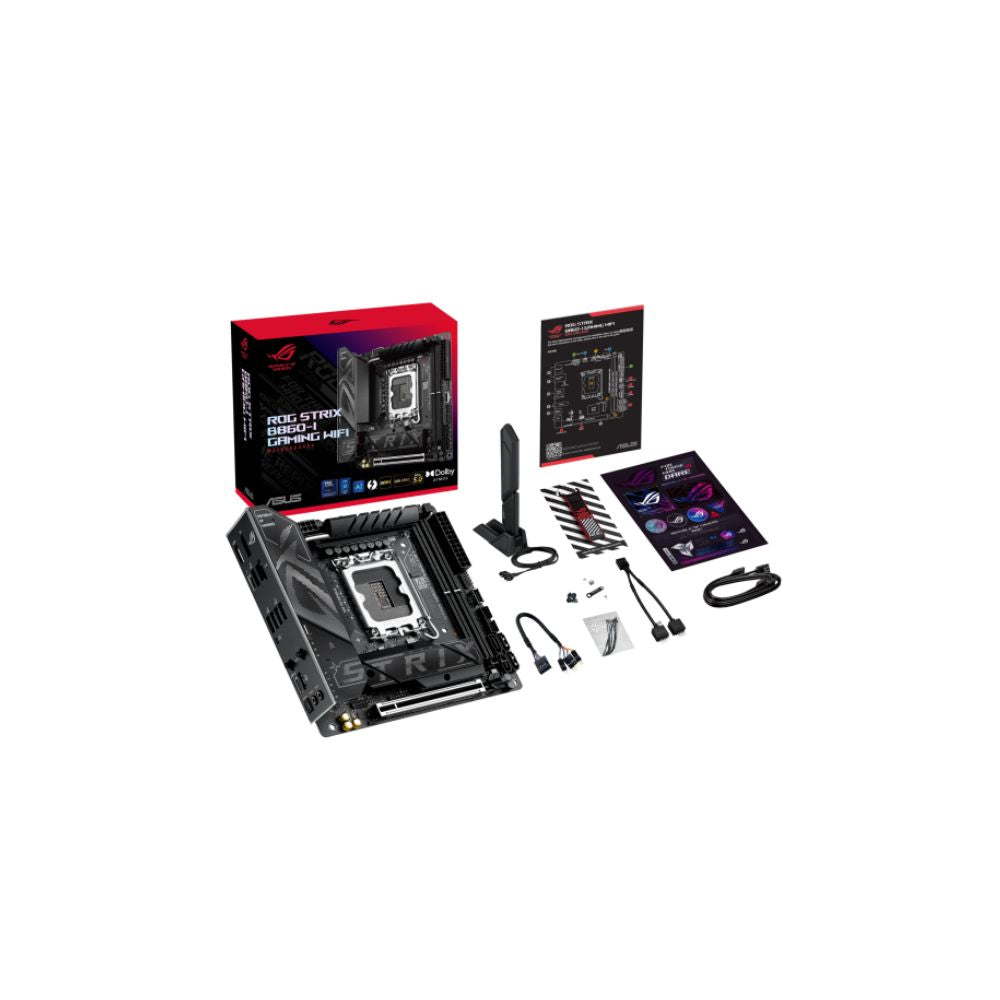

Accessories
Cables: 2 x SATA 6Gb/s cables, 1 x ROG USB2.0 splitter cable, 1 x Panel cable

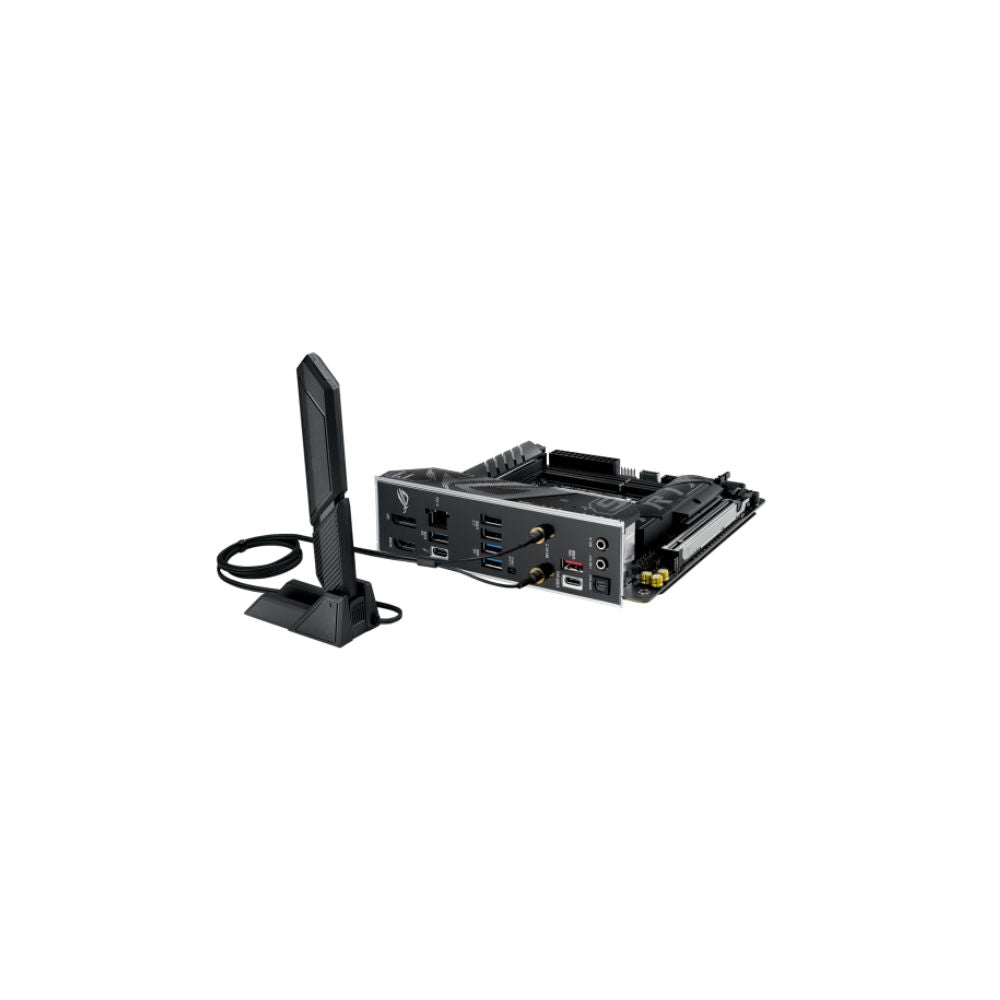

Miscellaneous: 1 x ASUS WiFi Q-Antenna, 1 x Cable ties package, 1 x M.2 Q-Latch package, 1 x Screw package for M.2 SSD, 1 x M.2 Bracket, 1 x ROG key chain, 1 x ROG Strix stickers
Documentation: 1 x Quick start guide

Operating System
Windows 11 (22H2 & later)

Form Factor
Mini-ITX Form Factor, 6.7 inch x 6.7 inch (17 cm x 17 cm)

3 YEARS WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave, #03-03,
Singapore 339416
Contact: 6341 7839

Ban Leong Technologies Ltd
150, #04-01 Ubi Ave 4, Ubi Biz-Hub,
Singapore 408825
Contact: 6512 9250

Frequently Asked Questions About ASUS ROG STRIX B860-I GAMING WIFI

Does the ROG STRIX B860-I GAMING WIFI support WiFi 7?

Yes, this motherboard features WiFi 7 with 2x2 antenna support and 2.9Gbps transfer rates. It supports 2.4GHz, 5GHz, and 6GHz frequency bands for maximum flexibility and speed in your wireless setup.

Can I use this Mini-ITX board for a high-end gaming PC?

Absolutely. The PCIe 5.0 x16 slot supports next-gen graphics cards, and DDR5 support up to 9066MT/s handles demanding games. Thunderbolt 4 and dual M.2 slots give you flagship features in compact form.

What Intel CPUs work with the ASUS ROG STRIX B860-I GAMING WIFI?

This motherboard supports Intel Core Ultra Processors Series 2 on the LGA 1851 socket. It includes support for Intel Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0 for optimal performance.

What warranty does Mansa Computers offer on this motherboard?

You get a 3-year ASUS Singapore warranty with local service support. We're open 7 days a week for support inquiries, and you can reach us via WhatsApp for fast responses to any compatibility questions.

How does this B860 board compare to Z890 Mini-ITX motherboards?

This B860 board offers WiFi 7 and Thunderbolt 4 at a lower price than most Z890 options. You get flagship connectivity without paying for extreme overclocking features most gamers don't use.
