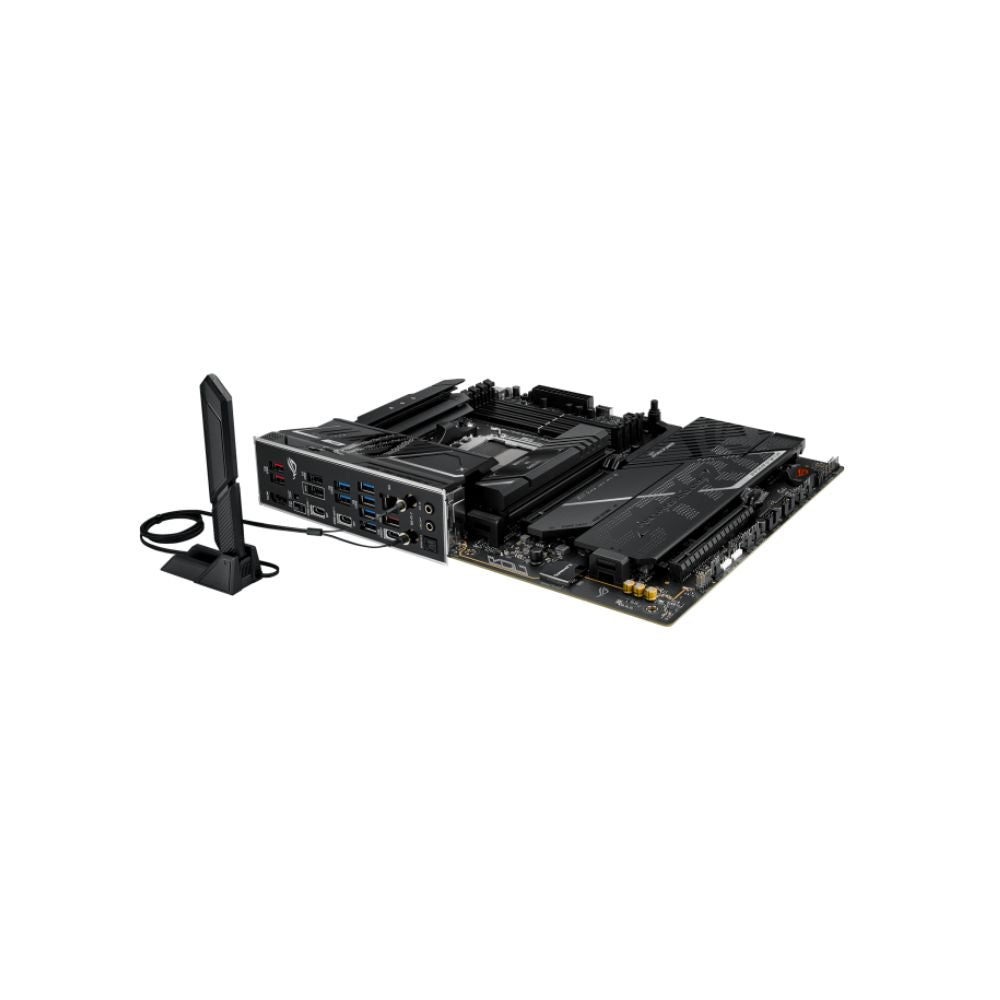

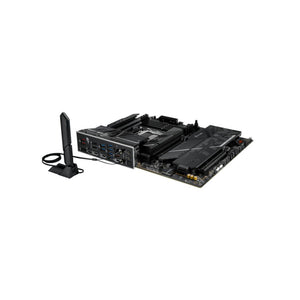

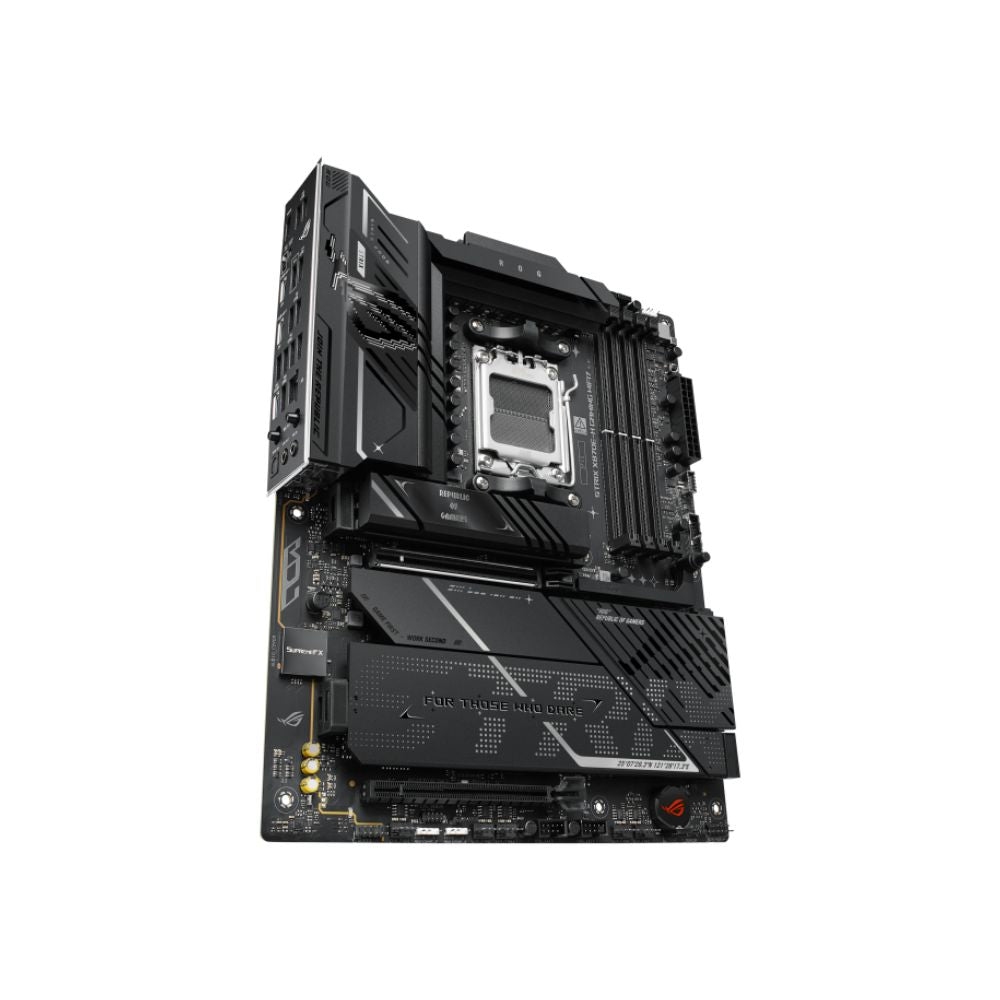

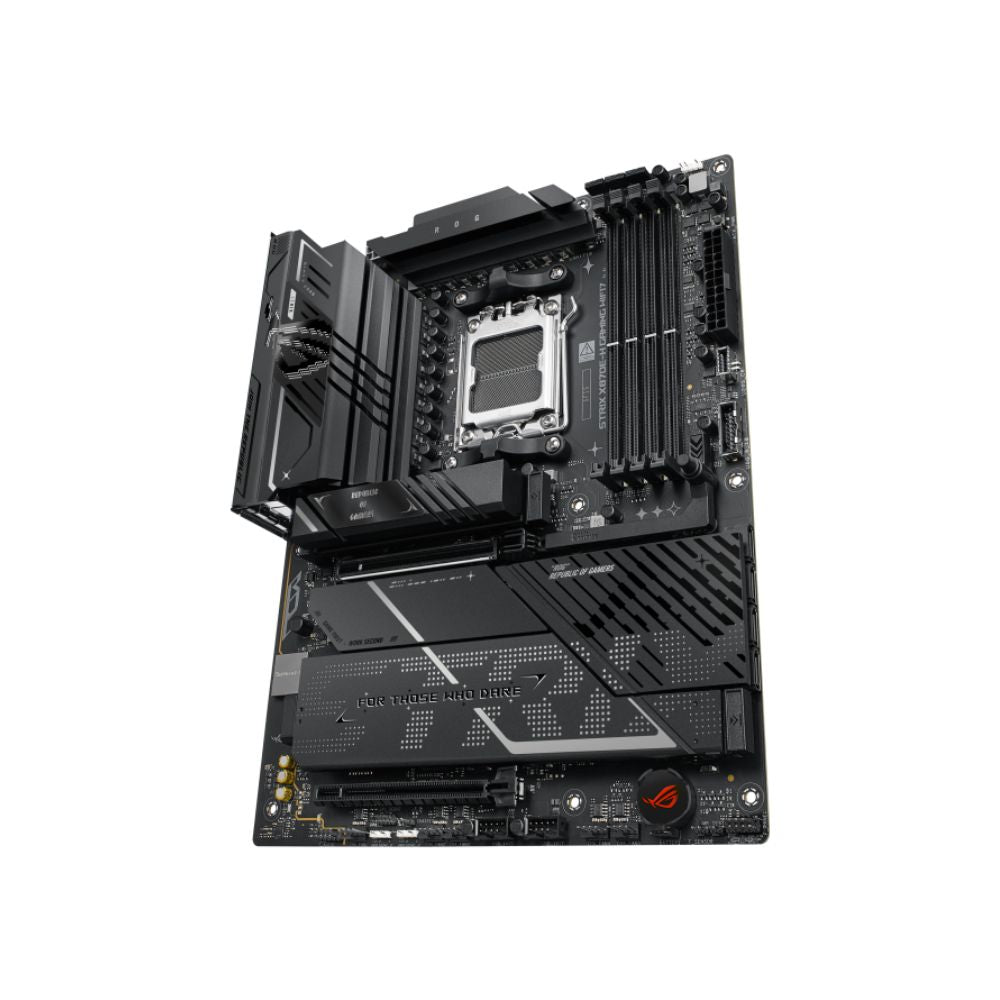

ASUS ROG STRIX X870E-H GAMING WIFI7 – Flagship X870E Motherboard

About the ASUS ROG STRIX X870E-H GAMING WIFI7

The ASUS ROG STRIX X870E-H GAMING WIFI 7 is built for enthusiasts who need flagship AMD platform features without compromise. This premium X870E motherboard supports Ryzen 9000, 8000, and 7000 series processors with enhanced connectivity that standard boards skip. You're getting dual USB4 ports, WiFi 7, and PCIe 5.0 expandability for future-proof builds. It's designed for competitive gamers and content creators who demand maximum bandwidth.

What This ASUS ROG STRIX X870E-H Does for You

This board solves the connectivity bottleneck most AM5 motherboards have. Dual USB4 40Gbps ports let you run external GPU enclosures or ultra-fast storage arrays without slowdowns. WiFi 7 tri-band wireless gives you low-latency gaming on 6GHz channels that WiFi 6E boards can't access. Four M.2 slots mean you can install multiple PCIe 5.0 NVMe drives for DirectStorage gaming without sacrificing SATA compatibility. The X870E chipset provides more PCIe lanes than standard X870, so you're not choosing between fast storage and expansion cards.

Connectivity That Most Boards Skip

What sets this motherboard apart is the dual USB4 implementation with DisplayPort 1.4a support. You can connect 4K 60Hz displays directly through USB-C while transferring data at 40Gbps simultaneously. The WiFi 7 adapter supports 160MHz bandwidth across three frequency bands for speeds up to 5.8Gbps. Realtek 5Gb Ethernet handles wired connections that go beyond standard gigabit. For audio, the ALC1220P codec with Savitech amplifier delivers 120dB SNR playback through premium Japanese capacitors.

Perfect For

• Ryzen 9950X and 9900X builds needing maximum platform features and high-end liquid cooling solutions
• Content creators who transfer large 4K/8K video files through USB4 external arrays
• Competitive gamers wanting WiFi 7 low-latency wireless for esports tournaments
• Multi-GPU setups requiring PCIe 5.0 bandwidth and extensive expandability

Why Buy from Mansa Computers

• 3-year Singapore warranty with ASUS service center support
• Fast WhatsApp inquiry response for BIOS and compatibility questions
• Open 7 days a week for technical support
• Home delivery available across Singapore

Technical Specifications Summary

Chipset
AMD X870E

CPU Support
AM5 (Ryzen 9000/8000/7000)

Memory
4× DDR5 up to 8000+ MT/s (OC), 256GB max

Expansion Slots
2× PCIe slots (1× 5.0 x16, 1× 4.0 x16)

Storage
4× M.2 (2× PCIe 5.0) + 4× SATA 6Gb/s

Networking
WiFi 7, Bluetooth 5.4, Realtek 5Gb LAN

USB Connectivity
2× USB4 40Gbps + 10× USB 10/5Gbps

Form Factor
ATX (30.5 × 24.4 cm)

The ASUS ROG STRIX X870E-H GAMING WIFI 7 delivers flagship connectivity features that future-proof your build. Order yours from Mansa Computers today with full Singapore warranty and same-day support.

Model
ROG STRIX X870E-H

CPU
AMD Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors

Chipset
AMD X870E

Memory
4 x DDR5 DIMM slots, up to 256GB
Supports up to 8000+MT/s (OC) with Ryzen™ 9000, 8000 & 7000 Series
Dual channel architecture
Supports EXPO™, DIMM Fit, DIMM Fit Pro, and ASUS Enhanced Memory Profile (AEMP)

Graphics
1 x HDMI™ port (4K@60Hz, HDMI 2.1)
2 x USB4® (40Gbps) Type-C® with DP 1.4a (4K@60Hz)

Expansion Slots
AMD Ryzen™ 9000 & 7000 Series: 1 x PCIe 5.0 x16 slot (x16 mode)
AMD Ryzen™ 8000 Series: 1 x PCIe 4.0 x16 slot (x8/x4 mode)
AMD X870E Chipset: 1 x PCIe 4.0 x16 slot (x4 mode)

Storage
4 x M.2 slots + 4 x SATA 6Gb/s
Ryzen™ 9000 & 7000: M.2_1 & M.2_2 (PCIe 5.0 x4)
Ryzen™ 8000: M.2_1 (PCIe 4.0 x4/x2), M.2_2 disabled
Chipset: M.2_3 & M.2_4 (PCIe 4.0 x4)

RAID Support
AMD RAIDXpert2 Technology
Ryzen™ 9000: RAID 0/1/5/10
Ryzen™ 8000: RAID 0/1
Ryzen™ 7000: RAID 0/1/10

Ethernet
Realtek 5Gb Ethernet with ASUS LANGuard

Wireless & Bluetooth
Wi-Fi 7 (Realtek® RTL8922AE), 2x2 (802.11be), 2.4/5/6GHz bands, 160MHz bandwidth
Bluetooth® v5.4

USB
Rear I/O: 2 x USB4® (40Gbps) Type-C®, 4 x USB 10Gbps (3 x Type-A + 1 x Type-C® up to 30W PD), 6 x USB 5Gbps (Type-A), 2 x USB 2.0 (Type-A)
Front I/O: 1 x USB 20Gbps Type-C®, 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports)

Audio
Realtek ALC1220P 7.1 Surround Sound HD Audio CODEC
Impedance sense for front/rear outputs, internal amplifier
Supports jack-detection, multi-streaming, front panel retasking
120 dB SNR playback / 113 dB SNR recording
SupremeFX Shielding, Savitech SV3H712 AMP, premium capacitors, optical S/PDIF out

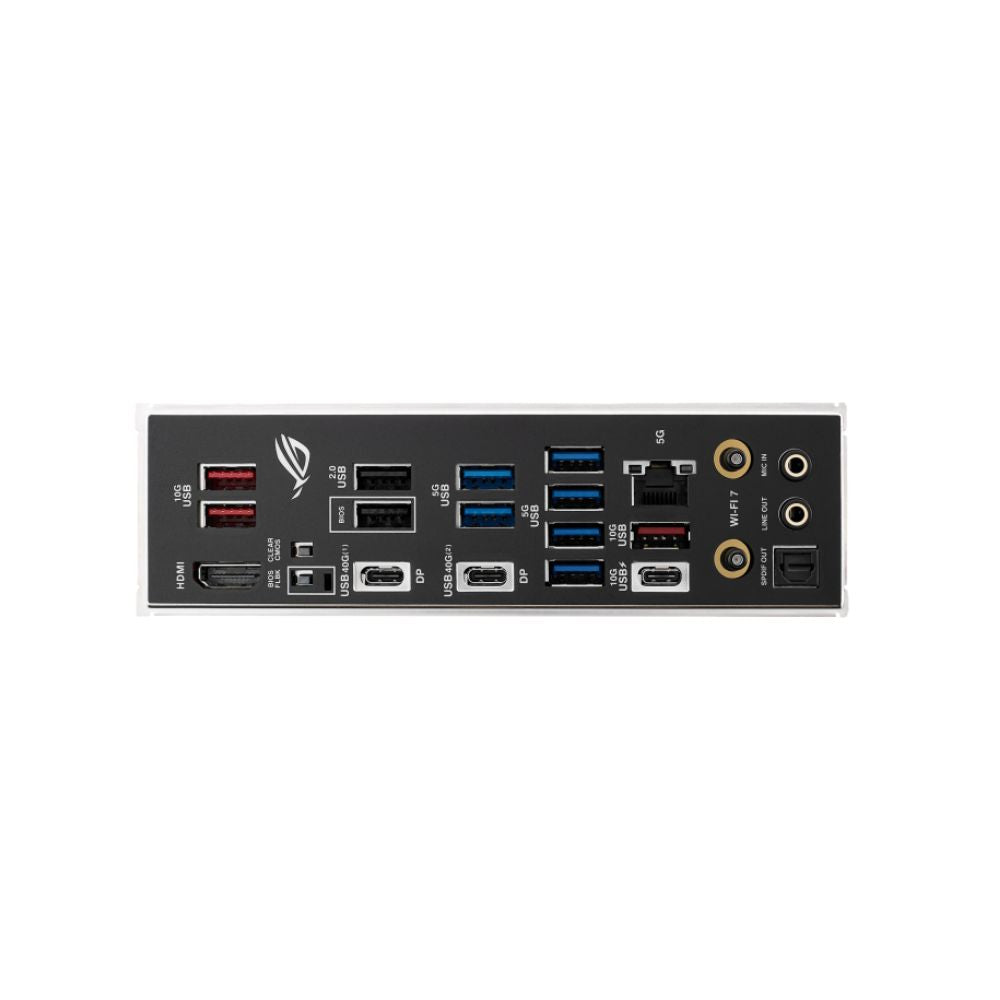

Back Panel I/O
2 x USB4® Type-C®, 4 x USB 10Gbps (3 x Type-A + 1 x Type-C® up to 30W PD), 6 x USB 5Gbps (Type-A), 2 x USB 2.0 (Type-A)
1 x HDMI™, 1 x Wi-Fi module, 1 x 5Gb Ethernet, 2 x Audio jacks, 1 x Optical S/PDIF, 1 x BIOS FlashBack™, 1 x Clear CMOS

Internal I/O
1 x 24-pin ATX + 2 x 8-pin CPU power
1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 5 x Chassis Fans
4 x M.2, 4 x SATA
1 x USB 20Gbps Type-C®, 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports)
3 x ARGB Gen2, 1 x Thermal Sensor, 1 x Start button

Special Features
Extreme Engine Digi+ with 5K Black metallic capacitors
ASUS Q-Design: M.2 Q-Latch, Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot
ASUS Thermal Solution: VRM and M.2 heatsinks
ASUS EZ DIY: BIOS FlashBack™, Clear CMOS, ProCool II, SafeSlot, SafeDIMM
Aura Sync: Addressable RGB Gen2 headers

Software
ROG CPU-Z, Dolby Atmos, Armoury Crate, Aura Creator, Aura Sync, Fan Xpert 4 (AI Cooling II), GameFirst, AI Advisor, DriverHub, AIDA64 (Trial), HWiNFO, GlideX, USB Wattage Watcher, TurboV Core, Adobe Creative Cloud (Trial), Norton 360 for Gamers (Trial), WinRAR (Trial)

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
WiFi Q-Antenna, 2 x SATA 6Gb/s cables, Cable ties, M.2 Q-Latch pack, ROG keychain, Stickers, Quick Start Guide

Operating System
Windows 11

Form Factor
ATX (30.5 cm x 24.4 cm)

3 YEARS WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave, #03-03,
Singapore 339416
Contact: 6341 7839

Ban Leong Technologies Ltd
150, #04-01 Ubi Ave 4, Ubi Biz-Hub,
Singapore 408825
Contact: 6512 9250

Frequently Asked Questions About ASUS ROG STRIX X870E-H GAMING WIFI7

Does this motherboard support PCIe 5.0 for both GPU and storage?

Yes, the primary PCIe x16 slot runs at 5.0 speeds with Ryzen 9000 and 7000 CPUs. The first two M.2 slots also support PCIe 5.0 NVMe drives for maximum storage bandwidth.

Can I use WiFi 7 with my current Windows 10 installation?

WiFi 7 requires Windows 11 24H2 or later to function properly. You can still use the board with Windows 10, but WiFi will operate at WiFi 6E speeds until you upgrade.

Will this board work with my Ryzen 7 7800X3D processor?

Absolutely. This X870E board supports all AM5 processors including Ryzen 7000, 8000, and 9000 series CPUs. Your 7800X3D will run perfectly with full feature support.

What warranty coverage do I get buying from Mansa Computers?

You receive 3-year ASUS Singapore warranty with service center support. Contact us via WhatsApp for fast responses on claims, and we're open 7 days a week for support.

How does this compare to cheaper X870 non-E boards?

The X870E chipset provides more PCIe 4.0 lanes, dual USB4 ports, and WiFi 7 that standard X870 boards lack. You're paying for flagship connectivity and future expandability.

How long will it take to receive my purchase?

Standard Shipping - 3 to 5 days
Express Shipping - 1 to 2 days

Can I opt for store pickup?

Yes, we are open daily for collection from 11 AM - 6.30 PM.

Address: 1 Ubi View #01-22, Focus One Building Singapore 408555 (Door located nearest to carpark exit gantry)

We will contact you once your order is ready for collection!
