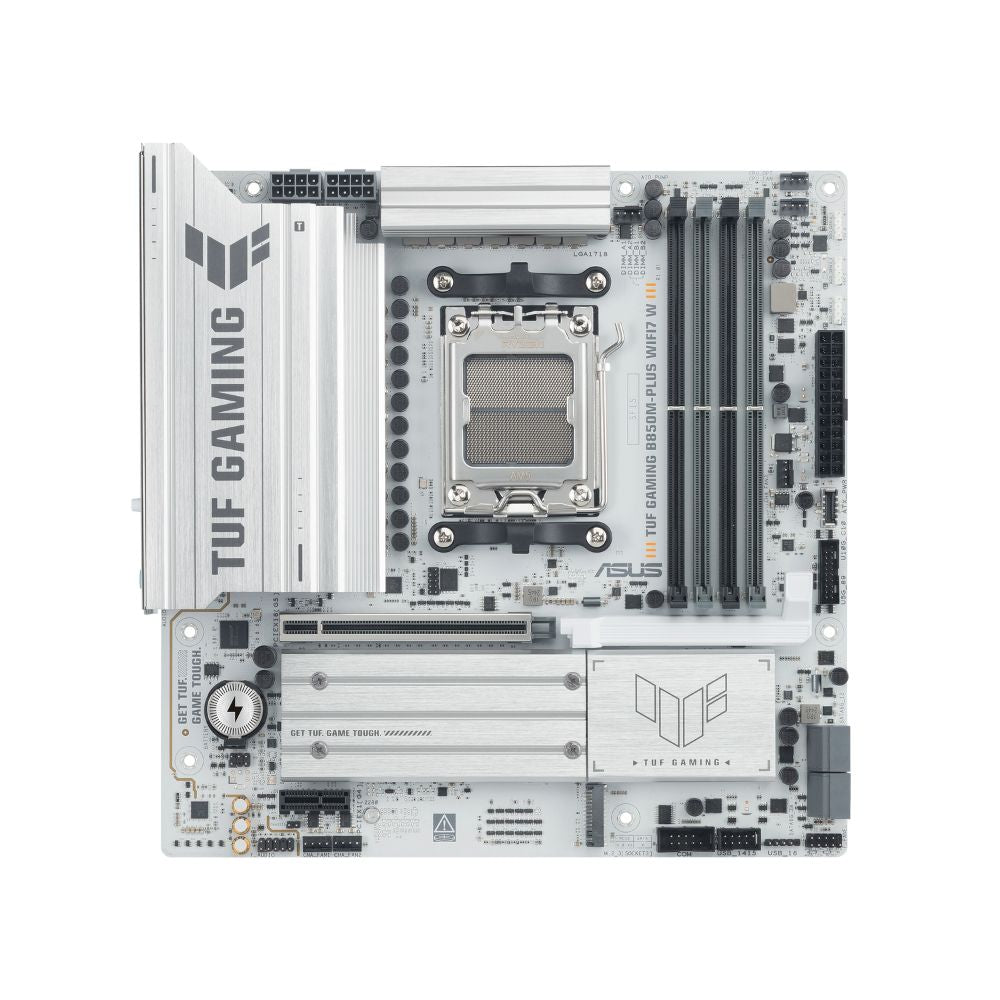

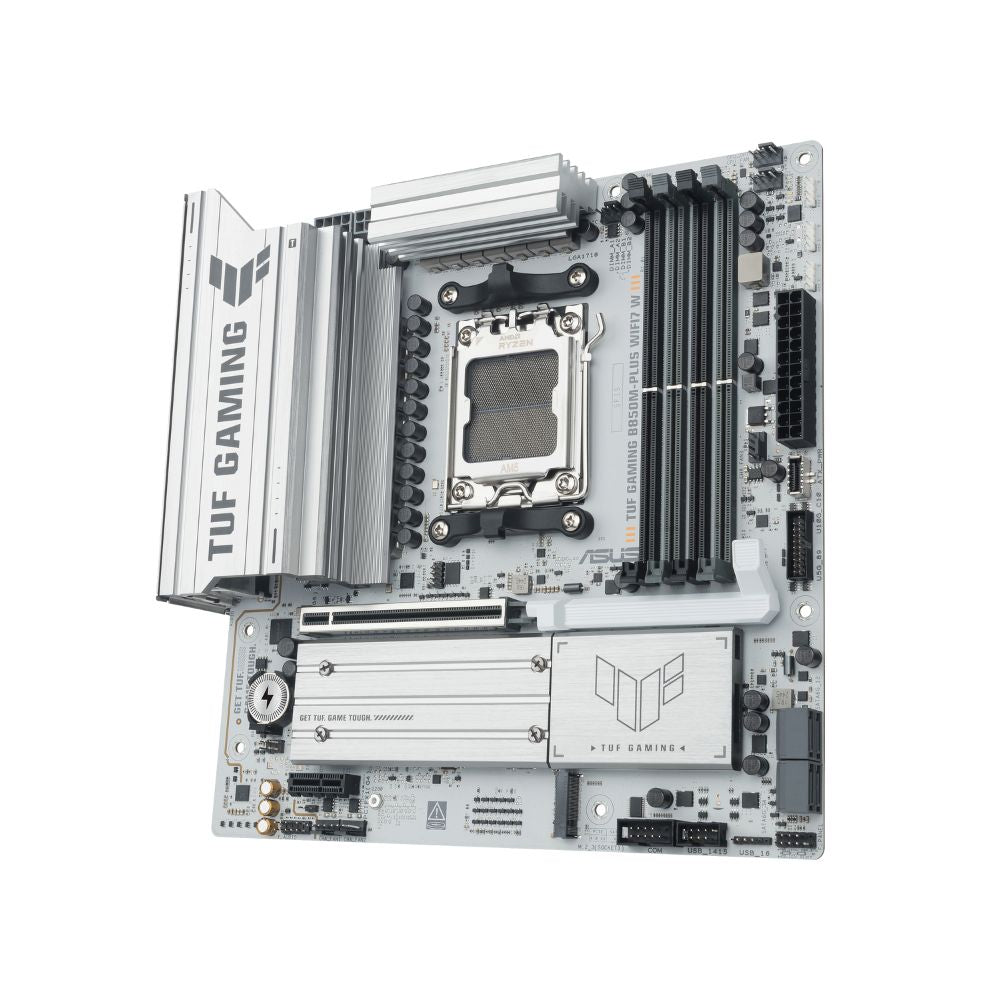

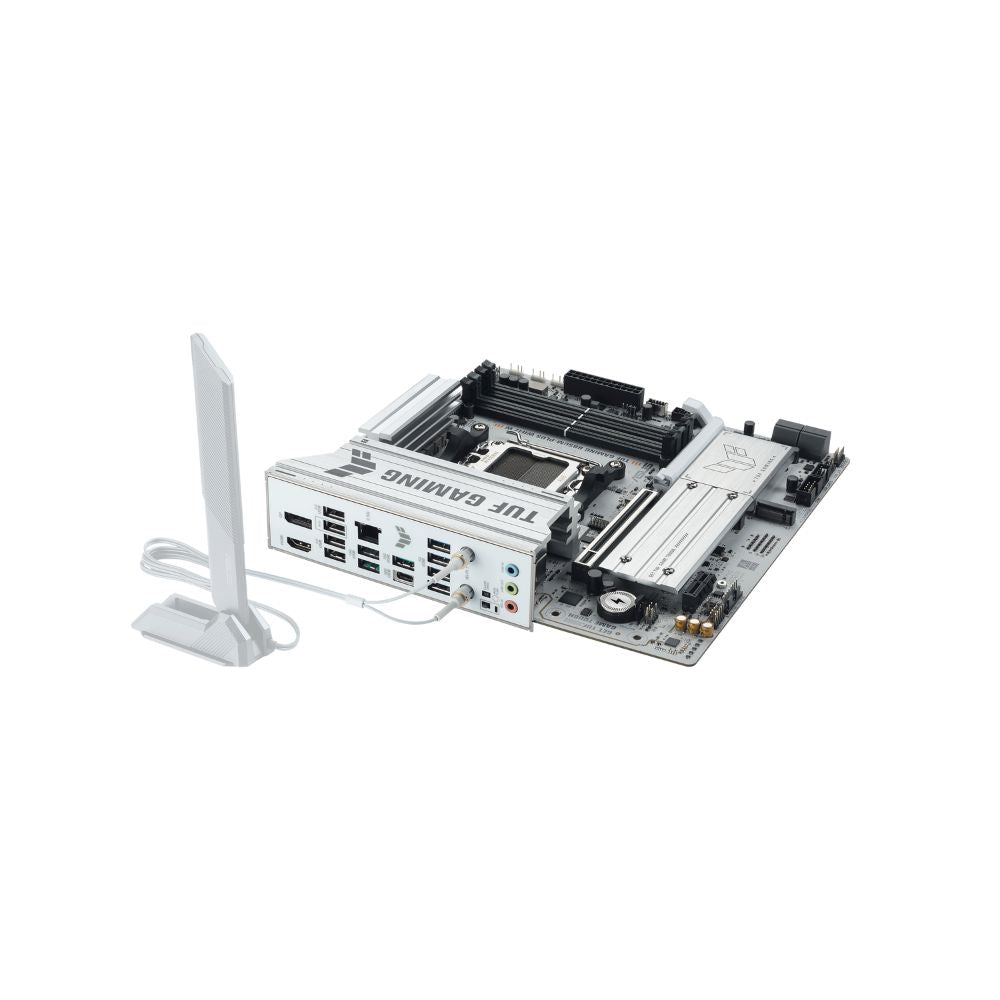

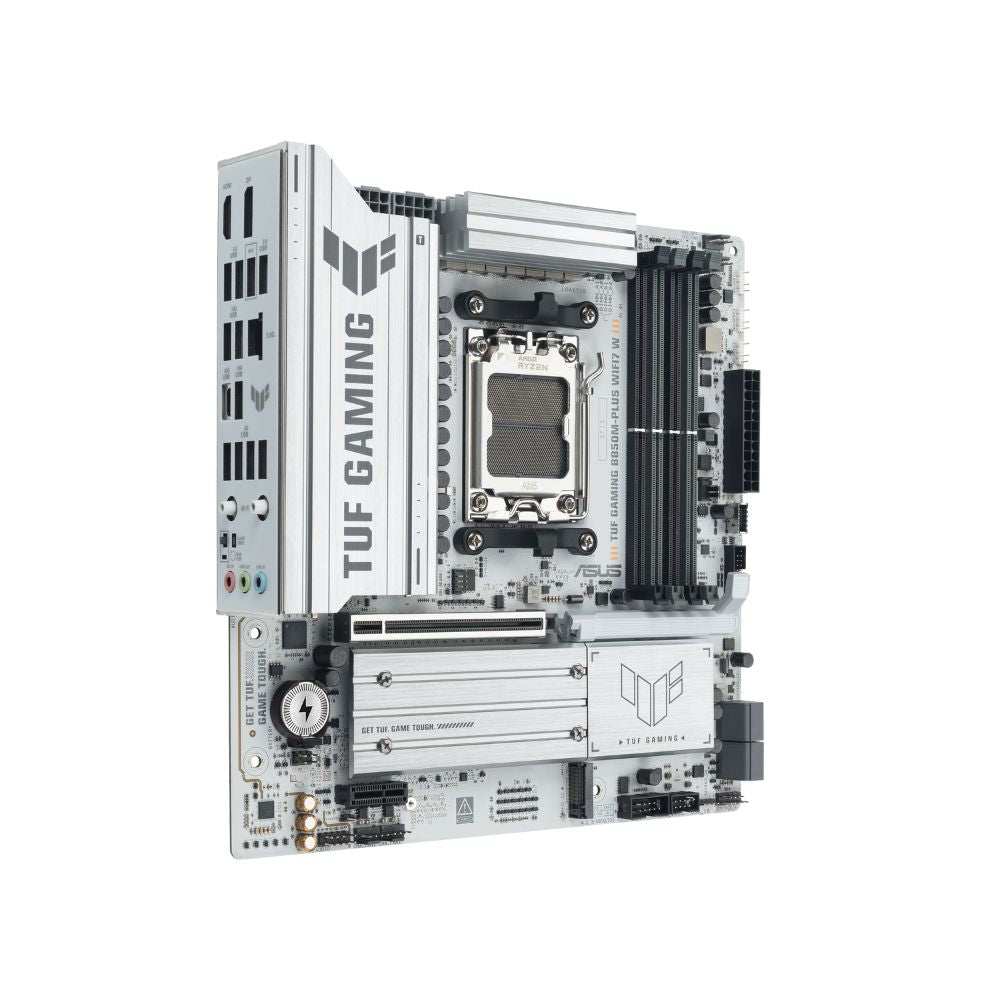

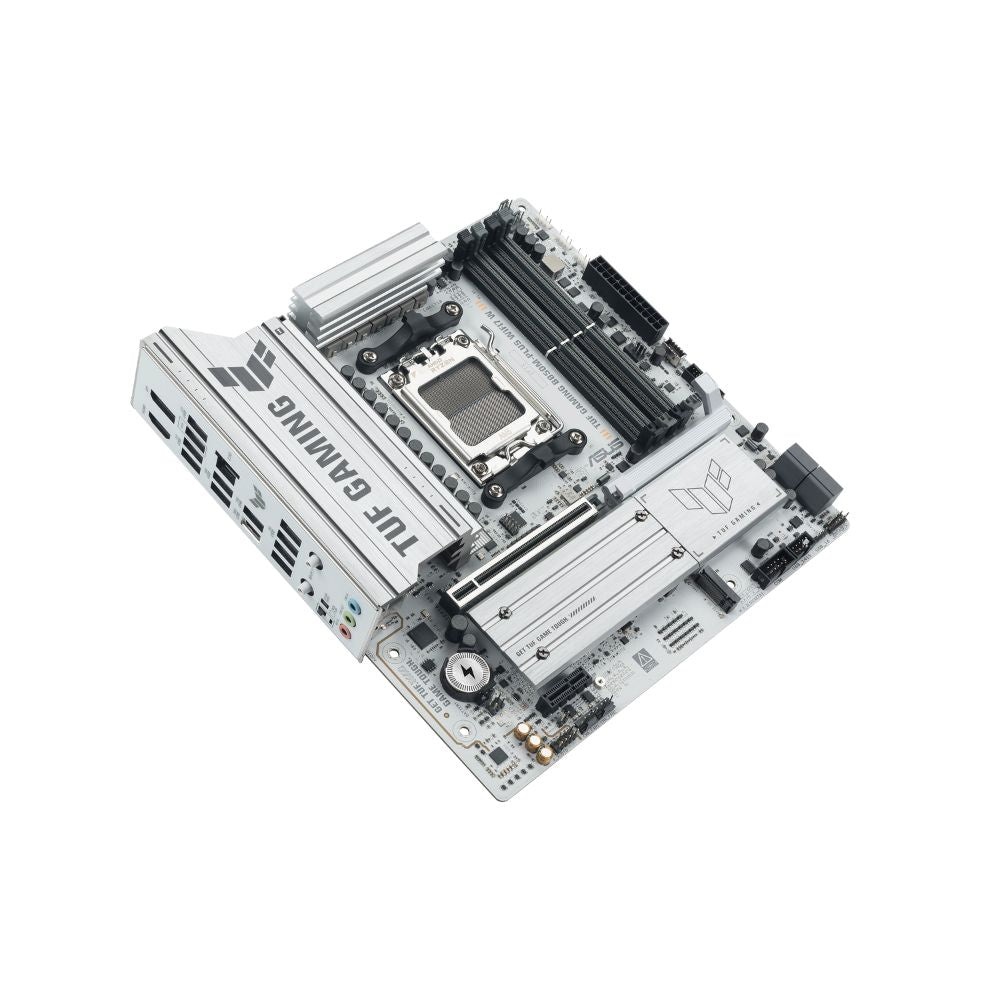

ASUS TUF GAMING B850M-PLUS WiFi – B850 Micro-ATX Motherboard

About the ASUS TUF Gaming B850M-Plus WiFi

The ASUS TUF Gaming B850M-Plus WiFi is a micro-ATX motherboard designed for AMD Ryzen 9000, 8000, and 7000 series processors. It delivers modern connectivity like WiFi 7 and PCIe 5.0 support (with Ryzen 9000/7000 CPUs) at a reasonable price. The TUF Gaming series focuses on reliable components and beginner-friendly installation, making it suitable for first-time builders and compact system enthusiasts.

What This B850M-Plus Does for You

This board handles gaming, streaming, and productivity without bottlenecks. WiFi 7 delivers faster wireless speeds than WiFi 6E, useful when ethernet cables aren't practical. With Ryzen 9000 or 7000 CPUs, you get PCIe 5.0 on the main GPU slot and M.2_1 slot for future graphics cards and SSDs. The Realtek ALC1220P audio codec offers better sound than typical budget boards, with a dedicated headphone amplifier. Q-Design features like M.2 Q-Latch and Q-DIMM eliminate screwdrivers during installation.

Build Quality and Features

The TUF Gaming series emphasizes durability over flashy aesthetics. You get DIGI+ VRM for stable CPU power delivery, TUF LANGuard for network protection, and SafeSlot reinforcement for your graphics card. The white PCB matches modern clean build themes. Three M.2 slots and four SATA ports provide storage configuration flexibility. Realtek 2.5Gb ethernet handles fast wired connections, and the pre-mounted I/O shield saves installation hassle.

Perfect For

• Mid-range Ryzen 7 7700X or Ryzen 5 9600X gaming builds needing reliable AM5 motherboards
• Compact micro-ATX builds where space efficiency matters
• First-time PC builders wanting tool-less installation convenience
• Work-from-home setups requiring WiFi 7 for video conferencing and file transfers

Why Buy from Mansa Computers

• 3-year Singapore warranty with ASUS service support
• Fast WhatsApp inquiry response for compatibility questions
• Open 7 days a week for support
• Home delivery available

Technical Specifications Summary

Chipset
AMD B850

CPU Support
AM5 (Ryzen 9000/8000/7000)

Memory
4x DDR5, up to 256GB, 8000+MT/s OC

PCIe Slot
1x PCIe 5.0 x16 (Ryzen 9000/7000 only)

Storage
3x M.2 slots, 4x SATA 6Gb/s

Wireless
WiFi 7 (802.11be), Bluetooth 5.4

Networking
Realtek 2.5Gb Ethernet

Audio
Realtek ALC1220P 7.1 surround

Form Factor
Micro-ATX (24.4cm x 24.4cm)

Ready to build your AMD Ryzen system with the ASUS TUF Gaming B850M-Plus WiFi? Order now or WhatsApp us for compatibility checks before purchasing.

Model
TUF GAMING B850M-PLUS WIFI7 W

CPU
AMD Socket AM5 for AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

Chipset
AMD B850

Memory
4 x DDR5 DIMM slots, up to 256GB
Supports up to 8000+MT/s (OC) with Ryzen™ 9000 / 8000 / 7000 Series
Dual channel architecture, ECC & Non-ECC un-buffered DIMM
Supports EXPO™ and ASUS Enhanced Memory Profile (AEMP)

Graphics
1 x DisplayPort (max 8K@30Hz, DP 1.4)
1 x HDMI™ port (4K@60Hz, HDMI 2.1)

Expansion Slots
Ryzen™ 9000 & 7000 Series
1 x PCIe 5.0 x16 slot (x16 mode)
Ryzen™ 8000 Series
1 x PCIe 4.0 x16 slot (x8/x4 mode)
AMD B850 Chipset
1 x PCIe 4.0 x1 slot

Storage
3 x M.2 slots + 4 x SATA 6Gb/s
Ryzen™ 9000 & 7000 Series
M.2_1: PCIe 5.0 x4
M.2_2: PCIe 4.0 x4
Ryzen™ 8000 Series
M.2_1: PCIe 4.0 x4
M.2_2: PCIe 4.0 x4/x2
AMD B850 Chipset
M.2_3: PCIe 4.0 x4
RAIDXpert2 Technology
Ryzen™ 9000: RAID 0/1/5/10
Ryzen™ 8000: RAID 0/1
Ryzen™ 7000: RAID 0/1/10

Ethernet
1 x Realtek 2.5Gb Ethernet (TUF LANGuard)

Wireless & Bluetooth
Wi-Fi 7 (MediaTek MT7925), 2x2
Supports 2.4/5/6GHz frequency bands
Supports Wi-Fi 7 160MHz bandwidth
Bluetooth® v5.4

USB
Rear I/O (12 ports)
1 x USB 20Gbps (Type-C®)
3 x USB 10Gbps (Type-A)
4 x USB 5Gbps (Type-A)
4 x USB 2.0 (Type-A)
Front I/O (6 ports)
1 x USB 10Gbps (Type-C®)
1 x USB 5Gbps header (2 ports)
2 x USB 2.0 headers (3 ports)

Audio
Realtek ALC1220P 7.1 Surround Sound HD Audio CODEC
Impedance sensing for front and rear headphone outputs
Built-in amplifier for high-quality output
Jack detection, Multi-streaming, Front Panel Jack retasking
120 dB SNR playback / 113 dB recording
Supports up to 32-bit/192kHz playback
Audio Shielding
Premium capacitors
Dedicated audio PCB layers
De-pop circuit

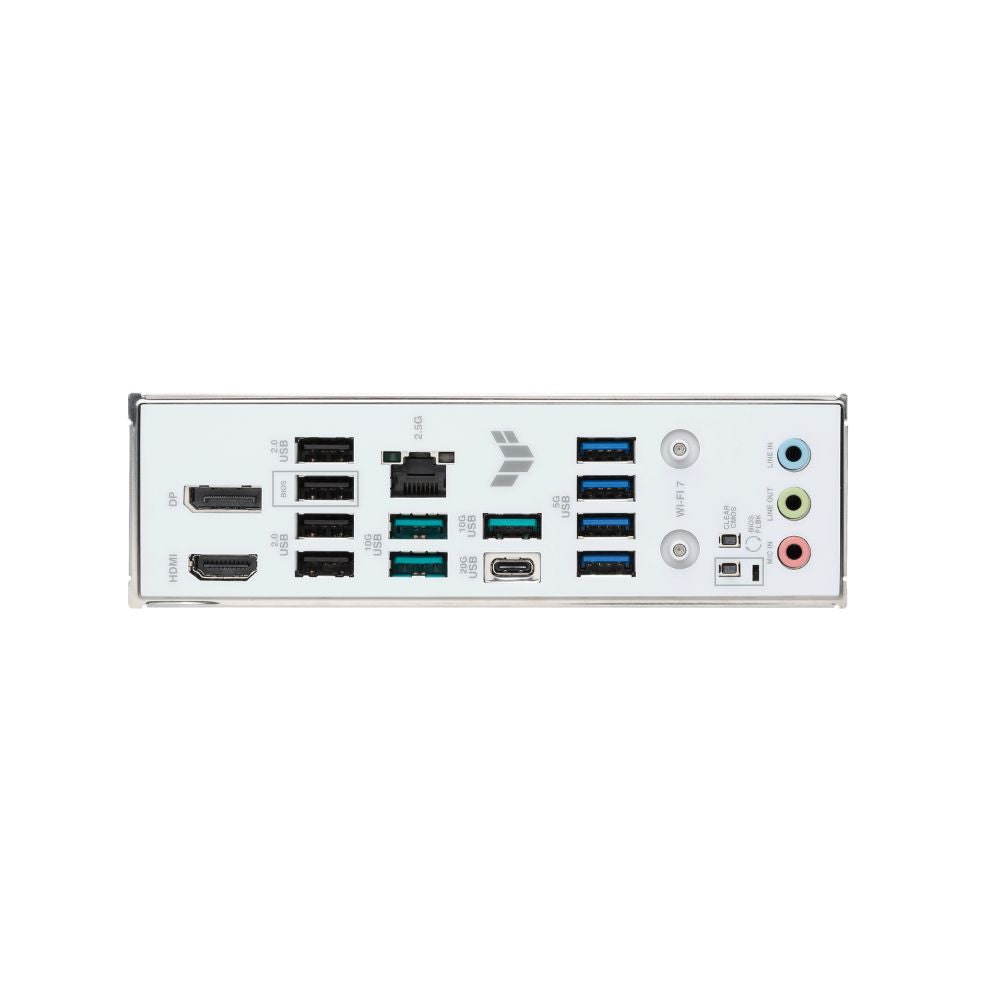

Back Panel I/O
1 x USB 20Gbps (Type-C®)
3 x USB 10Gbps (Type-A)
4 x USB 5Gbps (Type-A)
4 x USB 2.0 (Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack™ button
1 x Clear CMOS button

Internal I/O
Cooling: 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 3 x Chassis Fan
Power: 1 x 24-pin ATX, 2 x 8-pin CPU
Storage: 3 x M.2, 4 x SATA
USB: 1 x USB 10Gbps (Type-C®), 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (3 ports)
Misc: 3 x ARGB Gen2, 1 x COM, 1 x Chassis Intrusion, 1 x Front Audio, 1 x Front Panel header

Special Features
TUF Protection: DIGI+ VRM, ESD Guards, LANGuard, Overvoltage Protection, SafeSlot, Stainless-steel I/O
Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-DIMM, Q-LED
Thermal: M.2 and VRM heatsink
EZ DIY: BIOS FlashBack™, ProCool, Pre-mounted I/O, SafeDIMM
Aura Sync: Addressable RGB Gen 2 headers

Software Features
Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+)
AI Advisor, DriverHub, GlideX, TurboV Core, DTS Audio Processing, Adobe Creative Cloud (Trial), Norton 360 (Trial), WinRAR (Trial)
UEFI BIOS:EZ Flash 3, CrashFree BIOS 3, EZ Mode, MyHotkey

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

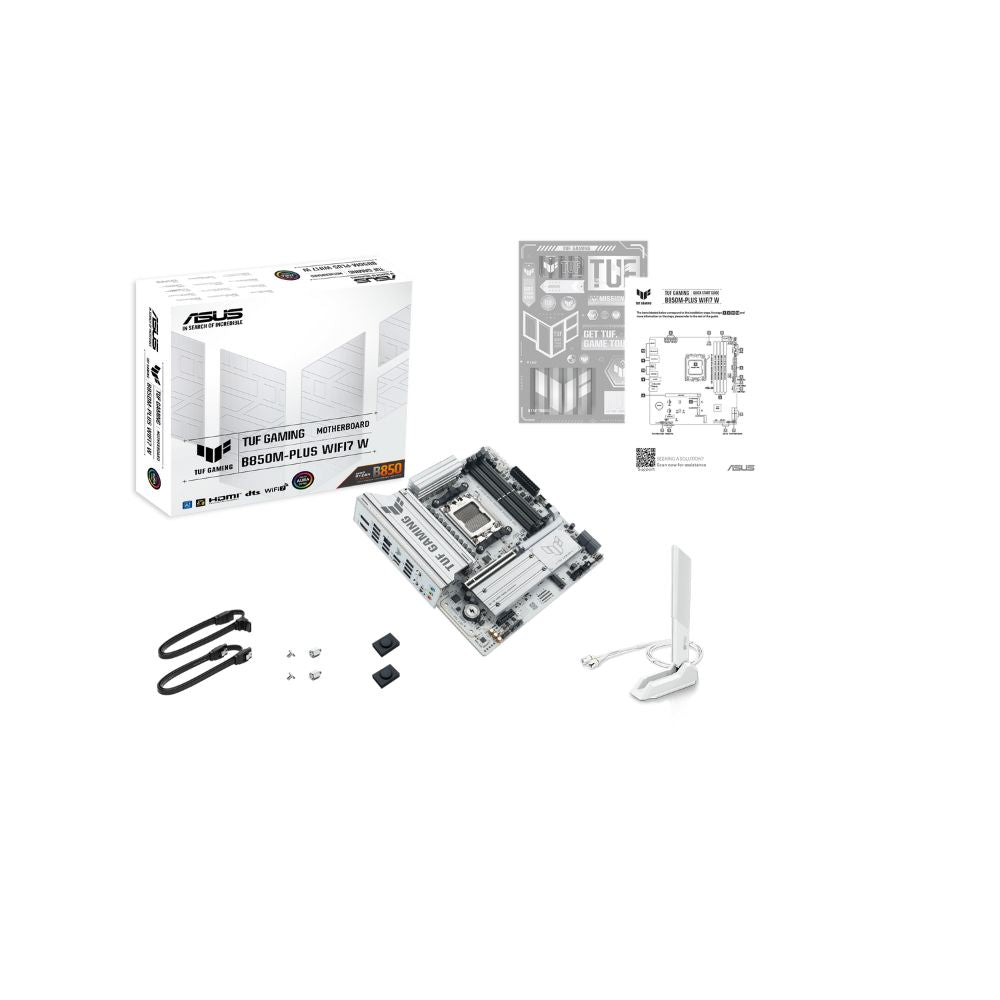

Accessories
2 x SATA 6Gb/s Cables
1 x Wi-Fi Q-Antenna
1 x TUF Gaming Sticker
1 x M.2 Rubber Package
1 x M.2 Screw Package
1 x Quick Start Guide

Operating System
Windows 11

Form Factor
micro-ATX (24.4 x 24.4 cm)

3 YEARS WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave, #03-03,
Singapore 339416
Contact: 6341 7839

Ban Leong Technologies Ltd
150, #04-01 Ubi Ave 4, Ubi Biz-Hub,
Singapore 408825
Contact: 6512 9250

Frequently Asked Questions About ASUS TUF Gaming B850M-Plus WiFi

Does this motherboard support all Ryzen AM5 processors?

Yes, it supports Ryzen 9000, 8000, and 7000 series CPUs. Note that PCIe 5.0 support requires Ryzen 9000 or 7000 processors—Ryzen 8000 CPUs run at PCIe 4.0 speeds.

Can I use this board for gaming and streaming simultaneously?

Absolutely. The B850M-Plus handles gaming, streaming, and recording together. WiFi 7 provides excellent wireless bandwidth for both gaming and upload streams.

What RAM speed works best with this motherboard?

DDR5-6000 is the sweet spot for Ryzen 7000/9000 CPUs. The board supports up to DDR5-8000+ with overclocking, but 6000MT/s offers optimal performance per dollar.

What's covered under the 3-year warranty?

You get 3 years of ASUS service center support in Singapore. If the board fails, ASUS handles replacement. WhatsApp us for help with warranty claims.

How does this compare to X870 motherboards?

X870 boards offer more USB ports and PCIe lanes but cost SGD 100-200 more. This B850M-Plus provides essential features—WiFi 7, PCIe 5.0, DDR5—at better value.
