ASUS TUF GAMING B650E-PLUS WIFI – PCIe 5.0 Gaming Motherboard

SKU: B650E-PLUS

CPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series (AM5)

Memory: 4× DDR5 slots, up to 256GB, up to 8000+ MT/s (OC)

Storage: 3× M.2 (PCIe 5.0 / 4.0 depending on CPU & slot) + 4× SATA 6Gb/s

Networking: Wi-Fi 6E + Bluetooth 5.3 + Realtek 2.5Gb LAN

Rear USB: 1× USB-C 20Gbps, 3× USB-A 10Gbps, 6× USB 2.0

Display Output: HDMI 2.1 + DisplayPort 1.4

The ASUS TUF GAMING B650E-PLUS WIFI brings PCIe 5.0 capability to B650 chipset builds with AMD Ryzen processors.

You get PCIe 5.0 support on the primary GPU slot and first M.2 slot for future-proof component upgrades. WiFi 6E with 6GHz band comes built-in, eliminating the need for separate wireless adapters. Backed by 3-year ASUS Singapore warranty with local service center support and open 7 days assistance from Mansa Computers.

Why Choose This ASUS TUF GAMING B650E-PLUS WIFI

  • PCIe 5.0 x16 slot and PCIe 5.0 M.2 storage ready for next-gen GPUs and fastest NVMe drives. Perfect for high-performance gaming builds.
  • Three M.2 slots plus four SATA ports give you flexible storage expansion. Run multiple fast drives with DDR5 memory for smooth gaming.
  • WiFi 6E with 6GHz band saves you SGD 50-80 on separate wireless cards. Premium Realtek ALC1220P audio delivers 7.1 surround sound without external DACs.
  • 3-year Singapore warranty with ASUS service center support. Fast WhatsApp inquiry response from Mansa Computers. We're open 7 days a week for build assistance.
✓ Why Buy This

3 Years Warranty

M.2 Storage

Wi-Fi 6E Connectivity

Overview

About the TUF GAMING B650E-PLUS WIFI

The TUF GAMING B650E-PLUS WIFI is built for PC builders who want flagship PCIe 5.0 features on the B650 chipset platform. This ATX gaming motherboard supports AMD Ryzen 9000, 8000, and 7000 series processors on the AM5 socket. You get PCIe 5.0 support for both the primary graphics card slot and first M.2 storage slot when using Ryzen 9000 or 7000 series CPUs. WiFi 6E with 6GHz band support comes built-in, saving you from buying separate wireless adapters.

What This ASUS TUF GAMING B650E-PLUS WIFI Does for You

This motherboard gives you three M.2 slots for fast NVMe storage expansion plus four SATA 6Gb/s ports for additional drives. DDR5 memory support reaches up to 8000MT/s with overclocking using AMD EXPO profiles or ASUS Enhanced Memory Profile. The premium Realtek ALC1220P audio codec delivers 7.1 surround sound with 120dB SNR for immersive gaming without external sound cards. Ten USB ports on the rear panel include one USB 20Gbps Type-C port for fast data transfers. TUF LANGuard protects the Realtek 2.5Gb Ethernet from power surges and static electricity.

PCIe 5.0 Connectivity

The B650E chipset provides PCIe 5.0 support on the primary x16 slot and first M.2 slot when using Ryzen 9000 or 7000 series processors. This means you're ready for PCIe 5.0 graphics cards and ultra-fast PCIe 5.0 NVMe drives when you upgrade. Note that Ryzen 8000 series processors only support PCIe 4.0 speeds due to CPU limitations. ASUS Q-Design features like M.2 Q-Latch, PCIe Slot Q-Release, and Q-DIMM make installation easier without needing screwdrivers. The pre-mounted I/O shield and SafeSlot reinforcement protect your components during installation.

Perfect For

  • Mid-range gaming PC builds with Ryzen 7000 or 9000 series processors needing ATX cases with good airflow
  • Content creators who need multiple fast M.2 drives for video editing workstations
  • First-time PC builders wanting future-proof features with easy installation tools
  • Gamers upgrading from older platforms to DDR5 and PCIe 5.0 technology

Why Buy from Mansa Computers

  • 3-year Singapore warranty with ASUS service center support
  • Fast WhatsApp inquiry response for compatibility questions
  • Open 7 days a week for support and troubleshooting
  • Home delivery available across Singapore

Technical Specifications Summary

Chipset
AMD B650

Socket
AM5 (Ryzen 9000/8000/7000)

Memory
4x DDR5 DIMM, up to 256GB, 8000MT/s OC

PCIe Slots
1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 2x PCIe 4.0 x1

Storage
3x M.2 slots (1x PCIe 5.0), 4x SATA 6Gb/s

Networking
WiFi 6E, Bluetooth 5.3, 2.5Gb Ethernet

Audio
Realtek ALC1220P 7.1 Surround

Form Factor
ATX (30.5cm x 24.4cm)

Order your TUF GAMING B650E-PLUS WIFI today from Mansa Computers for fast delivery across Singapore. Get genuine ASUS warranty with local service center support for peace of mind.

Full Specifications

Model
TUF GAMING B650E-PLUS WIFI

CPU
AMD Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors

Chipset
AMD B650

Memory
4 x DIMM slots, up to 256GB DDR5
Supports up to 8000+MT/s (OC) with Ryzen™ 9000 / 8000 / 7000 Series
ECC & Non-ECC, Un-buffered DIMM
Dual channel architecture
Supports EXPO™ & AEMP

Graphics
1 x DisplayPort
1 x HDMI™ port

Expansion Slots
Ryzen™ 9000 & 7000 Series: 1 x PCIe 5.0 x16 (x16 mode)
Ryzen™ 8000 Series: 1 x PCIe 4.0 x16 (x8/x4 mode)
B650 Chipset: 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 4.0 x1

Storage
3 x M.2 + 4 x SATA 6Gb/s
Ryzen™ 9000 & 7000 Series:
M.2_1 (PCIe 5.0 x4), M.2_2 (PCIe 4.0 x4)
Ryzen™ 8000 Series:
M.2_1 (PCIe 4.0 x4), M.2_2 (PCIe 4.0 x4/x2)
B650 Chipset: M.2_3 (PCIe 4.0 x4)
4 x SATA 6Gb/s
PCIEX16(G4) shares bandwidth with M.2_3; slot disabled when active.
RAIDXpert2 Technology:
Ryzen™ 9000: RAID 0/1/5/10
Ryzen™ 8000: RAID 0/1
Ryzen™ 7000: RAID 0/1/10

Ethernet
Realtek 2.5Gb Ethernet with TUF LANGuard

Wireless & Bluetooth
Wi-Fi 6E (2x2, 802.11ax), supports 2.4/5/6GHz
Bluetooth® v5.3

USB
Rear I/O (10 ports): 1 x USB 20Gbps (Type-C®), 3 x USB 10Gbps (Type-A), 6 x USB 2.0 (Type-A)
Front I/O (7 ports): 1 x USB 10Gbps (Type-C®), 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports)

Audio
Realtek ALC1220P 7.1 Surround Sound HD Audio CODEC:
Impedance sensing for headphone outputs
Internal amplifier for enhanced clarity
Jack detection, Multi-streaming, Front Panel retasking
120 dB SNR playback / 113 dB SNR recording
Supports up to 32-bit/192kHz playback
Audio Features:
Audio Shielding, Premium capacitors, Dedicated PCB layers, Audio cover, De-pop circuit
32-bit/192kHz not supported for 7.1 Surround due to HDA limits.

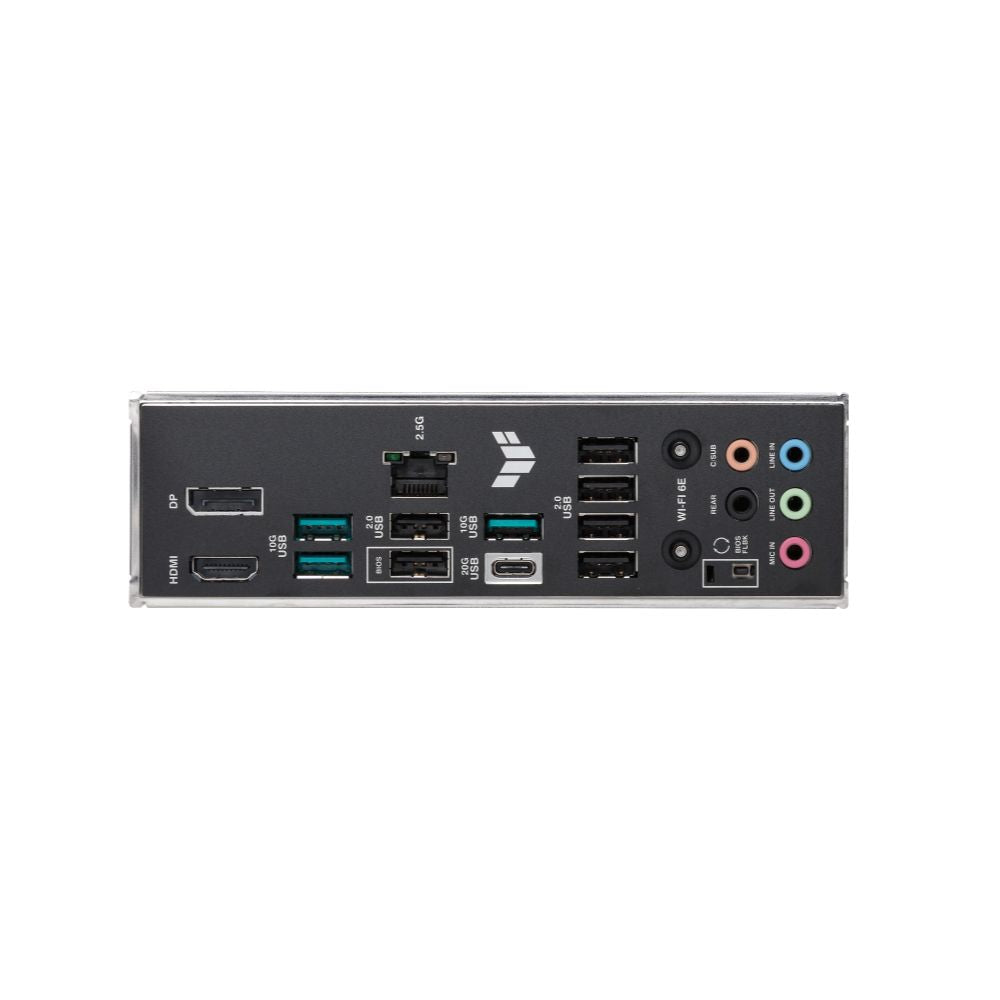

Back Panel I/O
1 x USB 20Gbps (Type-C®), 3 x USB 10Gbps (Type-A), 6 x USB 2.0 (Type-A)
1 x DisplayPort, 1 x HDMI™, 1 x Wi-Fi module, 1 x 2.5Gb LAN
5 x Audio jacks, 1 x BIOS FlashBack™ button

Internal I/O
Cooling: 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 4 x Chassis Fan
Power: 1 x 24-pin ATX, 2 x 8-pin CPU
Storage: 3 x M.2, 4 x SATA
USB: 1 x USB 10Gbps (Type-C®), 1 x USB 5Gbps (2 ports), 2 x USB 2.0 (4 ports)
Misc: 3 x ARGB Gen 2, 1 x Clear CMOS, 1 x COM, 1 x Front Audio, 1 x Front Panel, 1 x Thunderbolt™ (USB4®)

Special Features
TUF Protection: DIGI+ VRM, ESD Guards, LANGuard, Overvoltage Protection, SafeSlot, Stainless-steel I/O
Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-DIMM, Q-LED
Thermal Solution: M.2 and VRM heatsinks
EZ DIY: BIOS FlashBack™, ProCool, Pre-mounted I/O, SafeDIMM
Aura Sync: Addressable RGB Gen 2 headers

Software Features
ASUS Software: Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4, AI Noise Cancelation), AI Suite 3, DriverHub, CPU-Z, DTS Audio Processing, Adobe Creative Cloud (Trial), Norton 360 (Trial), WinRAR (Trial)
UEFI BIOS: EZ Flash 3, CrashFree BIOS 3, EZ Mode

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
Cables: 2 x SATA 6Gb/s
Misc: 1 x Wi-Fi Q-Antenna, 1 x TUF Sticker, 2 x M.2 Rubber Packages
Documentation: 1 x Quick Start Guide

Operating System
Windows 11, Windows 10 64-bit

Form Factor
ATX (30.5 x 24.4 cm)

Warranty

3 YEARS WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave, #03-03,
Singapore 339416
Contact: 6341 7839

Ban Leong Technologies Ltd
150, #04-01 Ubi Ave 4, Ubi Biz-Hub,
Singapore 408825
Contact: 6512 9250

FAQs

Frequently Asked Questions About ASUS TUF GAMING B650E-PLUS WIFI

Does this motherboard support PCIe 5.0 for both GPU and storage?

Yes, when using Ryzen 9000 or 7000 series processors, you get PCIe 5.0 on the primary x16 slot and first M.2 slot. Ryzen 8000 series processors only support PCIe 4.0 speeds due to CPU architecture limitations.

What RAM speed can I run on the ASUS TUF GAMING B650E-PLUS WIFI?

This board supports DDR5 memory up to 8000MT/s with overclocking using AMD EXPO profiles. Four DIMM slots support up to 256GB total capacity in dual-channel configuration.

Will my existing AM4 cooler fit this AM5 motherboard?

Yes, AM5 socket uses the same cooler mounting pattern as AM4. Your existing AMD coolers work without needing new brackets or adapters.

What warranty coverage do I get buying from Mansa Computers?

You get 3-year ASUS Singapore warranty with local service center support. We're open 7 days a week for support, and you can WhatsApp us directly for fast responses.

How does this B650E compare to standard B650 motherboards?

The "E" designation means PCIe 5.0 support on GPU and storage slots when using compatible CPUs. Standard B650 boards usually limit PCIe 5.0 to a single M.2 slot or stick to PCIe 4.0 on the GPU slot, so you get less PCIe 5.0 bandwidth overall compared to this B650E board.
