ASUS TUF GAMING B650EM-E WIFI – WiFi 6 AM5 Motherboard

About the ASUS TUF GAMING B650EM-E WIFI

The B650EM-E motherboard brings AMD's AM5 platform to compact builds without sacrificing features. This micro-ATX motherboard supports Ryzen 9000, 8000, and 7000 series processors with DDR5 memory up to 8000+MT/s. The micro-ATX size fits smaller cases while still offering three M.2 slots, built-in WiFi 6, and PCIe 5.0 support. First-time builders appreciate the Q-Design features like tool-less M.2 installation and Q-LED diagnostics that simplify troubleshooting.

What This ASUS TUF GAMING B650EM-E WIFI Does for You

This am5 micro atx motherboard handles everything from casual gaming to serious content creation. PCIe 5.0 support means your GPU runs at full speed, while triple M.2 slots let you run fast storage for games and projects. WiFi 6 and Bluetooth 5.2 come built-in, eliminating the need for separate adapters. The 2.5Gb Ethernet provides faster wired speeds than standard gigabit connections. DDR5 support up to 256GB gives plenty of room for the best budget motherboard for gaming and productivity tasks. ASUS OptiMem II technology improves memory stability, especially important when running high-speed DDR5 kits.

Build Quality and Reliability

TUF series motherboards prioritize durability over flashy aesthetics. Military-grade components and TUF LANGuard protection defend against power surges. SafeSlot reinforcement prevents GPU sag damage to the PCIe slot. The VRM heatsinks keep power delivery stable even during extended gaming sessions. BIOS FlashBack button lets you update firmware without installing a CPU, useful for new Ryzen processor compatibility. These features matter when you're building a system you'll rely on daily.

Perfect For

• First-time PC builders wanting a reliable AM5 foundation with easy installation features and complete gaming desktop compatibility guides
• Compact gaming builds in micro-ATX cases that still need full connectivity and expansion options
• Value-focused content creators who need multiple M.2 slots for fast video editing storage
• Office or productivity systems that benefit from WiFi 6 connectivity and modern DDR5 support

Why Buy from Mansa Computers

• 3-year Singapore warranty with ASUS service support
• Fast WhatsApp inquiry response for compatibility questions
• Open 7 days a week for support
• Home delivery available

Technical Specifications Summary

Socket
AMD AM5

Chipset
AMD B650

Form Factor
Micro-ATX (24.4cm x 24.4cm)

Memory Support
DDR5 up to 8000+MT/s (OC), 4 DIMM slots, Max 256GB

PCIe Slots
1x PCIe 5.0 x16 (Ryzen 9000/7000), 1x PCIe 4.0 x1

Storage
3x M.2 slots, 4x SATA 6Gb/s

Networking
WiFi 6, Bluetooth 5.2, 2.5Gb Ethernet

USB Ports
2x USB 10Gbps, 2x USB 5Gbps (rear), USB-C header (front)

Ready to build your compact AM5 system? The ASUS TUF GAMING B650EM-E WIFI gives you modern connectivity and expansion in a space-efficient package. Order yours from Mansa Computers today with 3-year local warranty coverage.

Model
TUF GAMING B650EM-E WIFI

CPU
AMD Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors

Chipset
AMD B650 Chipset

Memory
4 x DIMM slots, Max. 256GB DDR5
Supports up to 8000+MT/s (OC) with Ryzen™ 9000, 8000 & 7000 Series
ECC and Non-ECC Un-buffered DIMM
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II
ASUS Enhanced Memory Profile (AEMP)

Graphics
2 x DisplayPort
1 x HDMI™ port

Expansion Slots
Ryzen™ 9000 & 7000 Series: 1 x PCIe 5.0 x16 slot
Ryzen™ 8000 Series: 1 x PCIe 4.0 x16 slot (x8/x4 mode)
B650 Chipset: 1 x PCIe 4.0 x1 slot

Storage
3 x M.2 slots + 4 x SATA 6Gb/s ports
Ryzen™ 9000 & 7000 Series: M.2_1 (PCIe 5.0 x4), M.2_2 (PCIe 4.0 x4)
Ryzen™ 8000 Series: M.2_1 (PCIe 4.0 x4), M.2_2 (PCIe 4.0 x4/x2)
B650 Chipset: M.2_3 (PCIe 4.0 x4)
AMD RAIDXpert2 Technology:
Ryzen™ 9000: RAID 0/1/5/10
Ryzen™ 8000: RAID 0/1
Ryzen™ 7000: RAID 0/1/10

Ethernet
Realtek 2.5Gb Ethernet
TUF LANGuard

Wireless & Bluetooth
Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.2

USB
Rear I/O (8 ports): 2 x USB 10Gbps (1 x Type-A, 1 x Type-C), 2 x USB 5Gbps (2 x Type-A), 4 x USB 2.0 (4 x Type-A)
Front I/O (7 ports): 1 x USB 5Gbps (Type-C), 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports)

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-bit/192 kHz playback
Audio Shielding, Premium capacitors, Dedicated audio PCB layers

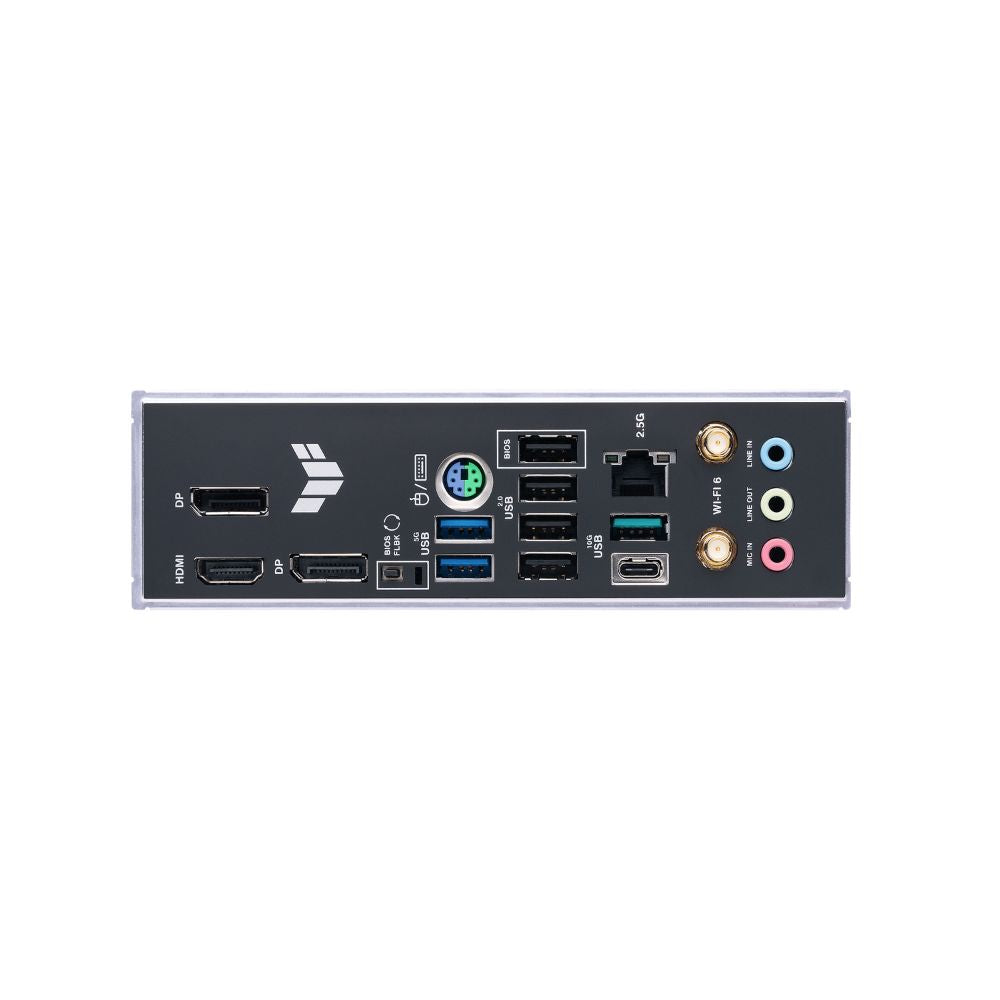

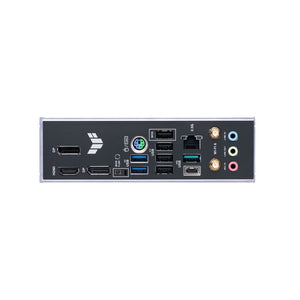

Back Panel I/O Ports
2 x USB 10Gbps (1 x Type-A, 1 x Type-C)
2 x USB 5Gbps (2 x Type-A)
4 x USB 2.0 (4 x Type-A)
2 x DisplayPort
1 x HDMI™
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack™ button
1 x PS/2 combo port

Internal I/O
Cooling: 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 2 x Chassis Fan
Power: 1 x 24-pin ATX, 1 x 8-pin +12V, 1 x 4-pin +12V
Storage: 3 x M.2, 4 x SATA
USB: 1 x USB 5Gbps (Type-C), 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 (4 ports)
Misc: 3 x ARGB Gen 2, 1 x Aura RGB, 1 x Clear CMOS, 1 x COM, 1 x Front Audio, 1 x Front Panel, 1 x Chassis Intrusion

Special Features
ASUS TUF PROTECTION: DIGI+ VRM, ESD Guards, LANGuard, Overvoltage Protection, SafeSlot, Stainless-Steel Back I/O
ASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-DIMM, Q-LED, Q-Slot
ASUS Thermal Solution: M.2 & VRM heatsinks
ASUS EZ DIY: BIOS FlashBack™, ProCool, Pre-mounted I/O, SafeDIMM
Aura Sync: Addressable RGB Gen 2 headers

Software Features
ASUS Exclusive Software: Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+, AI Noise Cancelation), AI Suite 3 (DIGI+ VRM, TurboV EVO, PC Cleaner), DriverHub, TUF GAMING CPU-Z, DTS Audio Processing, Norton 360 (Trial), WinRAR (Trial)
UEFI BIOS: EZ Flash 3, CrashFree BIOS 3, EZ Mode

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

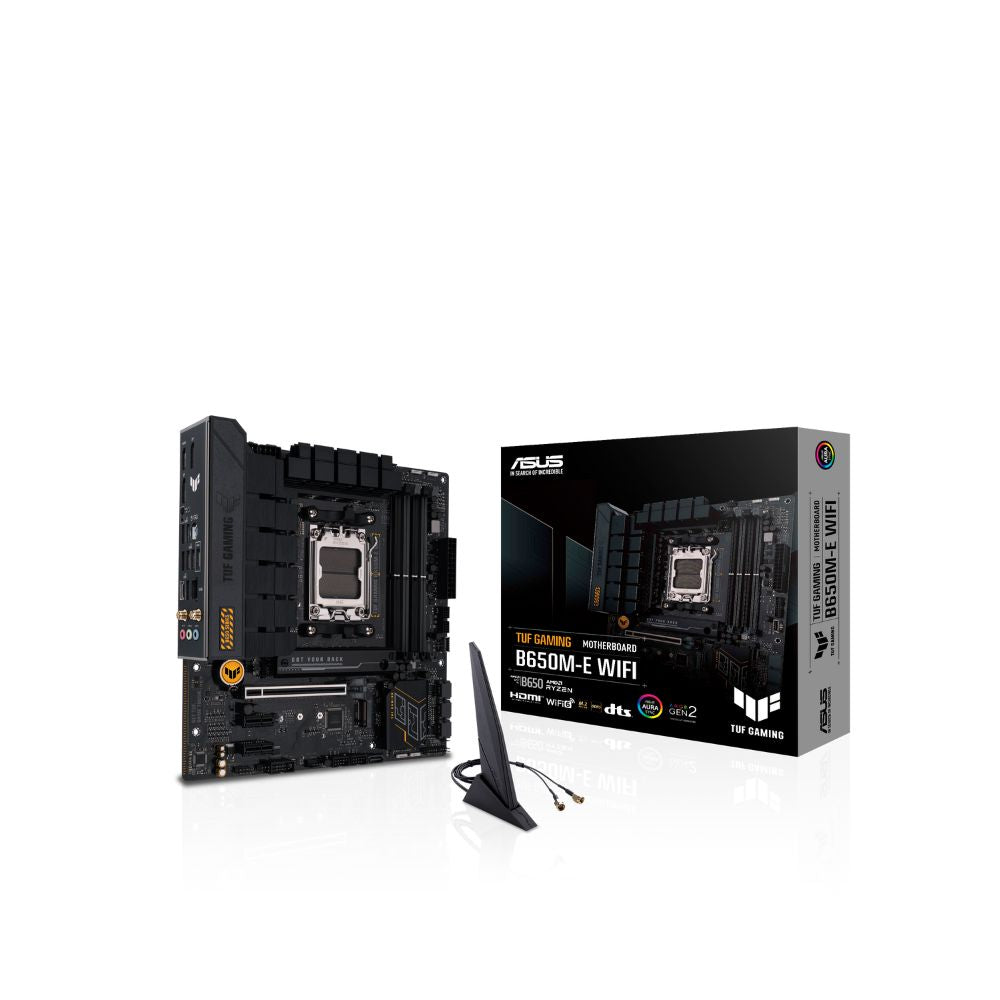

Accessories
Cables: 2 x SATA 6Gb/s
Misc: 1 x TUF Gaming sticker, 1 x M.2 Rubber Package, 1 x M.2 Screw Pack
Documentation: 1 x Quick Start Guide

Operating System
Windows® 11, Windows® 10 64-bit

Form Factor
micro-ATX (24.4 cm x 24.4 cm)

3 YEARS WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave, #03-03,
Singapore 339416
Contact: 6341 7839

Ban Leong Technologies Ltd
150, #04-01 Ubi Ave 4, Ubi Biz-Hub,
Singapore 408825
Contact: 6512 9250

Frequently Asked Questions About ASUS TUF GAMING B650EM-E WIFI

Does this motherboard support PCIe 5.0 for future GPUs?

Yes, the TUF GAMING B650EM-E WIFI offers PCIe 5.0 x16 slot support with Ryzen 9000 and 7000 series processors. This future-proofs your build for next-generation graphics cards while keeping costs reasonable.

Can I use this board for video editing and content creation?

Absolutely. With three M.2 slots for fast storage and DDR5 support up to 256GB, this makes an excellent foundation for video editing workstations. The best budget motherboard for gaming also handles creative workloads efficiently.

Will my existing AM4 cooler fit this AM5 motherboard?

Yes, AM5 uses the same cooler mounting as AM4. Your existing cooler will fit this TUF GAMING B650EM-E WIFI motherboard without needing new brackets or mounting hardware.

What warranty coverage comes with this motherboard in Singapore?

Every ASUS motherboards from Mansa includes 3-year ASUS Singapore warranty with local service support. Contact us via WhatsApp for fast warranty claims or technical questions.

How does this compare to full ATX B650 boards?

This am5 micro atx motherboard matches full ATX features in a compact size. You get the same PCIe 5.0 support and triple M.2 slots while fitting smaller cases perfectly.
