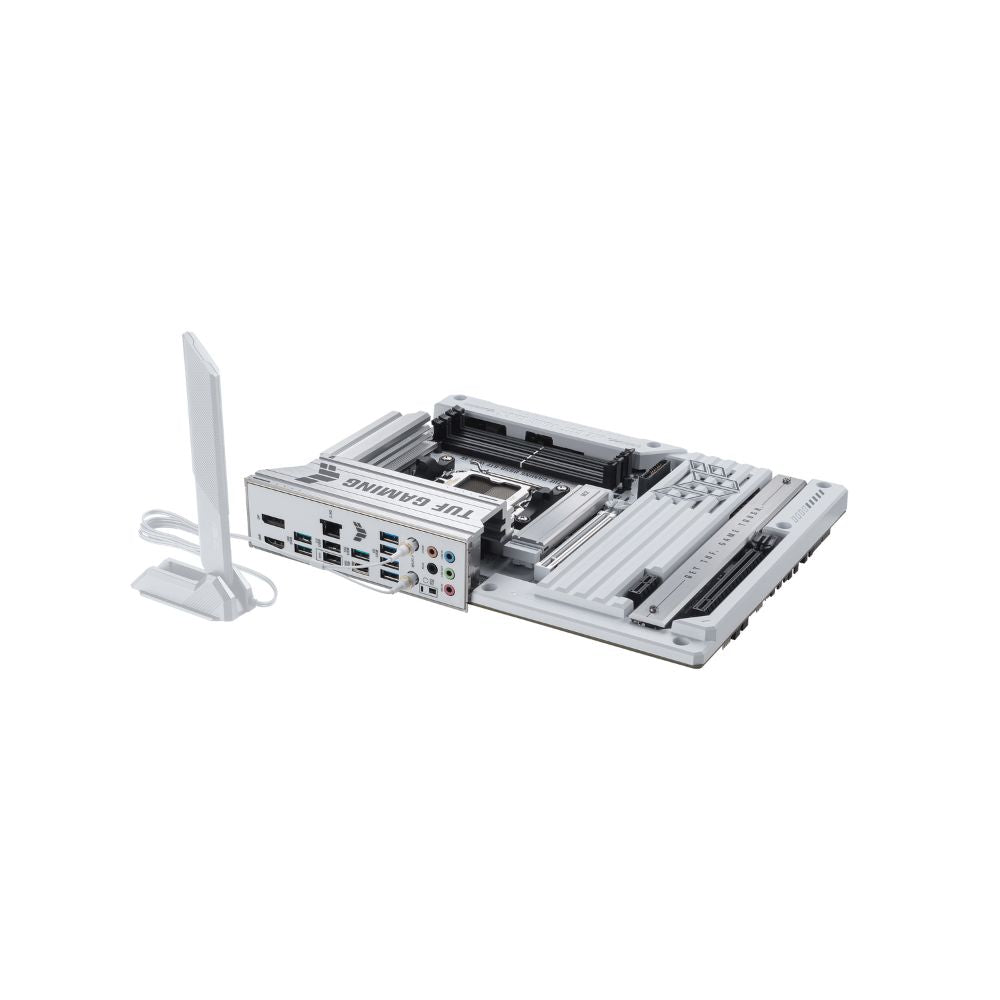

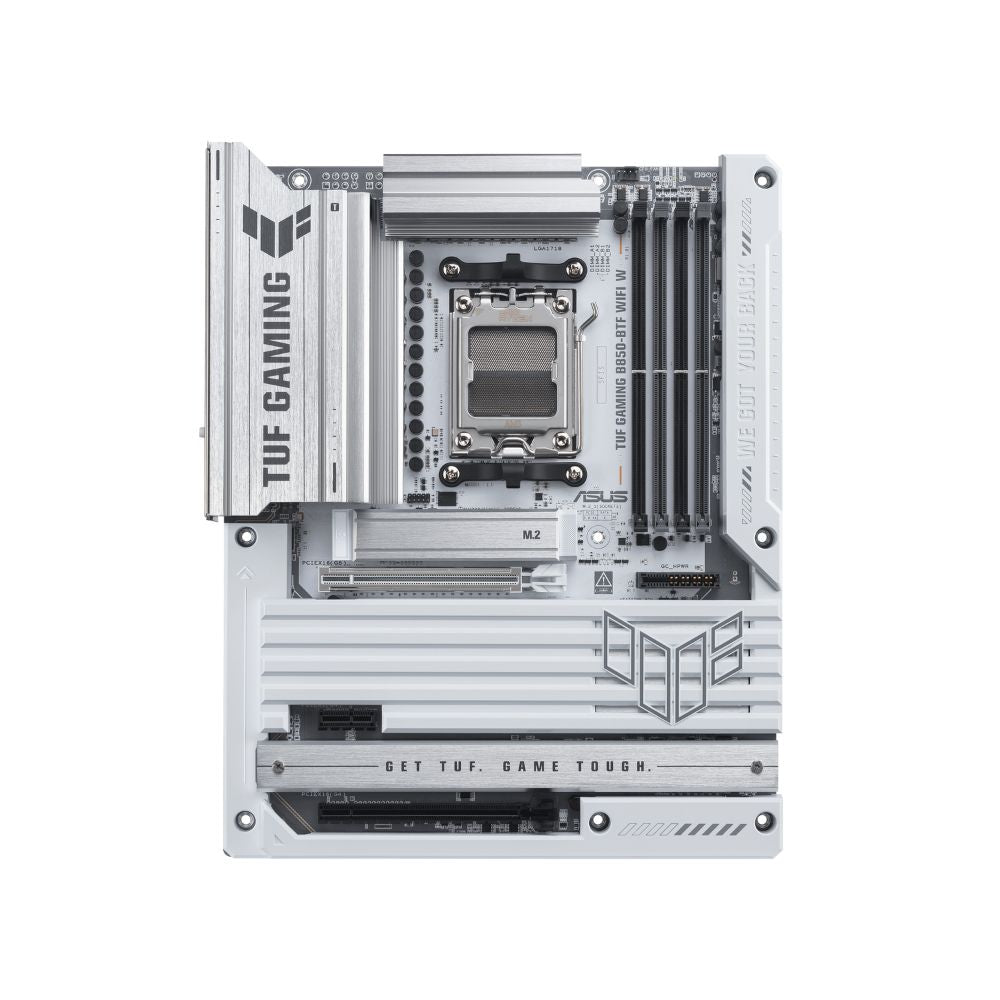

ASUS TUF GAMING B850-BTF WIFI W – Clean Build Design

About the ASUS TUF GAMING B850-BTF WIFI W

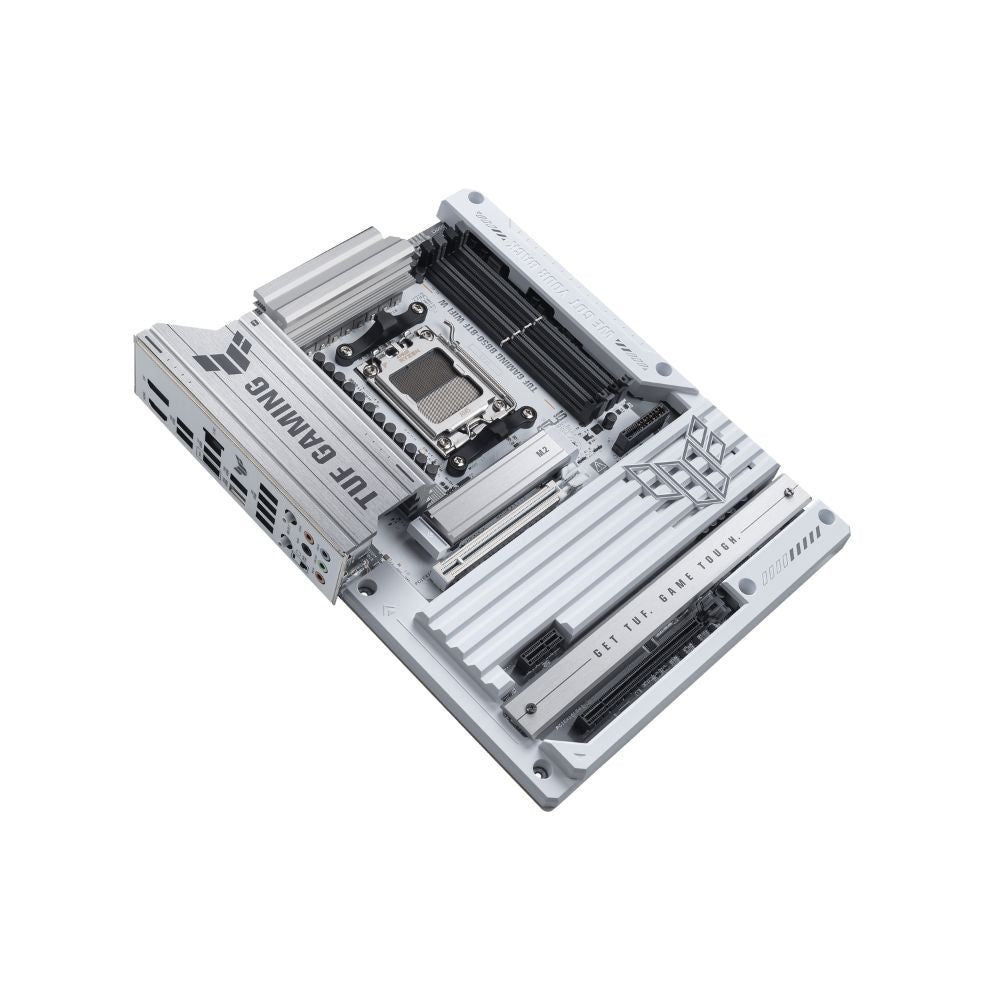

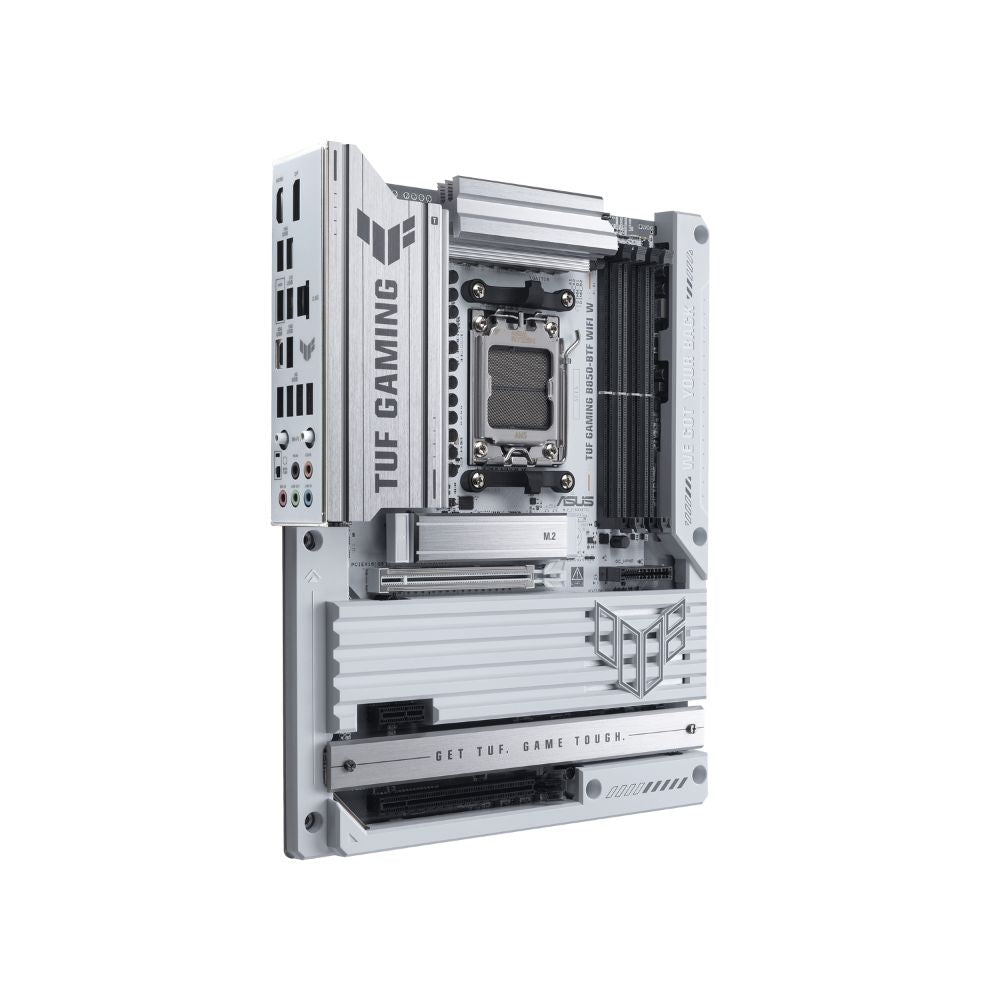

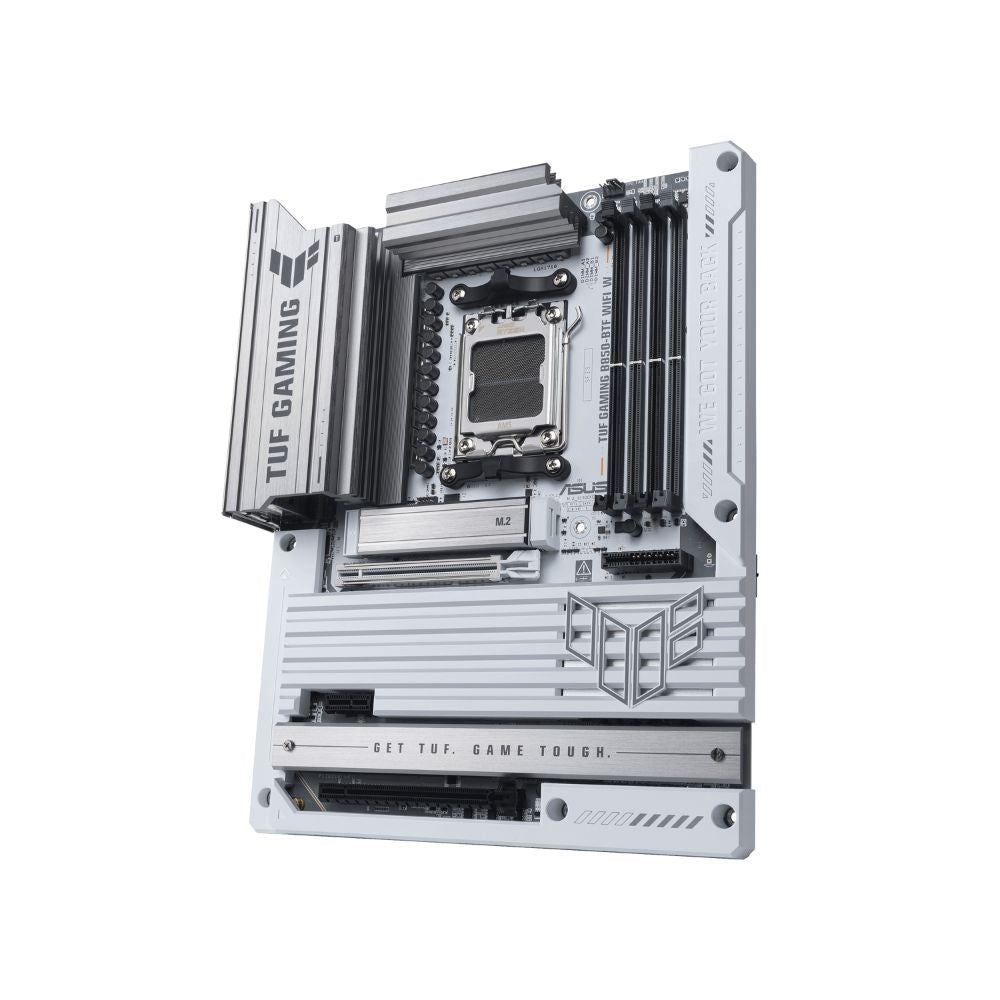

The ASUS TUF GAMING B850-BTF WIFI W brings back-to-front cable management to the B850 chipset. The white colorway stands out in themed builds, while the AMD B850 chipset supports Ryzen 9000, 8000, and 7000 Series processors on AM5 socket. You get TUF Gaming reliability with BTF design for cable-free aesthetics. Four DDR5 DIMM slots support up to 256GB memory at speeds reaching 8000+ MT/s with overclocking.

What This ASUS TUF GAMING B850-BTF WIFI W Does for You

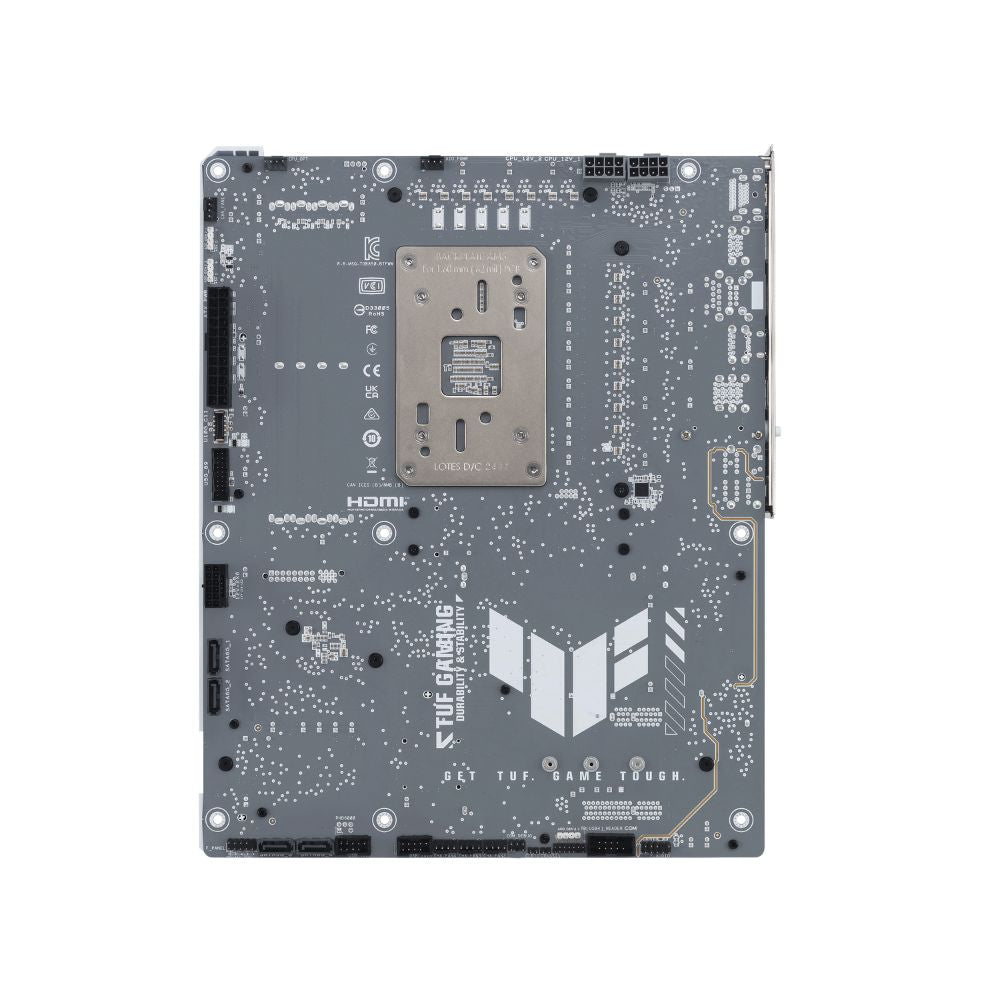

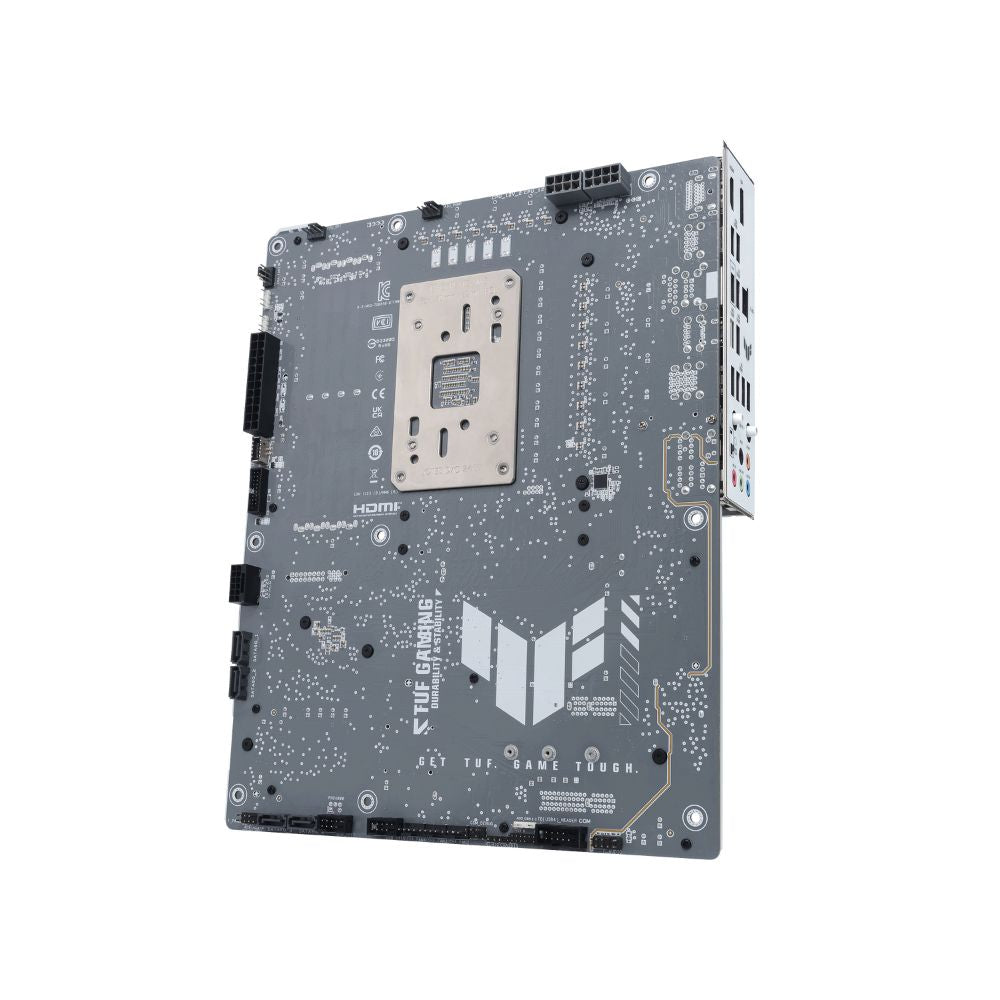

BTF design routes your 24-pin power, 8-pin CPU cables, and graphics card power behind the motherboard tray. Your build looks clean from every angle through tempered glass panels. WiFi 7 connectivity reaches 2.9Gbps speeds for lag-free gaming and fast downloads. The PCIe 5.0 x16 slot handles next-generation graphics cards when paired with Ryzen 9000 or 7000 processors. M.2_1 with PCIe 5.0 x4 runs the fastest NVMe SSDs. Three M.2 slots plus four SATA 6Gb/s ports give you storage flexibility. Realtek ALC1220P audio codec delivers 120dB SNR for clear game audio and music playback.

Connectivity That Matters

Ten rear USB ports include one USB 20Gbps Type-C for fast external drives and peripherals. Three USB 10Gbps Type-A and four USB 5Gbps Type-A ports handle your keyboard, mouse, and gaming headset. Realtek 2.5Gb Ethernet gives you faster wired speeds than basic 1Gb connections. DisplayPort and HDMI outputs support integrated graphics on Ryzen 8000 processors. Front panel headers add USB 10Gbps Type-C and additional USB 5Gbps ports. ARGB Gen2 headers sync your RGB lighting through Aura Sync software.

Perfect For

• Builders creating white-themed gaming rigs who want clean cable management without messy wires showing
• Upgraders moving from AM4 platforms to AM5 motherboard with Ryzen 9000 or 7000 Series processors
• Mid-range gaming builds balancing performance features without compromising on connectivity
• First-time builders who appreciate Q-Design features like M.2 Q-Latch tool-free installation

Why Buy from Mansa Computers

• 3-year Singapore warranty with ASUS service support
• Fast WhatsApp inquiry response for compatibility questions
• Open 7 days a week for support
• Home delivery available

Technical Specifications Summary

Chipset
AMD B850

Socket
AM5 (Ryzen 9000/8000/7000)

Memory
4× DDR5 up to 8000+ MT/s, max 256GB

Expansion
PCIe 5.0 x16, PCIe 4.0 x16 (x4), PCIe 4.0 x1

Storage
3× M.2 (PCIe 5.0/4.0), 4× SATA 6Gb/s

Networking
WiFi 7 (2.9Gbps), Bluetooth 5.4, 2.5Gb Ethernet

Audio
Realtek ALC1220P 7.1 HD (120dB SNR)

Form Factor
ATX (30.5 × 24.4 cm)

The ASUS TUF GAMING B850-BTF WIFI W delivers BTF cable management and WiFi 7 connectivity at mid-range specifications. Check compatibility with your case for BTF support, then order from Mansa Computers for 3-year ASUS Singapore warranty coverage.

Model
TUF GAMING B850-BTF WIFI W

CPU
AMD Socket AM5 for AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

Chipset
AMD B850 Chipset

Memory
4 x DDR5 DIMM slots, max 256GB
Supports up to 8000+MT/s(OC) with Ryzen™ 9000 / 8000 / 7000 Series
Dual channel architecture, ECC and Non-ECC un-buffered DIMM

Graphics
1 x DisplayPort (8K@30Hz, DP 1.4)
1 x HDMI™ port (4K@60Hz, HDMI 2.1)

Expansion Slots
Ryzen™ 9000 & 7000 Series
1 x PCIe 5.0 x16 slot (x16 mode)
Ryzen™ 8000 Series
1 x PCIe 4.0 x16 slot (x8/x4 mode)
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (x4 mode)
1 x PCIe 4.0 x1 slot

Storage
3 x M.2 slots + 4 x SATA 6Gb/s ports
Ryzen™ 9000 & 7000 Series
M.2_1 (PCIe 5.0 x4), M.2_2 (PCIe 4.0 x4)
Ryzen™ 8000 Series
M.2_1 (PCIe 4.0 x4), M.2_2 (PCIe 4.0 x4/x2)
AMD B850 Chipset
M.2_3 (PCIe 4.0 x4)
M.2_3 shares bandwidth with PCIEX16(G4) slot.
AMD RAIDXpert2 Technology
Ryzen™ 9000: RAID 0/1/5/10
Ryzen™ 8000: RAID 0/1
Ryzen™ 7000: RAID 0/1/10

Ethernet
1 x Realtek 2.5Gb Ethernet (TUF LANGuard)

Wireless & Bluetooth
Wi-Fi 7 (802.11be) 2x2, supports 2.4/5/6GHz bands
Supports 160MHz bandwidth, up to 2.9Gbps
Bluetooth® v5.4

USB
Rear I/O (10 ports)
1 x USB 20Gbps (Type-C®)
3 x USB 10Gbps (Type-A)
4 x USB 5Gbps (Type-A)
2 x USB 2.0 (Type-A)
Front I/O (7 ports)
1 x USB 10Gbps (Type-C®)
1 x USB 5Gbps header (2 ports)
2 x USB 2.0 headers (4 ports)
USB Type-C® power delivery: 5V/3A max.

Audio
Realtek ALC1220P 7.1 Surround Sound HD Audio CODEC
120 dB SNR playback / 113 dB recording
Supports impedance sensing, multi-streaming, and jack detection
Premium audio capacitors, dedicated audio PCB layers, and shielding
Due to bandwidth limits, 32-bit/192kHz is not supported for 7.1 Surround Sound.

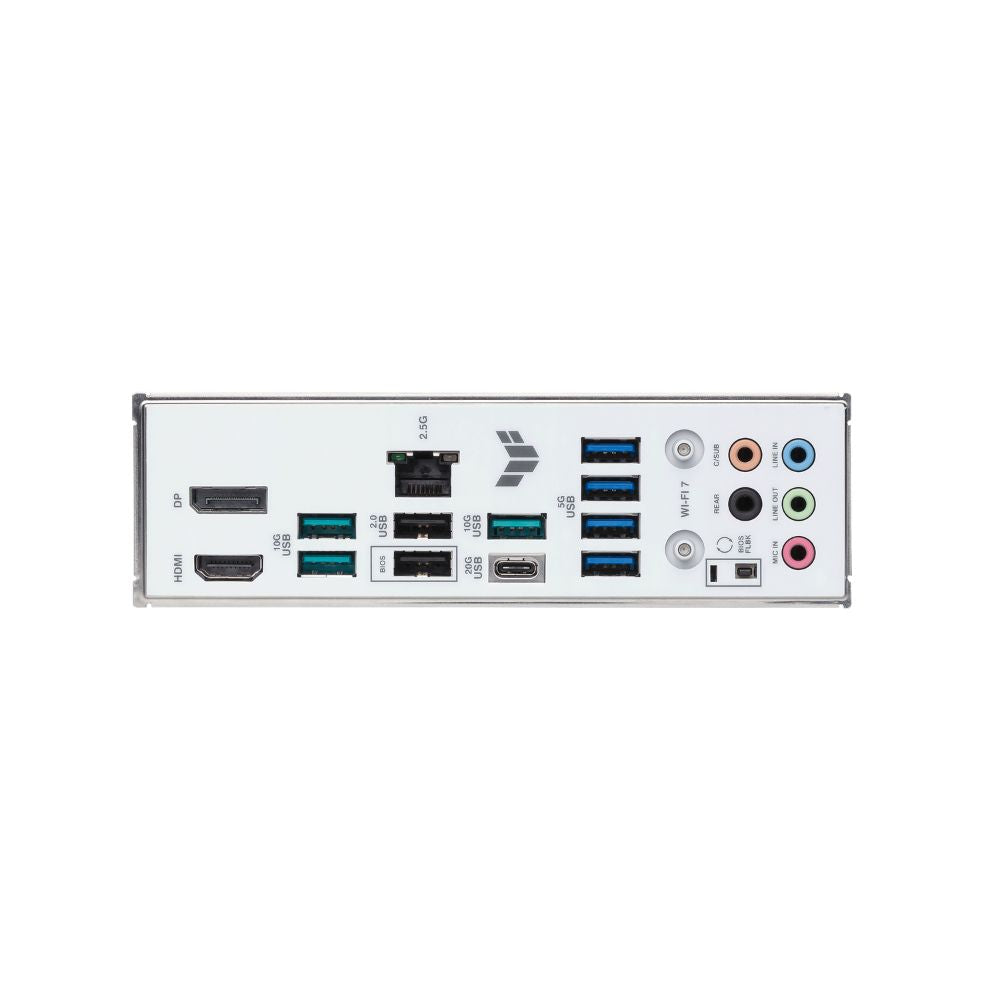

Back Panel I/O
1 x USB 20Gbps (Type-C®)
3 x USB 10Gbps (Type-A)
4 x USB 5Gbps (Type-A)
2 x USB 2.0 (Type-A)
1 x DisplayPort, 1 x HDMI™
1 x Wi-Fi module
1 x 2.5Gb Ethernet
5 x Audio jacks
1 x BIOS FlashBack™ button

Internal I/O
Cooling: 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 4 x Chassis Fan
Power: 1 x 24-pin ATX, 2 x 8-pin CPU
Storage: 3 x M.2, 4 x SATA
USB: 1 x USB 10Gbps Type-C®, 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports)
Misc: 3 x ARGB Gen2, 1 x Clear CMOS, 1 x COM, 1 x Front Audio, 1 x Front Panel, 1 x Thunderbolt™ (USB4®) header
BTF Related: 1 x 12V-2X6 Auxiliary Power, 1 x GPU High-Power slot

Special Features
TUF Protection: DIGI+ VRM, ESD Guards, LANGuard, SafeSlot, Overvoltage protection, Stainless-steel back I/O
Q-Design: M.2 Q-Latch, PCIe Q-Release Slim, Q-DIMM, Q-Antenna, Q-LED, Q-Slot
Thermal Solution: M.2 and VRM heatsinks
EZ DIY: BIOS FlashBack™, ProCool, Pre-mounted I/O, SafeDIMM
Aura Sync: Addressable Gen2 RGB headers

Software Features
Armoury Crate (Aura Sync, Fan Xpert 4, AI Cooling II)
AI Advisor, DriverHub, GlideX, TurboV Core, DTS Audio Processing, Norton 360 (Trial), WinRAR (Trial)
UEFI BIOS: EZ Flash 3, CrashFree BIOS 3, EZ Mode, MyHotkey

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

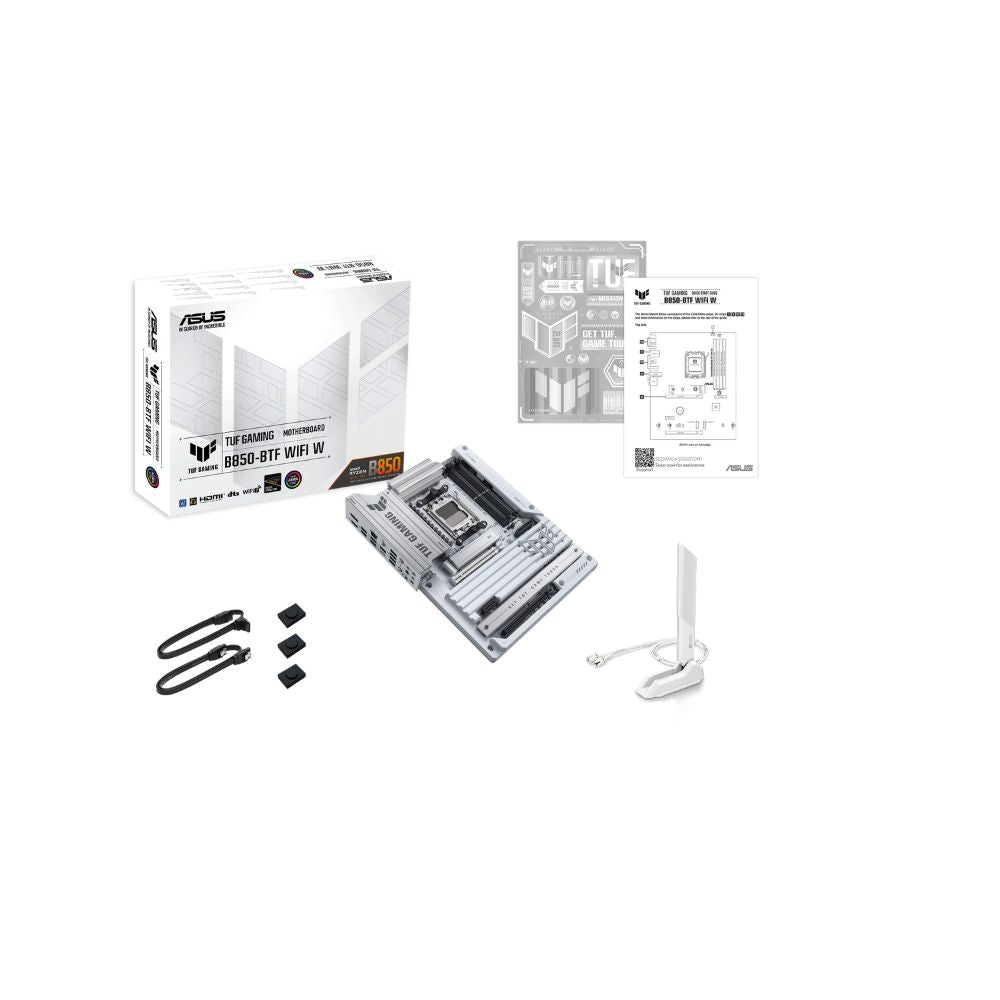

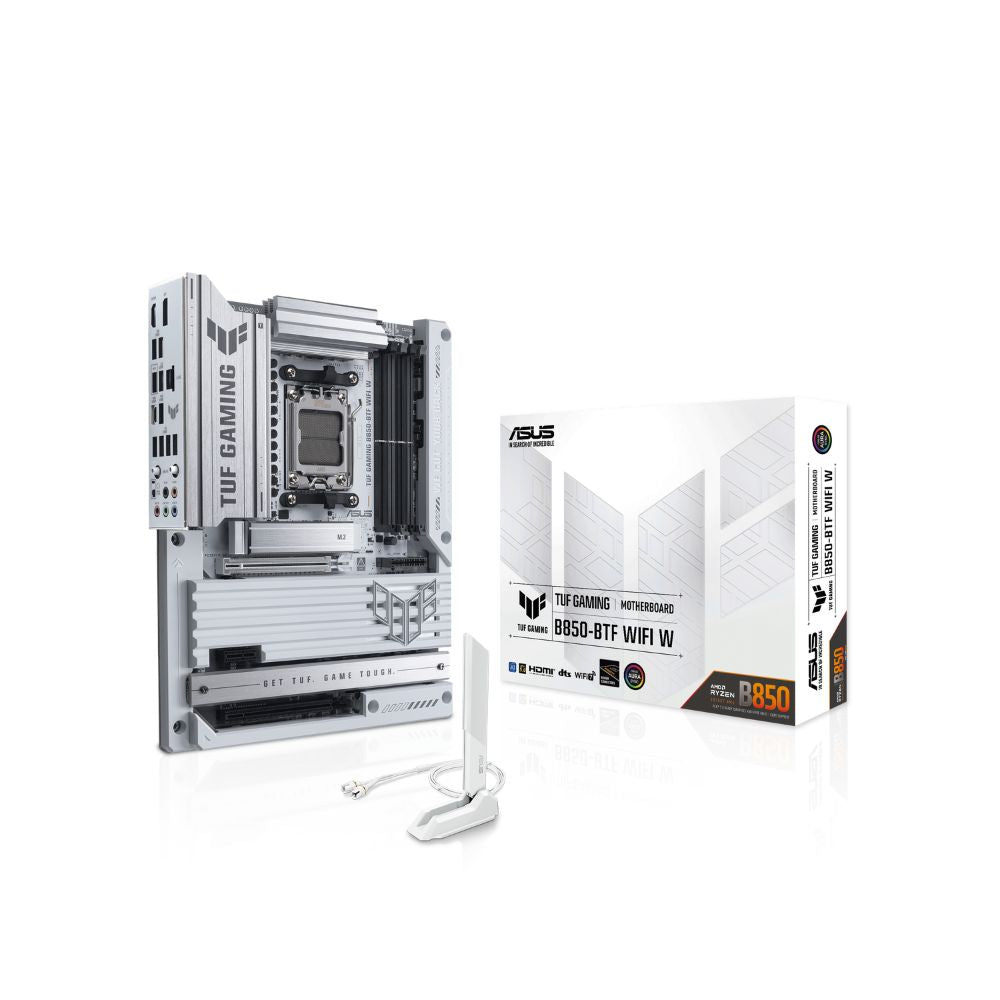

Accessories
2 x SATA 6Gb/s Cables
1 x Wi-Fi Q-Antenna
1 x TUF Gaming Sticker
2 x M.2 Rubber Packages
1 x Quick Start Guide

Operating System
Windows 11

Form Factor
ATX (30.5 x 24.4 cm)

3 YEARS WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave, #03-03,
Singapore 339416
Contact: 6341 7839

Ban Leong Technologies Ltd
150, #04-01 Ubi Ave 4, Ubi Biz-Hub,
Singapore 408825
Contact: 6512 9250

Frequently Asked Questions About ASUS TUF GAMING B850-BTF WIFI W

What does BTF mean on this motherboard?

BTF means Back-To-Front cable design. All power cables route behind your motherboard tray instead of showing in front. You need a BTF-compatible case to use this feature properly.

Does this board support Ryzen 9000 processors out of the box?

Yes, the B850 chipset natively supports Ryzen 9000, 8000, and 7000 Series processors. Check the ASUS website for the latest BIOS updates and CPU compatibility list.

Can I use WiFi 7 speeds with my current router?

WiFi 7 works with older routers but runs at WiFi 6E or WiFi 6 speeds. You need a WiFi 7 router to reach the full 2.9Gbps wireless speeds.

What warranty coverage do I get in Singapore?

You get 3-year ASUS service center warranty in Singapore. Mansa Computers provides WhatsApp support for questions and we're open 7 days a week for help with your build.

Which Ryzen processors get PCIe 5.0 support on this board?

Ryzen 9000 and 7000 Series processors provide PCIe 5.0 x16 on the main slot and PCIe 5.0 x4 on M.2_1. Ryzen 8000 processors only support PCIe 4.0 speeds.
