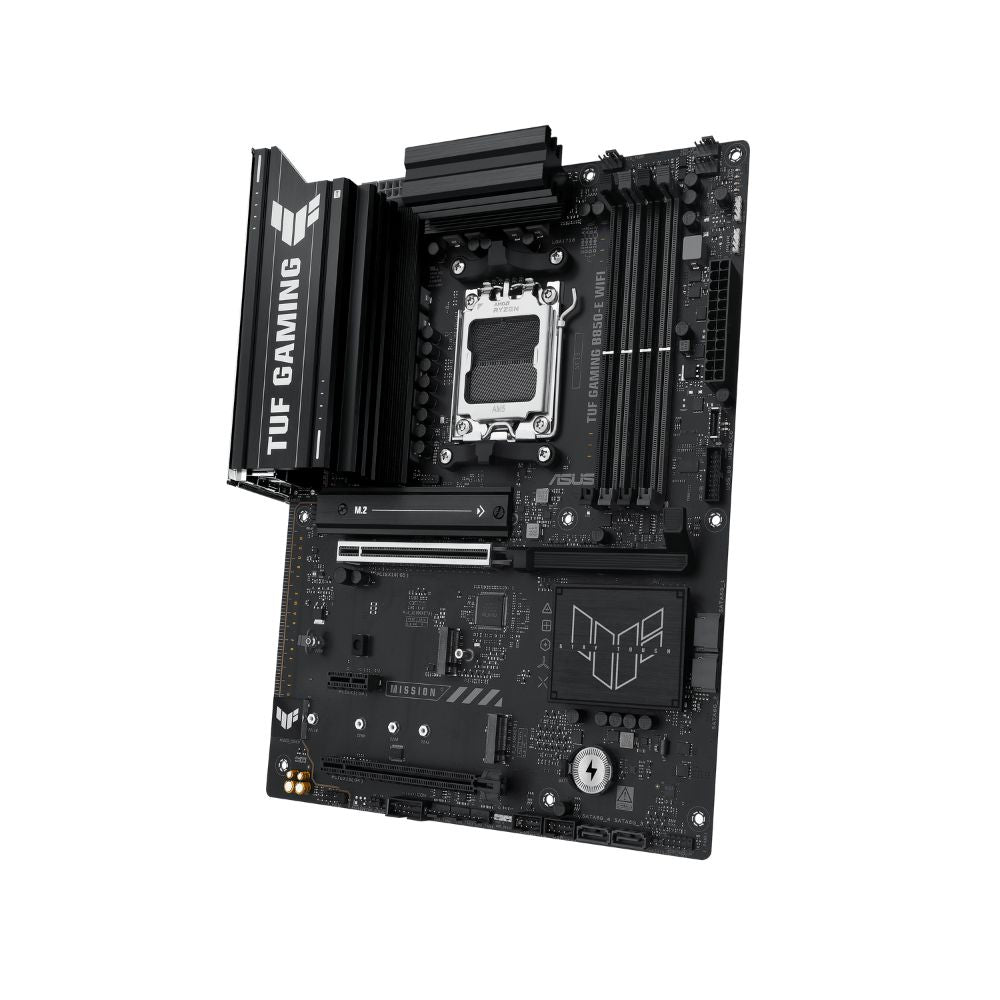

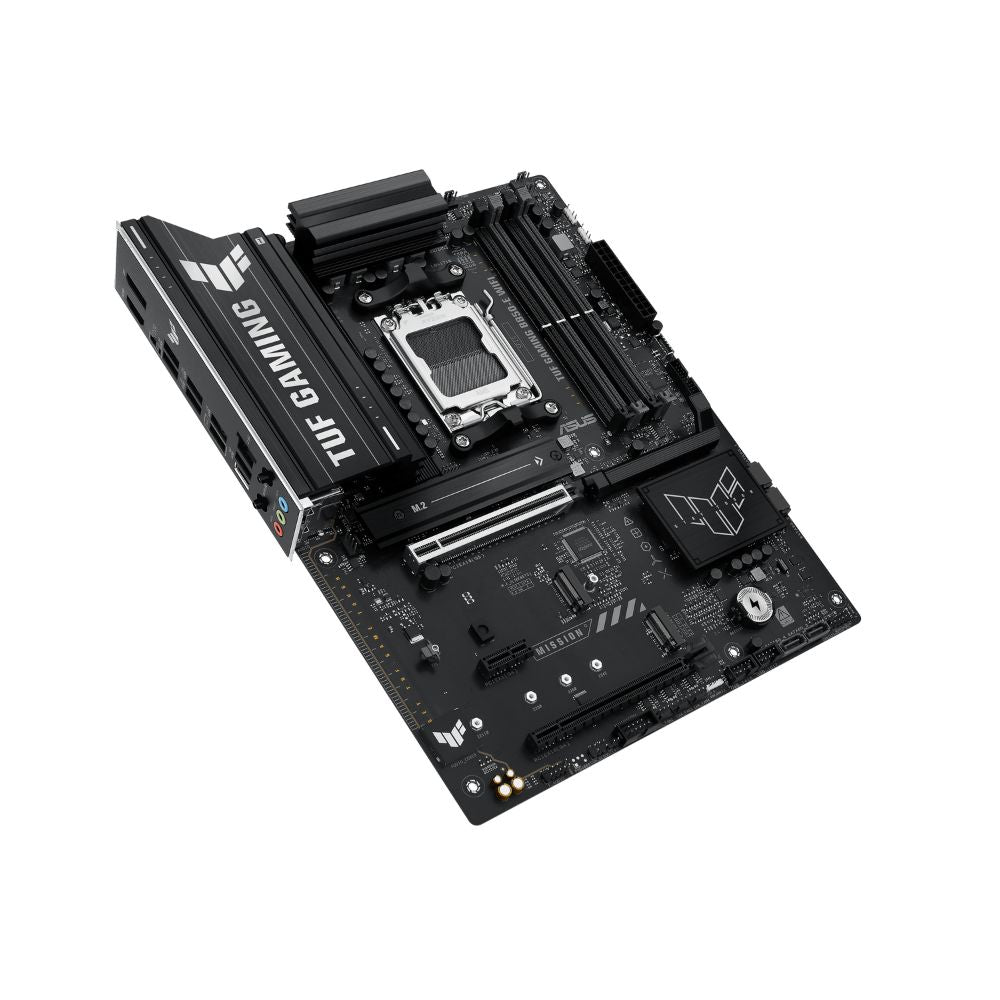

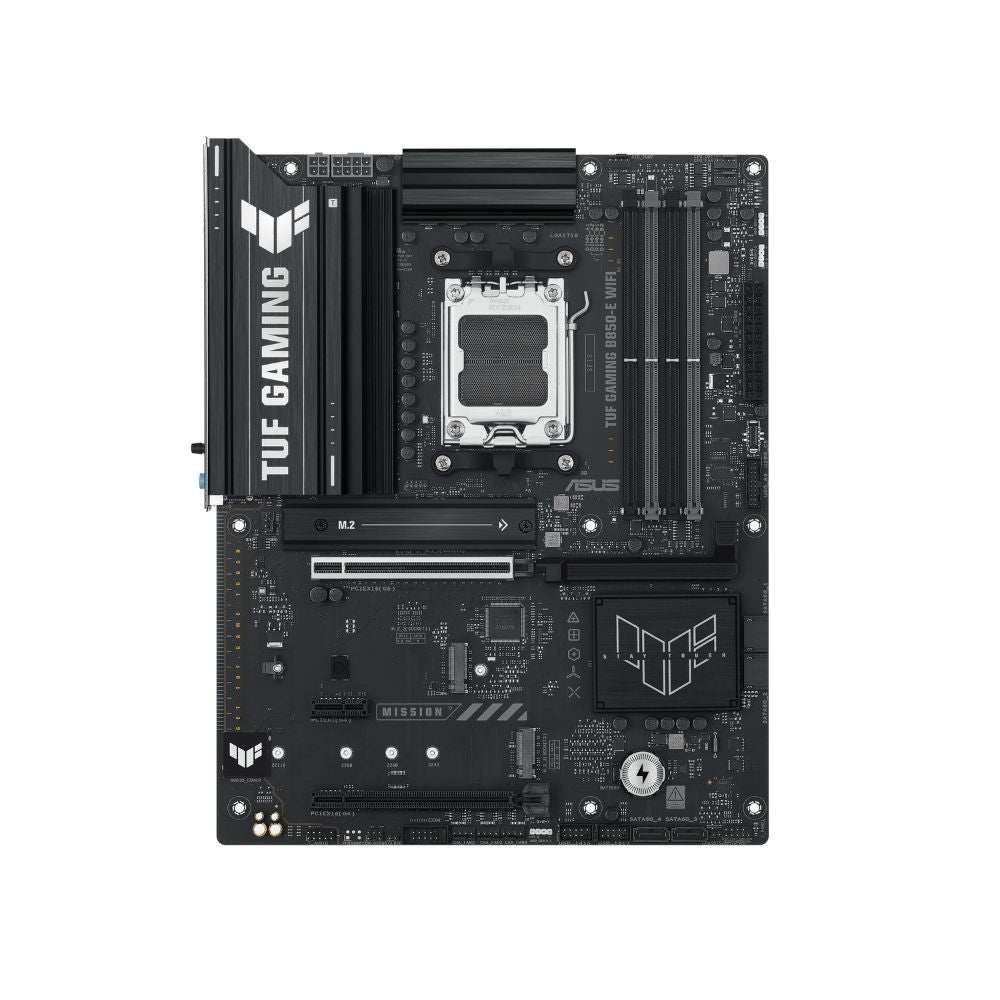

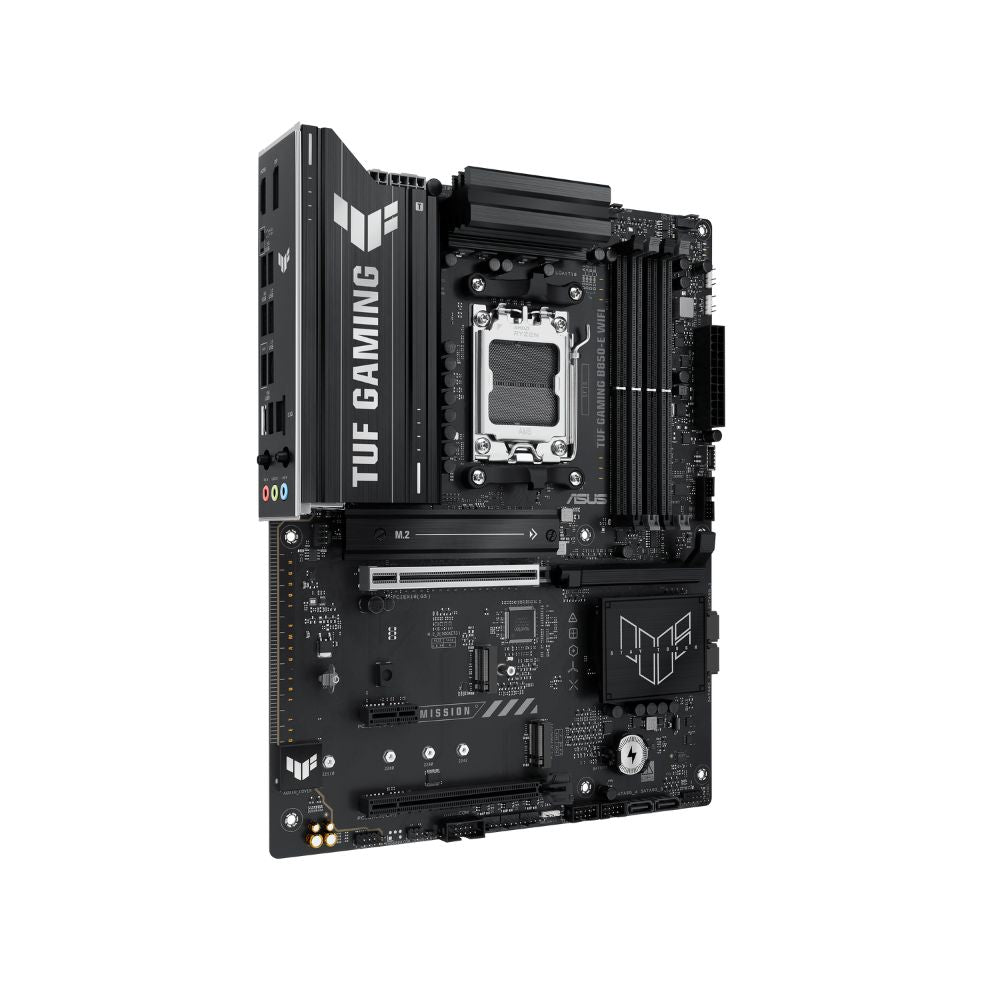

ASUS TUF GAMING B850-E WIFI – AM5 Gaming Motherboard

About the ASUS TUF GAMING B850-E WIFI

The ASUS TUF GAMING B850-E WIFI is built for mid-range AM5 gaming systems. It supports AMD Ryzen 9000, 8000, and 7000 series processors with DDR5 memory up to 8000+ MT/s when overclocked. The B850 chipset delivers features gamers actually need without the premium pricing of X870 boards. It's designed for builders who want WiFi 6E, fast USB, and PCIe 5.0 without overspending.

What This Motherboard Does for You

This AM5 ATX motherboard keeps your gaming PC competitive for years. The PCIe 5.0 x16 slot supports next-generation graphics cards when you're ready to upgrade. WiFi 6E with 6GHz band support eliminates ethernet cables across your room while maintaining low latency. The USB 20Gbps Type-C front header lets you connect fast external drives or VR headsets. Three M.2 slots handle multiple NVMe drives for games, programs, and recordings. DIGI+ VRM keeps your Ryzen CPU stable even during heavy gaming sessions.

Connectivity That Matters

This WiFi 6E motherboard gives you flexible networking without add-on cards. The 6GHz WiFi band avoids congestion from neighbors' 2.4GHz and 5GHz networks. Realtek 2.5Gb Ethernet handles wired connections for competitive gaming where every millisecond counts. Eight rear USB ports plus seven internal headers mean you won't run out of connections. The USB 20Gbps front header is rare in this price range and genuinely useful for fast file transfers.

Perfect For

• Gamers building mid-range AM5 systems with Ryzen 7000 or 9000 CPUs who want DDR5 AM5 motherboards and WiFi 6E
• Upgraders moving from AM4 platforms who need modern features like PCIe 5.0 without spending on X870 chipsets
• Streamers running multiple M.2 drives for recording footage while gaming at high settings
• Builders who prefer WiFi over running ethernet cables but still want 2.5Gb wired as backup

Why Buy from Mansa Computers

• 3-year Singapore warranty with ASUS service center support
• Fast WhatsApp inquiry response for compatibility questions
• Open 7 days a week for support
• Home delivery available

Technical Specifications Summary

Socket
AMD AM5 (Ryzen 9000/8000/7000)

Chipset
AMD B850

Memory
4x DDR5 up to 8000+ MT/s (OC), 256GB max

PCIe Slots
1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x1), 1x PCIe 4.0 x1

Storage
3x M.2 (PCIe 5.0/4.0 depending on CPU), 4x SATA 6Gb/s

Networking
WiFi 6E (6GHz), Bluetooth 5.3, 2.5Gb Ethernet

USB Ports
USB 20Gbps Type-C, USB 10Gbps, multiple USB 5Gbps/2.0

Form Factor
ATX (30.5 × 24.4 cm)

Ready to build your AM5 gaming PC? The ASUS TUF GAMING B850-E WIFI combines modern features with sensible pricing. Order now or WhatsApp us for compatibility questions about your Ryzen processor and RAM.

Model
TUF GAMING B850-E WIFI

CPU
AMD Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors

Chipset
AMD B850 Chipset

Memory
4 x DDR5 DIMM slots, up to 256GB
Supports up to 8000+MT/s(OC) with Ryzen™ 9000 / 8000 / 7000 Series
Dual channel architecture, ECC & Non-ECC un-buffered DIMM
Supports EXPO™ and ASUS Enhanced Memory Profile (AEMP)

Graphics
1 x DisplayPort
1 x HDMI™ port

Expansion Slots
AMD Ryzen™ 9000 & 7000 Series
1 x PCIe 5.0 x16 slot (x16 mode)
AMD Ryzen™ 8000 Series
1 x PCIe 4.0 x16 slot (x8/x4 mode)
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (x1 mode)
1 x PCIe 4.0 x1 slot

Storage
Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Ryzen™ 9000 & 7000 Series
M.2_1 (PCIe 5.0 x4), M.2_2 (PCIe 4.0 x4)
Ryzen™ 8000 Series
M.2_1 (PCIe 4.0 x4), M.2_2 (PCIe 4.0 x4/x2)
B850 Chipset
M.2_3 (PCIe 4.0 x4)
AMD RAIDXpert2 Technology
Ryzen™ 9000: RAID 0/1/5/10
Ryzen™ 8000: RAID 0/1
Ryzen™ 7000: RAID 0/1/10

Ethernet
1 x Realtek 2.5Gb Ethernet (TUF LANGuard)

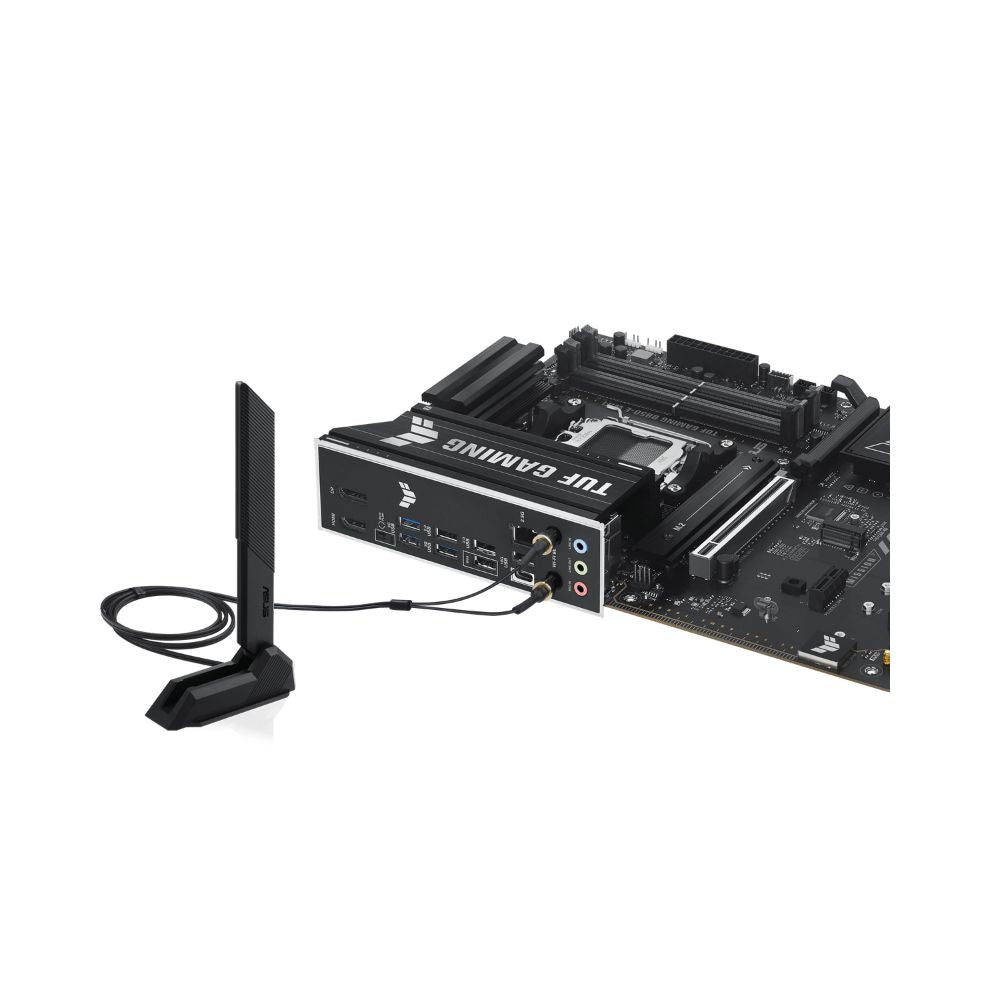

Wireless & Bluetooth
Wi-Fi 6E, 2x2 (802.11ax), supports 2.4/5/6GHz bands
Bluetooth® v5.3

USB
Rear I/O (8 ports)
2 x USB 10Gbps (1 x Type-A, 1 x Type-C®)
3 x USB 5Gbps (Type-A)
3 x USB 2.0 (Type-A)
Front I/O (7 ports)
1 x USB 20Gbps (Type-C®)
1 x USB 5Gbps header (2 ports)
2 x USB 2.0 headers (4 ports)
Type-C® power delivery: 5V/3A max.

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
24-bit / 192kHz playback
Audio Features: Audio Shielding, Premium capacitors, Dedicated audio PCB layers, Audio cover
HD audio module required for 7.1-channel output.

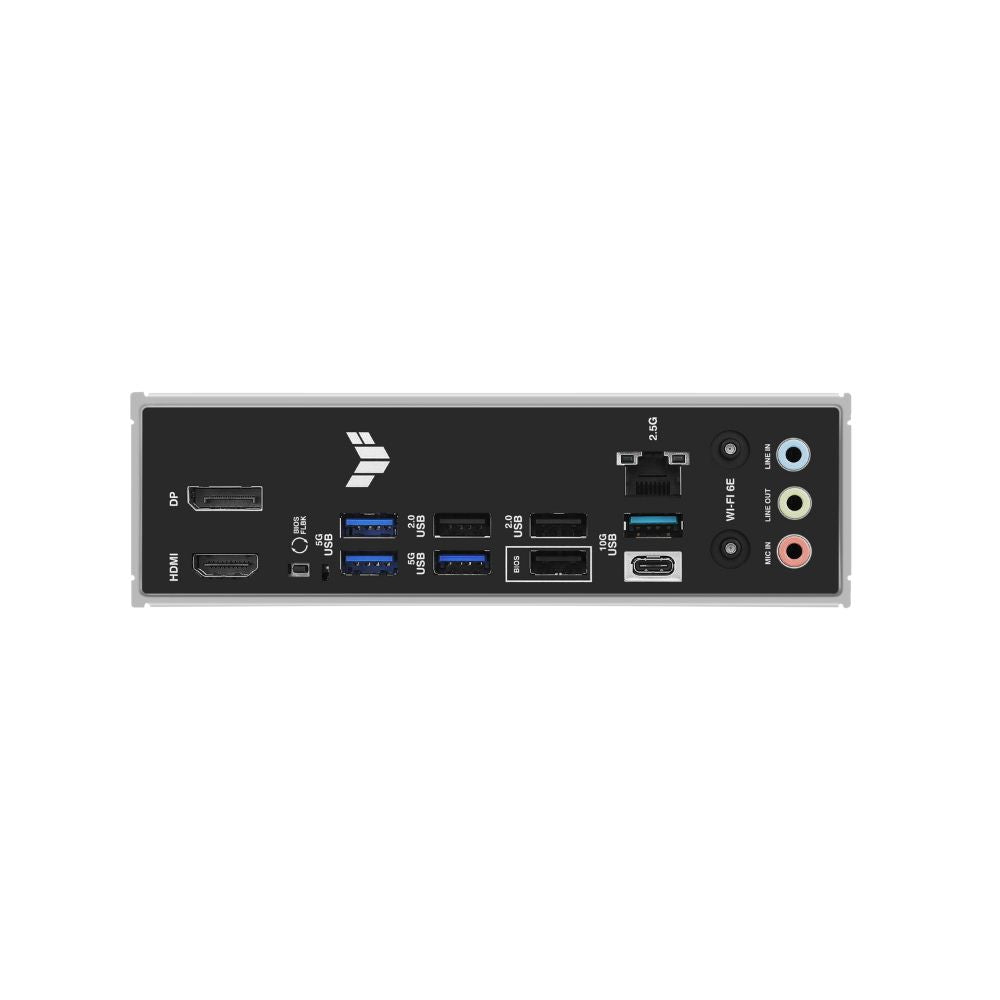

Back Panel I/O
2 x USB 10Gbps (1 x Type-A, 1 x Type-C®)
3 x USB 5Gbps (Type-A)
3 x USB 2.0 (Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack™ button

Internal I/O Connectors
Cooling: 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 4 x Chassis Fan
Power: 1 x 24-pin ATX, 1 x 8-pin +12V, 1 x 4-pin +12V
Storage: 3 x M.2, 4 x SATA
USB: 1 x USB 20Gbps (Type-C®), 1 x USB 5Gbps (2 ports), 2 x USB 2.0 (4 ports)
Misc: 3 x ARGB Gen 2, 1 x Clear CMOS, 1 x COM, 1 x Front Audio, 1 x Front Panel header

Special Features
TUF Protection: DIGI+ VRM, ESD Guards, LANGuard, Overvoltage protection, SafeSlot, Stainless-steel I/O
Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED
Thermal Solution: Flexible M.2 heatsink, VRM heatsink
EZ DIY: BIOS FlashBack™, ProCool, Pre-mounted I/O, SafeDIMM
Aura Sync: Addressable RGB Gen 2 headers

Software Features
ASUS Exclusive Software: Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4, Power Saving), AI Advisor, DriverHub, GlideX, TurboV Core, DTS Audio Processing, Adobe Creative Cloud (Trial), Norton 360 (Trial), WinRAR (Trial)
UEFI BIOS: EZ Flash 3, CrashFree BIOS 3, EZ Mode, MyHotkey

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

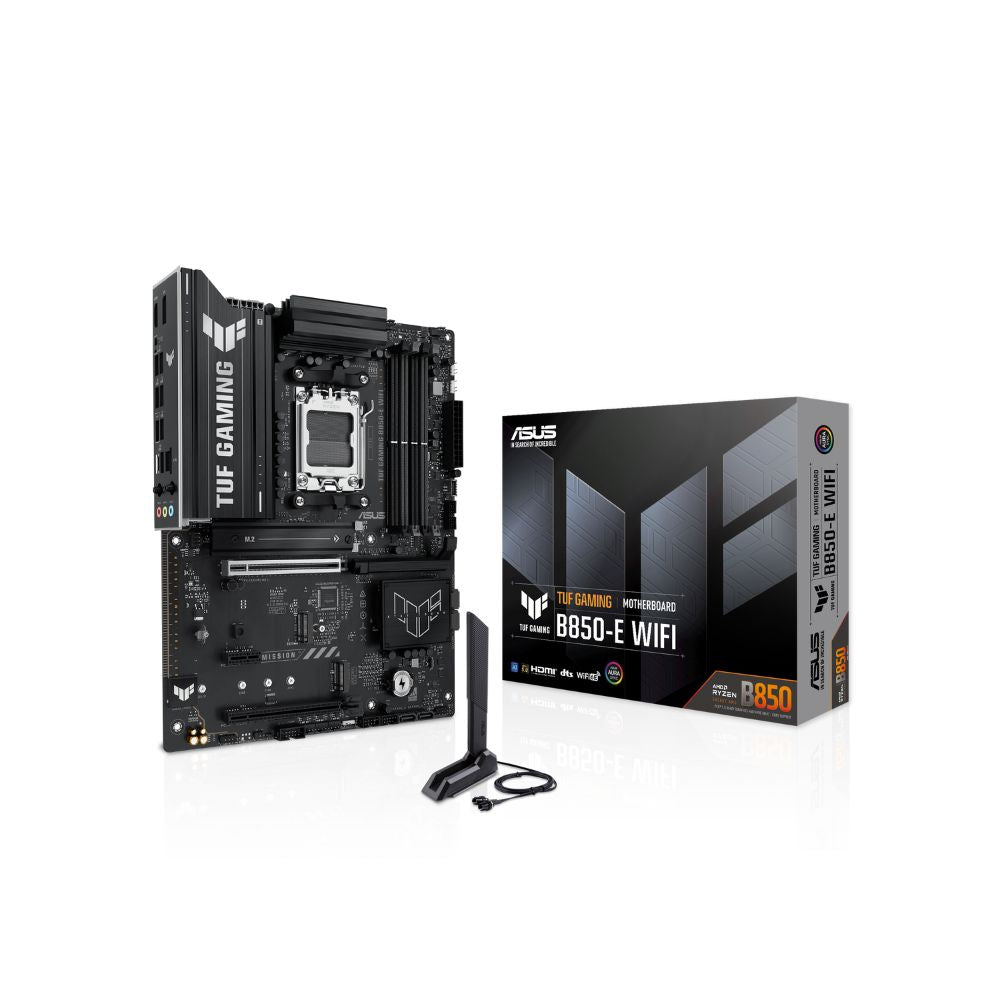

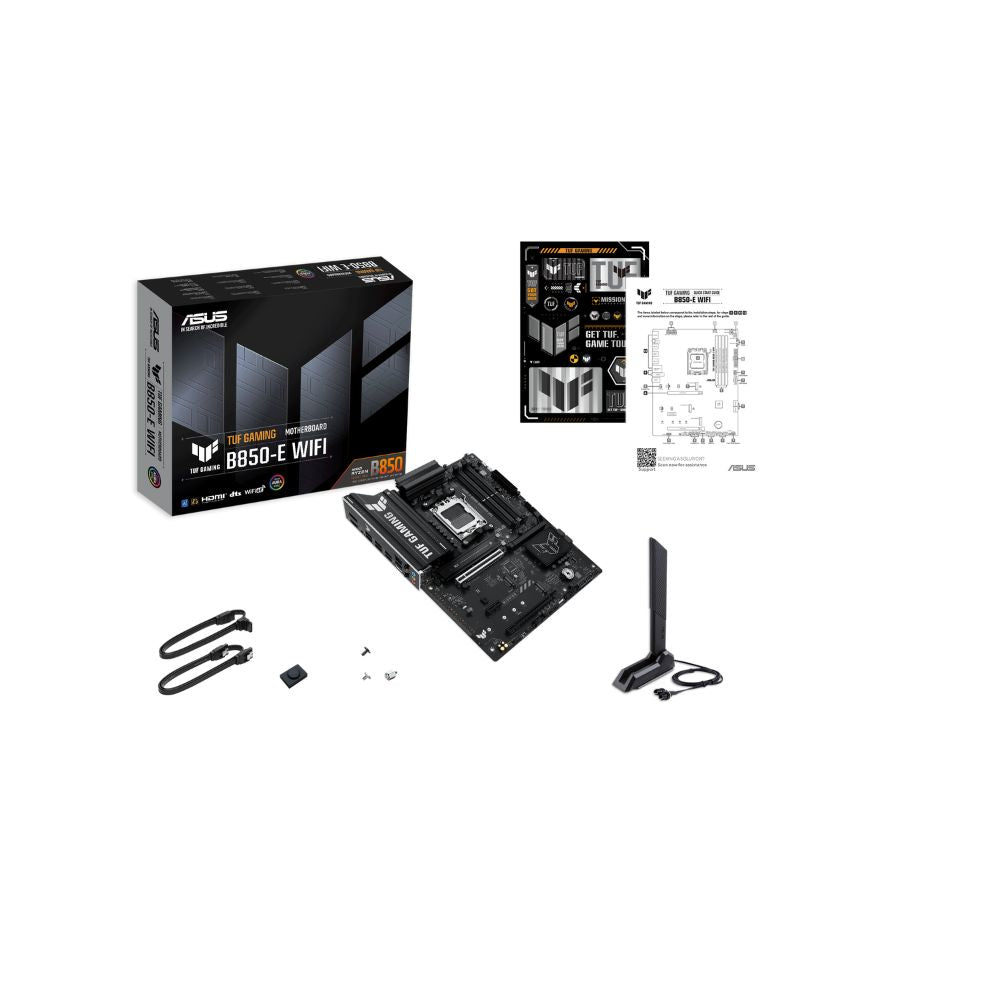

Accessories
Cables: 2 x SATA 6Gb/s cables
Misc: 1 x ASUS Wi-Fi Q-Antenna, 1 x TUF Gaming sticker, 1 x M.2 rubber package, 2 x M.2 screw packages
Documentation: 1 x Quick Start Guide

Operating System
Windows 11, Windows 10 64-bit

Form Factor
ATX (30.5 x 24.4 cm)

3 YEARS WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave, #03-03,
Singapore 339416
Contact: 6341 7839

Ban Leong Technologies Ltd
150, #04-01 Ubi Ave 4, Ubi Biz-Hub,
Singapore 408825
Contact: 6512 9250

Frequently Asked Questions About ASUS TUF GAMING B850-E WIFI

Does this motherboard support Ryzen 9000 series processors?

Yes, the ASUS TUF GAMING B850-E WIFI supports AMD Ryzen 9000, 8000, and 7000 series processors. You may need a BIOS update for the latest CPUs, which you can do with BIOS FlashBack.

What's the difference between B850 and X870 chipsets?

B850 gives you PCIe 5.0, WiFi 6E, and fast USB at a lower price. X870 adds more PCIe lanes and USB ports for multi-GPU setups. Most gamers don't need X870's extras.

Can I use DDR4 RAM with this motherboard?

No, the AM5 platform only supports DDR5 memory. This board accepts DDR5 modules from 4800 MT/s up to 8000+ MT/s when overclocked. DDR4 is not compatible with AM5 socket.

What warranty comes with this motherboard in Singapore?

You get a 3-year warranty with ASUS service center support in Singapore. If anything goes wrong, contact us via WhatsApp or visit our store. We're open 7 days a week.

Is this motherboard good value compared to B650 boards?

Yes, if you want newer features like USB 20Gbps front header. B650 is still solid, but B850 adds improvements without huge price increases. It's the sweet spot for new builds.
