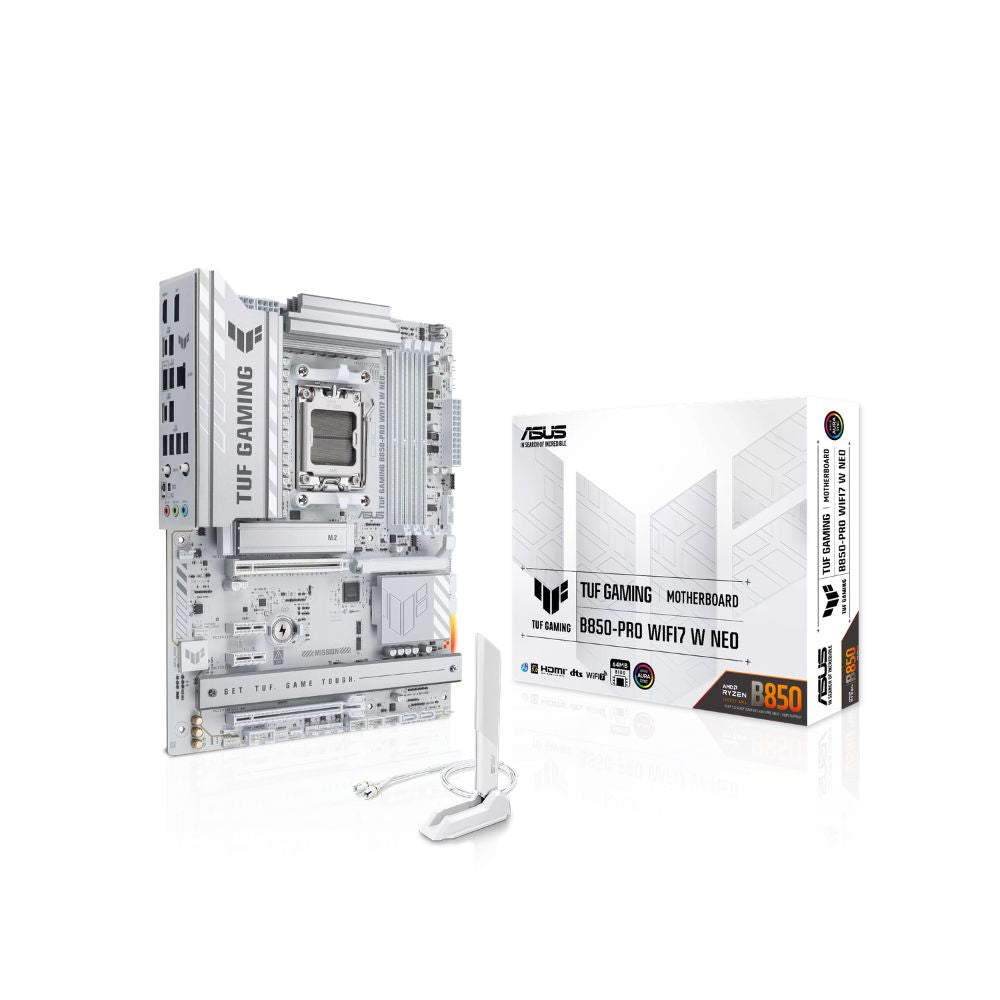

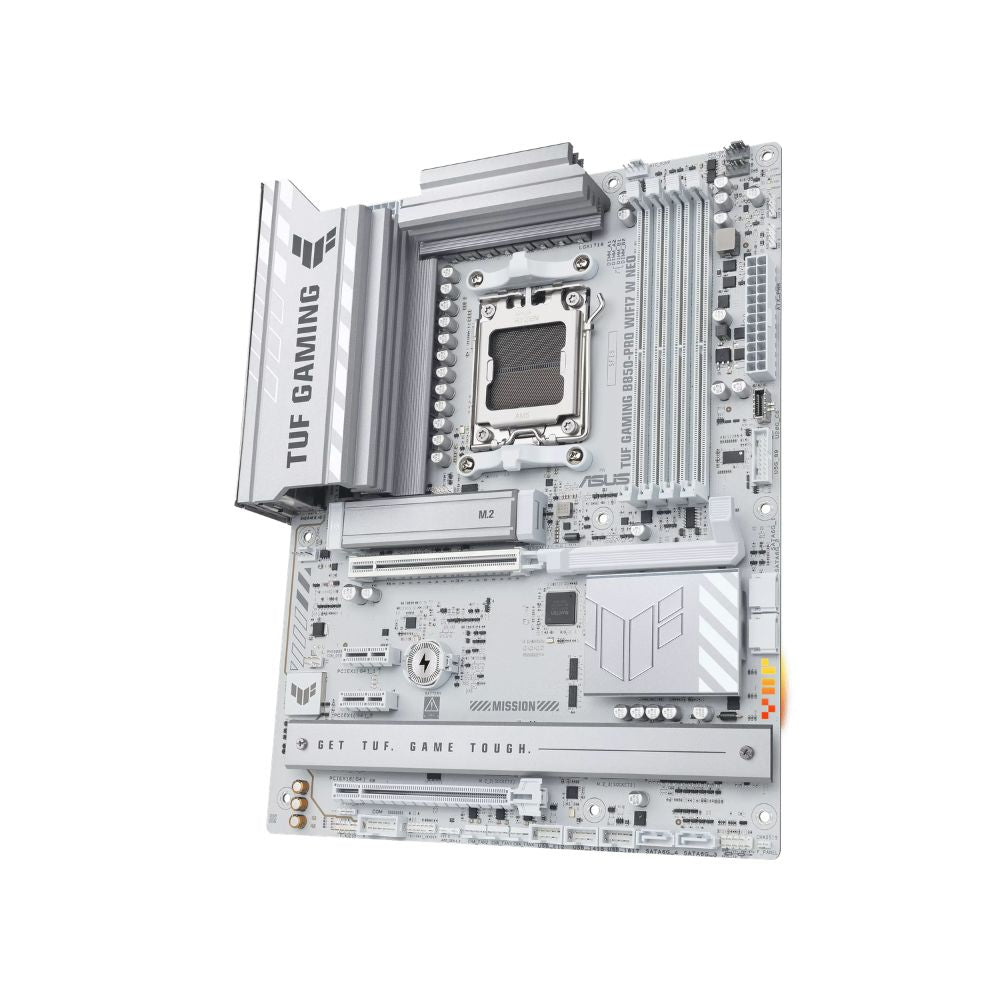

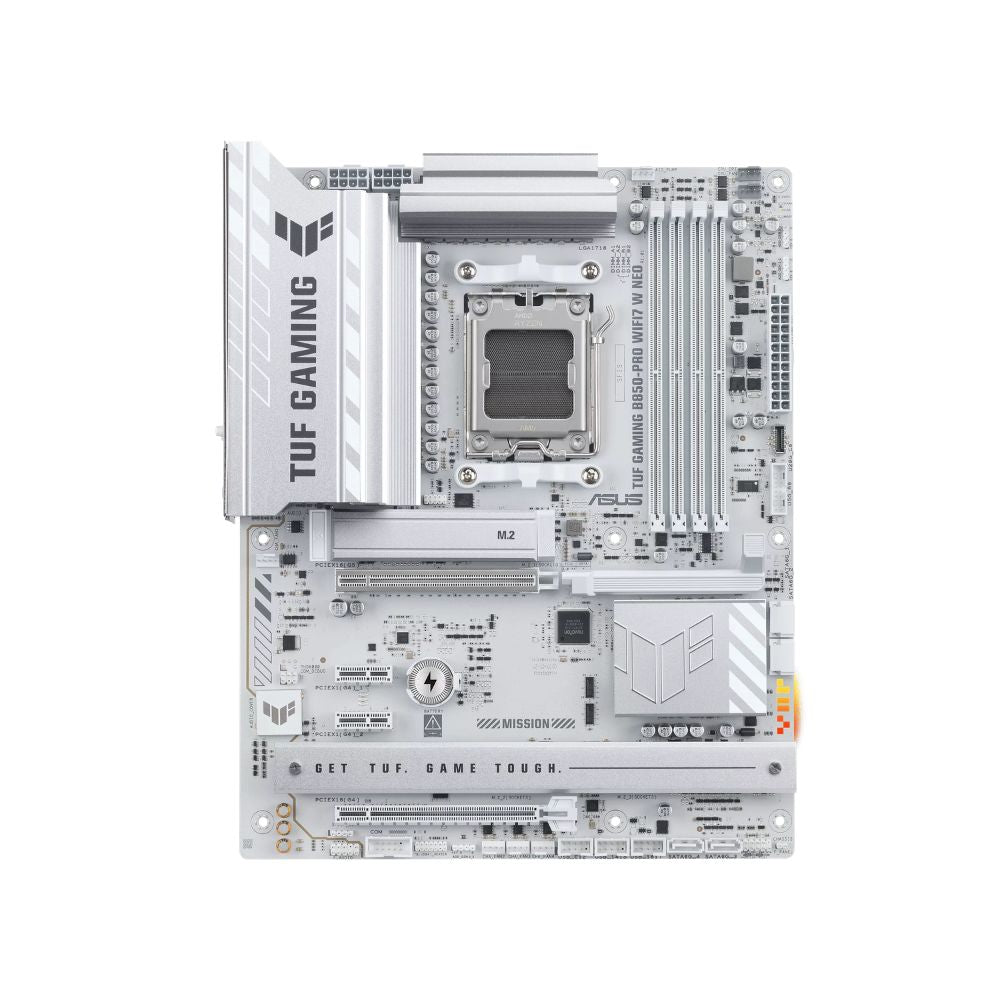

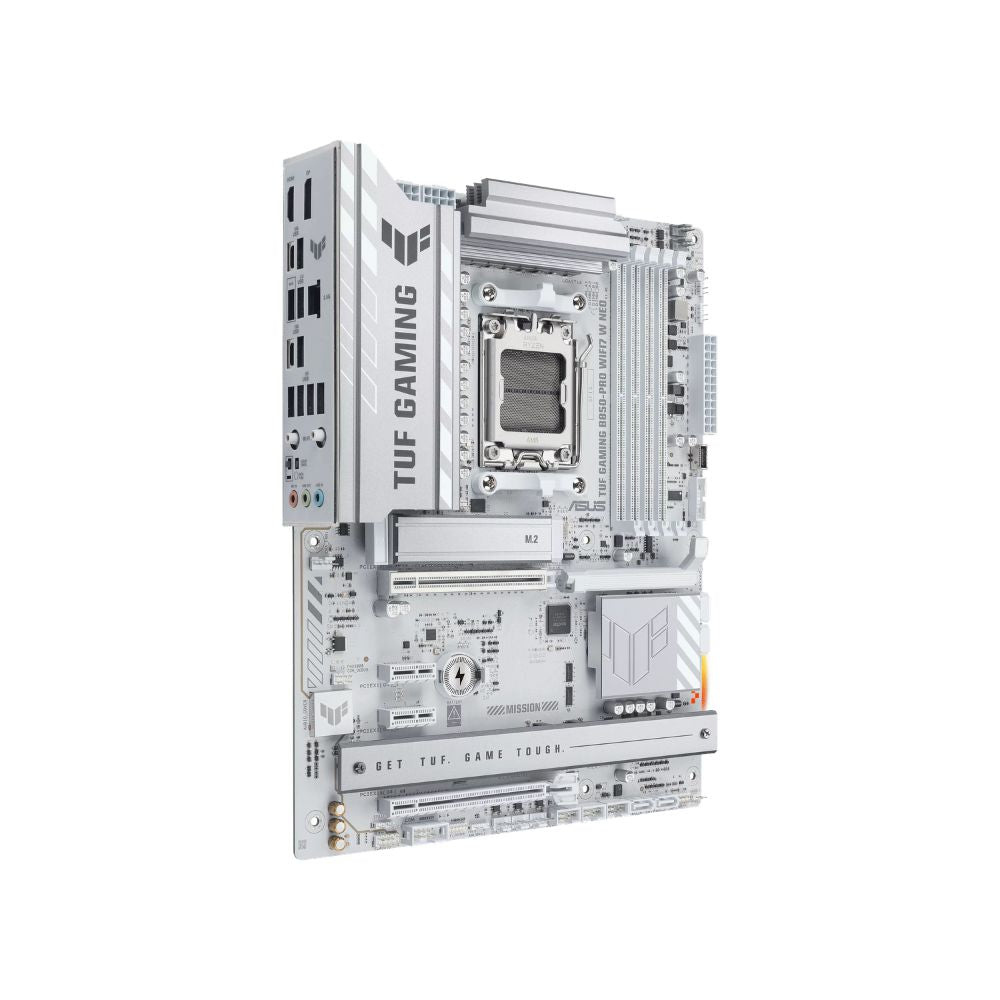

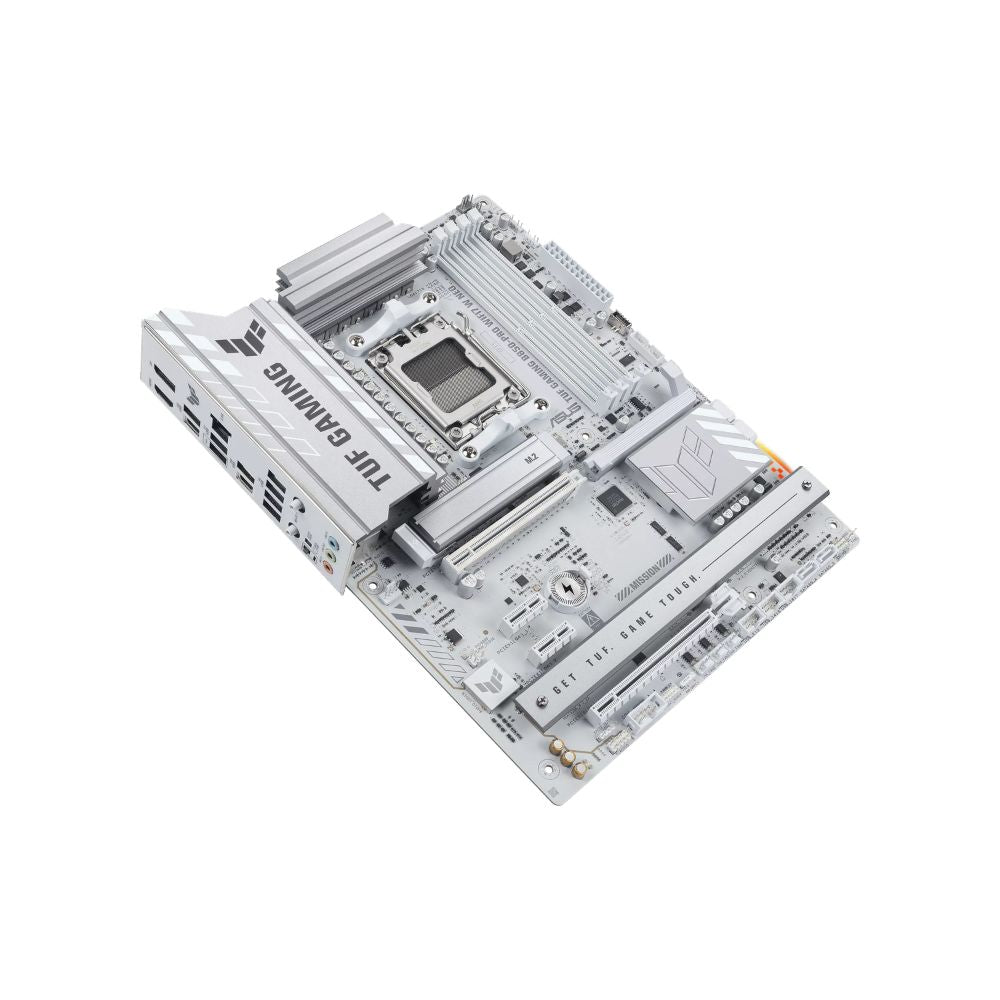

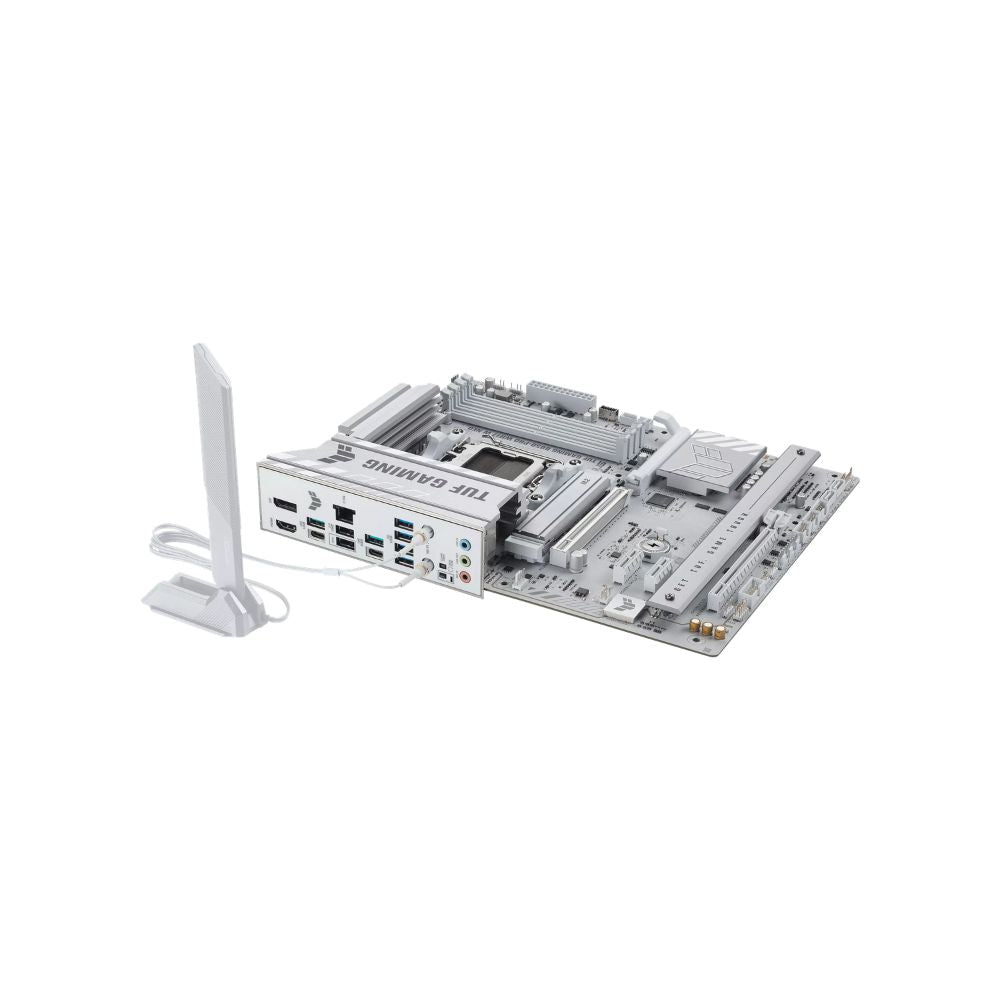

ASUS TUF GAMING B850-PRO WIFI7 W NEO – Durable AM5 Performance

Model
TUF GAMING B850-PRO WIFI7 W NEO

CPU Socket
AM5

CPU Support
AMD Ryzen™ 9000 Series Desktop Processors
AMD Ryzen™ 8000 Series Desktop Processors
AMD Ryzen™ 7000 Series Desktop Processors

Chipset
AMD B850 Chipset

Memory
4 x DIMM slots
Max 256GB DDR5
Up to 8400+MT/s (OC) / 8200+MT/s (OC) with Ryzen™ 9000 Series
Up to 9000+MT/s (OC) / 8600+MT/s (OC) with Ryzen™ 8000 Series
Up to 8000+MT/s (OC) with Ryzen™ 7000 Series
ECC and Non-ECC Un-buffered DIMM
Dual Channel Memory Architecture
Supports AMD EXPO™
Supports ASUS AEMP

Graphics Output
1 x DisplayPort
1 x HDMI™ port

Expansion Slots
1 x PCIe 5.0 x16 slot (Ryzen™ 9000 / 7000)
1 x PCIe 4.0 x16 slot (Ryzen™ 8000)
1 x PCIe 4.0 x16 slot (Chipset, x4 mode)
2 x PCIe 4.0 x1 slots

Storage
3 x M.2 slots
4 x SATA 6Gb/s ports

M.2 Support
M.2_1 PCIe 5.0 x4 (Ryzen™ 9000 / 7000)
M.2_2 PCIe 4.0 x4
M.2_3 PCIe 4.0 x4 (Chipset)

RAID Support
RAID 0 / 1 / 5 / 10

Ethernet
1 x Realtek® 2.5Gb Ethernet
TUF LANGuard

Wireless
Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4GHz / 5GHz / 6GHz
Supports 160MHz bandwidth

Bluetooth
Bluetooth® v5.4

Rear USB Ports
4 x USB 10Gbps (2 x Type-A + 2 x Type-C®)
4 x USB 5Gbps (Type-A)
2 x USB 2.0

Front USB Headers
1 x USB 20Gbps Type-C®
1 x USB 5Gbps header (2 ports)
3 x USB 2.0 headers (6 ports)

Audio
Realtek® ALC1220P 7.1 Surround Sound
120 dB playback / 113 dB recording
Supports 32-bit / 192 kHz

Back Panel I/O
4 x USB 10Gbps
4 x USB 5Gbps
2 x USB 2.0
1 x DisplayPort
1 x HDMI™
1 x Wi-Fi module
1 x 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack™
1 x Clear CMOS

Internal Connectors
1 x CPU Fan
1 x CPU OPT Fan
1 x AIO Pump
4 x Chassis Fan headers
1 x 24-pin Power
2 x 8-pin CPU Power
3 x M.2 slots
4 x SATA ports
1 x USB 20Gbps header
1 x USB 5Gbps header
3 x USB 2.0 headers
3 x Addressable RGB Gen 2 headers
1 x Thunderbolt™ (USB4®) header
1 x Front Panel header
1 x Audio header

Special Features
Asynchronous Clock
ASUS TUF PROTECTION
ASUS Q-Design
ASUS Thermal Solution
ASUS EZ DIY
Aura Sync

Software
ASUS Exclusive Software
Armoury Crate
ASUS DriverHub
DTS Audio Processing
Adobe Creative Cloud (Free Trial)
UEFI BIOS
Integrated WiFi Driver Support
AI Cache Boost
ASUS EZ DIY

BIOS
64MB (512Mb) Flash ROM, UEFI AMI BIOS

Operating System
Windows 11

Form Factor
ATX

Dimensions
12 inch x 9.6 inch (30.5 cm x 24.4 cm)
