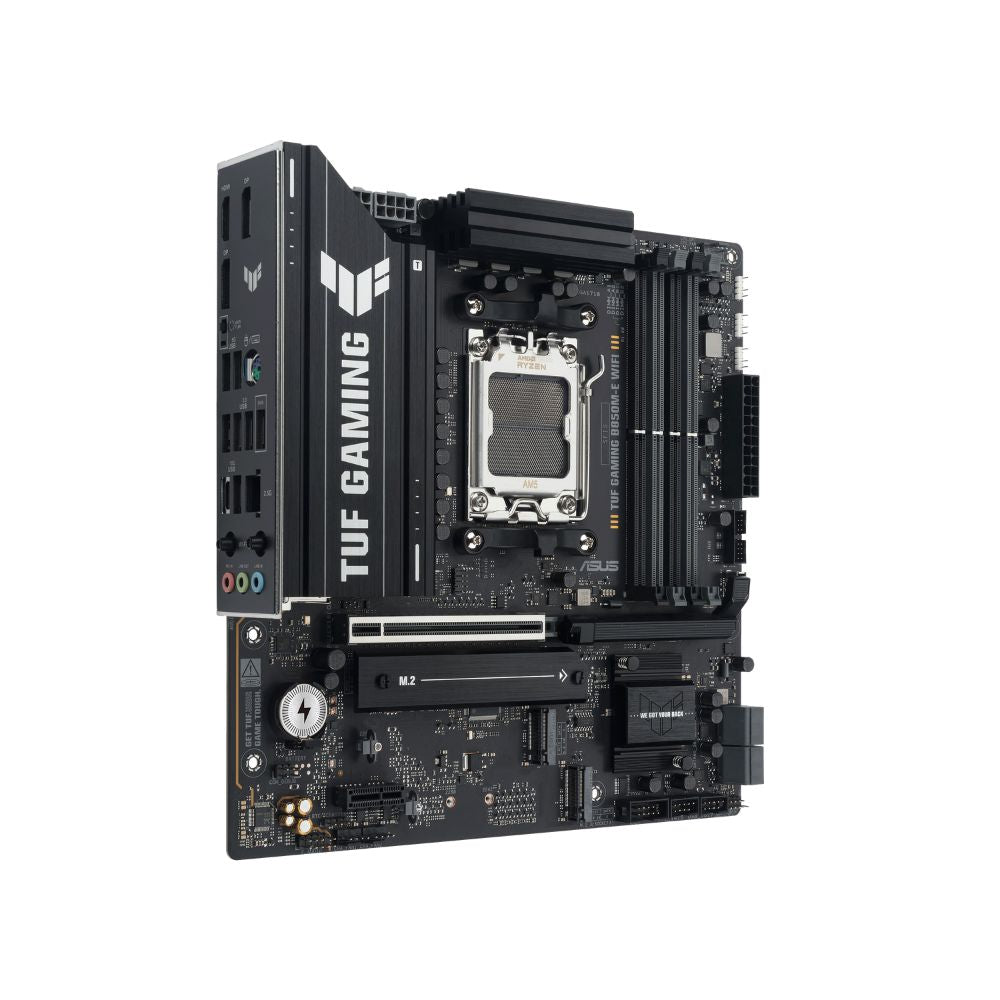

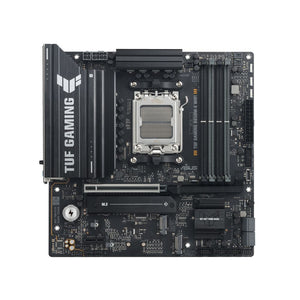

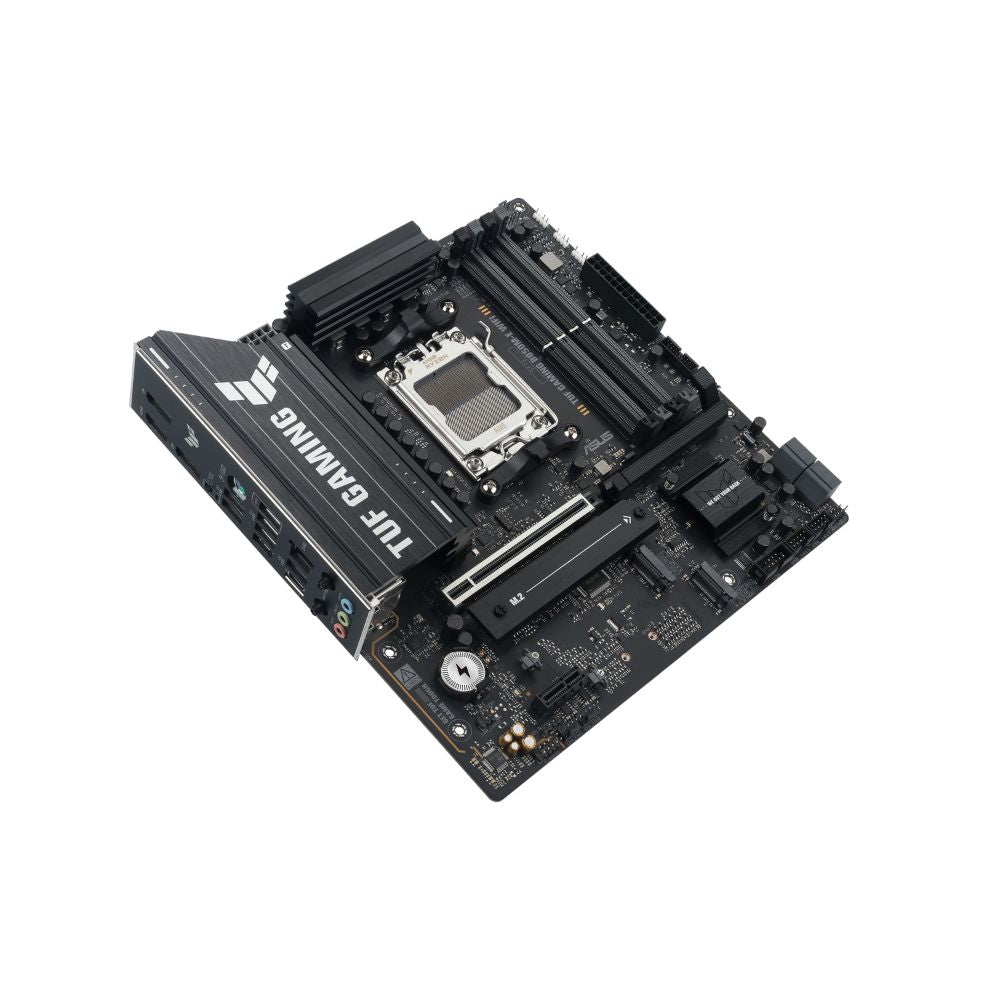

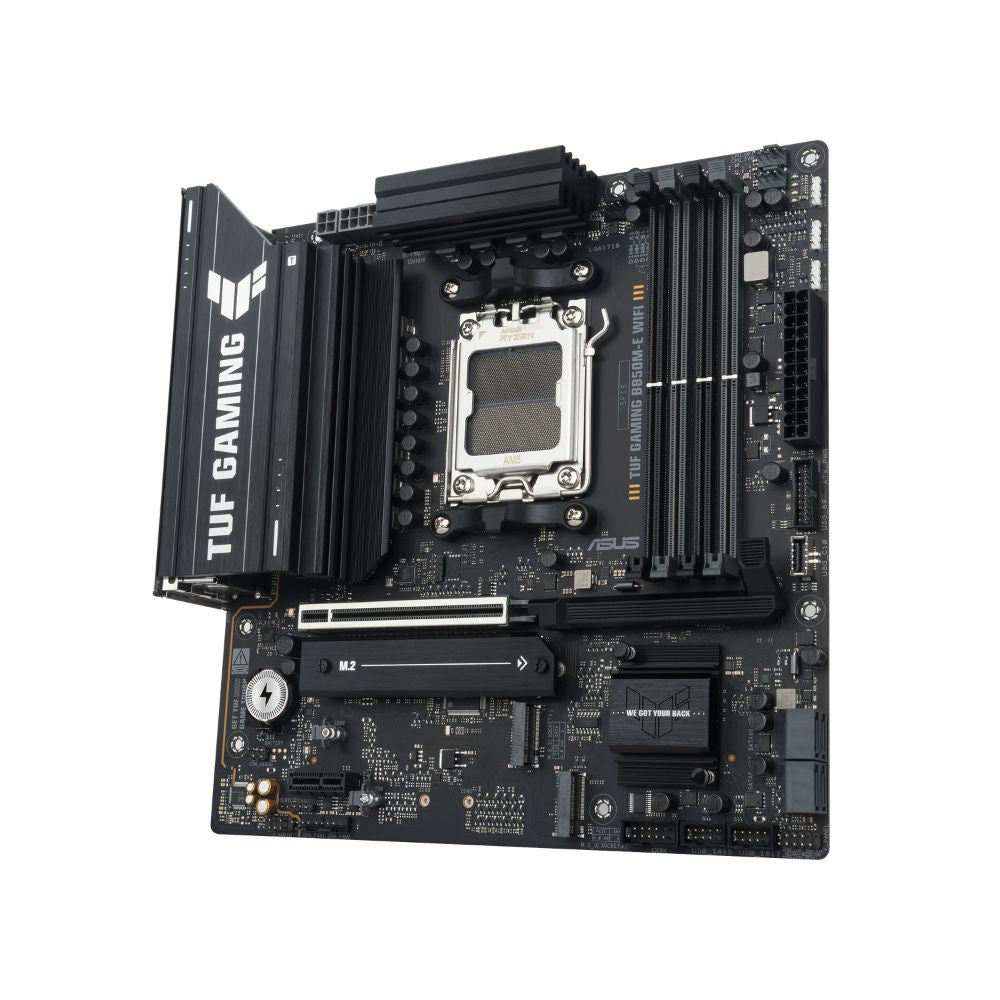

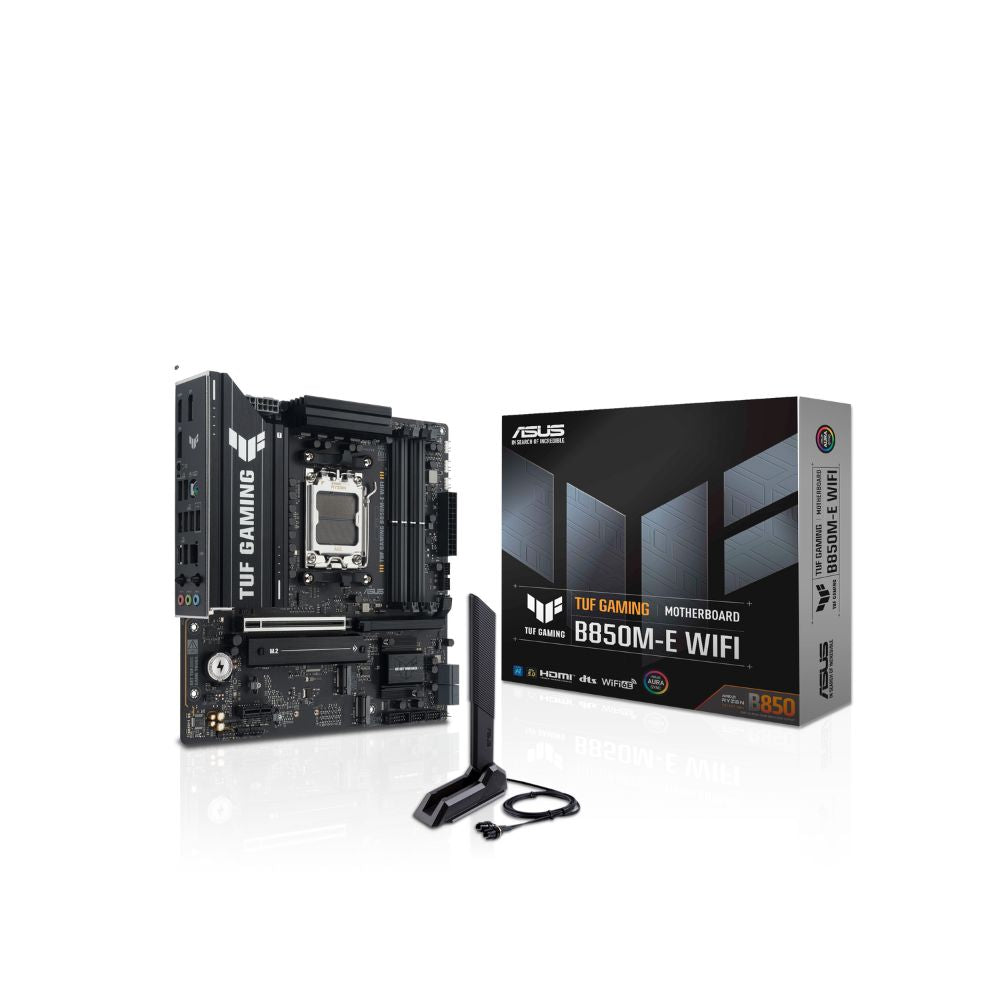

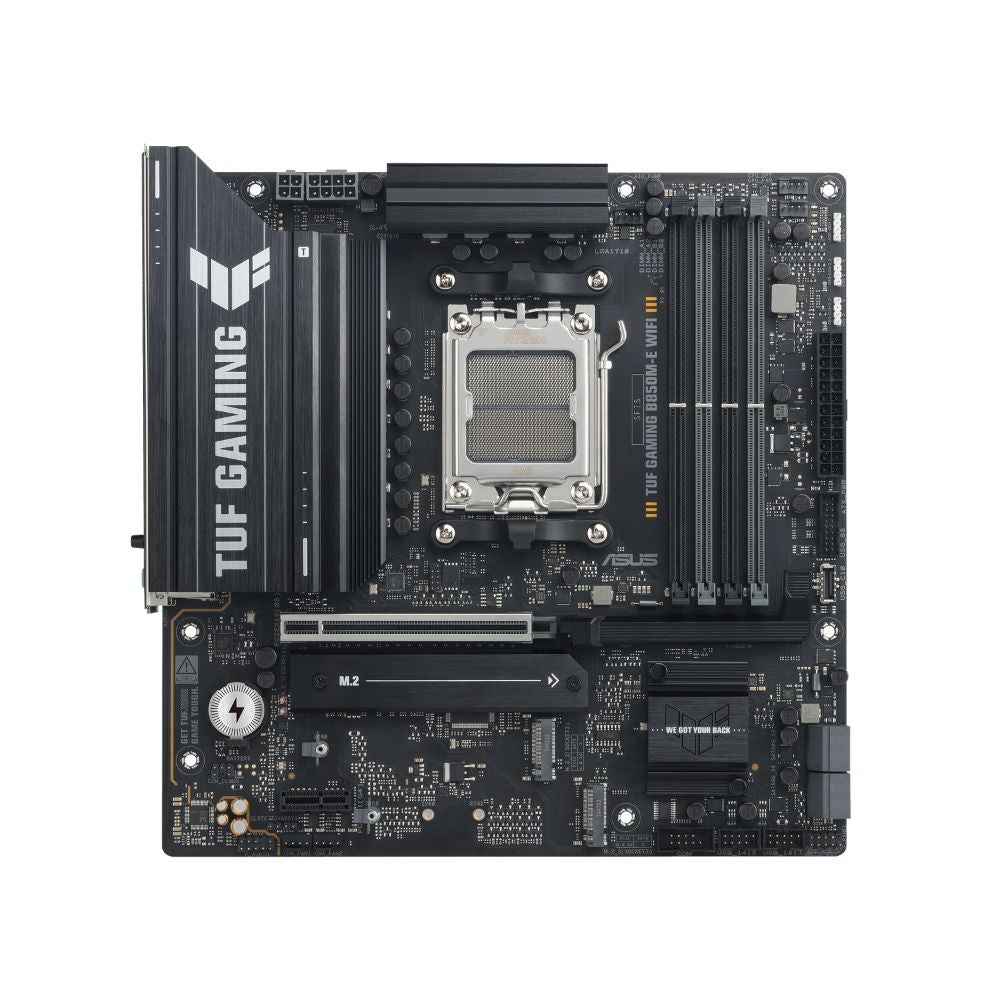

ASUS TUF GAMING B850M-E WIFI – Micro-ATX B850 Motherboard

SKU: B850M-E

CPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series (AM5)

Memory: 4 × DDR5 DIMMs, up to 256GB, supports 8000+ MT/s (OC) with EXPO™

Storage: 3 × M.2 slots (PCIe 5.0 / 4.0) + 4 × SATA 6Gb/s

Connectivity: Wi-Fi 6E + Realtek 2.5Gb LAN, USB-C 5Gbps front header

The ASUS TUF GAMING B850M-E WIFI gives you premium features in a compact micro-ATX form factor for modern AM5 builds.

This board supports DDR5 up to 8000+ MT/s and includes PCIe 5.0 x16 for next-gen GPUs. WiFi 6E, 2.5Gb Ethernet, and three M.2 slots deliver connectivity most B850 boards skip. Get 3-year ASUS warranty with Singapore service support from Mansa Computers.

Why Choose This TUF GAMING B850M-E WIFI

  • PCIe 5.0 x16 slot and DDR5 8000+ MT/s support future-proof your system. Perfect for AM5 DDR5 motherboards built for Ryzen 9000 gaming.
  • Three M.2 slots plus four SATA ports give you storage flexibility. Install multiple PCIe 4.0 NVMe drives without compromises.
  • TUF durability features like SafeSlot and ESD Guards protect your investment. Q-Design tool-less installation saves time for first-time builders.
  • 3-year Singapore warranty with ASUS service support. Fast WhatsApp inquiry response from Mansa Computers. We're open 7 days a week.
✓ Why Buy This

3 Year Warranty

WiFi 6E Connectivity

PCIe 5.0 Support

Overview

About the ASUS TUF GAMING B850M-E WIFI

The ASUS TUF GAMING B850M-E WIFI brings latest-generation B850 chipset features to a compact micro-ATX footprint. This motherboard supports AMD Ryzen 9000, 8000, and 7000 Series processors with Socket AM5. DDR5 memory up to 8000+ MT/s OC gives you headroom for performance tuning. TUF durability features ensure long-term reliability for gaming and productivity builds.

What This ASUS TUF GAMING B850M-E WIFI Does for You

Build a powerful system without needing full ATX tower space. PCIe 5.0 x16 slot supports future graphics cards that demand maximum bandwidth. Three M.2 slots accommodate fast NVMe drives for games, applications, and storage. WiFi 6E delivers wireless speeds up to 2.4Gbps across 2.4GHz, 5GHz, and 6GHz bands. Realtek 2.5Gb Ethernet with TUF LANGuard protects against power surges while delivering low-latency wired connectivity. USB 10Gbps Type-C and Type-A ports on the rear panel enable quick file transfers.

Build Quality and Installation Features

TUF Protection includes DIGI+ VRM for stable power delivery to your processor. SafeSlot reinforces the PCIe slot with metal brackets to prevent GPU sag damage. ESD Guards protect components from electrostatic discharge during installation. Q-Design features simplify the build process with M.2 Q-Latch tool-less drive installation and PCIe Q-Release for quick GPU removal. Pre-mounted I/O shield and Q-LED diagnostics help first-time builders complete their systems confidently.

Perfect For

  • Gamers building compact AM5 systems with Ryzen 9000 processors for 1440p and 4K gaming
  • First-time builders who want reliable micro-ATX boards with beginner-friendly installation features
  • Home office users upgrading to DDR5 platforms for productivity and casual gaming
  • Budget-conscious enthusiasts seeking B850 chipset benefits without flagship motherboard pricing

Why Buy from Mansa Computers

  • 3-year Singapore warranty with ASUS service support
  • Fast WhatsApp inquiry response for technical questions
  • Open 7 days a week for support and pickup
  • Home delivery available across Singapore

Technical Specifications Summary

Chipset
AMD B850

Socket
AM5 (Ryzen 9000/8000/7000)

Memory
4x DDR5 up to 8000+ MT/s, Max 256GB

Storage
3x M.2 (PCIe 5.0/4.0), 4x SATA 6Gb/s

Graphics Slot
1x PCIe 5.0 x16 (Ryzen 9000/7000)

Networking
WiFi 6E, Bluetooth 5.3, 2.5Gb Ethernet

USB Ports
Rear: USB 10Gbps + USB 5Gbps + USB 2.0 ports (full list on ASUS official page).
Front: USB 5Gbps Type-C.

Form Factor
Micro-ATX (24.4 x 24.4 cm)

Order your ASUS TUF GAMING B850M-E WIFI from Mansa Computers today. We ship across Singapore with fast delivery and provide local warranty support.

Full Specifications

Model
TUF GAMING B850M-E WIFI

CPU
AMD Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors

Chipset
AMD B850

Memory
4 x DDR5 DIMM slots, up to 256GB
Supports up to 8000+MT/s(OC) with Ryzen™ 9000 / 8000 / 7000 Series
Dual Channel Architecture, ECC & Non-ECC Un-buffered DIMM
Supports EXPO™ and ASUS Enhanced Memory Profile (AEMP)

Graphics
2 x DisplayPort (max 8K@60Hz, DisplayPort 1.4)
1 x HDMI™ port (4K@60Hz, HDMI 2.1)
Graphics specifications vary by CPU type.

Expansion Slots
AMD Ryzen™ 9000 & 7000 Series
1 x PCIe 5.0 x16 slot
AMD Ryzen™ 8000 Series
1 x PCIe 4.0 x16 slot (x8/x4 mode)
AMD B850 Chipset
1 x PCIe 4.0 x1 slot

Storage
3 x M.2 slots + 4 x SATA 6Gb/s
Ryzen™ 9000 & 7000 Series
M.2_1: PCIe 5.0 x4
M.2_2: PCIe 4.0 x4
Ryzen™ 8000 Series
M.2_1: PCIe 4.0 x4
M.2_2: PCIe 4.0 x4/x2
AMD B850 Chipset
M.2_3: PCIe 4.0 x4
RAIDXpert2 Technology
Ryzen™ 9000: RAID 0/1/5/10
Ryzen™ 8000: RAID 0/1
Ryzen™ 7000: RAID 0/1/10

Ethernet
1 x Realtek 2.5Gb Ethernet with TUF LANGuard

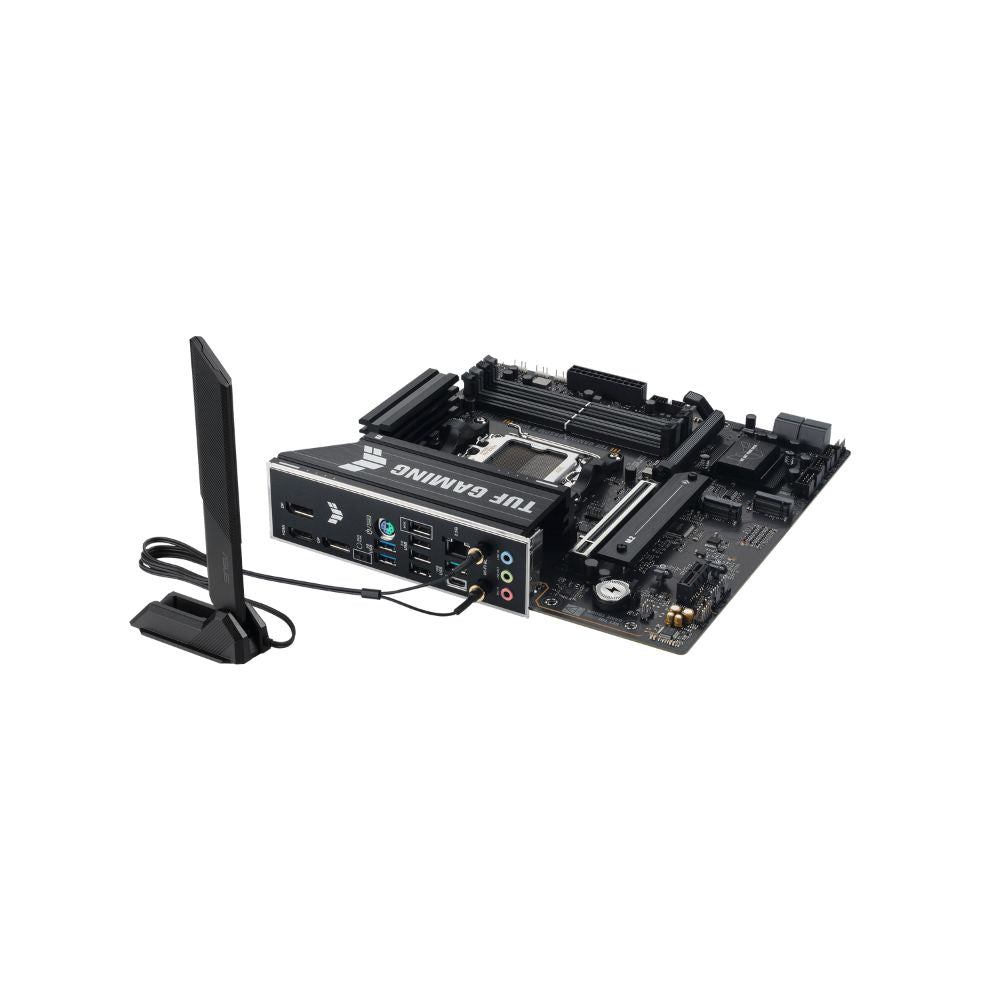

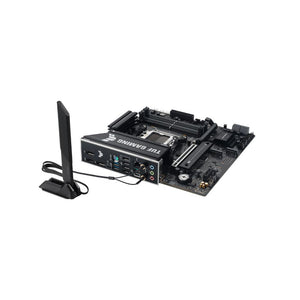

Wireless & Bluetooth
Wi-Fi 6E (2x2, 802.11ax)
Supports 2.4/5/6GHz frequency bands
Bluetooth® v5.3

USB
Rear I/O (8 ports)
2 x USB 10Gbps (1 x Type-A, 1 x Type-C®)
2 x USB 5Gbps (Type-A)
4 x USB 2.0 (Type-A)
Front I/O (7 ports)
1 x USB 5Gbps Type-C®
1 x USB 5Gbps header (2 ports)
2 x USB 2.0 headers (4 ports)

Audio
Realtek 7.1 Surround Sound HD Audio CODEC
Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-bit/192kHz playback
Audio Features: Audio Shielding, Premium capacitors, Dedicated audio PCB layers

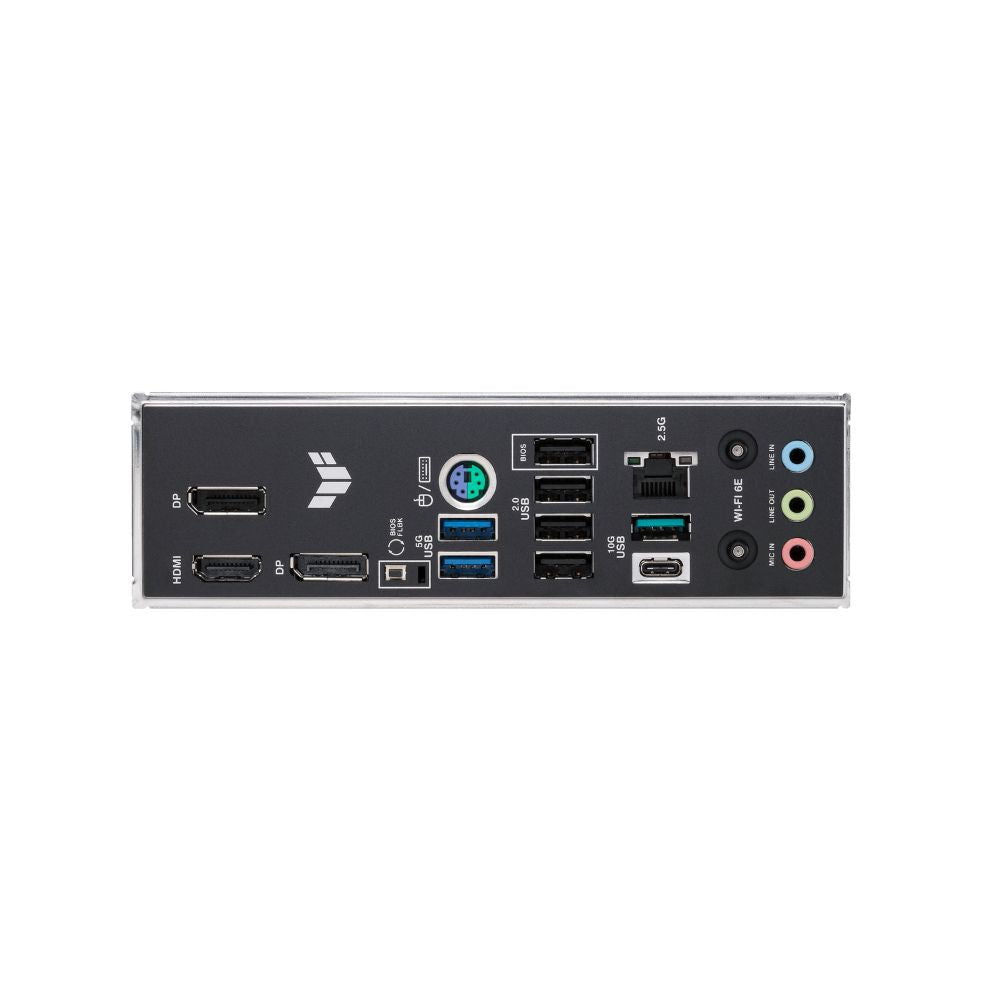

Back Panel I/O
2 x USB 10Gbps (1 x Type-A, 1 x Type-C®)
2 x USB 5Gbps (Type-A)
4 x USB 2.0 (Type-A)
2 x DisplayPort, 1 x HDMI™, 1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack™ button
1 x PS/2 keyboard/mouse combo port

Internal I/O
Cooling: 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 2 x Chassis Fan
Power: 1 x 24-pin ATX, 1 x 8-pin +12V, 1 x 4-pin +12V
Storage: 3 x M.2, 4 x SATA
USB: 1 x USB 5Gbps Type-C®, 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports)
Misc: 3 x ARGB Gen 2, 1 x Clear CMOS, 1 x COM, 1 x Front Audio, 1 x Front Panel header, 1 x Chassis Intrusion

Special Features
TUF Protection: DIGI+ VRM, ESD Guards, LANGuard, Overvoltage Protection, SafeSlot, Stainless-Steel I/O
Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-DIMM, Q-LED
Thermal: VRM and M.2 heatsink
EZ DIY: BIOS FlashBack™, ProCool, Pre-mounted I/O, SafeDIMM
Aura Sync: Addressable RGB Gen 2 headers

Software Features
Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+)
ASUS AI Advisor, DriverHub, GlideX, TurboV Core, DTS Audio Processing, Norton 360 (Trial), WinRAR (Trial)
UEFI BIOS: EZ Flash 3, CrashFree BIOS 3, EZ Mode, MyHotkey

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

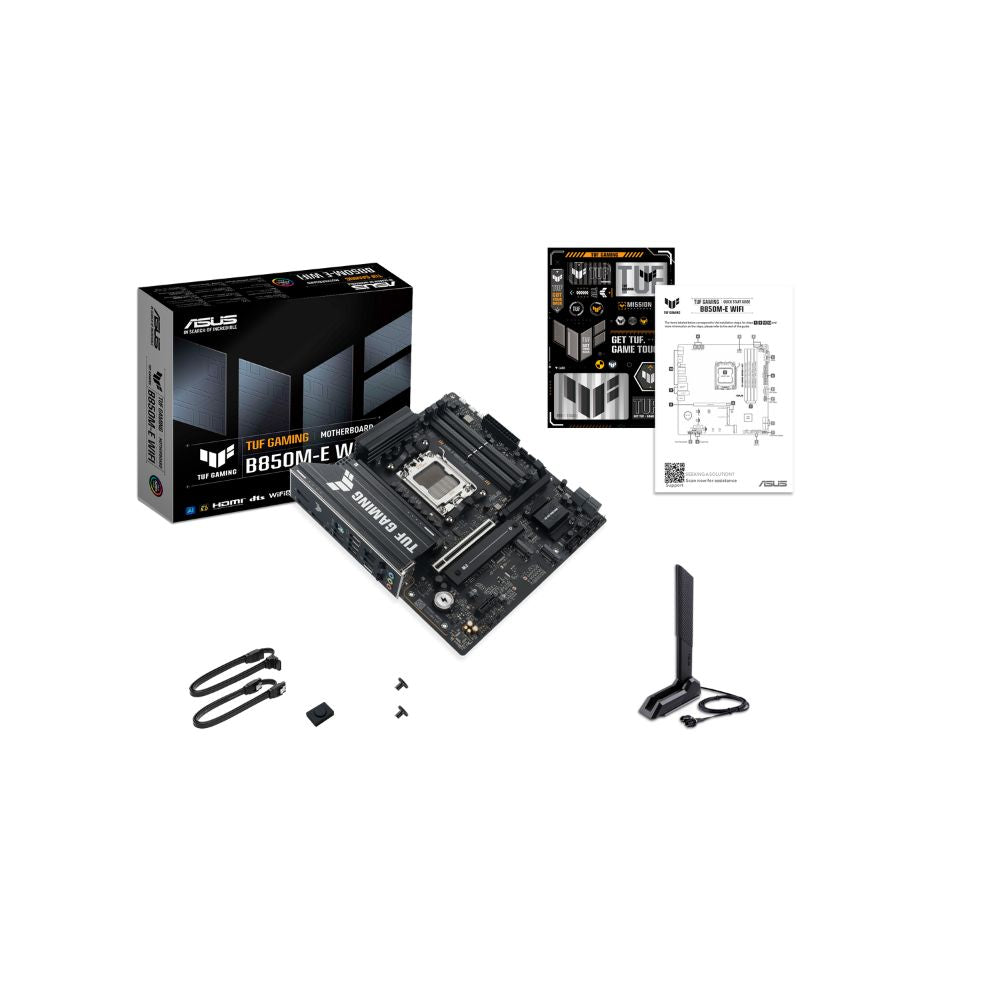

Accessories
2 x SATA 6Gb/s cables
1 x Wi-Fi Q-Antenna
1 x TUF Gaming sticker
1 x M.2 Rubber Package
1 x M.2 Screw Package
1 x Quick Start Guide

Operating System
Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)

Form Factor
micro-ATX (24.4 cm x 24.4 cm)

Warranty

3 YEARS WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave, #03-03,
Singapore 339416
Contact: 6341 7839

Ban Leong Technologies Ltd
150, #04-01 Ubi Ave 4, Ubi Biz-Hub,
Singapore 408825
Contact: 6512 9250

FAQs

Frequently Asked Questions About ASUS TUF GAMING B850M-E WIFI

Does this motherboard support PCIe 5.0 for graphics cards?

Yes, the PCIe 5.0 x16 slot works with Ryzen 9000 and 7000 Series processors. Ryzen 8000 Series runs the slot at PCIe 4.0 x16 speeds instead.

What's the maximum DDR5 memory speed this board supports?

The ASUS TUF GAMING B850M-E WIFI supports DDR5 up to 8000+ MT/s with overclocking. It also supports EXPO and ASUS AEMP profiles for easy tuning.

Can I use this motherboard for a small form factor gaming PC?

Absolutely. This micro-ATX board measures 24.4 x 24.4 cm and fits compact cases. You still get three M.2 slots and WiFi 6E for full-featured builds.

What warranty does this motherboard come with in Singapore?

You get 3-year ASUS warranty with local service center support. Mansa Computers provides fast WhatsApp response for technical questions and we're open 7 days weekly.

How does the B850 chipset compare to X870 motherboards?

B850 provides excellent value with PCIe 5.0 and DDR5 8000+ support. X870 boards add more USB4 ports and PCIe lanes for extreme multi-GPU setups.
