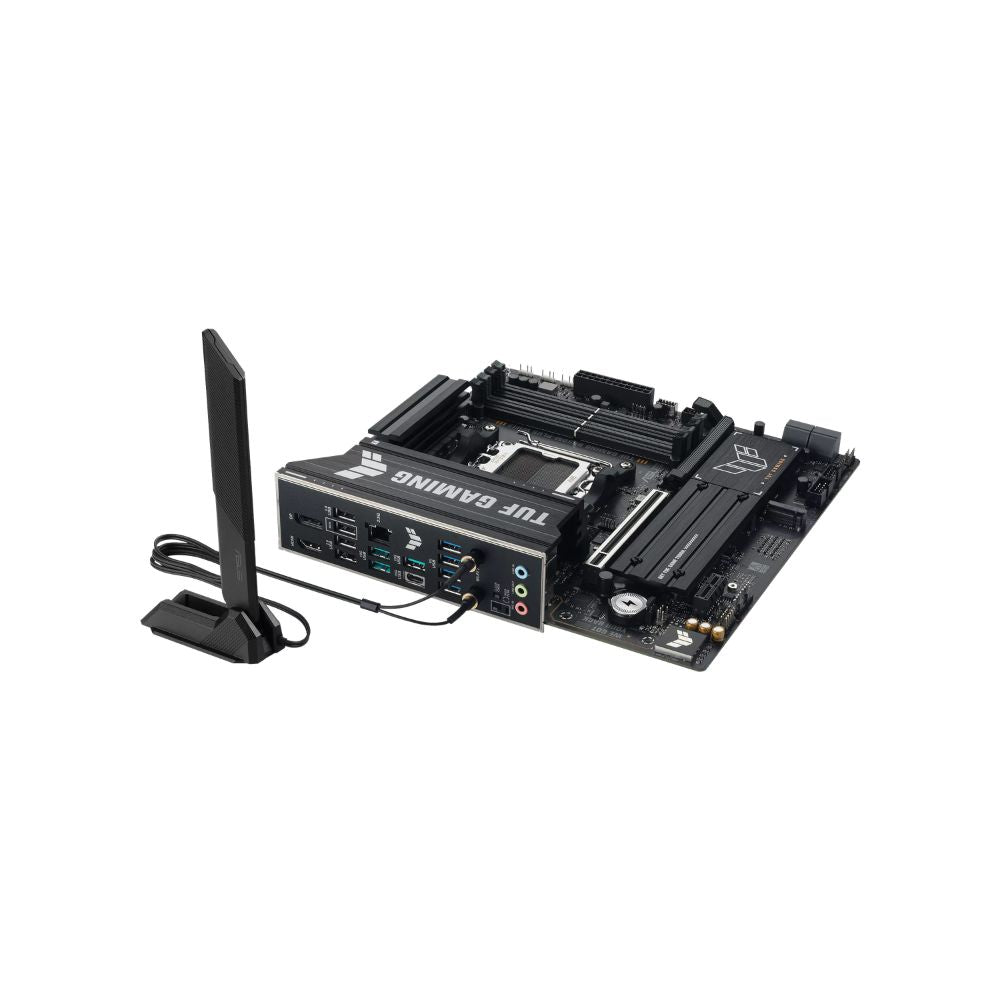

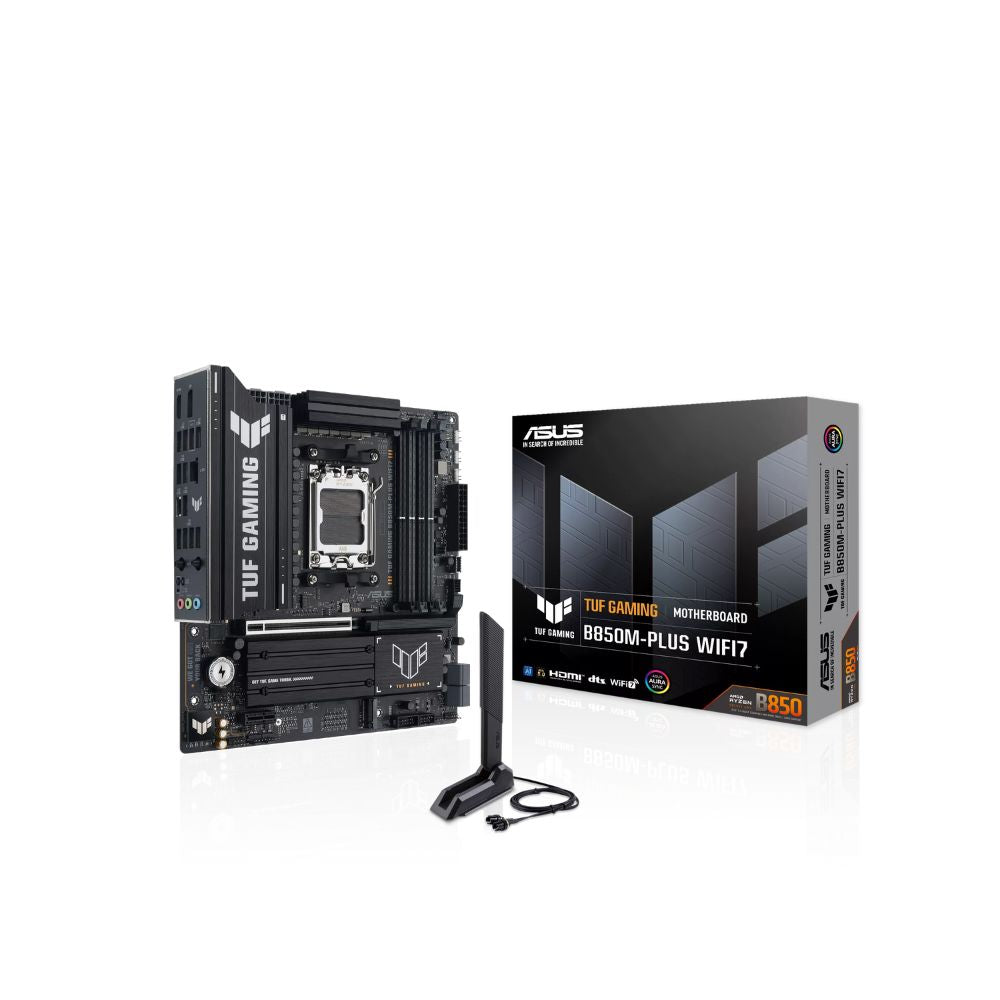

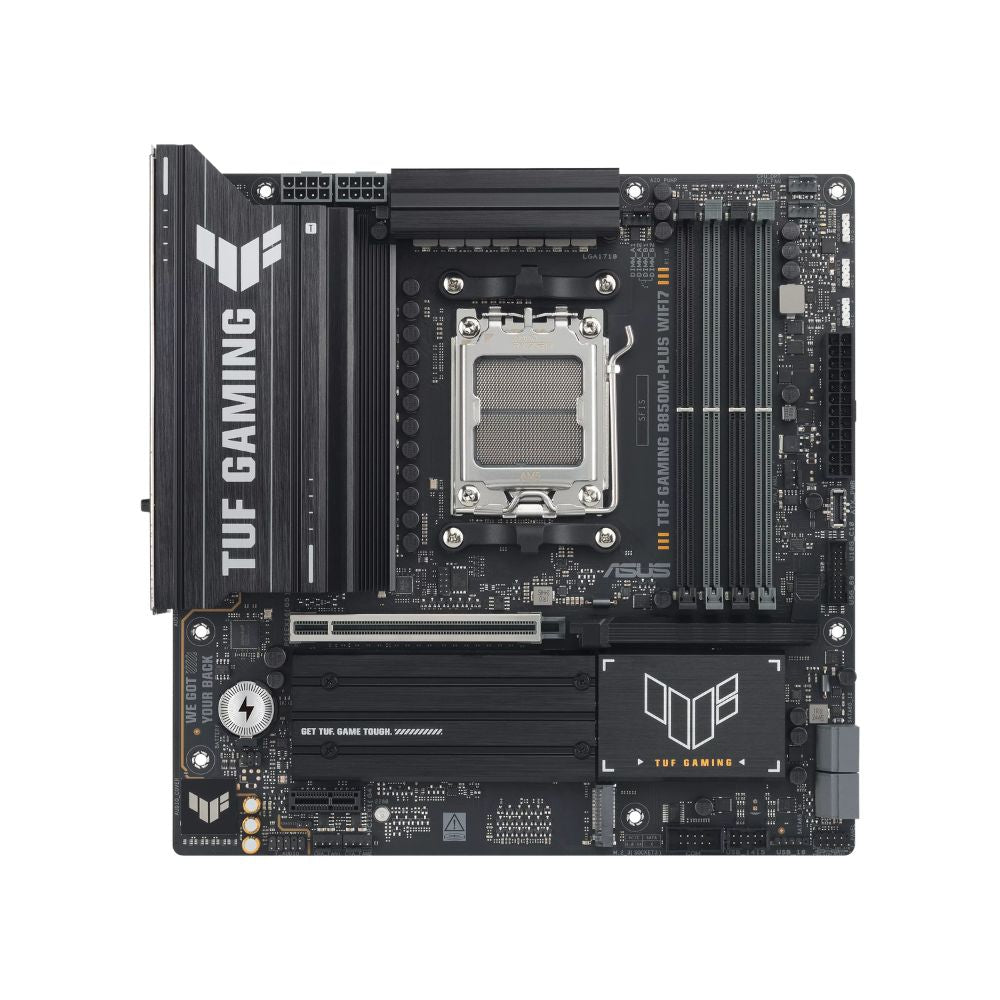

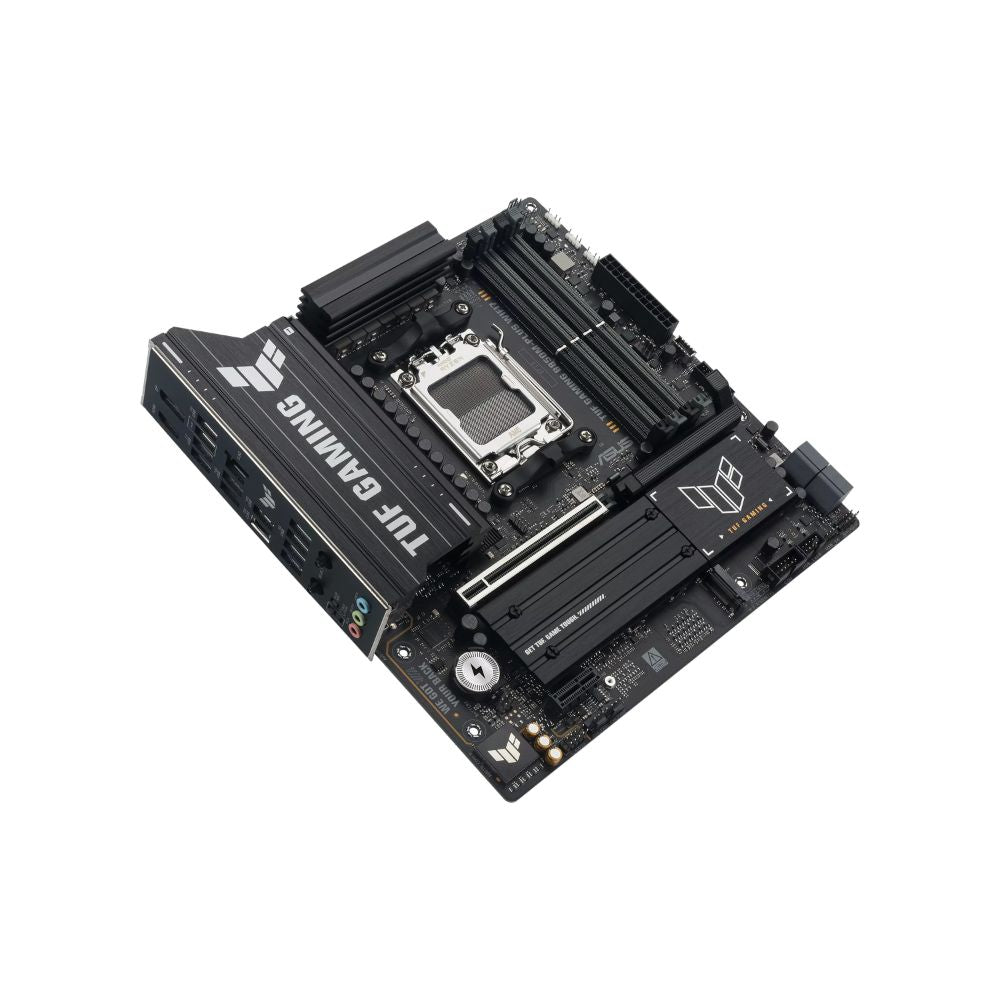

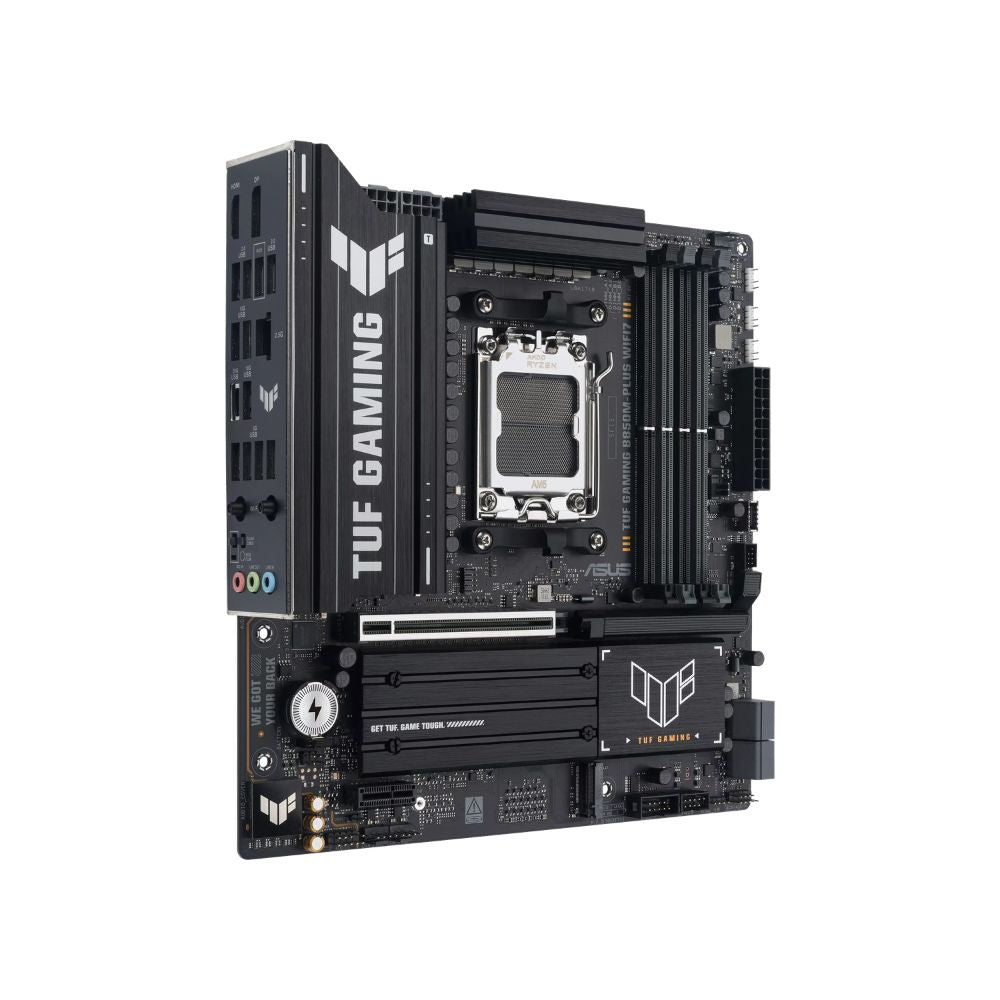

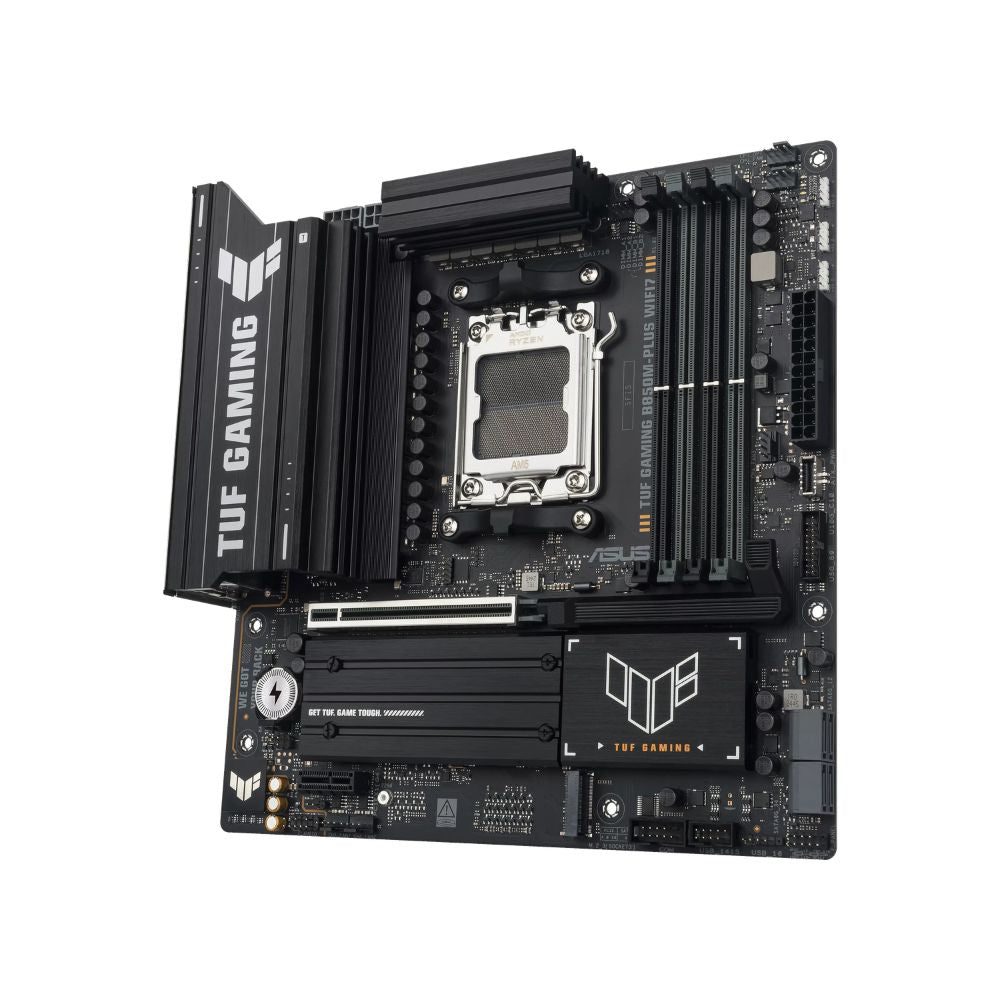

ASUS TUF GAMING B850M-PLUS WIFI7

Model
TUF GAMING B850M-PLUS WIFI7

CPU Socket
AM5

CPU Support
AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

Chipset
AMD B850 Chipset

Memory
4 x DIMM slots
Max 256GB DDR5
Up to 8000+MT/s (OC)
ECC and Non-ECC Un-buffered DIMM
Dual Channel Memory Architecture
Supports AMD EXPO™
Supports ASUS AEMP

Graphics Output
1 x DisplayPort
1 x HDMI™ port

Expansion Slots
1 x PCIe 5.0 x16 slot (Ryzen™ 9000 / 7000)
1 x PCIe 4.0 x16 slot (Ryzen™ 8000)
1 x PCIe 4.0 x1 slot

Storage
3 x M.2 slots
4 x SATA 6Gb/s ports

M.2 Support
M.2_1 PCIe 5.0 x4 (Ryzen™ 9000 / 7000)
M.2_2 PCIe 4.0 x4
M.2_3 PCIe 4.0 x4

RAID Support
RAID 0 / 1 / 5 / 10 (CPU dependent)

Ethernet
1 x Realtek 2.5Gb Ethernet
TUF LANGuard

Wireless
Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4GHz / 5GHz / 6GHz
Supports 160MHz bandwidth

Bluetooth
Bluetooth® v5.4

Rear USB Ports
1 x USB 20Gbps Type-C®
3 x USB 10Gbps (Type-A)
4 x USB 5Gbps (Type-A)
4 x USB 2.0

Front USB Headers
1 x USB 10Gbps Type-C®
1 x USB 5Gbps header (2 ports)
2 x USB 2.0 headers (3 ports total)

Audio
Realtek ALC1220P 7.1 Surround Sound
120 dB playback / 113 dB recording
Supports 32-bit / 192 kHz

Back Panel I/O
1 x USB 20Gbps Type-C®
3 x USB 10Gbps
4 x USB 5Gbps
4 x USB 2.0
1 x DisplayPort
1 x HDMI™
1 x Wi-Fi module
1 x 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack™
1 x Clear CMOS

Internal Connectors
1 x CPU Fan
1 x CPU OPT Fan
1 x AIO Pump
3 x Chassis Fan headers
1 x 24-pin Power
2 x 8-pin CPU Power
3 x M.2 slots
4 x SATA ports
1 x USB 10Gbps header
1 x USB 5Gbps header
2 x USB 2.0 headers
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header
1 x 10-1 pin Front Panel System header

Special Features
ASUS TUF PROTECTION
ASUS Q-Design
ASUS Thermal Solution
ASUS EZ DIY
Aura Sync

Software
Armoury Crate
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
TurboV Core
DTS Audio Processing
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Cache Boost
ASUS EZ DIY

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Operating System
Windows 11

Form Factor
micro-ATX

Dimensions
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

3 YEARS WARRANTY
