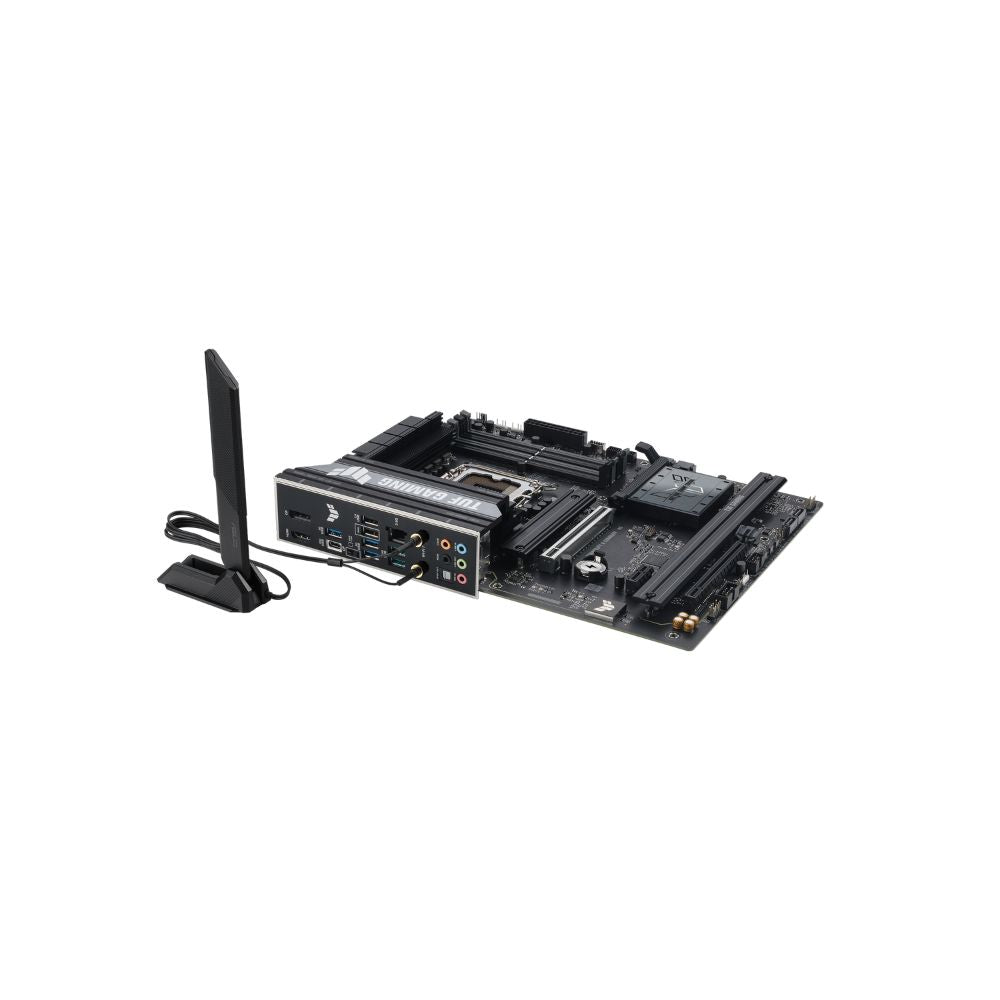

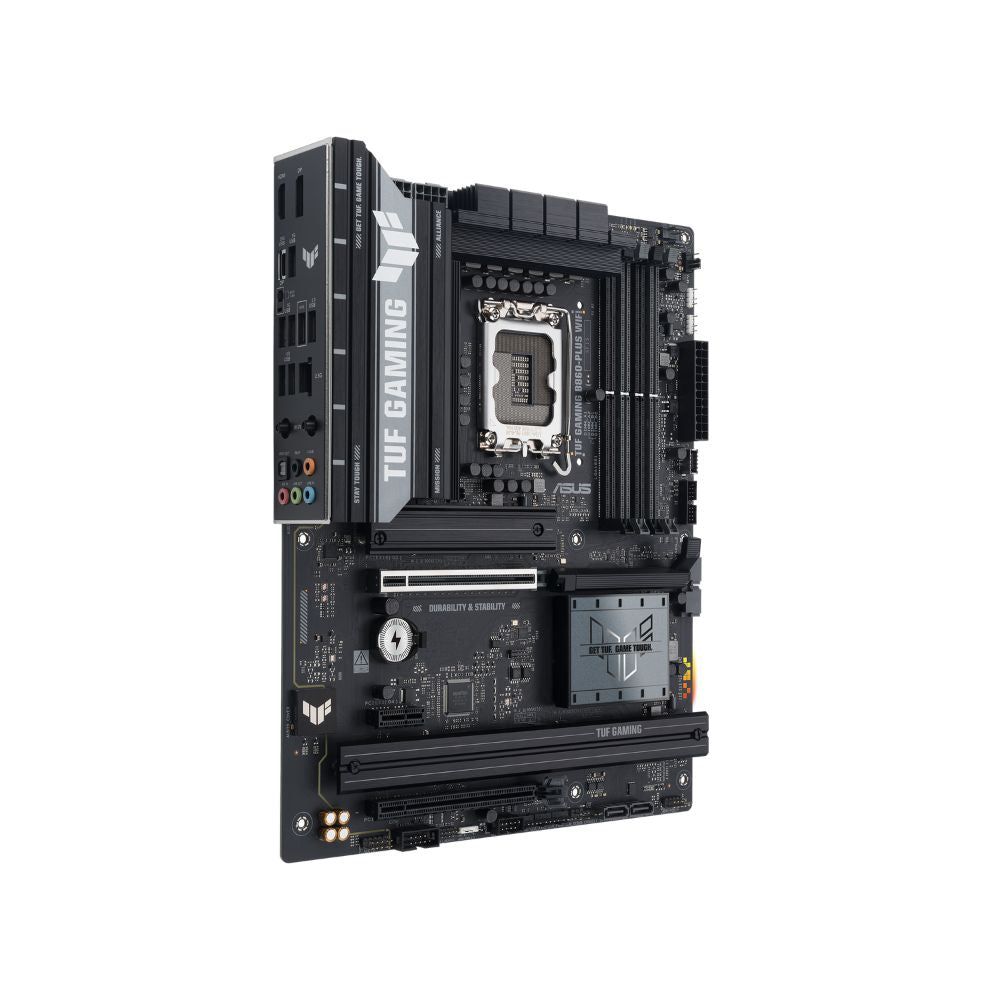

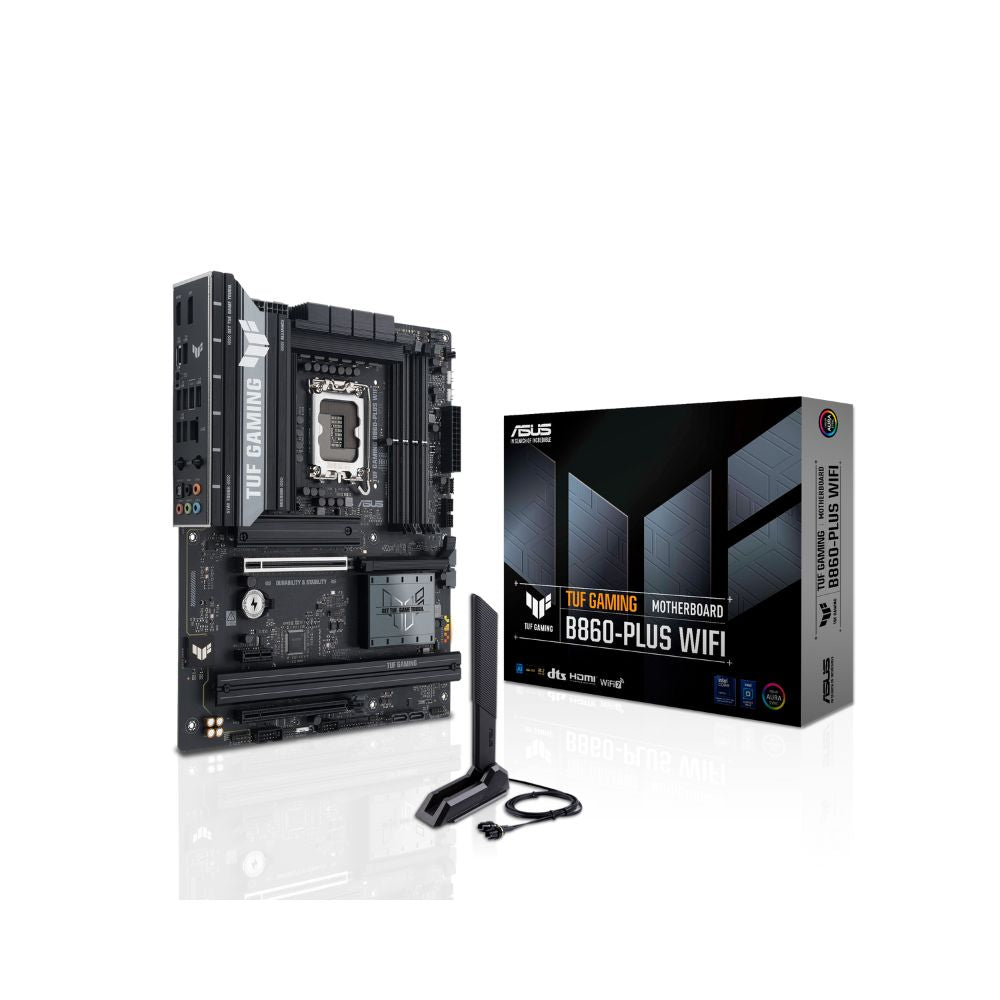

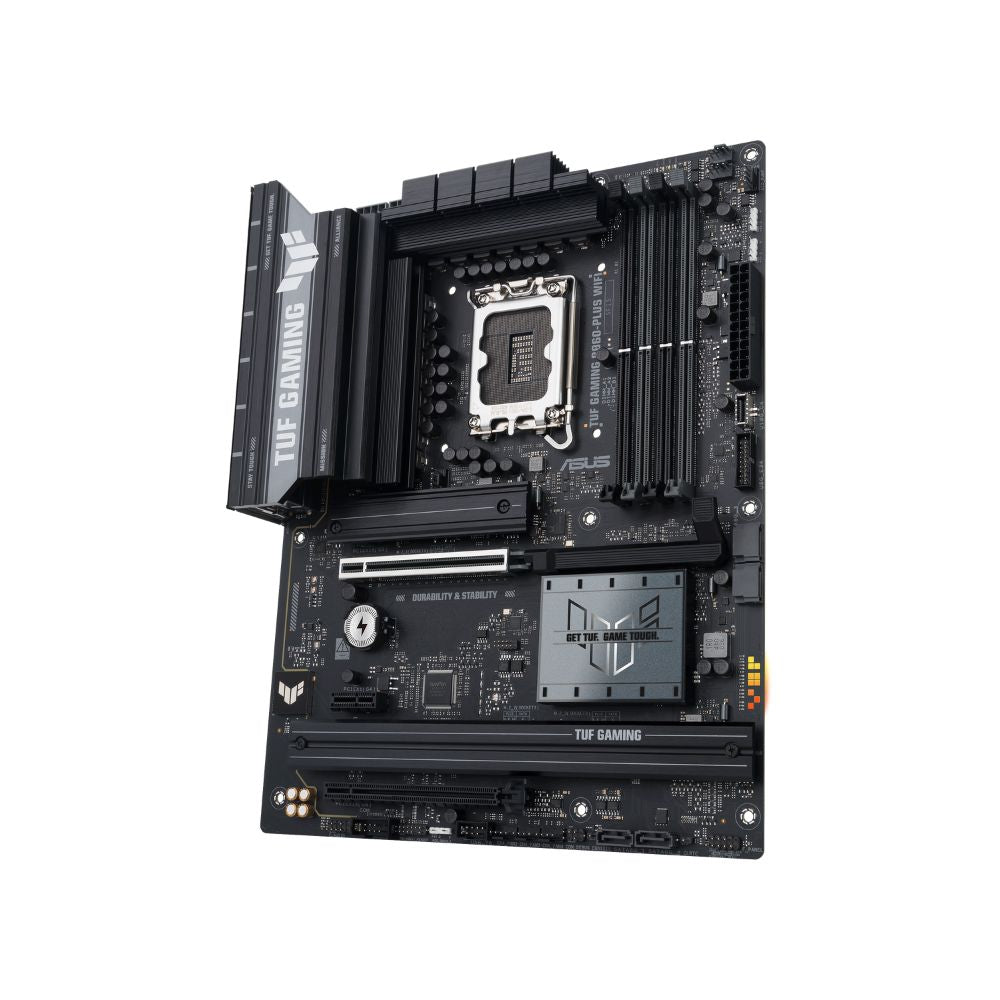

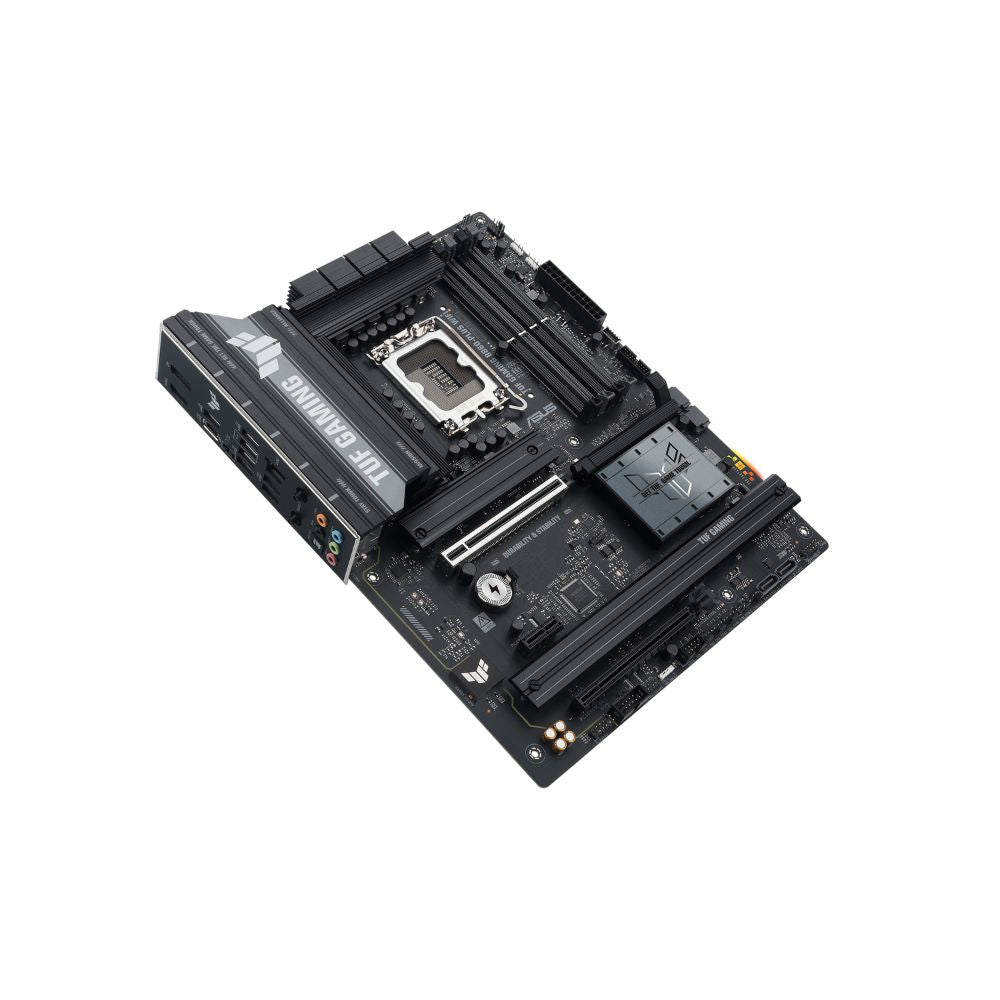

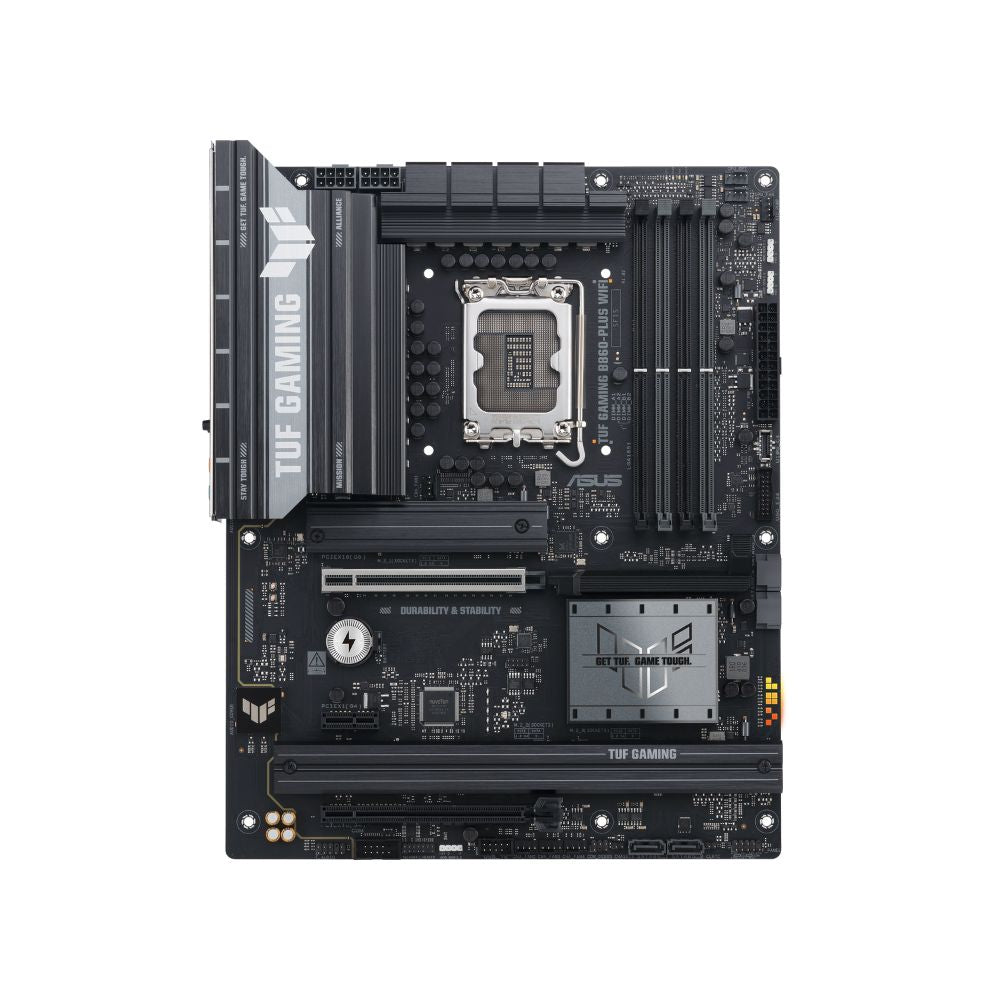

ASUS TUF GAMING B860-PLUS WIFI – Intel Core Ultra Series 2 Motherboard

About the ASUS TUF GAMING B860-PLUS WIFI

The B860-PLUS WIFI Motherboard is designed for builders adopting Intel's Core Ultra Series 2 platform without overspending on Z890 boards. This best ATX gaming motherboard combines flagship features like WiFi 7, PCIe 5.0 support, and DDR5-8666+ memory capability with TUF's proven durability and beginner-friendly Q-Design installation system. Whether you're building your first gaming desktop or upgrading to Intel's latest processors, this 3 M.2 slot motherboard delivers room to grow.

What This ASUS TUF GAMING B860-PLUS WIFI Does for You

You get WiFi 7 (802.11be) connectivity with speeds up to 2.9Gbps, eliminating cable clutter in your gaming desktop setup. Three M.2 slots support PCIe 5.0 and PCIe 4.0 SSDs simultaneously, so you can install a fast boot drive plus multiple game libraries. DDR5 memory support reaches 8666+ MT/s with overclocking, giving you performance headroom for content creation and competitive gaming. The Q-Design system includes M.2 Q-Latch for tool-free SSD installation, PCIe Q-Release for easy GPU removal, and pre-mounted I/O shield to simplify your first build experience.

Connectivity and Expansion Built for Modern Gaming

This motherboard delivers 2.5Gb Ethernet with TUF LANGuard protection for stable wired connections during ranked matches. USB ports include one 20Gbps Type-C with DisplayPort Alt Mode, two 10Gbps Type-A ports, and multiple 5Gbps connections. Realtek 7.1 surround audio with optical S/PDIF output handles immersive gaming headsets and speaker systems. BIOS FlashBack button lets you update firmware without installing a CPU, essential for ensuring compatibility with the latest Intel processors.

Perfect For

• Gamers building Intel Core Ultra Series 2 systems who want WiFi 7 and PCIe 5.0 without spending on Z890 chipsets
• First-time builders who appreciate Q-Design features like tool-free M.2 installation and beginner-friendly cases with clear cable management
• Content creators running multiple storage drives for video editing projects and game recording libraries
• Enthusiasts who overclock DDR5 memory but don't need extreme Z890 features like additional PCIe lanes

Why Buy from Mansa Computers

• 3-year Singapore warranty with ASUS service support
• Fast WhatsApp inquiry response for compatibility questions
• Open 7 days a week for technical support during builds
• Home delivery available across Singapore

Technical Specifications Summary

Chipset
Intel B860

CPU Support
Intel Core Ultra Series 2, LGA1851

Memory
4x DDR5 DIMM, up to 256GB, 8666+ MT/s OC

Storage
3x M.2 slots (PCIe 5.0/4.0), 4x SATA 6Gb/s

Networking
WiFi 7 (802.11be), Bluetooth 5.4, 2.5Gb Ethernet

Expansion
1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe 4.0 x1

Form Factor
ATX (30.5cm x 24.4cm)

The ASUS TUF GAMING B860-PLUS WIFI brings flagship-tier connectivity and storage expansion to Intel's Core Ultra platform at SGD 399. Order yours from Mansa Computers today with 3-year ASUS Singapore warranty included.

Model
TUF GAMING B860-PLUS WIFI

CPU
Support Intel® Core™ Ultra Processors (Series 2), LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset
Intel® B860 Chipset

Memory
4 x DIMM slots, max 256GB DDR5
Supports up to 8666+ MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)

Graphics
1 x DisplayPort
1 x HDMI™ port
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output

Expansion Slots
Intel® Core™ Ultra Processors (Series 2): 1 x PCIe 5.0 x16 slot
Intel® B860 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x1 slot

Storage
Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Core™ Ultra Processors (Series 2): M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset: M.2_2 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

Ethernet
1 x Realtek 2.5Gb Ethernet
TUF LANGuard

Wireless & Bluetooth
Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
Bluetooth® v5.4

USB
Rear USB (Total 8 ports): 1 x USB 20Gbps port (USB Type-C®), 2 x USB 10Gbps ports (Type-A), 3 x USB 5Gbps ports (Type-A), 2 x USB 2.0 ports (Type-A)
Front USB (Total 5 ports): 1 x USB 10Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 1 x USB 2.0 header supports 2 additional USB 2.0 ports
USB Type-C® power delivery output max 5V/3A

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Audio Features: Audio Shielding, Rear optical S/PDIF out port, Premium audio capacitors, Dedicated audio PCB layers, Audio cover

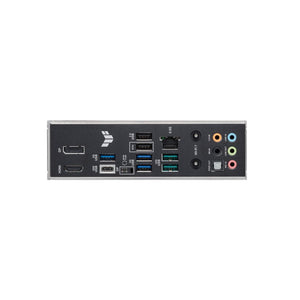

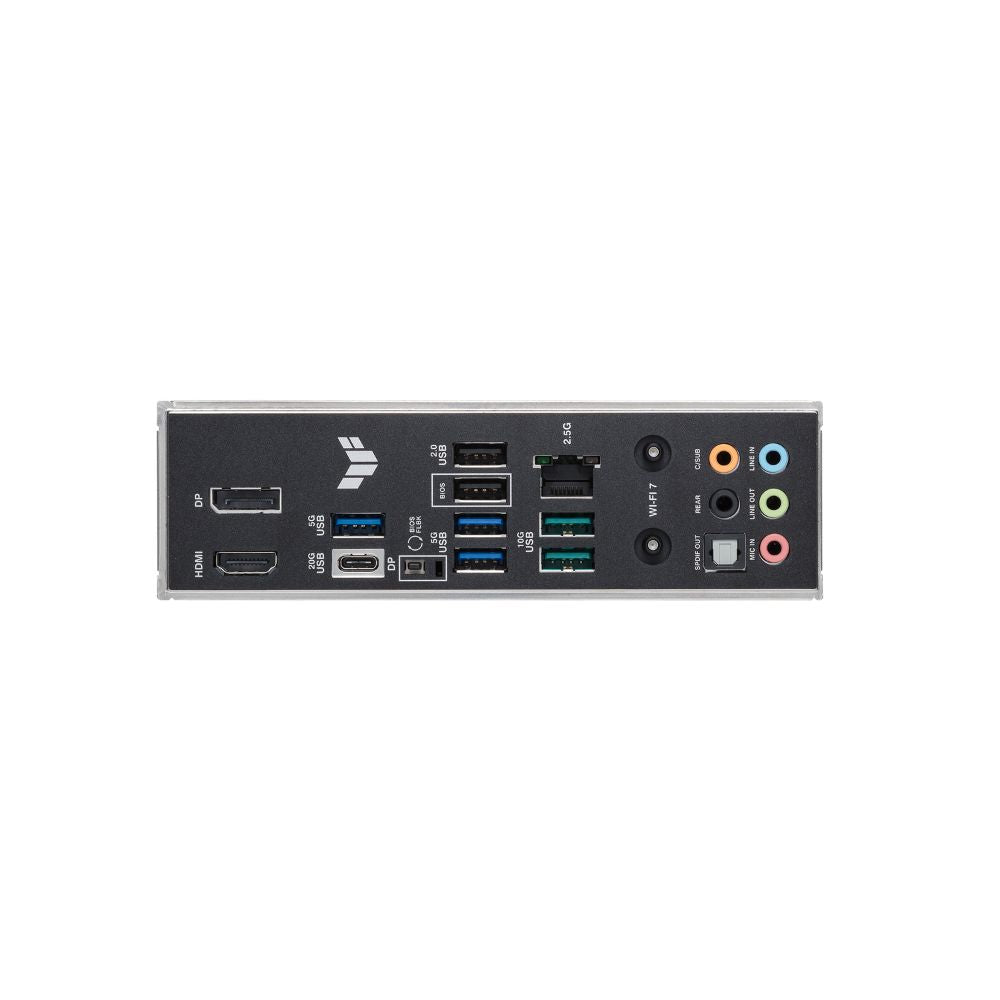

Back Panel I/O Ports
1 x USB 20Gbps port (USB Type-C® with DP Alt mode)
2 x USB 10Gbps ports (USB Type-A)
3 x USB 5Gbps ports (USB Type-A)
2 x USB 2.0 ports (USB Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button

Internal I/O Connectors
Fan and Cooling: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers
Power: 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connectors
Storage: 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports
USB: 1 x USB 10Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous: 3 x Addressable Gen 2 headers, 1 x Clear CMOS header, 1 x Chassis Intrusion header, 1 x COM Port header, 1 x Front Panel Audio header (F_AUDIO), 1 x 10-1 pin Front System Panel header, 1 x Thunderbolt™ (USB4®) header

Special Features
ASUS TUF PROTECTION: DIGI+ VRM (Digital power design with DrMOS), ESD Guards, TUF LANGuard, Overvoltage protection, SafeSlot, Stainless-steel back I/O
ASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED (CPU red, DRAM yellow, VGA white, Boot Device yellow green), Q-Slot
ASUS Thermal Solution: M.2 heatsink, VRM heatsink design
ASUS EZ DIY: BIOS FlashBack™ button, BIOS FlashBack™ LED, CPU Socket lever protector, ProCool, Pre-mounted I/O shield, SafeDIMM
Aura Sync: Addressable Gen 2 headers

Software Features
ASUS Exclusive Software: Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4, Power Saving), ASUS DriverHub, ASUS GlideX, TUF GAMING CPU-Z, Adobe Creative Cloud (Free Trial), DTS Audio Processing, Norton 360 for Gamers (60 Days Free Trial), WinRAR (40 Days Free Trial)
UEFI BIOS: ASUS EZ DIY (ASUS CrashFree BIOS 3, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey)

BIOS
2 x 128 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
Cables: 2 x SATA 6Gb/s cables
Miscellaneous: 1 x ASUS WiFi Q-Antenna, 2 x M.2 rubber packages, 1 x Screw package for M.2 SSD, 1 x TUF GAMING sticker
Documentation: 1 x Quick start guide

Operating System
Windows 11 (22H2 & later)

Form Factor
ATX Form Factor, 12 inch x 9.6 inch (30.5 cm x 24.4 cm)

3 YEARS WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave, #03-03,
Singapore 339416
Contact: 6341 7839

Ban Leong Technologies Ltd
150, #04-01 Ubi Ave 4, Ubi Biz-Hub,
Singapore 408825
Contact: 6512 9250

Frequently Asked Questions About ASUS TUF GAMING B860-PLUS WIFI

Does the B860-PLUS WIFI Motherboard support DDR5 memory overclocking?

Yes, this motherboard supports DDR5 memory up to 8666+ MT/s with overclocking through AEMP III profiles. It handles four DIMM slots with dual-channel architecture and Intel XMP support for easy performance tuning.

Can I use this motherboard for a WiFi-only gaming desktop setup?

Absolutely. WiFi 7 (802.11be) delivers up to 2.9Gbps speeds across 2.4/5/6GHz bands with 160MHz bandwidth. This eliminates the need for Ethernet cables while maintaining low latency for competitive gaming.

Which Intel processors work with this TUF GAMING B860-PLUS WIFI?

This motherboard supports Intel Core Ultra Series 2 processors using the LGA1851 socket. Make sure to update BIOS via FlashBack button before installation to ensure compatibility with the latest CPUs.

What warranty does Mansa Computers provide with this motherboard?

You receive a 3-year ASUS Singapore warranty with official service support. Mansa Computers offers fast WhatsApp inquiry response and we're open 7 days a week for technical assistance during your build.

How does this compare to Z890 motherboards for gaming?

You get WiFi 7, PCIe 5.0, and DDR5-8666+ support like Z890 boards but at SGD 399. Z890 adds more PCIe lanes and advanced overclocking, but B860 handles gaming and content creation exceptionally well.
