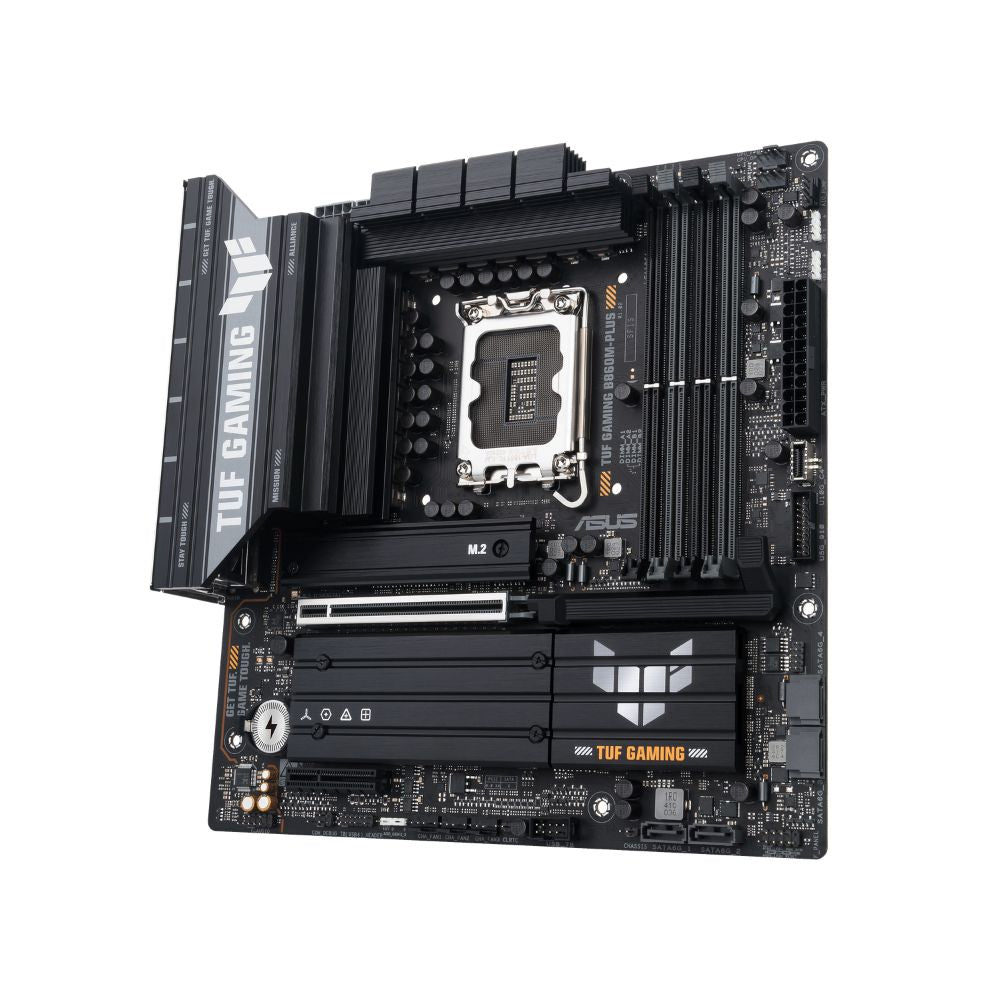

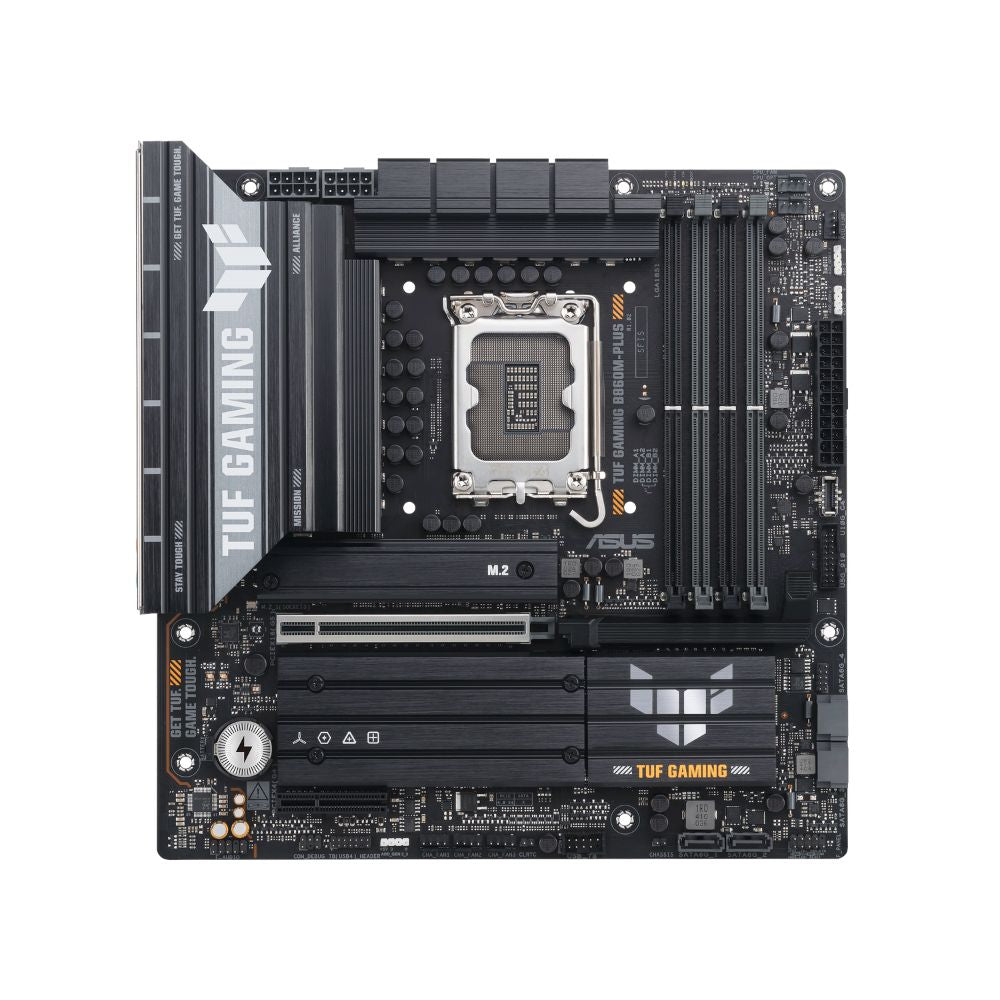

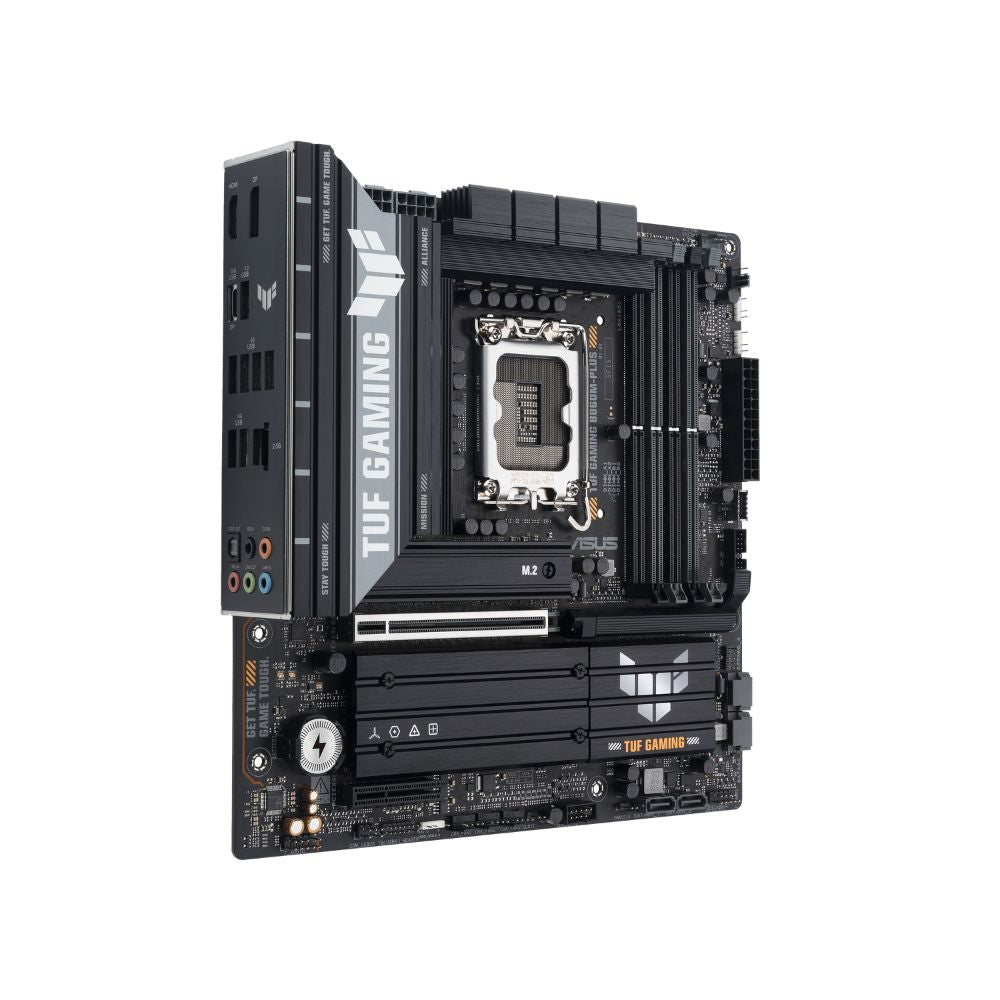

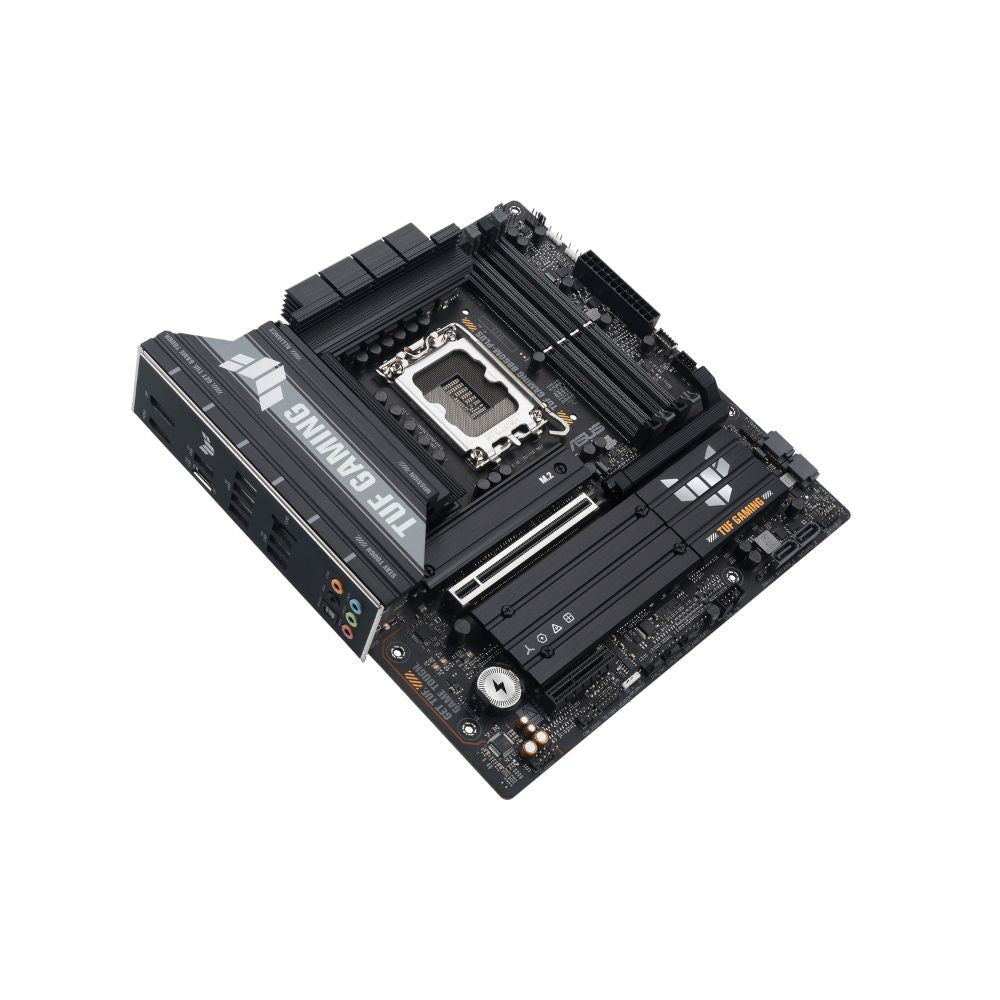

ASUS TUF GAMING B860M-PLUS – Next-Gen LGA1851 Gaming Motherboard

About the ASUS TUF GAMING B860M-PLUS

The B860M-PLUS motherboard brings Intel's newest LGA1851 socket to micro-ATX builders who want modern features without Z890 pricing. This gaming motherboard for PC supports Intel Core Ultra Series 2 processors with proper VRM cooling for stable performance. TUF Gaming components ensure reliability while Q-Design features simplify the build process. Whether you're assembling your first Custom PC or upgrading to Intel's latest platform, this board balances capability with practical value.

What This ASUS TUF GAMING B860M-PLUS Does for You

This motherboard with 3 M.2 slots handles storage-intensive gaming and content creation without sacrificing expansion options. The primary M.2_1 slot supports PCIe 5.0 x4 NVMe drives for maximum transfer speeds. Two additional PCIe 4.0 x4 M.2 slots plus four SATA ports mean you can run multiple drives simultaneously. DDR5 memory support reaches 8800+MT/s with overclocking, giving you headroom for performance tuning. The PCIe 5.0 x16 slot ensures compatibility with current and future graphics cards. Realtek 2.5Gb Ethernet with TUF LANGuard provides stable network connectivity for online gaming. USB 20Gbps Type-C ports deliver fast data transfer for external storage and peripherals.

Build Quality and Installation Features

ASUS Q-Design features streamline installation for first-time builders and experienced users alike. M.2 Q-Latch eliminates tiny screws when installing SSDs. PCIe Q-Release lets you remove graphics cards with one hand. Q-DIMM simplifies RAM installation with single-sided latches. The pre-mounted I/O shield saves installation time. TUF components include military-grade capacitors, reinforced PCIe slots, and ESD Guards for long-term reliability. DIGI+ VRM with DrMOS ensures clean power delivery to your processor under sustained loads.

Perfect For

• Gamers building compact systems with Intel Core Ultra Series 2 processors and wanting Custom PC configurations
• Content creators who need multiple NVMe drives for video editing and fast project file access
• Users upgrading to LGA1851 platform while maintaining micro-ATX form factor compatibility
• Builders prioritizing proven TUF durability with straightforward installation features

Why Buy from Mansa Computers

• 3-year Singapore warranty with ASUS service support
• Fast WhatsApp inquiry response for technical questions
• Open 7 days a week for support
• Home delivery available

Technical Specifications Summary

Socket
Intel LGA1851

Chipset
Intel B860

Form Factor
Micro-ATX

Memory
4 x DDR5 DIMM, up to 256GB, 8800+MT/s (OC)

Storage
3 x M.2 (PCIe 5.0/4.0), 4 x SATA 6Gb/s

Graphics Slots
1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4

Networking
Realtek 2.5Gb Ethernet

Rear USB
1 x USB 20Gbps Type-C, 2 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A

Ready to build with Intel's latest platform? The ASUS TUF GAMING B860M-PLUS delivers modern connectivity and proven reliability for your next system upgrade.

Model
ASUS TUF GAMING B860M-PLUS

CPU Support
Supports Intel® Core™ Ultra Processors (Series 2) with LGA1851 socket, Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 depending on CPU type, refer to ASUS support list for CPU compatibility

Chipset
Intel® B860 Chipset designed for stable and efficient performance

Memory
4 x DDR5 DIMM slots, up to 256GB total memory, supports 8800+MT/s (OC), Dual Channel, Intel® XMP and ASUS Enhanced Memory Profile III (AEMP III), Non-ECC un-buffered DDR5 with On-Die ECC

Graphics
1 x DisplayPort 1.4 (4K@60Hz), 1 x HDMI 2.1 (4K@60Hz), 1 x USB 20Gbps Type-C® port with DisplayPort video output, actual display performance may vary by processor

Expansion Slots
1 x PCIe 5.0 x16 slot (CPU), 1 x PCIe 4.0 x4 slot (Chipset), supports modern GPUs and add-on devices, refer to ASUS compatibility list for details

Storage
3 x M.2 slots and 4 x SATA 6Gb/s ports, M.2_1 (CPU) PCIe 5.0 x4, M.2_2 and M.2_3 (Chipset) PCIe 4.0 x4, supports Intel® Rapid Storage Technology and RAID 0/1/5/10

Networking
Realtek 2.5Gb Ethernet with TUF LANGuard surge protection and stable high-speed connection

USB Connectivity

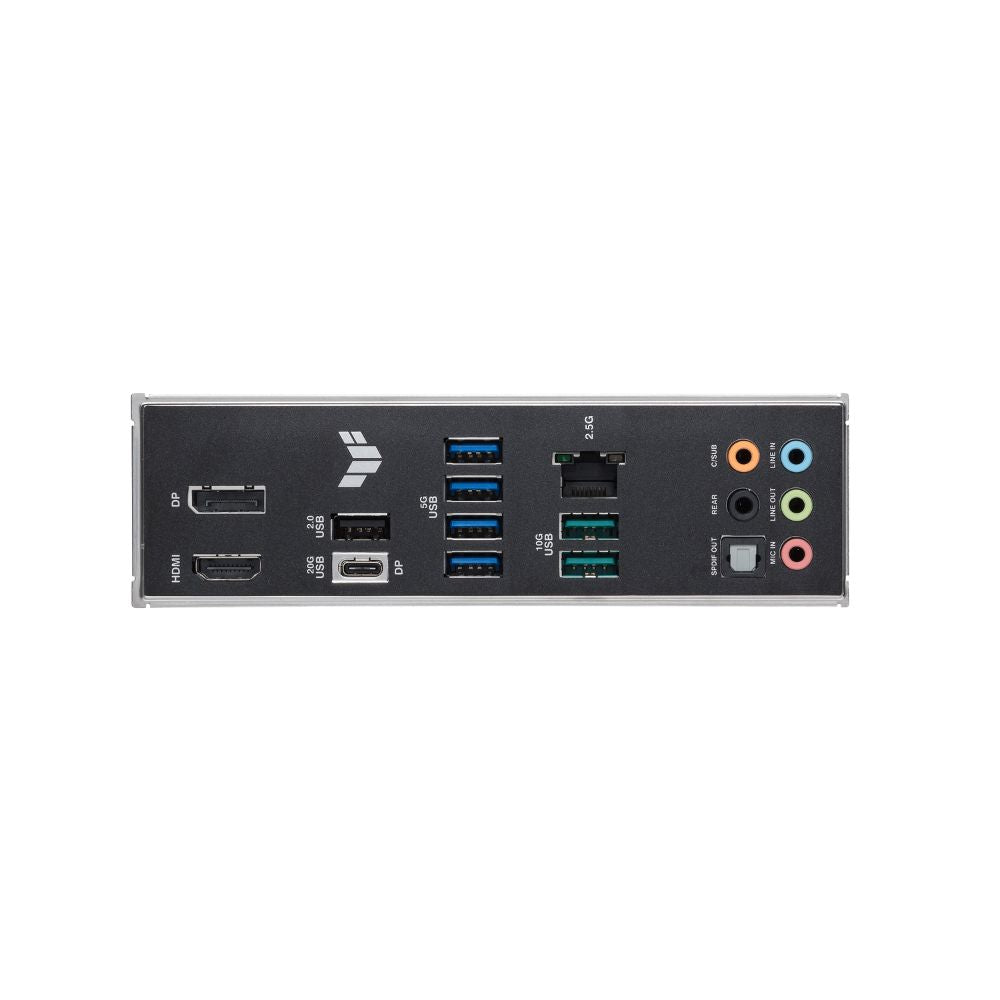

Rear: 1 x USB 20Gbps Type-C®, 2 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 1 x USB 2.0 Type-A Front: 1 x USB 10Gbps Type-C®, 1 x USB 5Gbps header (2 ports), 1 x USB 2.0 header (2 ports), USB Type-C® power delivery up to 5V/3A

Audio
Realtek 7.1 Surround HD Audio CODEC supporting jack detection, multi-streaming, and front panel jack retasking, up to 24-bit/192kHz playback, with audio shielding, premium capacitors, dedicated PCB layers, and optical S/PDIF out port

Internal I/O Connectors
Cooling: 1 x CPU Fan header, 1 x CPU OPT Fan header, 1 x AIO Pump header, 3 x Chassis Fan headers Power: 1 x 24-pin Main Power, 2 x 8-pin +12V connectors Storage: 3 x M.2 slots, 4 x SATA ports USB: 1 x USB 10Gbps Type-C®, 1 x USB 5Gbps header (2 ports), 1 x USB 2.0 header (2 ports) Misc: 3 x Addressable Gen 2 headers, Clear CMOS, Chassis Intrusion, Front Audio, Front Panel, Thunderbolt™ (USB4®) header

Special Features
ASUS TUF Protection includes DIGI+ VRM with DrMOS, ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot, Stainless-Steel Back I/O ASUS Q-Design with M.2 Q-Latch, PCIe Slot Q-Release, Q-DIMM, Q-Dashboard, and Q-LED indicators for CPU, DRAM, VGA, Boot ASUS Thermal Solution adds M.2 heatsinks and optimized VRM layout ASUS EZ DIY features CPU Socket lever protector, ProCool connectors, pre-mounted I/O shield, SafeDIMM AURA Sync with Addressable Gen 2 RGB headers for synchronized lighting

Software
Armoury Crate with AURA Creator, Fan Xpert 2+, TurboV Core, Power Saving, ASUS DriverHub, TUF GAMING CPU-Z, DTS Audio Processing, Norton 360 for Gamers (60-day trial), WinRAR (40-day trial), UEFI BIOS with CrashFree BIOS 3, EZ Flash, MyHotkey, EZ Mode

Form Factor
Micro-ATX (mATX), 24.4 cm x 24.4 cm

Operating System
Windows® 11, Windows® 10 64-bit

3 YEARS WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave, #03-03,
Singapore 339416
Contact: 6341 7839

Ban Leong Technologies Ltd
150, #04-01 Ubi Ave 4, Ubi Biz-Hub,
Singapore 408825
Contact: 6512 9250

Frequently Asked Questions About ASUS TUF GAMING B860M-PLUS

What processors does the B860M-PLUS motherboard support?

This TUF Gaming motherboard supports Intel Core Ultra Processors (Series 2) with LGA1851 socket. Check ASUS's official CPU compatibility list for specific model support. The B860 chipset is designed for Intel's latest Core Ultra architecture.

Can I use this motherboard for a gaming and streaming setup?

Yes, this board handles gaming and streaming well. Three M.2 slots let you separate OS, games, and recording files across fast drives. DDR5 support and PCIe 5.0 graphics slot provide the performance headroom needed for multitasking.

What CPU coolers fit the LGA1851 socket on this board?

LGA1851 uses the same mounting system as LGA1700. Most modern coolers compatible with LGA1700 will work. Verify with your cooler manufacturer for LGA1851 confirmation before purchasing.

What warranty coverage does this motherboard include?

You get 3-year ASUS Singapore warranty with local service support. Mansa Computers provides fast WhatsApp inquiry response for technical questions. We're open 7 days a week if you need installation or compatibility assistance.

How does this compare to Z890 motherboards?

The B860 chipset offers excellent value for users who don't need extreme overclocking. You still get PCIe 5.0, DDR5 8800+MT/s support, and three M.2 slots. Z890 boards add more USB ports and advanced overclocking features at higher cost.
