ASUS TUF Gaming B860M-PLUS WIFI – WiFi 7 mATX Motherboard

About the ASUS TUF Gaming B860M-PLUS WIFI

The B860M-PLUS WIFI is built for Intel's new Core Ultra Series 2 processors (Arrow Lake). This B860 chipset board sits between budget H810 and expensive Z890 options, giving you modern connectivity without overclocking features you might not need. The mATX form factor fits compact cases while keeping all the features full-size boards offer.

What This ASUS TUF Gaming B860M-PLUS WIFI Does for You

This micro ATX motherboard handles gaming, streaming, and productivity without thermal throttling. WiFi 7 means faster downloads and lower latency in online games compared to WiFi 6E. Three M.2 slots let you run your OS on PCIe 5.0 storage while keeping games and files on separate drives. DDR5 support up to 8800MT/s gives your CPU the bandwidth it needs for multitasking. The best budget PC motherboard choice doesn't mean sacrificing features—you get USB 20Gbps Type-C, DisplayPort output, and 2.5Gb Ethernet included.

Connectivity That Lasts

WiFi 7 with 2.9Gbps speeds is faster than most home internet connections right now. That headroom means you won't need to upgrade when fiber speeds increase. USB4 support via Thunderbolt header lets you connect high-speed external drives or displays. Eight rear USB ports plus front headers give you enough connections for keyboard, mouse, controller, headset, webcam, and more without needing a hub.

Perfect For

• Intel Core Ultra Series 2 builds with compact mATX cases. Pairs well with Singapore PC builder custom systems.
• Mid-range gaming PCs that need WiFi 7 and PCIe 5.0 without Z890 prices.
• First-time builders who want reliability from TUF branding and easy installation features.
• Upgrading from older Intel platforms to Arrow Lake with modern DDR5 and storage speeds.

Why Buy from Mansa Computers

• 3-year Singapore warranty with ASUS service support
• Fast WhatsApp inquiry response for compatibility questions
• Open 7 days a week for support
• Home delivery available

Technical Specifications Summary

Chipset
Intel B860

Socket
LGA1851 (Core Ultra Series 2)

Memory
DDR5 up to 8800MT/s, 256GB max

Wireless
WiFi 7 (2.9Gbps), Bluetooth 5.4

Storage
3× M.2 (PCIe 5.0/4.0), 4× SATA

Expansion
PCIe 5.0 x16, PCIe 4.0 x4

Form Factor
mATX (24.4cm × 24.4cm)

Ethernet
Realtek 2.5Gb with TUF LANGuard

Ready to build with Intel Core Ultra Series 2? The ASUS TUF Gaming B860M-PLUS WIFI gives you the features that matter without paying for extreme overclocking. Questions about compatibility? We're here to help.

Model
TUF GAMING B860M-PLUS WIFI

CPU
Support Intel® Core™ Ultra Processors (Series 2), LGA1851
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset
Intel® B860 Chipset

Memory
4 x DIMM slots, max 256GB DDR5
Supports up to 8800+ MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
Dual Channel Memory Architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)

Graphics
1 x DisplayPort
1 x HDMI™ port
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output

Expansion Slots
Intel® Core™ Ultra Processors (Series 2): 1 x PCIe 5.0 x16 slot
Intel® B860 Chipset: 1 x PCIe 4.0 x4 slot

Storage
Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Core™ Ultra Processors (Series 2): M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

Ethernet
1 x Realtek 2.5Gb Ethernet
TUF LANGuard

Wireless & Bluetooth
Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
Bluetooth® v5.4

USB
Rear USB (Total 8 ports): 1 x USB 20Gbps port (1 x USB Type-C®), 2 x USB 10Gbps ports (2 x Type-A), 4 x USB 5Gbps ports (4 x Type-A), 1 x USB 2.0 port (1 x Type-A)
Front USB (Total 5 ports): 1 x USB 10Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 1 x USB 2.0 header supports 2 additional USB 2.0 ports
USB Type-C® power delivery output max 5V/3A

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Audio Features: Audio Shielding, Rear optical S/PDIF out port, Premium audio capacitors, Dedicated audio PCB layers

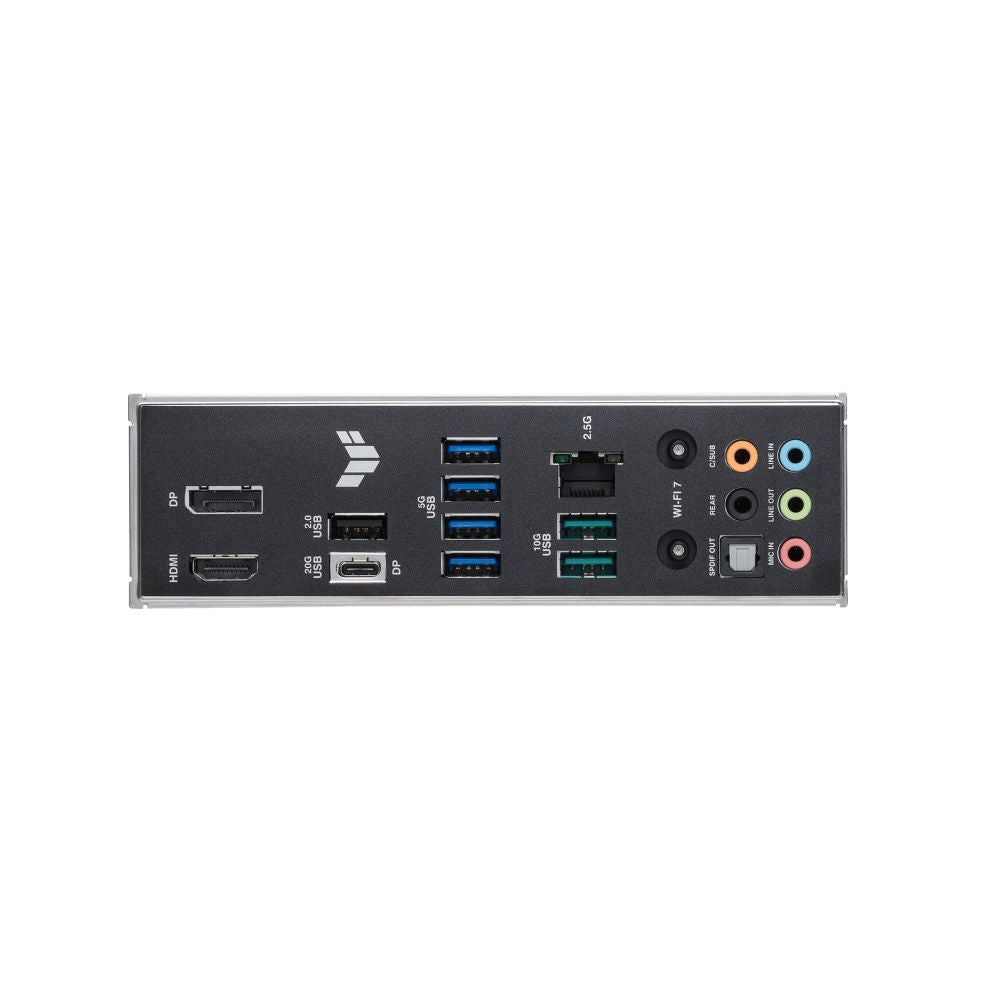

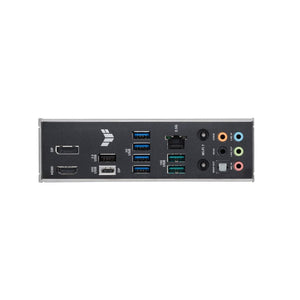

Back Panel I/O Ports
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port

Internal I/O Connectors
Fan and Cooling related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 3 x 4-pin Chassis Fan headers
Power related: 1 x 24-pin Main Power connector, 2 x 8-pin +12V Power connectors
Storage related: 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports
USB: 1 x USB 10Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous: 3 x Addressable Gen 2 headers, 1 x Clear CMOS header, 1 x Chassis Intrusion header, 1 x Front panel audio header (F_AUDIO), 1 x 10-1 pin Front System Panel header, 1 x Thunderbolt™ (USB4®) header

Special Features
ASUS TUF PROTECTION: DIGI+ VRM (Digital power design with DrMOS), ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot, Stainless-Steel Back I/O
ASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED (CPU red, DRAM yellow, VGA white, Boot Device yellow green), Q-Slot
ASUS Thermal Solution: M.2 heatsinks, VRM heatsink design
ASUS EZ DIY: CPU Socket lever protector, ProCool, Pre-mounted I/O shield, SafeDIMM
Aura Sync: Addressable Gen 2 headers

Software Features
ASUS Exclusive Software: Armoury Crate (AURA Creator, AURA Sync, Fan Xpert 2+, Power Saving), ASUS DriverHub, ASUS GlideX, TurboV Core, TUF GAMING CPU-Z, DTS Audio Processing, Norton 360 for Gamers (60 Days Free Trial), WinRAR (40 Days Free Trial)
UEFI BIOS: ASUS EZ DIY (ASUS CrashFree BIOS 3, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey)
NPU Boost

BIOS
2 x 128 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
Cables: 2 x SATA 6Gb/s cables
Miscellaneous: 1 x ASUS WiFi Q-Antenna, 2 x M.2 Rubber Packages, 1 x TUF Gaming sticker, 1 x Screw package for M.2 SSD
Documentation: 1 x Quick start guide

Operating System
Windows 11 (22H2 & later)

Form Factor
mATX Form Factor, 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

3 YEARS WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave, #03-03,
Singapore 339416
Contact: 6341 7839

Ban Leong Technologies Ltd
150, #04-01 Ubi Ave 4, Ubi Biz-Hub,
Singapore 408825
Contact: 6512 9250

Frequently Asked Questions About ASUS TUF Gaming B860M-PLUS WIFI

Does the B860M-PLUS WIFI support Intel Core Ultra Series 2 processors?

Yes, this TUF Gaming motherboard is designed for Intel Core Ultra Series 2 (Arrow Lake) with LGA1851 socket. It supports the full lineup from Core Ultra 5 to Core Ultra 9 processors.

Can I use this motherboard for 1440p gaming with an RTX 5070?

Absolutely. The PCIe 5.0 x16 slot supports RTX 5000 series GPUs without bottlenecks. WiFi 7 keeps online gaming latency low, and three M.2 slots let you run fast storage for quick game loading.

Will my DDR4 RAM work with the B860M-PLUS WIFI?

No, this board only supports DDR5 memory up to 8800MT/s. Intel Core Ultra Series 2 requires DDR5, so you'll need new RAM for this platform upgrade.

What warranty comes with this motherboard in Singapore?

You get a 3-year ASUS Singapore warranty with local service center support. Mansa Computers is open 7 days a week if you need help with compatibility questions or support claims.

How does the B860 compare to Z890 motherboards?

B860 gives you WiFi 7, PCIe 5.0, and DDR5 8800MT/s support without Z890's premium overclocking features. You save $100-400 while keeping the connectivity that actually matters for most builds.
