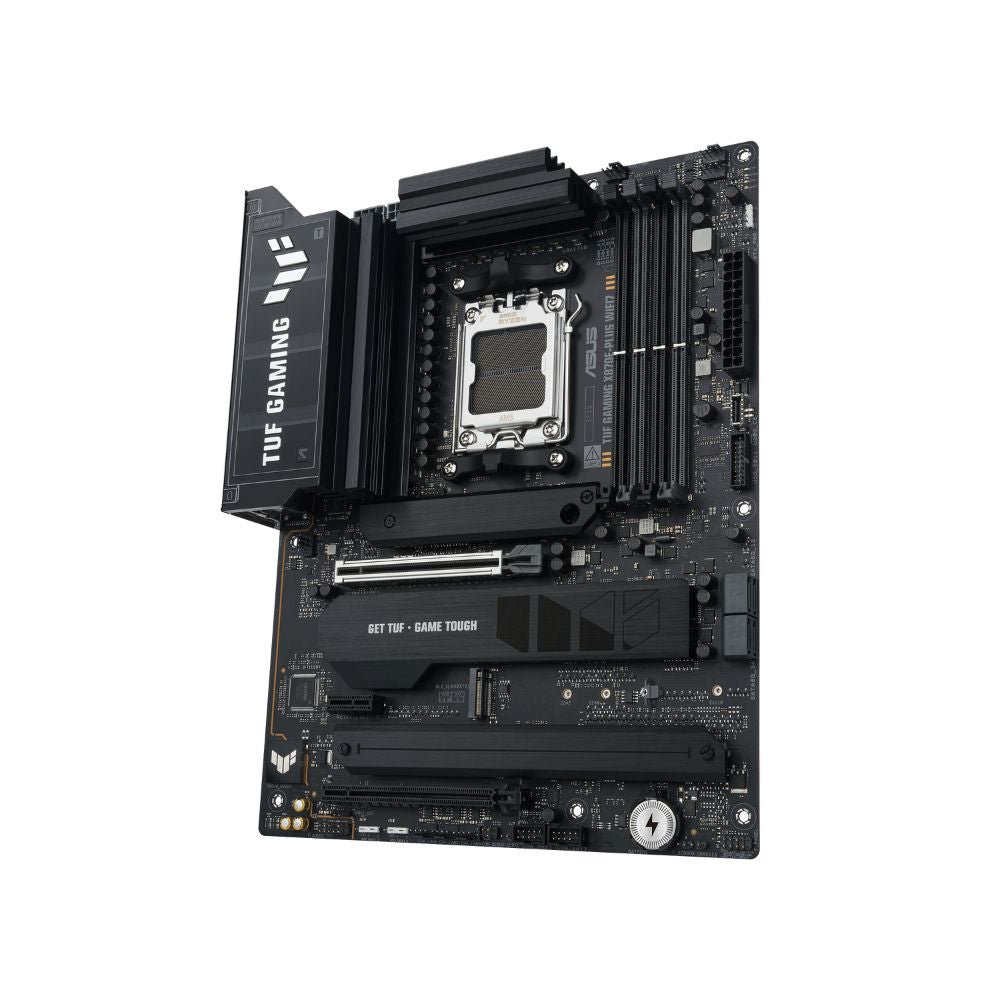

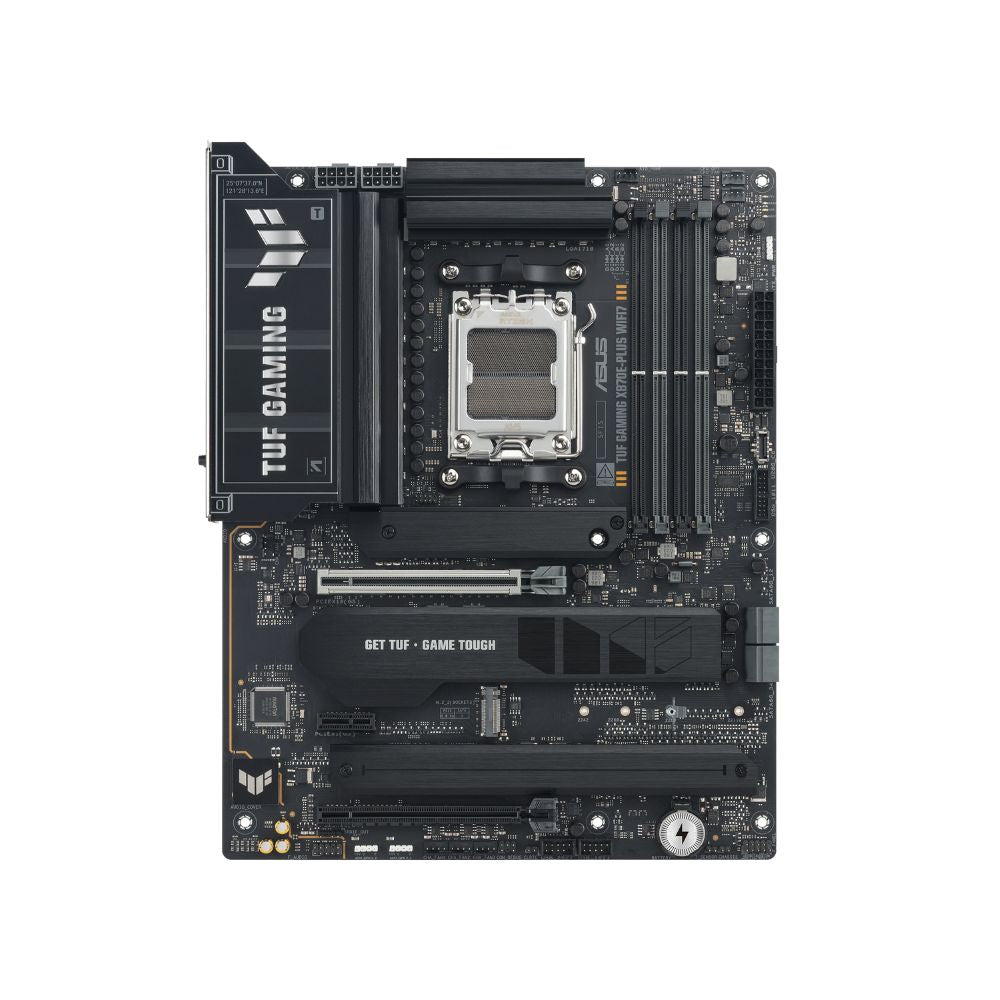

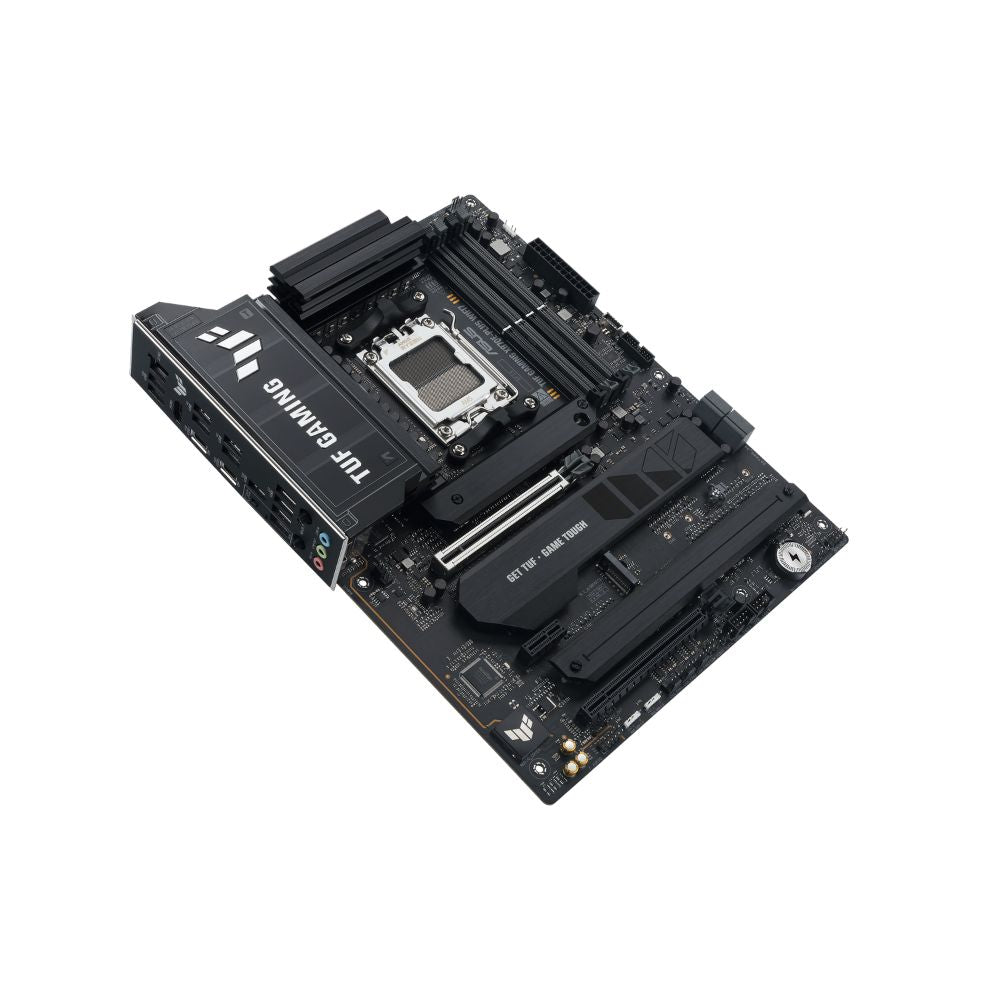

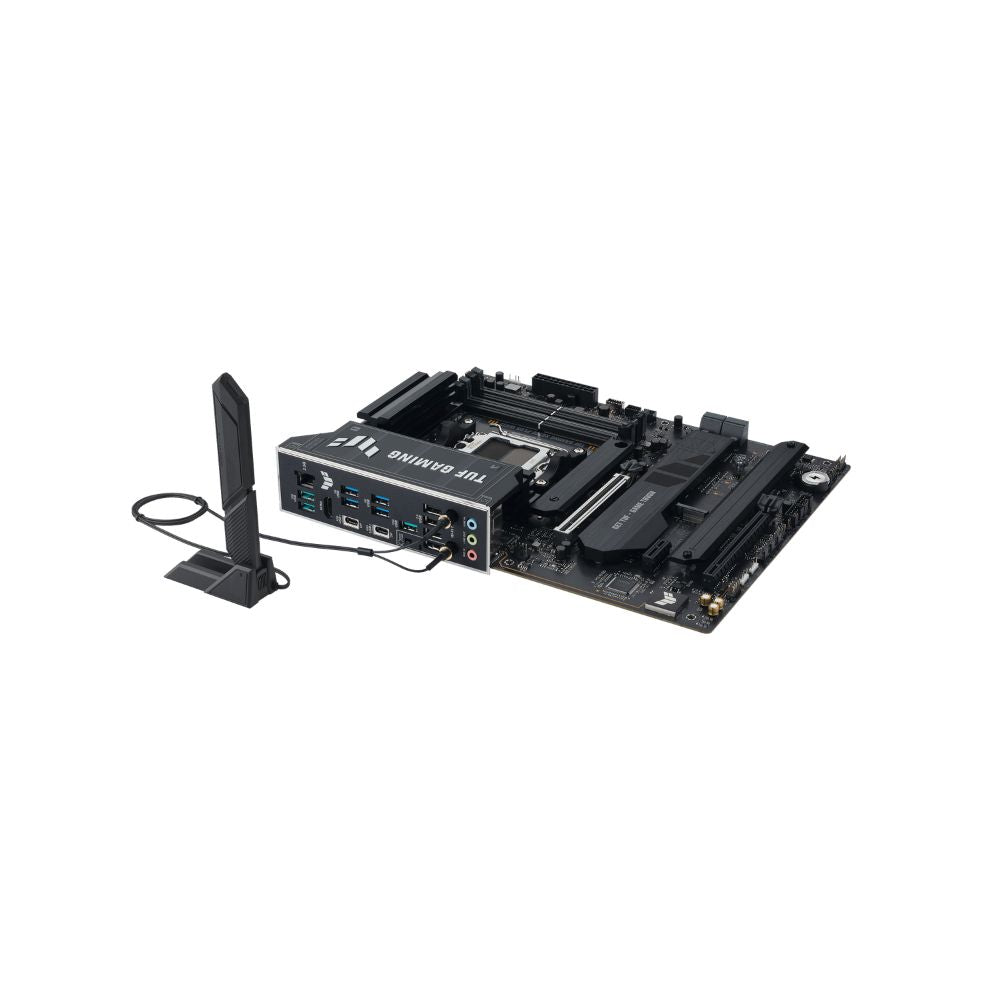

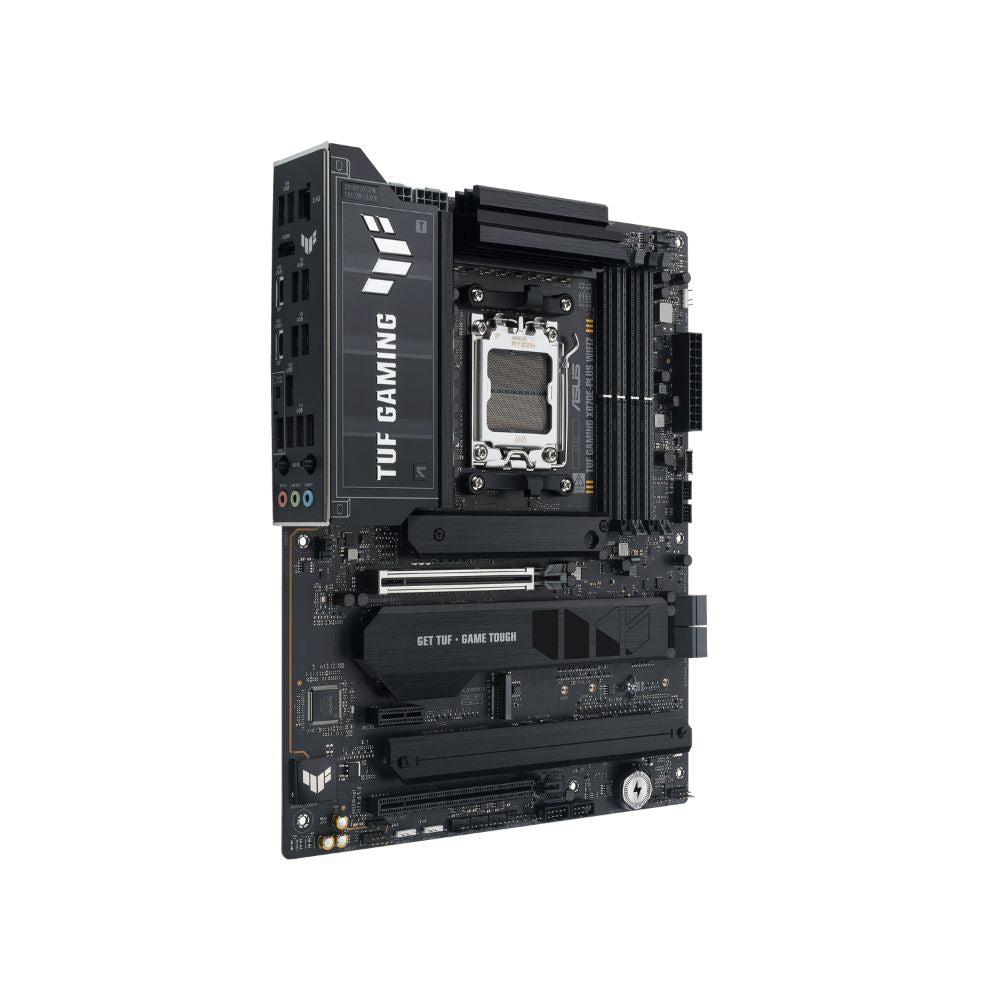

ASUS TUF GAMING X870E-PLUS WIFI7 – Premium AM5 Motherboard

About the ASUS TUF GAMING X870E-PLUS WIFI7

The TUF GAMING X870E-PLUS WIFI7 is built for PC builders who want reliable AM5 performance with modern features and strong value. This board suits users upgrading to Ryzen 7000 or Ryzen 9000 while keeping their system stable for years. It offers fast connectivity, durable construction, and easy installation features that simplify your build process.

What This ASUS TUF GAMING X870E-PLUS WIFI7 Does for You

This motherboard supports high-end gaming and demanding workloads without the premium pricing of flagship options. It works well for users searching for an am5 motherboard ddr5 that offers speed, stability, and future-proof expansion. Its USB4 ports let you connect fast external storage, while PCIe 5.0 ensures your next GPU or SSD remains fully supported. Builders creating a gaming pc singapore setup will appreciate its cooling options and robust power delivery.

Connectivity and Performance

Dual PCIe 5.0 M.2 slots make this ATX board ideal for users who want ultra-fast SSD performance today and in the future. WiFi 7 support provides strong wireless speeds for streaming, online gaming, and high-bandwidth tasks. The board’s X870E chipset enables excellent USB4 connectivity and keeps your system responsive under heavy load. This combination makes it a strong choice for anyone buying an atx gaming motherboard with next-generation features.

Perfect For

• High-performance gaming builds that use AM5 ATX motherboards and require strong connectivity.
• Content creators who use USB4 external drives and require fast transfer speeds.
• PC builders who want future-proof PCIe 5.0 support for upcoming GPUs and SSDs.
• Users upgrading older AMD systems to a stable AM5 platform with WiFi 7 features.

Why Buy from Mansa Computers

• 3-year Singapore warranty with ASUS service support
• Fast WhatsApp inquiry response
• Open 7 days a week for support
• Home delivery available

Technical Specifications Summary

Chipset
AMD X870E

CPU Support
AMD Ryzen 9000/8000/7000

Memory
DDR5 up to 8000+ MT/s

Storage
4× M.2, 4× SATA

Wireless
WiFi 7, Bluetooth 5.4

USB Ports
Dual USB4 40Gbps, USB 20Gbps front

Networking
Realtek 2.5Gb Ethernet

Form Factor
ATX

Build your next system confidently with the ASUS TUF GAMING X870E-PLUS WIFI7. It offers strong value, next-gen speeds, and dependable AM5 performance.

Model
TUF GAMING X870E-PLUS WIFI7

CPU
AMD Socket AM5 for AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

Chipset
AMD X870E

Memory
4 x DIMM slots, max 256GB DDR5
Supports up to 8000+MT/s (OC) with Ryzen™ 9000 / 8000 / 7000 Series
Dual channel architecture, ECC & Non-ECC un-buffered DIMM
Supports EXPO™, AEMP, and DIMM Fit

Graphics
1 x HDMI™ port
2 x USB4® (40Gbps) Type-C® display outputs

Expansion Slots
Ryzen™ 9000 & 7000 Series
1 x PCIe 5.0 x16 slot
Ryzen™ 8000 Series
1 x PCIe 4.0 x16 slot (x8/x4 mode)
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (x4 mode)
1 x PCIe 3.0 x1 slot

Storage
4 x M.2 + 4 x SATA 6Gb/s
Ryzen™ 9000 & 7000 Series
M.2_1: PCIe 5.0 x4
M.2_2: PCIe 5.0 x4
Ryzen™ 8000 Series
M.2_1: PCIe 4.0 x4, M.2_2 not supported
Chipset (X870E)
M.2_3: PCIe 4.0 x4
M.2_4: PCIe 4.0 x4
RAIDXpert2 Technology
Ryzen™ 9000: RAID 0/1/5/10
Ryzen™ 8000: RAID 0/1
Ryzen™ 7000: RAID 0/1/10

Ethernet
1 x Realtek 2.5Gb Ethernet with TUF LANGuard

Wireless & Bluetooth
Wi-Fi 7 (802.11be) 2x2
Supports 2.4/5/6GHz bands
Wi-Fi 7 160MHz bandwidth up to 2.9Gbps
Bluetooth® v5.4

USB
Rear I/O (13 ports)
2 x USB4® (40Gbps, Type-C®)
3 x USB 10Gbps (Type-A)
4 x USB 5Gbps (Type-A)
4 x USB 2.0 (Type-A)
Front I/O (7 ports)
1 x USB 20Gbps Type-C® (PD up to 30W)
1 x USB 5Gbps header (2 ports)
2 x USB 2.0 headers (4 ports)

Audio
Realtek ALC1220P 7.1 HD Audio CODEC
120 dB SNR playback / 113 dB recording
Supports impedance sensing, jack detection, and multi-streaming
Premium capacitors, audio shielding, and de-pop circuit

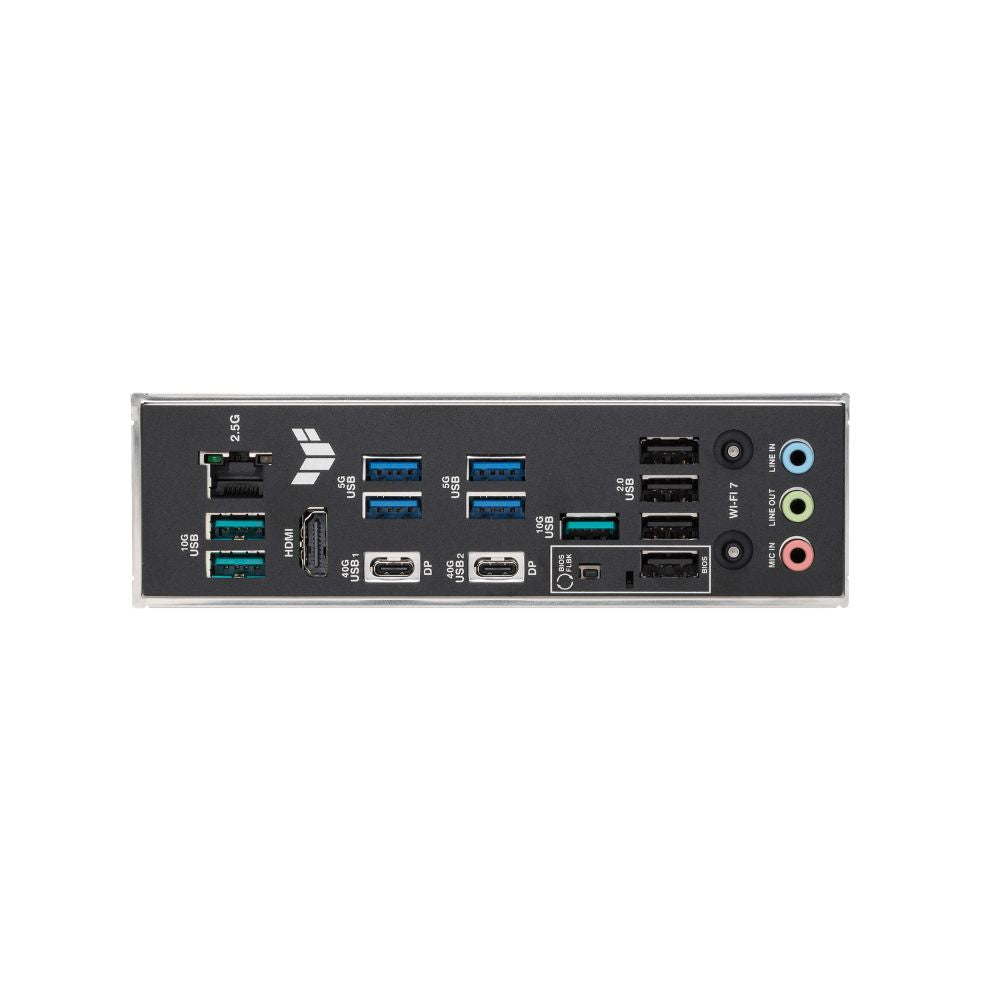

Back Panel I/O
2 x USB4® (40Gbps, Type-C®)
3 x USB 10Gbps (Type-A)
4 x USB 5Gbps (Type-A)
4 x USB 2.0 (Type-A)
1 x HDMI™, 1 x Wi-Fi module, 1 x 2.5Gb LAN, 3 x Audio jacks, 1 x BIOS FlashBack™ button

Internal I/O
Cooling: 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 4 x Chassis Fan
Power: 1 x 24-pin ATX, 2 x 8-pin CPU
Storage: 4 x M.2, 4 x SATA
USB: 1 x USB 20Gbps Type-C®, 1 x USB 5Gbps (2 ports), 2 x USB 2.0 (4 ports)
Misc: 3 x ARGB Gen2, 1 x Clear CMOS, 1 x Front Audio, 1 x Thermal Sensor, 1 x Front Panel header

TUF Protection
DIGI+ VRM, ESD Guards, LANGuard, SafeSlot, Stainless-steel I/O

Q-Design
M.2 Q-Latch, Q-Release Slim, Q-Antenna, Q-DIMM, Q-LED

Thermal
M.2 and VRM heatsinks

EZ DIY
BIOS FlashBack™, ProCool, Pre-mounted I/O, SafeDIMM

Aura Sync
Gen2 ARGB headers

USB Fast Charge
Front USB 20Gbps Type-C® (PD up to 30W)

Software Features
Armoury Crate (Aura Sync, Fan Xpert 4, AI Cooling II)
ASUS AI Advisor, DriverHub, GlideX, USB Wattage Watcher, TurboV Core, DTS Audio Processing, Norton 360 (Trial), WinRAR (Trial)

UEFI BIOS
EZ Flash 3, CrashFree BIOS 3, MyHotkey, AI Overclocking Guide

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

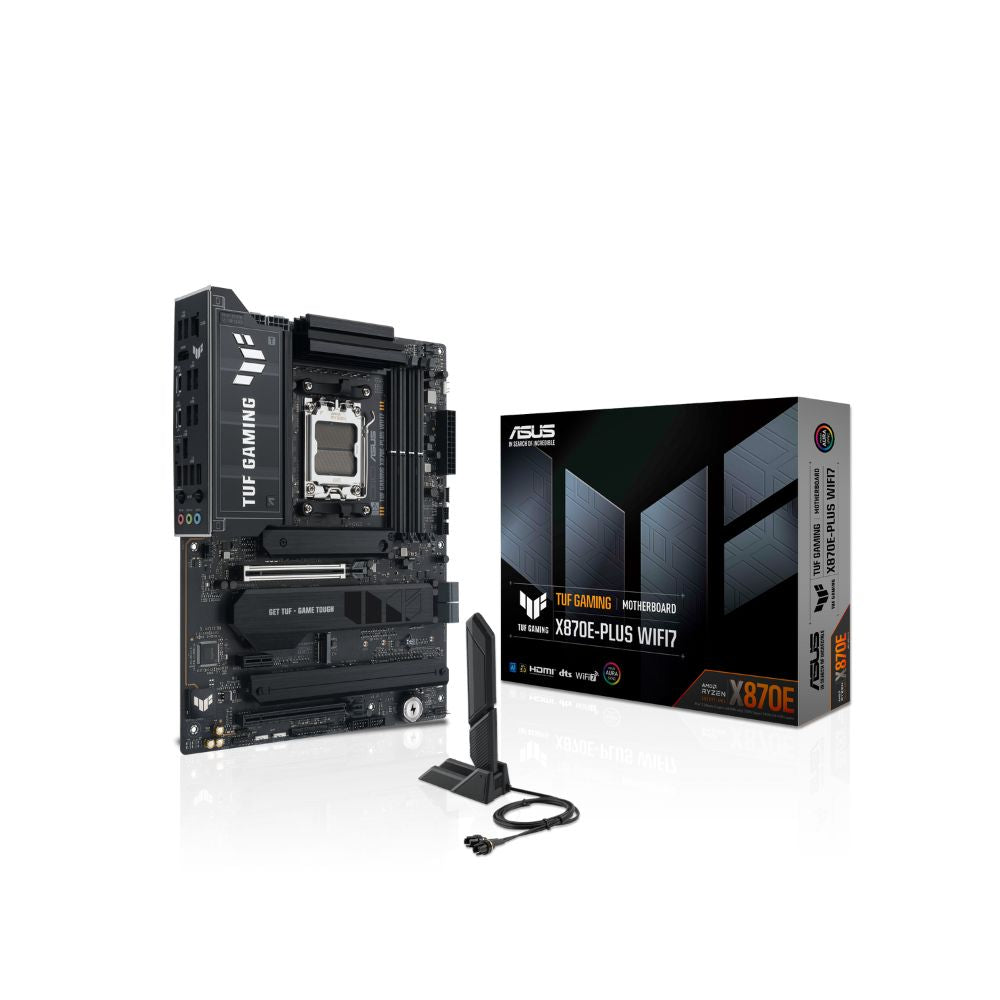

Accessories

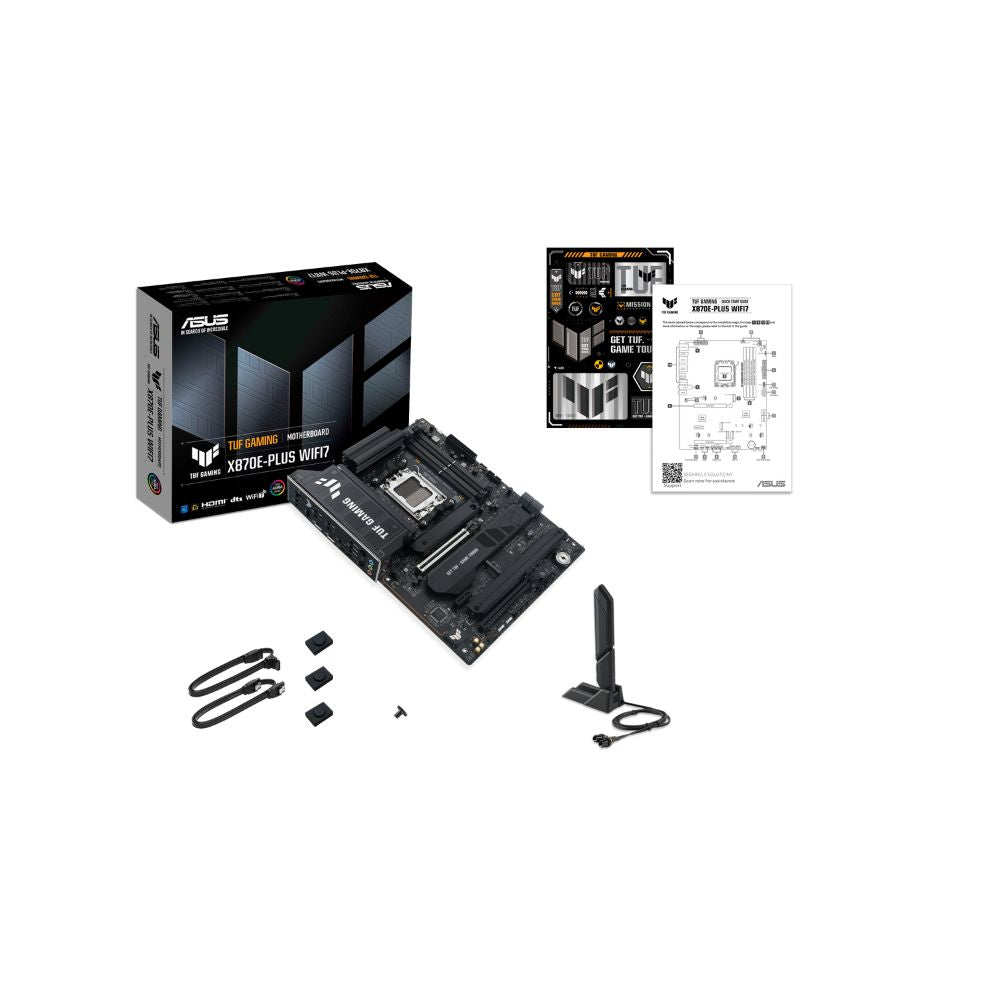

WiFi Q-Antenna, 2 x SATA Cables, M.2 screw package, TUF Sticker, Quick Start Guide

Operating System
Windows 11

Form Factor
ATX (30.5 x 24.4 cm)

3 YEARS WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave, #03-03,
Singapore 339416
Contact: 6341 7839

Ban Leong Technologies Ltd
150, #04-01 Ubi Ave 4, Ubi Biz-Hub,
Singapore 408825
Contact: 6512 9250

Frequently Asked Questions About ASUS TUF GAMING X870E-PLUS WIFI7

Does the ASUS TUF GAMING X870E-PLUS WIFI7 support Ryzen 9000 CPUs?

Yes, it supports Ryzen 9000, Ryzen 8000, and Ryzen 7000 processors. This gives builders flexibility and ensures strong upgrade potential.

How many PCIe 5.0 M.2 slots does this motherboard include?

It includes two PCIe 5.0 M.2 slots for ultra-fast storage. These slots help future-proof your build for upcoming SSD generations.

Is WiFi 7 worth it for a gaming PC in Singapore?

WiFi 7 provides better stability and higher bandwidth for gaming and streaming. It helps reduce congestion in busy households.

Is this motherboard good for content creation work?

Yes, USB4 ports and fast PCIe 5.0 storage make it great for creators. Large files move quickly, and multitasking feels responsive.
