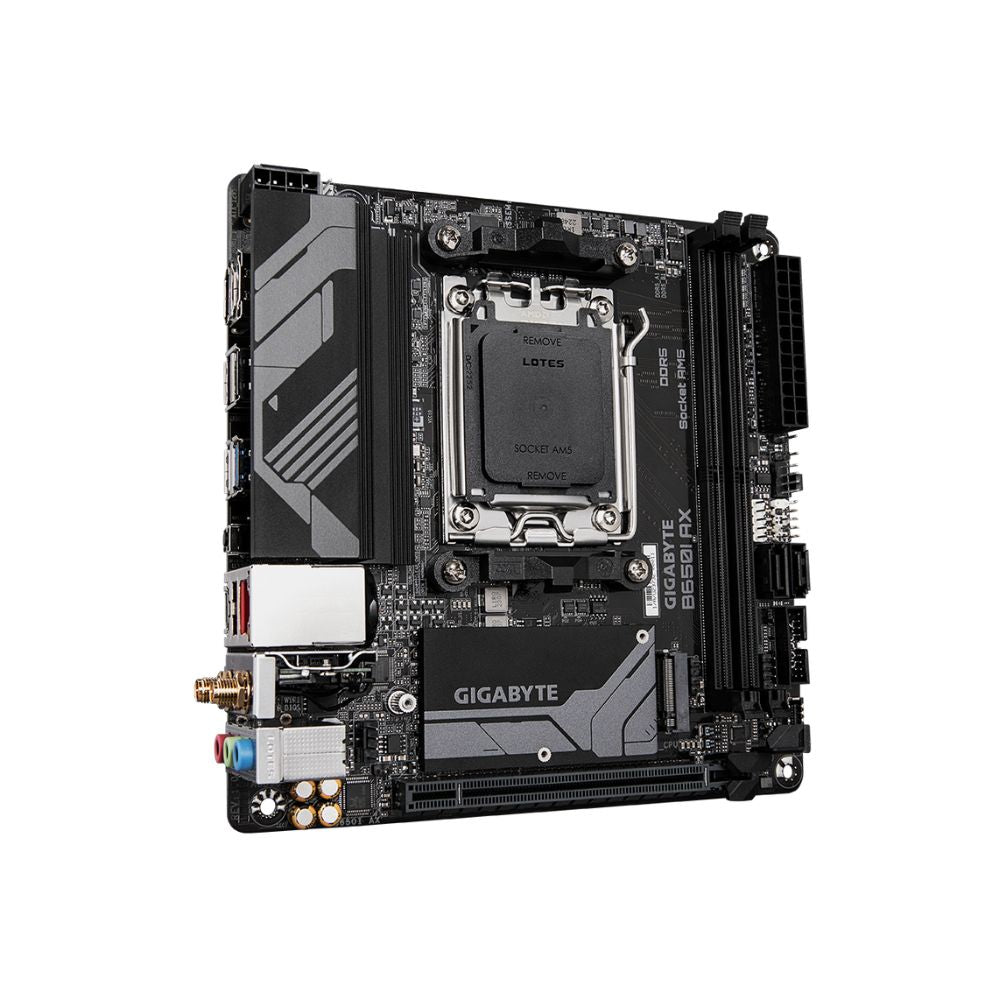

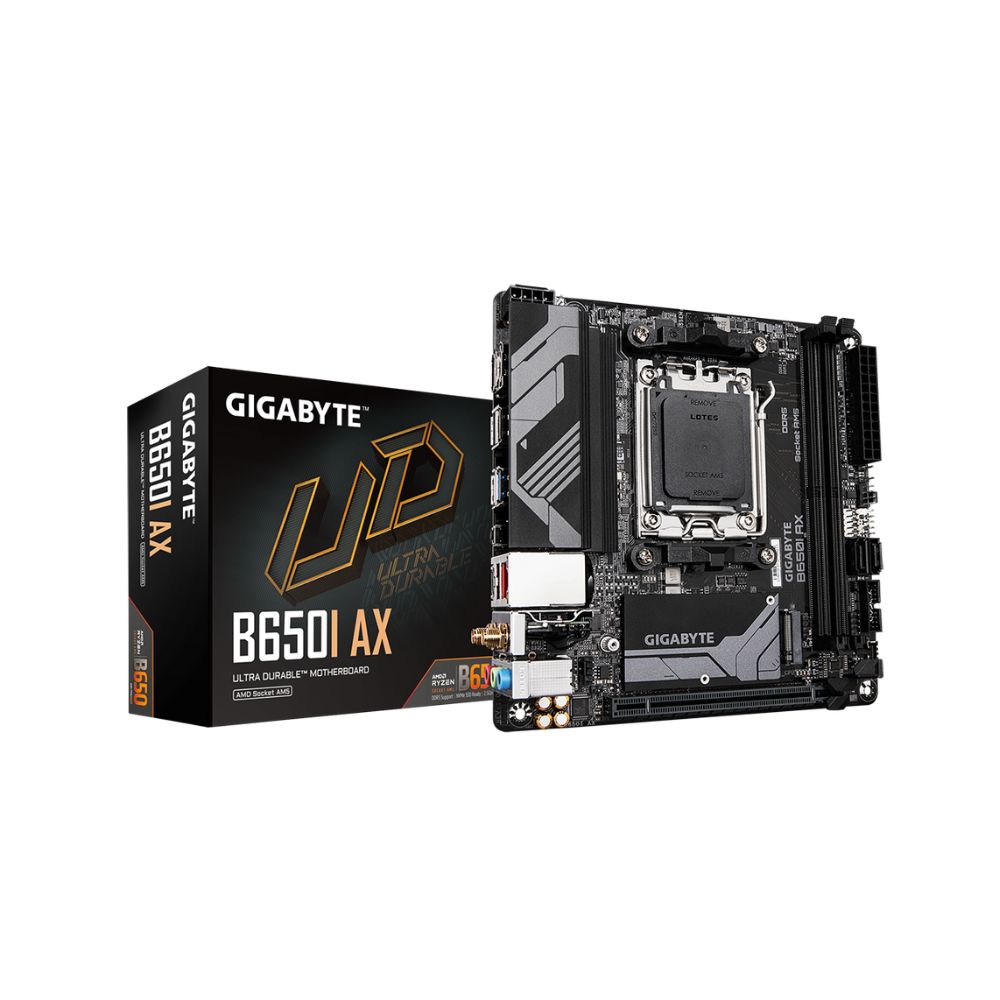

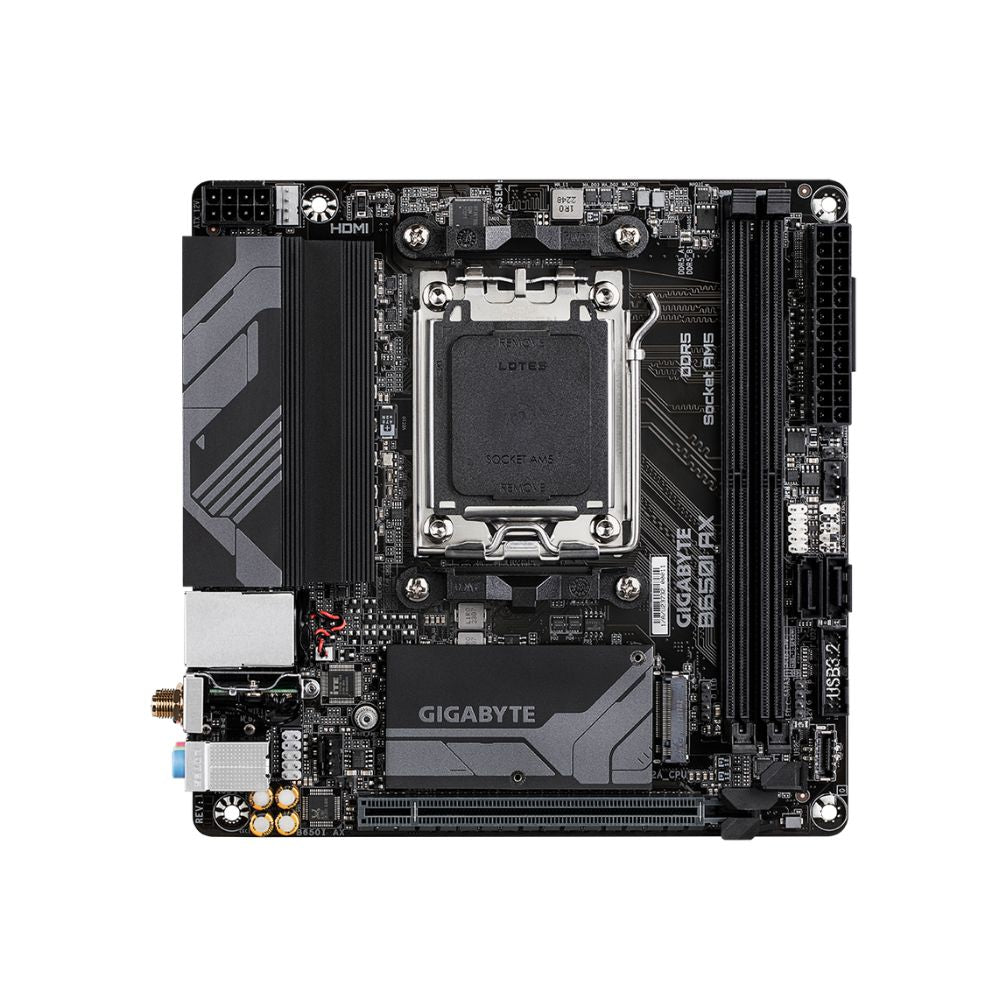

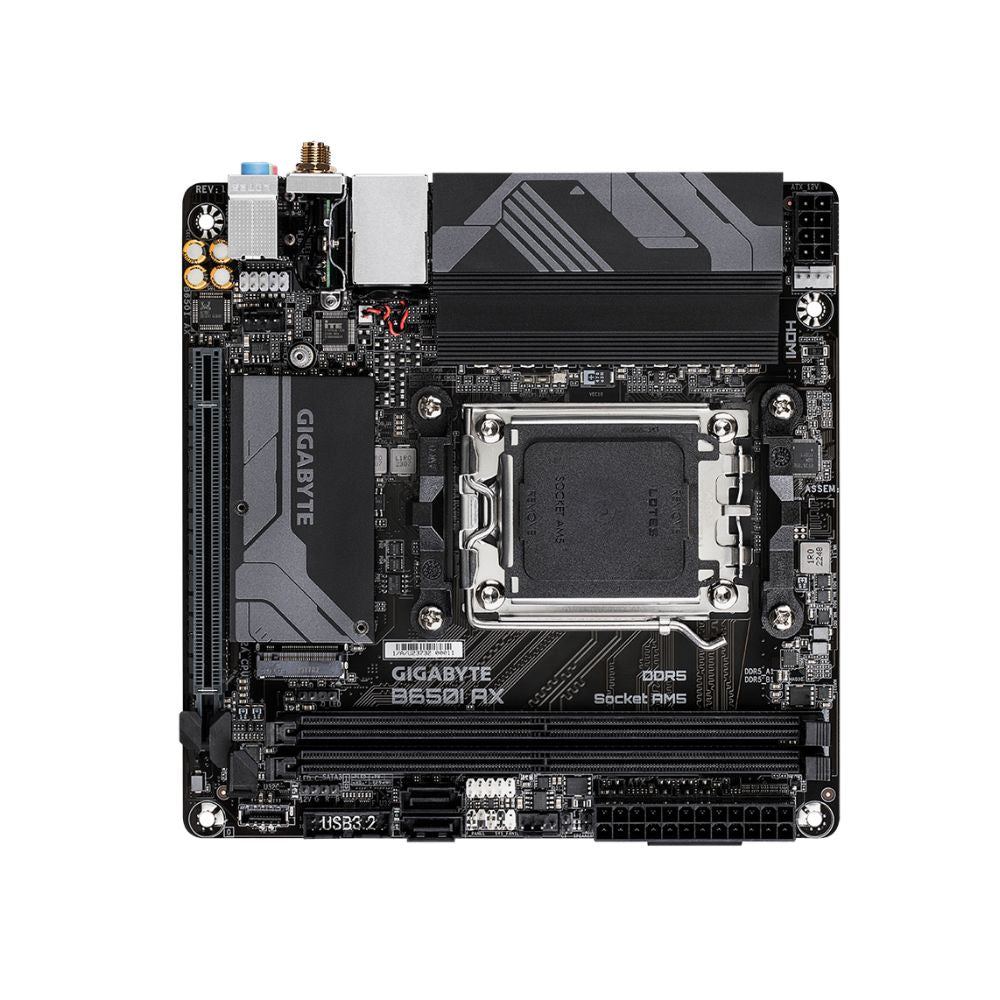

Gigabyte B650I AX – Compact AM5 Mini-ITX Motherboard

About the Gigabyte B650I AX Motherboard

The Gigabyte B650I AX motherboard brings AMD's AM5 platform to Mini-ITX builds without the premium X870 chipset pricing. This 17cm × 17cm board fits compact cases while supporting Ryzen 7000, 8000, and 9000 series processors. SFF builders get modern connectivity, DDR5 memory support, and Q-Flash Plus BIOS updates in one affordable package. Whether you're building a portable workstation or a living room gaming PC, this mini-ITx motherboard with USB-C handles both without compromise.

What This Gigabyte B650I AX Does for You

WiFi 6E tri-band wireless (2.4/5/6GHz) eliminates the need for a separate WiFi card, crucial when you only have one PCIe slot. The 2.5GbE LAN port handles wired connections at speeds faster than standard Gigabit Ethernet. DDR5 memory runs up to 6400 MT/s when overclocked with AMD EXPO profiles, giving you better gaming frame rates and faster content rendering. Q-Flash Plus lets you update the BIOS without installing a CPU or RAM first, essential for Ryzen 9000 series compatibility out of the box. This mini ITX AM5 motherboard covers all the bases serious PC builder Singapore enthusiasts need.

Connectivity That Doesn't Compromise

The single PCIe 4.0 x16 slot supports current GPUs from RTX 40 series (previous generation) to RTX 50 series and AMD RX 7000/8000 cards. One M.2 PCIe 4.0 x4 slot plus two SATA ports give you storage flexibility without bottlenecks. USB-C 3.2 Gen1 on the rear panel connects modern peripherals and cases with front USB-C headers. DisplayPort 1.4 and HDMI 2.1 outputs support dual monitors when using Ryzen APUs. Bluetooth 5.3 rounds out the connectivity suite for wireless peripherals. Everything you need, nothing you don't.

Perfect For

• Compact gaming PC builds using ITX cases under 20 liters with high-performance AMD processors
• Home office workstations needing WiFi 6E and 2.5GbE LAN for fast file transfers
• First-time AM5 platform adopters wanting future CPU upgrade paths without overspending
• Content creators building portable editing rigs that move between locations easily

Why Buy from Mansa Computers

• 3-year Singapore warranty with Gigabyte service support
• Fast WhatsApp inquiry response for compatibility questions
• Open 7 days a week for technical support
• Home delivery available across Singapore

Technical Specifications Summary

Chipset
AMD B650

CPU Support
AMD AM5 (Ryzen 7000/8000/9000)

Memory
DDR5-6400 OC, 2 × DIMM, 128GB Max

Wireless
WiFi 6E RTL8852CE, Bluetooth 5.3

LAN
Realtek 2.5GbE (2.5G/1G/100M)

Storage
1 × M.2 PCIe 4.0, 2 × SATA 6Gb/s

Expansion
1 × PCIe 4.0 x16

Form Factor
Mini-ITX (17cm × 17cm)

The Gigabyte B650I AX motherboard delivers AM5 platform access at the most competitive Mini-ITX pricing in Singapore. Get yours today with 3-year local warranty coverage and same-day WhatsApp support from Mansa Computers.

Model Name
B650I AX

Brand
GIGABYTE

CPU
AMD Socket AM5, supports Ryzen™ 7000 / 8000 / 9000 Series (see CPU Support List).
L3 cache varies with CPU.

Chipset
AMD B650

Memory
DDR5: 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s
2 × DDR5 DIMM, up to 128 GB (64 GB each), dual channel
Non-ECC unbuffered DIMM 1Rx8/2Rx8/1Rx16
Supports AMD EXPO™ & XMP profiles

Graphics (CPU dependent)
1 × DisplayPort 1.4: max 3840×2160@144Hz
1 × HDMI 2.1: max 4096×2160@60Hz, HDCP 2.3
Native HDMI 2.1 TMDS supported

Audio
Realtek® HD Audio CODEC, 2/4/5.1/7.1-channel, S/PDIF Out

LAN & Wireless
Realtek® 2.5GbE LAN (2.5G/1G/100M)
Realtek® Wi-Fi 6E RTL8852CE, Bluetooth 5.3, 2.4/5/6GHz, 160MHz

Expansion Slots
1 × PCIe x16 (CPU):
Ryzen™ 7000/9000 → PCIe 4.0 x16
Ryzen™ 8000 Phoenix 1 → PCIe 4.0 x8
Ryzen™ 8000 Phoenix 2 → PCIe 4.0 x4
(Supports GPU or NVMe SSD only)

Storage
1 × M.2 PCIe 4.0 x4/x2 (CPU, 2280)
2 × SATA 6Gb/s
RAID 0/1 (NVMe & SATA)

USB
CPU: 1 × USB-C (3.2 Gen1), 1 × USB-A (3.2 Gen2, red), 1 × USB 2.0
Chipset: 1 × USB-C (3.2 Gen1, internal), 3 × USB-A (3.2 Gen1), 4 × USB 2.0
Back panel total: 1 × USB-C (3.2 Gen1), 1 × USB-A (3.2 Gen2 red), 1 × USB-A (3.2 Gen1), 3 × USB 2.0

Internal I/O
24-pin ATX, 8-pin CPU, 1 × CPU fan, 2 × system fan, ARGB Gen2 + RGB headers, M.2, 2 × SATA, USB-C (3.2 Gen1), USB-A (3.2 Gen1), USB 2.0, Clear CMOS, chassis intrusion

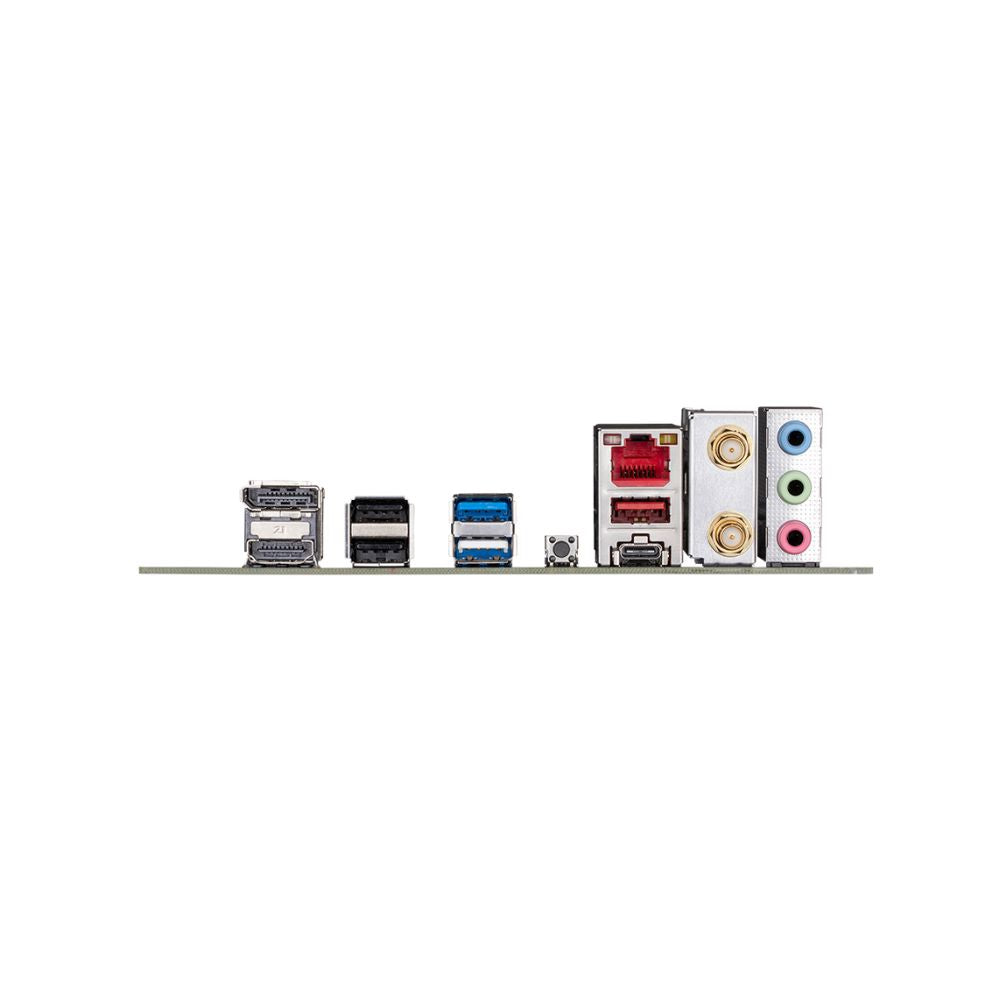

Back Panel
1 × DP, 1 × HDMI, 1 × USB-C (3.2 Gen1), 1 × USB-A (3.2 Gen2 red), 1 × USB-A (3.2 Gen1), 3 × USB 2.0, RJ-45, 2 × SMA antenna, 3 × audio jacks, Q-Flash Plus

Controller & Monitoring
iTE® I/O Controller; voltage/temp/fan/flow detection, fan fail warning, fan control

BIOS
AMI UEFI, 256 Mbit flash, PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0

Features
GIGABYTE Control Center, Q-Flash, Q-Flash Plus

Software
Norton® Internet Security (OEM), LAN bandwidth management

OS
Windows 11 64-bit, Windows 10 64-bit

Form Factor
Mini-ITX, 17.0 × 17.0 cm

3 YEARS WARRANTY

CDL Trading Pte Ltd
115A Commonwealth Dr, #03-10, Singapore 149596
Contact: 6473 4733

Frequently Asked Questions About Gigabyte B650I AX Motherboard

Does the Gigabyte B650I AX Motherboard support Ryzen 9000 series CPUs out of the box?

It depends on the BIOS version. Use Q-Flash Plus to update the BIOS without installing CPU or RAM first. This ensures full Ryzen 9000 series compatibility before your first boot.

Can I build a powerful gaming PC with this Mini-ITX motherboard?

Yes, the PCIe 4.0 x16 slot supports current RTX 50 series and RX 7000/8000 GPUs without bottlenecks. Pair it with a Ryzen 7 9700X and DDR5-6000 RAM for excellent 1440p gaming performance in compact cases.

Will my ATX power supply fit with the Gigabyte B650I AX?

The board uses standard 24-pin ATX and 8-pin CPU power connectors. Check your Mini-ITX case specifications for power supply clearance, not the motherboard itself.

What warranty does Mansa Computers provide with this motherboard?

You get a 3-year CDL Trading Singapore warranty with Gigabyte service support. We handle RMA claims directly and provide fast WhatsApp responses for troubleshooting. We're open 7 days a week.

How does the Gigabyte B650I AX compare to ASUS B650I boards?

This board costs SGD 100-150 less than ASUS ROG Strix B650E-I while including WiFi 6E and 2.5GbE LAN. You sacrifice some VRM phases but gain better value for mid-range Ryzen builds.
