GIGABYTE B850 EAGLE WIFI7 ICE - White AM5 Value

Model
GIGABYTE B850 EAGLE WIFI7 ICE

CPU Socket
AM5

CPU Support
AMD Ryzen™ 9000 / 8000 / 7000 Series Processors

Chipset
AMD B850

Memory
4 x DDR5 DIMM sockets
Up to 256GB system memory
64GB single DIMM capacity
DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s
Dual Channel Memory Architecture
Supports non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 memory modules
Supports AMD EXPO™ and XMP memory modules

Graphics Output
1 x DisplayPort
Supports up to 3840 x 2160 @ 144Hz
Supports DisplayPort 1.4 and HDR
1 x HDMI port
Supports up to 4096 x 2160 @ 60Hz
Supports HDMI 2.1, HDCP 2.3, and HDR

Audio
Realtek® Audio CODEC
High Definition Audio
2 / 4 / 5.1 / 7.1-channel

LAN
Realtek® 2.5GbE LAN chip
Supports 2.5Gbps / 1Gbps / 100Mbps

Wireless
Realtek® Wi-Fi 7 RTL8922AE
Supports 802.11a / b / g / n / ac / ax / be
Supports 2.4GHz / 5GHz / 6GHz frequency bands
Supports 11be 160MHz wireless standard

Bluetooth
Bluetooth 5.4

Expansion Slots
1 x PCIe x16 slot integrated in CPU
Ryzen™ 9000 / 7000 Series: PCIe 5.0 x16
Ryzen™ 8000 Series Phoenix 1: PCIe 4.0 x8
Ryzen™ 8000 Series Phoenix 2: PCIe 4.0 x4

1 x PCIe x16 slot from chipset
Supports PCIe 4.0 x4

2 x PCIe x16 slots from chipset
Supports PCIe 3.0 x1

Storage
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors

M.2 Support
M2A_CPU supports type 22110 / 2280 SSDs
M2A_CPU supports PCIe 5.0 x4/x2 with Ryzen™ 9000 / 7000 Series
M2A_CPU supports PCIe 4.0 x4/x2 with Ryzen™ 8000 Series-Phoenix 1
M2A_CPU supports PCIe 4.0 x4/x2 with Ryzen™ 8000 Series-Phoenix 2

M2B_CPU supports type 22110 / 2280 SSDs
M2B_CPU supports PCIe 4.0 x4/x2 with Ryzen™ 9000 / 7000 Series
M2B_CPU supports PCIe 4.0 x4/x2 with Ryzen™ 8000 Series Phoenix 1
M2B_CPU supports PCIe 4.0 x2 with Ryzen™ 8000 Series Phoenix 2

M2C_SB supports type 22110 / 2280 PCIe 4.0 x2 SSDs

RAID Support
RAID 0 / 1 / 5 / 10 for NVMe SSD storage devices
RAID 5 available only on AMD Ryzen™ 9000 Series Processors
RAID 0 / 1 / 10 for SATA storage devices

USB Support
1 x USB Type-C® rear port with USB 3.2 Gen 1 support
2 x USB 3.2 Gen 2 Type-A rear ports
1 x USB Type-C® internal header with USB 3.2 Gen 1 support
4 x USB 3.2 Gen 1 ports
4 x USB 2.0 / 1.1 rear ports
4 x USB 2.0 / 1.1 ports via internal headers

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan / water cooling pump header
3 x System fan headers
1 x System fan / water cooling pump header
3 x Addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x Front Panel header
1 x Front Panel Audio header
1 x USB Type-C® header with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0 / 1.1 headers
1 x Trusted Platform Module header
1 x Reset button
1 x Reset jumper
1 x Clear CMOS jumper

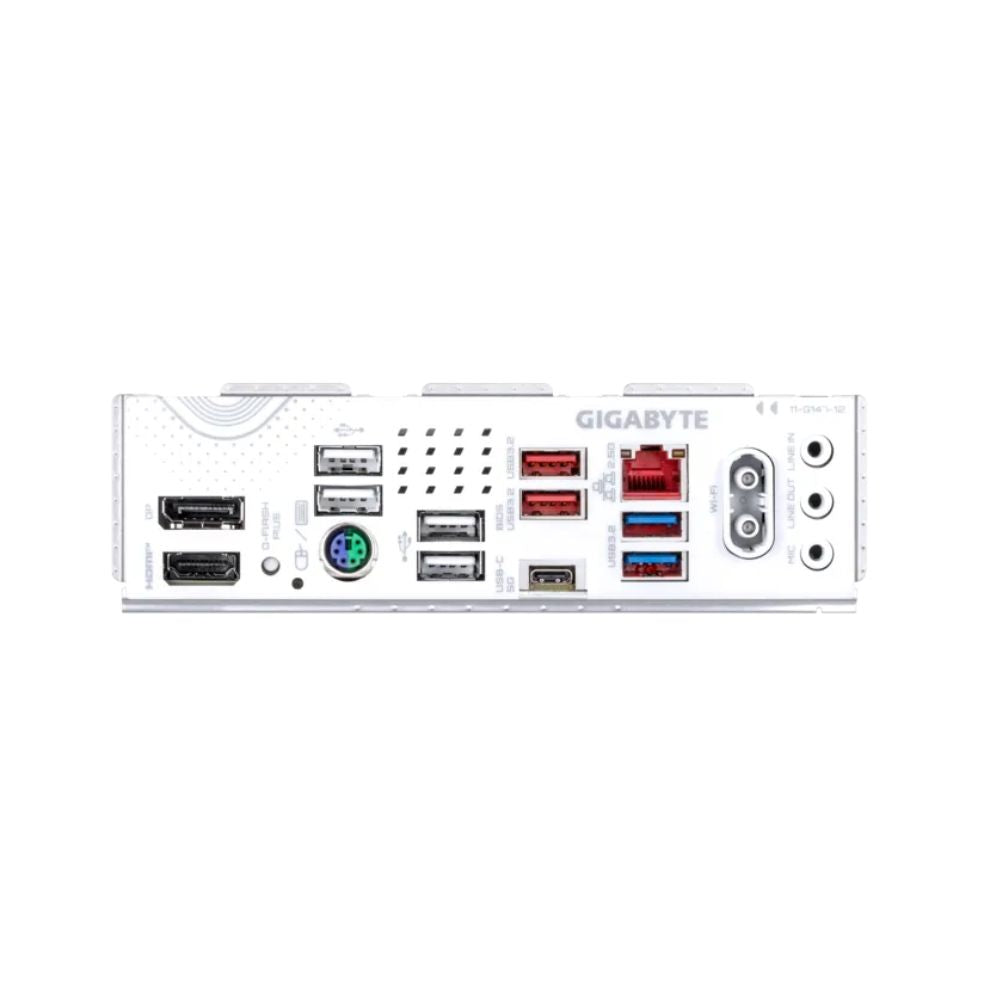

Back Panel Connectors
1 x DisplayPort
1 x HDMI port
1 x Q-Flash Plus button
4 x USB 2.0 / 1.1 ports
1 x PS/2 Keyboard / Mouse port
2 x USB 3.2 Gen 2 Type-A ports
1 x USB Type-C® port with USB 3.2 Gen 1 support
1 x RJ-45 port
2 x USB 3.2 Gen 1 ports
2 x Antenna connectors
3 x Audio jacks

I/O Controller
iTE® I/O Controller Chip

Hardware Monitoring
Voltage Detection
Temperature Detection
Fan Speed Detection
Water Cooling Flow Rate Detection
Fan Fail Warning
Fan Speed Control

BIOS
1 x 256 Mbit Flash
Licensed AMI UEFI BIOS
PnP 1.0a
DMI 2.7
WfM 2.0
SM BIOS 2.7
ACPI 5.0

Unique Features
GIGABYTE Control Center (GCC)
Q-Flash
Q-Flash Plus
Smart Backup

Bundled Software
Norton® Internet Security (OEM Version)
LAN Bandwidth Management Software

Operating System
Windows 11 64-bit

Form Factor
ATX

Dimensions
30.5cm x 24.4cm
