    GIGABYTE B850M A ELT WF7 ICE-P - Compact AM5 Power
    GIGABYTE B850M A ELT WF7 ICE-P - Compact AM5 Power
    GIGABYTE B850M A ELT WF7 ICE-P - Compact AM5 Power
    GIGABYTE B850M A ELT WF7 ICE-P - Compact AM5 Power
    GIGABYTE B850M A ELT WF7 ICE-P - Compact AM5 Power
    GIGABYTE B850M A ELT WF7 ICE-P - Compact AM5 Power
    GIGABYTE B850M A ELT WF7 ICE-P - Compact AM5 Power
    GIGABYTE B850M A ELT WF7 ICE-P - Compact AM5 Power
    GIGABYTE B850M A ELT WF7 ICE-P - Compact AM5 Power
    GIGABYTE B850M A ELT WF7 ICE-P - Compact AM5 Power

    GIGABYTE B850M A ELT WF7 ICE-P - Compact AM5 Power

    SKU: B850M A ELITE WF7 ICE-P

    $395.00

    Socket Support: AM5 for Ryzen 9000, 8000, and 7000 Series

    Memory: DDR5 up to 8200 MT/s (OC), up to 256GB

    Storage: 2 x M.2 slots + 4 x SATA 6Gb/s ports

    Networking: WiFi 7 + Realtek 2.5GbE LAN

    Form Factor: Micro ATX, 24.4cm x 24.4cm

    GIGABYTE B850M A ELT WF7 ICE-P gives your AM5 build a clean ICE look in a compact Micro ATX size.

    It supports Ryzen 9000, DDR5, and PCIe 5.0 for strong modern performance. WiFi 7 and 2.5GbE LAN keep your setup fast and responsive. Backed by 3-year Singapore warranty and Mansa support, you're covered daily.

    Why Choose This GIGABYTE B850M A ELT WF7 ICE-P

    • Compact Micro ATX sizing fits high-performance gaming builds while keeping a clean white ICE-themed look.
    • Dual M.2 slots with PCIe 5.0 support give DirectStorage-ready PCIe 5.0 speeds and fast storage expansion.
    • WiFi 7, DDR5, and 2.5GbE LAN make this a strong-value AM5 board for modern Ryzen builds.
    • 3-year Singapore warranty with GIGABYTE support. Fast WhatsApp replies from Mansa Computers, open 7 days for help.
    ✓ Why Buy This

    3 Year Warranty

    WiFi 7 Connectivity

    PCIe 5.0 Support

    Full Specifications

    Model
    GIGABYTE B850M A ELT WF7 ICE-P

    CPU Socket
    AM5

    CPU Support
    AMD Ryzen™ 9000 / 8000 / 7000 Series Processors

    Chipset
    AMD B850

    Memory
    4 x DDR5 DIMM sockets
    Up to 256GB system memory
    64GB single DIMM capacity
    DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 MT/s
    Dual Channel Memory Architecture
    Supports non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 memory modules
    Supports AMD EXPO™ and XMP memory modules

    Graphics Output
    1 x DisplayPort
    Supports up to 3840 x 2160 @ 144Hz
    Supports DisplayPort 1.4 and HDR
    1 x Front HDMI port
    Supports up to 1920 x 1080 @ 30Hz
    Supports HDMI 1.4

    Audio
    Realtek® ALC1220 CODEC
    High Definition Audio
    2 / 4 / 5.1 / 7.1-channel
    Supports S/PDIF Out
    Back panel line out jack supports DSD audio

    LAN
    Realtek® 2.5GbE LAN chip
    Supports 2.5Gbps / 1Gbps / 100Mbps

    Wireless
    Realtek® Wi-Fi 7 RTL8922AE
    Supports 802.11a / b / g / n / ac / ax / be
    Supports 2.4GHz / 5GHz / 6GHz frequency bands
    Supports 11be 160MHz wireless standard

    Bluetooth
    Bluetooth 5.4

    Expansion Slots
    1 x PCIe x16 slot integrated in CPU
    Ryzen™ 9000 / 7000 Series: PCIe 5.0 x16
    Ryzen™ 8000 Series Phoenix 1: PCIe 4.0 x8
    Ryzen™ 8000 Series Phoenix 2: PCIe 4.0 x4

    1 x PCIe x16 slot from chipset
    Supports PCIe 3.0 x4

    Storage
    2 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors

    M.2 Support
    M2A_CPU supports type 25110 / 22110 / 2580 / 2280 SSDs
    M2A_CPU supports PCIe 5.0 x4/x2 with Ryzen™ 9000 / 7000 Series
    M2A_CPU supports PCIe 4.0 x4/x2 with Ryzen™ 8000 Series-Phoenix 1
    M2A_CPU supports PCIe 4.0 x4/x2 with Ryzen™ 8000 Series-Phoenix 2

    M2B_CPU supports type 22110 / 2280 SSDs
    M2B_CPU supports PCIe 4.0 x4/x2 with Ryzen™ 9000 / 7000 Series
    M2B_CPU supports PCIe 4.0 x4/x2 with Ryzen™ 8000 Series Phoenix 1
    M2B_CPU supports PCIe 4.0 x2 with Ryzen™ 8000 Series Phoenix 2

    RAID Support
    RAID 0 / 1 / 5 / 10 for NVMe SSD storage devices
    RAID 5 available only on AMD Ryzen™ 9000 Series Processors
    RAID 0 / 1 / 10 for SATA storage devices

    USB Support
    1 x USB Type-C® rear port with USB 3.2 Gen 2 support
    2 x USB 3.2 Gen 2 Type-A rear ports
    4 x USB 2.0 / 1.1 rear ports
    4 x USB 3.2 Gen 1 rear ports
    1 x USB Type-C® internal header with USB 3.2 Gen 2x2 support
    3 x USB 3.2 Gen 1 ports
    4 x USB 2.0 / 1.1 ports via internal headers

    Internal I/O Connectors
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    1 x CPU fan / water cooling pump header
    3 x System fan headers
    1 x System fan / water cooling pump header
    3 x Addressable RGB Gen2 LED strip headers
    1 x RGB LED strip header
    2 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x Front Panel header
    1 x Front Panel Audio header
    1 x USB Type-C® header with USB 3.2 Gen 2x2 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0 / 1.1 headers
    1 x Trusted Platform Module header
    1 x HDMI port
    1 x Reset button
    1 x Reset jumper
    1 x Clear CMOS jumper

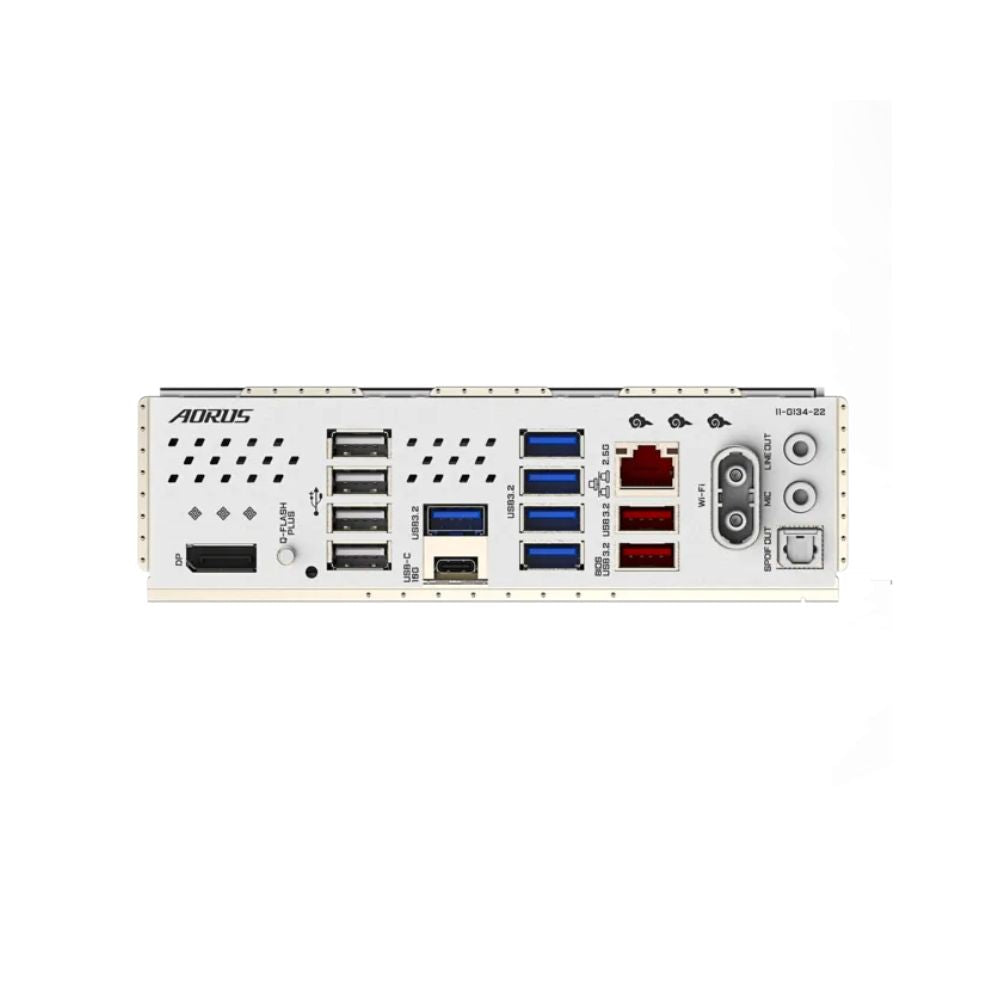

    Back Panel Connectors
    1 x DisplayPort
    1 x Q-Flash Plus button
    4 x USB 2.0 / 1.1 ports
    5 x USB 3.2 Gen 1 ports
    2 x USB 3.2 Gen 2 Type-A ports
    1 x USB Type-C® port with USB 3.2 Gen 2 support
    1 x RJ-45 port
    2 x Antenna connectors
    2 x Audio jacks
    1 x Optical S/PDIF Out connector

    I/O Controller
    iTE® I/O Controller Chip

    Hardware Monitoring
    Voltage Detection
    Temperature Detection
    Fan Speed Detection
    Water Cooling Flow Rate Detection
    Fan Fail Warning
    Fan Speed Control

    BIOS
    1 x 256 Mbit Flash
    Licensed AMI UEFI BIOS
    PnP 1.0a
    DMI 2.7
    WfM 2.0
    SM BIOS 2.7
    ACPI 5.0

    Unique Features
    GIGABYTE Control Center (GCC)
    Q-Flash
    Q-Flash Plus
    Smart Backup

    Bundled Software
    Norton® Internet Security (OEM Version)

    Operating System
    Windows 11 64-bit

    Form Factor
    Micro ATX

    Dimensions
    24.4cm x 24.4cm

    Warranty

    3 YEARS WARRANTY
