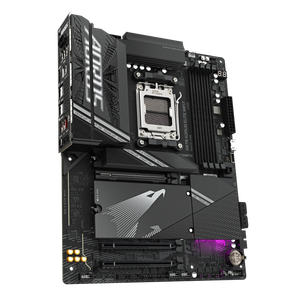

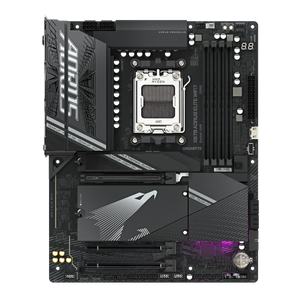

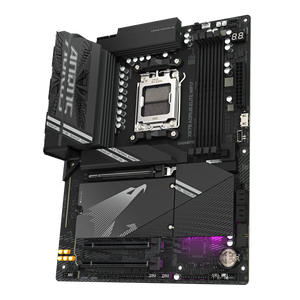

Gigabyte X870 A ELITE WIFI 7 – AM5 Motherboard with USB4

About the Gigabyte X870 A ELITE WIFI 7

The Gigabyte X870 A ELITE WIFI 7 is designed for enthusiast builders who want flagship connectivity without extreme pricing. This AM5 motherboard supports AMD Ryzen 9000, 8000, and 7000 series processors with DDR5 memory up to 8200MHz overclocked. Four M.2 connectors and comprehensive cooling headers make it ideal for performance-focused builds that need room to expand. Whether you're building a gaming rig or creator workstation, this board delivers the features serious users demand.

What This Gigabyte X870 A ELITE WIFI 7 Does for You

This motherboard gives you next-generation connectivity that most mid-range boards skip. Dual USB4 Type-C ports deliver 40Gbps bandwidth for external GPUs, fast storage arrays, or multi-display setups through DisplayPort output. WiFi 7 tri-band wireless supports 2.4GHz, 5GHz, and 6GHz frequencies for interference-free streaming and downloads. Four M.2 slots mean you can run multiple PCIe 5.0 SSDs without sacrificing SATA drives. If you're building a motherboard with USB type C requirements for modern peripherals, this board handles professional workflows and gaming simultaneously.

Connectivity That Matters

USB4 changes how you connect devices to your PC. Two rear USB4 ports support 40Gbps transfers and DisplayPort video output at 3840x2160@240Hz. Front HDMI port adds a fourth display option for multi-monitor productivity. Realtek 2.5 Gigabit Ethernet ensures low-latency gaming and fast file transfers on your home network. Bluetooth 5.4 rounds out wireless options for peripherals and audio devices.

Perfect For

• Ryzen 9000 series gaming builds requiring WiFi 7 and USB4 for competitive setups
• Content creators running multi-display workstations with fast external storage arrays
• Enthusiasts building custom water-cooled systems with flow rate monitoring
• Upgraders moving from AM4 to AM5 who want futureproof storage and wireless

Why Buy from Mansa Computers

• 3-year Singapore warranty with CDL Trading and Gigabyte authorized service support
• Fast WhatsApp inquiry response for RAM compatibility and BIOS questions
• Open 7 days a week for weekend builder support
• Home delivery available across Singapore

Technical Specifications Summary

Chipset
AMD X870

CPU Socket
AM5 (Ryzen 9000/8000/7000 Series)

Memory
4x DDR5 DIMM, up to 256GB, 8200MHz OC

Storage
4x M.2 (3x PCIe 5.0), 4x SATA 6Gb/s

Wireless
WiFi 7 (2.4/5/6GHz), Bluetooth 5.4

USB
2x USB4 Type-C, 2x USB 3.2 Gen 2, 8x USB 3.2 Gen 1/2.0

Audio
Realtek ALC1220, 7.1 Channel, S/PDIF

Form Factor
ATX (30.5cm x 24.4cm)

Ready to build your Ryzen 9000 system with WiFi 7 and USB4? The Gigabyte X870 A ELITE WIFI 7 gives you flagship features at SGD 515. Order now from Mansa Computers with 3-year Singapore warranty coverage.

CPU
AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors

Chipset
AMD X870

Memory
Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Onboard Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

Audio
Realtek® ALC1220 CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module
MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard

*WiFi 7 module may vary by board revision; both support WiFi 7 + BT 5.4.

Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
1/Phoenix 2 processor is used.
1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB
CPU+ASMedia USB4® controller:
- 2 x USB4® USB Type-C® ports on the back panel
CPU+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel
CPU+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through
the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x power button
1 x reset button
2 x temperature sensor headers
1 x reset jumper
1 x Clear CMOS jumper

Back Panel Connectors
1 x Q-Flash Plus button
1 x HDMI port (Note)
2 x antenna connectors (2T2R)
2 x USB4® USB Type-C® ports (DisplayPort (Note))
2 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks

I/O Controller
iTE® I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Noise detection

BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support Smart Backup

Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software

Operating System
Support for Windows 11 64-bit

Form Factor
ATX Form Factor; 30.5cm x 24.4cm

3 YEARS WARRANTY

CDL Trading Pte Ltd
115A Commonwealth Dr #03-10, Singapore 149596
Contact: 6473 4733

Frequently Asked Questions About Gigabyte X870 A ELITE WIFI 7

Does this motherboard support Ryzen 9000 / 8000 / 7000 (AM5)?

Yes. It’s an AM5 X870 motherboard and supports AMD Ryzen™ 9000 / 8000 / 7000 Series CPUs (a BIOS update may be needed for the newest CPUs).

Does it have Q-Flash Plus (BIOS flashback) to update BIOS without CPU?

Yes. It supports Q-Flash Plus, so you can update the BIOS without installing the CPU or RAM — super helpful if you’re doing a fresh build.

How many M.2 slots does it have, and how many are Gen5?

It has 4× M.2 slots total, with up to 3× PCIe Gen5 x4 M.2 slots (Gen5) and the remaining slot(s) on Gen4 depending on configuration.

Will using the Gen5 M.2 slots reduce my GPU slot from x16 to x8?

Yes — if you populate certain CPU-connected M.2 slots (M2B_CPU or M2C_CPU), the main GPU slot can run up to PCIe x8. This is normal on many high-lane boards, and PCIe 5.0 x8 is usually still plenty for gaming.

Does it have USB4 Type-C?

Yes. It comes with dual USB4 Type-C on the rear I/O for fast external SSDs, docks, and DP-Alt display support (device/cable dependent).

Does it have a front USB-C header? What speed?

Yes. It has a front USB-C header (USB 3.2 Gen 2x2) for up to 20Gbps, so your case front Type-C won’t be “for show only”.

Is WiFi 7 built in, and does it include Bluetooth?

Yes. It has built-in WiFi 7 and Bluetooth. The module/chipset can vary by board revision, but functionally it’s WiFi 7 + Bluetooth.

What LAN speed does it have?

It comes with 2.5GbE LAN, a solid upgrade for faster downloads and lower-latency home network gaming.
