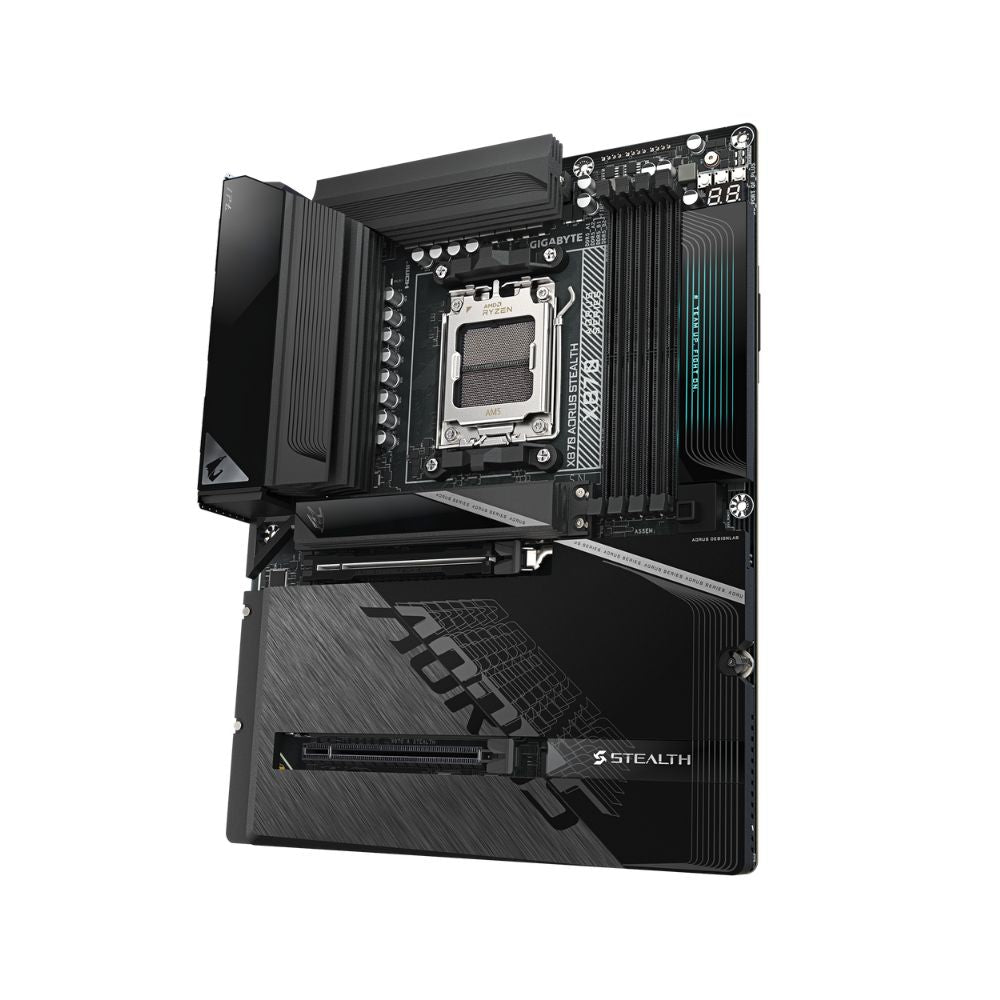

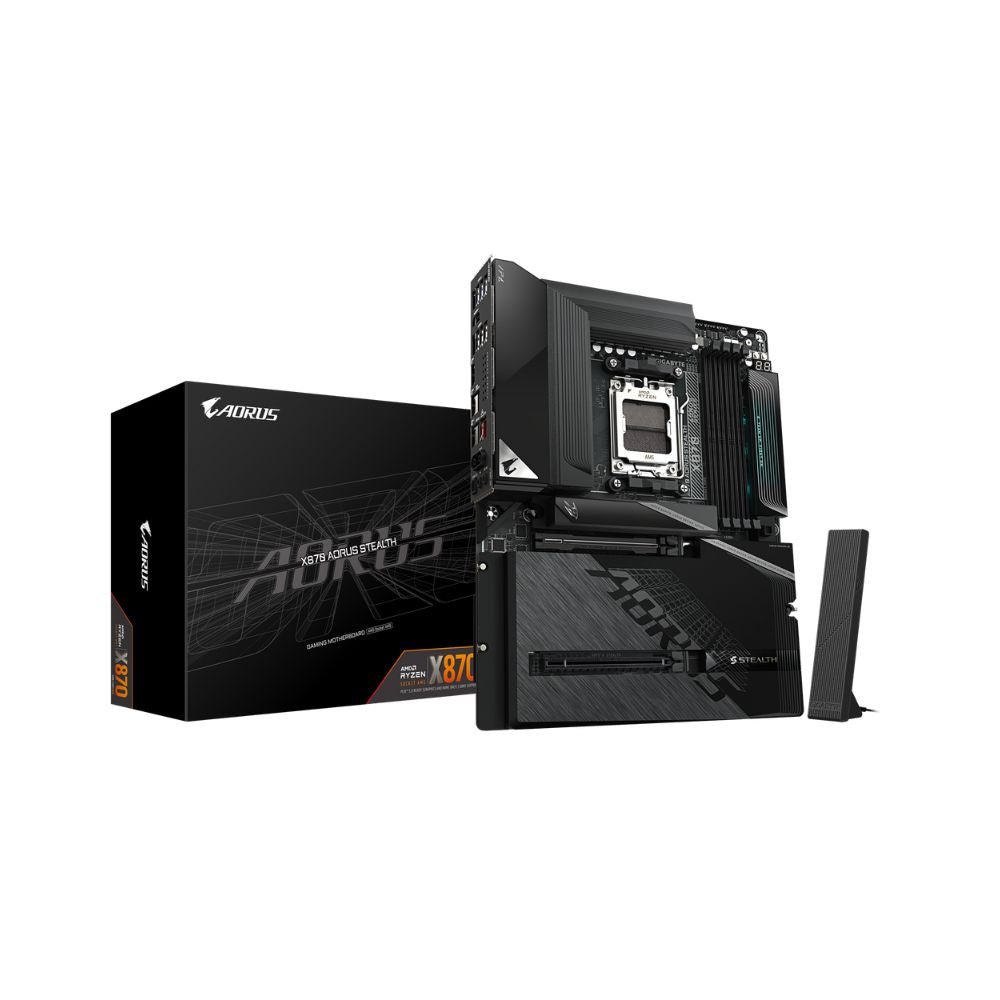

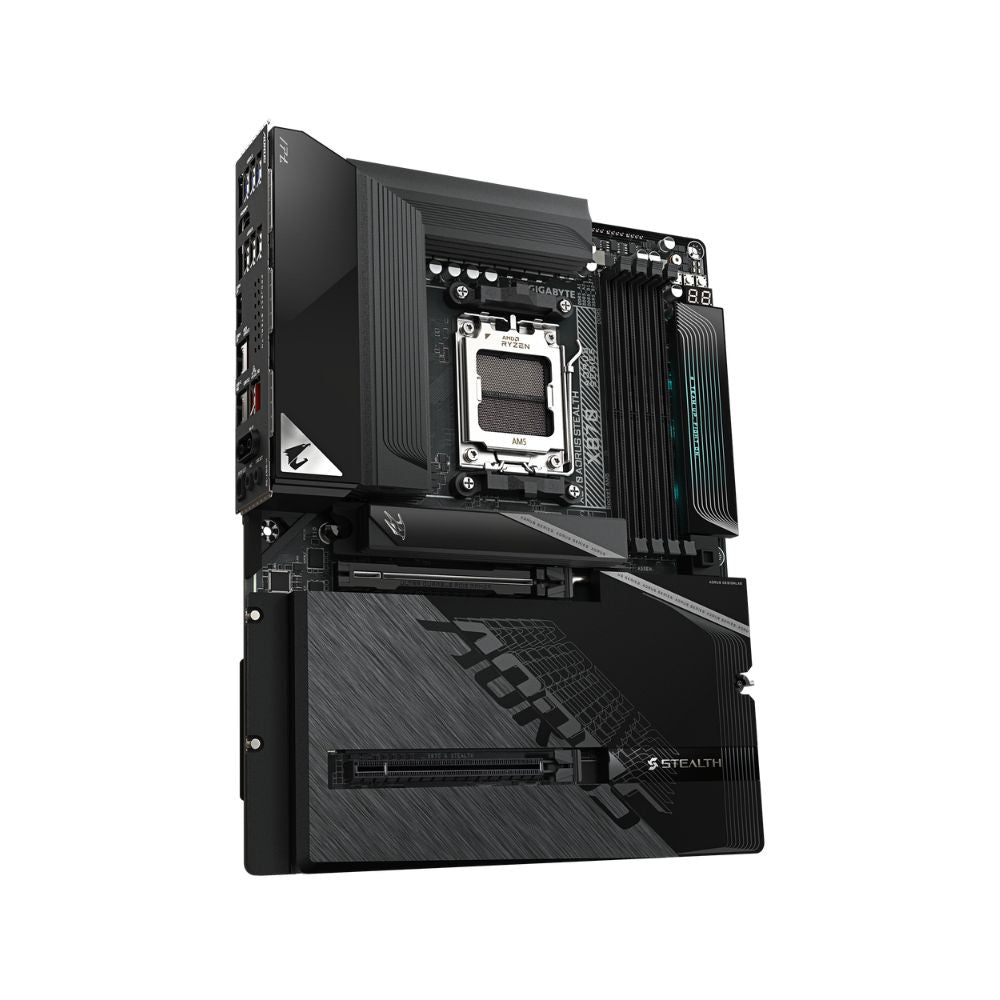

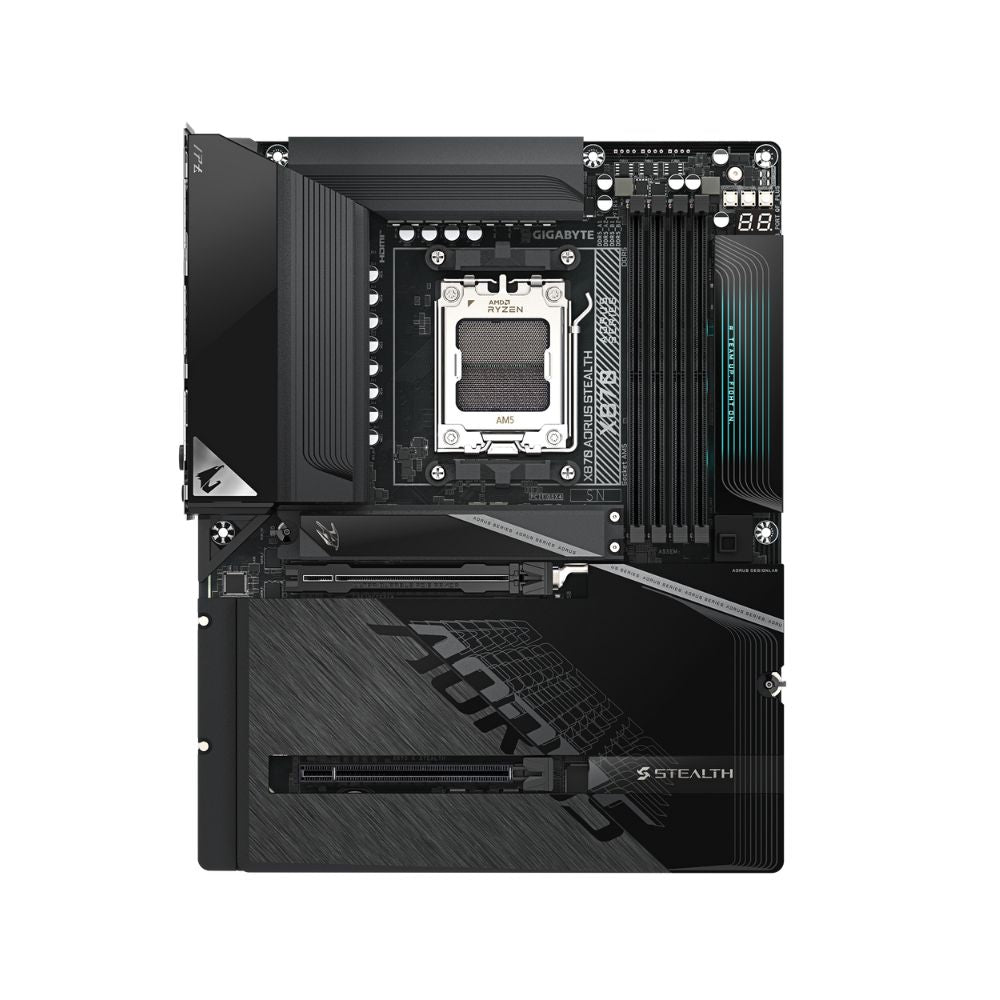

Gigabyte X870 AORUS STEALTH – Premium AMD X870 Motherboard

About the Gigabyte X870 AORUS STEALTH

The X870 AORUS STEALTH is built for enthusiasts who want AMD's latest X870 chipset with premium connectivity features. This ATX gaming motherboard supports AMD Ryzen 9000, 8000, and 7000 series processors on Socket AM5. You get dual USB4 ports, WiFi 7 wireless, and PCIe 5.0 slots for next-generation storage and graphics. It's designed for builders who prioritize future-proof connectivity without paying flagship prices.

What This Motherboard Does for You

This board handles demanding workloads with stable power delivery through its multi-phase VRM design. The dual USB4 ports run at 40Gbps each, letting you connect high-speed external storage or DisplayPort monitors directly. WiFi 7 with 320MHz channel support delivers faster wireless speeds than WiFi 6E, crucial for online gaming and large file transfers. The 5GbE LAN provides 5x faster wired networking than standard gigabit for local network transfers and NAS usage. Four M.2 slots mean you can install multiple NVMe drives without sacrificing SATA ports.

Connectivity and Expansion

The Gigabyte X870 AORUS STEALTH stands out with its connectivity options. Two M.2 slots support PCIe 5.0 x4 for 14GB/s+ SSD speeds with Ryzen 9000/7000 CPUs. The primary PCIe x16 slot runs at PCIe 5.0 for future GPU compatibility. USB4 ports share bandwidth intelligently with the M.2B slot, giving you configuration flexibility. Realtek ALC1220 audio codec delivers high-definition sound with support for 7.1-channel setups. The board includes comprehensive fan and RGB headers for custom cooling builds.

Perfect For

• Gaming PC builders who want AMD Ryzen 9000/7000 platform with USB4 and WiFi 7 for future-proofing their system
• Content creators needing fast external storage connectivity and multi-drive configurations for video editing workflows
• Enthusiasts building high-performance workstations with custom cooling loops and RGB lighting control
• Users who want premium AORUS features without spending SGD 700+ on flagship ROG or Master tier boards

Why Buy from Mansa Computers

• 3-year Singapore warranty with Gigabyte service support
• Fast WhatsApp inquiry response for technical questions
• Open 7 days a week for support
• Home delivery available

Technical Specifications Summary

Chipset
AMD X870

CPU Socket
AM5 (Ryzen 9000/8000/7000)

Memory
DDR5-8200 OC, 4 DIMM, 256GB Max

Storage
4x M.2 (2x PCIe 5.0), 2x SATA

Connectivity
WiFi 7, Bluetooth 5.4, 5GbE LAN

USB
2x USB4, USB 3.2 Gen 2x2

Form Factor
ATX (30.5cm x 24.4cm)

Ready to build with the Gigabyte X870 AORUS STEALTH? Order now from Mansa Computers with Singapore warranty support. Our team responds quickly via WhatsApp for any technical questions during your build.

Model
X870 AORUS STEALTH

CPU
AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors / AMD Ryzen™ 8000 Series Processors / AMD Ryzen™ 7000 Series Processors

Chipset
AMD X870

Memory
Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C) / 7400(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture

Onboard Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support + ASMedia USB4® Controller:
2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840 x 2160 @ 240 Hz
Integrated Graphics Processor with AMD Radeon™ Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 60 Hz

Audio
Realtek® ALC1220 CODEC
High Definition Audio, 2/4/5.1/7.1-channel
Support for S/PDIF Out

LAN
Realtek® 5GbE LAN chip (5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps)

Wireless Communication Module
Qualcomm® Wi-Fi 7 QCNCM865
802.11a/b/g/n/ac/ax/be, supporting 2.4/5/6 GHz carrier frequency bands
Bluetooth 5.4
Support for 11be 320 MHz wireless standard

Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
2 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0 and RAID 1 support for SATA storage devices

USB
CPU + ASMedia USB4® controller:
2 x USB4® USB Type-C® ports on the back panel
CPU:
1 x USB Type-C® port on the back panel with USB 3.2 Gen 2 support
CPU + USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports on the back panel
CPU + USB 2.0 Hub:
4 x USB 2.0/1.1 ports on the back panel
Chipset:
1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (for the GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x power button
1 x reset button
1 x reset jumper
2 x temperature sensor headers
1 x Clear CMOS jumper

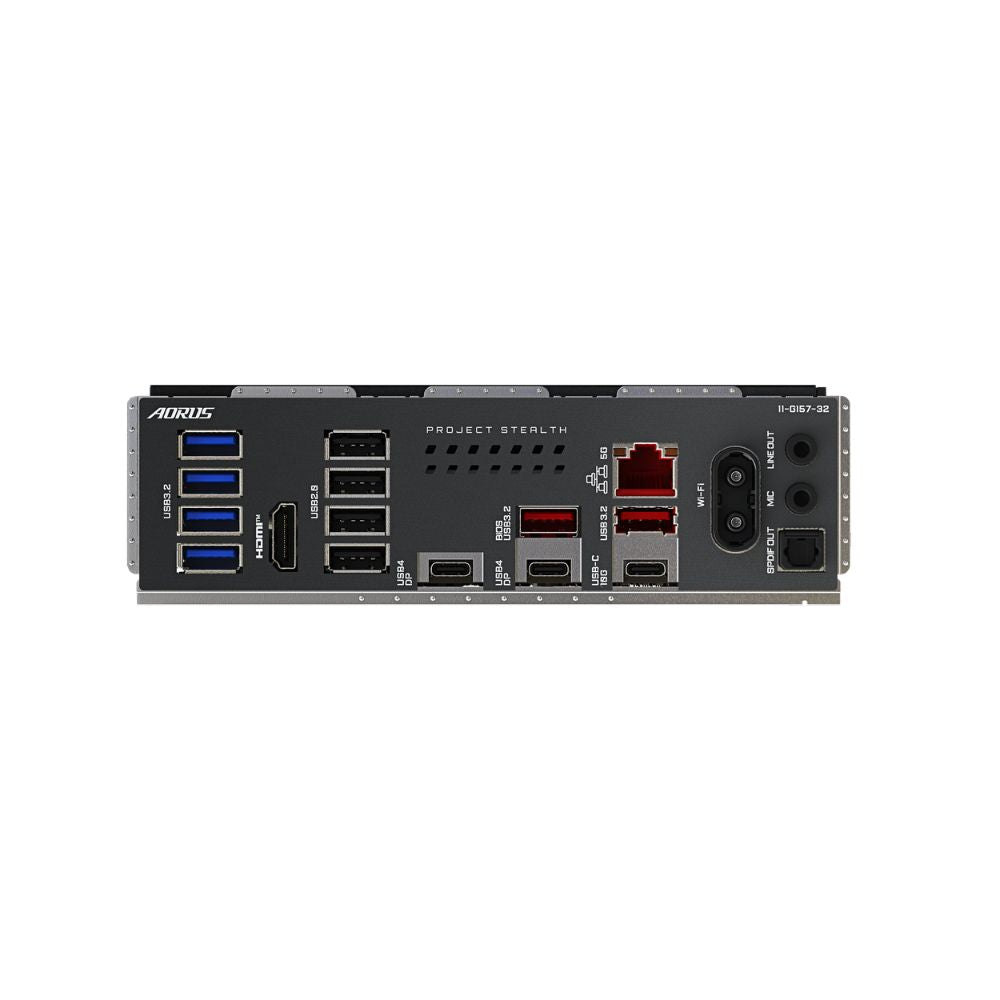

Back Panel Connectors
1 x HDMI port
2 x antenna connectors (2T2R)
2 x USB4® USB Type-C® ports (DisplayPort)
1 x USB Type-C® port with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks

I/O Controller
iTE® I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control

BIOS
1 x 512 Mbit flash
AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Bundled Software
Norton® Internet Security (OEM version)

Operating System
Support for Windows 11 64-bit

Form Factor
ATX Form Factor, 30.5 cm x 24.4 cm

3 YEARS WARRANTY

CDL Trading Pte Ltd
115A Commonwealth Dr #03-10, Singapore 149596
Contact: 6473 4733

Frequently Asked Questions About Gigabyte X870 AORUS STEALTH

Does this motherboard support Ryzen 9000 series CPUs?

Yes, the Gigabyte X870 AORUS STEALTH supports AMD Ryzen 9000, 8000, and 7000 series processors on Socket AM5. Ryzen 9000 and 7000 CPUs get full PCIe 5.0 support on the primary GPU slot and two M.2 slots.

What makes the dual USB4 ports special on this board?

USB4 ports run at 40Gbps each and support DisplayPort video output. You can connect high-speed external SSDs, USB4 docks, or 4K displays directly without needing a dedicated graphics card for display outputs.

Can I use WiFi 7 with Windows 10?

No, WiFi 7 features require Windows 11 SV3 to function properly. The Qualcomm WiFi 7 chip has no driver support for Windows 10. You'll need Windows 11 to take advantage of WiFi 7 speeds.

What warranty coverage do I get in Singapore?

You get 3-year warranty coverage with Gigabyte service center support in Singapore. Mansa Computers provides fast WhatsApp response for technical inquiries and we're open 7 days a week for support.

How does this compare to ASUS TUF X870 boards at similar pricing?

This board adds dual USB4 ports and WiFi 7, which most TUF X870 models don't have. You also get 5GbE LAN instead of standard 2.5GbE. AORUS quality sits between TUF and ROG tiers.
