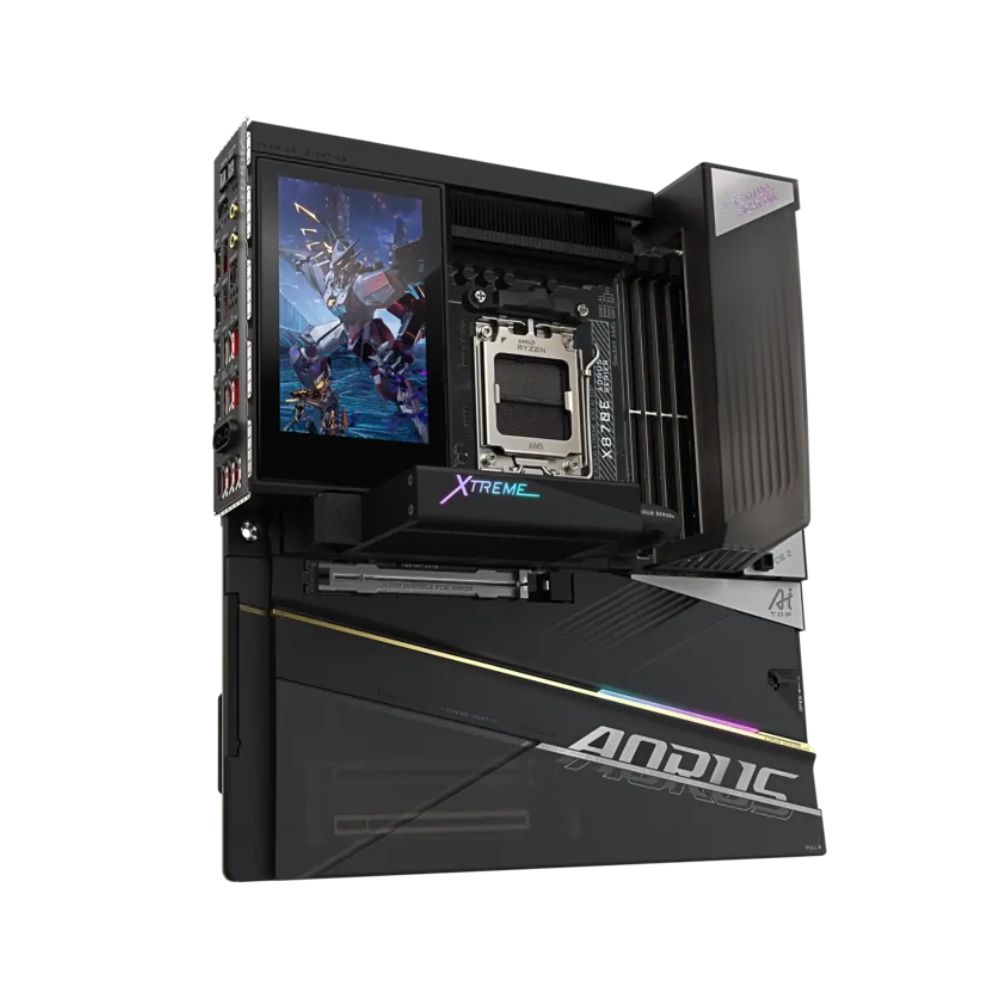

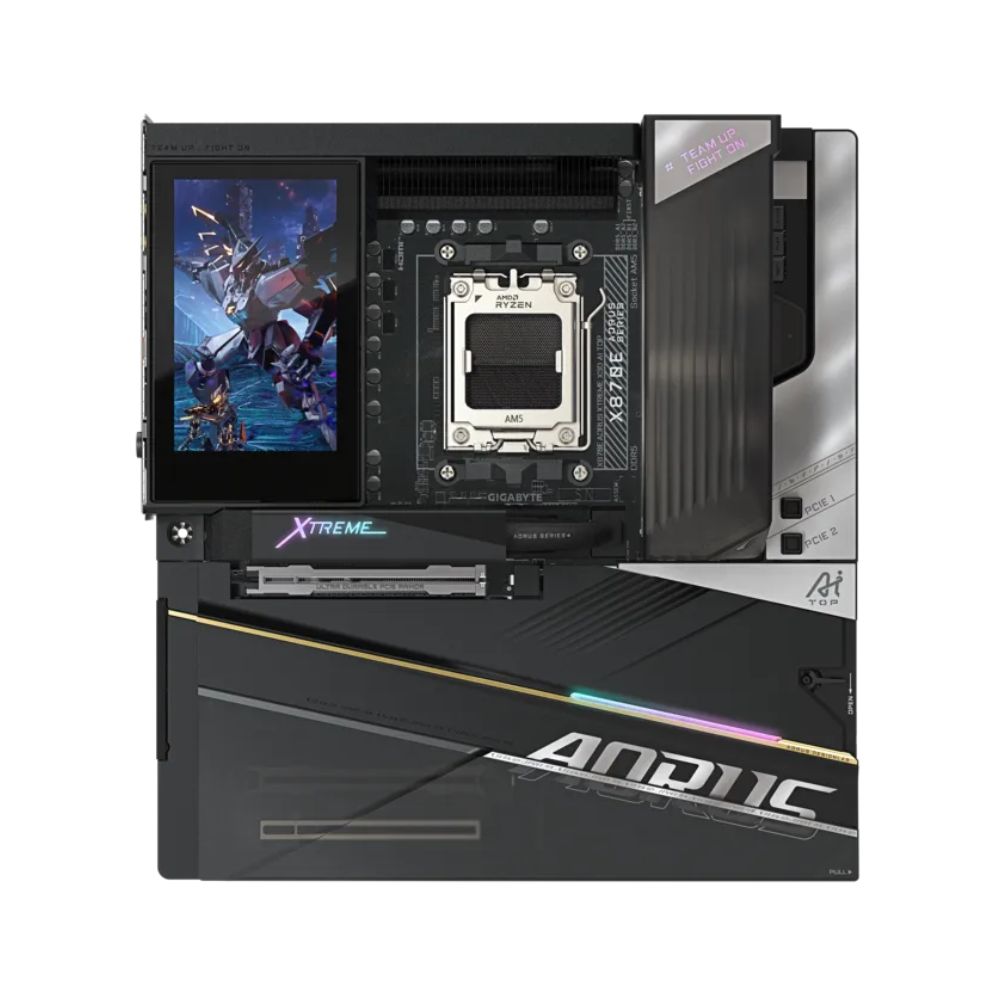

GIGABYTE X870E AORUS XTREME X3D AI TOP - Extreme AM5 Power

Model
GIGABYTE X870E A XTR X AI TOP

CPU Socket
AM5

CPU Support
AMD Ryzen™ 9000 / 8000 / 7000 Series Processors

Chipset
AMD X870E

Memory
4 x DDR5 DIMM sockets
Up to 256GB system memory
64GB single DIMM capacity
DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s
Dual Channel Memory Architecture
Supports non-ECC Un-buffered DIMM memory modules
Supports AMD EXPO™ and XMP memory modules

Graphics Output
2 x USB4® USB Type-C® ports with DisplayPort video output
Supports up to 3840 x 2160 @ 240Hz
Supports DisplayPort 1.4 and HDR
1 x HDMI port
Supports up to 4096 x 2160 @ 60Hz
Supports HDMI 2.1, HDCP 2.3, and HDR
1 x USB Type-C® port with USB 2.0 and DisplayPort video output
Supports up to 1920 x 1080 @ 30Hz

Audio
1 x ESS ES9280AC DAC chip
2 x ESS ES9080 chips
DTS® Sound Unbound™
High Definition Audio
2-channel
Supports S/PDIF Out

LAN
2 x Realtek® 10GbE LAN chips
Supports 10Gbps / 5Gbps / 2.5Gbps / 1Gbps / 100Mbps

Wireless
MediaTek Wi-Fi 7 MT7927 / RZ738
Supports 802.11a / b / g / n / ac / ax / be
Supports 2.4GHz / 5GHz / 6GHz frequency bands
Supports 11be 320MHz wireless standard

Bluetooth
Bluetooth 5.4

Expansion Slots
1 x PCIe x16 slot integrated in CPU
Ryzen™ 9000 / 7000 Series: PCIe 5.0 x16
Ryzen™ 8000 Series Phoenix 1: PCIe 4.0 x8
Ryzen™ 8000 Series Phoenix 2: PCIe 4.0 x4

1 x PCIe x16 slot integrated in CPU
Ryzen™ 9000 / 7000 Series: PCIe 5.0 x8

1 x PCIe x16 slot from chipset
Supports PCIe 4.0 x4

Storage
5 x M.2 Socket 3 connectors
2 x SATA 6Gb/s connectors

M.2 Support
M2A_CPU supports type 2580 / 2280 SSDs
M2A_CPU supports PCIe 5.0 x4/x2 with Ryzen™ 9000 / 7000 Series
M2A_CPU supports PCIe 4.0 x4/x2 with Ryzen™ 8000 Series

M2B_CPU supports type 22110 / 2280 SSDs
M2B_CPU supports PCIe 5.0 x4/x2 with Ryzen™ 9000 / 7000 Series

M2C_SB and M2D_SB support type 22110 / 2280 PCIe 4.0 x4/x2 SSDs
M2E_SB supports type 2280 PCIe 4.0 x2 SSDs

RAID Support
RAID 0 / 1 / 5 / 10 for NVMe SSD storage devices
RAID 5 available only on AMD Ryzen™ 9000 Series Processors
RAID 0 / 1 for SATA storage devices

USB Support
2 x USB4® USB Type-C® rear ports
1 x USB 3.2 Gen 2 Type-A rear port
4 x USB 3.2 Gen 2 Type-A rear ports
4 x USB 3.2 Gen 1 ports via internal headers
1 x USB Type-C® rear port with USB 3.2 Gen 2x2 support
1 x USB Type-C® rear port with USB 3.2 Gen 2 support
1 x USB Type-C® internal header with USB 3.2 Gen 2x2 support
Supports up to 65W PD 3.0 / QC 4+ fast charging
1 x USB Type-C® internal header with USB 3.2 Gen 2 support
3 x USB 3.2 Gen 2 Type-A rear ports
4 x USB 2.0 / 1.1 ports via internal headers

Internal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x PCIe power connector
1 x CPU fan header
1 x CPU fan / water cooling pump header
1 x System fan header
1 x System fan extension cable header
1 x System fan / water cooling pump extension cable header
1 x Integrated extension cable header for Addressable RGB Gen2 LED strips and RGB LED strips
2 x SATA 6Gb/s connectors
5 x M.2 Socket 3 connectors
1 x Front Panel header
1 x USB Type-C® header with USB 3.2 Gen 2x2 support
1 x USB Type-C® header with USB 3.2 Gen 2 support
1 x USB Type-C® port with DisplayPort and USB 2.0 support
2 x USB 3.2 Gen 1 headers
1 x Integrated extension cable header for system fan / water cooling pump and USB 2.0 / 1.1 headers
2 x Temperature Sensor headers
1 x Power button
1 x Reset button
1 x Clear CMOS button

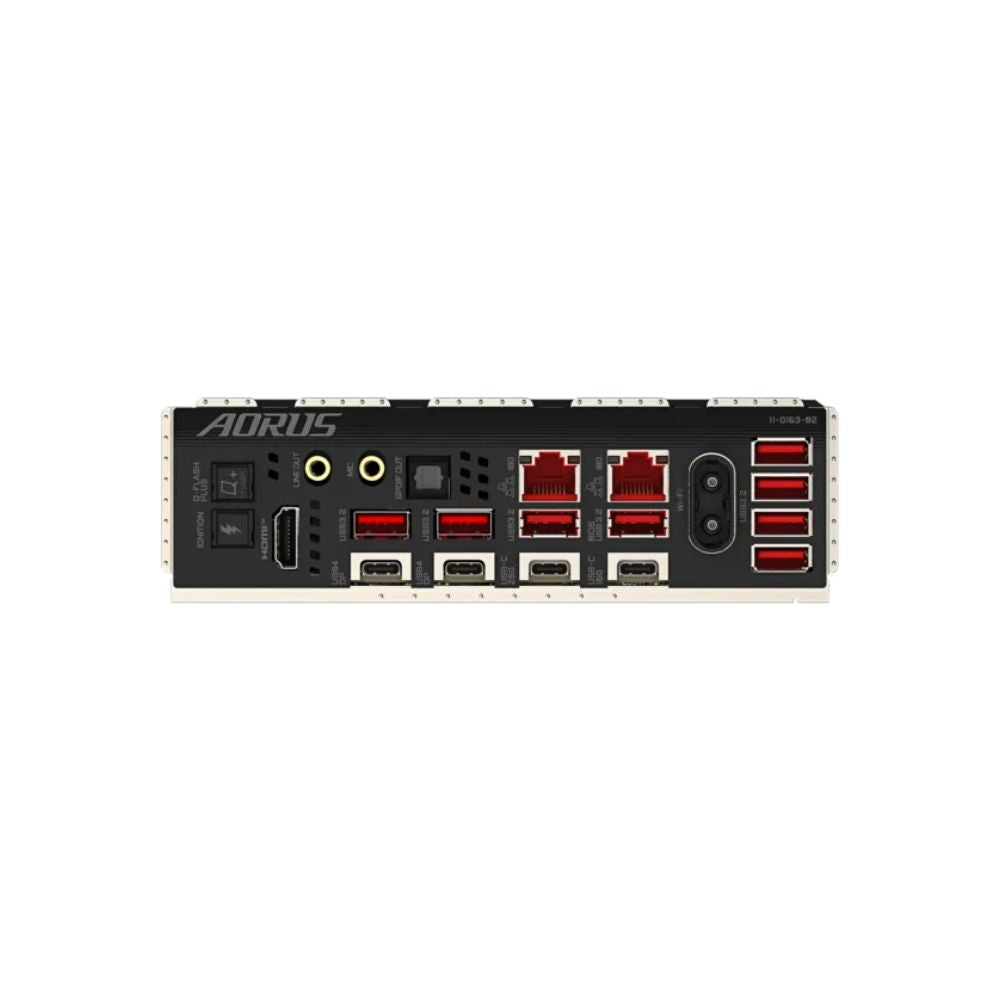

Back Panel Connectors
1 x Q-Flash Plus button
1 x OC Ignition button
1 x HDMI port
2 x USB4® USB Type-C® ports with DisplayPort support
1 x USB Type-C® port with USB 3.2 Gen 2 support
1 x USB Type-C® port with USB 3.2 Gen 2x2 support
8 x USB 3.2 Gen 2 Type-A ports
2 x RJ-45 ports
2 x Antenna connectors
2 x Audio jacks
1 x Optical S/PDIF Out connector

I/O Controller
iTE® I/O Controller Chip

Hardware Monitoring
Voltage Detection
Temperature Detection
Fan Speed Detection
Water Cooling Flow Rate Detection
Fan Fail Warning
Fan Speed Control

BIOS
1 x 512 Mbit Flash
Licensed AMI UEFI BIOS
PnP 1.0a
DMI 2.7
WfM 2.0
SM BIOS 2.7
ACPI 5.0

Unique Features
GIGABYTE Control Center (GCC)
Q-Flash
Q-Flash Plus
Smart Backup

Bundled Software
Norton® Internet Security (OEM Version)

Operating System
Windows 11 64-bit

Form Factor
E-ATX

Dimensions
30.5cm x 28.5cm

3 YEARS WARRANTY
