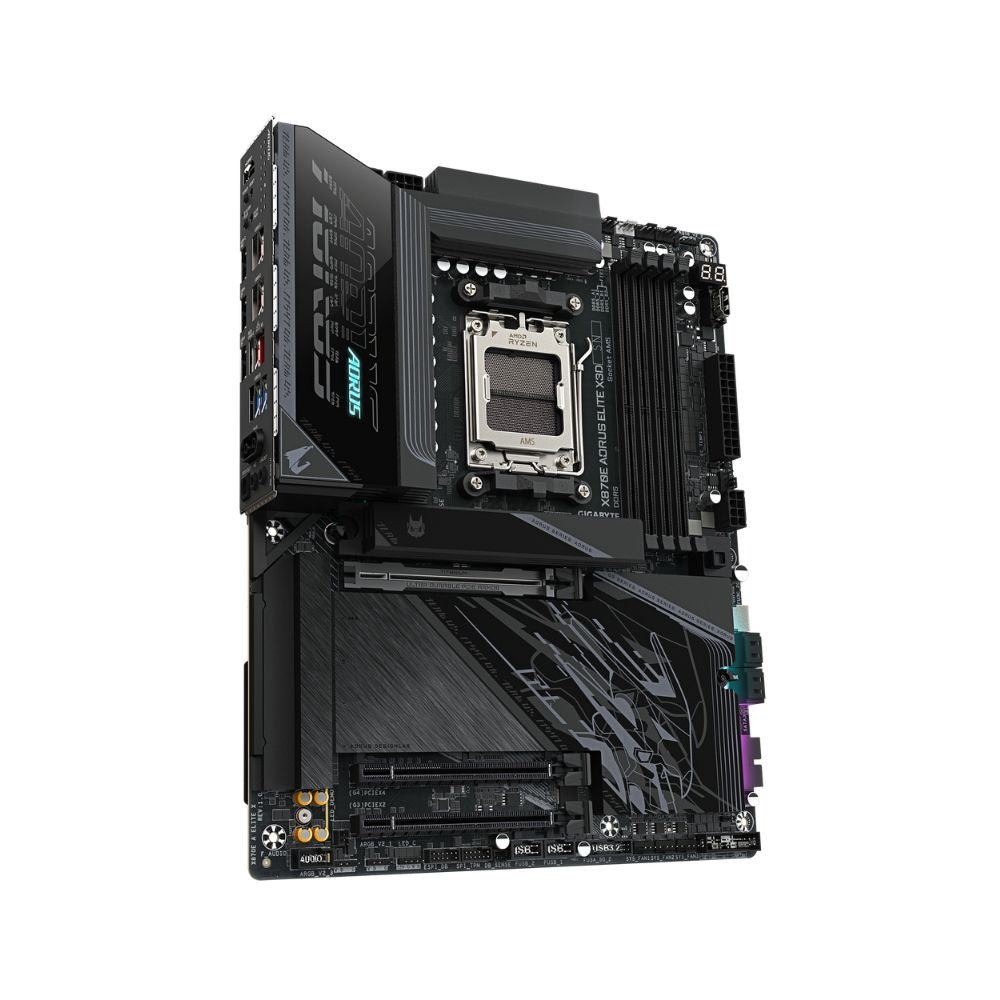

Gigabyte X870E AORUS ELITE X3D – Premium AM5 Gaming Motherboard

About the Gigabyte X870E AORUS ELITE X3D

The Gigabyte X870E AORUS ELITE X3D is built for enthusiast PC builders who want AMD's flagship X870E chipset features. This ATX motherboard supports AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 socket. It targets gamers and content creators who need premium connectivity like USB4 and Wi-Fi 7. The board includes dual USB4 ports, Wi-Fi 7 support, and PCIe 5.0 slots for future-ready performance.

What This Gigabyte X870E AORUS ELITE X3D Does for You

Two USB4 Type-C ports on the back panel let you connect high-resolution displays at 3840x2160@240Hz through DisplayPort output. Content creators can run multiple 4K monitors or fast external storage through the same versatile cable. Wi-Fi 7 with Qualcomm QCNCM865 delivers 320MHz channel support across 2.4/5/6 GHz bands for maximum wireless speeds. The 5GbE LAN from Realtek provides wired speeds up to 5 Gbps, outperforming standard 2.5GbE connections. Five red USB 3.2 Gen 2 Type-A ports plus a USB 3.2 Gen 2x2 front header support fast peripherals and 65W PD charging.

PCIe 5.0 and Storage Configuration

The primary PCIe x16 slot runs at Gen 5.0 speeds with Ryzen 9000 and 7000 processors for future GPU compatibility. Your first M.2 slot (M2A_CPU) also supports PCIe 5.0 x4 for next-generation SSDs. The second M.2 slot (M2B_CPU) provides PCIe 5.0 x4 support but shares bandwidth with the USB4 controller. Two chipset M.2 slots (M2C_SB, M2D_SB) run at PCIe 4.0 x4 speeds. Four SATA 6Gb/s ports give additional storage options. Realtek ALC1220 audio codec delivers high-definition 7.1-channel sound with DSD support.

Perfect For

• Enthusiast gamers building high-performance AMD Ryzen 9000 or 7000 systems with premium DDR5 memory kits up to 9000 MT/s overclocked speeds
• Content creators who need USB4 connectivity for 4K displays and fast external storage workflows with DisplayPort video output capability
• PC builders wanting X870E chipset features like PCIe 5.0 and Wi-Fi 7 without compromising on connectivity options or expansion flexibility
• Home users upgrading to AM5 platform who value 3-year warranty coverage and weekend technical support availability in Singapore

Why Buy from Mansa Computers

• 3-year Singapore warranty with Gigabyte Service Center support
• Fast WhatsApp inquiry response for compatibility questions
• Open 7 days a week for technical support
• Home delivery available across Singapore

Technical Specifications Summary

Chipset
AMD X870E

CPU Socket
AMD AM5 (Ryzen 9000/8000/7000)

Memory
4x DDR5 DIMM, up to 256 GB, 9000 MT/s O.C.

PCIe Slots
1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 1x PCIe 3.0 x2

M.2 Slots
2x PCIe 5.0 (CPU), 2x PCIe 4.0 (Chipset)

USB4
2x USB4 Type-C (40 Gbps, DP output)

Wireless
Wi-Fi 7 (802.11be 320MHz), Bluetooth 5.4

LAN
Realtek 5GbE (5 Gbps max)

Order your Gigabyte X870E AORUS ELITE X3D today from Mansa Computers with 3-year local warranty coverage. Our team responds quickly through WhatsApp for any technical questions about your AM5 build.

Model
X870E AORUS ELITE X3D

CPU
AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors, AMD Ryzen™ 8000 Series Processors, AMD Ryzen™ 7000 Series Processors

Chipset
AMD X870E

Memory
Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB per DIMM) of system memory
Dual channel memory architecture
Support for non-ECC un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support + ASMedia USB4® Controller:
2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840 × 2160 @ 240 Hz
Integrated Graphics Processor with AMD Radeon™ Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096 × 2160 @ 60 Hz
1 x front HDMI port, supporting a maximum resolution of 1920 × 1080 @ 30 Hz

Audio
Realtek® ALC1220 CODEC
High Definition Audio
2/4/5.1/7.1-channel audio
Support for S/PDIF Out

LAN
Realtek® 5GbE LAN chip (5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps)

Wireless Communication Module
Qualcomm® Wi-Fi 7 QCNCM865
802.11 a/b/g/n/ac/ax/be, supporting 2.4 / 5 / 6 GHz carrier frequency bands
Bluetooth 5.4
Support for 11be 320 MHz wireless standard

Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000 / 7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Chipset:
1 x PCI Express x16 slot (PCIEX4), supporting PCIe 4.0 and running at x4
1 x PCI Express x16 slot (PCIEX2), supporting PCIe 3.0 and running at x2

Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110 / 22110 / 2580 / 2280 SSDs:
AMD Ryzen™ 9000 / 7000 Series Processors support PCIe 5.0 x4 / x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4 / x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 / x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110 / 2280 SSDs:
AMD Ryzen™ 9000 / 7000 Series Processors support PCIe 5.0 x4 / x2 SSDs
2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the chipset, supporting Socket 3, M key, type 22110 / 2280 PCIe 4.0 x4 / x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB
CPU + ASMedia USB4® Controller:
2 x USB4® USB Type-C® ports on the back panel
CPU:
1 x USB Type-C® port on the back panel with USB 3.2 Gen 2 support
Chipset + USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset:
1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header (supports up to 65W PD 3.0 / QC 4+ fast charging)
5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
3 x USB 3.2 Gen 1 ports on the back panel
4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x PCIe power connector
1 x CPU fan header
1 x CPU fan / water cooling pump header
4 x system fan headers
2 x system fan / water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (for the GC-TPM2.0 SPI V2 module only)
1 x HDMI port (actual support may vary by CPU)
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers
1 x noise detection header

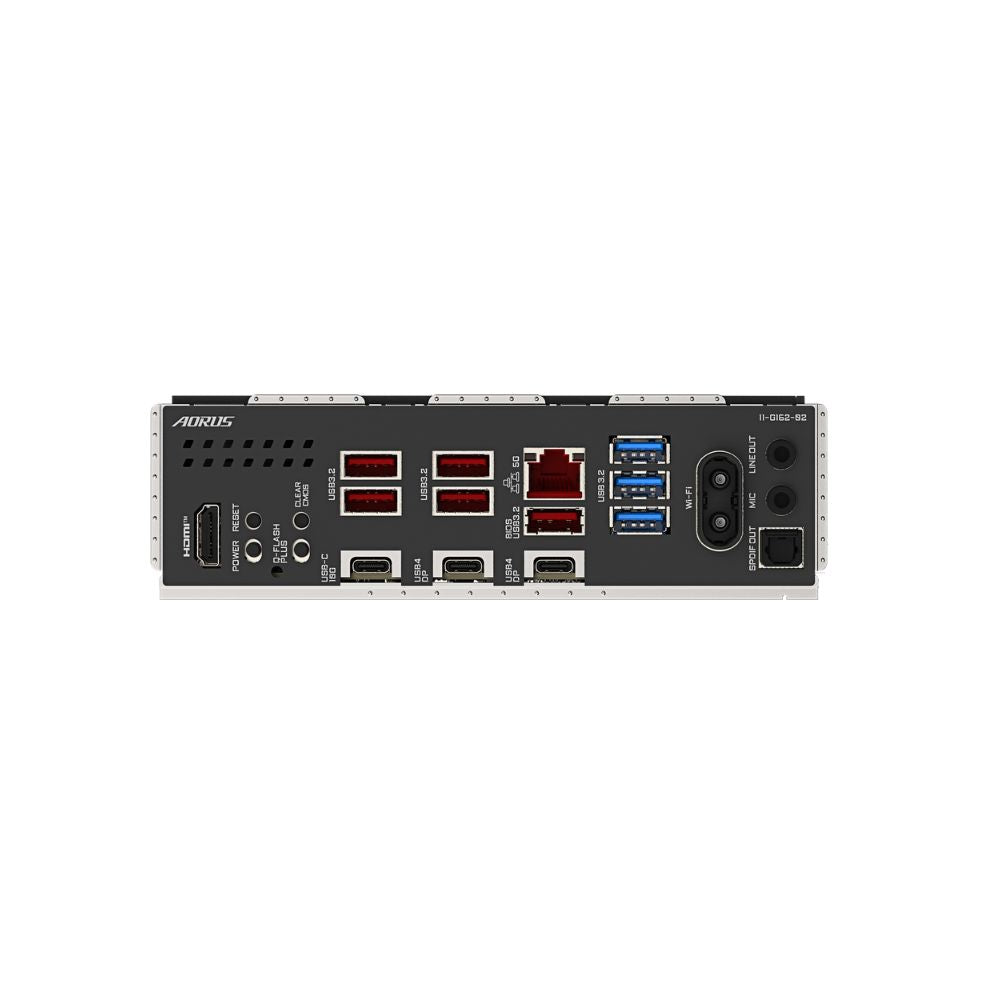

Back Panel Connectors
1 x HDMI port (actual support may vary by CPU)
1 x reset button
1 x power button
1 x Clear CMOS button
1 x Q-Flash Plus button
5 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C® port with USB 3.2 Gen 2 support
2 x USB4® USB Type-C® ports (DisplayPort; actual support may vary by CPU)
1 x RJ-45 port
3 x USB 3.2 Gen 1 ports
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector

I/O Controller
iTE® I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Noise detection

BIOS
1 x 512 Mbit flash
AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Bundled Software
Norton® Internet Security (OEM version)

Operating System
Support for Windows 11 64-bit

Form Factor
ATX Form Factor, 30.5 cm x 24.4 cm

3 YEARS WARRANTY

CDL Trading Pte Ltd
115A Commonwealth Dr #03-10, Singapore 149596
Contact: 6473 4733

Frequently Asked Questions About Gigabyte X870E AORUS ELITE X3D

Does the Gigabyte X870E AORUS ELITE X3D support PCIe 5.0 SSDs?

Yes, two M.2 slots support PCIe 5.0 speeds with Ryzen 9000 and 7000 processors. M2A_CPU runs at x4 bandwidth, while M2B_CPU shares bandwidth with the USB4 controller. Two chipset M.2 slots support PCIe 4.0 x4.

Can I connect 4K monitors through the USB4 ports?

Yes, both USB4 Type-C ports support DisplayPort video output at 3840x2160@240Hz resolution. You need an integrated GPU in your Ryzen processor. The back panel HDMI port supports 4096x2160@60Hz with HDMI 2.1.

Which AMD processors work with this X870E motherboard?

It supports AMD Ryzen 9000, 8000, and 7000 Series processors on AM5 socket. Ryzen 9000 and 7000 CPUs get full PCIe 5.0 support. Ryzen 8000 Phoenix processors use PCIe 4.0 mode instead.

What warranty coverage does Mansa Computers provide?

You get 3-year warranty coverage through Gigabyte Service Center in Singapore. We're open 7 days a week for support questions. Contact us through WhatsApp for fast responses on technical issues or RMA assistance.

Does the M2B_CPU slot affect USB4 performance?

Yes, the M2B_CPU slot and USB4 controller share bandwidth from the CPU. When you install an SSD in M2B_CPU, both operate at x2 bandwidth maximum. This doesn't affect the M2A_CPU slot or chipset M.2 slots.
