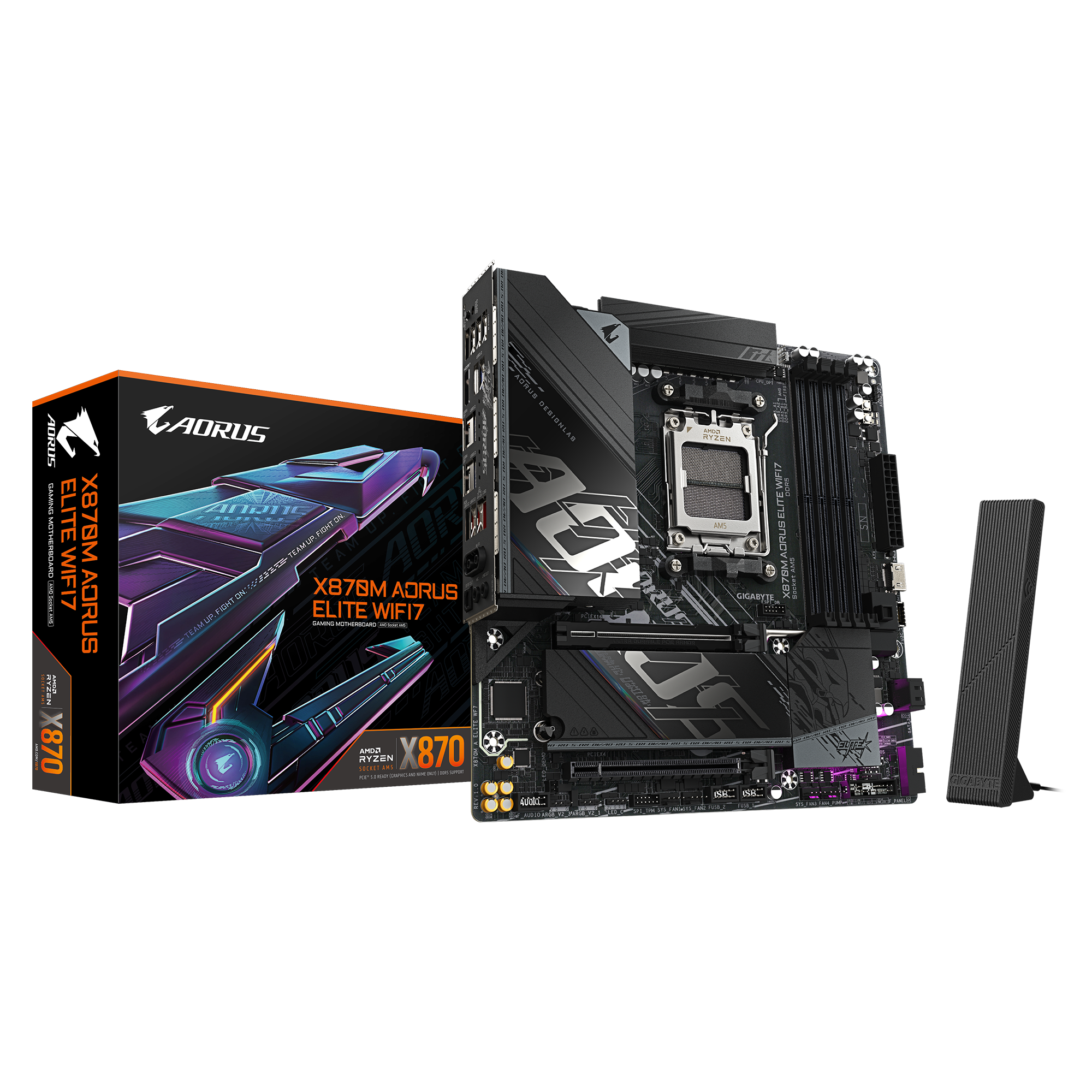

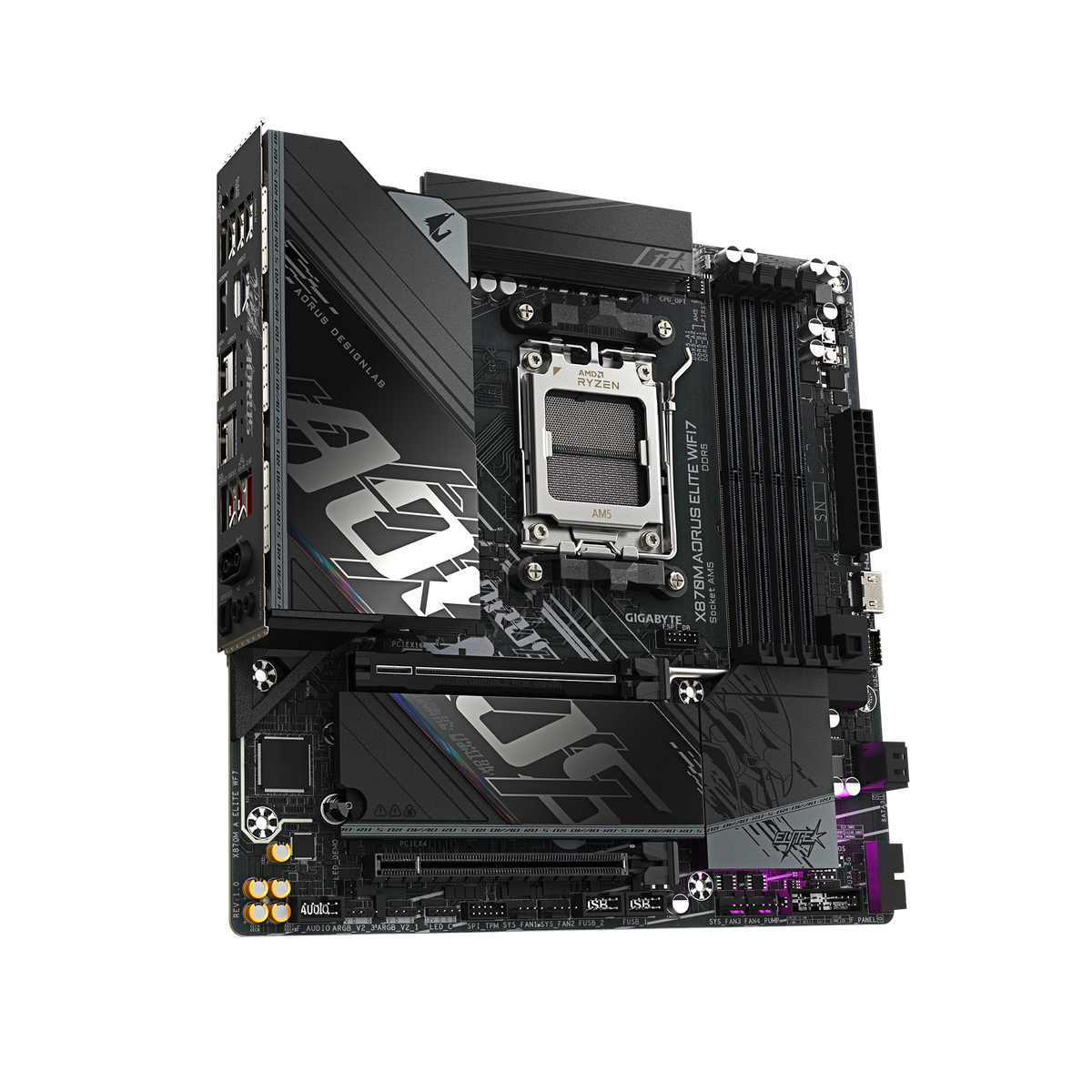

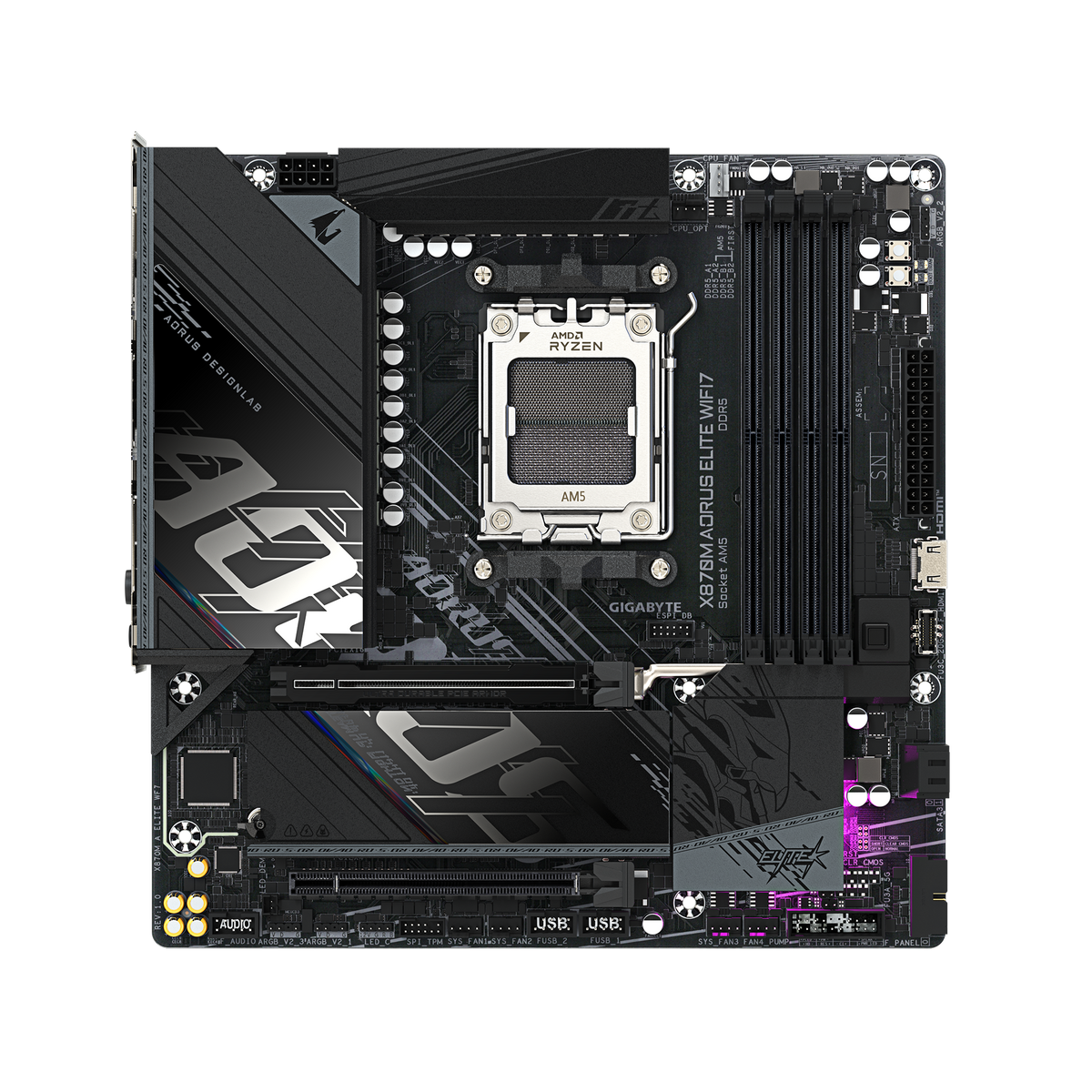

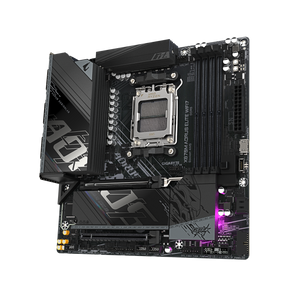

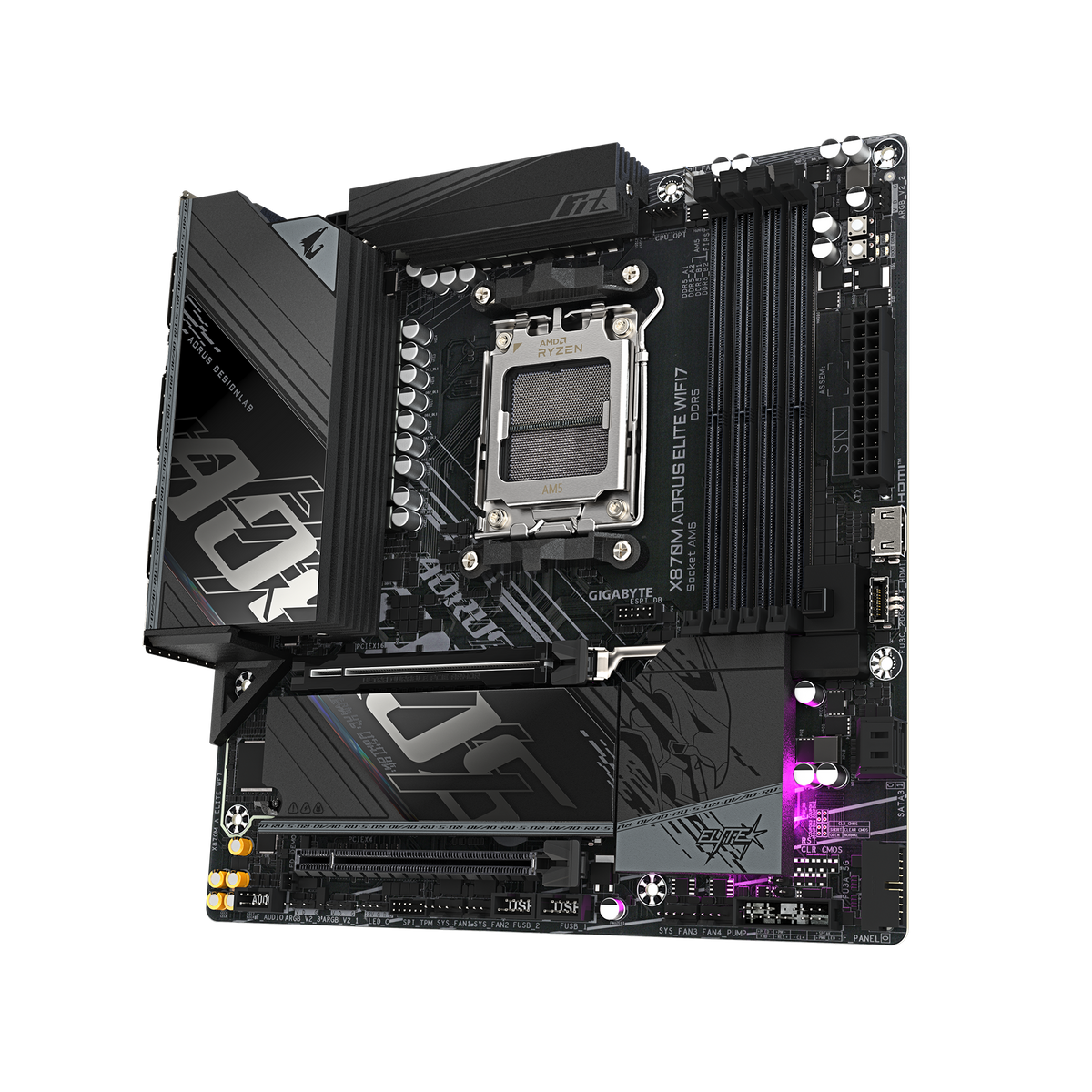

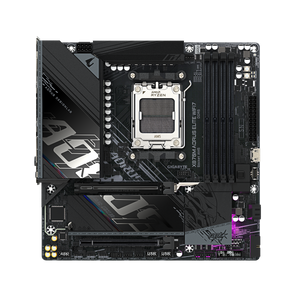

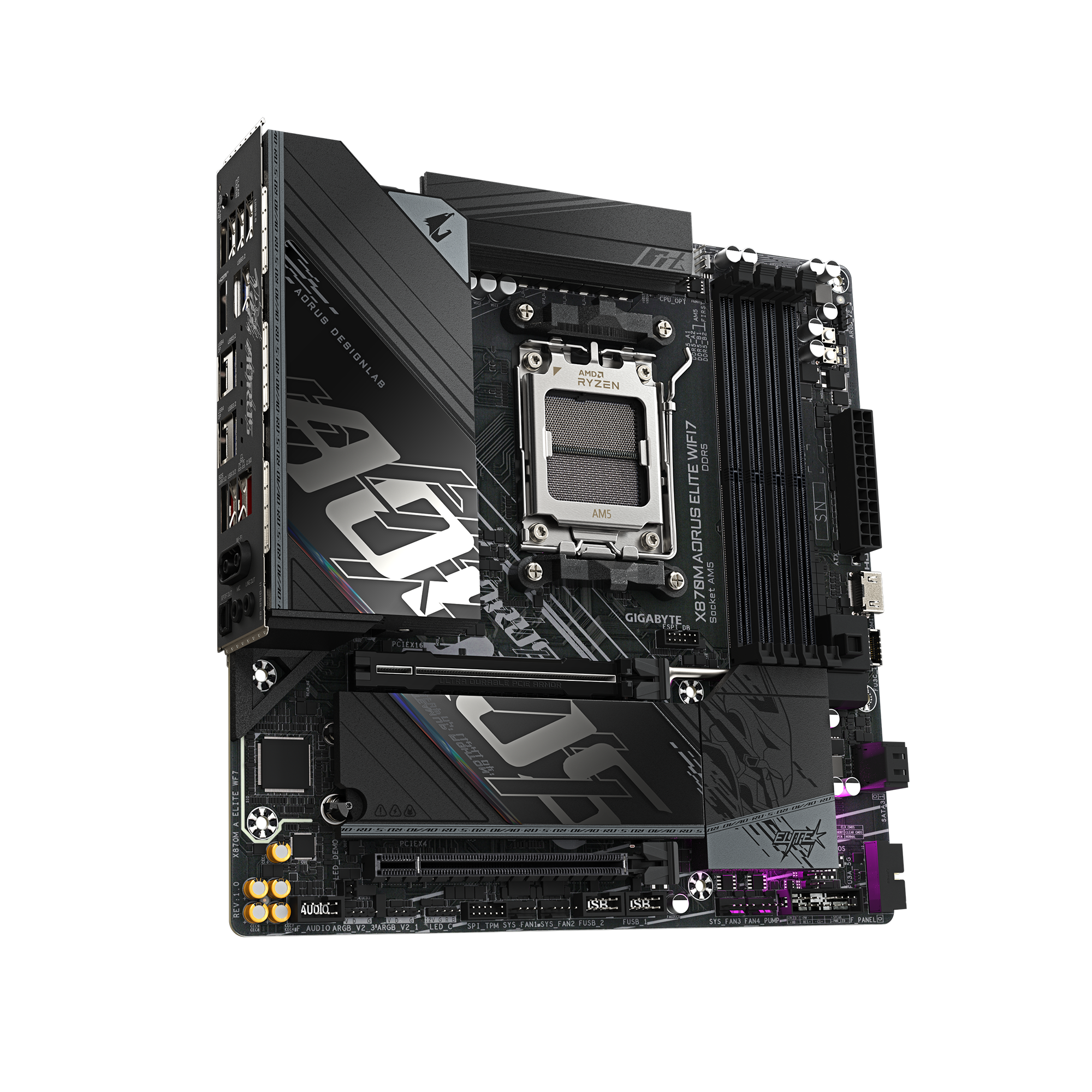

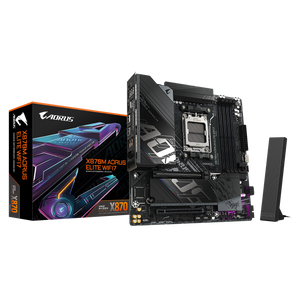

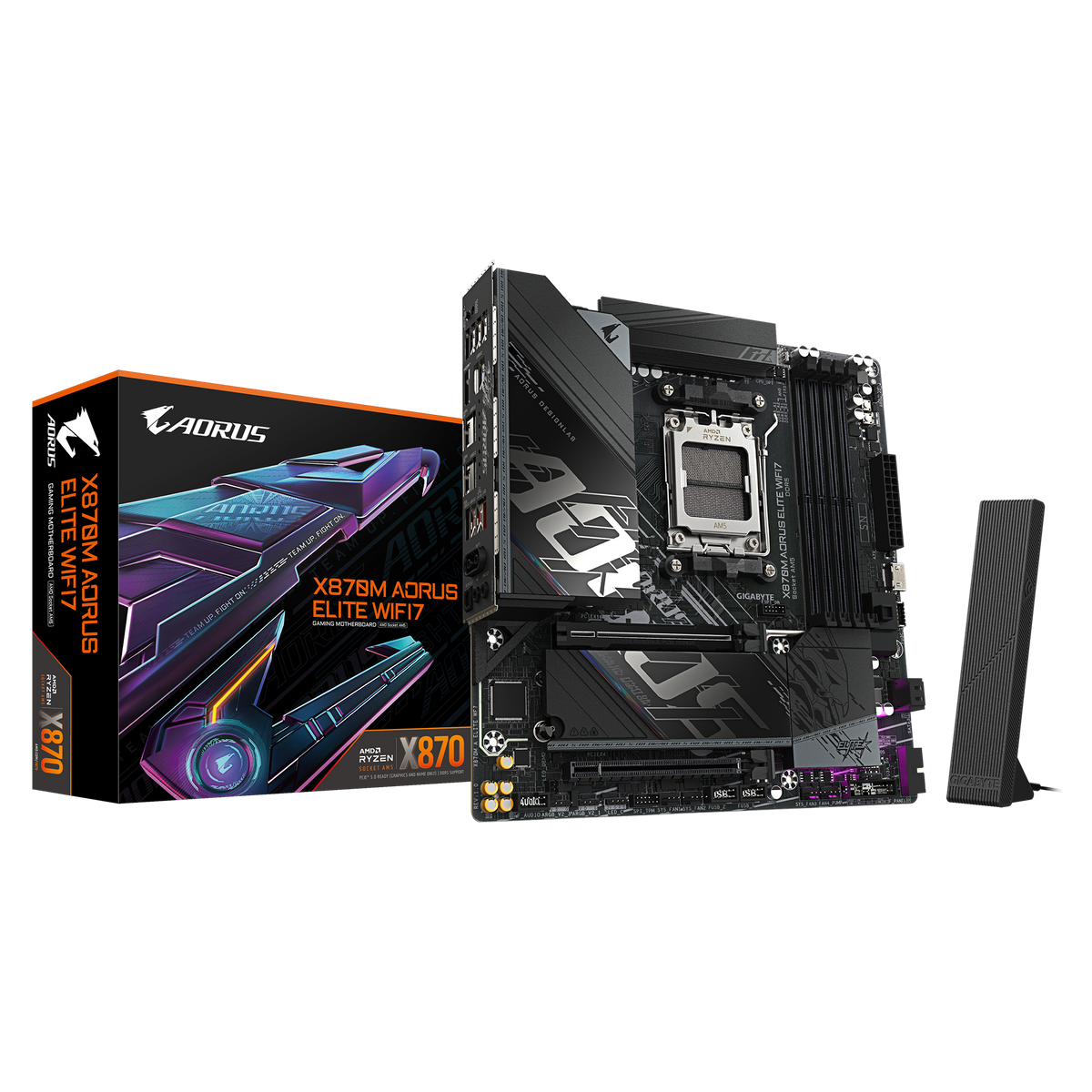

Gigabyte X870M A ELITE WIFI7 – Compact X870 Motherboard

About the Gigabyte X870M A ELITE WIFI7

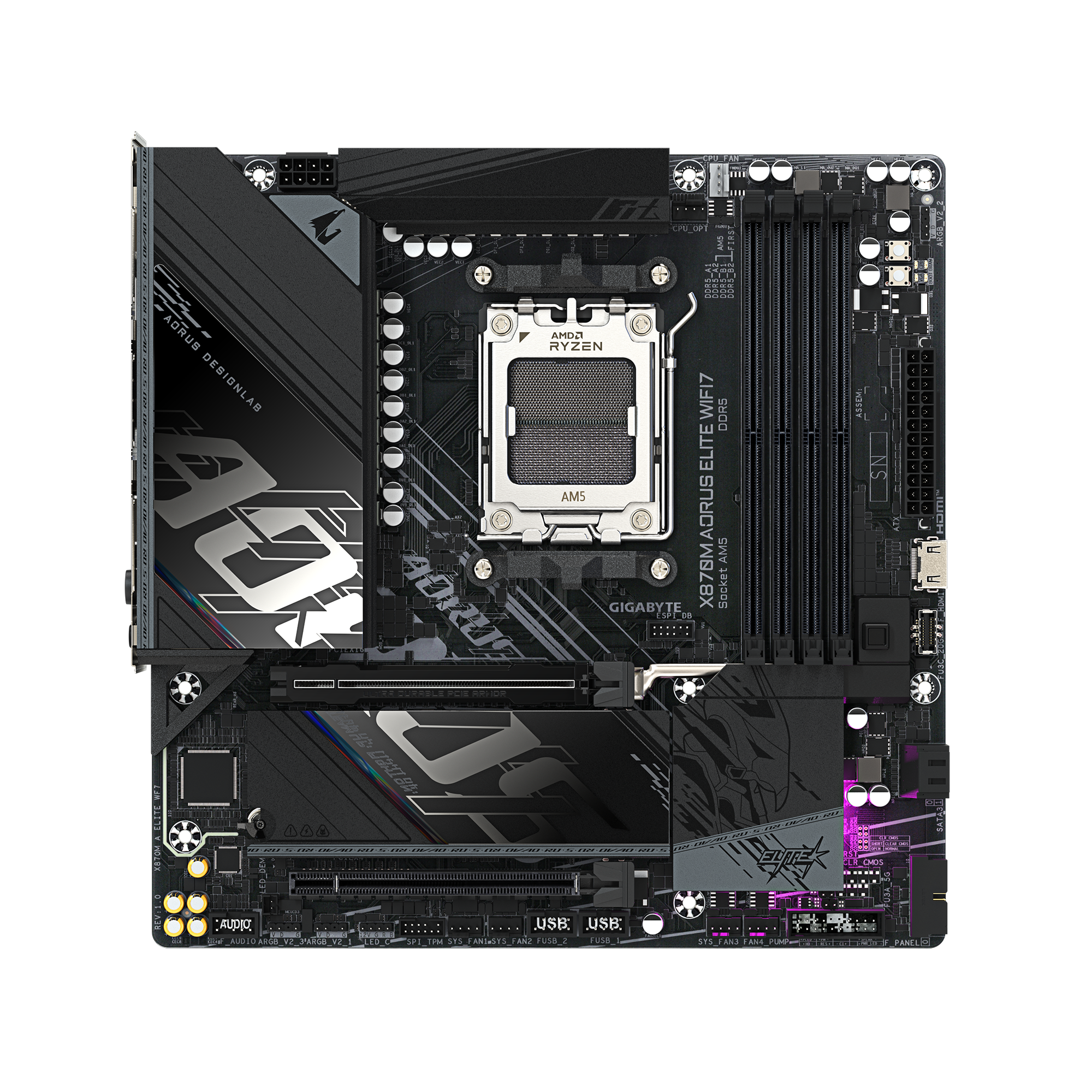

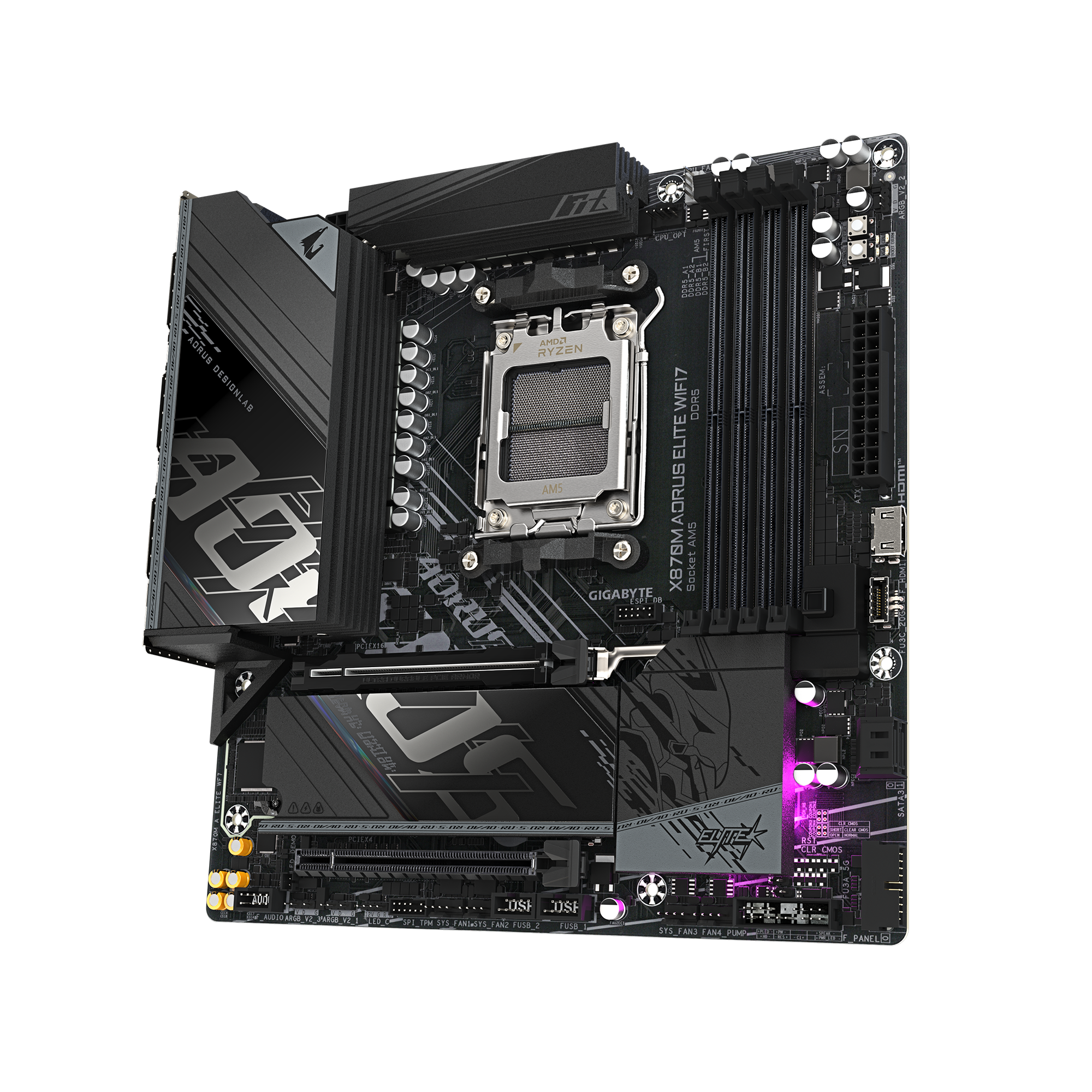

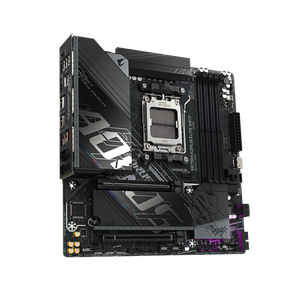

The X870M A ELITE WIFI7 motherboard is built for AMD Ryzen 9000 and 7000 series builders who want flagship features without the full ATX footprint. This mATX motherboard packs USB4, WiFi 7, and PCIe 5.0 into a compact 24.4cm board. It's perfect for gamers and creators upgrading from B650 or older AM4 systems who need premium connectivity in smaller cases.

What This Gigabyte X870M A ELITE Does for You

Building your gaming PC around this board means you're not sacrificing features for size. The dual USB4 Type-C ports handle fast external SSDs and multi-monitor setups with DisplayPort support up to 4K@240Hz. WiFi 7 gives you tri-band wireless speeds across 2.4GHz, 5GHz, and 6GHz bands—no more ethernet cables. Four DDR5 slots support up to 256GB RAM with speeds reaching DDR5-8200 overclocked. PCIe 5.0 support keeps your GPU and primary M.2 SSD running at maximum bandwidth.

Connectivity That Stands Out

Most mATX motherboards skip USB4 entirely—that's a $600+ flagship feature. This Gigabyte X870M A ELITE gives you two USB4 ports at $415. The Realtek 2.5GbE LAN handles wired networking faster than standard gigabit. You get two M.2 slots (one PCIe 5.0, one PCIe 4.0) plus two SATA ports for flexible storage. The Aorus Elite tier means proper VRM cooling and build quality you can trust long-term.

Perfect For

• Ryzen 9000 series builders who want compact cases without losing X870 features. Works with AM5 processors including Ryzen 9 9950X.
• Gamers upgrading from B650 boards who need USB4 and WiFi 7 for future-proofing.
• Content creators running multi-monitor setups or fast external storage via USB4.
• Small form factor enthusiasts building in Micro ATX cases with premium components.

Why Buy from Mansa Computers

• 3-year Singapore warranty with Gigabyte service support
• Fast WhatsApp inquiry response for compatibility questions
• Open 7 days a week for support
• Home delivery available across Singapore

Technical Specifications Summary

Chipset
AMD X870

CPU Support
AMD Ryzen 9000/8000/7000 Series (AM5)

Memory
4x DDR5 DIMM, up to 256GB, DDR5-8200 OC

Storage
2x M.2 (PCIe 5.0 + PCIe 4.0), 2x SATA

Connectivity
2x USB4 Type-C, WiFi 7, 2.5GbE LAN

Graphics
1x HDMI 2.1, 2x USB4 with DP support

Form Factor
Micro ATX (24.4cm x 24.4cm)

Audio
Realtek ALC1220, 7.1-channel

Ready to build your compact gaming PC with the Gigabyte X870M A ELITE WIFI7? Questions about compatibility with your Ryzen CPU or case? WhatsApp us directly for fast answers.

Model
X870M A ELITE WF7

CPU
AMD Socket AM5 supporting AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors
Refer to GIGABYTE’s official website for the latest CPU support list

Chipset
AMD X870 Chipset

Memory
4 x DDR5 DIMM sockets supporting up to 256GB (64GB per DIMM)
Supports DDR5 8200(O.C.) / 8000(O.C.) / 7950(O.C.) / 7900(O.C.) / 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5200 / 4800 / 4400 MT/s
Dual Channel Memory Architecture
Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Supports AMD EXPO™ and XMP memory profiles
Memory support and speed may vary by CPU and memory configuration (refer to GIGABYTE’s Memory Support List)

Graphics
Integrated AMD Radeon™ Graphics (CPU dependent) with ASMedia USB4® controller
2 x USB4® Type-C® ports supporting DisplayPort video output up to 3840x2160@240Hz (DisplayPort 1.4, HDR)
1 x HDMI port supporting up to 4096x2160@60Hz (HDMI 2.1, HDCP 2.3, HDR)
1 x Front HDMI port supporting up to 1920x1080@30Hz (HDMI 1.4)
Display specifications vary depending on CPU

Audio
Realtek® ALC1220 CODEC, supporting DSD audio on back panel line-out
High Definition Audio, 2/4/5.1/7.1-channel configuration
Supports S/PDIF Out
To configure 7.1-channel audio, use Realtek software settings

LAN
Realtek® 2.5GbE LAN (2.5/1/0.1 Gbps)

Wireless & Bluetooth
Realtek® Wi-Fi 7 RTL8922AE
Supports 2.4GHz / 5GHz / 6GHz bands, Bluetooth® 5.4
Supports 11be 160MHz standard (data rate may vary by environment and equipment)
Wi-Fi 7 features require Windows 11 SV3 or later
Wi-Fi 7 6GHz band availability depends on regional regulations

Expansion Slots
1 x PCIe x16 slot (CPU):
Ryzen™ 9000/7000 – PCIe 5.0 x16 mode
Ryzen™ 8000 Phoenix 1 – PCIe 4.0 x8 mode
Ryzen™ 8000 Phoenix 2 – PCIe 4.0 x4 mode
1 x PCIe x16 slot (Chipset) PCIe 4.0 x4 mode
Use PCIEX16 for optimal GPU performance

Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
2 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

USB
CPU+ASMedia USB4® controller:
2 x USB4® USB Type-C® ports on the back panel
CPU:
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
CPU+USB 2.0 Hub:
4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O
1 x 24-pin ATX power, 1 x 8-pin ATX 12V power
1 x CPU Fan, 1 x CPU/Water Pump, 3 x System Fan, 1 x System Fan/Water Pump
3 x Addressable RGB Gen2 headers, 1 x RGB LED header
2 x M.2 connectors, 2 x SATA 6Gb/s
1 x USB Type-C® (USB 3.2 Gen 2x2), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers
1 x TPM header, 1 x Clear CMOS jumper, 1 x Reset jumper/button, 1 x Front Panel, 1 x Audio header

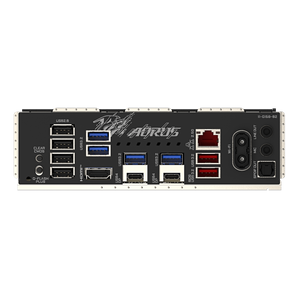

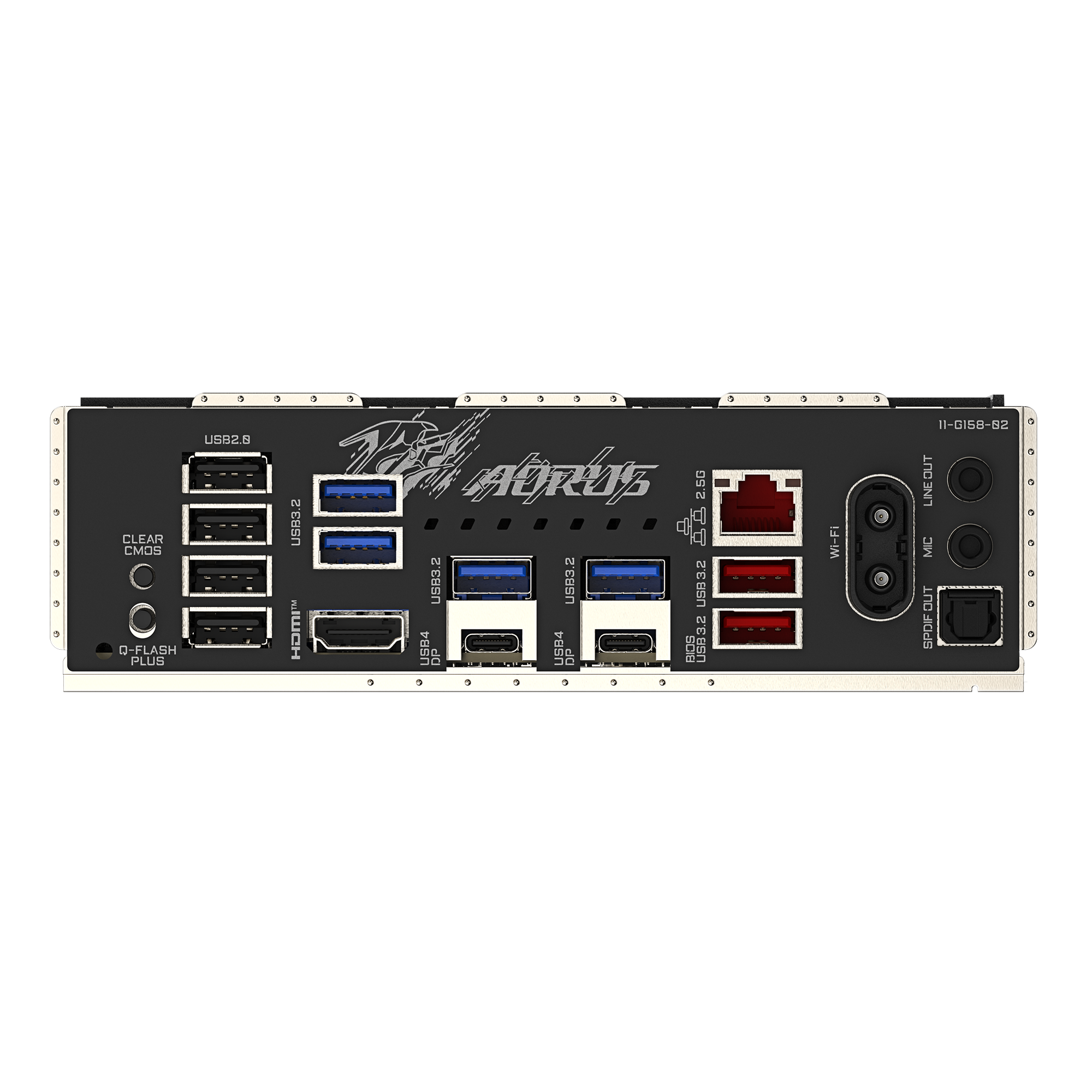

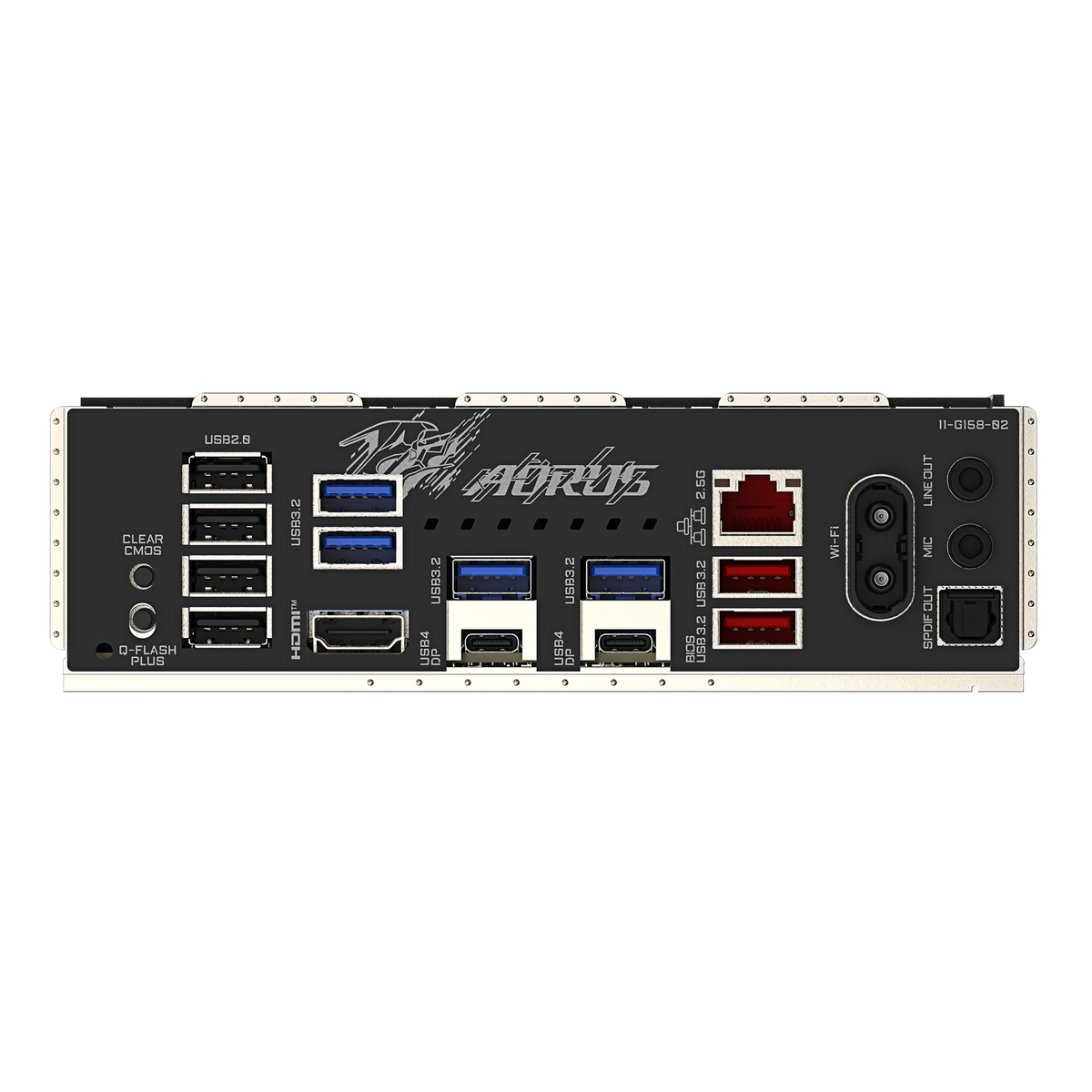

Back Panel I/O
1 x Clear CMOS button, 1 x Q-Flash Plus button
1 x HDMI port
4 x USB 2.0, 4 x USB 3.2 Gen 1, 2 x USB 3.2 Gen 2 Type-A (red), 2 x USB4® Type-C® (DisplayPort supported)
1 x RJ-45 LAN, 2 x antenna connectors (2T2R), 2 x audio jacks, 1 x Optical S/PDIF Out

I/O Controller
iTE® Controller Chip

Monitoring
Voltage, temperature, fan speed, and water flow rate detection
Supports fan fail warning and fan/pump speed control (depends on fan model)

BIOS
256 Mbit flash, AMI UEFI BIOS supporting PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0

Special Features
Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, and Smart Backup

Bundled Software
Norton® Internet Security (OEM)

Operating System
Windows 11 64-bit

Form Factor
Micro ATX, 24.4 cm x 24.4 cm

3 YEARS WARRANTY

CDL Trading Pte Ltd
115A Commonwealth Dr #03-10, Singapore 149596
Contact: 6473 4733

Frequently Asked Questions About Gigabyte X870M A ELITE WIFI7

Does the Gigabyte X870M A ELITE WIFI7 support Ryzen 9000 series CPUs?

Yes, this motherboard fully supports AMD Ryzen 9000, 8000, and 7000 series processors. You'll need a BIOS update for newest CPUs—contact us for pre-flashing service before shipping.

Can I use this board for a compact gaming PC build?

Absolutely. The Micro ATX form factor fits smaller cases while keeping four RAM slots and dual M.2 support. Perfect for desk-friendly gaming PC setups without sacrificing performance.

Will my DDR4 RAM work with the X870M A ELITE WIFI7?

No, X870 boards only support DDR5 memory. You'll need DDR5 RAM—we recommend DDR5-6000 or DDR5-6400 kits for best price-to-performance with Ryzen CPUs.

What warranty comes with this motherboard in Singapore?

You get 3-year Gigabyte Singapore warranty with local service center support. Mansa Computers handles the warranty process if you need repairs or replacement.

Is the X870M A ELITE worth it over a B650 board?

If you need USB4, WiFi 7, or plan to use PCIe 5.0 SSDs, yes. B650 boards skip these features. Worth the upgrade if you're future-proofing your build.
