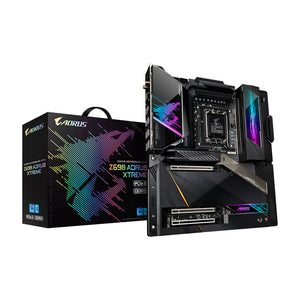

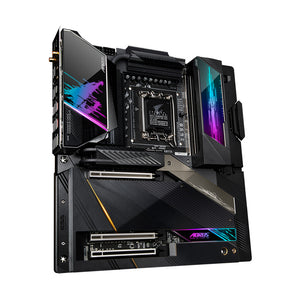

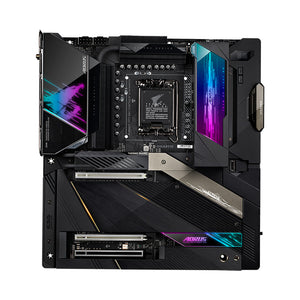

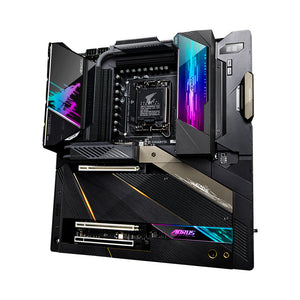

Gigabyte Z690 Aorus Xtreme

  • Experience unparalleled performance with Gigabyte Z690 Aorus Xtreme! GIGABYTE Z690 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming. Design-wise, it gets a revamped design as a whole, featuring new rear I/O cover. The motherboard also packs many features that will benefit enthusiasts - the powerful 20+1+2 Phase VRM design with 105A Power Stages to push the CPU to the max 24/7, DDR5 support, Intel Thunderbolt 4, PCIe Gen 5.0 lanes and M.2 PCIe Gen 4.


    Socket: LGA 1700
    No. of Ram Slots: 4 x DDR5 DIMM sockets supporting up to 128GB (32GB single DIMM capacity)
    Compatible Ram Speed: DDR5 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
    Compatible Ram Type: Non-ECC, Un-bufferedMemory

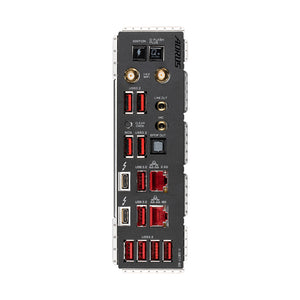

    Ports: 2 x Intel Thunderbolt 4 connectors (USB Type-C ports) supporting DisplayPort & Thunderbolt video outputs with USB 3.2 Gen 2 support, 1 x USB Type-C port with USB 3.2 Gen 2x2 support, 6 x USB 3.2 Gen 2 Type-A ports, 4 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x Q-Flash Plus button, 1 x OC Ignition Button, 1 x Clear CMOS button, 2 x SMA antenna connectors (2T2R), 2 x Thunderbolt 4 connectors (USB Type-C port, with USB 3.2 Gen 2 support), 10 x USB 3.2 Gen 2 Type-A ports, 2 x RJ-45 ports, 1 x optical S/PDIF Out Connector, 2 x audio jacks
    Expansion Slots: 1 x PCIe x16 (PCIEX 16),  1 x PCIe x16 (PCIEX8), 1 x PCIe x16 (PCIEX4_1)
    LAN Port: Marvell AQtion AQC113C 10GbE LAN chip
    Motherboard Connectors: 1 x 24-pin ATX, 2 x 8-pin ATX, 1 x CPU Fan, 1 x water cooling CPU fan header, 4 x system fan headers, 4 x system fan / water cooling pump headers. 1 x noise detection header, 1 x AORUS RGB Memory Armor power header, 2 x addressable LED strip headers + RGB LED strip combo extension cable headers, 4 x SATA 6Gb/s connectors, 4 x M.2 Socket 3 connectors, 1 x front panel header, 1 x USB Type-C (USB 3.2 Gen 2x2 support), 2 x USB 3.2 Gen 1, 1 x USB 2.0/1.1, 2 x temperature sensor headers, 1 x power button, 1 x reset button
    Built in WiFi and Bluetooth: Yes, Intel Wi-Fi 6E AX210


    E-ATX Form Factor: 30.5 cm x 28.5 cm
