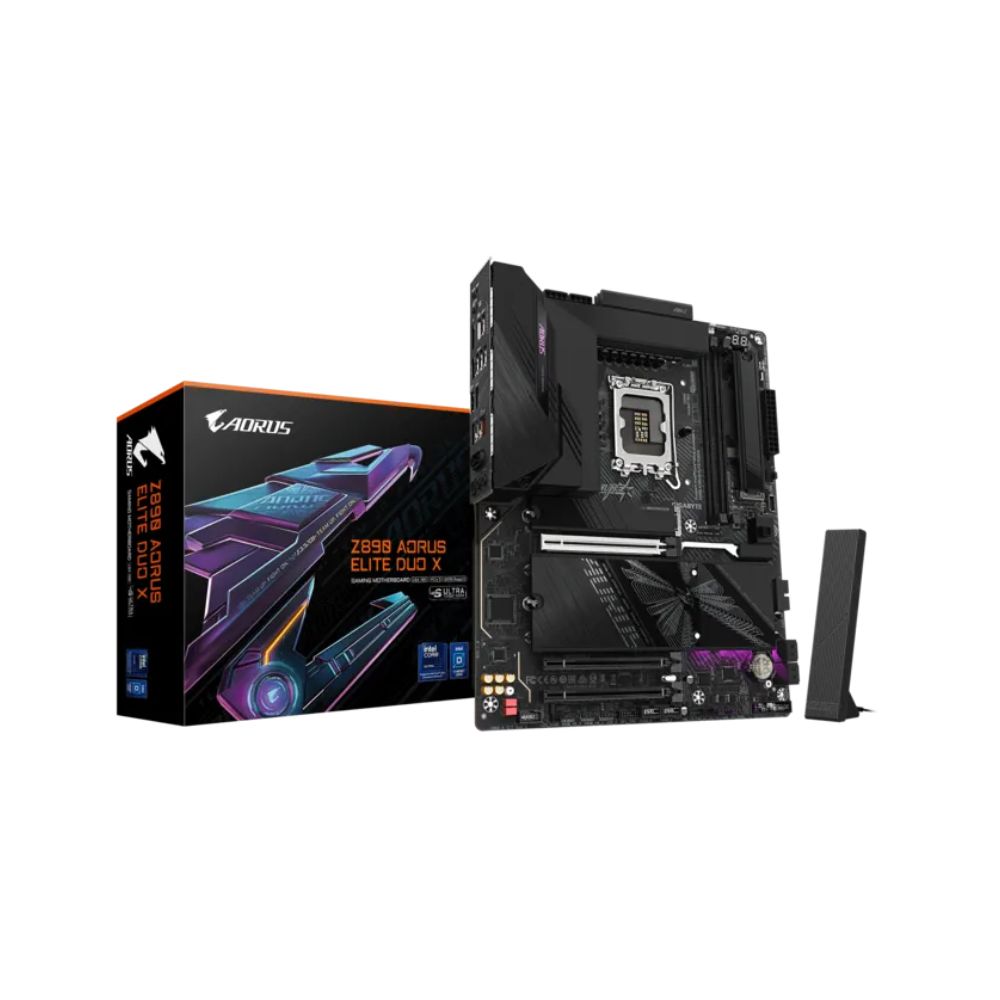

GIGABYTE Z890 AORUS ELITE DUO X - Fast Intel Platform

Model
GIGABYTE Z890 A ELT DUO X

CPU Socket
LGA1851

CPU Support
Intel® Core™ Ultra Processors

Chipset
Intel® Z890 Express Chipset

Memory
2 x DDR5 DIMM slots
Dual Channel
Maximum 256GB
Supports up to 10266+MT/s (OC)
CQDIMM supports up to 8000 MT/s (OC)
Supports ECC operating in non-ECC mode
Supports Non-ECC Quad-Rank Un-buffered DIMM memory modules
Supports Intel® XMP memory modules

Graphics Output
1 x USB4® USB Type-C® port with DisplayPort video output
Supports up to 4096 x 2304 @ 144Hz
Supports DisplayPort 2.1 and HDCP 2.3
1 x DisplayPort
Supports up to 4096 x 2304 @ 60Hz
Supports DisplayPort 2.1 and HDCP 2.3

Audio
Realtek® ALC1220 CODEC
High Definition Audio
2 / 4 / 5.1 / 7.1-channel
Supports S/PDIF Out
Back panel line out jack supports DSD audio

LAN
Realtek® 5GbE LAN chip
Supports 5Gbps / 2.5Gbps / 1Gbps / 100Mbps

Wireless
Intel® Wi-Fi 7 BE200NGW
Supports 802.11a / b / g / n / ac / ax / be
Supports 2.4GHz / 5GHz / 6GHz frequency bands
Supports 11be 320MHz wireless standard

Bluetooth
Bluetooth 5.4

Expansion Slots
1 x PCIe x16 slot from CPU
Supports PCIe 5.0 x16

2 x PCIe x16 slots from chipset
Supports PCIe 4.0 x4

Storage
5 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors

M.2 Support
M2A_CPU supports type 25110 / 22110 / 2580 / 2280 PCIe 5.0 x4/x2 SSDs
M2B_CPU supports type 22110 / 2280 PCIe 4.0 x4/x2 SSDs
M2Q_SB supports type 22110 / 2280 PCIe 4.0 x4/x2 SSDs
M2L_SB supports type 22110 / 2280 PCIe 4.0 x4/x2 SSDs
M2M_SB supports type 22110 / 2280 SATA and PCIe 4.0 x4/x2 SSDs

RAID Support
RAID 0 / 1 / 5 / 10 for NVMe SSD storage devices
RAID 0 / 1 / 5 / 10 for SATA storage devices

USB Support
1 x USB4® USB Type-C® rear port
1 x USB Type-C® internal header with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A rear ports
5 x USB 3.2 Gen 1 ports
8 x USB 2.0 / 1.1 ports

Internal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan / water cooling pump header
3 x System fan headers
1 x System fan / water cooling pump header
3 x Addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
5 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x Front Panel header
1 x Front Panel Audio header
1 x USB Type-C® header with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0 / 1.1 headers
1 x Trusted Platform Module header
2 x Thunderbolt™ add-in card connectors
1 x Reset jumper
1 x Clear CMOS jumper

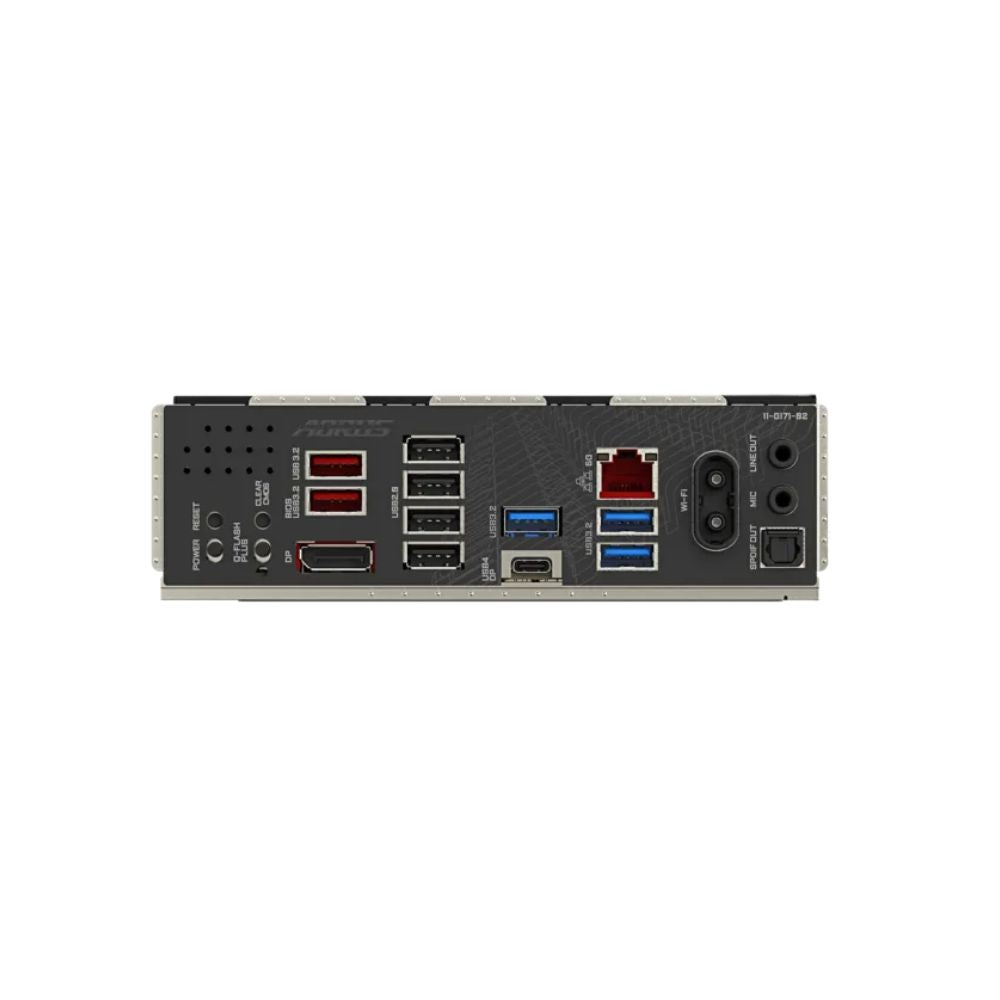

Back Panel Connectors
1 x Reset button
1 x Power button
1 x Clear CMOS button
1 x Q-Flash Plus button
2 x USB 3.2 Gen 2 Type-A ports
1 x DisplayPort
4 x USB 2.0 / 1.1 ports
3 x USB 3.2 Gen 1 ports
1 x USB4® USB Type-C® port with DisplayPort support
2 x Antenna connectors
1 x RJ-45 port
1 x Optical S/PDIF Out connector
2 x Audio jacks

I/O Controller
iTE® I/O Controller Chip

Hardware Monitoring
Voltage Detection
Temperature Detection
Fan Speed Detection
Water Cooling Flow Rate Detection
Fan Fail Warning
Fan Speed Control

BIOS
1 x 512 Mbit Flash
Licensed AMI UEFI BIOS
PnP 1.0a
DMI 2.7
WfM 2.0
SM BIOS 2.7
ACPI 5.0

Unique Features
GIGABYTE Control Center (GCC)
Q-Flash
Q-Flash Plus
Smart Backup

Bundled Software
Norton® Internet Security (OEM Version)

Operating System
Windows 11 64-bit

Form Factor
ATX

Dimensions
30.5cm x 24.4cm

3 YEARS WARRANTY
