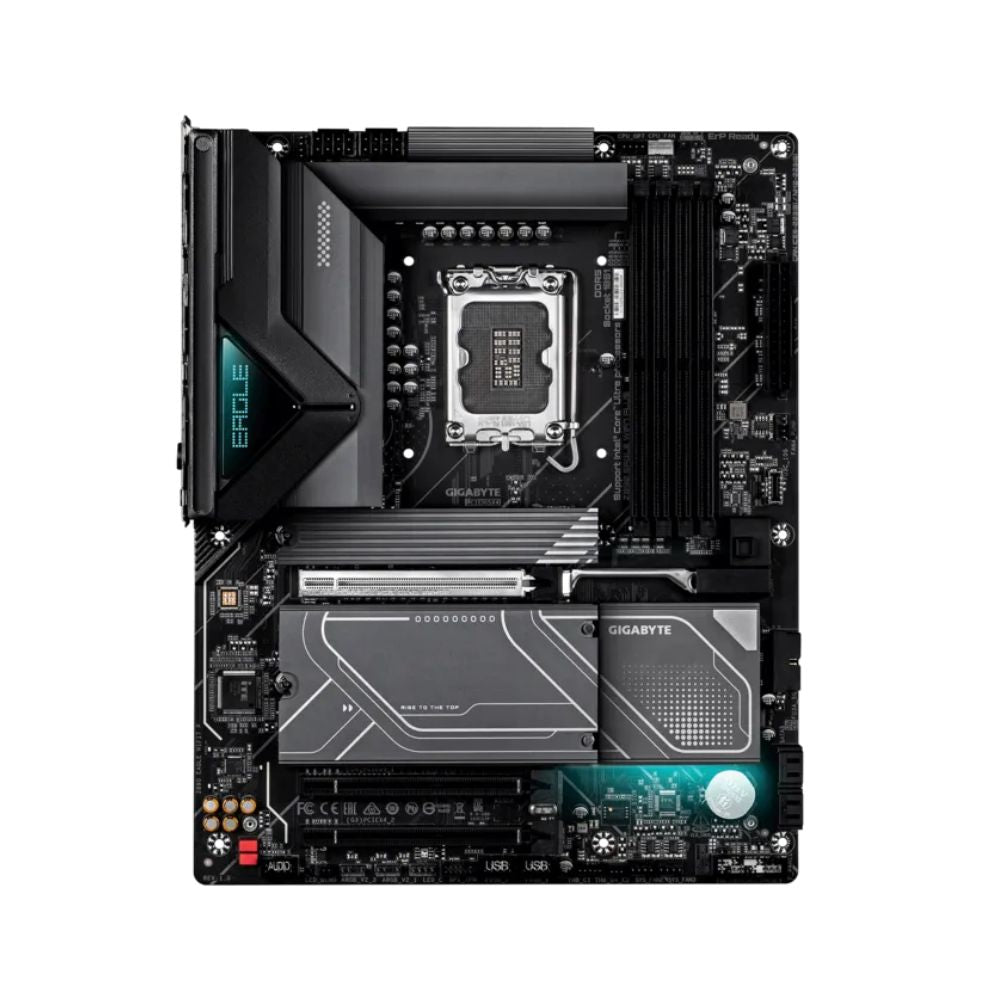

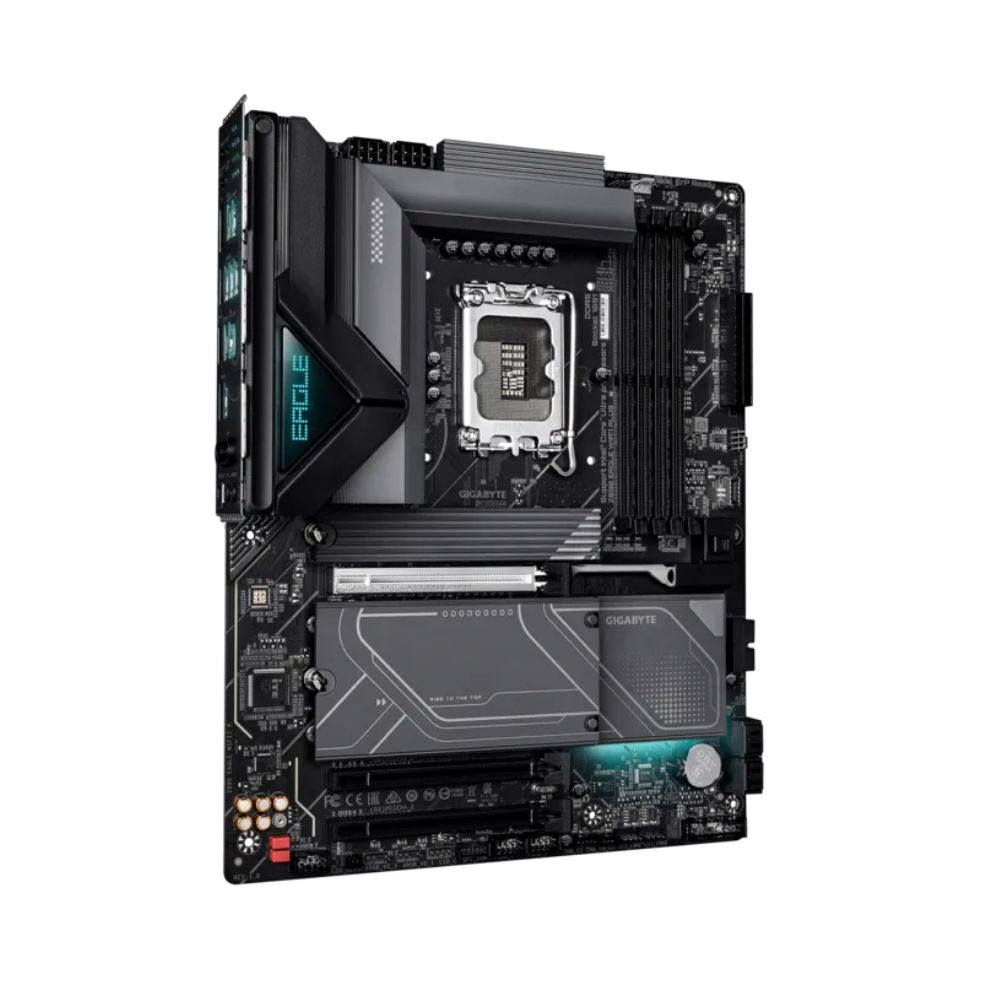

GIGABYTE Z890 EAGLE WIFI7 PLUS - WiFi 7 Performance ATX Board

Model
GIGABYTE Z890 EAGLE WIFI7 P

CPU
LGA1851 socket
Supports Intel® Core™ Ultra Processors

Chipset
Intel® Z890 Express Chipset

Memory
4 x DDR5 DIMM slots
Dual Channel
Supports DDR5 up to 9466+ MT/s (OC)
Maximum Capacity 256GB
Supports Intel® XMP
Supports Non-ECC Unbuffered DIMM

Graphics Output
1 x USB4 Type-C (DisplayPort 2.1, up to 3840x2160 @ 144Hz)
1 x DisplayPort 2.1 (up to 3840x2160 @ 144Hz)

Audio
Realtek ALC1220 Codec
High Definition Audio
2 / 4 / 5.1 / 7.1-channel
Optical S/PDIF Out

LAN
Realtek 2.5GbE LAN

Wireless
Intel WiFi 7
Supports 2.4 / 5 / 6 GHz
Bluetooth 5.4

Expansion Slots
1 x PCIe 5.0 x16 slot
2 x PCIe 4.0 x16 slots (x4 mode)

Storage
1 x M.2 PCIe 5.0 x4
3 x M.2 PCIe 4.0 x4
4 x SATA 6Gb/s
Supports RAID 0 / 1 / 5 / 10

USB (Rear + Internal)
1 x USB4 Type-C
1 x USB Type-C (USB 3.2 Gen 2 header)
2 x USB 3.2 Gen 2 Type-A
5 x USB 3.2 Gen 1
8 x USB 2.0

Internal Connectors
1 x 24-pin ATX Power
2 x 8-pin CPU Power
6 x CPU & System Fan Headers
4 x RGB & ARGB Headers
4 x M.2 Slots
4 x SATA Ports
1 x front panel header
1 x front panel audio header
1x USB Type-C Header
1 x USB 3.2 Gen 1 Header
2 x USB 2.0/1.1 headers
2 x Thunderbolt
1 x Trusted Platform Module header
1 x reset jumper
1 x Clear CMOS jumper

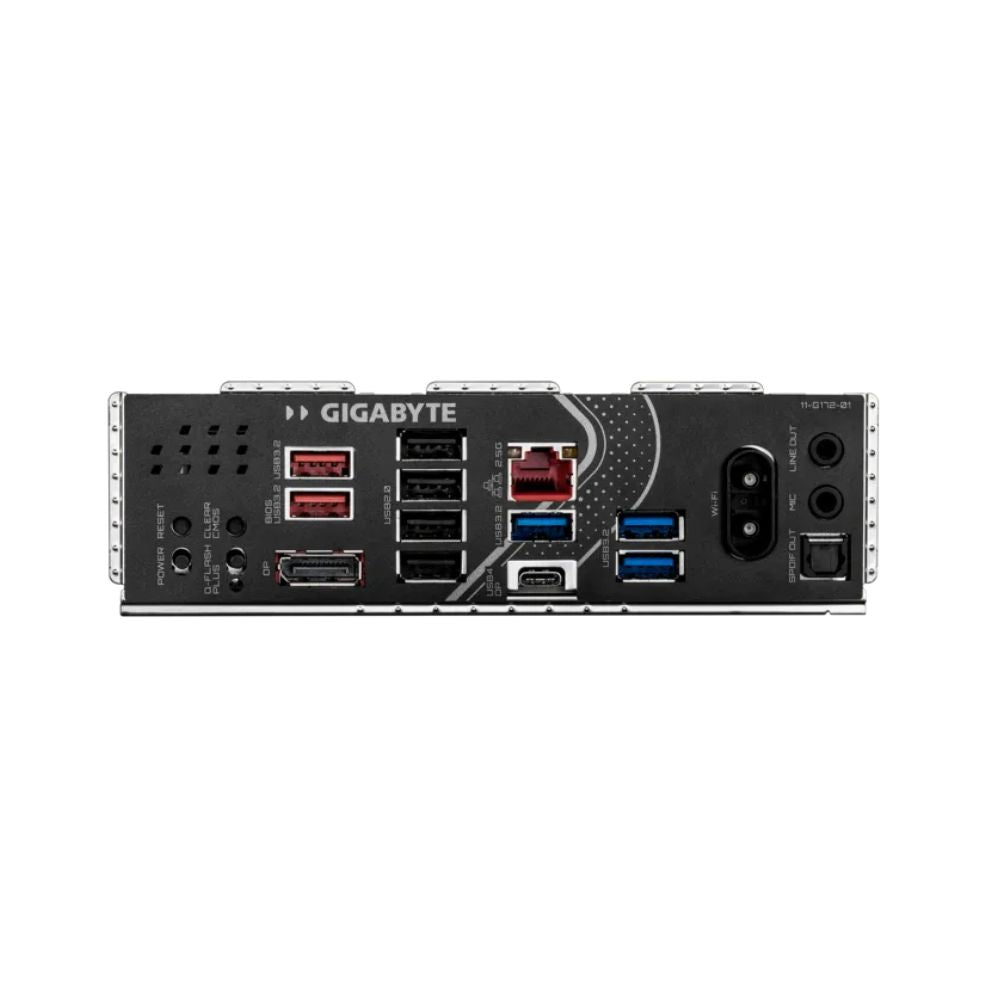

Back Panel I/O
1 x USB4 Type-C
2 x USB 3.2 Gen 2 Type-A
3 x USB 3.2 Gen 1
4 x USB 2.0 / 1.1
1 x DisplayPort
1 x RJ-45 LAN
2 x Antenna Ports
2 x Audio Jacks
1 x Optical S/PDIF
Power / Reset / Q-Flash / Clear CMOS Buttons

I/O Controller
iTE® I/O Controller Chip

H/W Monitoring
Voltage, temperature, fan speed, water cooling flow rate detection
Fan fail warning
Fan speed control

BIOS
AMI UEFI BIOS
512 Mbit Flash

Software Features
GIGABYTE Control Center
Q-Flash
Q-Flash Plus
Smart Backup

Operating System
Windows 11 64-bit

Form Factor
ATX
30.5cm x 24.4cm

3 YEARS WARRANTY
