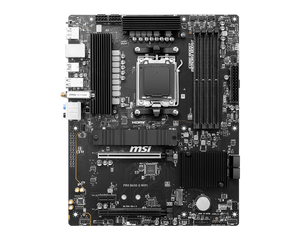

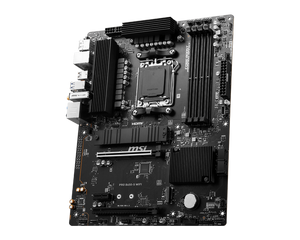

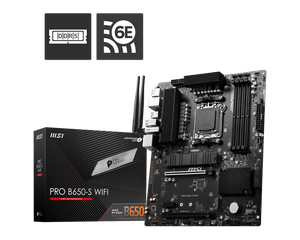

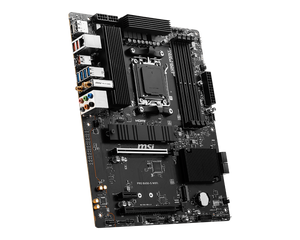

MSI B650-S PRO WIFI DDR5

$260.00$345.00

OVERVIEW
SPECIFICATIONS
FAQ

3 YEARS LOCAL DISTRIBUTOR WARRANTY

Corbell Technology Pte Ltd
4012 Ang Mo Kio Ave 10, #06-04 Techplace 1
Singapore 569628
Contact: 6452 4122

KEY FEATURES

Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors

Enhanced Power Design: 12+2 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost

Premium Thermal Solution: MOSFET thermal pads rated for 7W/mK and M.2 Shield Frozr are built for high performance system and non-stop work

Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2
CHIPSET:

AMD B650

CPUSupports AMD Ryzen™ 8000/ 7000 Series Desktop Processors

Socket AM5

MEMORY:4x DDR5, Maximum Memory Capacity 256GB

Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 7200+ MHz

• 1DPC 2R Max speed up to 6000+ MHz

• 2DPC 1R Max speed up to 6000+ MHz

• 2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports AMD EXPO

ONBOARD GRAPHICS:

1x HDMI™

Support HDMITM 2.1, maximum resolution of 4K 60Hz*

1x DisplayPort

Supports DP1.4, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

SLOT:

2x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

MULTI-GPUAMD MULTI-GPU Support

STORAGE:

2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices

M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G

RAID:

Supports RAID 0 and RAID 1 for SATA storage devices*

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB:

4x USB 2.0 (Front)

4x USB 3.2 Gen1 Type A (Rear)

2x USB 3.2 Gen1 Type A (Front)

3x USB 3.2 Gen2 Type A (Rear)

1x USB 3.2 Gen2 Type C (Front)

1x USB 3.2 Gen2x2 Type C (Rear)

LAN:

Realtek® 8125BG 2.5G LAN

WIRELESS LAN & BLUETOOTH:

AMD Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX

Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIO:

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

INTERNAL IO:

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

4x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

1x Tuning Controller connector(JDASH)

2x Addressable V2 RGB LED connector (JARGB_V2)

2x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 3.2 Gen1 Type A ports

1x USB 3.2 Gen2 Type C ports

LED FEATURE:

4x EZ Debug LED

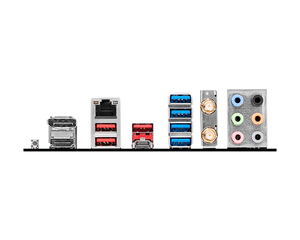

BACK PANEL PORTS

DisplayPort

2.5G LAN

USB 3.2 Gen 2 10Gbps (Type-A)

USB 3.2 Gen 1 5Gbps (Type-A)

Wi-Fi / Bluetooth

Audio connectors

Flash BIOS Button

HDMI™

USB 3.2 Gen 2 10Gbps (Type-A)

USB 3.2 Gen 2x2 20Gbps (Type-C)

OPERATING SYSTEM:

Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB INFO:

ATX

243.84mmx304.8mm

Full Specifications Page
